RichardJones
Active Hunter
Thank you! No celebrating yet, I still have quite a bit to do
RichardJones's ROTJ Animefan Paint/Build
- Thread starter RichardJones
- Start date
jthornton1993
Jr Hunter
get Badger Renegade Krome... Gravity fed is what you want.
tk675
Hunter
awesome, thanks jthornton1993.
RichardJones
Active Hunter

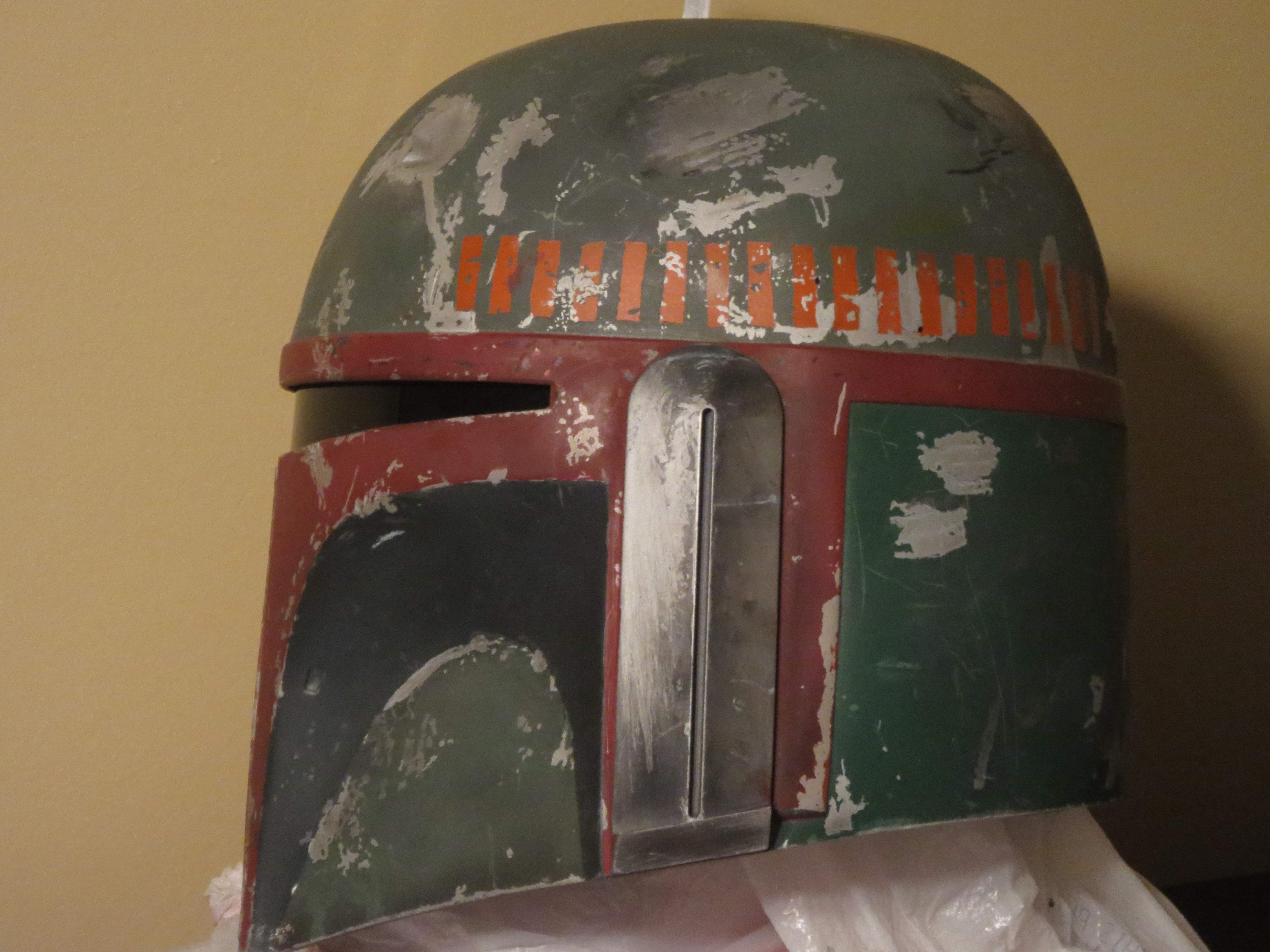

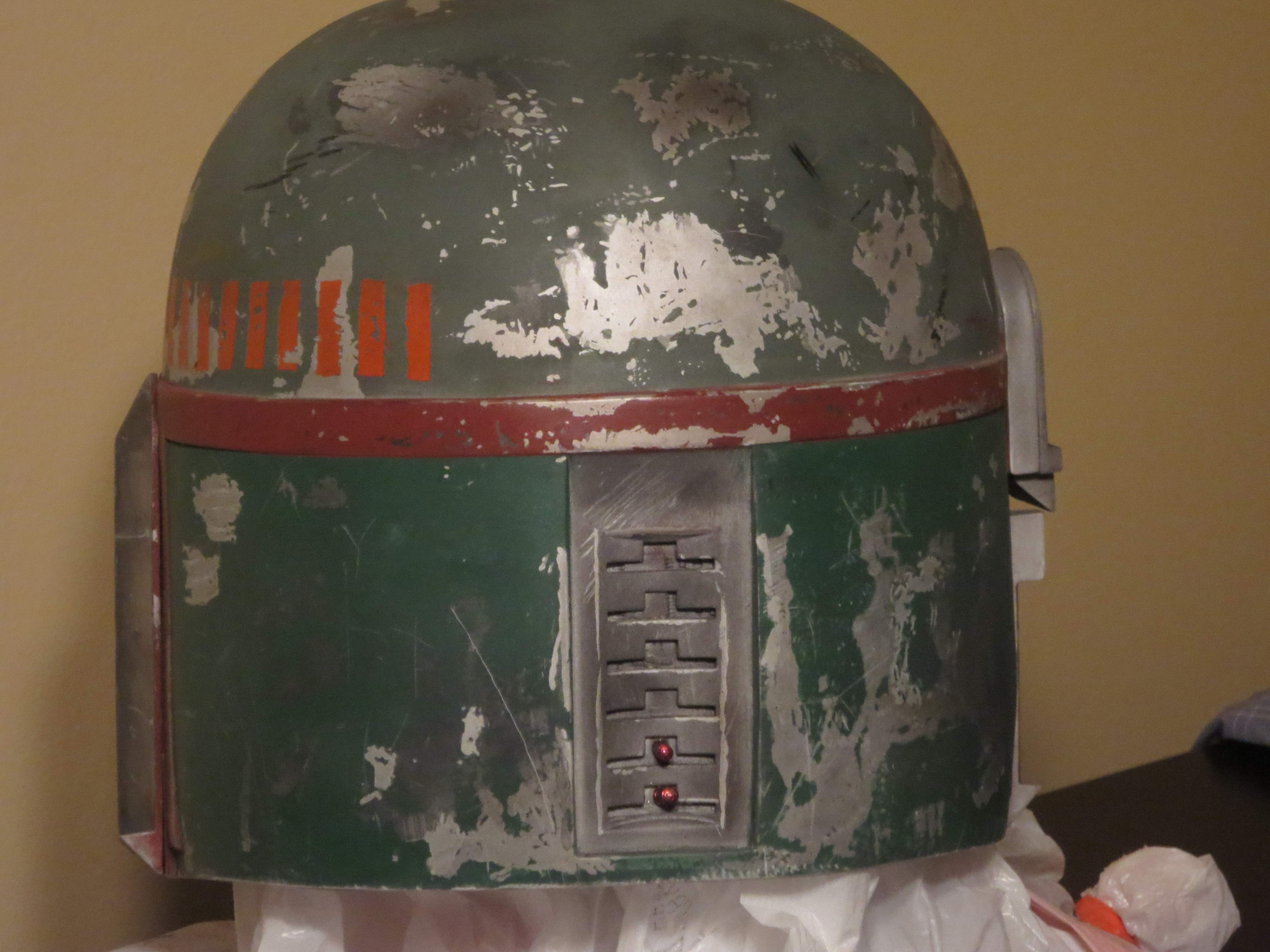

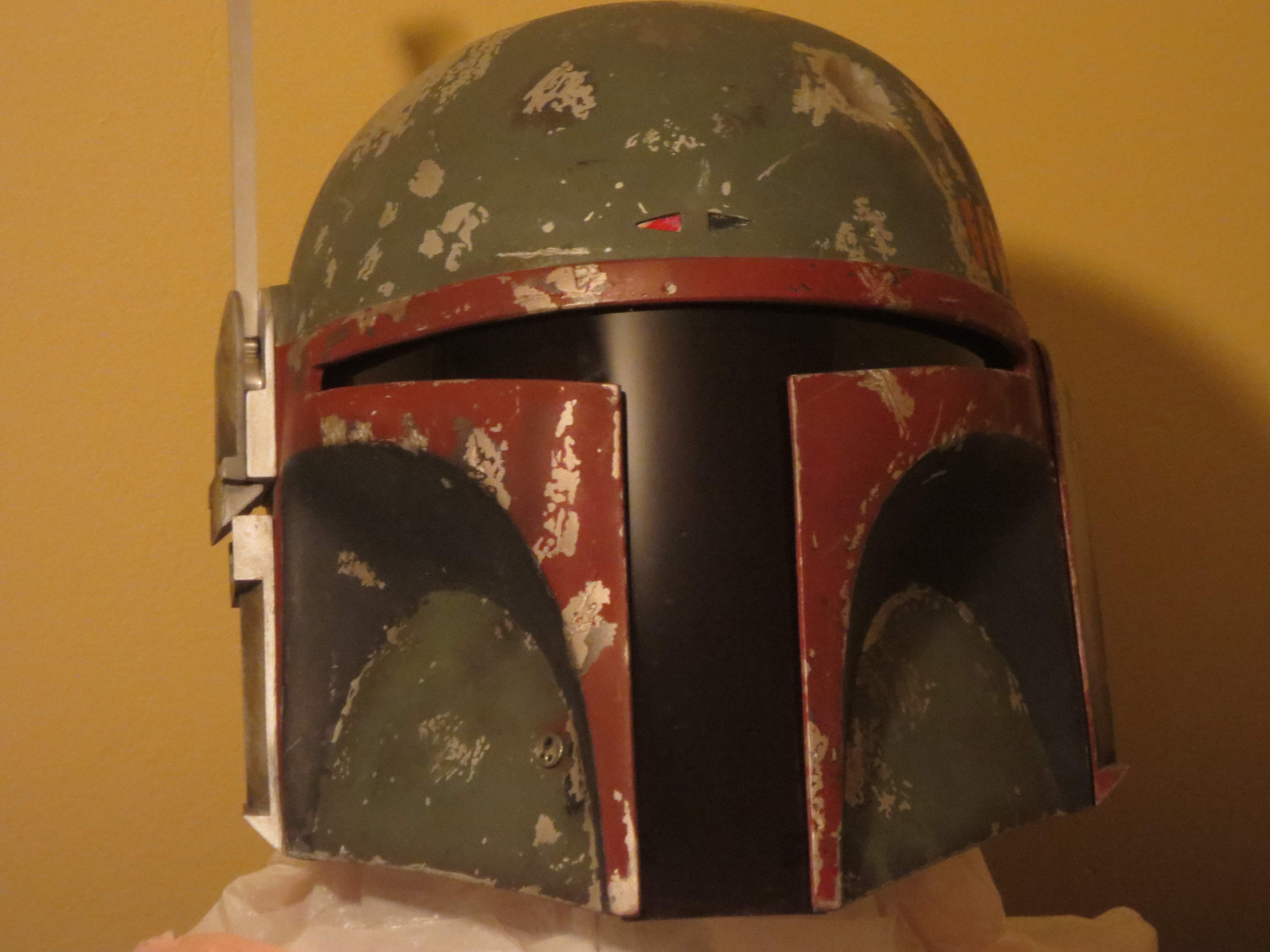

I had a few hours to work today and got a few things done. I installed the MM dental files and mounted the visor. I used a heat gun to form the visor a bit better to the helmet, but I still may tweak the fit a bit more. I used Milliput to secure a MQ-2 circuit board and a square piece of welder's visor. ...
Next up will be getting the rangefinder painted, wired up to a microswitch and a battery pack inside the helmet....
Next up will be getting the rangefinder painted, wired up to a microswitch and a battery pack inside the helmet....
RichardJones
Active Hunter
Thank you, I really appreciate that! Your dent made a huge difference in the overall look.Man, I really like this helmet.
My sister is a Professional photographer, so she will take some good photos for me when everything is done.
Level3Fett
Hunter
RichardJones
Active Hunter
Thank you, it's getting close to the end.
Thank you, your work is a huge inspiration!
RichardJones
Active Hunter
So I have a few small updates.
I ended up purchasing a JC27 light kit with a microswitch and external battery. This kit is great and I highly recommend!

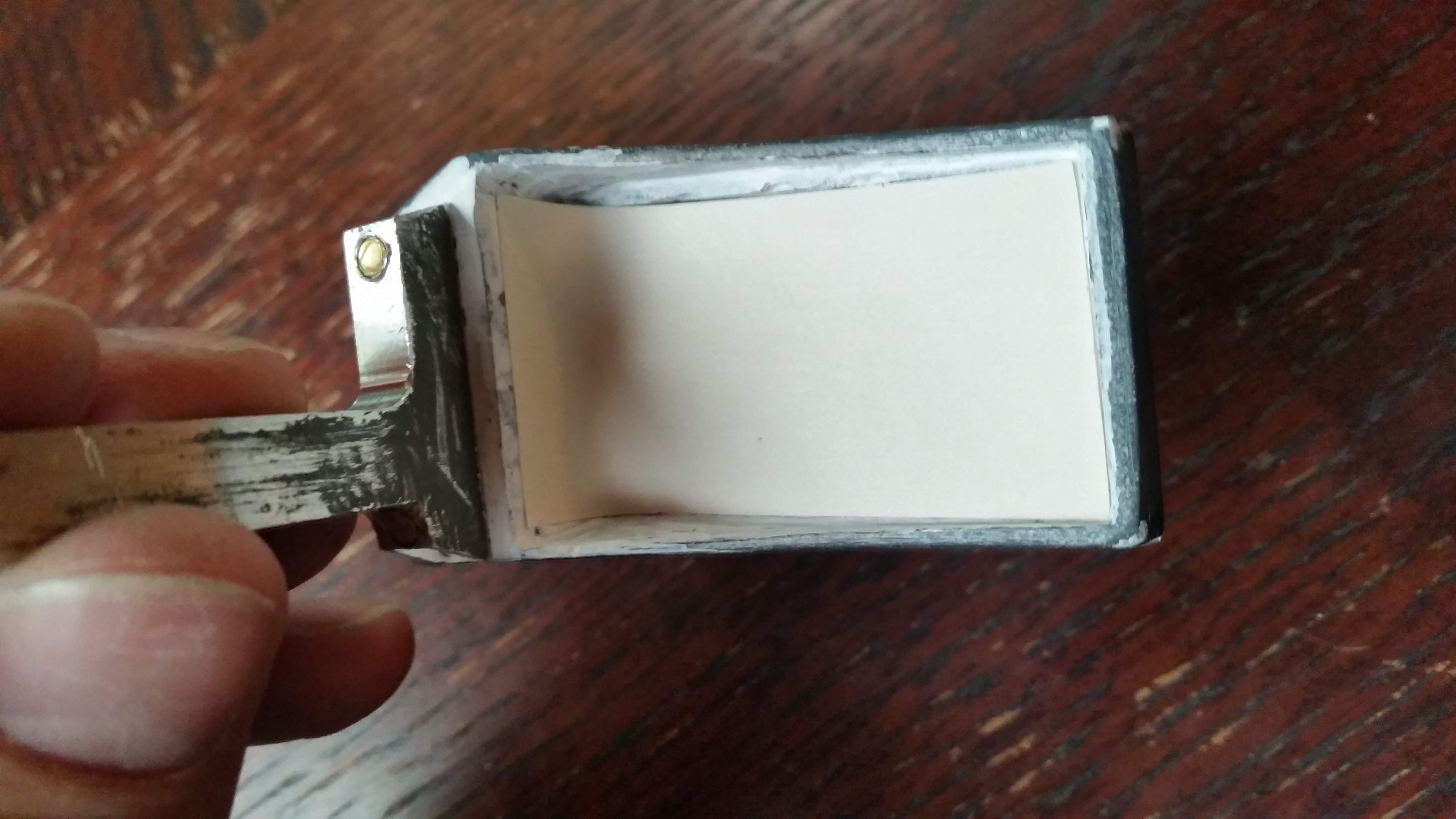

So the first thing that I wanted to do was make the stock Rangefinder kit a bit more accurate. The preplex block as it comes does not sit deep enough into the RF housing. I solved this by cutting the track within the RF housing about a quarter inch deeper. I then painted the whole inside a flat white.

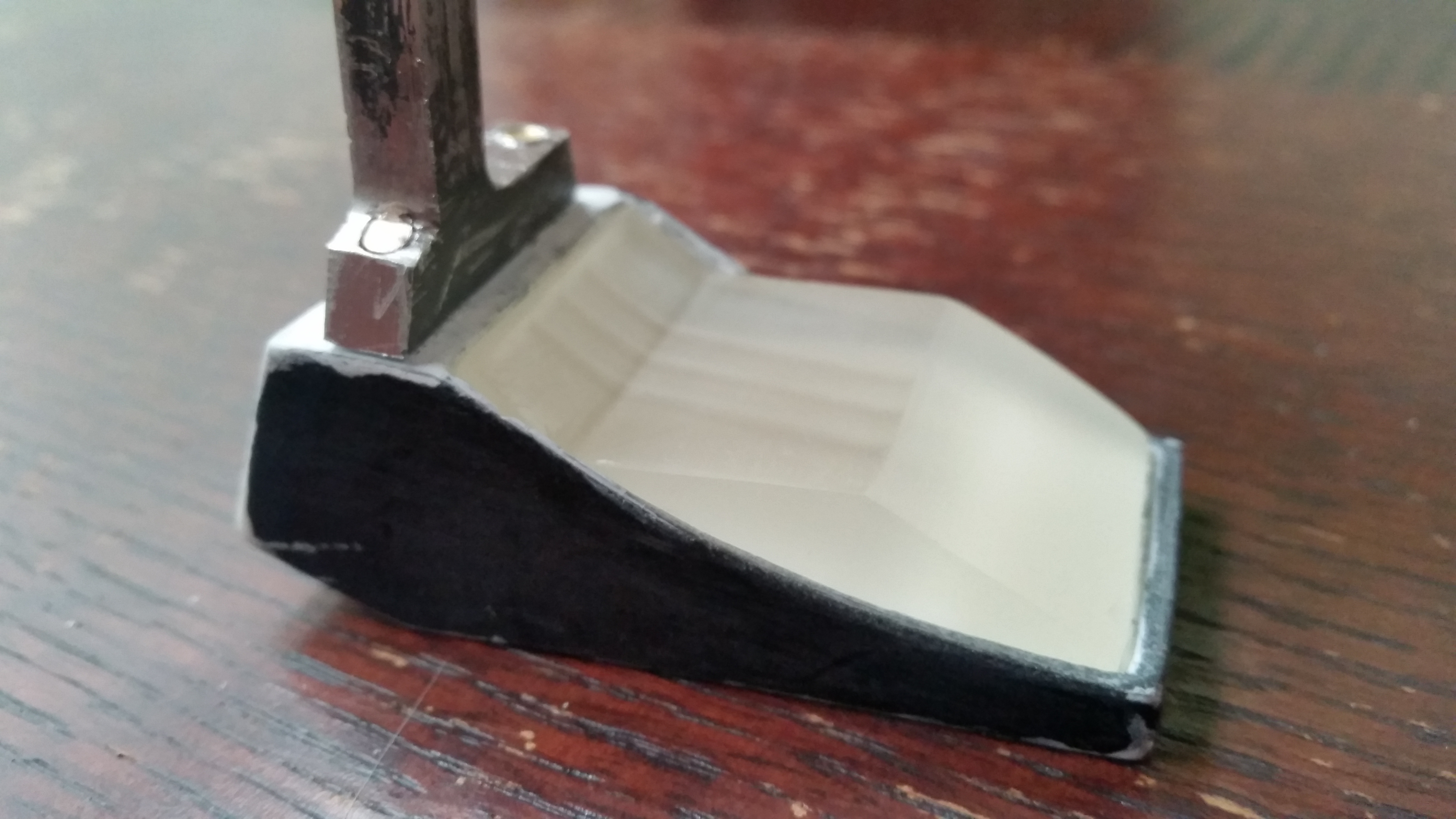

The Preplex block itself needed modification as well. The angled area of the block did not line up with gallery reference photos, so with a dremel cutoff wheel and lots of patience, I was able to get an angle i think somewhat matches gallery reference.

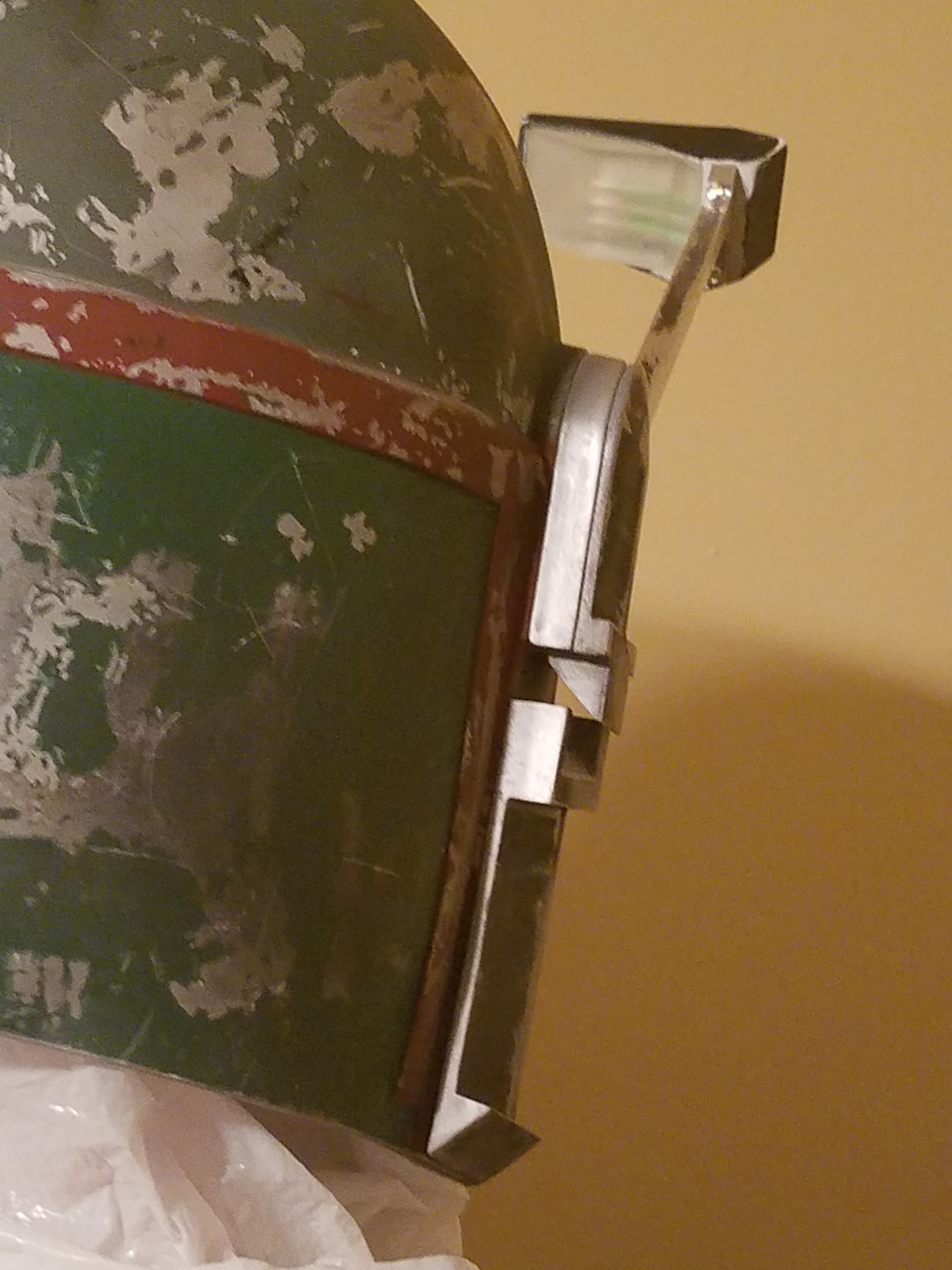

For this kit I also purchased a MojoFett hollow aluminum stalk. The stalk comes with two pre-threaded holes to attach the RF housing too. When I looked at reference photos, I noticed that the machined screws attaching the RF housing went all the way though the stalk and were cut-off and ground smooth. I wanted to replicate this feature, so with a drill and tap bit I was able to use the existing screw holes and just punch them all the way though. i used brass #8-32 machine screws and cut them off flush. (I do still have to grind them smooth). Once I had the screw posts cut, I put a bit of superglue along the threads to keep everything in place.

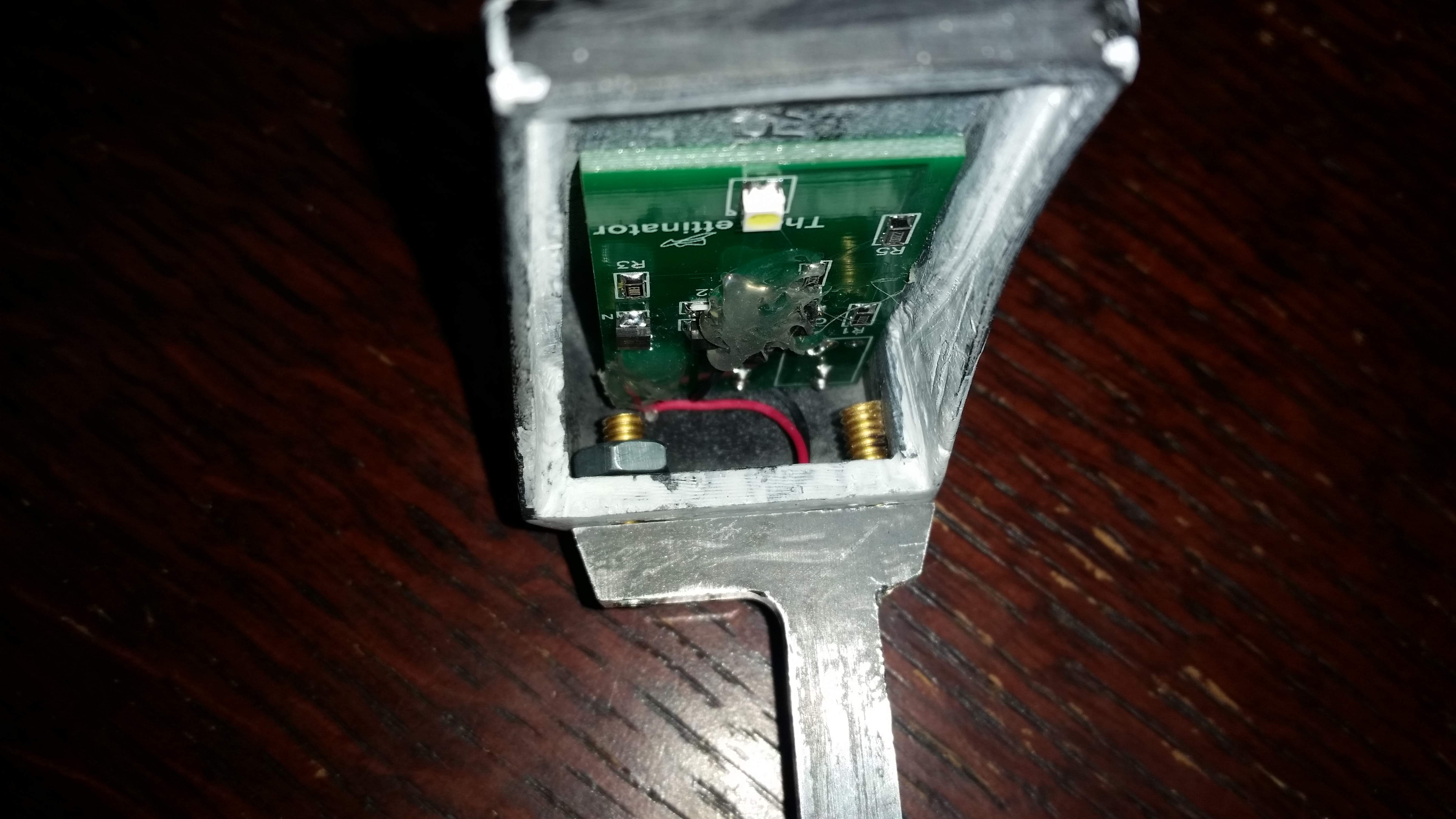

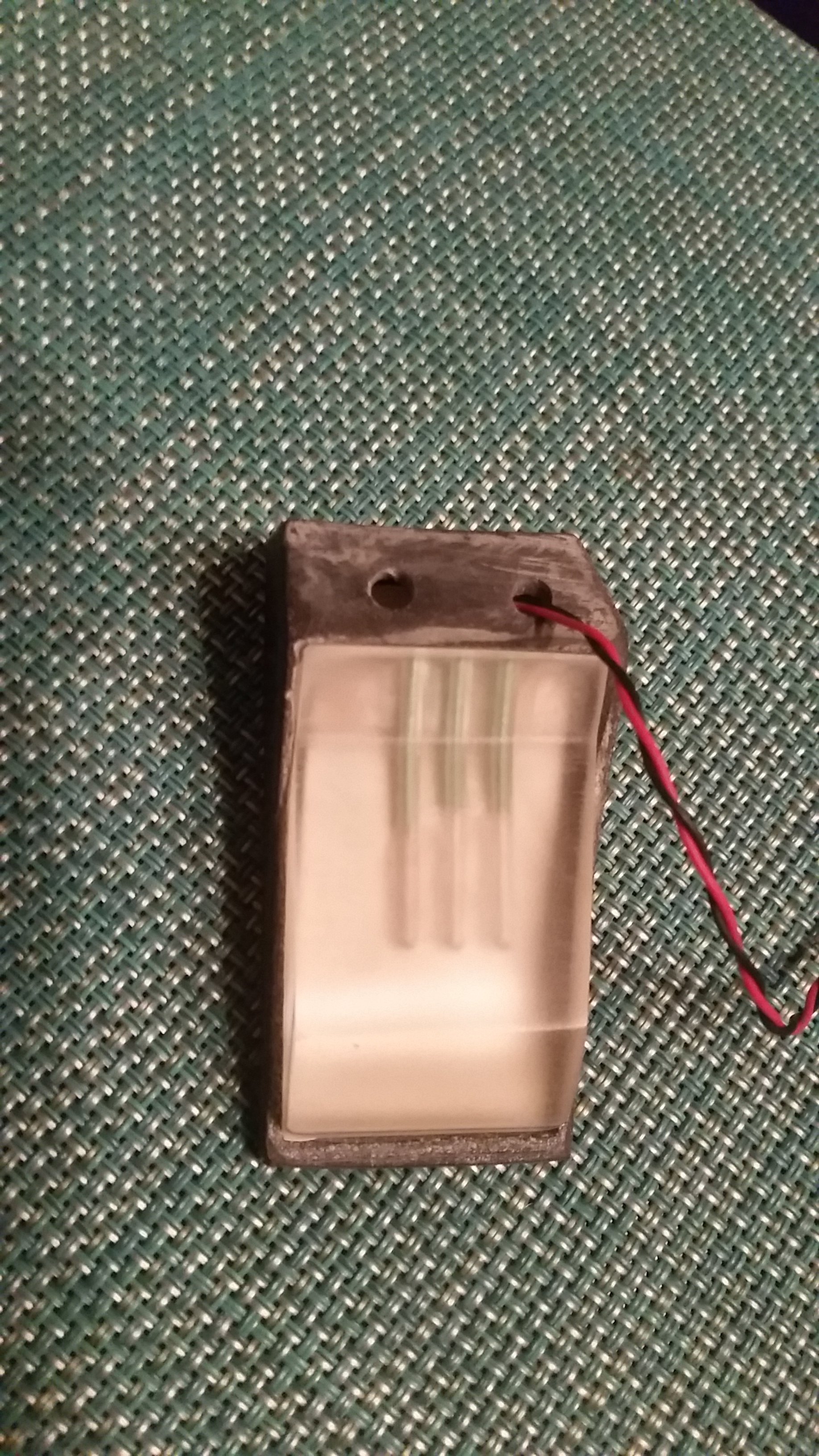

After I popped the JC27 light kit into the housing I cut a piece of yellowish/off-white paper to cover the light kit. The kit is a green circuit board which you can see a mile away through the clear preplex block. I have three Grain of Wheat light bulbs on the way and once they arrive I will use bright green tape to replicate the three green tubes under the preplex block present in the reference photos.
I ended up purchasing a JC27 light kit with a microswitch and external battery. This kit is great and I highly recommend!
So the first thing that I wanted to do was make the stock Rangefinder kit a bit more accurate. The preplex block as it comes does not sit deep enough into the RF housing. I solved this by cutting the track within the RF housing about a quarter inch deeper. I then painted the whole inside a flat white.
The Preplex block itself needed modification as well. The angled area of the block did not line up with gallery reference photos, so with a dremel cutoff wheel and lots of patience, I was able to get an angle i think somewhat matches gallery reference.
For this kit I also purchased a MojoFett hollow aluminum stalk. The stalk comes with two pre-threaded holes to attach the RF housing too. When I looked at reference photos, I noticed that the machined screws attaching the RF housing went all the way though the stalk and were cut-off and ground smooth. I wanted to replicate this feature, so with a drill and tap bit I was able to use the existing screw holes and just punch them all the way though. i used brass #8-32 machine screws and cut them off flush. (I do still have to grind them smooth). Once I had the screw posts cut, I put a bit of superglue along the threads to keep everything in place.
After I popped the JC27 light kit into the housing I cut a piece of yellowish/off-white paper to cover the light kit. The kit is a green circuit board which you can see a mile away through the clear preplex block. I have three Grain of Wheat light bulbs on the way and once they arrive I will use bright green tape to replicate the three green tubes under the preplex block present in the reference photos.
Last edited by a moderator:
RichardJones
Active Hunter

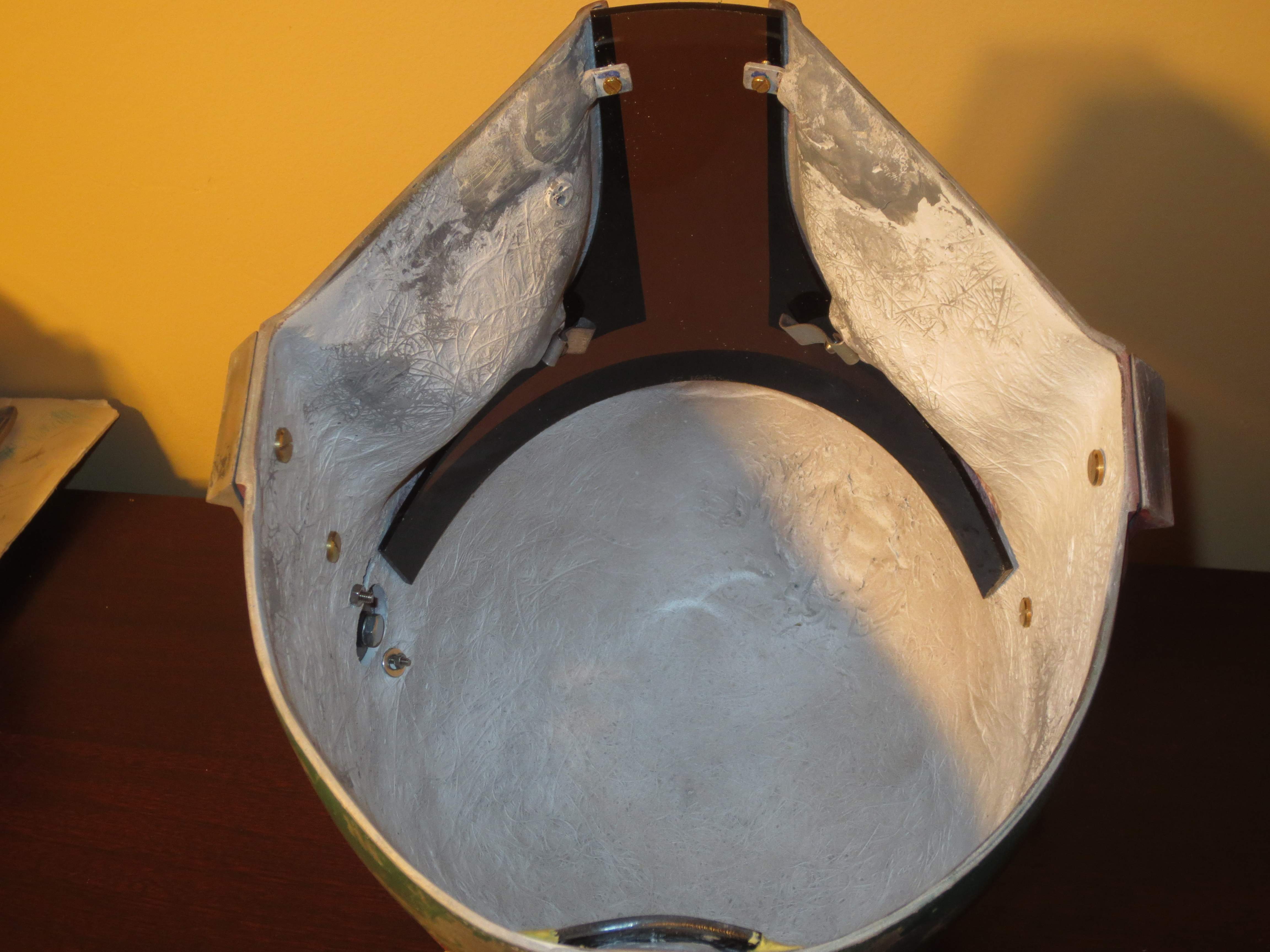

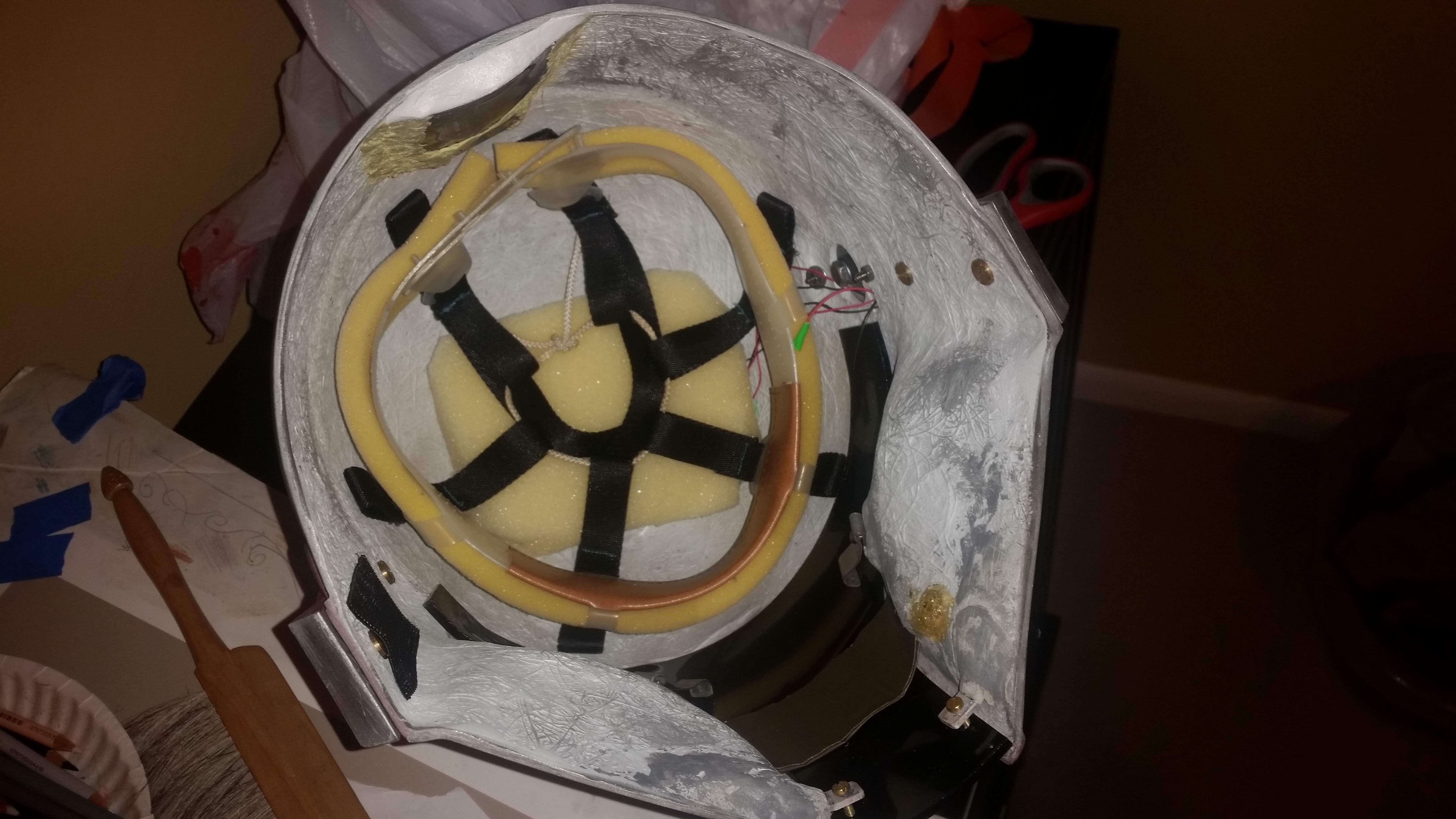

So I made alittle progress on the interior. Still a few things to do and add in. The liner still needs to be glued in, the left chin strap installed and a few odd ends.
WhateverItTakes
Jr Hunter
Looking great to be honest!
RichardJones
Active Hunter
Just waiting on a stand base to arrive, then I will be wrapping this one up..
