Elstree Precision Co Ltd Hero Metal Ears Project

KaanE

Active Hunter
Fron what I see on the blueprints, looks like the angles of the bottom of the ear were not changed, were they?


boba87fett

Active Hunter

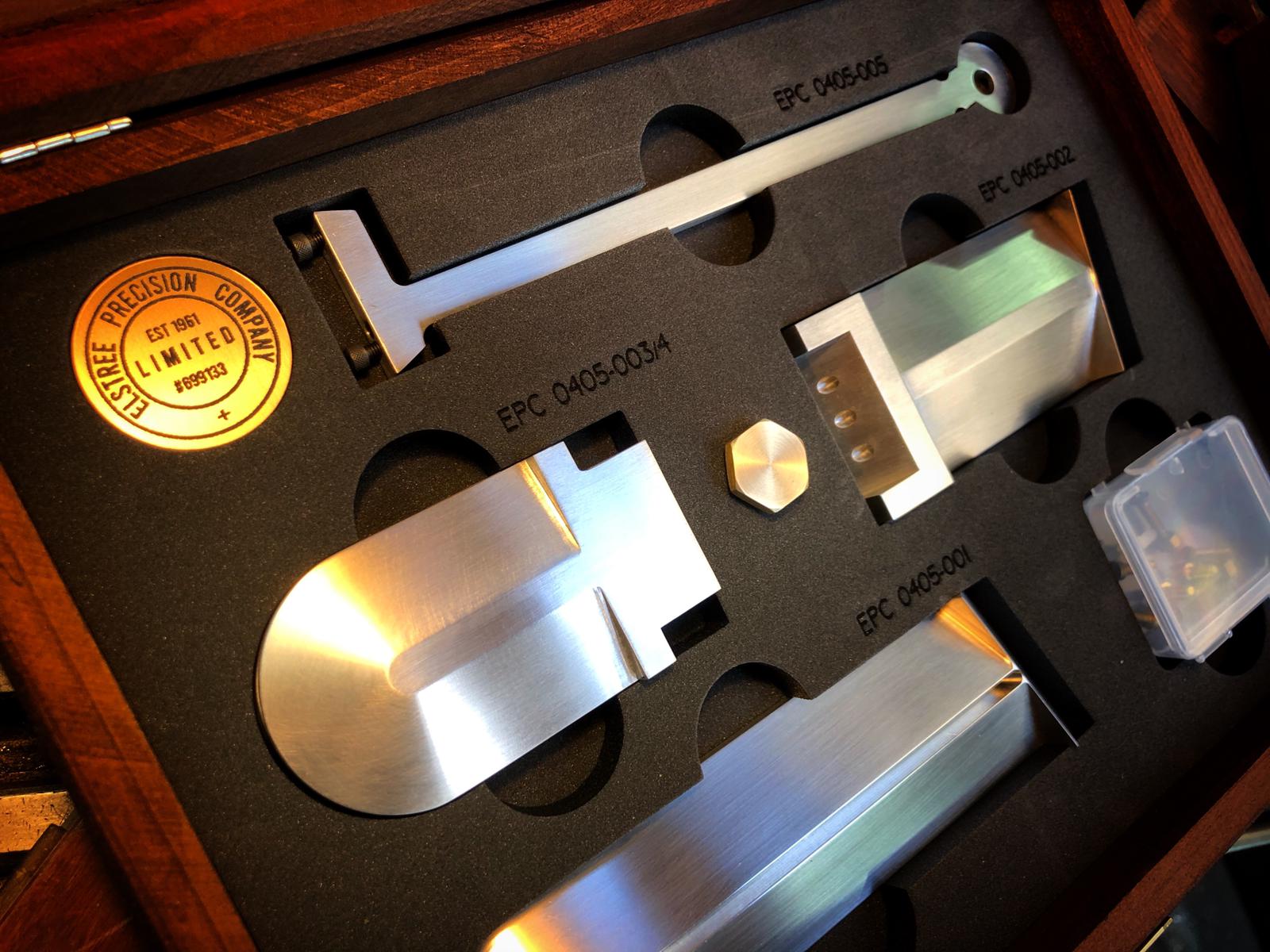

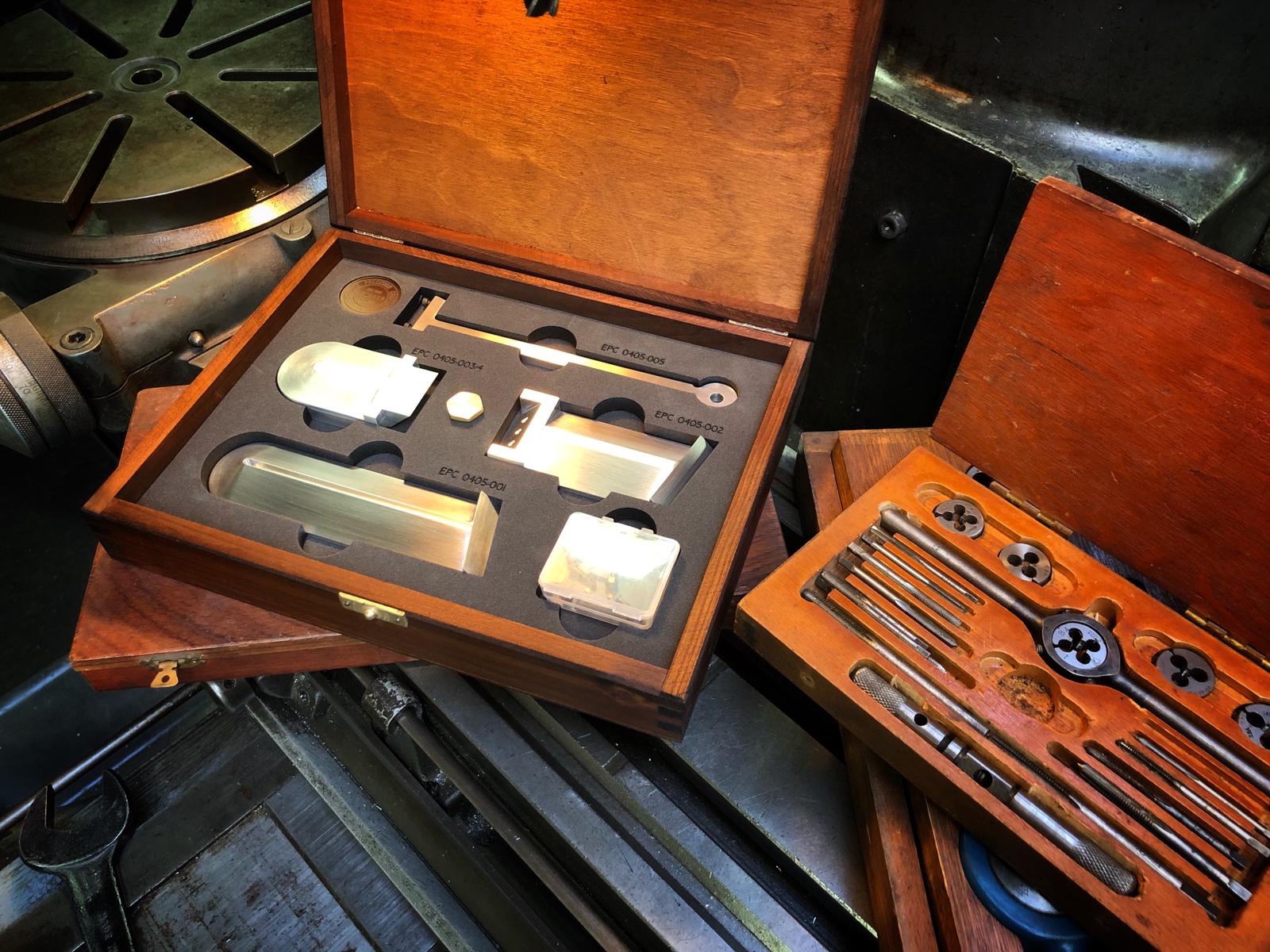

Elstree Precision Co has vintage, speciality tools and the way they store them is pretty awesome. Check it out.





I feel like I should have been expecting to see some wands from Olivander’s wand shop next, but instead got this...







Matching serial and drawing numbers...



EPC is the real deal guys. You can tell John loves what he does by the level of passion he puts into his work. True passion project!


Fett 4 Real

Sr Hunter
I hope this doesnt sound like too dumb a question... but what is this for, apart from looking really really cool?
Drawings are what the machinists and engineers use to make an item. A drawing typically will give dimensions and tolerances they need to be within. These appear to have the numbers removed from them... I assume to keep another machinist from using their data for making their own.


RamSkirata

Hunter
Drawings are what the machinists and engineers use to make an item. A drawing typically will give dimensions and tolerances they need to be within. These appear to have the numbers removed from them... I assume to keep another machinist from using their data for making their own.
Thank you. I did not spot the numbers not being present. The thing regarding drawings though... The general purpuse is known to me.
These days though, nobody does hand drawn plans anymore, everything is CAD. Thats why I asked what the purpose of these specific drawings are. And to be honest, I hope for them to be included with the ears.

John though... I think with the box we have officially passed the point of legend status...

Last edited:

intwenothor

Well-Known Hunter
New helmet has landed in the UK and is out for delivery. This helmet was cast in TC 1630 with fiberglass in June of 2020 and has the following measurements:

Length: 10 4/16" (-2/16" or -3mm from the ESB Hero)

Width: 9 3/4" (-1/16" or -1.5mm from the ESB Hero)

This helmet has significantly less shrinkage than the first helmet that was sent to Elstree, which was cast in gelcoat resin with fiberglass.
Would this be correct?

263.525 mm

249.2375 mm
