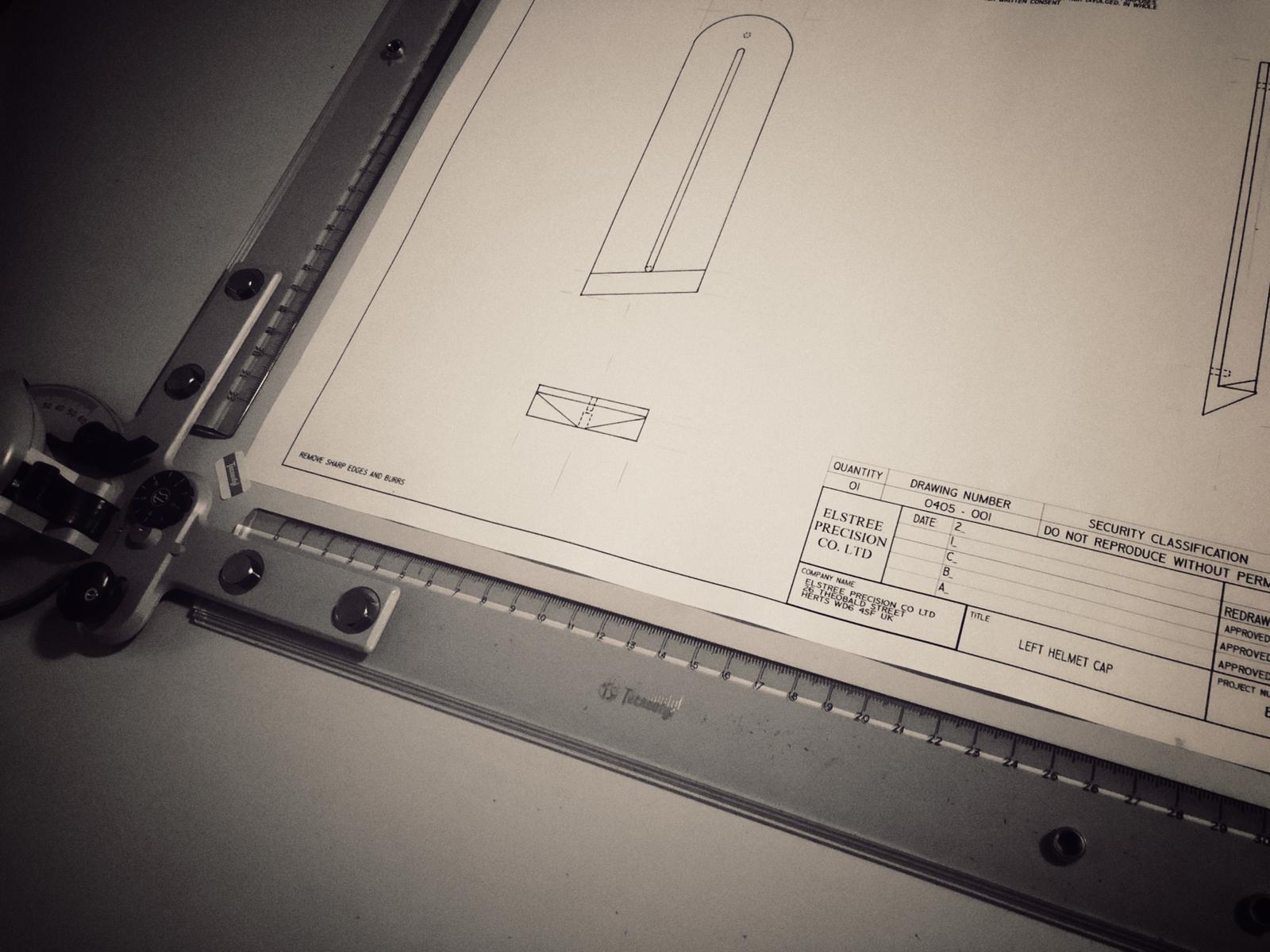

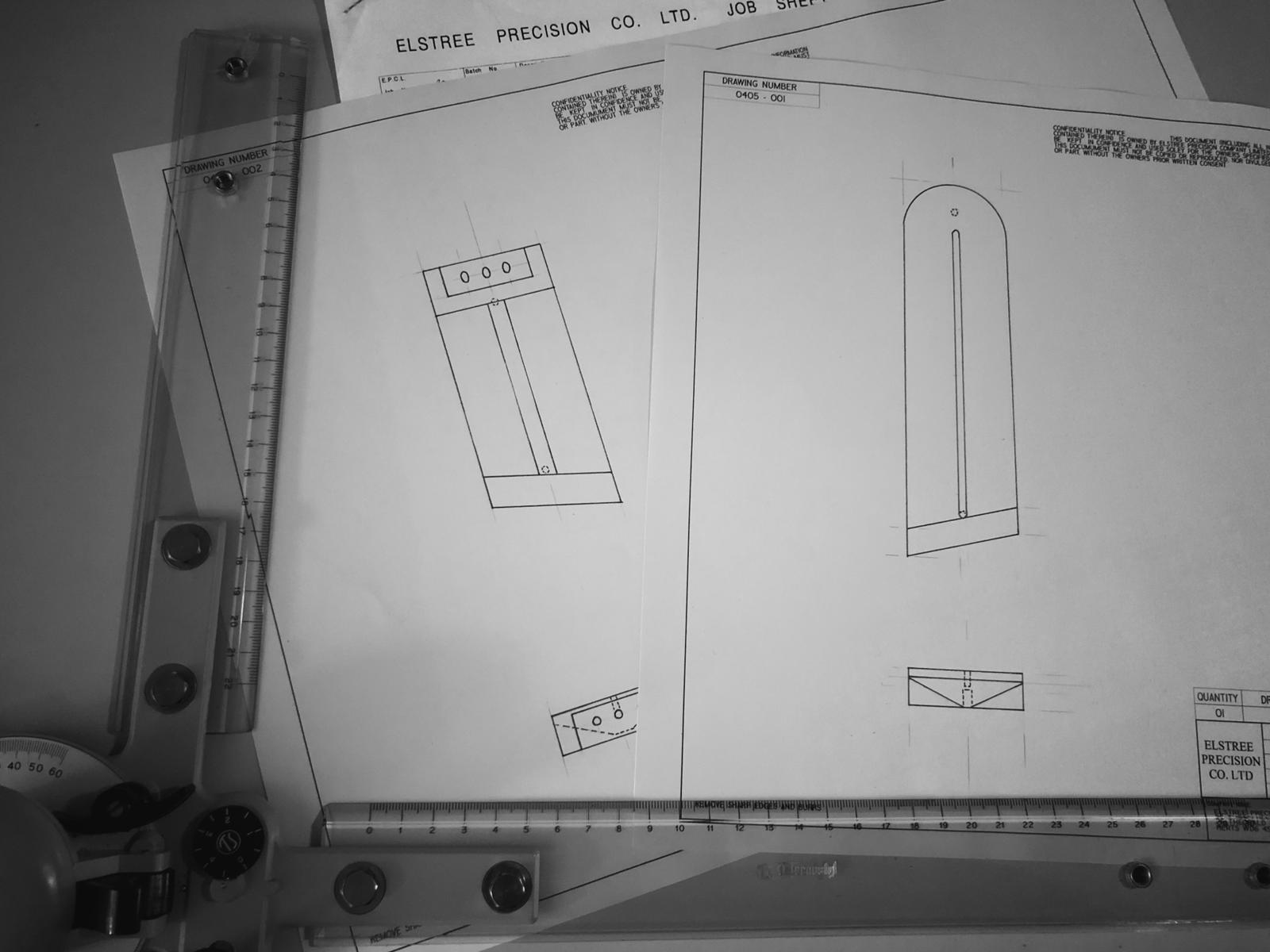

Elstree Precision Co Ltd Hero Metal Ears Project

RafalFett

Well-Known Hunter
Always loved that video of them explaining the various parts of the suit.
Luckily for Ben Burtt (who was a bit overwhelmed by all those features and gadgets), he was helped out by Norman Reynolds, the person who was responsible for drawing the blueprints and supervising the making of the actual suit using concept images of Ralph McQuarrie and Joe Johnston. According to the Star Wars Costumes book he hired Jan(et) Stevens to model the armor, the gauntlets and the helmet, John Mollo to design the soft parts (which were made by Berman and Nathan for both ESB and ROTJ), Brian Archer to do the model of the jetpack with timber and plywood using a mock up that he (Norman Reynolds) made from cardboard and foam core; the suit was assembled by Brian Archer and Nick Allder, with help from George Block (fiberglass parts of the Supertrooper weapons and the right gauntlet plug block) and Bob Dickinson (electronics and flamethrower functionality).


boba87fett

Active Hunter
New helmet has landed in the UK and is out for delivery. This helmet was cast in TC 1630 with fiberglass in June of 2020 and has the following measurements:

Length: 10 4/16" (-2/16" or -3mm from the ESB Hero)

Width: 9 3/4" (-1/16" or -1.5mm from the ESB Hero)

This helmet has significantly less shrinkage than the first helmet that was sent to Elstree, which was cast in gelcoat resin with fiberglass.


scottjua

New Hunter
More progress!

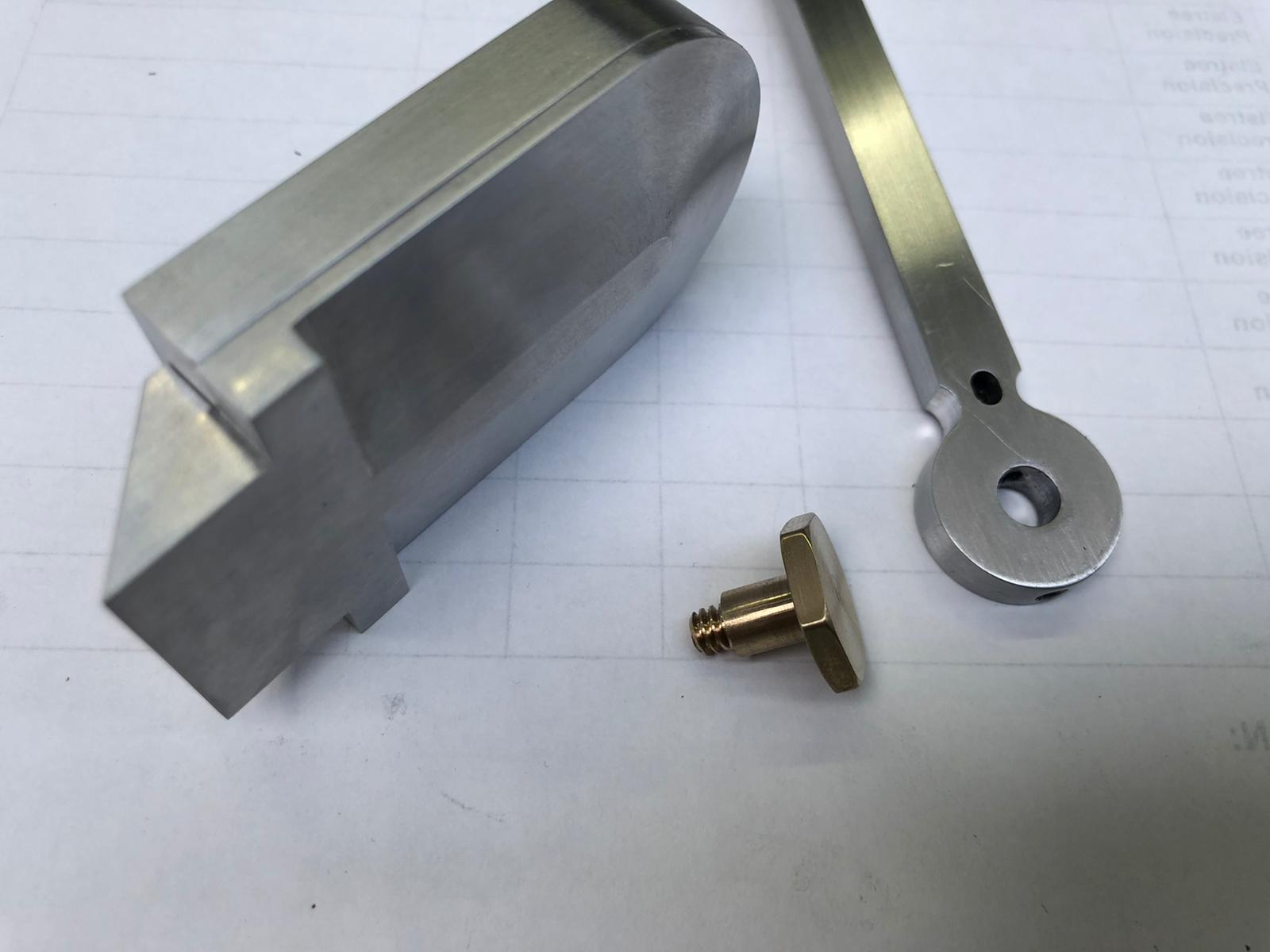

John finished the bolts a few days ago. He recreated the Whitworth thread pattern of the period.

View attachment 192974

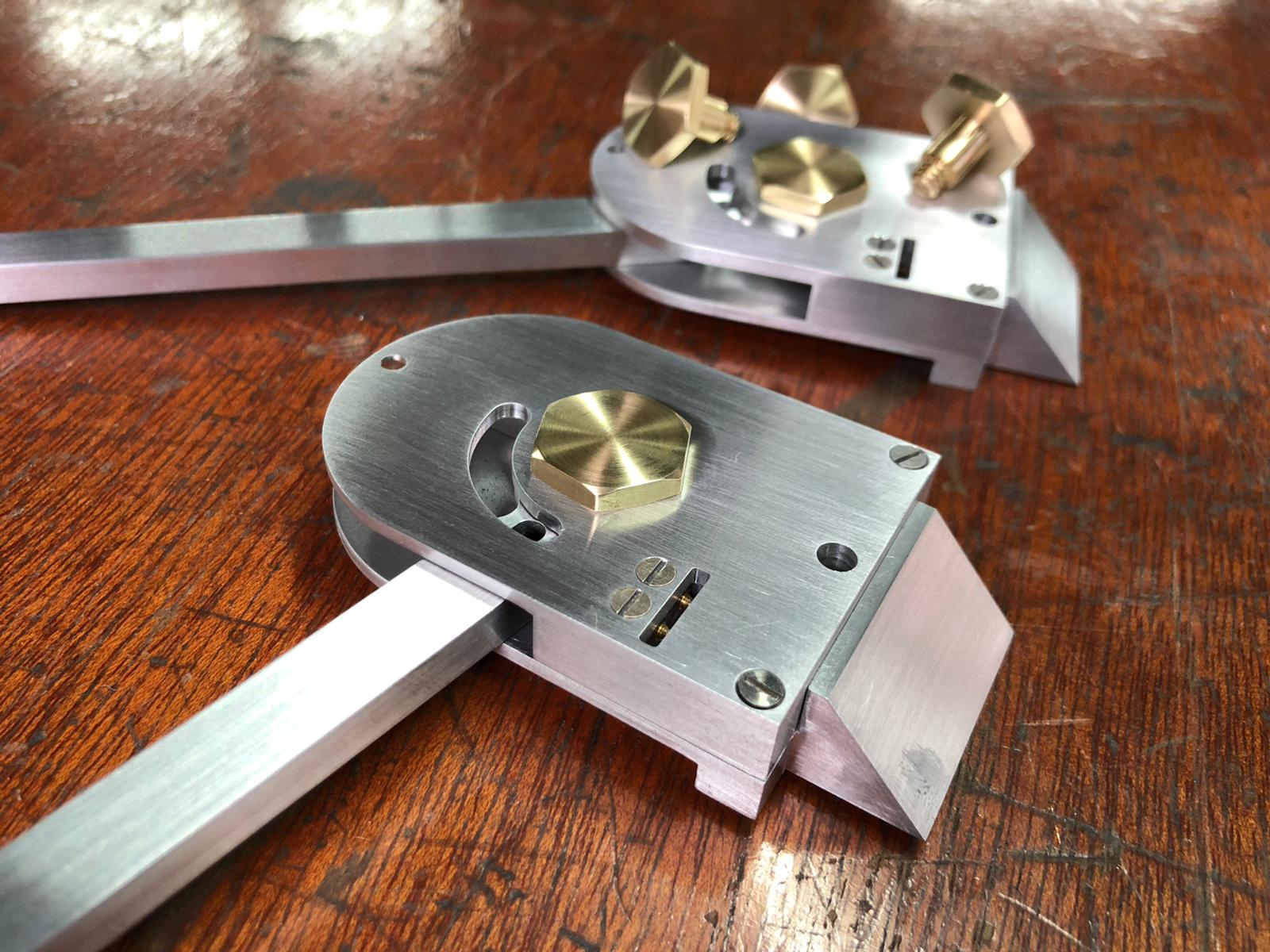

And as of today, the bolts are completed & fitted.

View attachment 192975
View attachment 192976

On the brass bolt... I had a problem with my FPH2 ears from Machinecraft in that, there wasn't enough threaded material to compensate for the thickness of the helmet fiberglass... so the brass bolt wouldn't thread into the front plate/range finder stalk cover...

These look flush on the back... with no thickness of helmet material space...???


Strider

Hunter
New helmet has landed in the UK and is out for delivery. This helmet was cast in TC 1630 with fiberglass in June of 2020 and has the following measurements:

Length: 10 4/16" (-2/16" or -3mm from the ESB Hero)

Width: 9 3/4" (-1/16" or -1.5mm from the ESB Hero)

This helmet has significantly less shrinkage than the first helmet that was sent to Elstree, which was cast in gelcoat resin with fiberglass.
Nice! That could make it likely that the ears will fit both the Gen2 as well as the Gen4 (if done with TC or Epoxy).


KaanE

Active Hunter
I do not know about an epoxy one out of the box. Epoxy shrinks around 2% while TC is 0.002% (from memory). Maybe you would need to enlarge the platforms on an epoxy one. Anyway, boba87fett could deny or confirm my theory.


Strider

Hunter
I do not know about an epoxy one out of the box. Epoxy shrinks around 2% while TC is 0.002% (from memory). Maybe you would need to enlarge the platforms on an epoxy one. Anyway, boba87fett could deny or confirm my theory.
Maybe there are different kind of epoxies but the ones I know have a shrinkage of 0,01 percent. I haven't seen any number given by TC, they only speak of 'low' shrinkage in their product video.


RamSkirata

Hunter
Very reassuring, also for my own plans, that a less shrunken helmet is going to be the basis. Also props boba87fett for actually ginving real measurements regarding the shrinkage! ANd especiall to also give them in mm for us guys across the pond that have no clue what those strange fractions of inches are :D
