ROTJ flamer dimensions?

[Ronin677]

Hi all

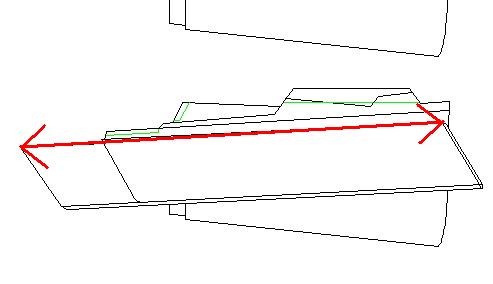

just wondered if anyone could give me the dimension of the flameras shown in the attached pic.

Also the width of a coax connector (Radioshack type).

cheers

Jon



[superjedi]

Jon,
I have a set of Ruffkin's ROTJ gauntlets, and I make that measurement to be 12 3/8", or 314mm. . . depending on which system you're using.

The diameter of the coax parts I used is 5/8", or approx 16mm.

Hope that helps!



[Ronin677]

Jon,
I have a set of Ruffkin's ROTJ gauntlets, and I make that measurement to be 12 3/8", or 314mm. . . depending on which system you're using.

The diameter of the coax parts I used is 5/8", or approx 16mm.

Hope that helps!

Eric, you are a star. thanks for the info, that is exactly what i need.

:cheers



[wizardofflight]

I just noticed this thread and since it is my drawing I figured that I owned you an anwser as well. The flame thrower in the drawings posted above is 12.75".

Alan



[mandalore697]

Jon,

I used a Maplin part for my flamer nozzles. The width is 1.7cm.

Here's a link to the ones I use.

http://www.maplin.co.uk/Module.aspx?ModuleNo=1605&criteria=UHF%20(PL259)%20Connectors&doy=26m5

I only use the bit that appears on the left hand side in this picture, it unscrews from the main body.

I've attached apic of my one on the gauntlet. Sorry its not a great pic!

I weathered it "burning" it with a lighter to give the smoked effect.

Dan



[Ronin677]

Dan - thanks for that mate. I just just about to order them from Radioshack but now i can just nip into Maplins on Castlemeadow

this has made my day.

cheers

Jon



[mandalore697]

More than welcome!



Dan
