Getting fresh air in a mando helmet


I am starting a jango fett costume, and planning on making a black vinyl seal around the bottom of the mask to conceal my chin. Having experience as a 501st Vader, I know about how restrictive these masks can be when it comes to fresh air, AND fogging internally.

Has anyone come up with a way to provide fresh air exchange in the mando helmets without sacrificing visual accuracy?

I have a single fan in my vader mask pulling air out of the helmet, this in most cases is fine, but if the humidity is high, my eyes fog, and I go blind.

Any help here in the early stages would be great!

DM


tubachris85x

Well-Known Hunter
Well. the only real thing you could do is install a single large computer fan, or several smaller fans in various points on the inside. Other then that, I dont know what else to tell you. I only have one, but then again, I dont go out much in it.

-tubachris


batninja

Well-Known Hunter
Also, when installing the visor, don't feel that you have to 'seal' every inch of the edge. Instead, use just enough glue, sparingly, to hold it in place. This will reduce fogging quite a bit.


GRINCH

Active Hunter
I have two small fans in my helmet to kep cool. I also applied an "anti-fog" spray on the inside of my visor that I bought at a dive shop nearby. It is the same spray divers use on there masks to prevent the same thing. I'll look for the bottle this weekend to give you the name. I guess living in FL does have it's perks...LOL

Well, I just recieved my Raw MSH (Mara Sun Helmet).
Aside from looking very small,(I cannot even wear eye glasses in it) The overall construction, from a composite technitions perspective, is very poor, huge voids in the fiberglass, curled in edges from the glass not having any support along it edges when curing. Pits, chunks peeling off, bumps and warps galore.
Now that I have effectively spat upon its condition, let me say, its not a lost cause by any means, just alot of unecessary work I wasnt counting on.
But the person whom casted this should have just buried this helmet. LOL
But for 30 bucks Its not bad for my first bucket.

To compare this helmet I have to what an actuall legion approved 1:1 scale helmet, can somebody toss some measurements my way, like length and height of the T in the helmet, Maybe overall width across the base, and depth of the brow ridges? Cause this thing almost looks like it would fit my 10 y/o son.

Im making mine into a jango helmet. So given silver will show off all things wrong with it, Im going to be nit picky as heck with this fix job. Any frankly this is my first fett bucket so any help, you guys can toss my way would be greatly appreciated!

And back on topic for this post. I (given the lack of space for nothing other than my head) Am planning on using thin glass sheets preformed into a channel going from the key holes at the rear, to the visor in the front (using the smallest cpu fans X2 I can aquire). It will make a long arc like a V around over the ears, with openings venting at an angle from the outer edge of the T visor facing downward toward my mouth. Given that the ducting I am making will only be about 1/8" high it shouldnt crowd my face.
And with a good couple of 9volts in there, along with some no fog spray, I think I should have quite abit of fresh air.

For anyone interested in how this is done I can send pics, and or a drawings to you along with a description. Its very easy to do.

Thanks

DM


Mand alor

New Hunter
This problem shows up often enough in paintball...and probably more so, since you're running around in the heat and humidity while breathing hard. Some use the aforementioned anti-fog spray on the exterior of a standard (single) lense to help reduce fogging, but in my experience this doesn't help a whole lot.

What I've used for a long time with great success is a thermal lense (my mask, the 'Spectra' model made by JT USA, has one). Basically, a thermal lense is two layers of polycarbonate that form an air pocket between them...which allows for a difference in air temperature between the inside and outside of the mask. This way, it's much harder for condensation (fog) to form. What you need to watch out for is getting ANY moisture between the two layers...that'll ruin the lense.

If we could figure out a way to add an inner lense to a t-visor, in addition to at least one fan pumping hot air out of the mask, I'm fairly sure it would eliminate nearly all of your fogging problems...and I doubt you'll be running around in your getup, anyway.


Just a thought.


-Mand’alor
------------------------------
Josh: “What’s faster than the speed of light?”
Dan: “I dunno…what?”
Josh: “The speed of DARK…when you turn off the light, the dark’s already there!”

Yeah or the kids sized one, that is also a crappy copy. LOL

Ill post up a pic of it today with me wearing it if I get a chance.

Im looking at DL'ing WOF templates for boba and trying to compare sizes, since no one has measurements for me to compare mine too.

But the only problem is the jango is quite abit different, ans I donr have the skill to CAD the changes for a jango. And Im not up for making a boba, solely due to the paint alone.

Last edited by a moderator:

Dha Syntir

Active Hunter
I had considered drilling holes (uniformly so it looks like grill-work or the like) in the resin circuit-board and attaching a fan there blowing hot air out the back. However, I have long hair and don't relish the idea of getting a couple strands of hair hung up in it. I'd also considered drilling holes in some pattern or shape on both sides of the helmet with fans directly inside to suck in the outside air-that's what's convenient about customs...Just a thought.



Kivas

Active Hunter
fans are your friend.
I have also seen some drill tiny holes by the right ear piece in between to allow some air movement (along with the keyholes of course).

At the really hot events I leave my gasket off.


Mand alor

New Hunter
I just found two oldskool lense inserts on ebay, which I ordered (they should be arriving any day). These were once used to upgrade a single-lense paintball mask to a double (thermal) one. I *should* be able to cut and modify one (or both) to fit the t-visor I have sitting on my desk...waiting for my Sarge helmet to arrive. I'll let you guys know if I can make this work.


-Mand’alor
------------------------------
Josh: “What’s faster than the speed of light?”
Dan: “I dunno…what?”
Josh: “The speed of DARK…when you turn off the light, the dark’s already there!”


Edrrak Nolat

Active Hunter
I had considered drilling holes (uniformly so it looks like grill-work or the like) in the resin circuit-board and attaching a fan there blowing hot air out the back. However, I have long hair and don't relish the idea of getting a couple strands of hair hung up in it. I'd also considered drilling holes in some pattern or shape on both sides of the helmet with fans directly inside to suck in the outside air-that's what's convenient about customs...Just a thought.
Before I got a severe haircut, I had the same problem while trooping. I found wearing a moisture-wicking balaclava (sp?) did WONDERS. kept my head cool, and with fans, never had any hair pulling problems.

I'll see if I cant find the time to draw out and scan/post up here a drawing of what I was thinking of.

My design wont matter if you have long or short hair.

and be a dual fan system


psberetta

Active Hunter

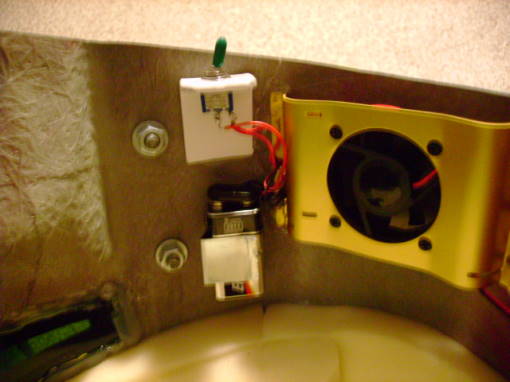

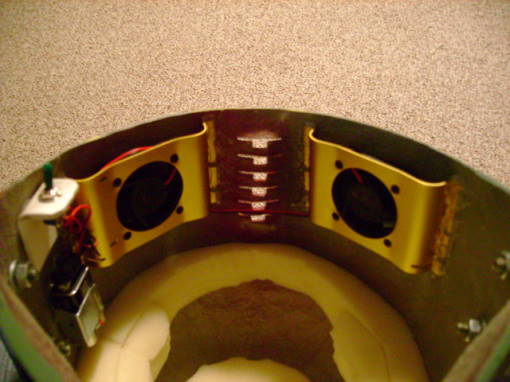

Here is a couple of pics of the inside of my MS2.
I cut a hard drive cooler in half and went this route.

-Tim-




Very nice!!!

I was planning on carving out the side of the fans over the key holes, and doing the same on the other/outer sides, then making a thin channel to bring the air to the front. To bring the fresh air from outside the bucket to the face and eyes.

Very nice setup! i like that its only running off one batt too! how long is the run time on one batt?


Dha Syntir

Active Hunter
Before I got a severe haircut, I had the same problem while trooping. I found wearing a moisture-wicking balaclava (sp?) did WONDERS. kept my head cool, and with fans, never had any hair pulling problems.


I actually have a comfortrel balaclava around here somewhere-that should help and work as a neck-seal...I wonder if they make grey ones, as it'd match my armor.



Fetthunter

Well-Known Hunter
I actually have a comfortrel balaclava around here somewhere-that should help and work as a neck-seal...I wonder if they make grey ones, as it'd match my armor.


I wear a gray Nomex (same stuff firefighters wear) sweat-wicking balaclava. I can't put fans in my MSH1 helmet. There's not enough room with my overly-large head, and the constant droning of the fans drives me WaCkO. :wacko


GCNgamer128

Sr Hunter
With the Fett helmet being open, and the fact that you breathe downward, fresh air isn't necessary in a Fett helmet. The only reason one would need fans would be for cooling.
