UPDATED PRINTABLE JANGO ARMOR TEMPLATES

[wizardofflight]

Templates went out today. Good luck, let me know if I can be of any help.



[Wedge]

Templates went out today. Good luck, let me know if I can be of any help.

Got them Thank You very much



[Myotismon]

How do I properly size the Jango armor 5-7.pdf for my printer? I don't see a sizing key attached to it.



[wizardofflight]

They are set up to print full size on 8.5" X 11 paper when to tell Acrobat to fit to page.

If you have any problems please let me know.

Alan



[stormtrooperguy]

They are set up to print full size on 8.5" X 11 paper when to tell Acrobat to fit to page.

Have you considered exporting your CAD files to STL for 3d printing?



[areich2690]

They are set up to print full size on 8.5" X 11 paper when to tell Acrobat to fit to page.

If you have any problems please let me know.

Alan

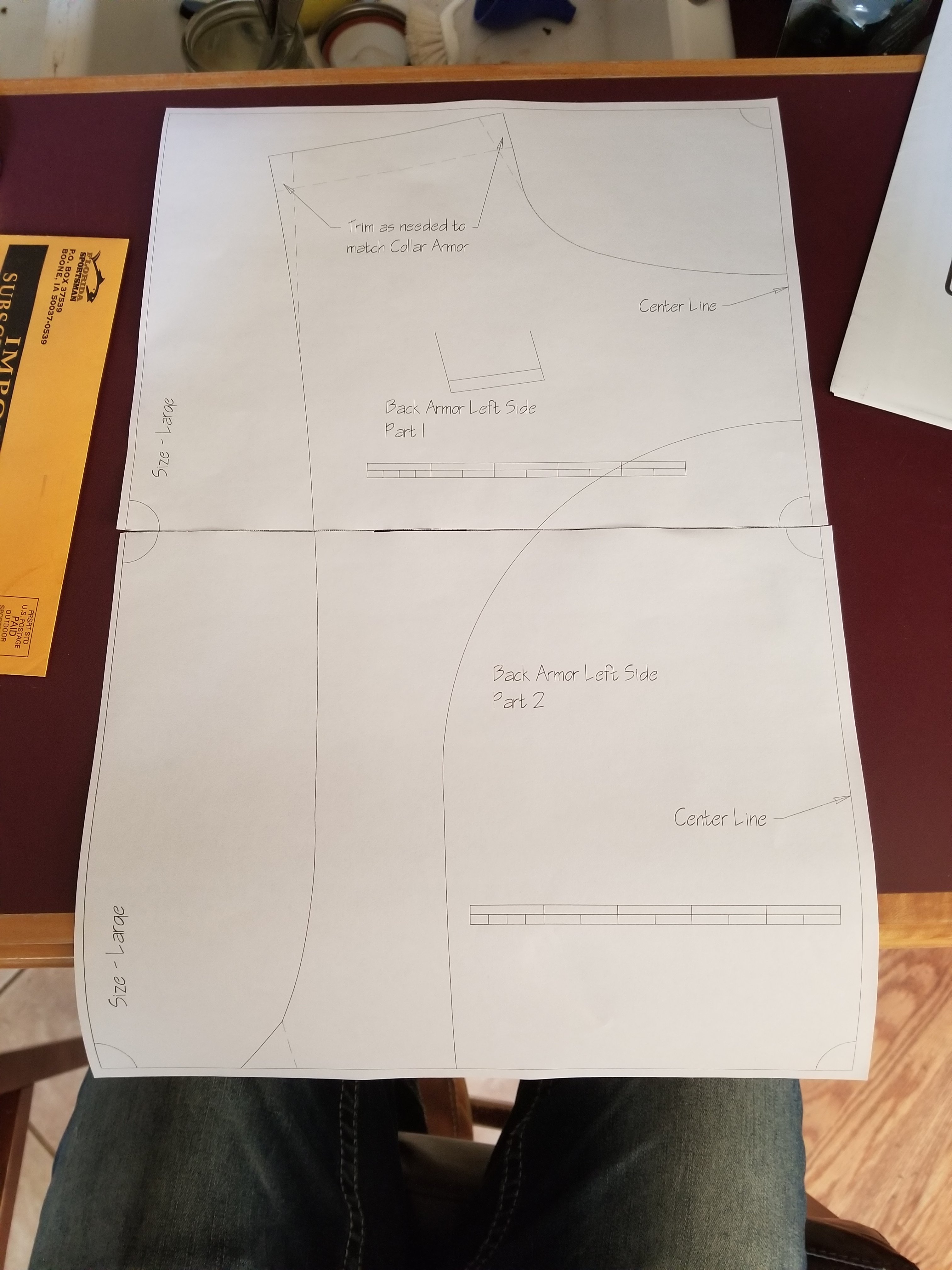

I printed on 8.5x11 and fit to page. forgive a noob here, but are the shin part 1 and shin part 2 supposed to overlap one another? 5'10'' 260lbs here I'm husky so I assume I will have to do some scaling up on the armor pieces. Thanks for your continued help with all this.



[wizardofflight]

Hello,

Yes they are intended to overlap, there are index marks to help line up the two parts.

Alan



[Druun Qarnuk]

Hey WOF I read through the entire thread to make sure I didn't miss anything. Every time I print each individual page is a slightly different scale when using "fit to page" in adobe reader. It makes it so virtually no 2 pieces fit together. Each page also has slightly different "margins" between the border and the paper edge. Just wondering if you know a fix or what could be causing this.

If one side is aligned the alignment gets worse and worse as it moves away from the alignment point.

Edit: it was a loose piece in the printer causing alignment issues. Using another printer the problem was solved.



[wizardofflight]

Glad you found the issue, because I was stumped, I have never seen that problem before.

Good luck, please let me know if I can be of any help.

Alan



[PyroBazz]

Hi guys,

I need help scaling 5-9' to A0 size. Much easier for me to print and cut all the parts in 1 or 2 A0 paper.

Apologies if I'm giving trouble..



[SaboBryon]

First timer here, I'm having trouble figuring out what size is what. I'm trying to find the size for my son (about 50" and 50lb)? Each one I open doesn't seem to have a size listed on it.



[wizardofflight]

Here are the 4 foot templates I don't have 4'-2" templates.



[MadMedic]

If these are set to print as fit to page, how can i scale down the 5'3" down to 5'?



[wizardofflight]

Here are the 5' templates



[KaanE]

A wizard is never late, nor is he early, he arrives precisely when he means to.

Nice to see you around.



[Sephoj]

Heya! I’m wondering why the belly armor is in two sections?



[KaanE]

Maybe because you cannot print the whole belly into one sheet. So you have to glue both sheets of paper and then cut the sintra/pvc.



[Heatley2001]

Have you considered exporting your CAD files to STL for 3d printing?

That would be an awesome option



[Heatley2001]

Will there ever be an option to have the files in STL form?



[KaanE]

If you want to 3D print them, there is a seller on ETSY who has some lineage pieces scanned and also the rest of the armour which were sculpts made by Cruzer here.
