Ammo Belt Tutorial : Ammo Belts V2 (with RafalFett templates)

[RafalFett]

Great job!

Just a side note for those who don't have all the info: the Pre-Pro #3 soft parts were used on the ESB Hero suit too (except the cape and the spats), so the ammo belt is the same on both suits. The Supertrooper ammo belt was converted (painted) to the Pre-Pro #1 suit, then added to the ROTJ Hero suit (it's the one from the MoM, Dag and SWtE exhibits).



[StrumFett]

Thanks RafalFett !

This is the last one :
The Pre Production #2 (PP2) version :
[TABLE="width: 800"]
[TR]
[TD="align: center"]Summary[/TD]
[TD="align: center"]Reference pics[/TD]
[TD="align: center"]Belt scaled 1:4[/TD]

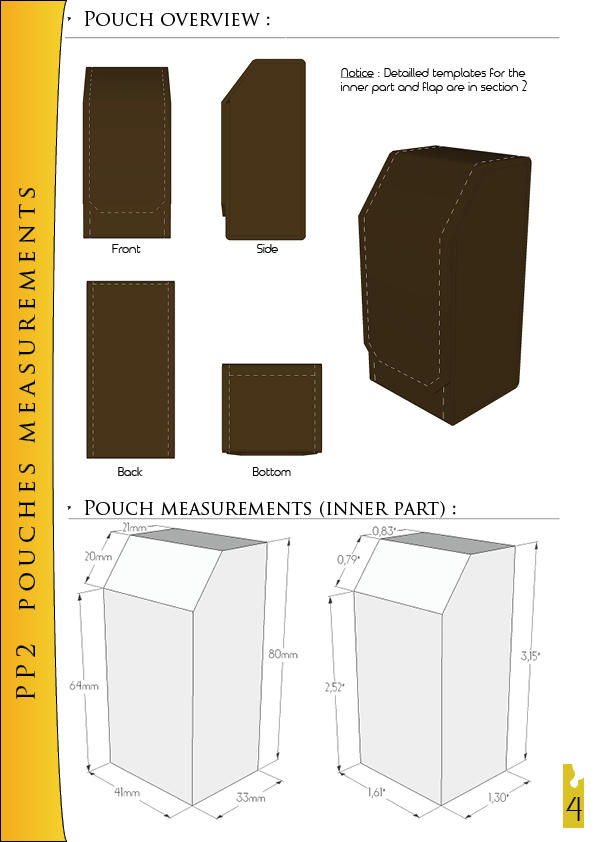

[TD="align: center"]Pouches[/TD]
[TD="align: center"]Belt ends[/TD]
[/TR]
[TR]
[TD="align: center"] [/TD]
[TD][/TD]
[TD][/TD]
[TD="align: center"]
[/TD]
[TD][/TD]
[/TR]
[/TABLE]



[StrumFett]

i'm searching some info on the PP2 belt and i wonder if itsn't the same than ROTJ.



[RafalFett]

i'm searching some info on the PP2 belt and i wonder if itsn't the same than ROTJ.
View attachment 75264View attachment 75266

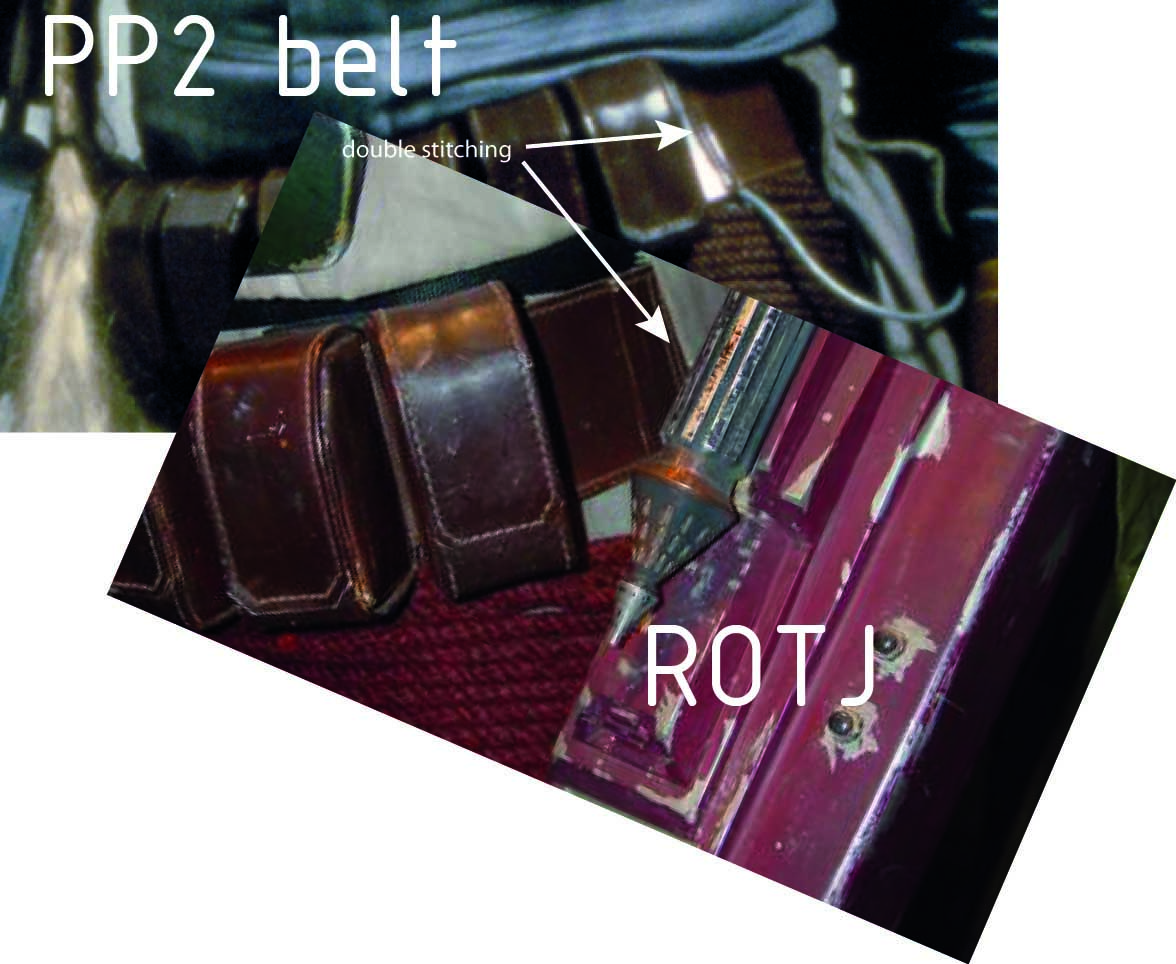

It is possible, but not all the details matches between the 2 belts:

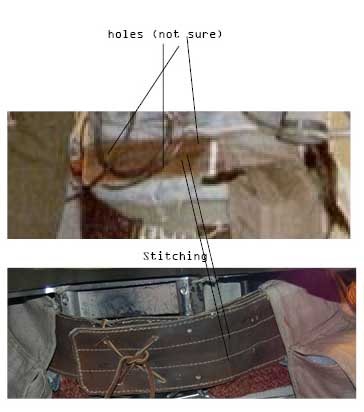

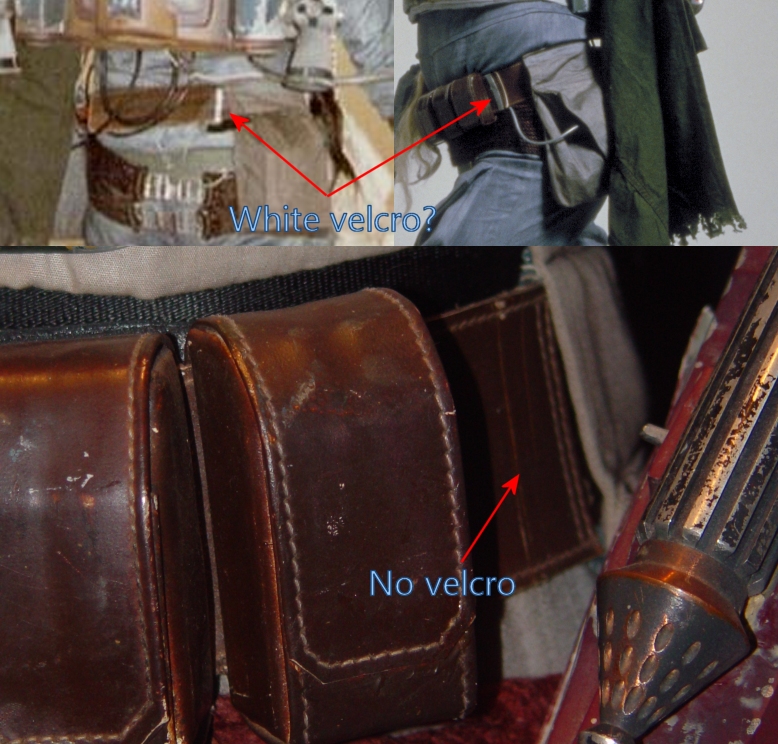

The Pre-Pro #2 seems to have white velcro sewn in at least 2 places, while the Pre-Pro #1/ROTJ doesn't have that feature.

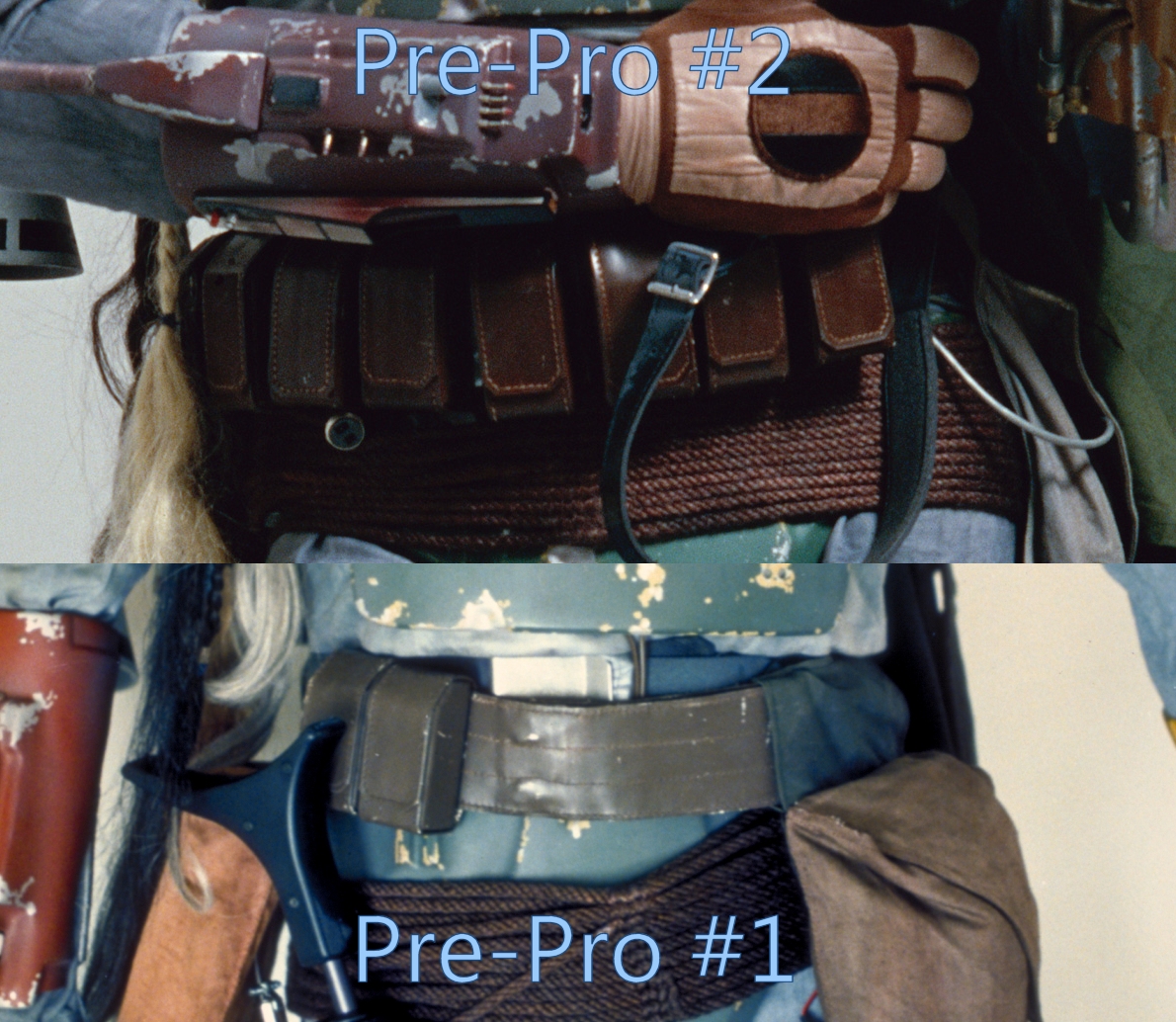

And comparing the Pre-Pro #1 and the Pre-Pro #2 ammo belts, to me it it looks like different materials (the color look different because of the hue of the image); the Pre-Pro #1 looks like leather, while the Pre-Pro #2 looks like vinyl:

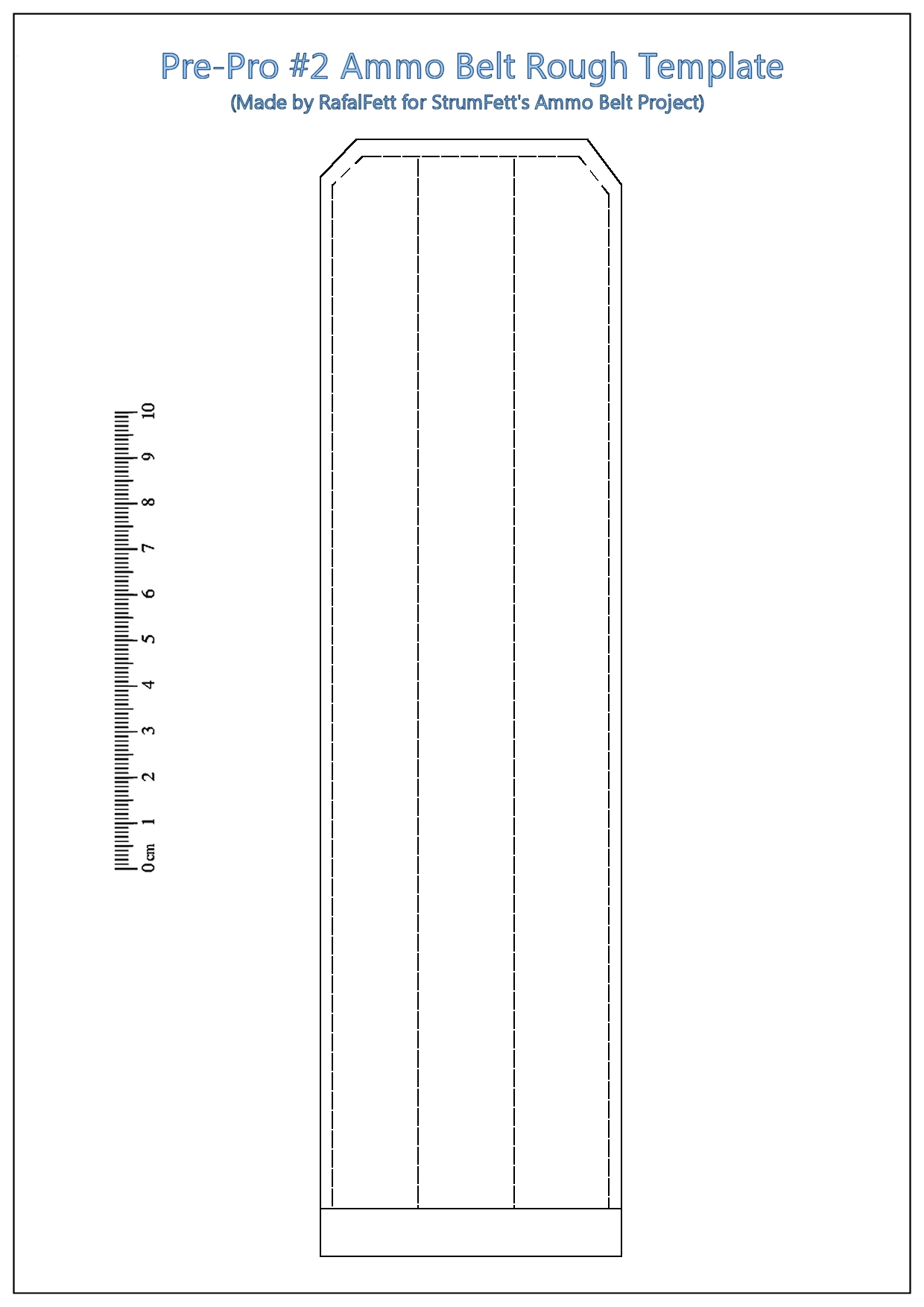

And here is a preliminary drawing I did a while ago regarding the visible end of the Pre-Pro #2 ammo belt:



[StrumFett]

Hi,
just some words to say that i had to stop working on the belt some weeks ago to concentrate my time on my helmet. Just to be sure that it will be almost done for :

A signature inside my helmet and a meeting with Mr Jeremy Bulloch.
now back to the belt !



[RafalFett]

Congratulations for meeting Jeremy Bulloch and for signing your helmet! Can't wait to see some fresh images of the paint job!



[RealMatix]

I know it's an old thread... i work on the ammo belt from StrumFett's old tutorial (http://www.thedentedhelmet.com/f20/wip-ammo-pouches-fully-functionnal-44124/). Does anyone still got these newer versions? The attachments are broken....



[RafalFett]

All the files are there, but the formatting of the first post is gone, this is why the different ammo belts are not grouped. Also he mention in the 1st post that he added some files in the following posts: #49 - Pre-Pro #1 (quick jump here ==> http://www.thedentedhelmet.com/f20/tutorial-ammo-belts-v2-rafalfett-templates-47515/#post626029), #53 - Supertrooper (quick jump here ==> http://www.thedentedhelmet.com/f20/tutorial-ammo-belts-v2-rafalfett-templates-47515/#post626069), #59 - Pre-Pro #3 (quick jump here ==> http://www.thedentedhelmet.com/f20/tutorial-ammo-belts-v2-rafalfett-templates-47515/#post626714) and #62 - Unfinished Pre-Pro #2 (quick jump here ==> http://www.thedentedhelmet.com/f20/tutorial-ammo-belts-v2-rafalfett-templates-47515/#post626808). Here are the files in ZIP format:

View attachment ROTJ SE Ammo Belt & Pouches.zip View attachment ROTJ Ammo Belt & Pouches.zip View attachment PP3 Ammo Belt & Pouches.zip View attachment PP2 Ammo Belt & Pouches.zip View attachment PP1 Ammo Belt & Pouches.zip View attachment ESB Ammo Belt & Pouches.zip View attachment ST Ammo Belt & Pouches.zip

Note: if for some reason you can't decompress the files, just change the extension to RAR.

Also, here are 3D models posted by StrumFett on 3D Warehouse ==> https://3dwarehouse.sketchup.com/user.html?id=1288816104975786768534409&nav=models.



[RealMatix]

Thanks RafalFett...very useful!

I thought that this is a newer version of the tutorial. But i see that they complement each other very well. With this stuff it is even more accurate.



[wolverine]

thanks for all the detailed information and work.

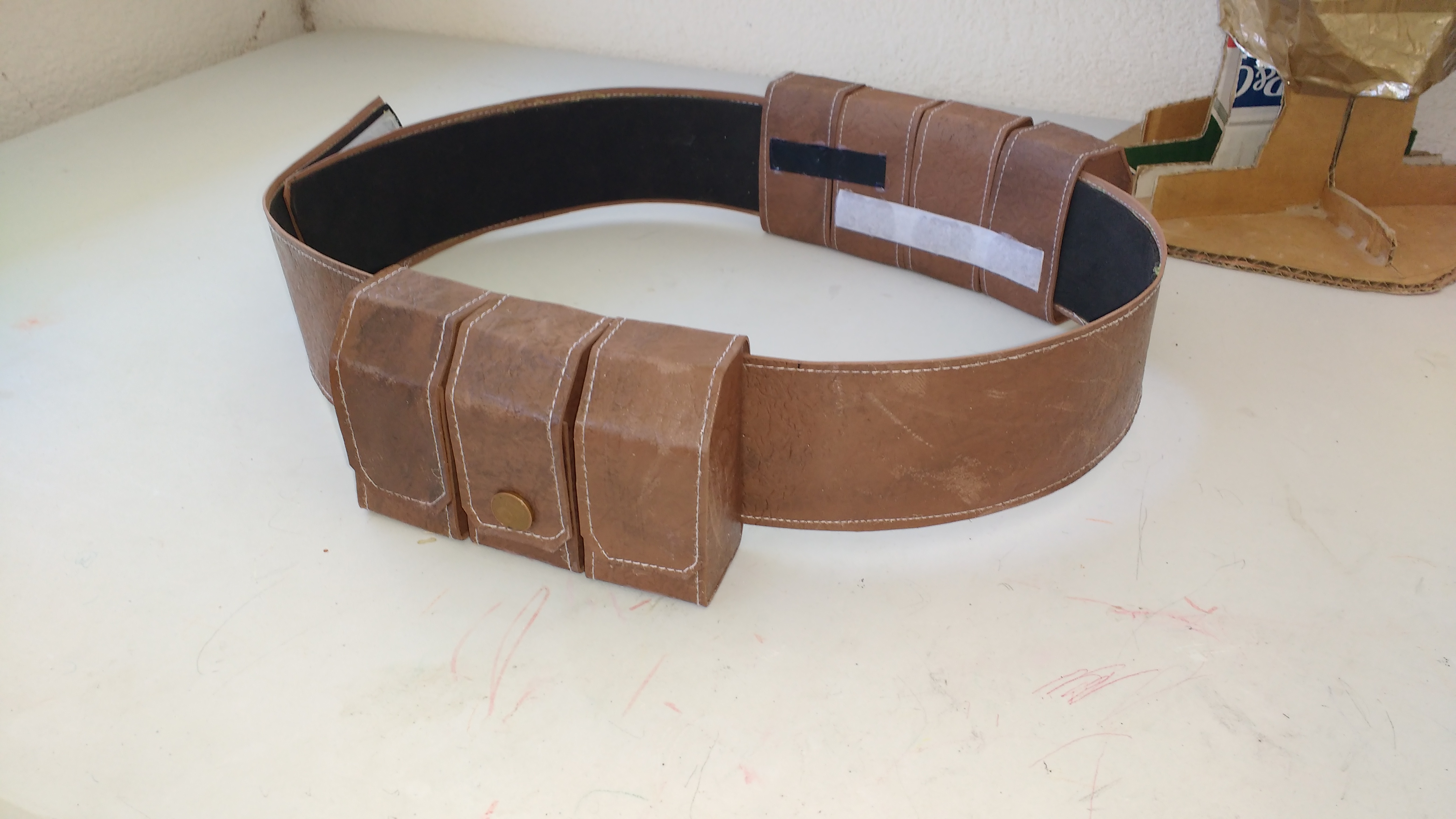

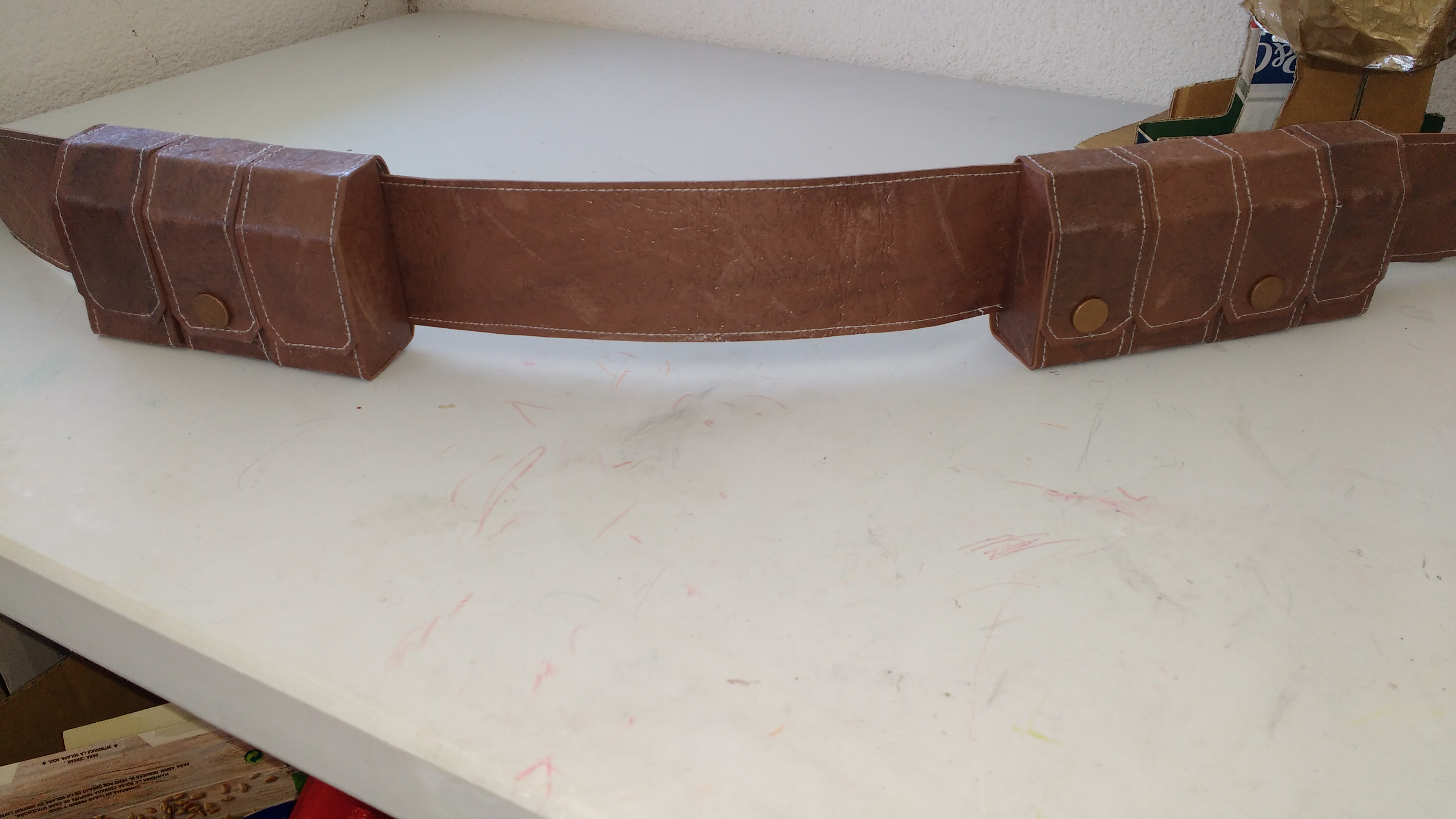

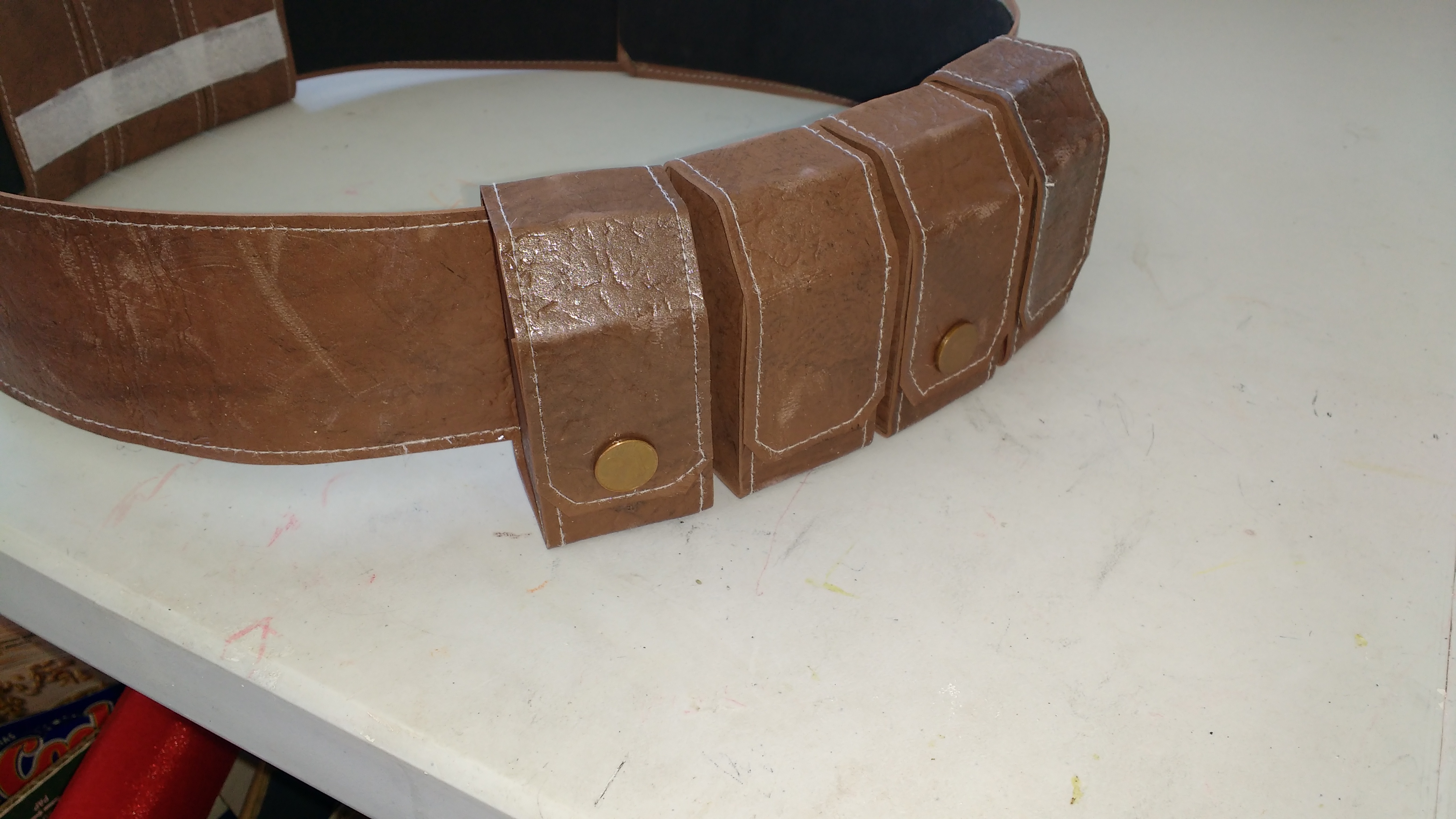

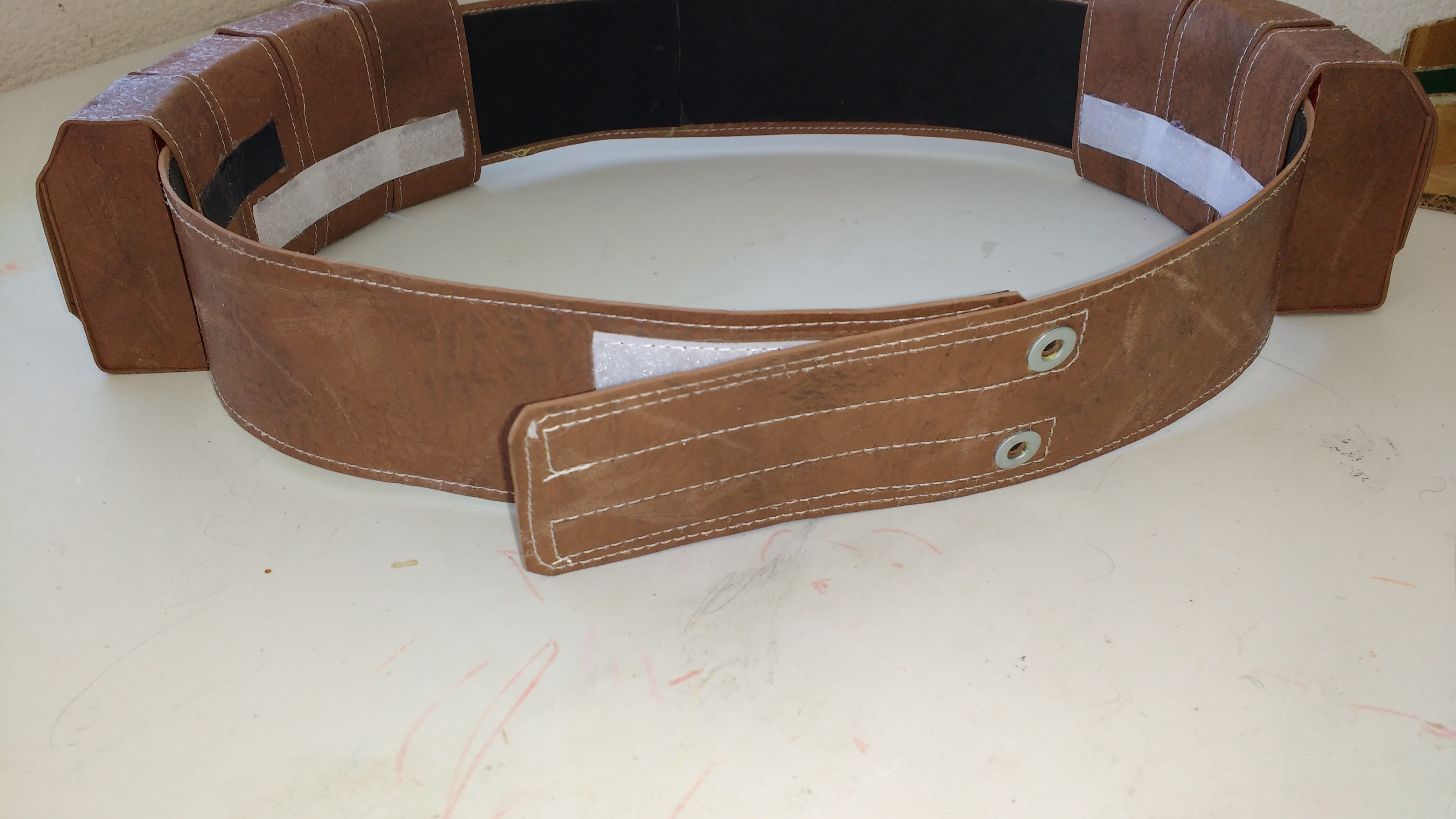

Thanks to all that information I have been able to make my low cost foam ESB ammo belt, thanks



[Mythosaur]

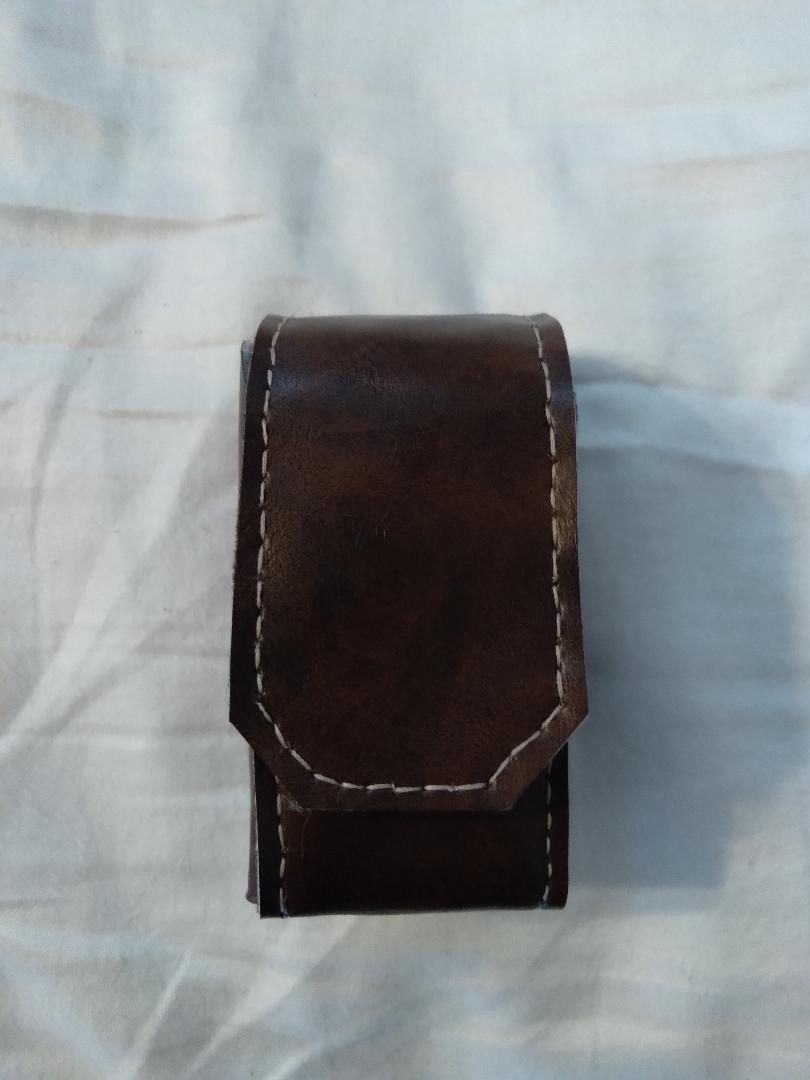

Big thanks to you guys for this tutorial! Thanks to this I've begun crafting more movie accurate ammo pouches, I think they aren't coming out too bad so far.



[Mythosaur]

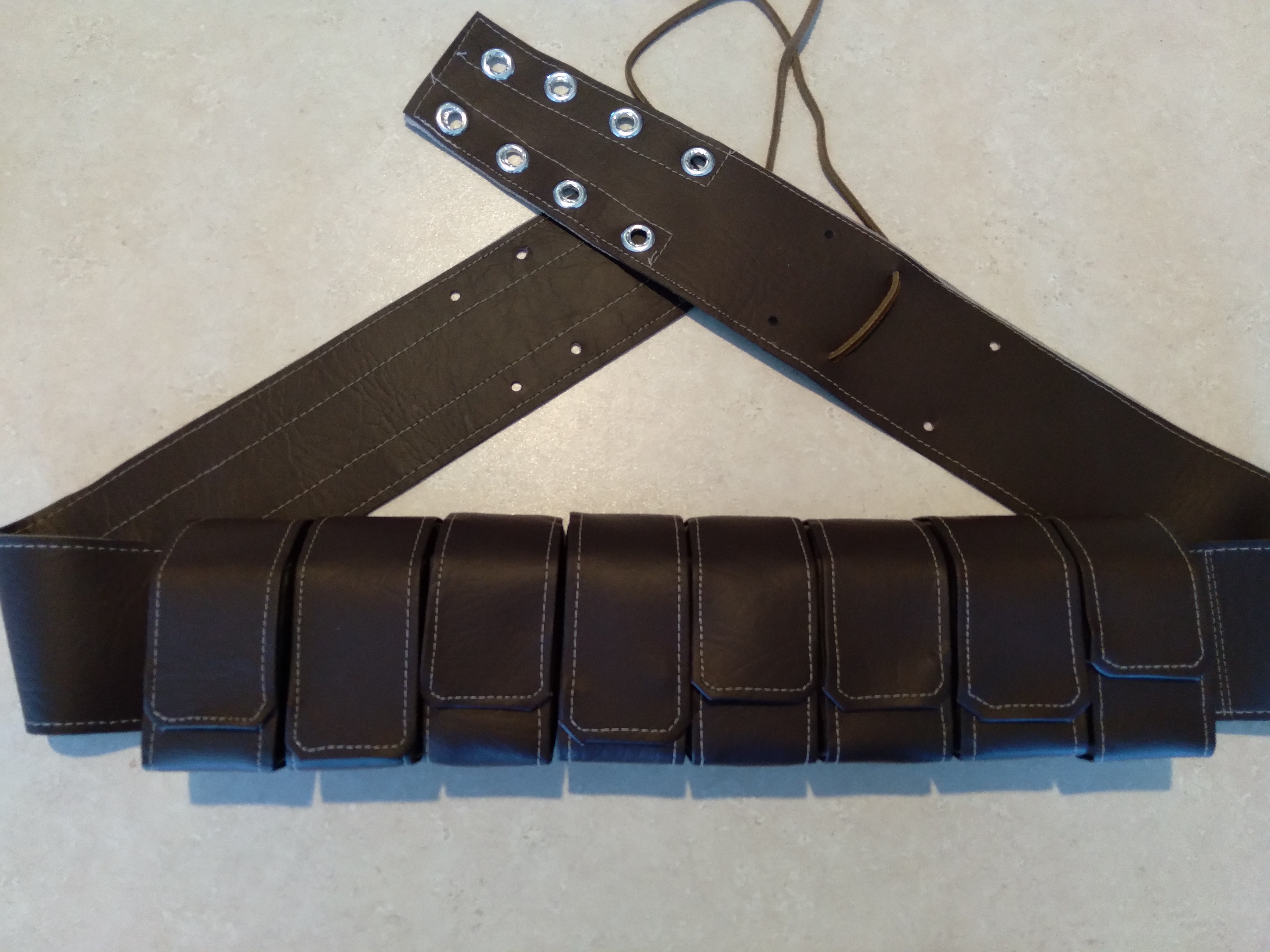

Here's my finished ROTJ belt! Thanks again for all the info!
