SupRsloth's ESB Fett Build

SupRsloth

Hunter
I like your gauntlets ! Is that fiberglass reinforcing tape you have on the insides?
It is fiberglass tape on the inside. I saw most threads that I looked at people used real fiberglass. I didn't want to mess around with that stuff so I went the easy less messy route and just taped the inside. Hopefully it adds enough reinforcement for some heavy trooping. :)


hvacdon

Active Hunter
It is fiberglass tape on the inside. I saw most threads that I looked at people used real fiberglass. I didn't want to mess around with that stuff so I went the easy less messy route and just taped the inside. Hopefully it adds enough reinforcement for some heavy trooping. :)
I've seen someone use the fiberglass tape to reinforce around the Jetpack strap slots and a few other areas to beef them up !!
Nice looking paint you got done. In a couple of days, you can say you painted that stuff last year !! :D


SupRsloth

Hunter
Did my final test fit today. It's been well over a year since I started and feels awesome to finally be able to fully suit up. It's mind boggling all the details that go into this kit. Thanks to all who've watched, commented, and provided some much needed feedback as I've moved along. It's very much appreciated.
dNk5CKY2zZSPSsO1DI1vhu1mADzgvNotVqpmkUJd_Eiu78pNoAv-PL_VR0w?width=3024&height=4032&cropmode=none.jpg

WdWlphsPnu5yyO1ruCdLZxEgLCcREq7APSOZKryIWtk42ELMoMkfget2xUw?width=3024&height=4032&cropmode=none.jpg

B6NOz9jYyKEETptb3szhIJa0_V5-iF6MvfaUP_VwRndRzoR1g5717_Wq9qw?width=3024&height=4032&cropmode=none.jpg

jN9kfRjwrkCsl9B9_rssrJjleig3SD8D9CVf1VaM_11N-dnsGAxM51KPRvQ?width=3024&height=4032&cropmode=none.jpg

Uu6DVo5cpN95WGW0h5jwe4Oha5JpfWXELyQDcnUGNaEpW7nV0K1Ev56C0Gg?width=3024&height=4032&cropmode=none.jpg

OZRgdSbDaR3P3bj-AVMw7lngEL9k2hUd7nZo5JxVsSQR8fr_Pf8h1RIwGog?width=3024&height=4032&cropmode=none.jpg


SupRsloth

Hunter
Looking good, when are you sending submission pictures in? Will you applying for the 501st?
I submitted pics for 501st approval last week. I talked with the GML yesterday and he said he'd get back to me hopefully next week. In the mean time I did my first unofficial troop at a local minor league hockey game last night. It was tons of fun, gave my first high five as Boba, and found some things to fix including a couple of items I missed from the new CRL. Today I weathered the gloves and dirtied up the elastic straps on the knees. We'll see what else the GML comes back with for changes. :)

nUd_9h61c4eRGC4JS9jMcpxX-ubsxO26C0YEyKfJg-BL_I0QhuaNEciq93jeA?width=750&height=562&cropmode=none.jpg

f0NboDCCrAyK8YLDmNyC1IObEY-4tDTckoyiX68_pZs0VaaboAX8FM-PWzw?width=1440&height=1080&cropmode=none.jpg

tvHqbOKsHeXrs6_eZPz0Gq8v4qFmo2H2rMZUgpSAqcp8bJQy1fVyb6_BIxw?width=3036&height=4048&cropmode=none.jpg


SupRsloth

Hunter
Thanks all for the congrats. Got out for my second troop last weekend. Feels a bit more awesome each time I do it.


SupRsloth

Hunter
All right, finally got my EE-3 kit from Stormrider. Any recommendations on the best ESB EE-3 build threads to check out?


SupRsloth

Hunter

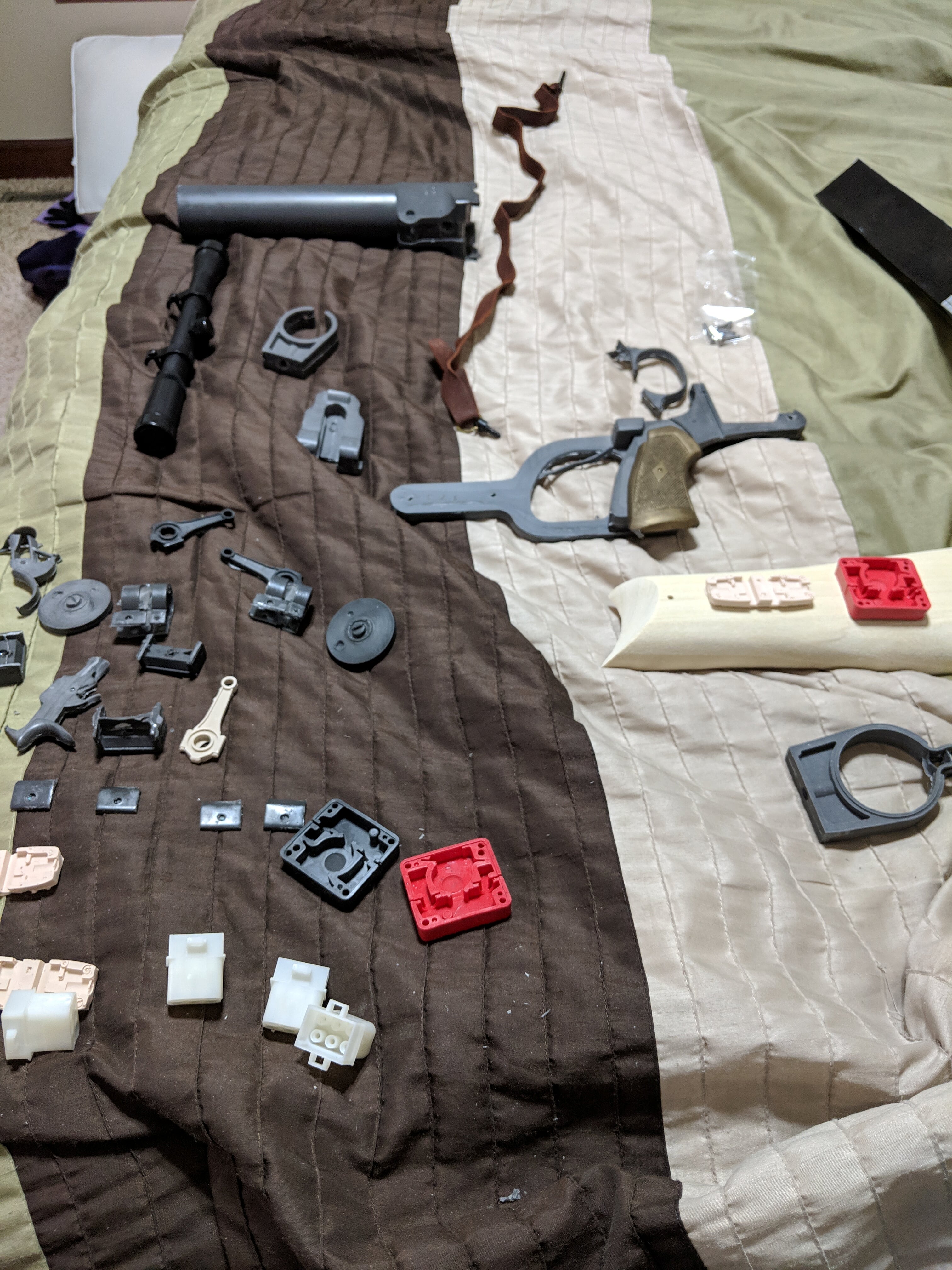

All right. Finally back to it. Started putting together my EE3

The5thhorseman put together an awesome build thread here that I used heavily to figure out my build.

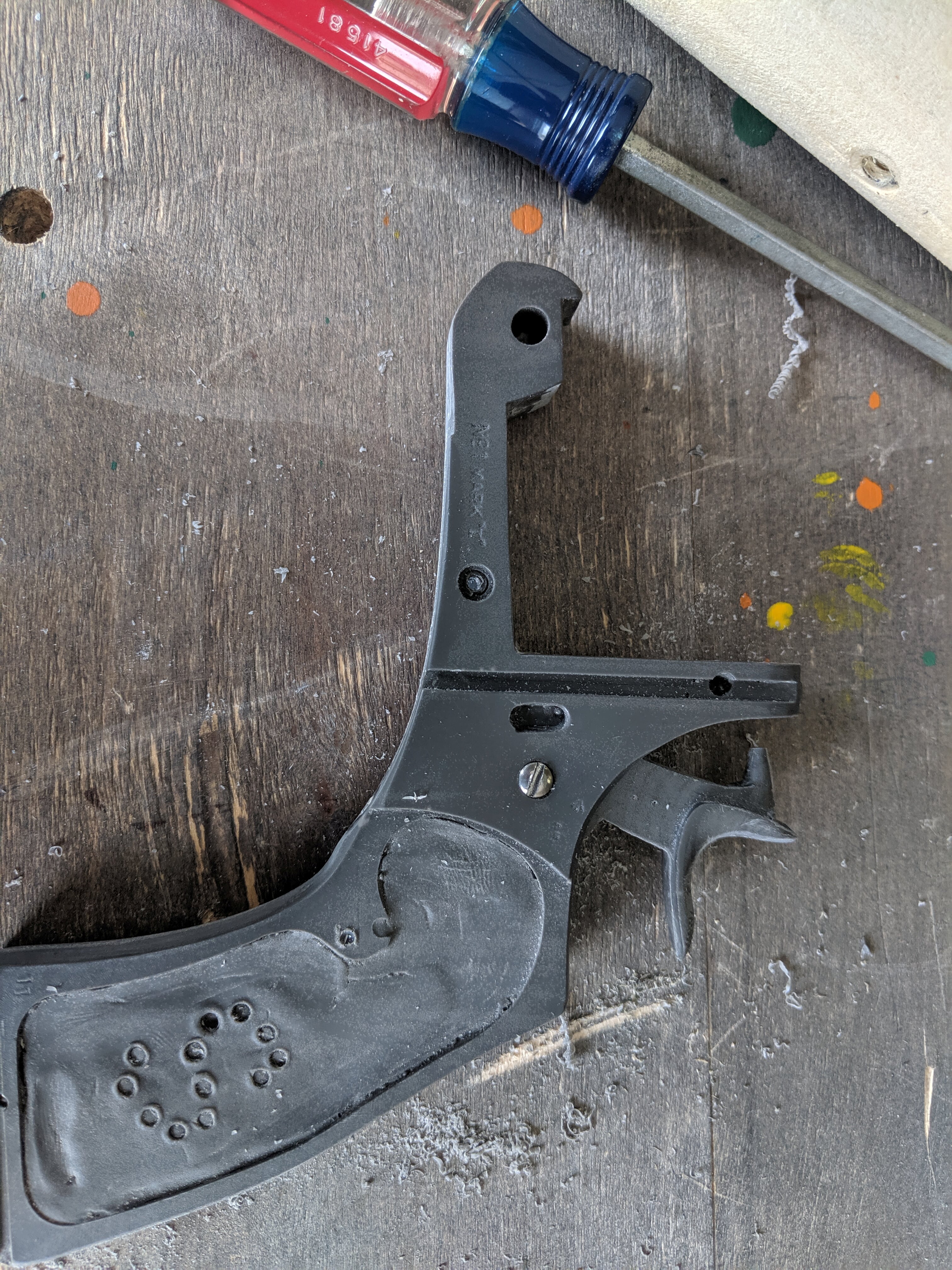

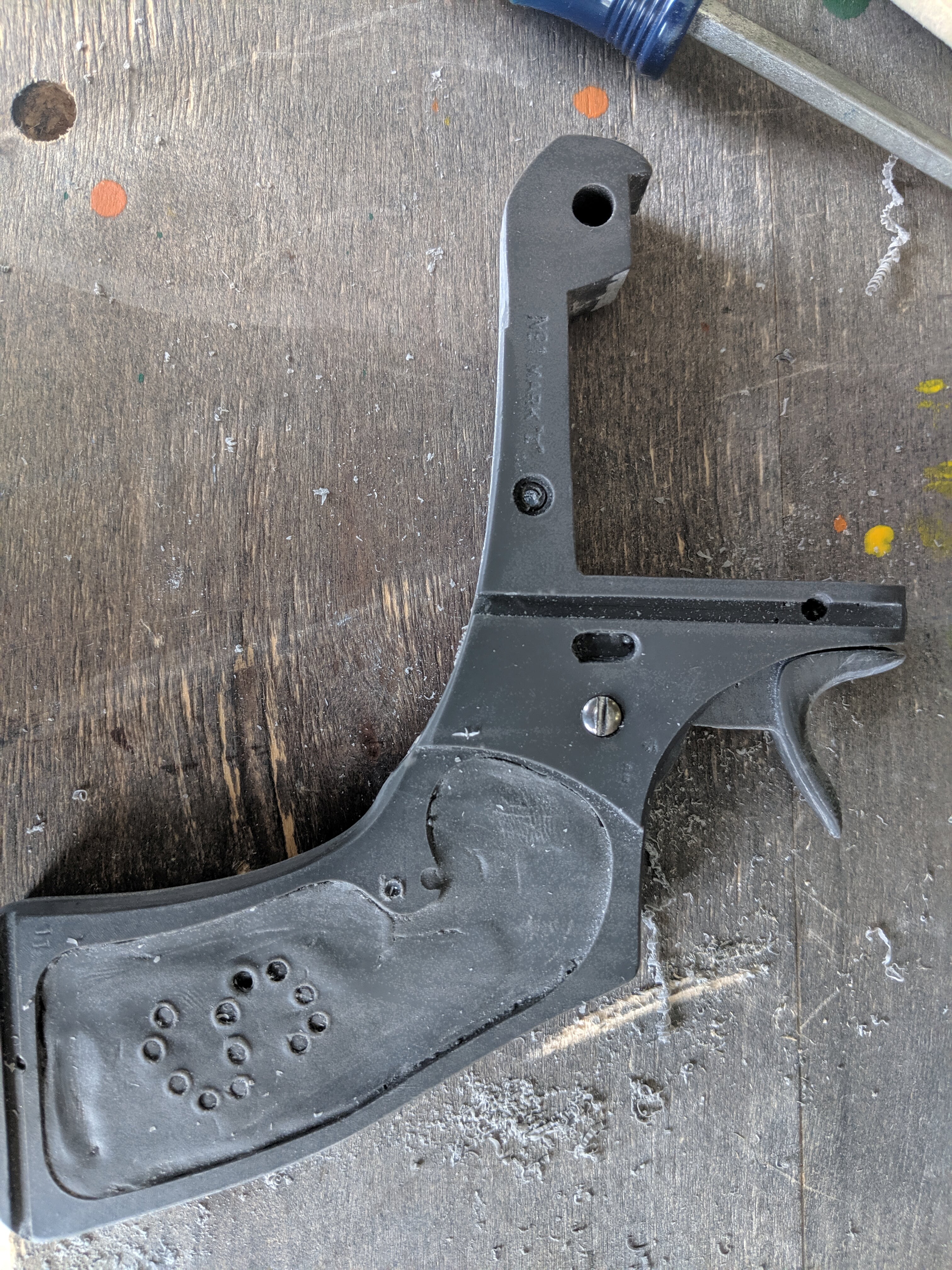

Started with the grip and made the hammer movable.

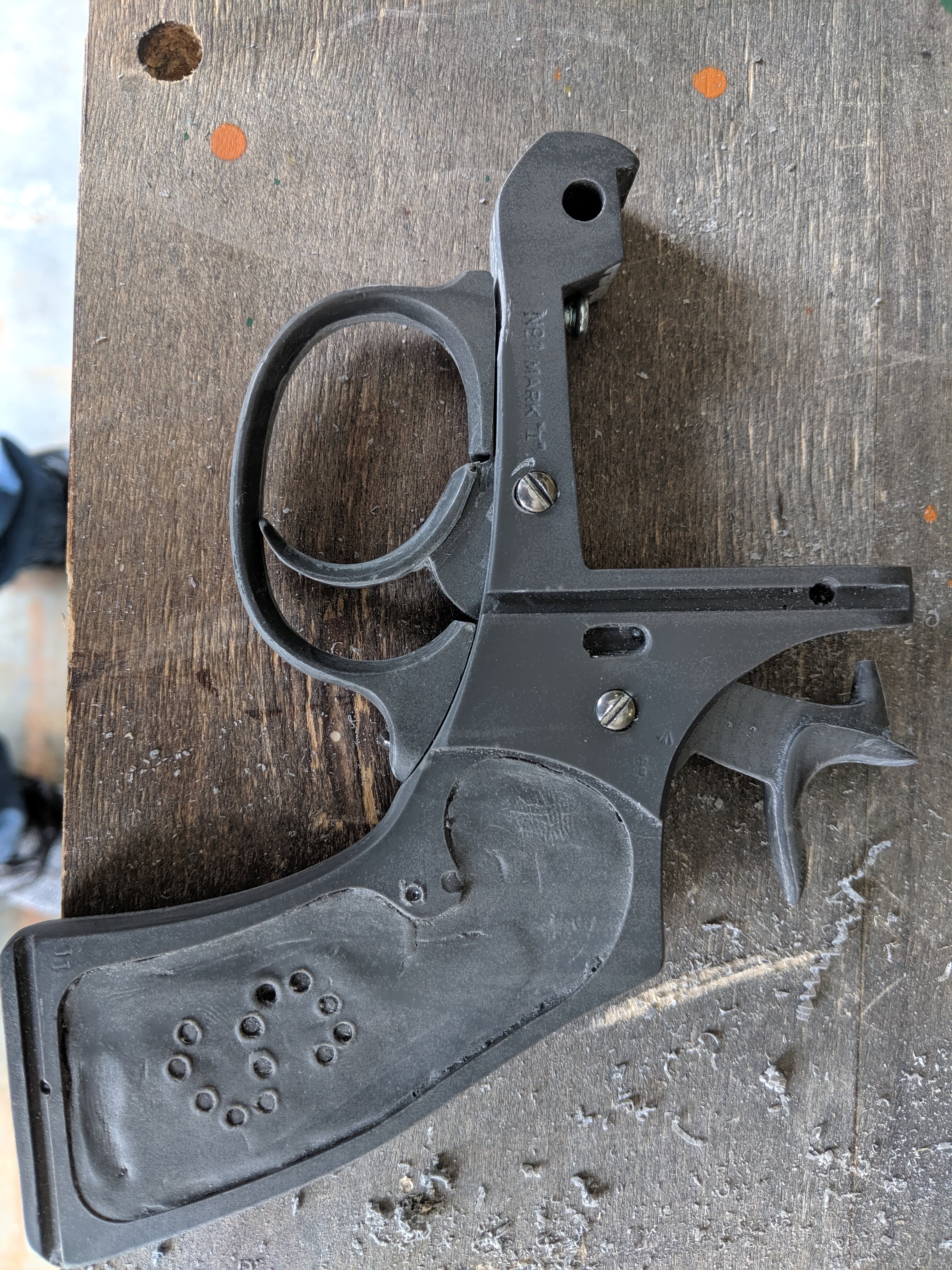

Then I moved onto the trigger and trigger guard.

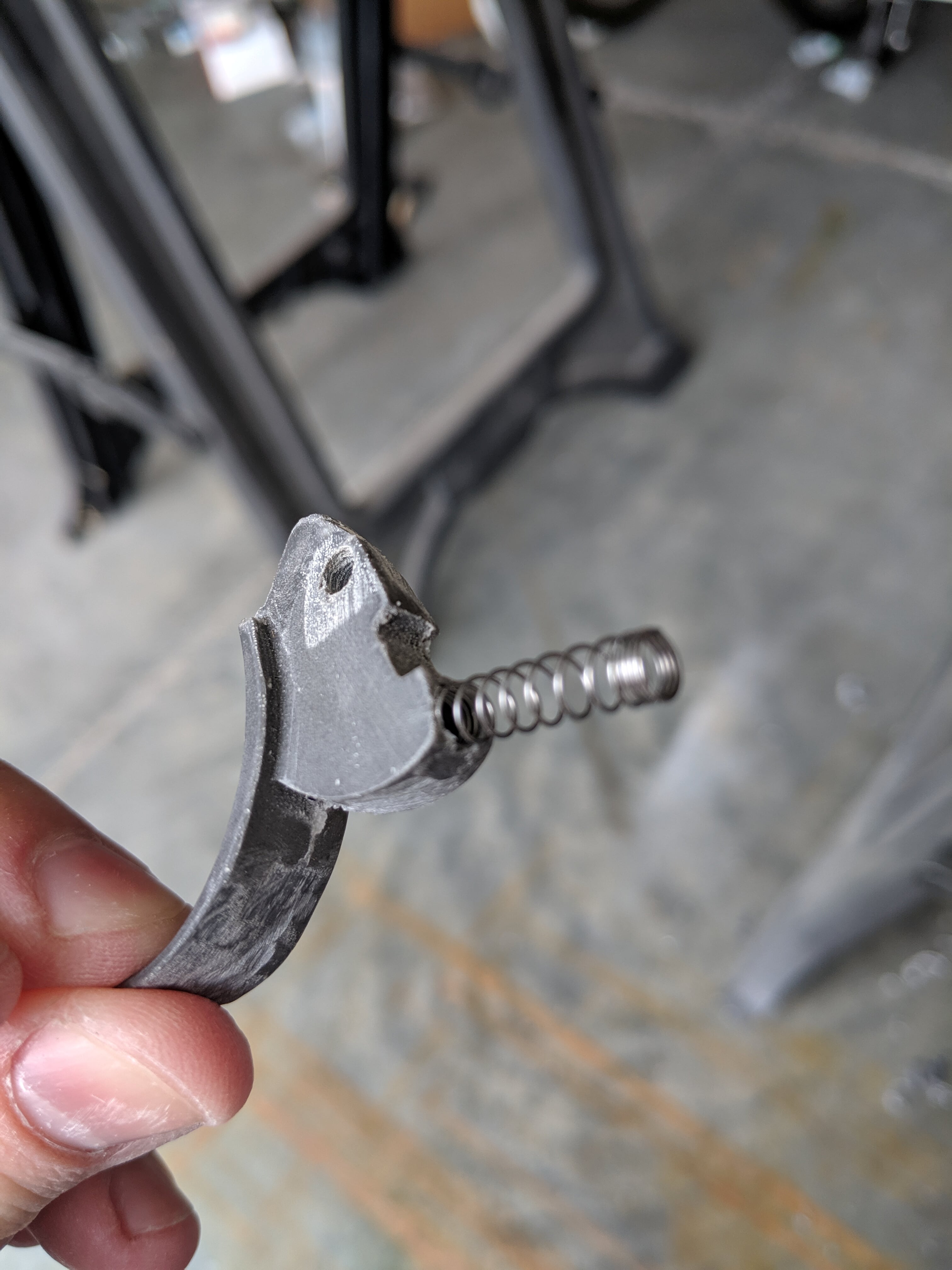

Sacrificed one of my pen springs for the trigger.

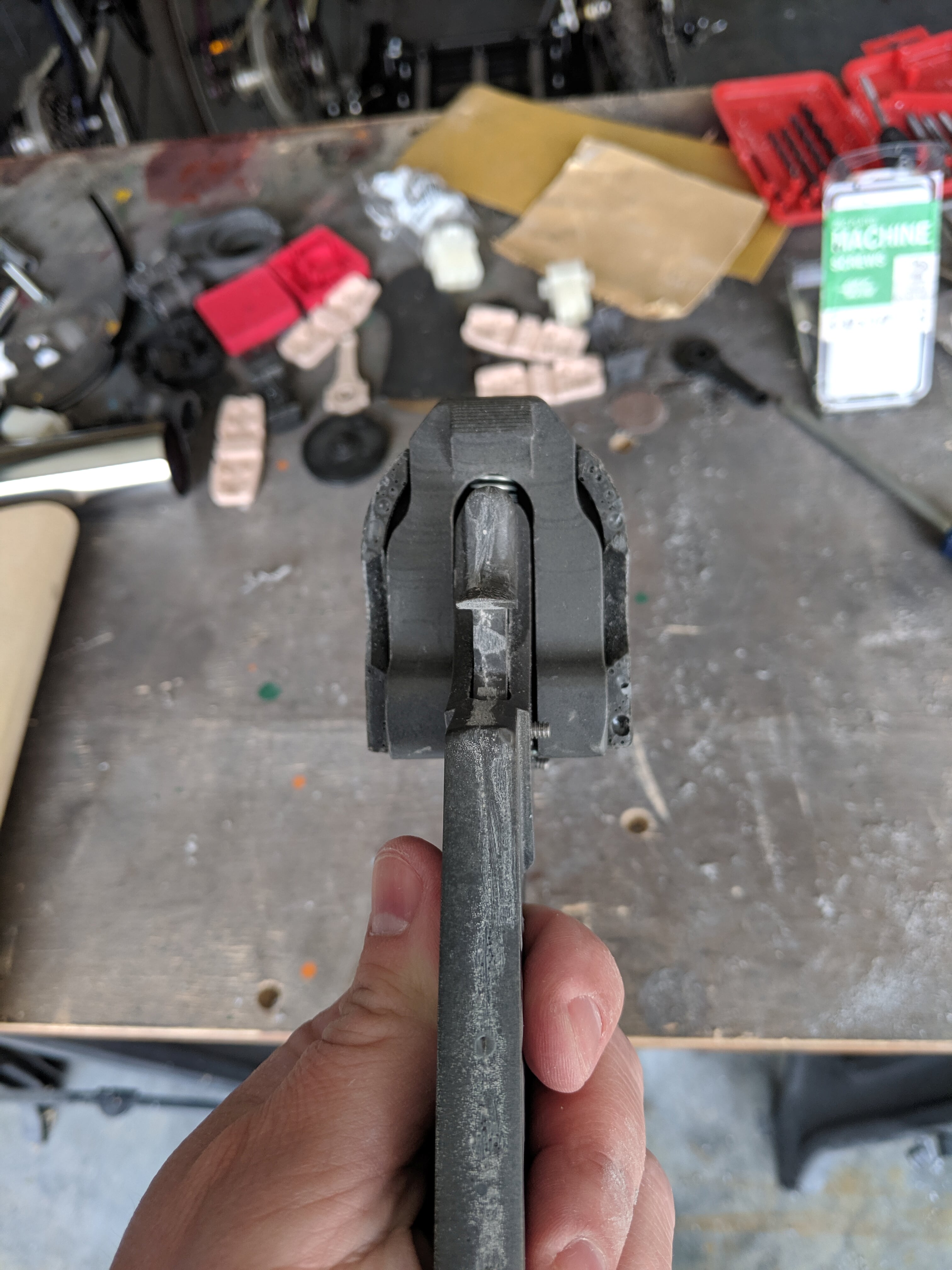

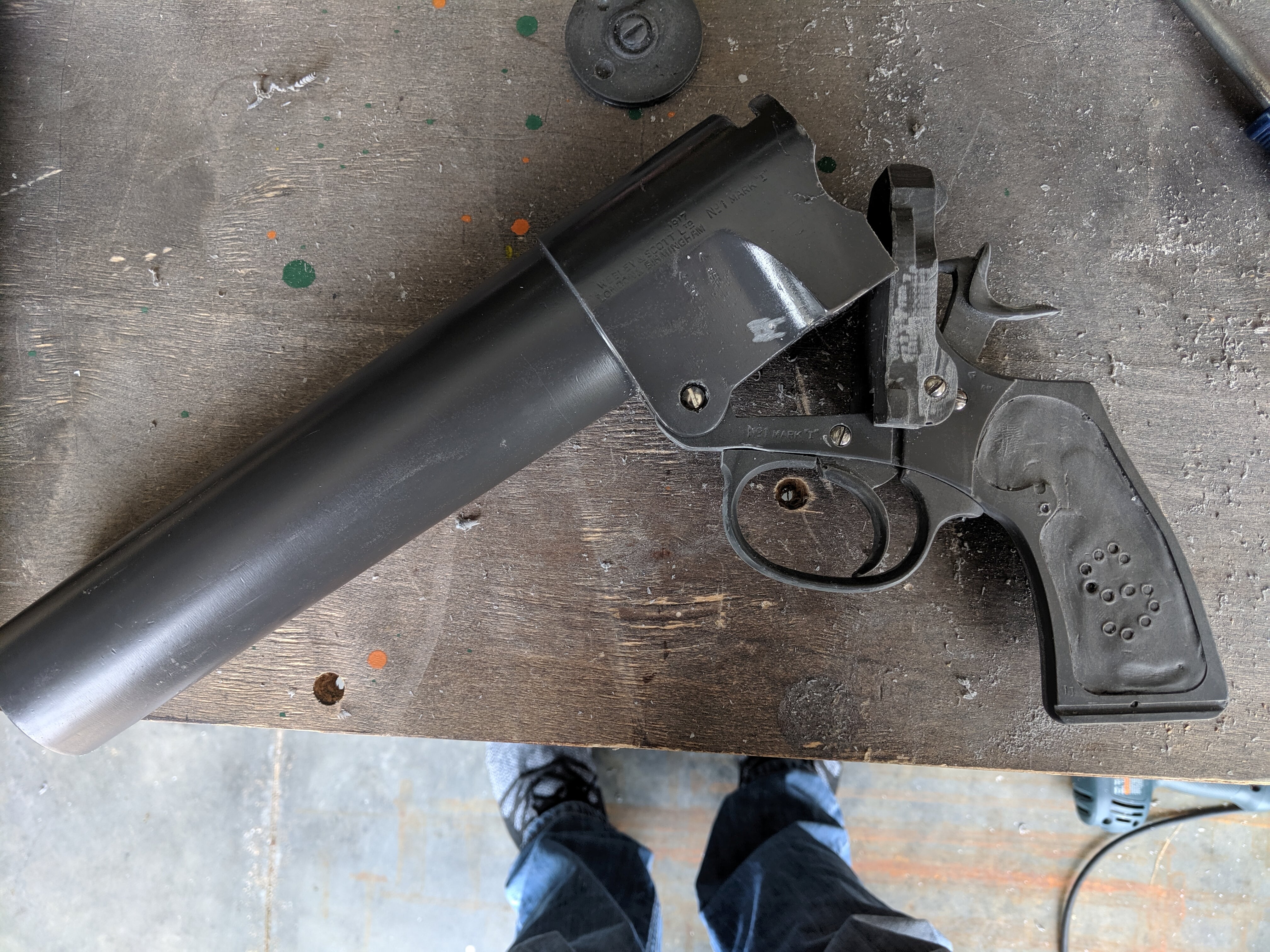

Then moved onto making the breech movable as well. Spring loaded the back latch and used one half of a Chicago screw and Standard screw for the pivot.

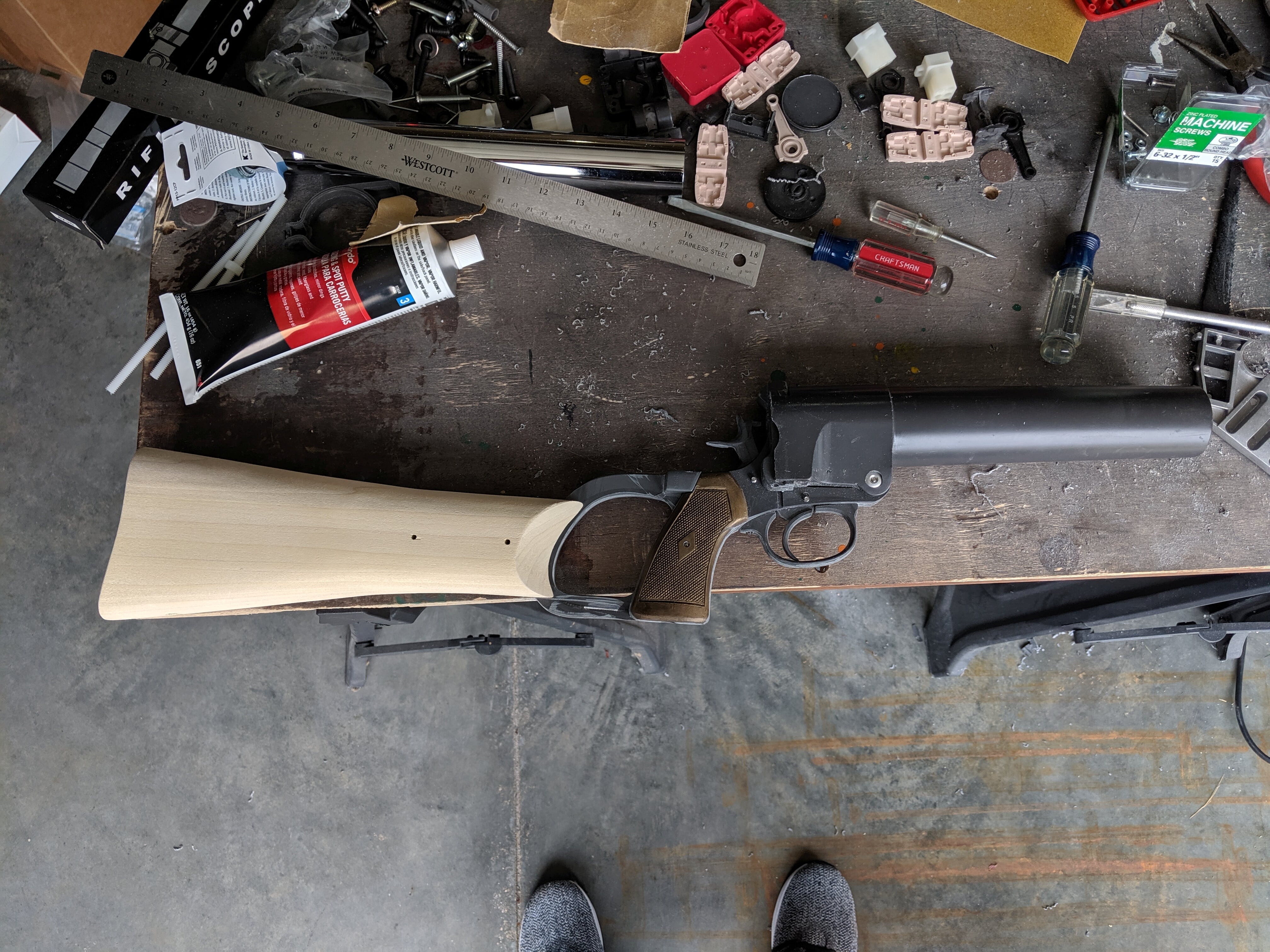

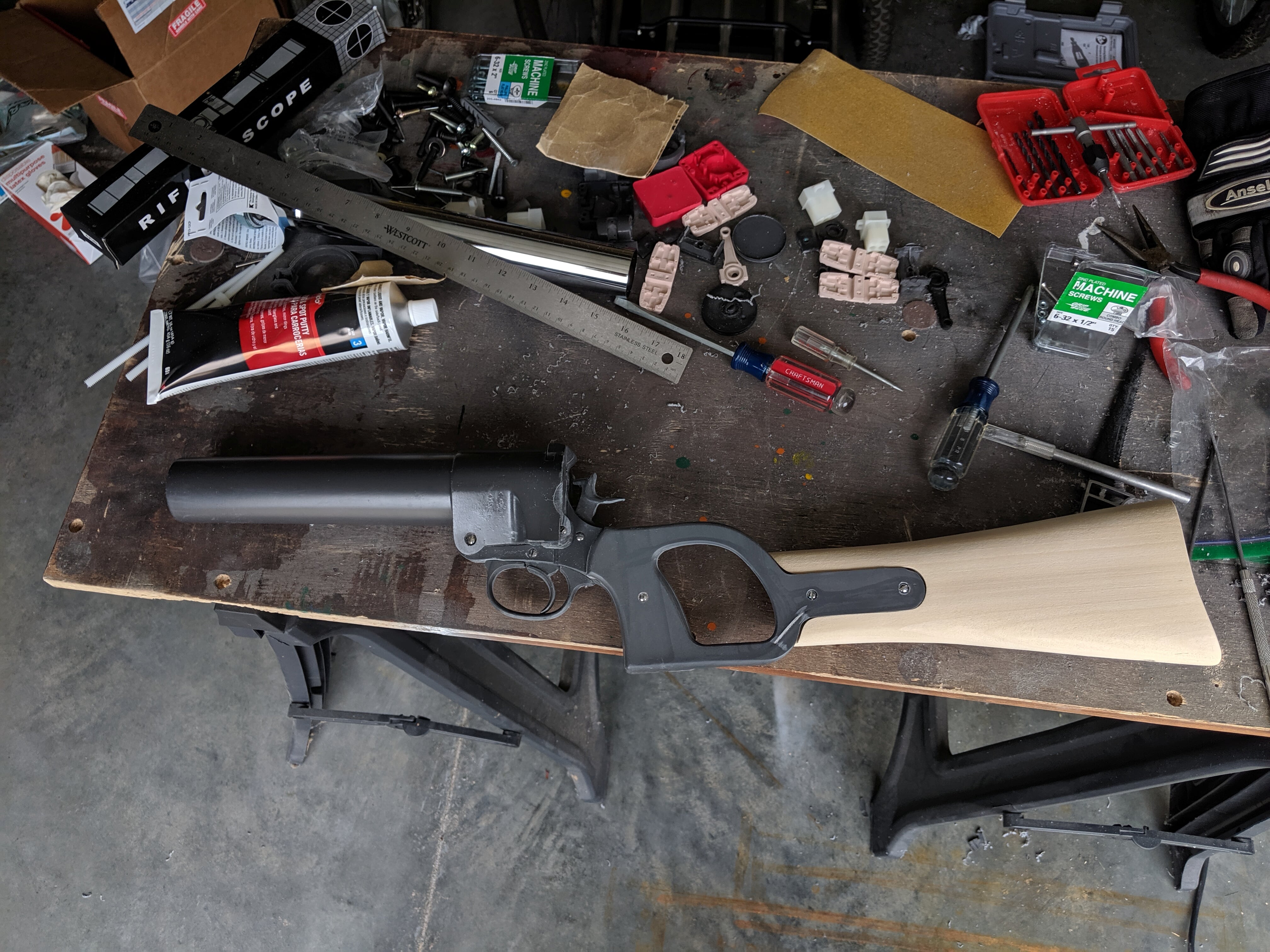

Then moved onto assembling the grip and stock.

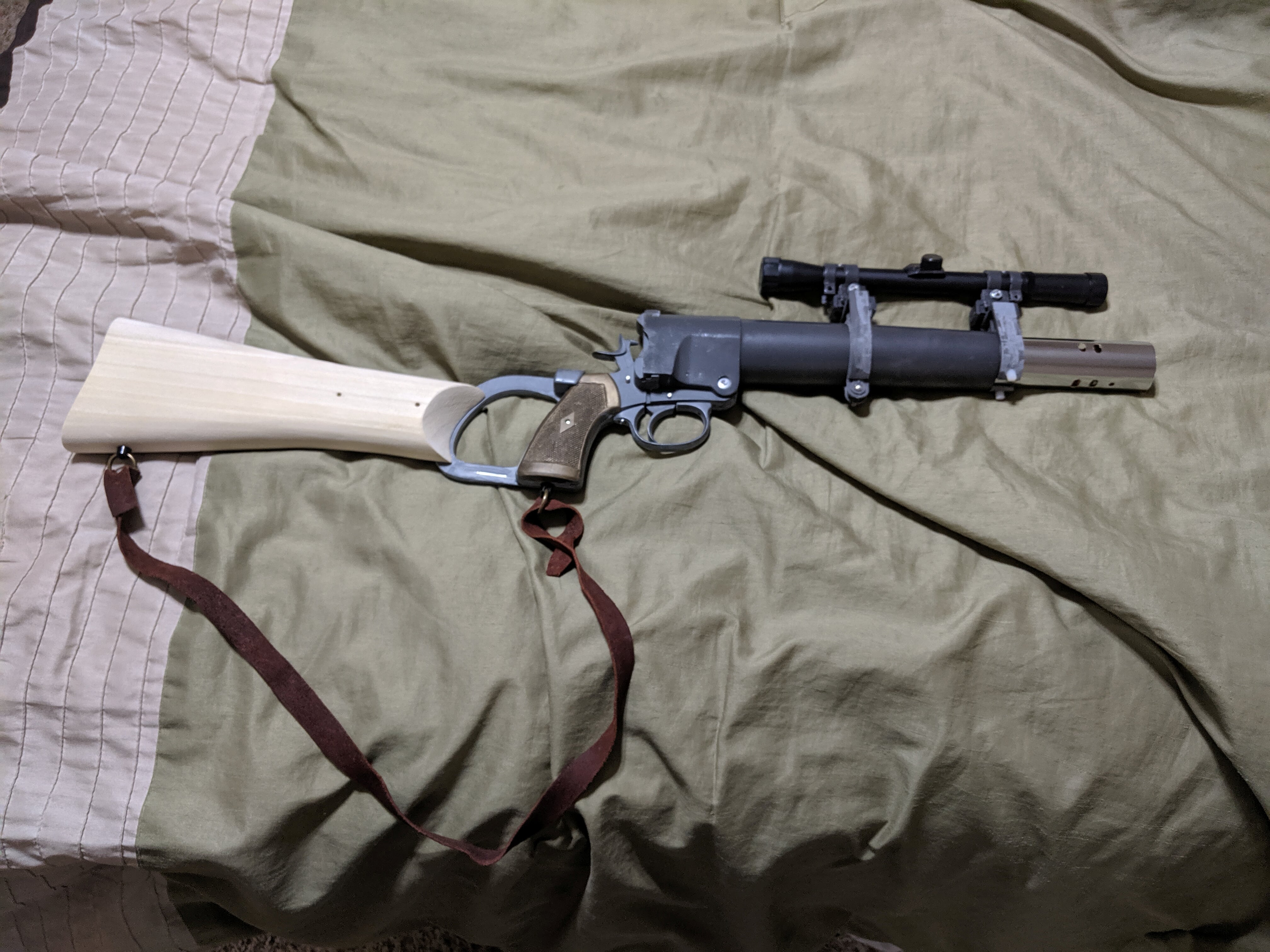

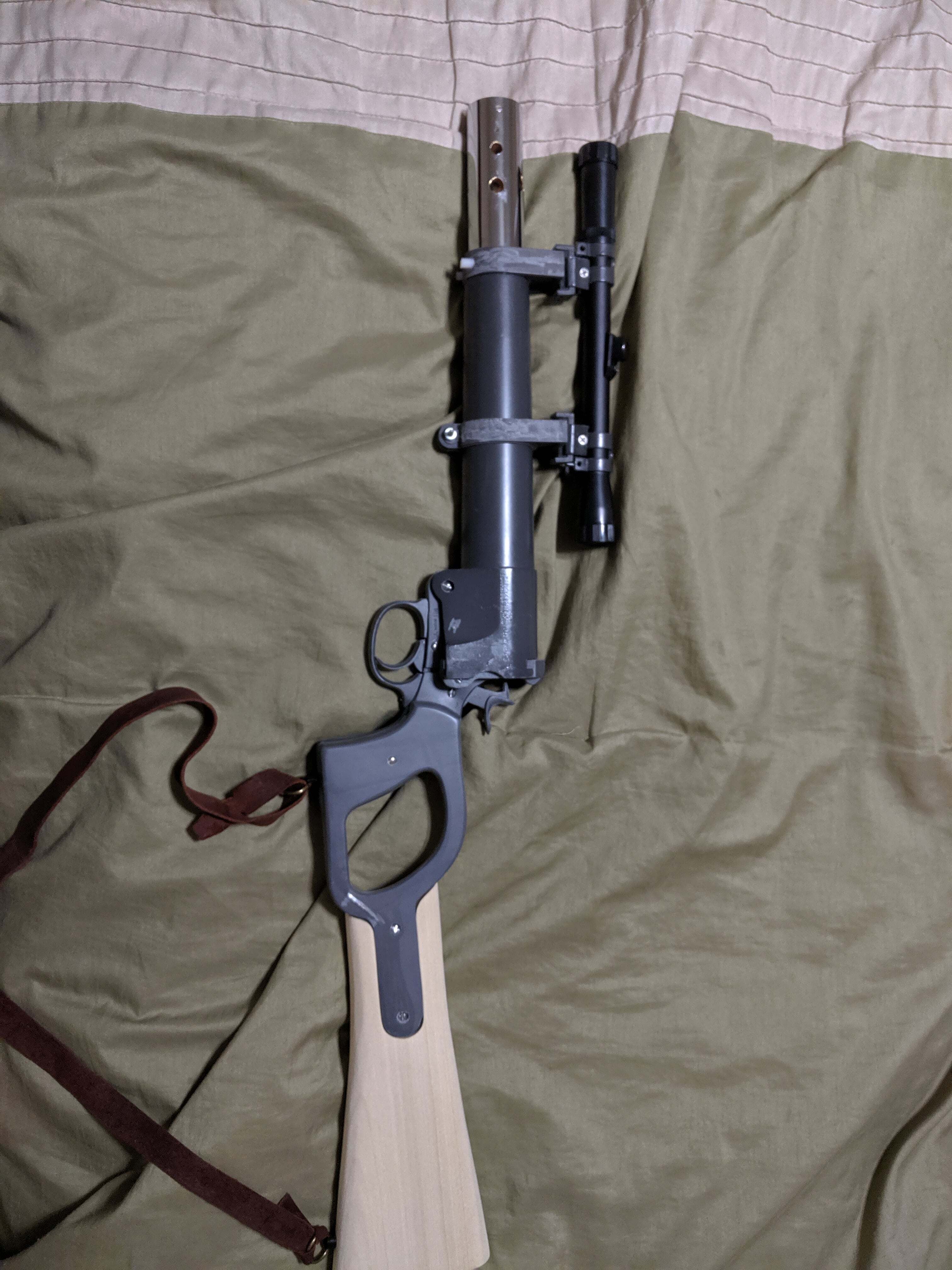

Lastly I made the flash tube from some 1.5" brass sink tube. Assembled the scope mounts with screw from the top down into the barrel. This took some doing to get the nut on. I remembered I had a flashlight with an extension that has a magnet on the end. This worked great for holding the nut in place while screwing in the screw.



Still a lot of work left to do. I need to swap out hardware on the scope mounts as I ran out of the correct hardware and used what I had laying around. Have lots of holes to fill in with Bondo, need to stain the stalk, add all the greeblies, and need to start painting everything. Hopefully will find some time to make some more progress this week.
