    Starting a thread for My ESB Fett Build.

    I've been lurking on the site for a while now and finally have some parts to get started. Feedback would be much appreciated. This will be a slow going one as I'm buying parts as I can. This is most definitely not going to be a cheap or fast build for me.

    I currently have another 501st costume as a ANH Stunt Stormtrooper. You can find my builds on WhiteArmor.net as SupRsoth TK-50613.

    Last edited: Sep 3, 2017
  2. SupRsloth

    SupRsloth New Member

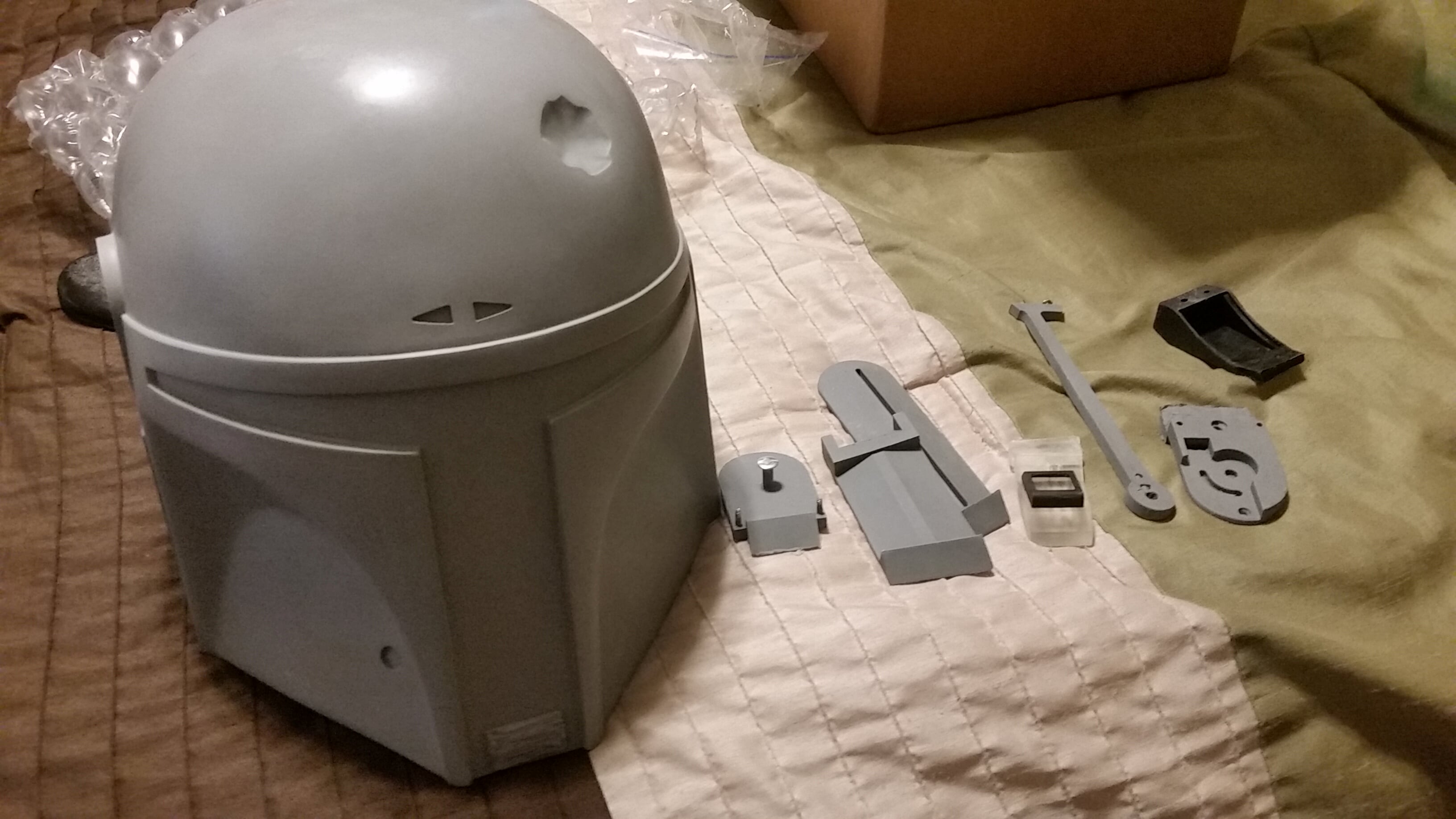

    First parts purchased were the AnimeFan premium Fett helmet kit. Fantastic quality.

    Here's a pic of the parts as they arrived.

    Xvugq3u7VKZlFUFM6exCfFV-spNk61U6x_fuxJy8fq8K5qb7hakhcqX3gLA?width=3264&height=1836&cropmode=none.jpg

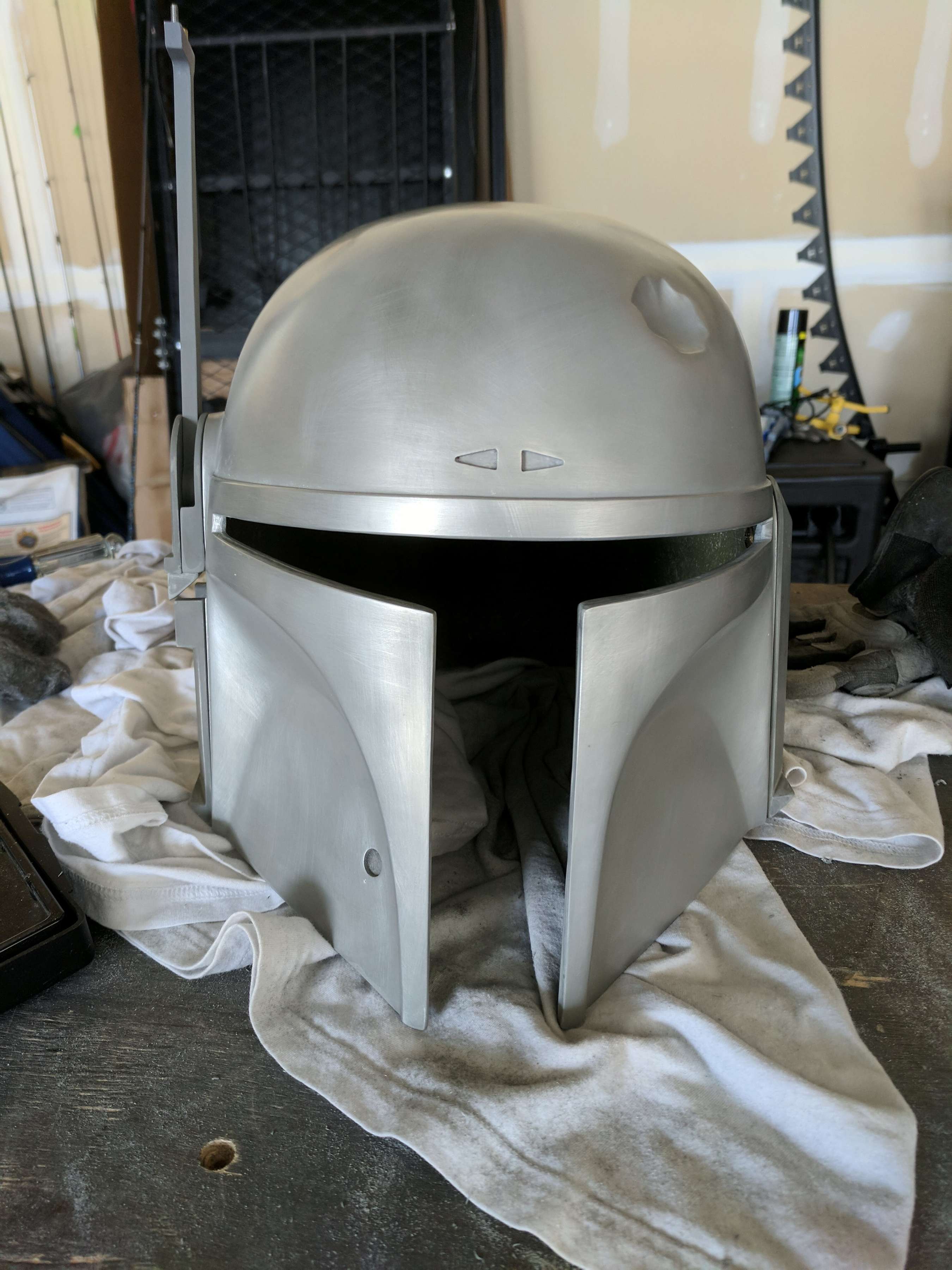

    Started with a trim of the T-Visor area, fixed a few rough spots with some bondo putty and sanded smooth with some medium grit sandpaper and onto some 0000 steel wool to get that awesome shine.
    wDjePh8pDOpxtWmgt9_60wTmhY51BDQGcSvoqcrVt31BZMS5LyK2I-JSJfw?width=3036&height=4048&cropmode=none.jpg

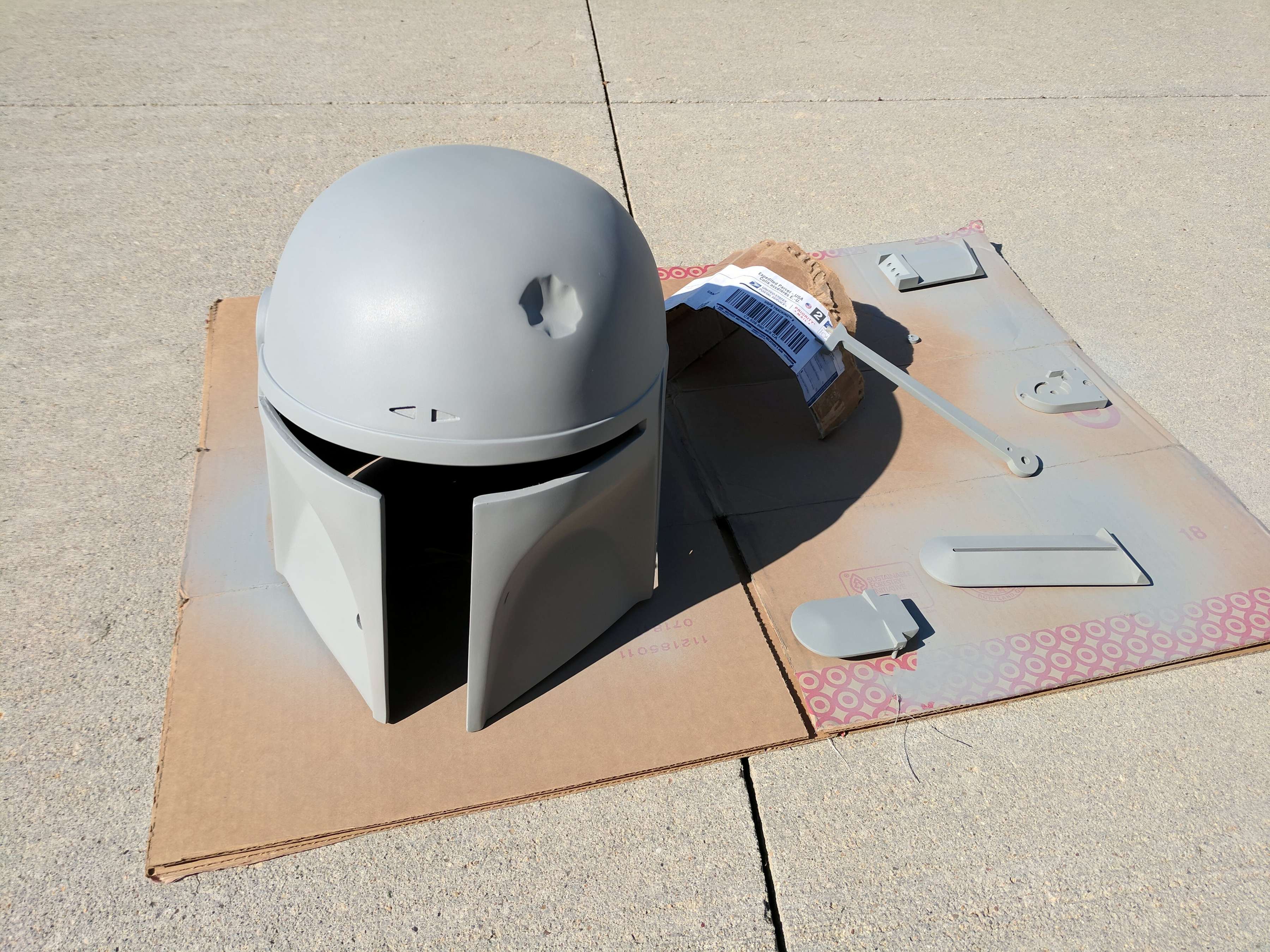

    Then gave all the parts a basic rattle can primer.
    QHpzBAwZNJ5aOHnNDHnWdhLqc1eeqLcPhmPQ7FvdzF8b6GiKrRnt7az8MTw?width=4048&height=3036&cropmode=none.jpg

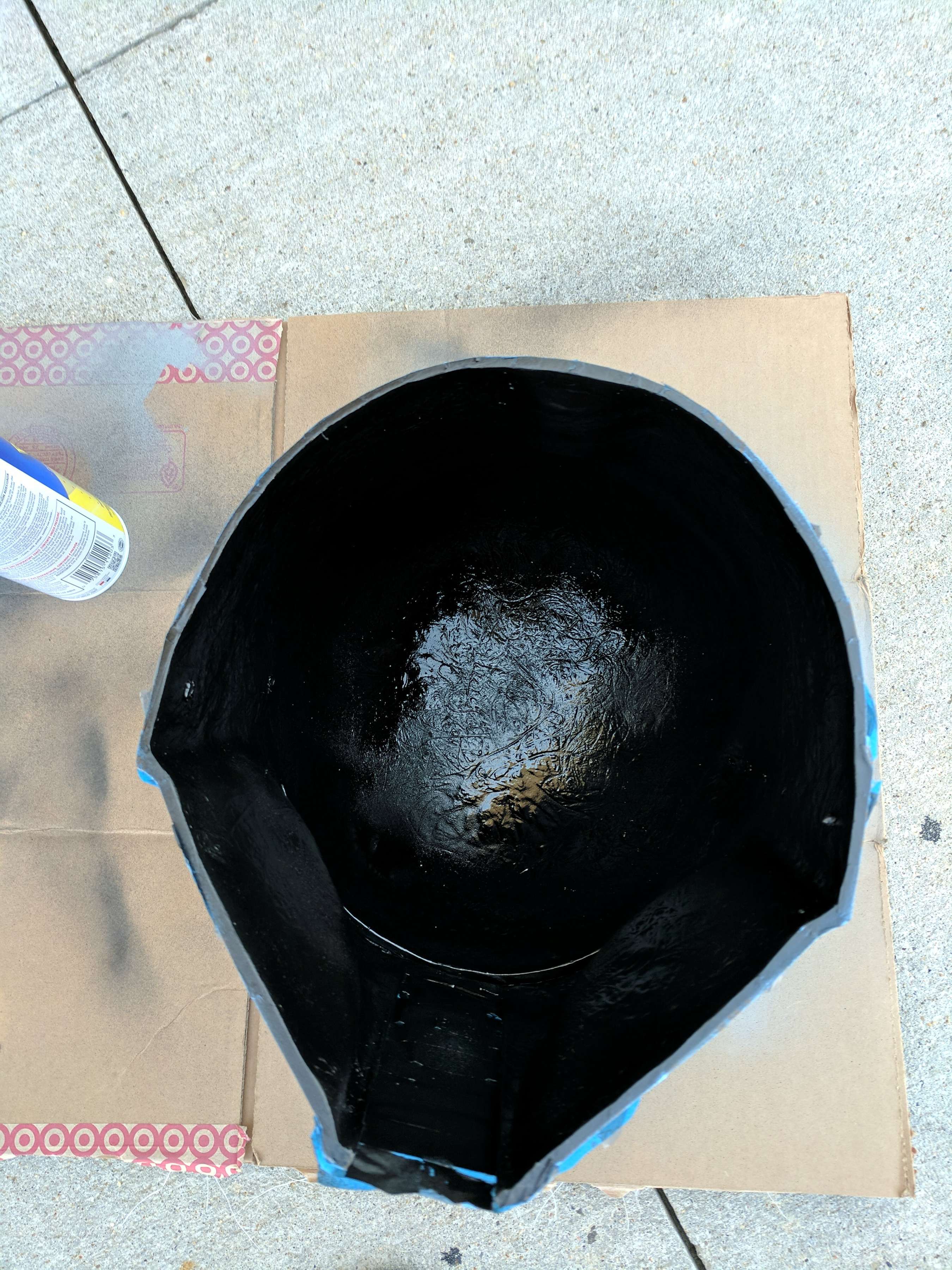

    Lastly I did three coats of plasti dip inside the bucket. Don't think it was necessary but I liked the look inside my TK bucket and I think this turned out pretty nice as well.
    OWFzgVBBbtOul54IH-8qw5N72NNz7NQWS4BcjKOZfJLEkzVSXwspGmLoxHA?width=3036&height=4048&cropmode=none.jpg

    SingaFett likes this.
  3. SupRsloth

    SupRsloth New Member

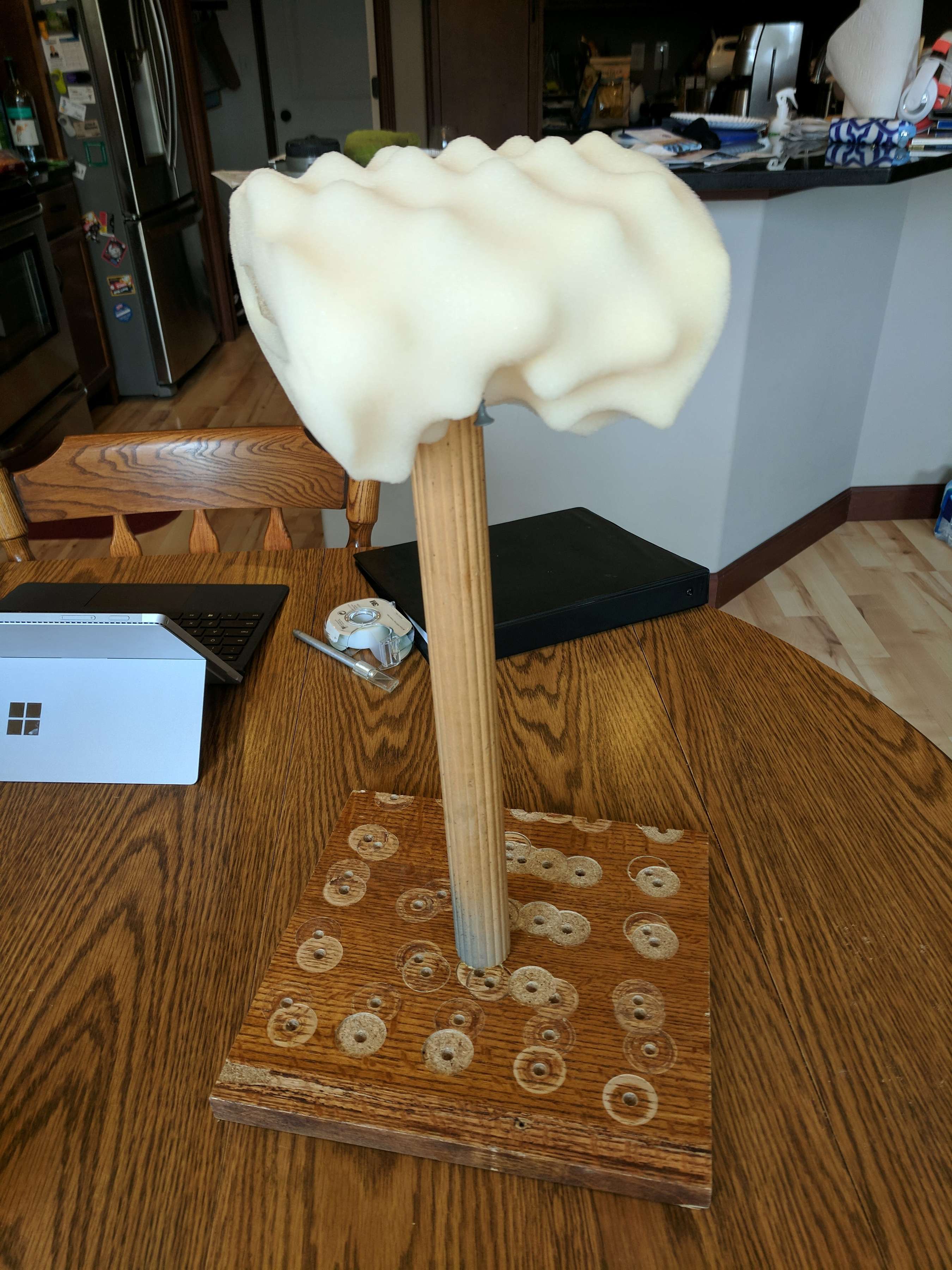

    The work for this weekend was adding the physical damage to the left mandible. Thanks to Cole (a former Fett) for pointing out that I missed that. Also my son and I built a helmet stand out of some used wood I had around for some other projects. Should do the trick I think once I start air brushing even though it's ugly as as could be ;).

    6YqrAk4aJtPFcsYOzVwlSL1hM7hVE8vsKdhwgMi2YHCwpQ-86mc1IAKFvrA?width=3036&height=4048&cropmode=none.jpg
    ABZvwrPau15lpXE9FiLayZ2G6ninnhlAcb96H6f3xdEcOfV4WAsLPbn4unw?width=3036&height=4048&cropmode=none.jpg

    Next is trying to paint this thing...... :cautious: I'm a bit nervous and excited as I've never airbrushed before. Already got the airbrush and I ordered a bunch of paint and miscellaneous tools today to get started. Hopefully will get started on that next weekend.

    Last edited: Sep 3, 2017
    SingaFett likes this.
  4. SupRsloth

    SupRsloth New Member

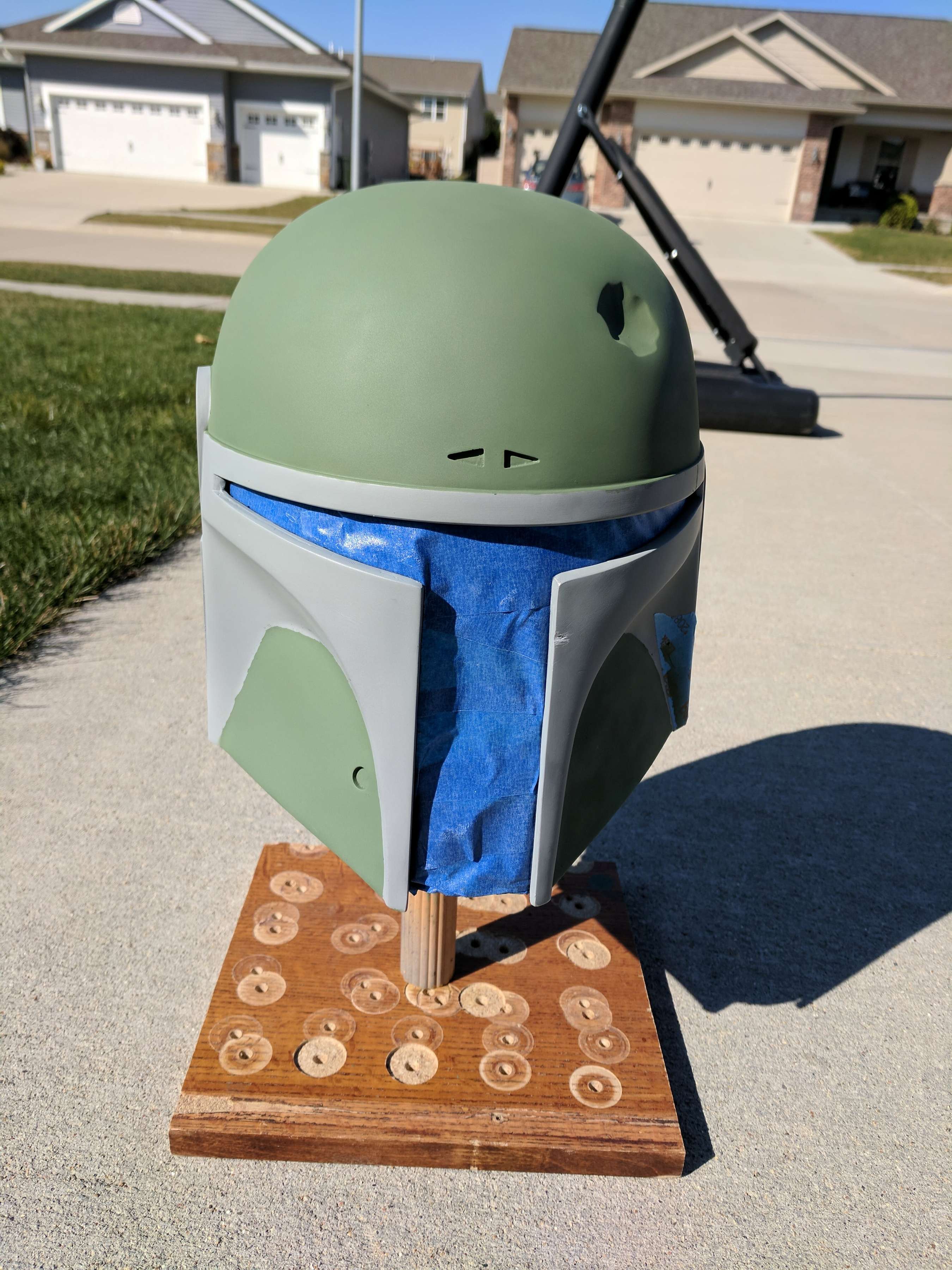

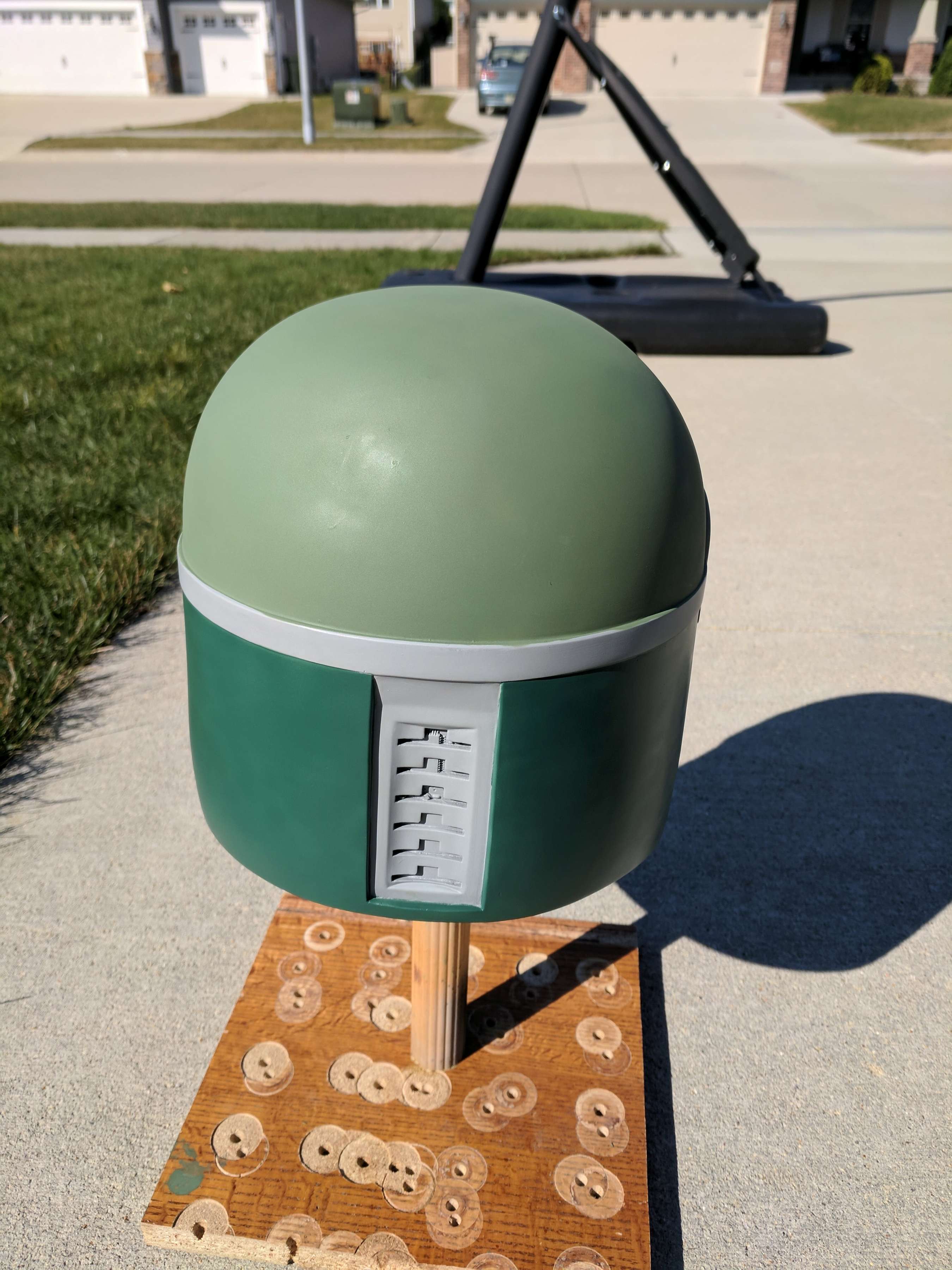

    Finally started a bit of painting today. Took me forever to get the air brush working for the first time. I needed to add quite a bit of thinner to get it to flow. Now I know. :) Looks pretty bright but once I get the main colors on I'll do a bit of weathering with some 0000 steel wool. Hopefully that takes the shine down enough.

    3B8jcvJq81sl81ZuVmJySPo1Z2VKj3d8e4sal-12L9OW1Qykg214jYOFFiA?width=3036&height=4048&cropmode=none.jpg
    cWcH7RnI4Qn7IK2wOw52O7AgxIEzC4px8dBnJXNUK3fFRJj-ZZneTUfg5fg?width=3036&height=4048&cropmode=none.jpg

    ThatRndmBounty and SingaFett like this.
  5. Good job so far!

    SupRsloth likes this.
  6. SupRsloth

    SupRsloth New Member

    Made some more progress between this weekend and tonight.

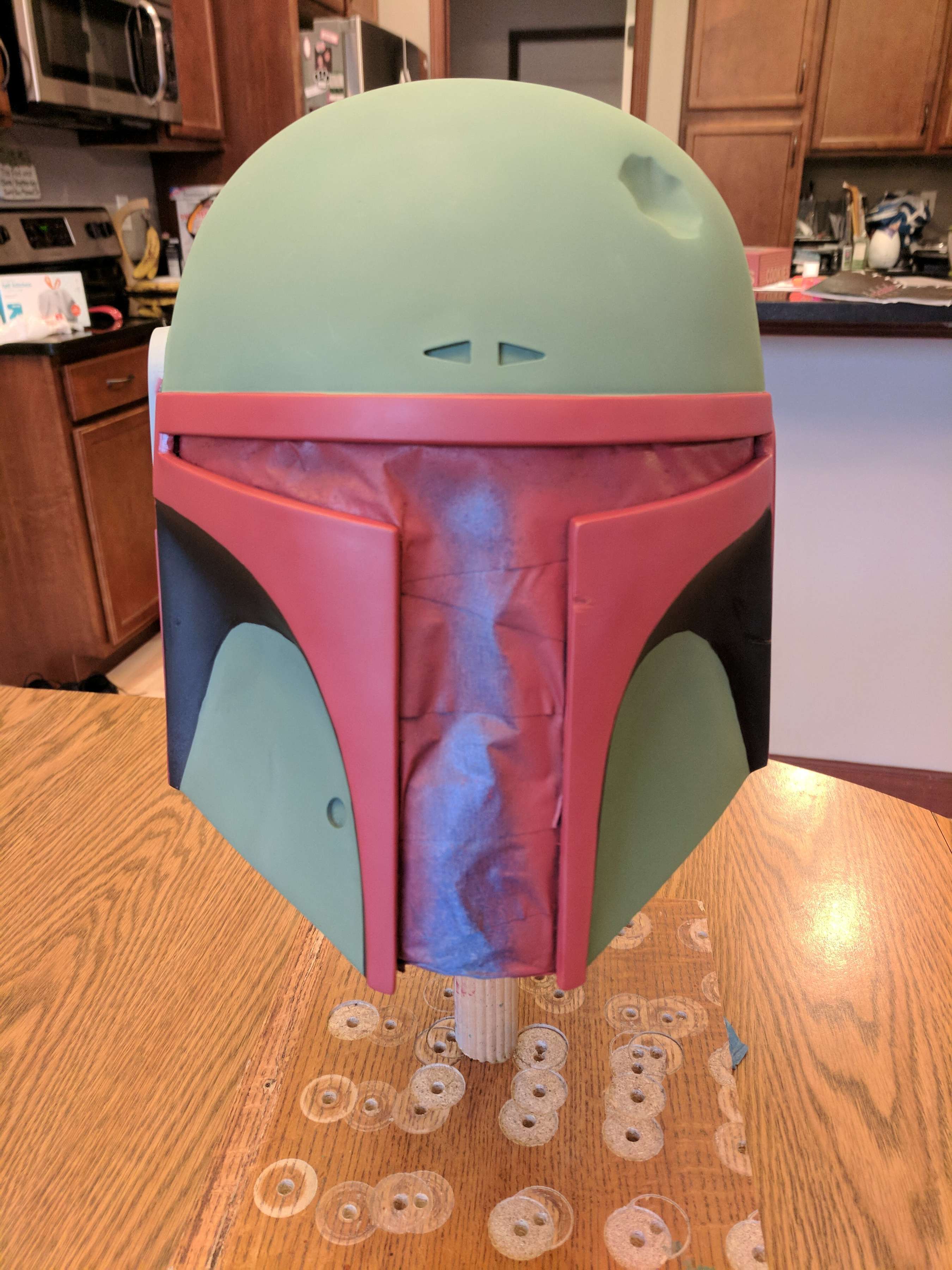

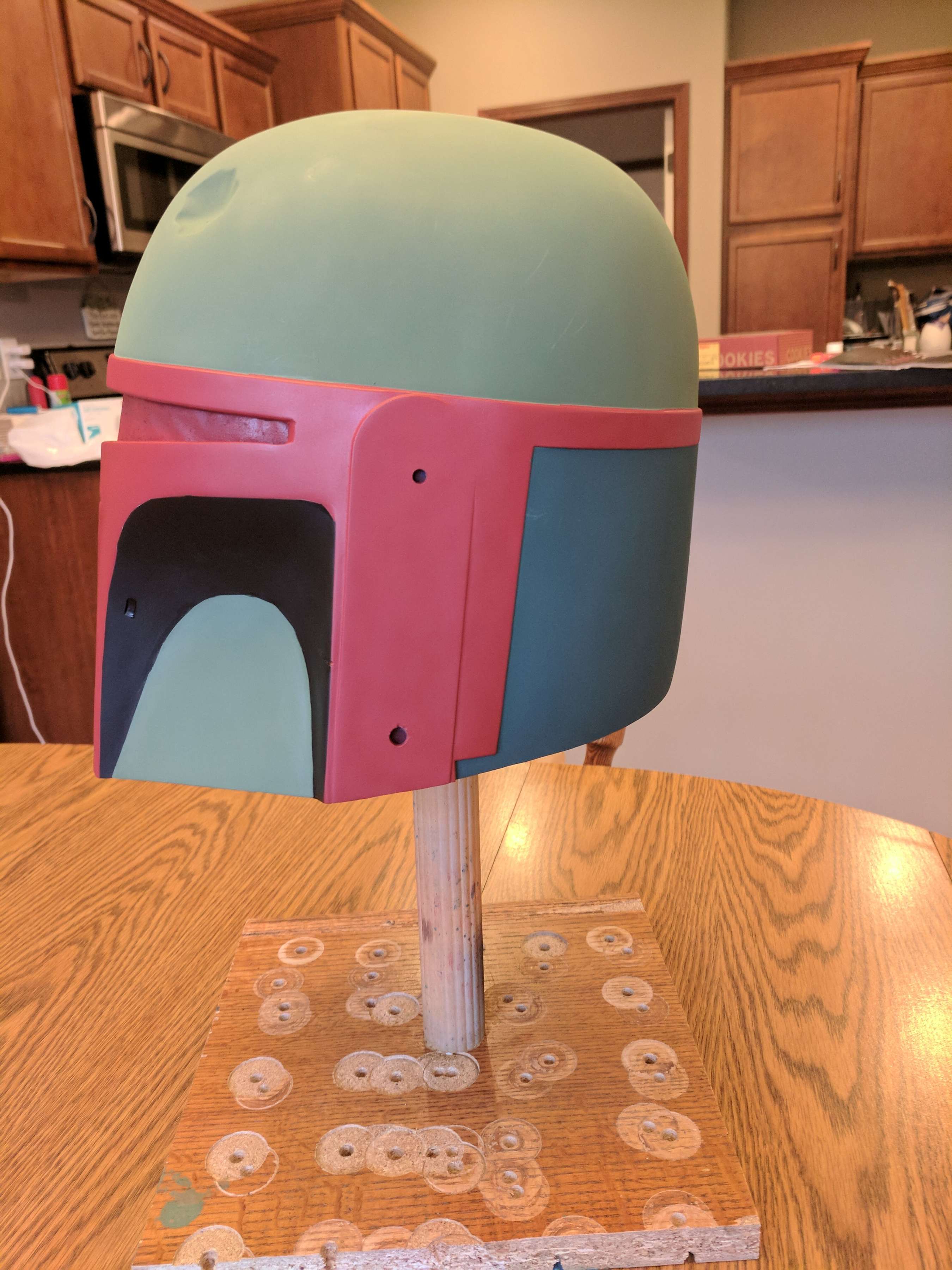

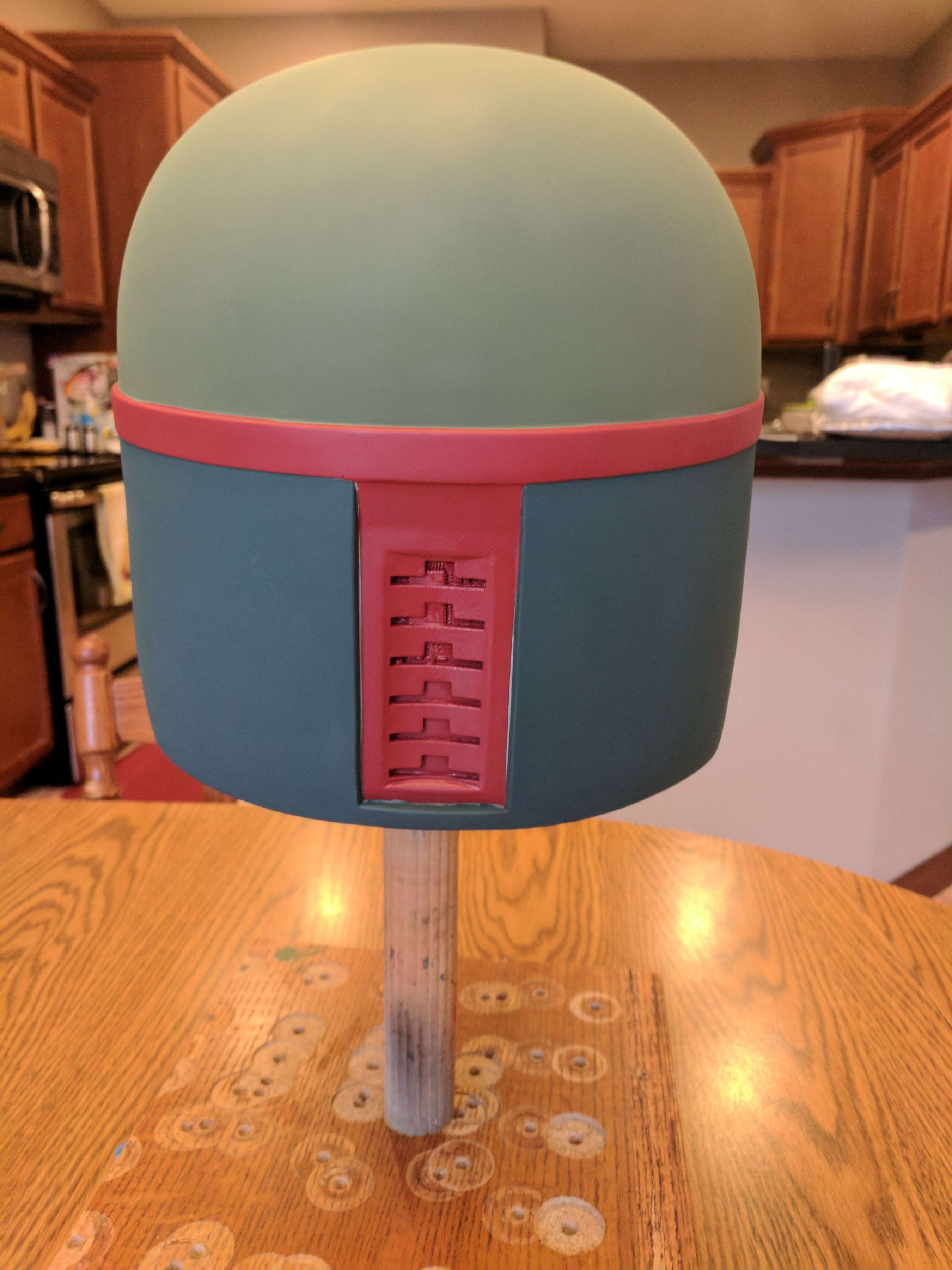

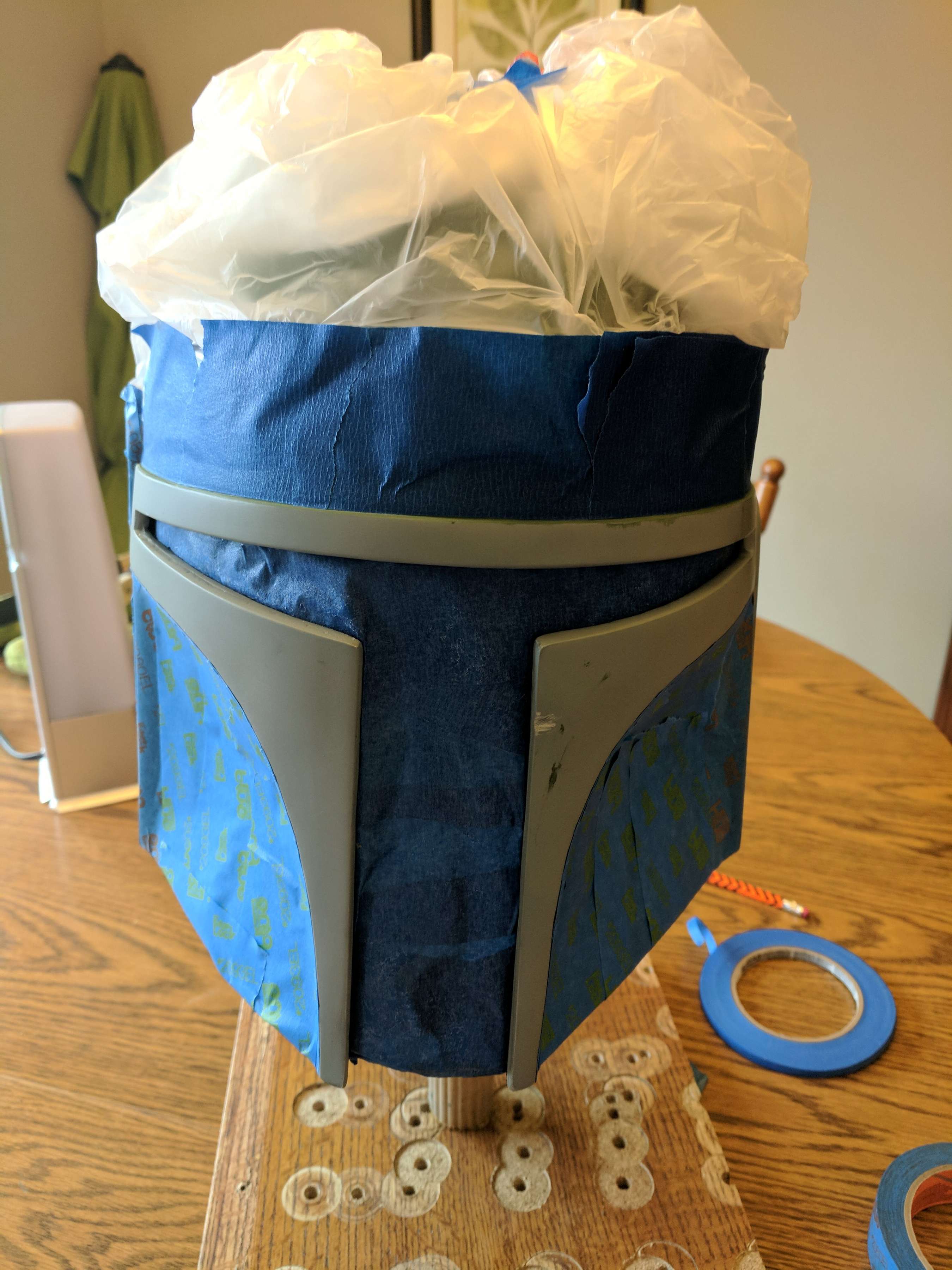

    Painted the black on cheeks and got the dark red painted around the helmet.
    QhNANkA6odueuigYP2l1eS3ySjPj_BsA96-dHsluJ-17kdNQ98Tt4dm6zLQ?width=3036&height=4048&cropmode=none.jpg
    l-325Vblip55Zk2I4KLVy12hhJgfDqIa1e0fR0NcJ9uG5J8iFLqQ7_2M0LQ?width=3036&height=4048&cropmode=none.jpg
    B6TKeVujCHww7Zc4TDD2-uDsQ5OsQCqKoZpGbtJHqqW6bDiLDvxl2t3mhsA?width=3036&height=4048&cropmode=none.jpg
    cApJZ9bOOqYTr_wk9rq-Ck0kN3yODsBPGN9PXo9-_CGhFVTlWvsGVTUJjfw?width=3036&height=4048&cropmode=none.jpg

    Few spots around some of the edges that I cleaned up after taking these pictures. Didn't do a perfect job of taping evidently. :p

    So that was the easy part but was a pretty big struggle for me as a first time air brusher. Now onto adding the damage. Can't imagine that will be any easier but I'm pretty happy with the progress so far.

    SingaFett and ThatRndmBounty like this.
  7. SupRsloth

    SupRsloth New Member

    Thank you sir!

  8. Artakha

    Artakha (Formerly le1120)

    Can wait for the damage!

    SupRsloth likes this.
  9. SupRsloth

    SupRsloth New Member

    Got a little bit more work done this weekend again. This is more slow going than I expected and I expected it to be slow.

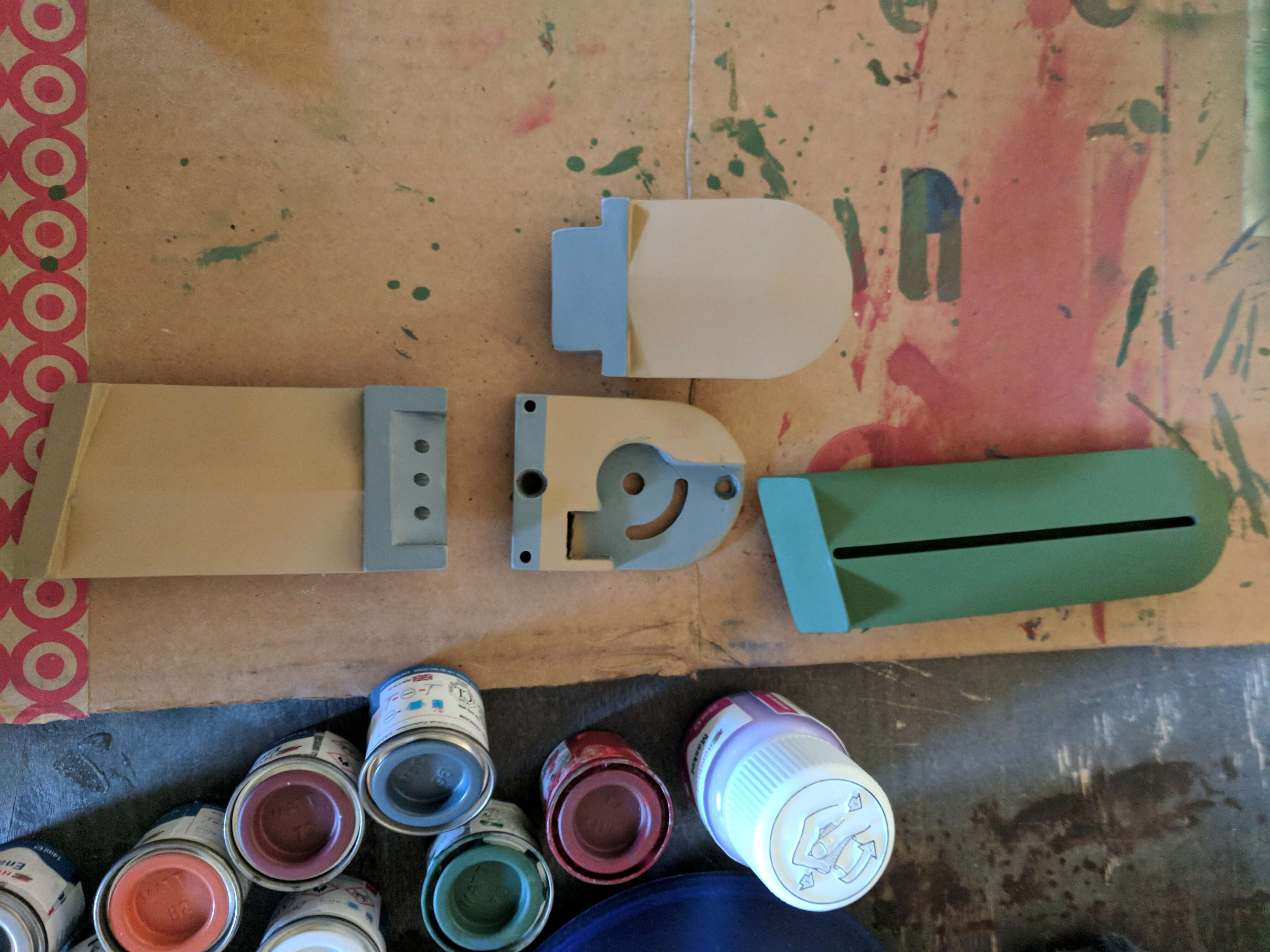

    First got all the ear pieces painted with the main color.

    vf0zFYGPIGRryHWPCSugRMeIXymGs1kg3JRf5YDX573WFtjw_gOiLL0fjDQ?width=4048&height=3036&cropmode=none.jpg

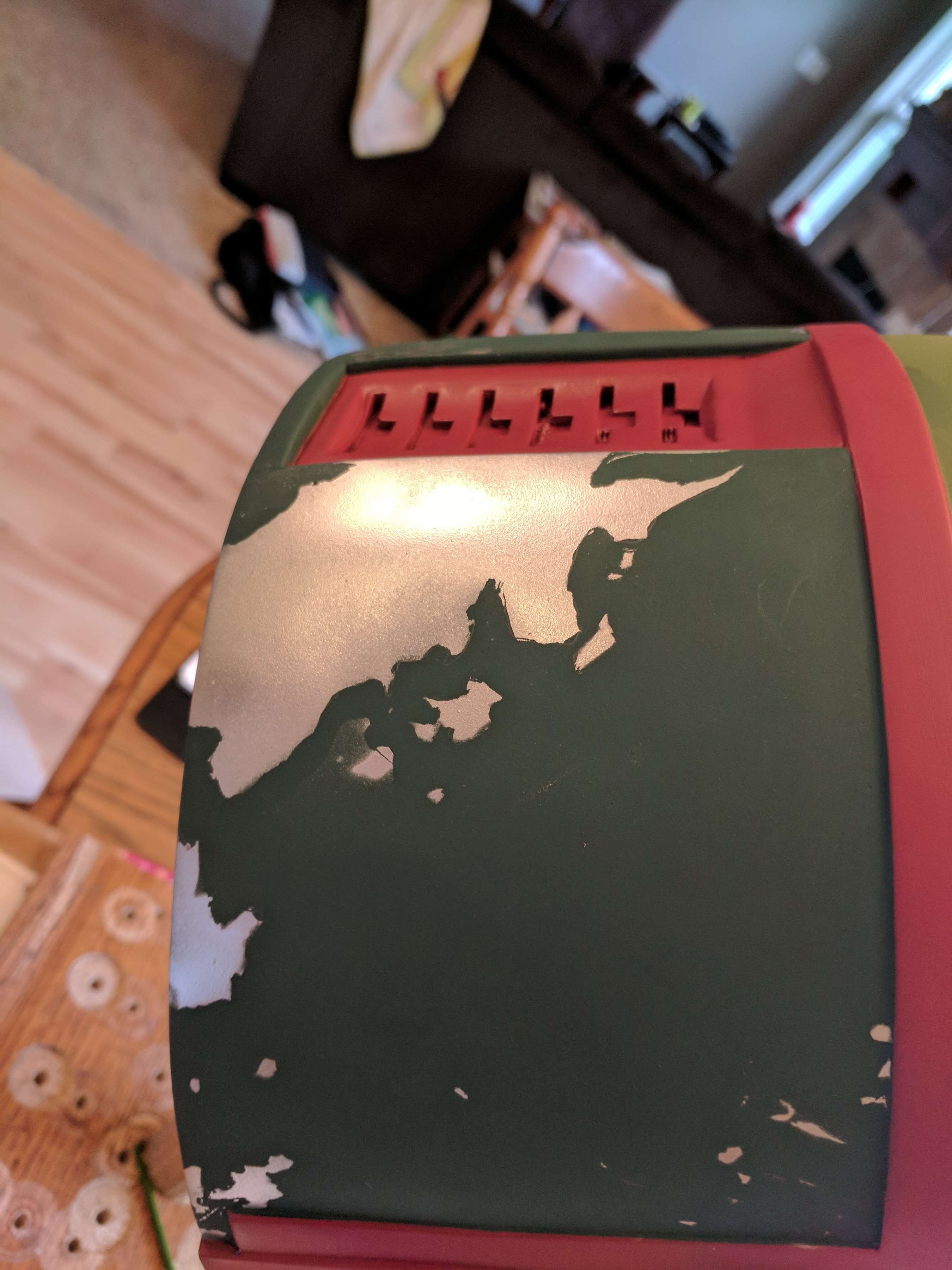

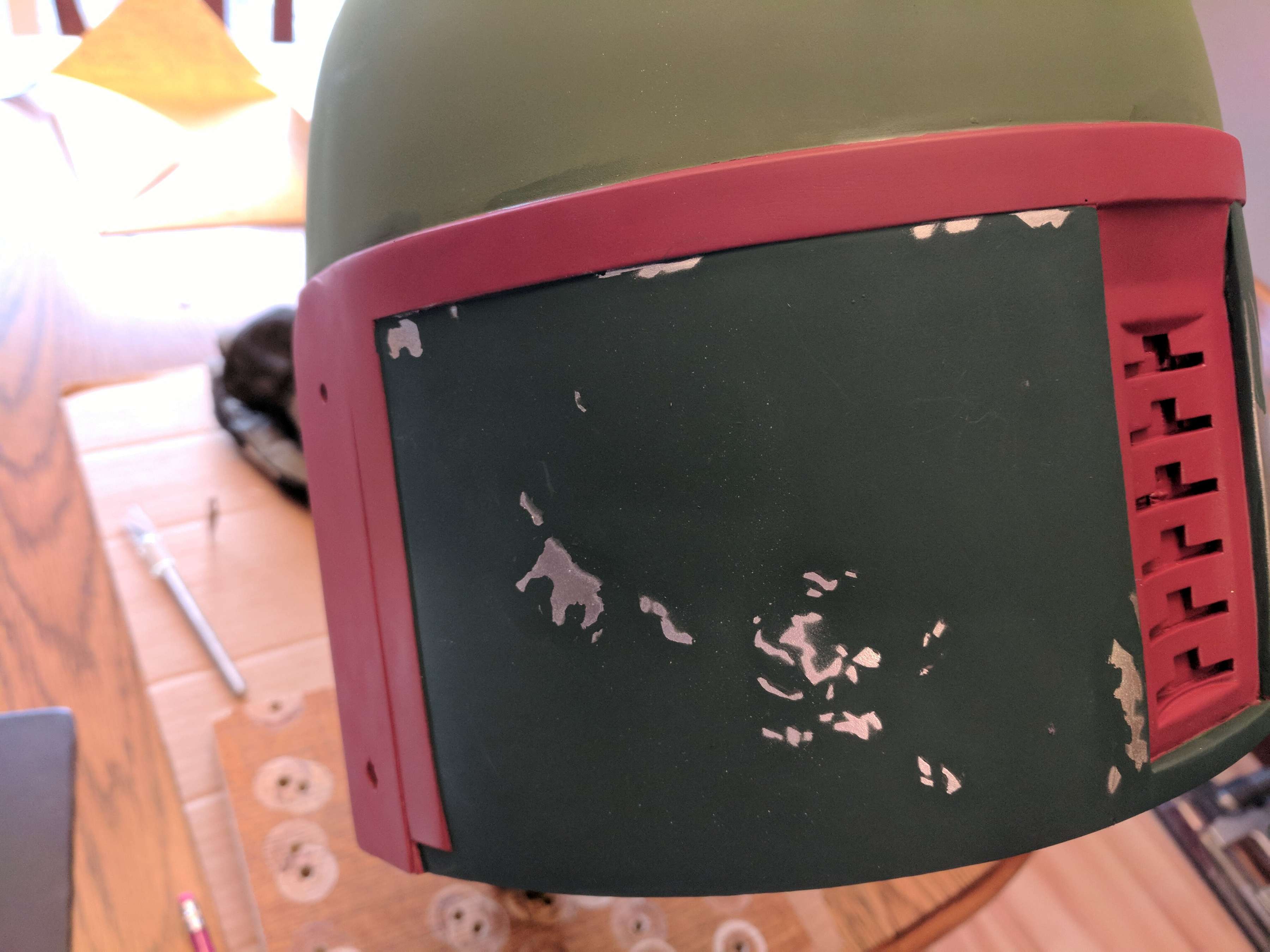

    Then did my first attempt at a portion of the damage. Doesn't look exactly right I think. Hopefully will start looking a bit better as I add the other colors on top.
    MAr_sUr36q8C9W4y-XdPW0-aE05kDZnyubS63MEKx5nJ5XkpvESRr85sqDA?width=3036&height=4048&cropmode=none.jpg
    aUtWXKGosVLWGXaP76iRTXhs4HhffiW8OfRDzEDXcZio2Kfgd4NNzTtj8cA?width=4048&height=3036&cropmode=none.jpg

    I'm not very good at cutting out the stencils evidently so my shapes are not quite as crisp as I had hoped. Hopefully it will look good enough.

  10. hvacdon

    hvacdon Jr Member

    What I've heard is, positioning the stencils on the helmet, putting carbon paper underneath and tracing over the stencils and leaving the carbon image on the helmet to go by.

  11. Evan1701

    Evan1701 Member

    Can't stress this enough. I would even suggest getting carbon transfer AND wax transfer paper- carbon for the light colors and wax for the dark. You can keep reusing the paper as well. I did my back panels with only a single sheet of wax paper, although I did a fair bit freehand towards the last few layers.

    SupRsloth likes this.
  12. hvacdon

    hvacdon Jr Member

    They also make white carbon paper that might be easier to see for small details.....

  13. hvacdon

    hvacdon Jr Member

    SupRsloth likes this.
  14. SupRsloth

    SupRsloth New Member

    Thanks for the feedback! I ended up repainting the green on the back panels to start over. Any brand recommendations on the transfer Paper?

  15. Evan1701

    Evan1701 Member

    You should be able to pick some up from any craft store. I picked up a couple packs of the wax transfer paper from Michael's, the package is pretty generic looking and just says "transfer paper" or something like that. I like the wax since it's easy to see with most colors, although I pretty much couldn't see it at all on the concrete layer and had to freehand it.

  16. TK50175

    TK50175 Member

    I used spray clue to clue the tracing paper on the scaled stencils. Try this so you dont have to deal with to sheets of paper (stencil and tracing paper).

  17. hvacdon

    hvacdon Jr Member

    Amazon has black and white carbon paper available. The spray glue is a good idea for keeping the stencil and carbon paper from sliding around.
    The link to Jayvees ESB paint up should help you figure out some of the steps and processes. Jayvee is very talented !!

  18. SupRsloth

    SupRsloth New Member

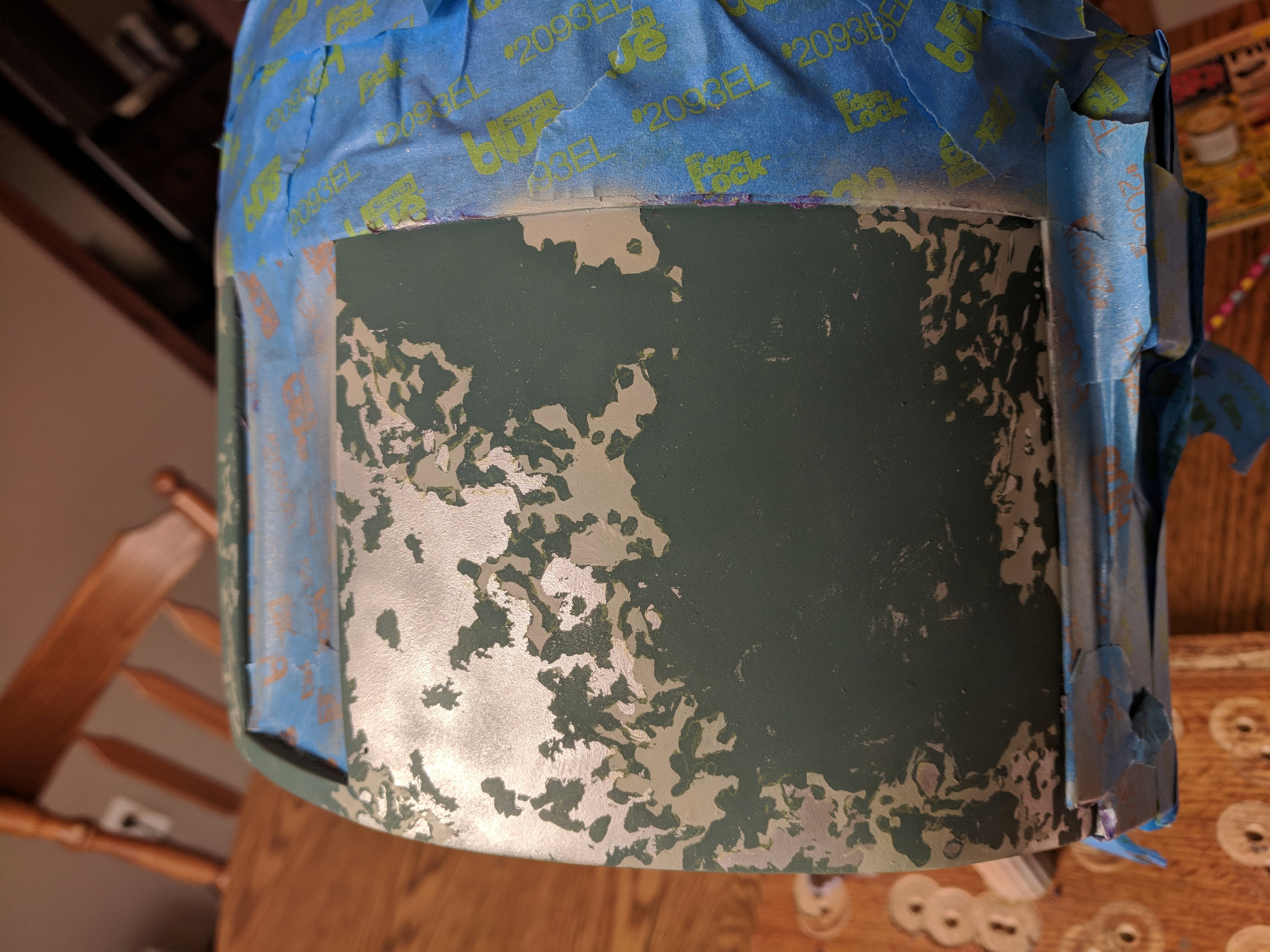

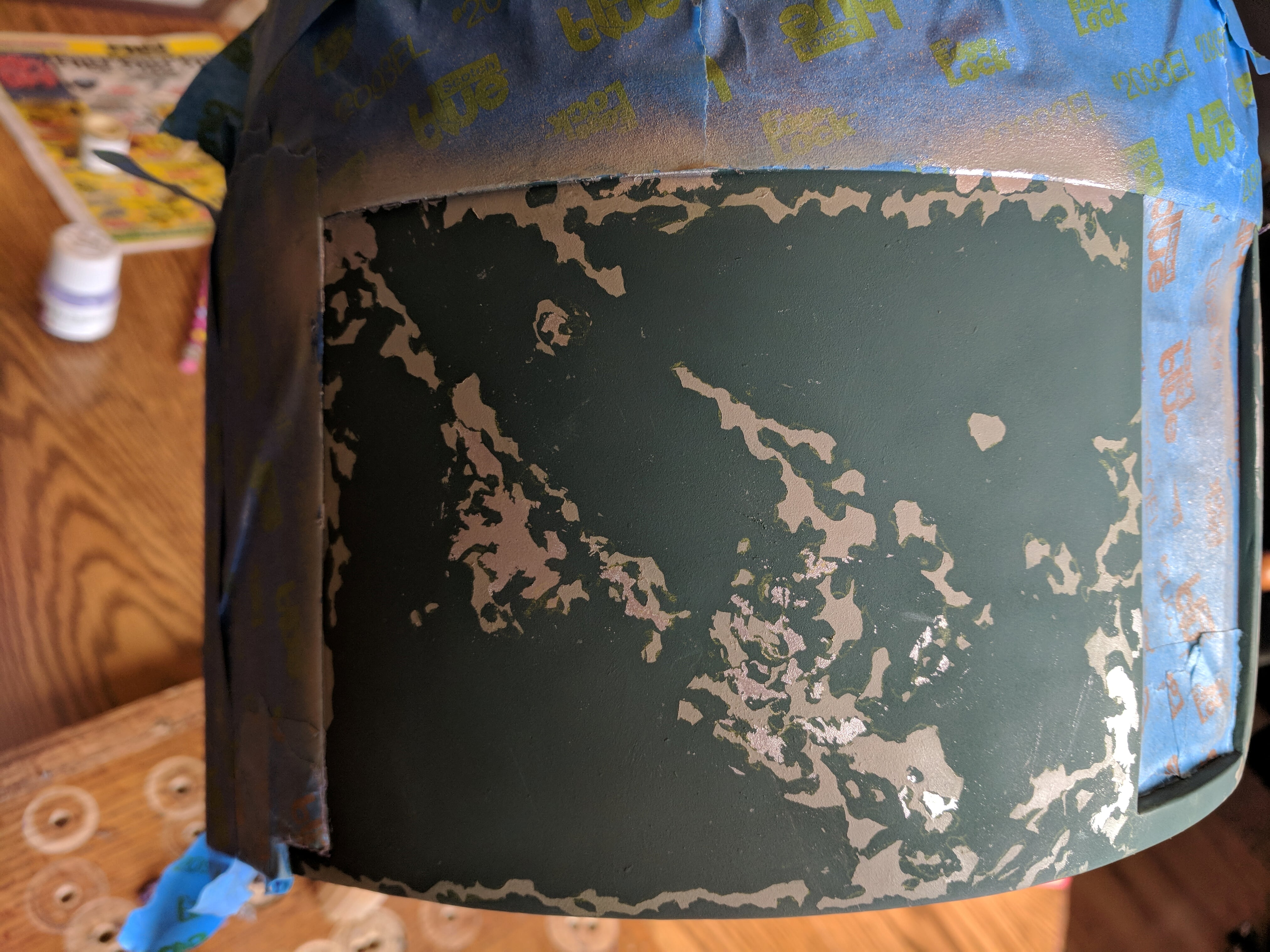

    So I gave it another shot using some transfer paper and masking fluid. Nowhere near perfect but defiantly way better than the first attempt I think. You can see that I didn't mask perfectly as there is still some of the transfer paper lines showing. They wipe off pretty easy so won't be there long term. Looking close enough? I still have two more major colors to go.

    7PSJMmtioW7m-eBAQfbg0t0yOgYyGzcZuzLoM5BG3E7cmq-KyFJJTyegmdQ?width=4048&height=3036&cropmode=none.jpg
    KGwoZuzlH4sm7SgJzkQ3EKZHweW1Prc0UJ9w6fuCKd6DtmEkS7WCMOJsfkg?width=4048&height=3036&cropmode=none.jpg

    TK50175 likes this.
  19. hvacdon

    hvacdon Jr Member

    Looking Great....Keep up the good work !!

    SupRsloth likes this.
  20. SupRsloth

    SupRsloth New Member

    Made some progress over the long weekend.

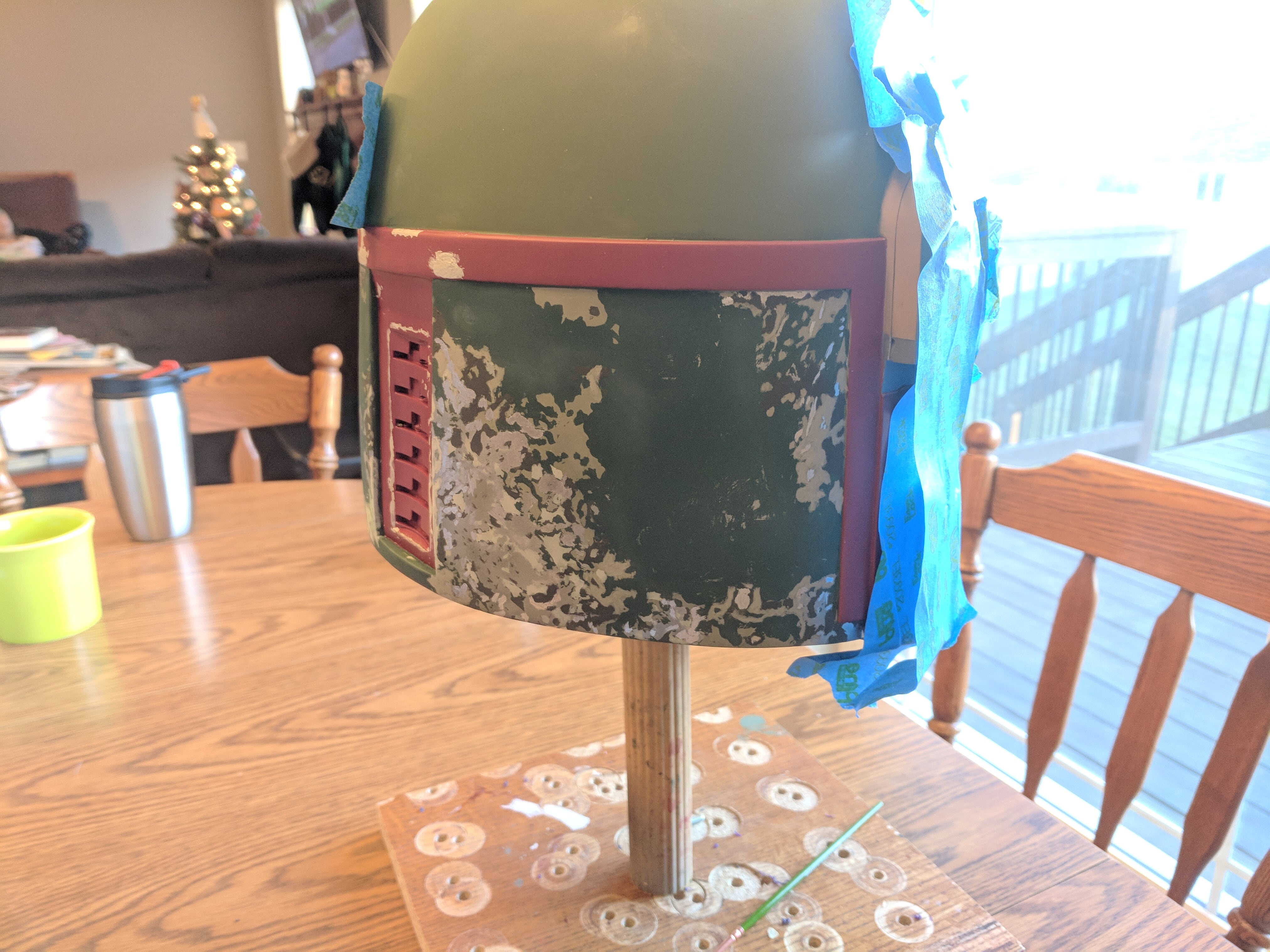

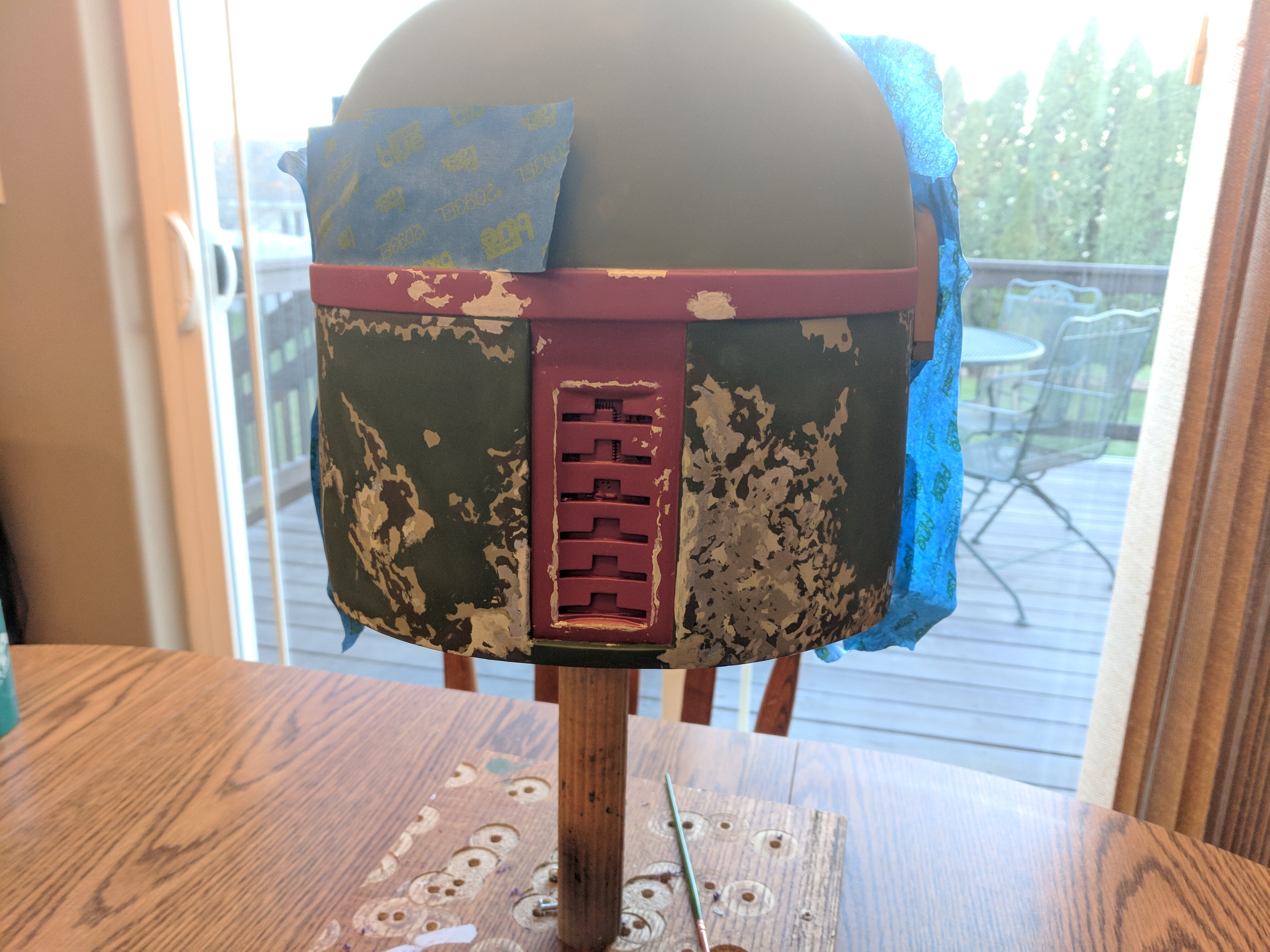

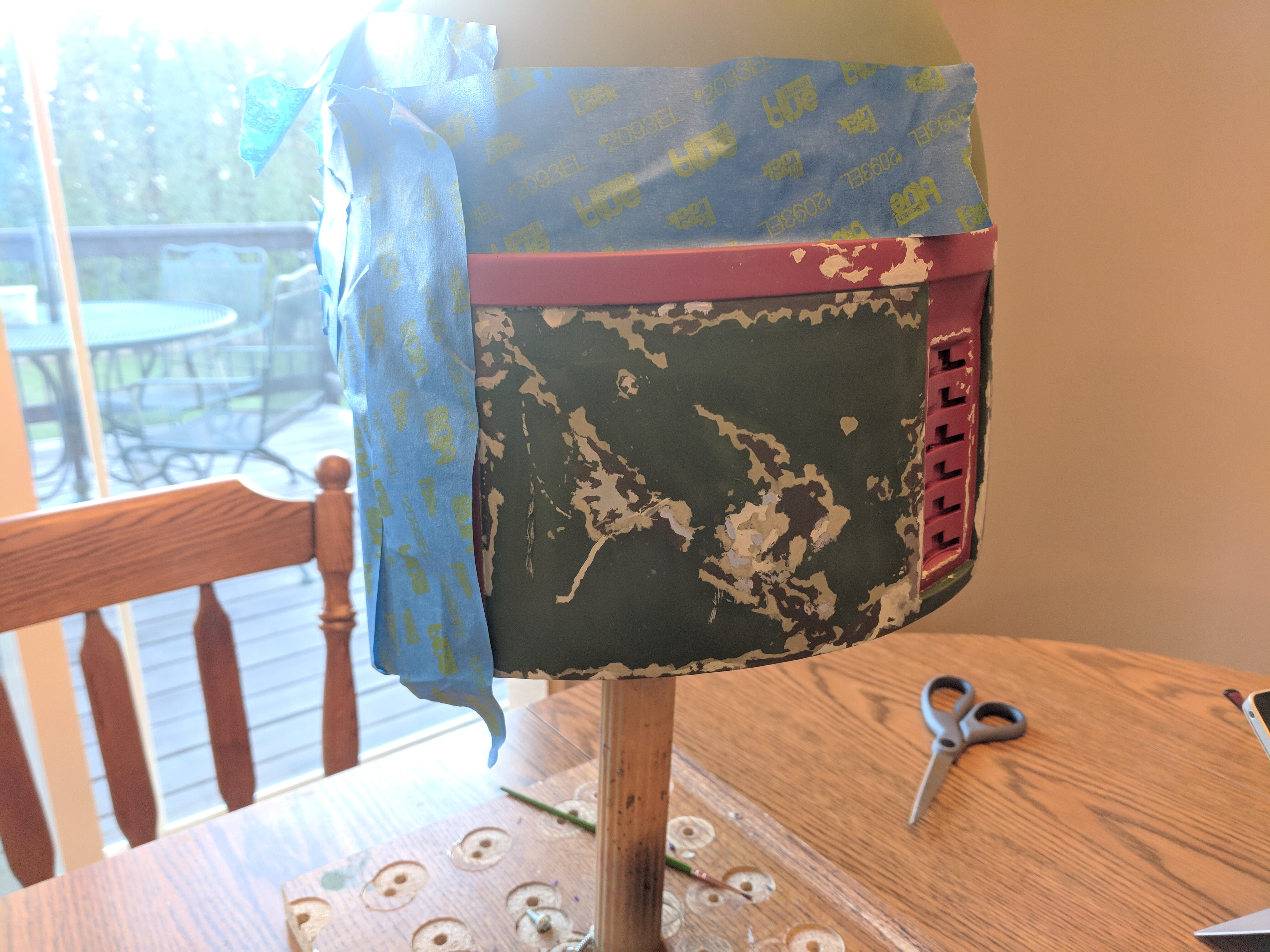

    Completed both of the main back panels and started on the red pieces on the back.
    RG44GPoo1LJ31VgJ_3gwltvwxzzJyMaraKCs1n2Ft3jmNR5C9o9t-MGcqiA?width=4048&height=3036&cropmode=none.jpg
    pMk1XvxvtiU1OAUEUc5t6zosP_FktVE3atZK9UDnpvYtqPF98d-uEoVwKAQ?width=4048&height=3036&cropmode=none.jpg
    _qz-VfVoayBe9PLR67-hHgdprj-3rGJMY5cW08MLPApN3yuR8Wq-P1VLiEA?width=4048&height=3036&cropmode=none.jpg

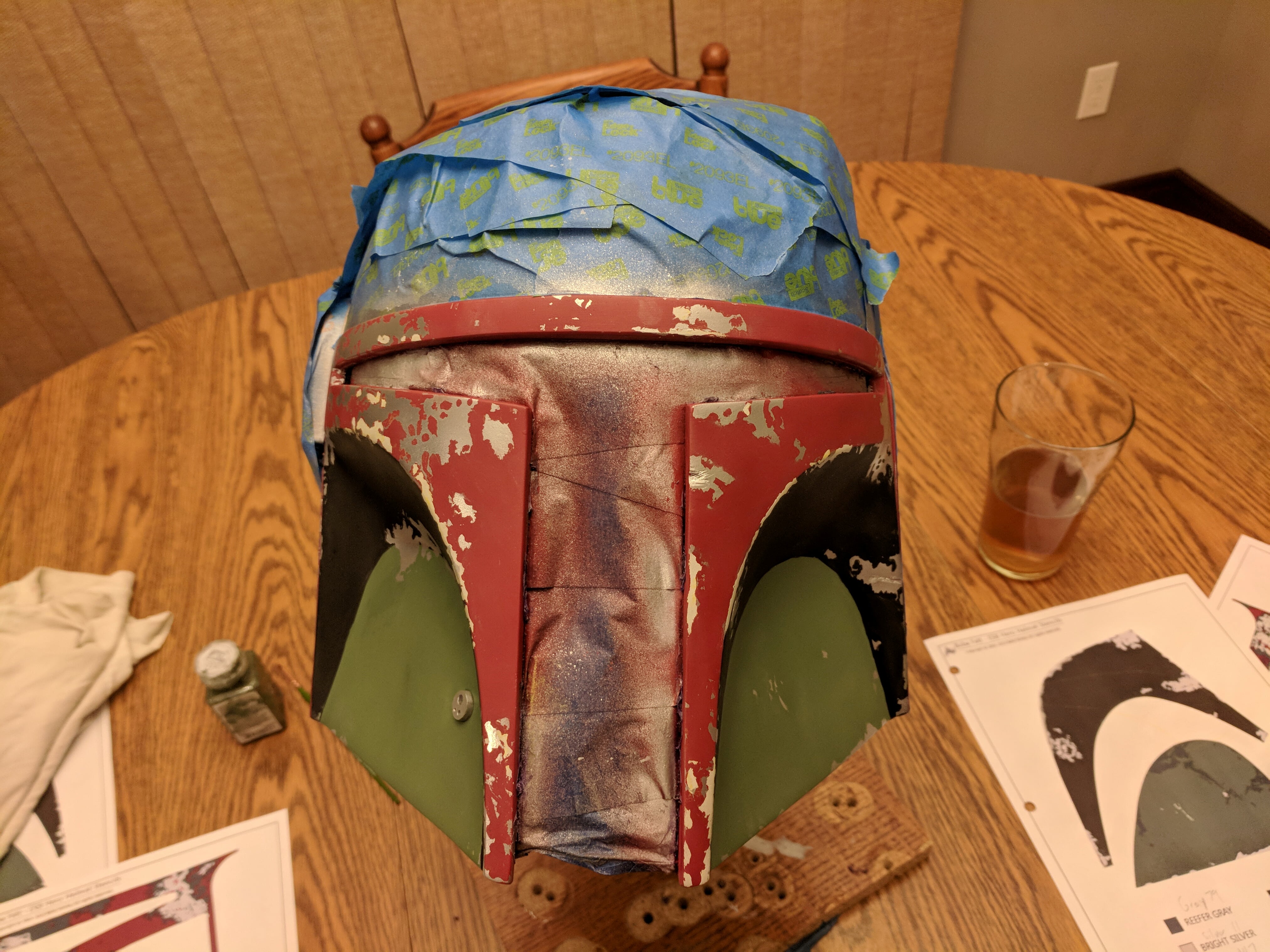

    Also got the silver and base grey on the front pieces.
    s3TcDsacIxM-IJlWQ1mk-1tJjDNj8RAFKObg3thgofFvs1wA2GMnZEAWNeA?width=4048&height=3036&cropmode=none.jpg

    It still amazes me how long the prep for each color takes. It's literally hours spent stenciling and masking and about 1 minute painting. Although it drives me a bit batty, I love seeing the progress with each step.

    hvacdon likes this.
  21. hvacdon

    hvacdon Jr Member

    Great looking Job!! I really like to see your detail in your progress pics !!

    SupRsloth likes this.
  22. SupRsloth

    SupRsloth New Member

    Made a ton of progress this week. Finished the entire bottom portion of the helmet. Ordering some Testors clear coat spray that I'll put on prior to moving onto the dome. I found that my painters tape was taking off the silver. It was strange as that was the only color that was impacted by the tape. The silver is the only model masters paint I'm using which maybe has something to do with it. But lesson learned I guess. I'm assuming the clear coat will keep that from happening to the parts that I have finished.....
    p1Nfi4gdO0AgGg6zlchhXnU0O8O4WQTqZCnK_dQ9r09zdEluv3cPihqOkHw?width=4048&height=3036&cropmode=none.jpg
    4OPe0wX-DJbs4ai8r6PCj7-o-jxhuBlZzjhYh0FFIRbImKb_9WhTpHsPfJA?width=4048&height=3036&cropmode=none.jpg
    eSWGyStI20oh3Tt3GC1LTwkuKreL1PZD4vEUD4QY2kHICNrn6rolv6sv-4w?width=4048&height=3036&cropmode=none.jpg
    oyKYeG8_Z6f_O3ES15K0g15MLTVuBB1KjgxEBzNLL1PrkzQIV0ZrYKT-zLg?width=4048&height=3036&cropmode=none.jpg
    H65Q7PyNQZmJVH7_Ol6JKXdE4NLQGphHOJOJrthqf8w-KfEf9ZHl2LwIWfg?width=4048&height=3036&cropmode=none.jpg
    5xSOS-V_TduRt6VIJzCf0pZjNQ4UZR7I6jJUiTfHlmjUznHY_f36ik9jjlg?width=4048&height=3036&cropmode=none.jpg

  23. hvacdon

    hvacdon Jr Member

    Looking Very Nice !!
