RafalFett's Misc Templates and Blueprints


RafalFett

Well-Known Hunter
ShortFuse already provided you one link from the many sticky threads found in the Boba Fett Costume and Helmet sections. Most of the templates and stencils are located in those threads (at the top of the 1st pages), you just have to chose the version you want to build. Also you can find 3D models that you can print for yourself (only for personal purposes) or use an online service (like Shapeways), but you'll need a small fortune to order parts for a full suit.


WompaBait

New Hunter
You are a god amongst bounty hunters , these are alm the pics that I never knew I needed .

keep your enemies close and your flame thrower closer


B0B4F3TT

New Hunter
TDH PREMIUM MEMBER
Some of these files were in work for some time and now it's time to see the light. Because I'm not a professional draftsman, my files shows only the basic shapes and measurements, but I think this is more than enough to see the full picture. So, here are the files...

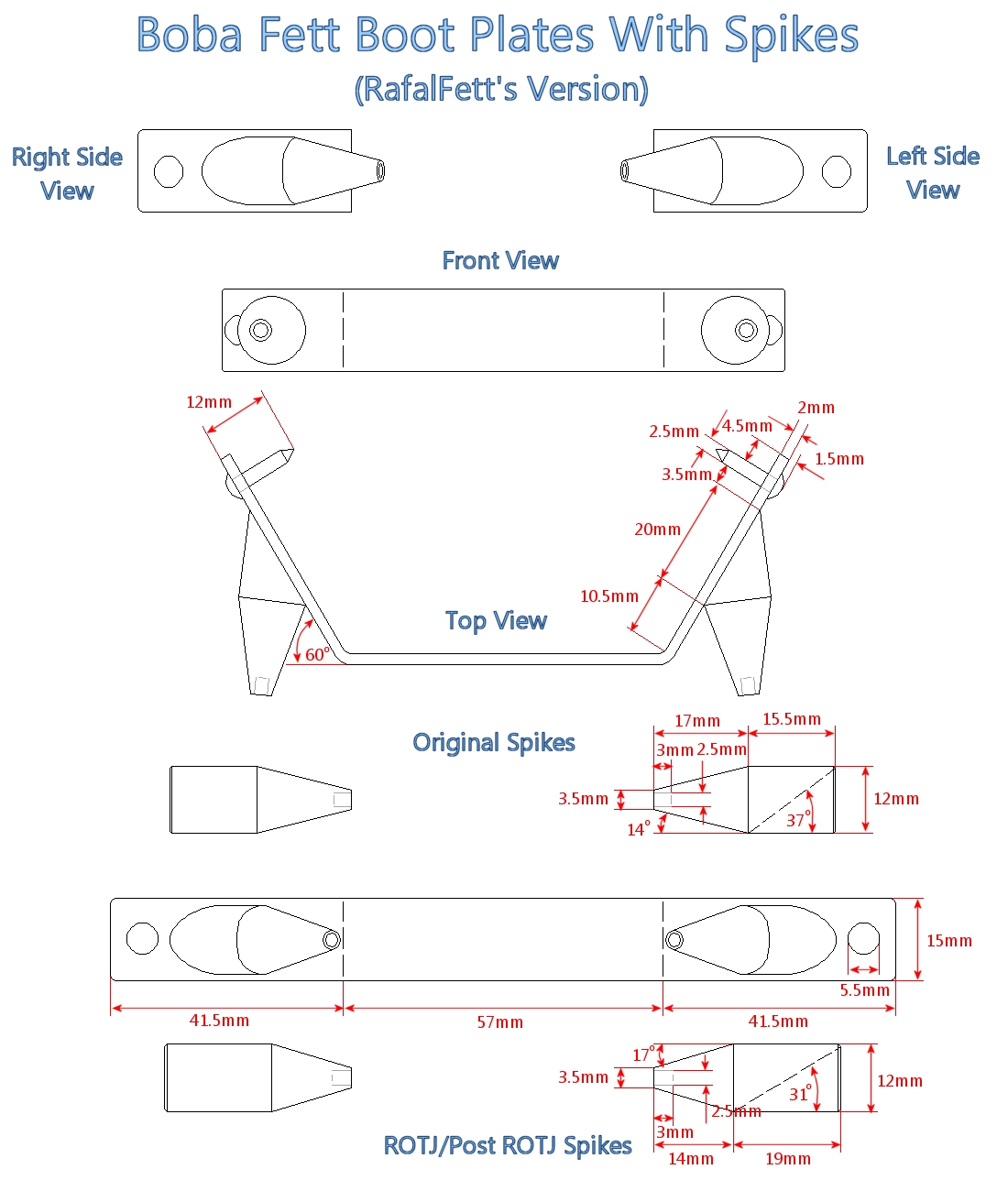

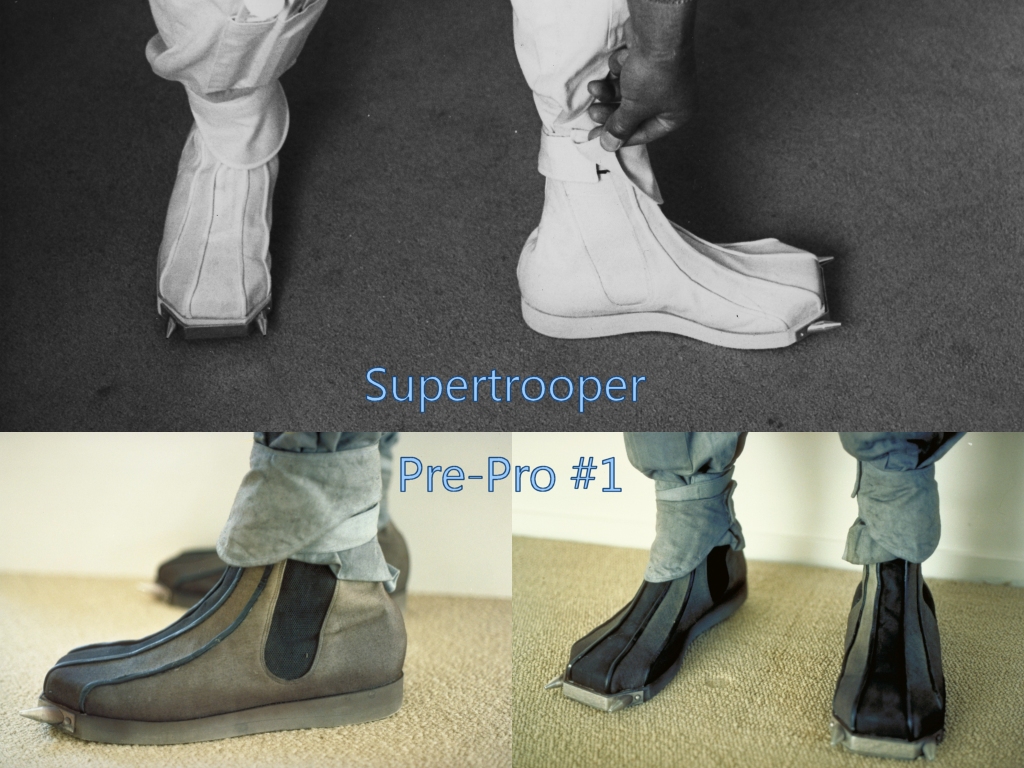

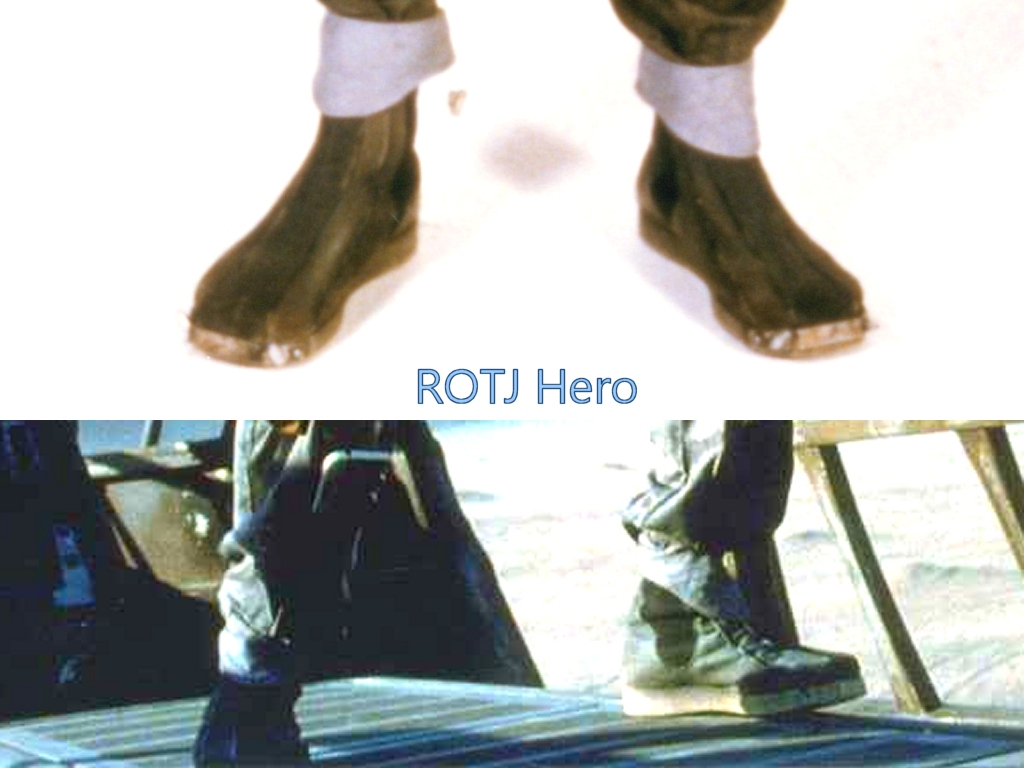

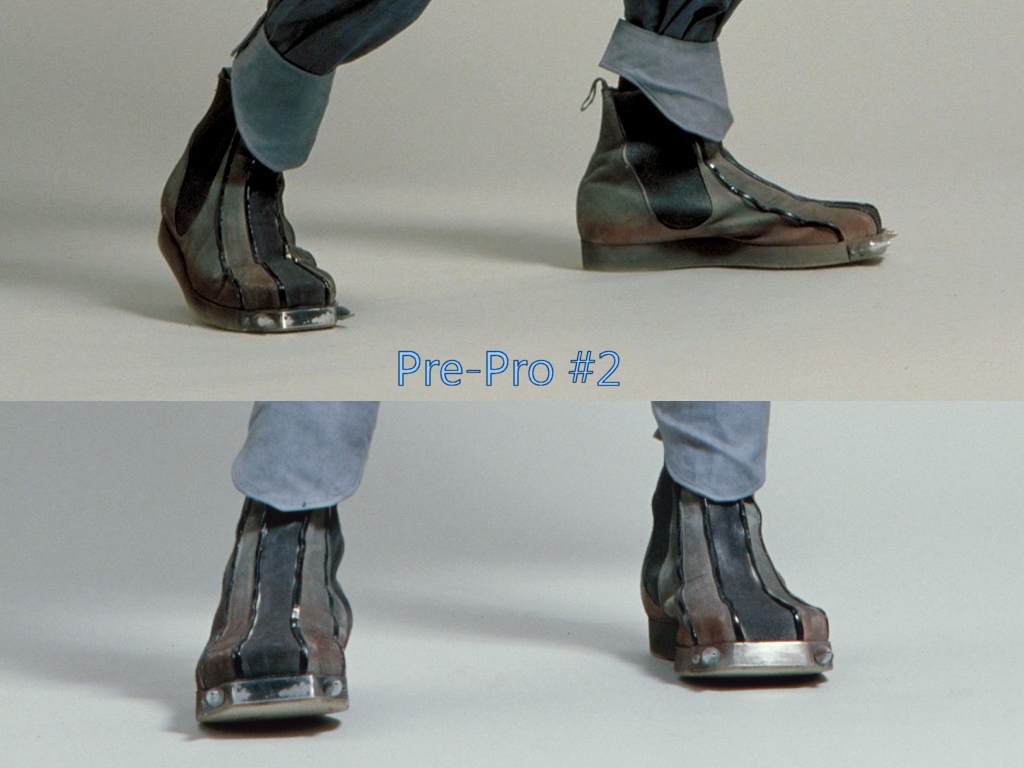

Boba Fett boot plate with spikes:
View attachment 37304 View attachment 38285 View attachment 38286 View attachment 38287 View attachment 38288 View attachment 38264

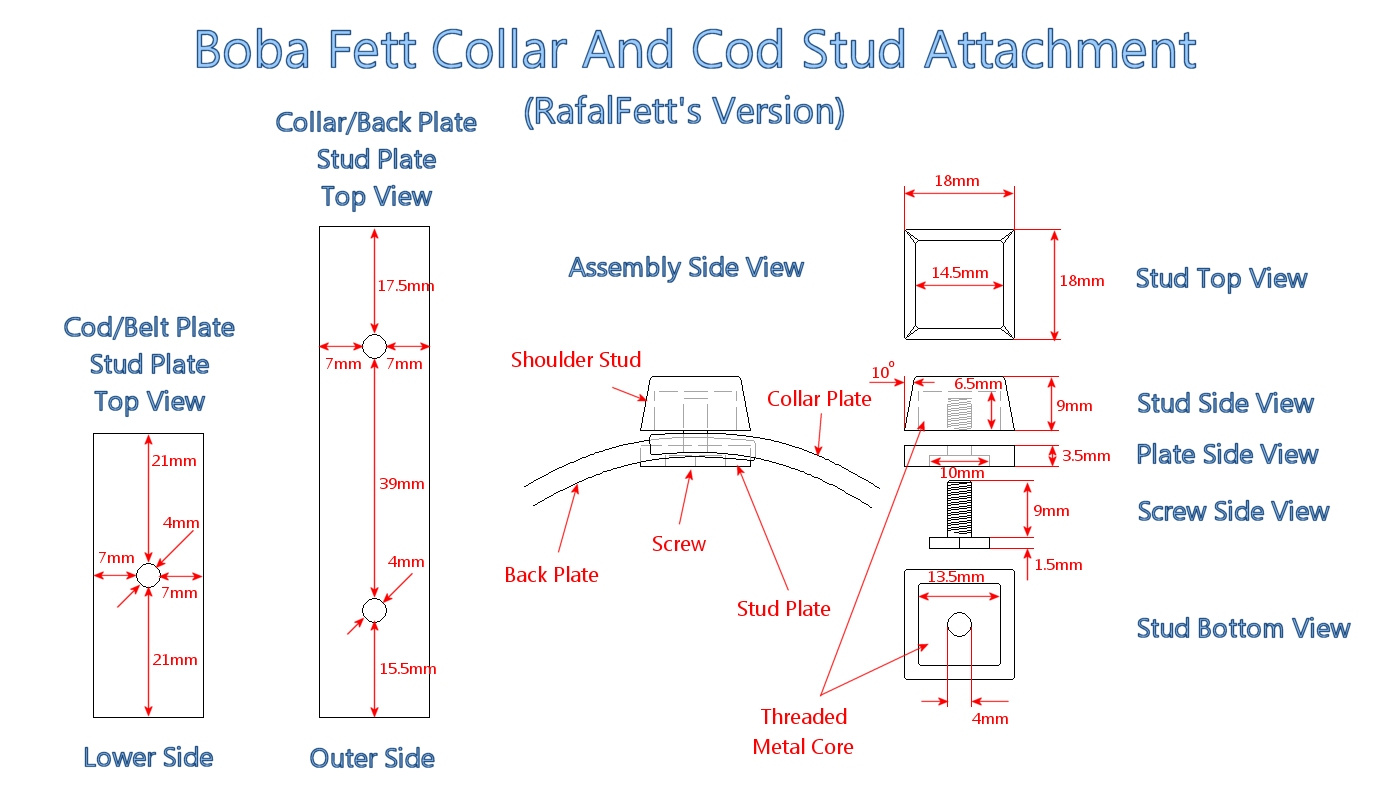

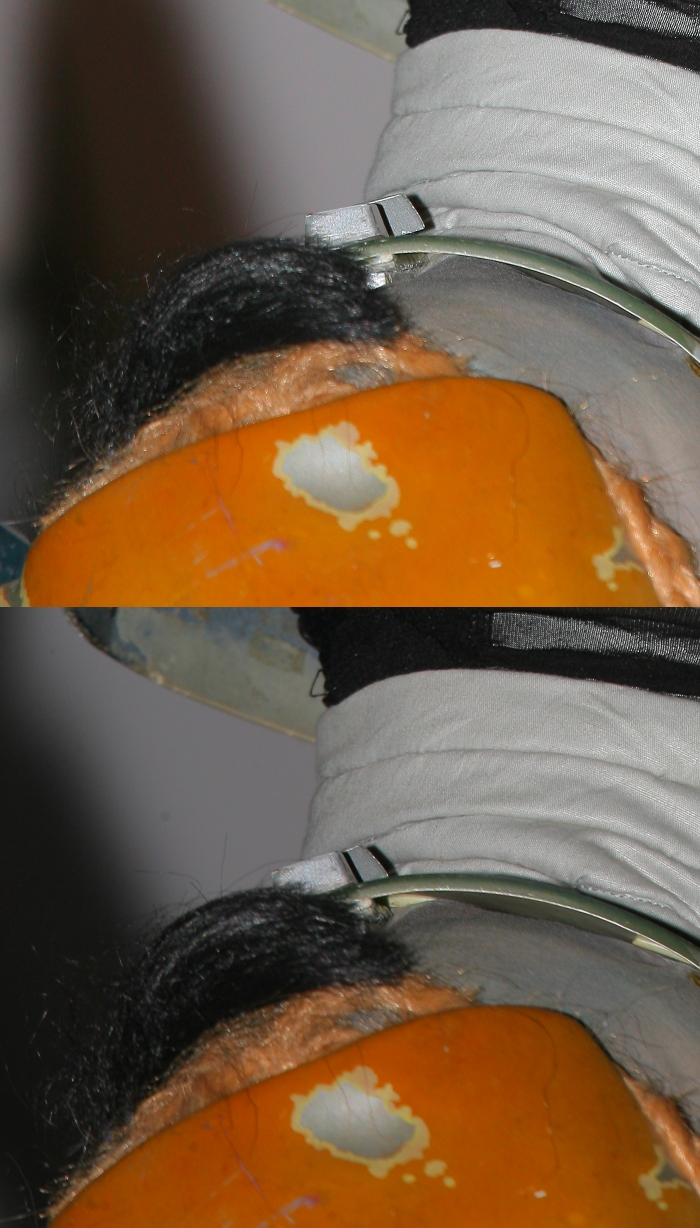

Boba Fett collar and cod stud attachment:
View attachment 38395 View attachment 38277 View attachment 38278 View attachment 38397

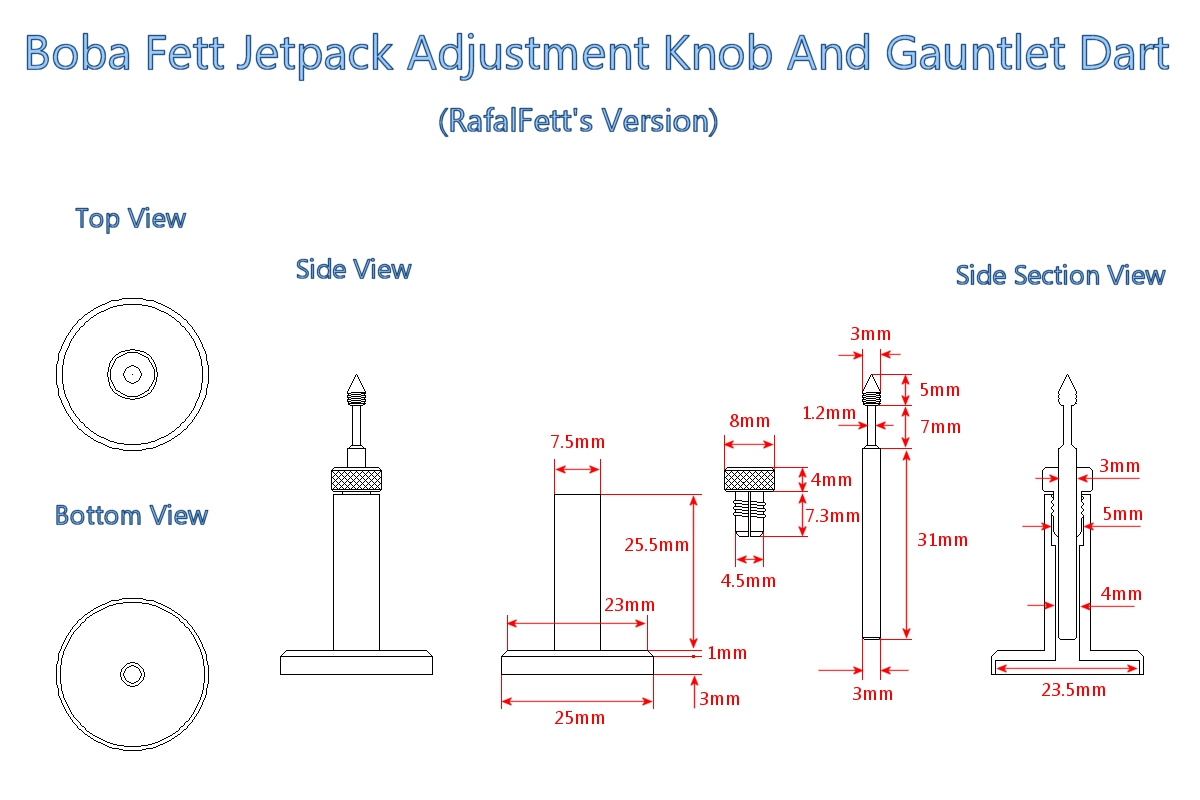

Boba Fett jetpack adjustment knob and right gauntlet darts:
View attachment 37305 View attachment 38294 View attachment 38295

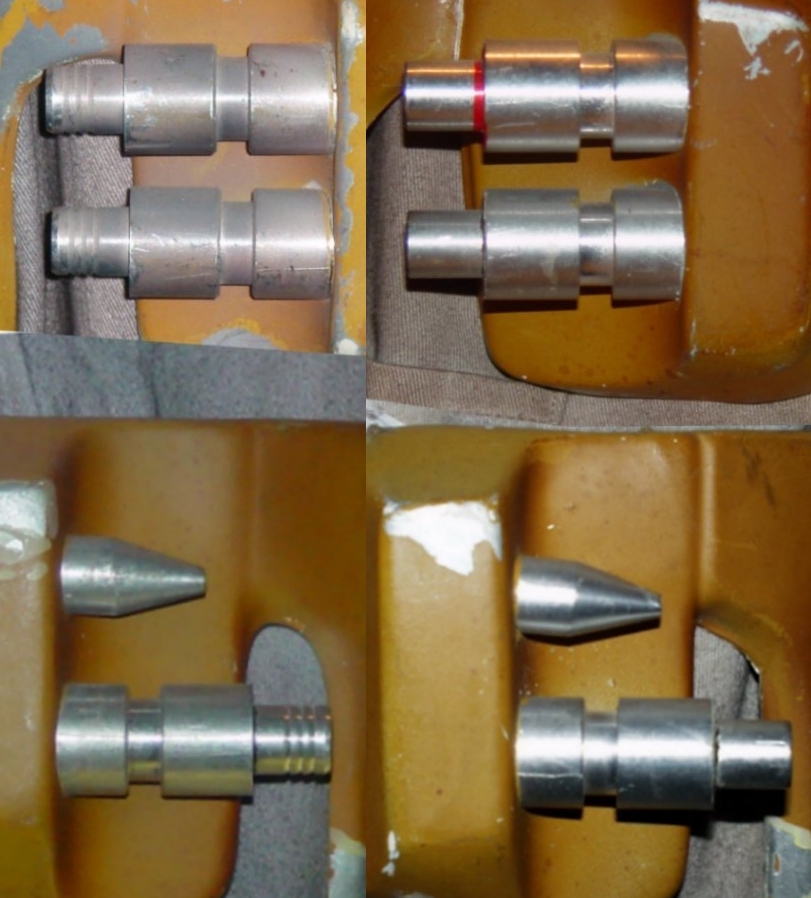

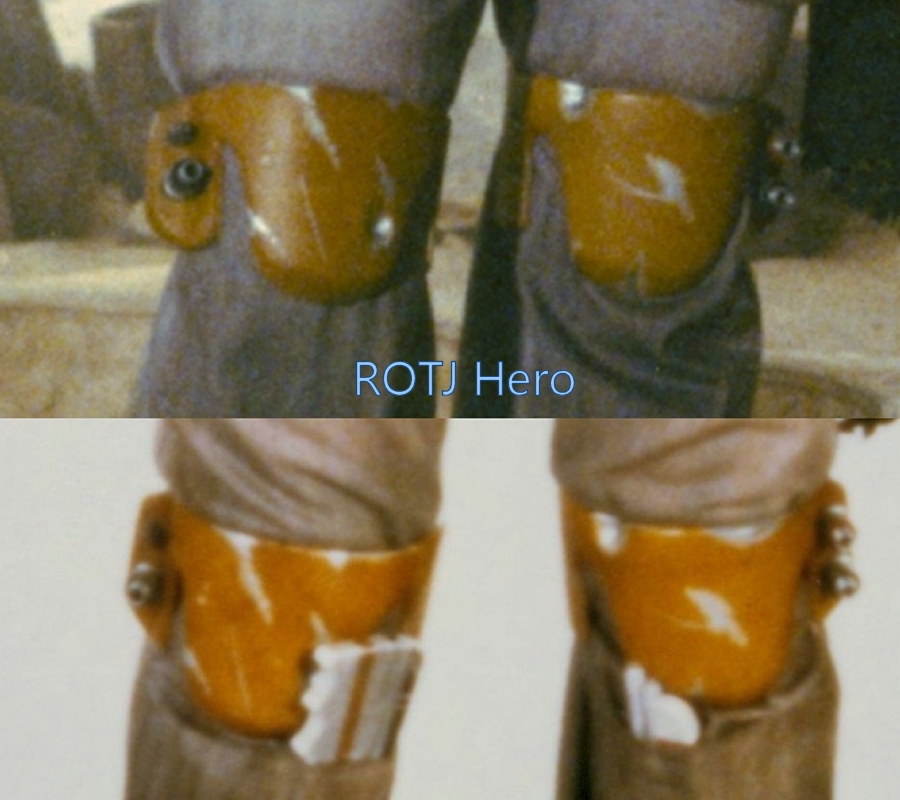

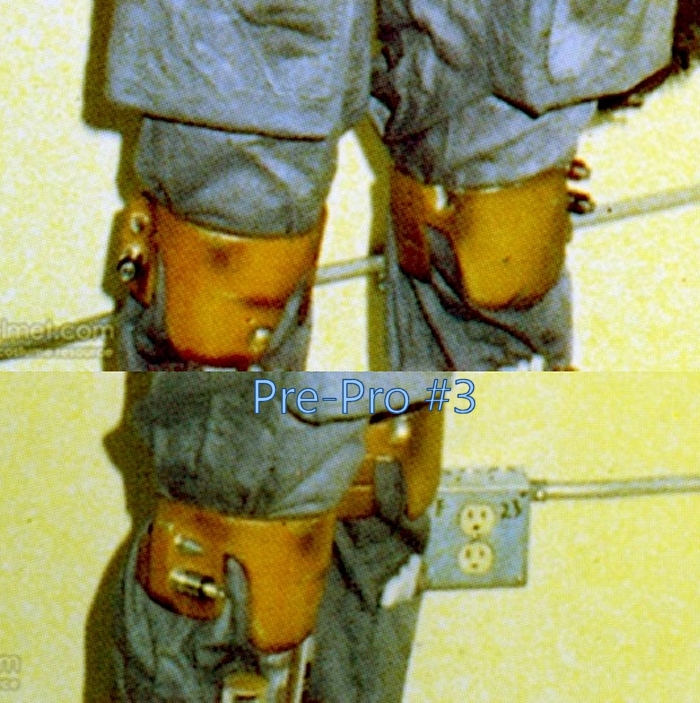

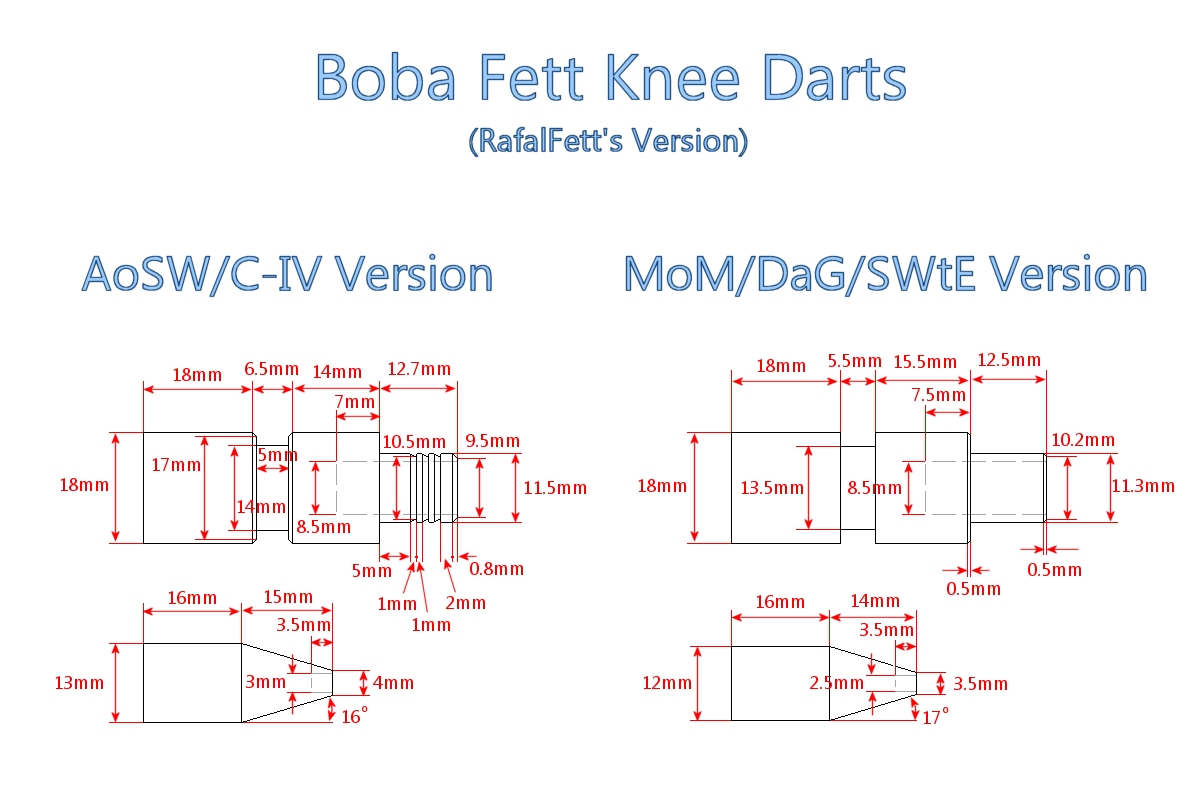

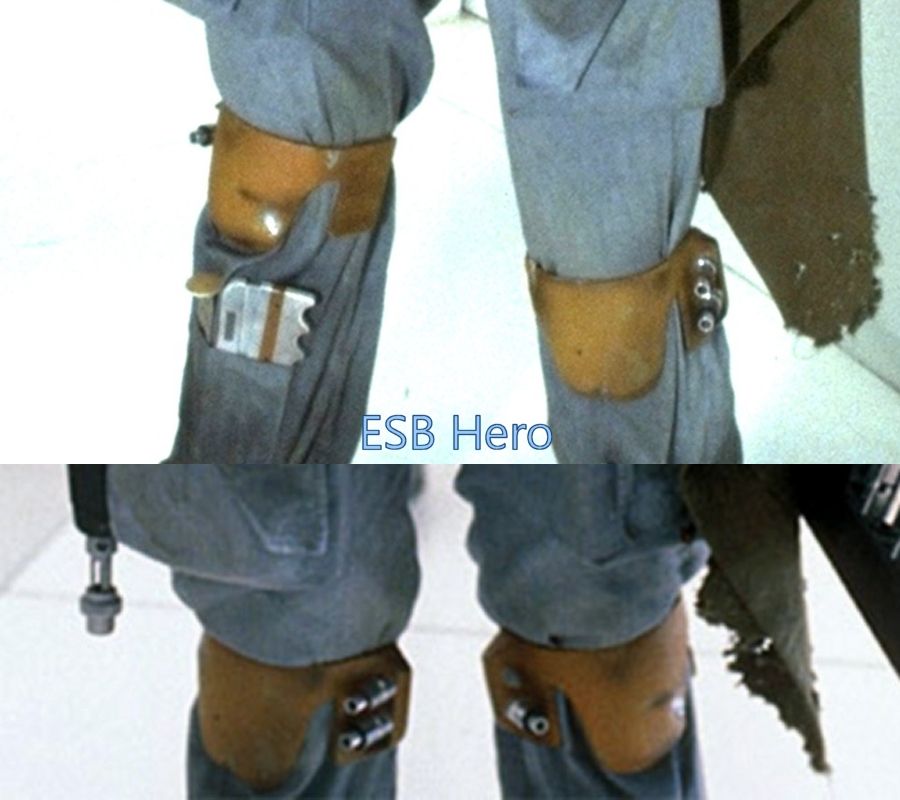

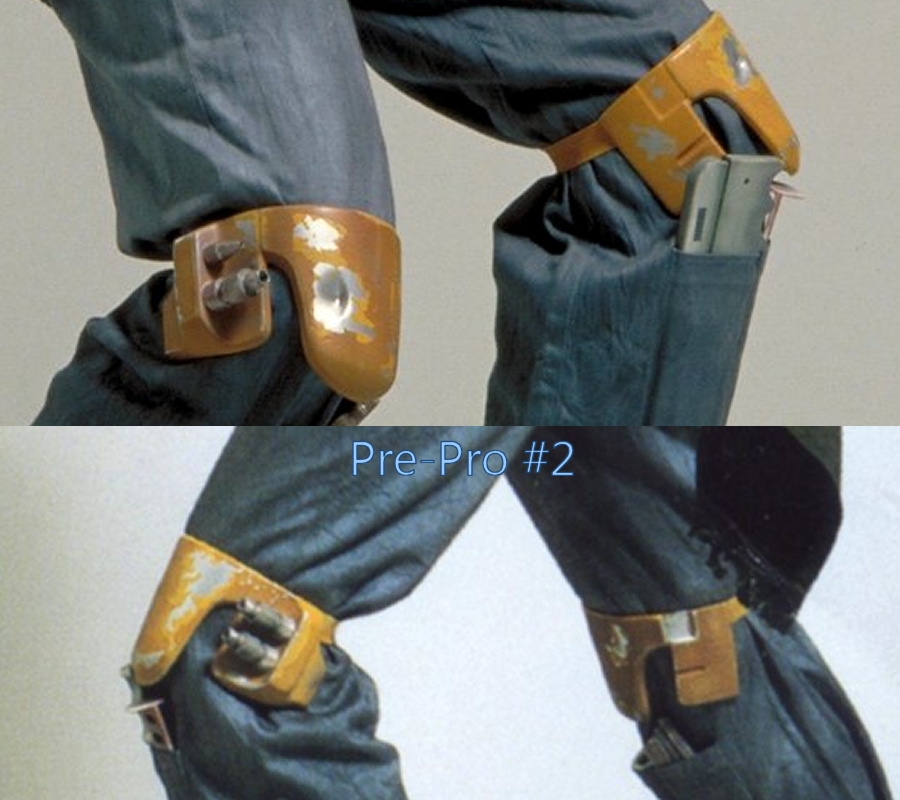

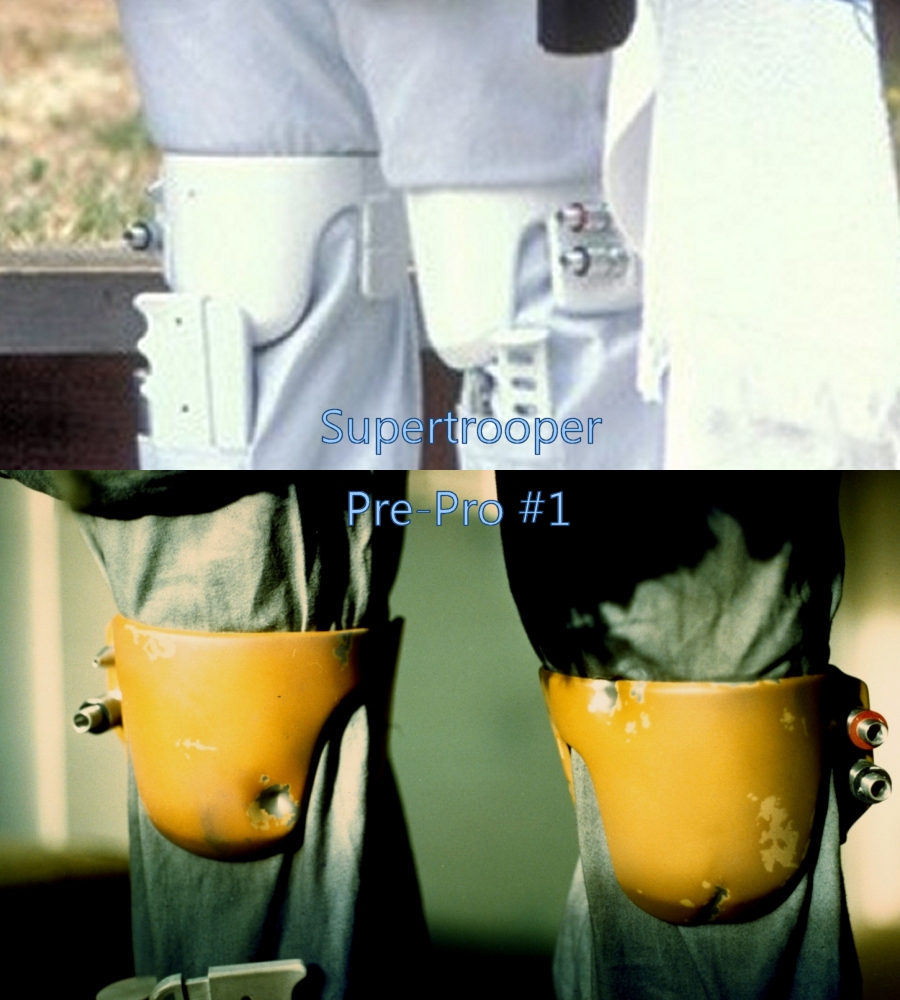

Boba Fett knee darts:
View attachment 37306 View attachment 38265 View attachment 38289 View attachment 38290 View attachment 38291 View attachment 38292 View attachment 38293

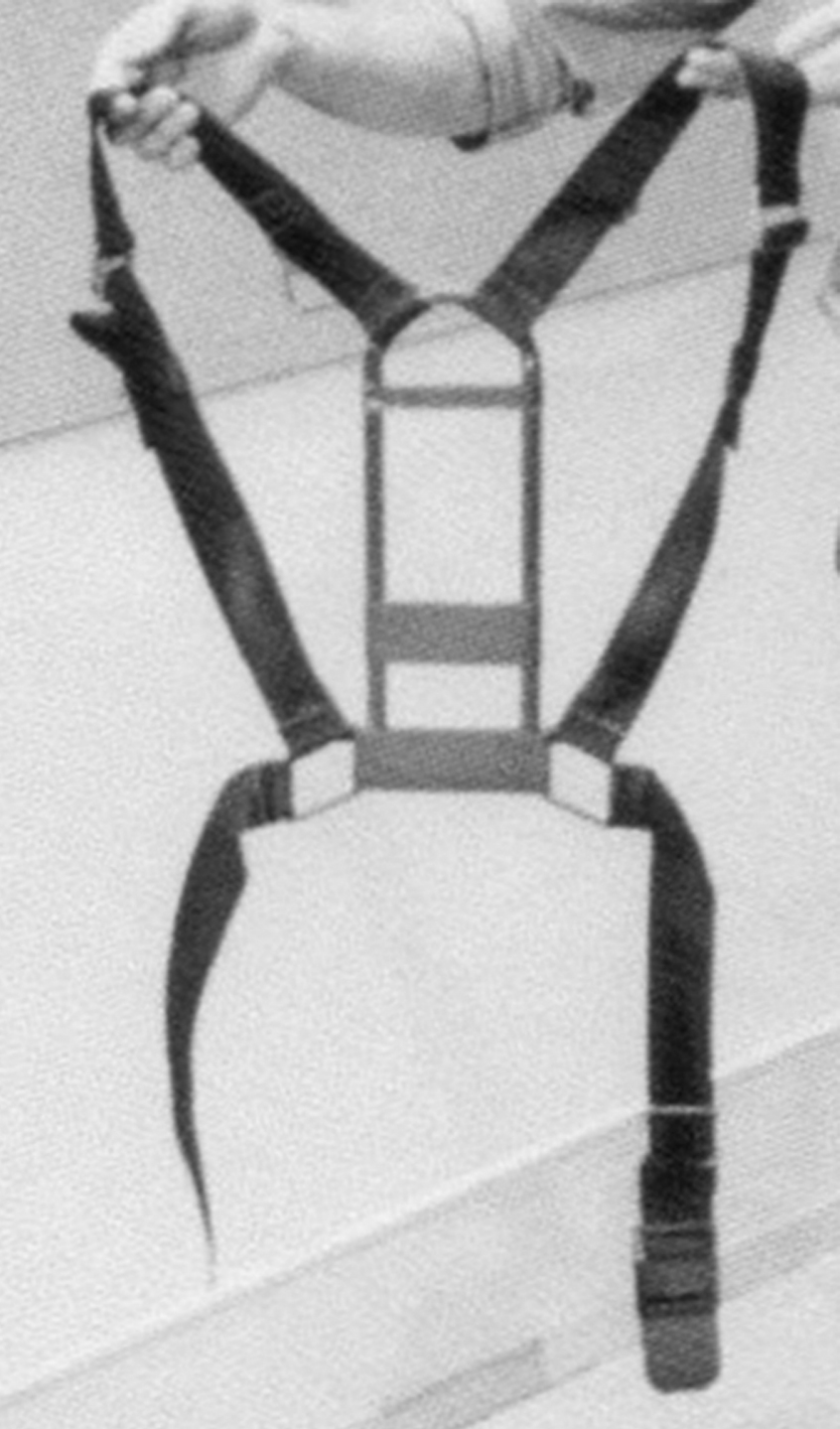

Boba Fett jetpack frame with harness rings:
View attachment 38398 View attachment 38266 View attachment 38267

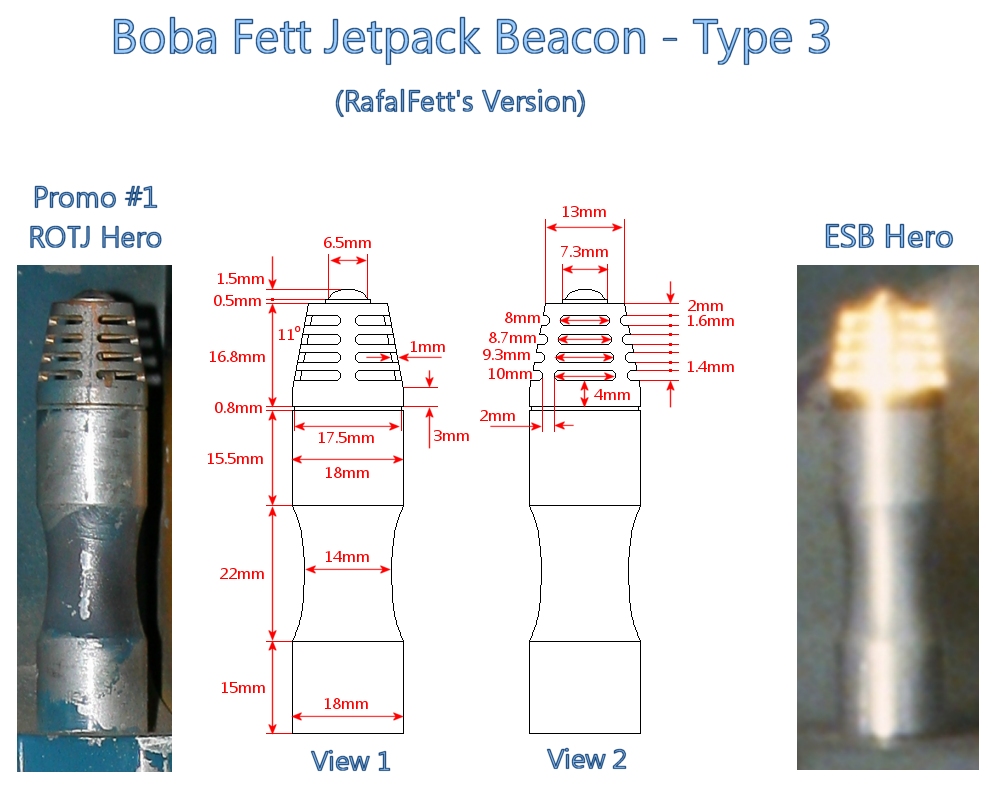

Boba Fett jetpack beacons:
View attachment 37666 View attachment 37667 View attachment 37661 View attachment 37668

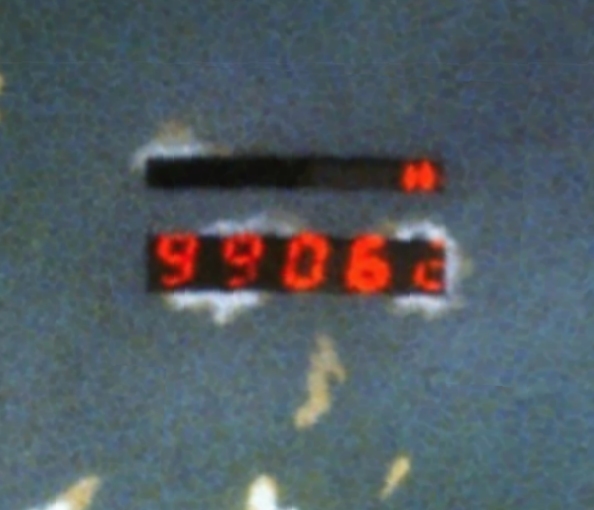

Boba Fett chest display:
View attachment 37684 View attachment 38280 View attachment 38281 View attachment 38279


Boba Fett ESB Hero cape:
View attachment 37685 View attachment 38268

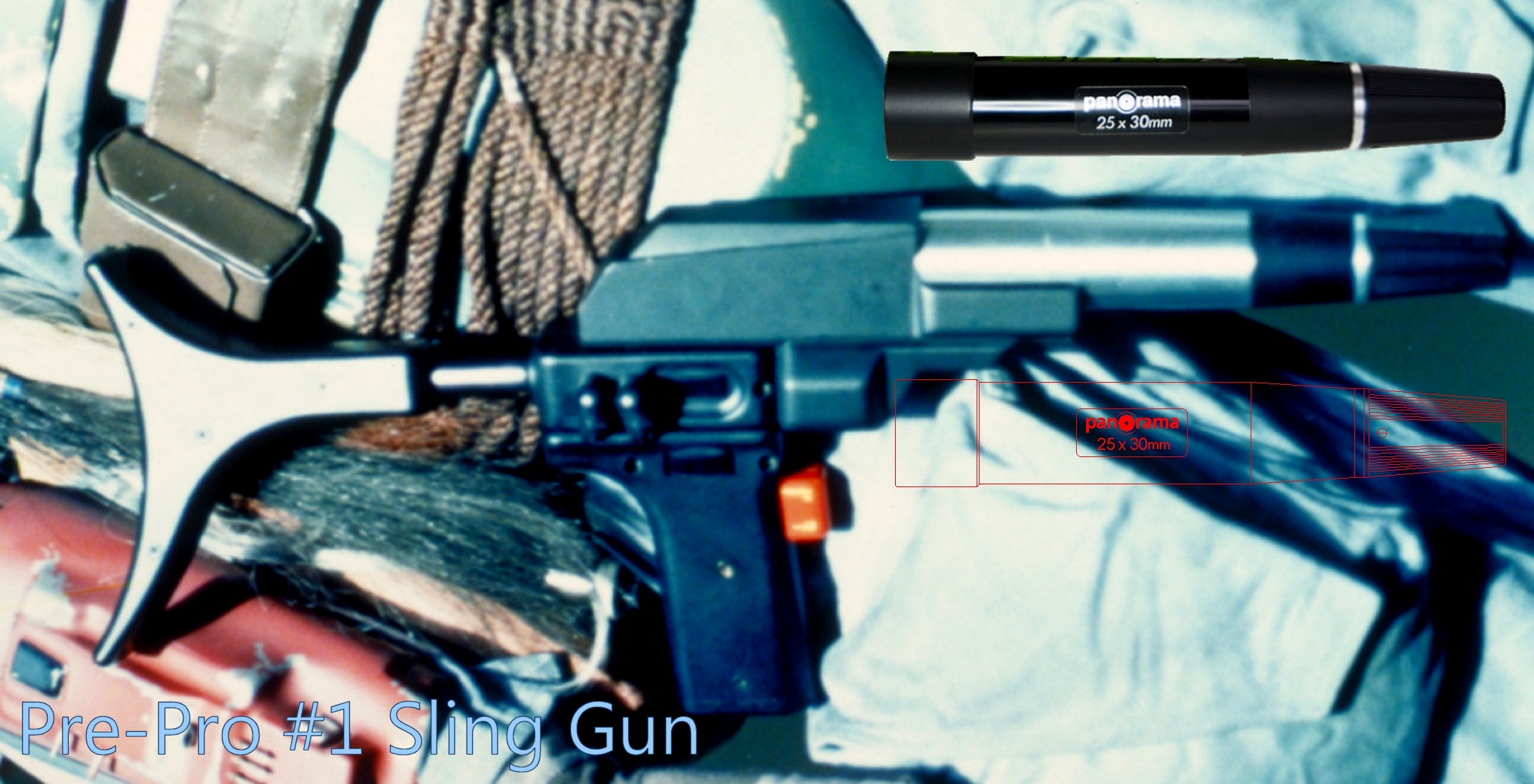

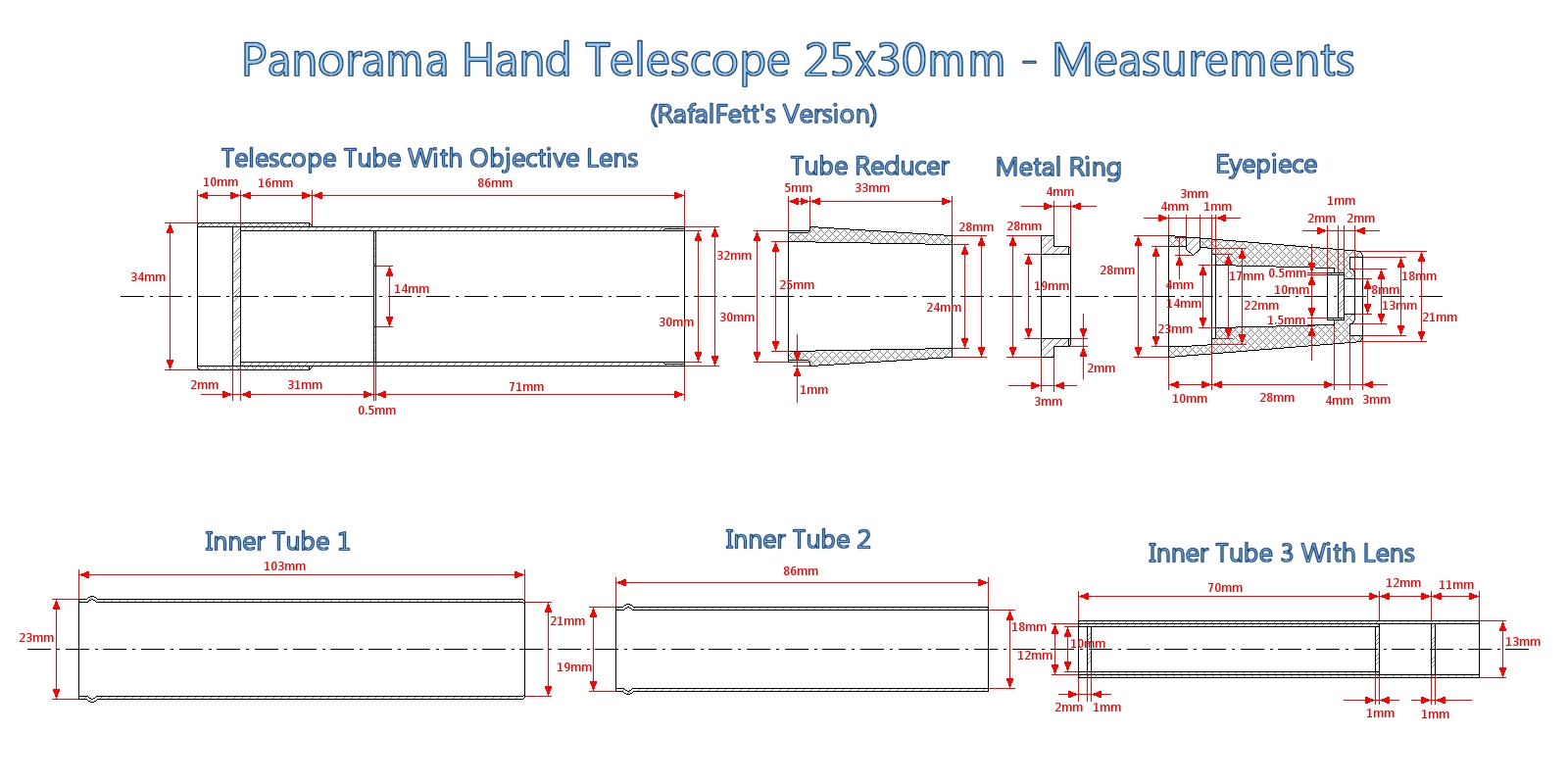

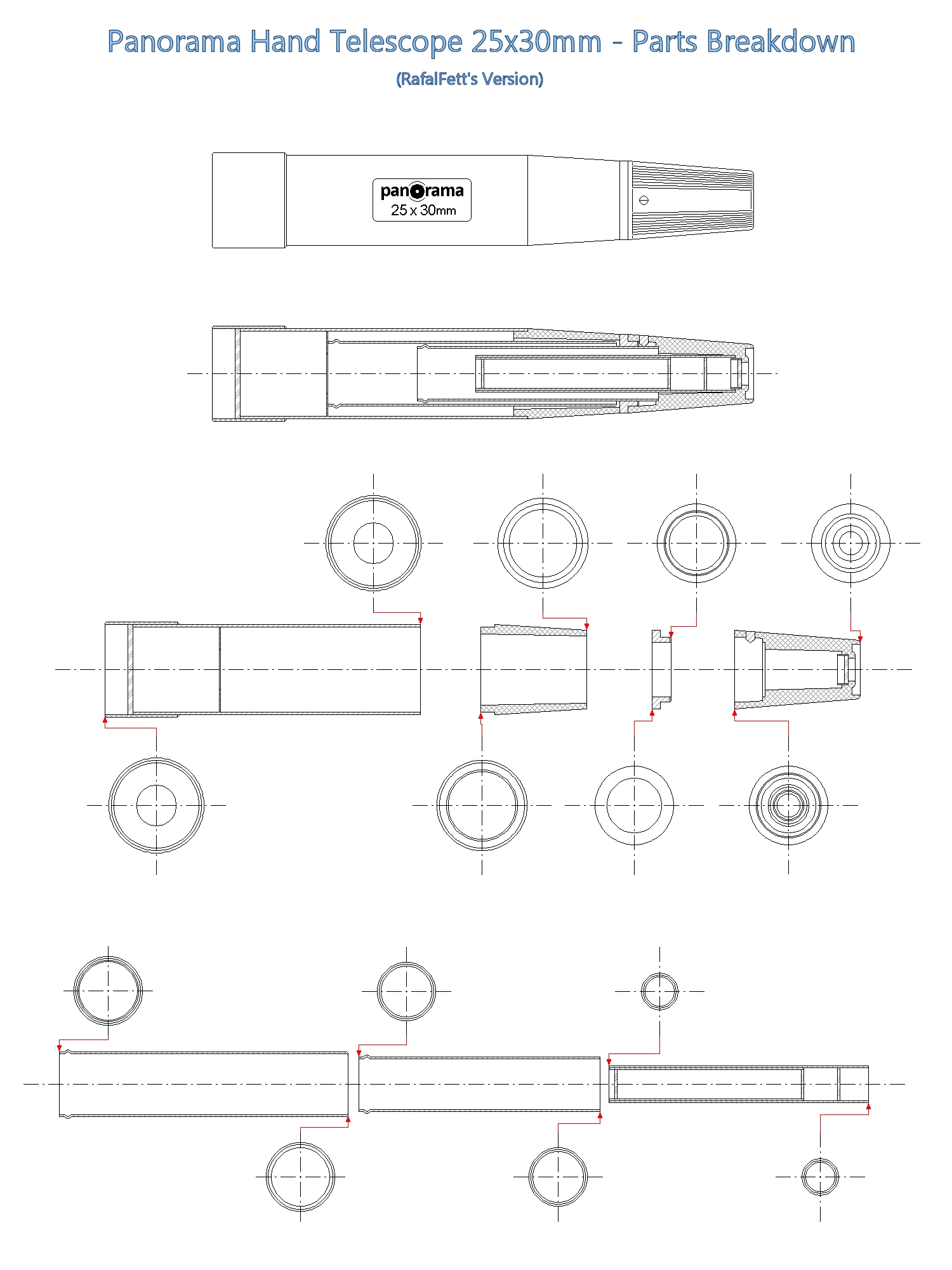

Boba Fett Pre-Pro and Promo sling gun barrel (actual hand telescope):
View attachment 37687 View attachment 37688 View attachment 38269 View attachment 38270

Note that there are telescopes with different tube length and with different metal ring (or even with missing ring), but the overall dimensions looks the same.

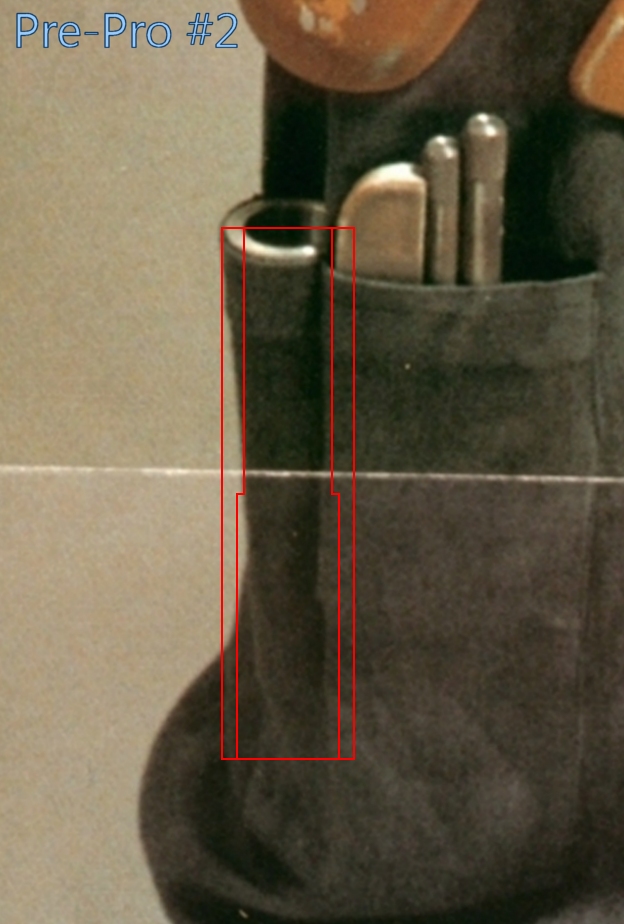

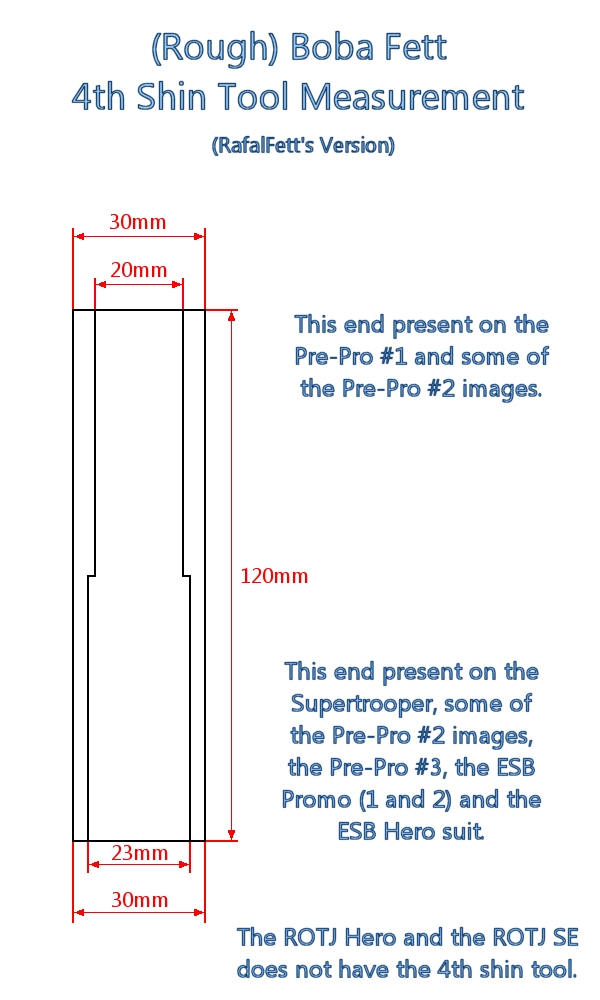

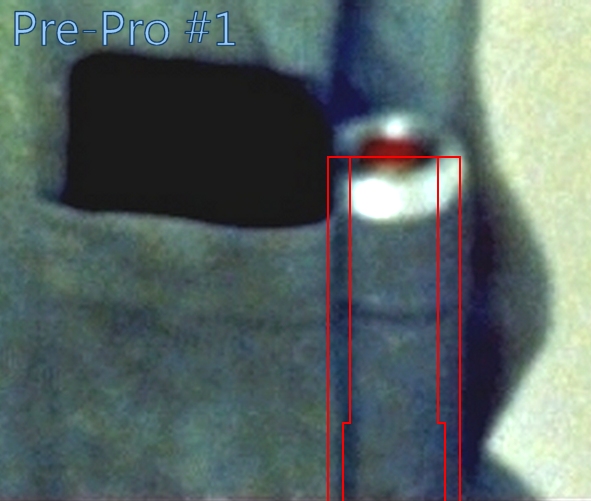

Boba Fett 4th shin tool (generic representation):
View attachment 37686 View attachment 38275 View attachment 38271 View attachment 38272 View attachment 38273 View attachment 38274


Boba Fett anti-security blades (or 3rd shin tool):
(You can find the updated image in the 3rd post ==> Post #3)

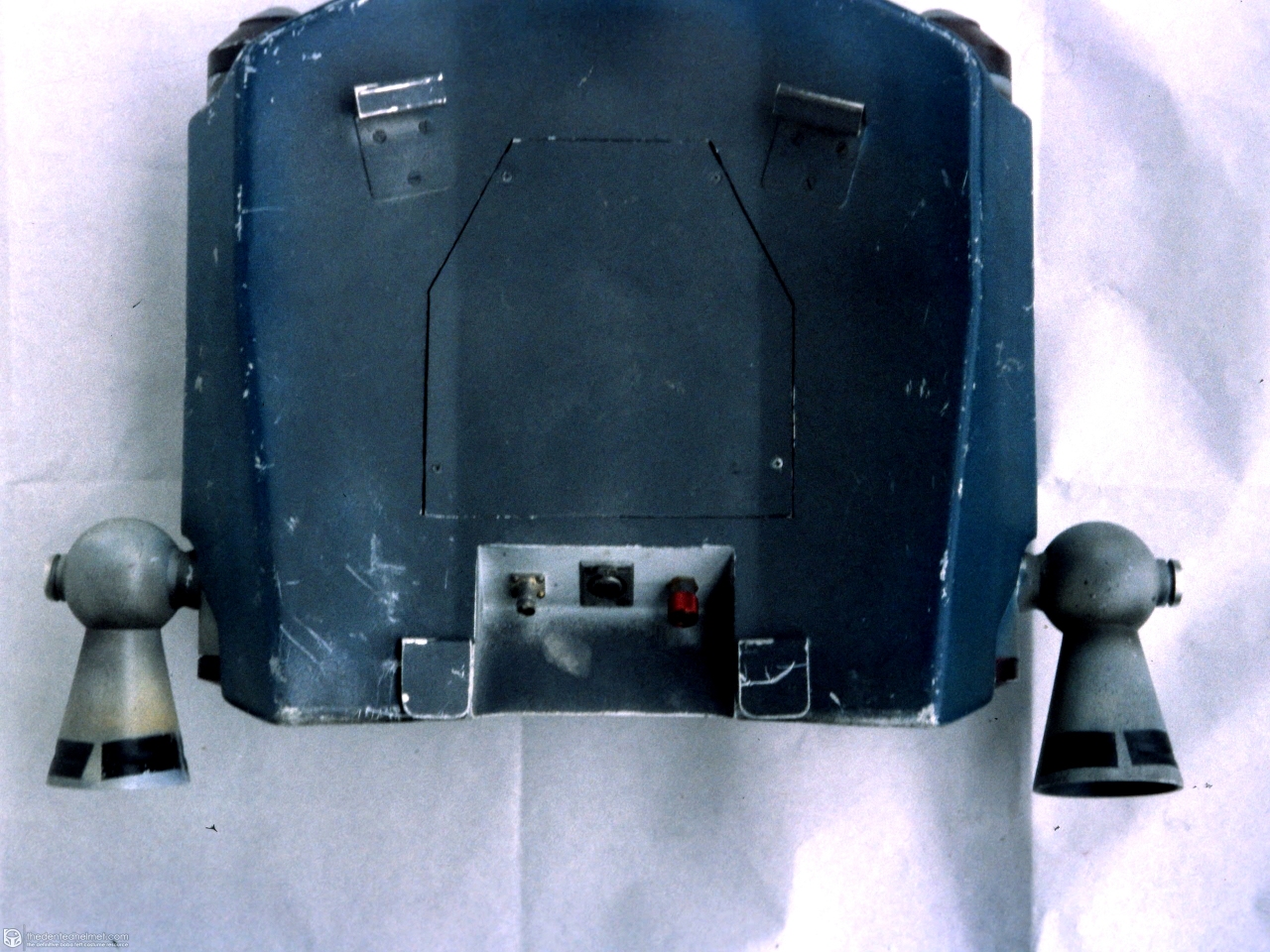

Boba Fett upper and lower jetpack hooks:
View attachment 38396 View attachment 38276

Note that the back and front plates are based on fan made parts and the measurements are more like a guideline, so you can modify them to your needs (except maybe the screw holes). The jetpack wall thickness is also an approximated value and you need to adjust the length of the screw to your jetpack's wall thickness. I did two versions of the lower hooks: the original version is based on this single image (I didn't find another image that shows clearly this area):

View attachment 37946

The front plate attachment method is purely my speculation in lack of better proofs. The variant version is the one that most of the fan made hooks are based. The screw with nut is also an approximated drawing, but I based most of the values using the screw head diameter seen on the upper hooks.

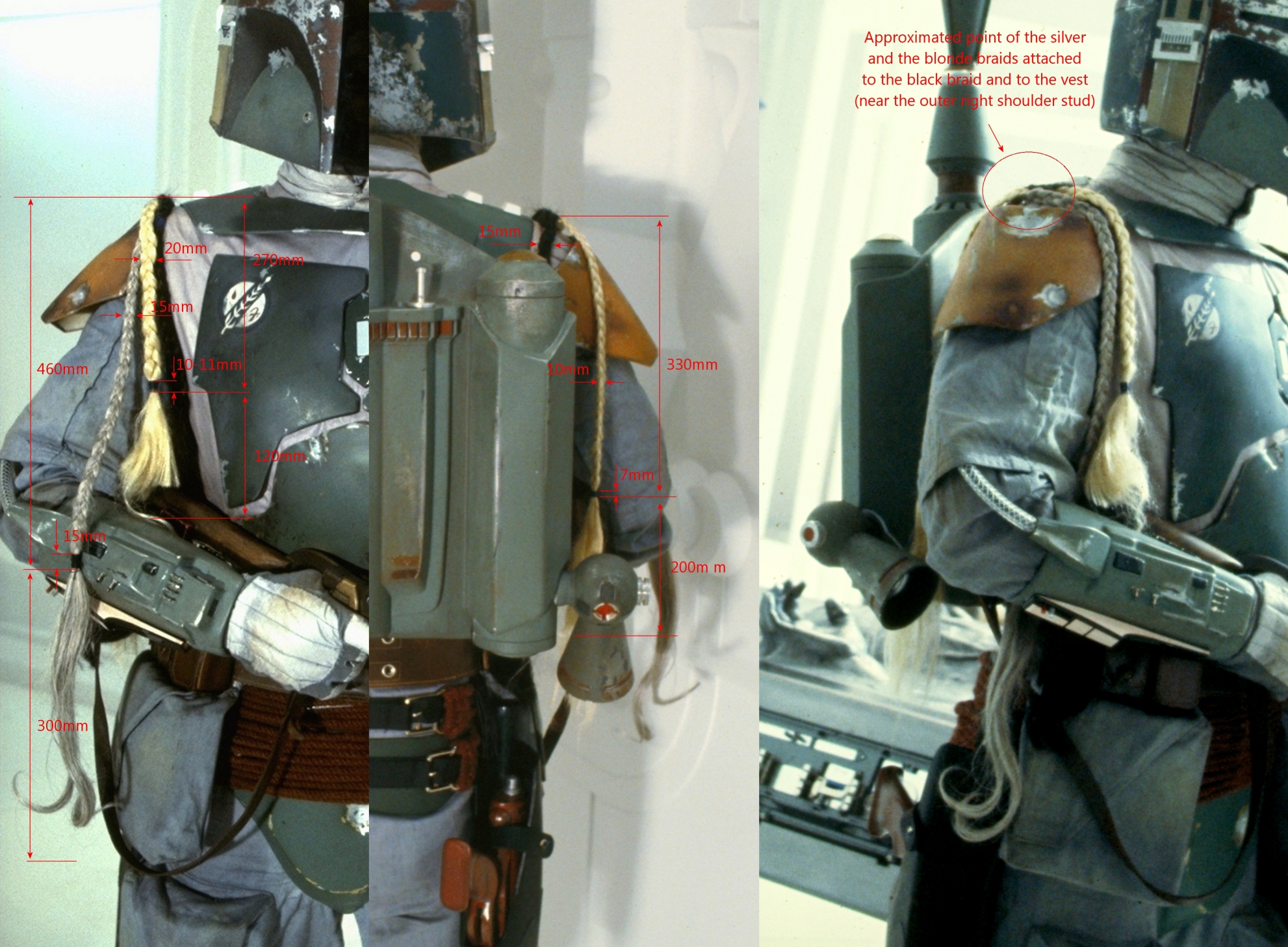

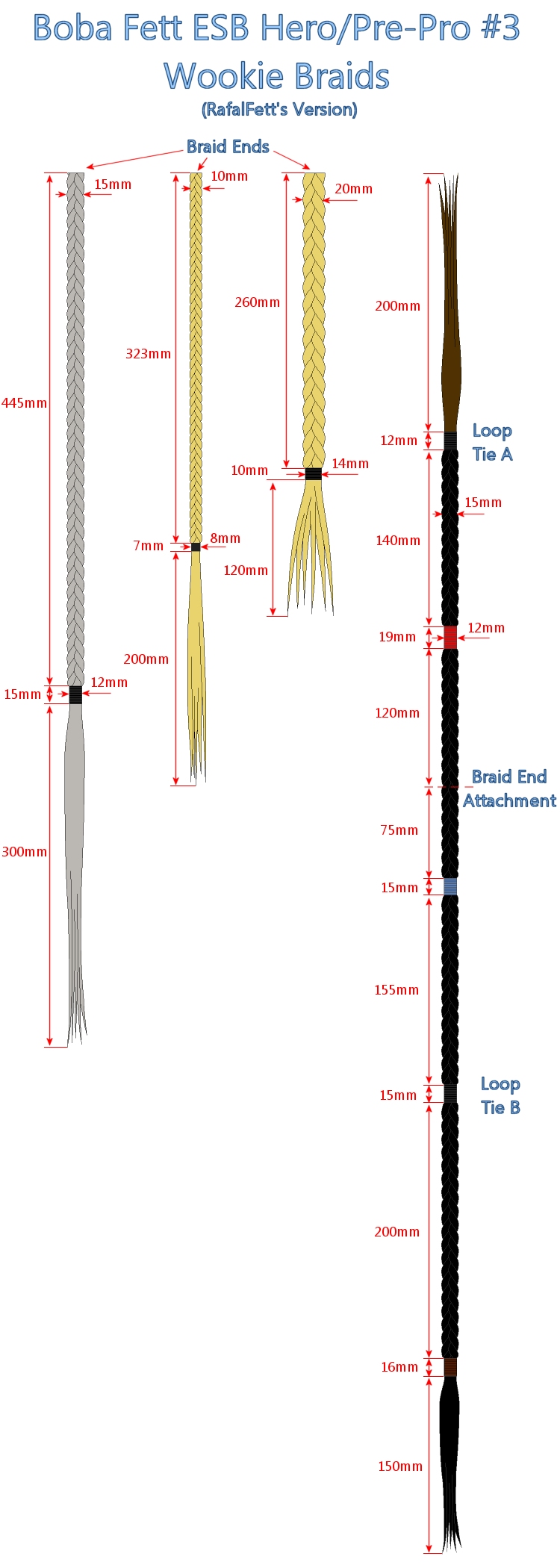

Boba Fett ESB hero/Pre-Pro #3 wookie braids (present on the ROTJ SE suit too in poor state):
View attachment 38029 View attachment 38030 View attachment 38031

Note that these measurements are approximated and are not set in stone. Read more info about the ESB Hero/Pre-Pro #3 wookie braids here ==> Need advice on black and grey braids please - Post #5

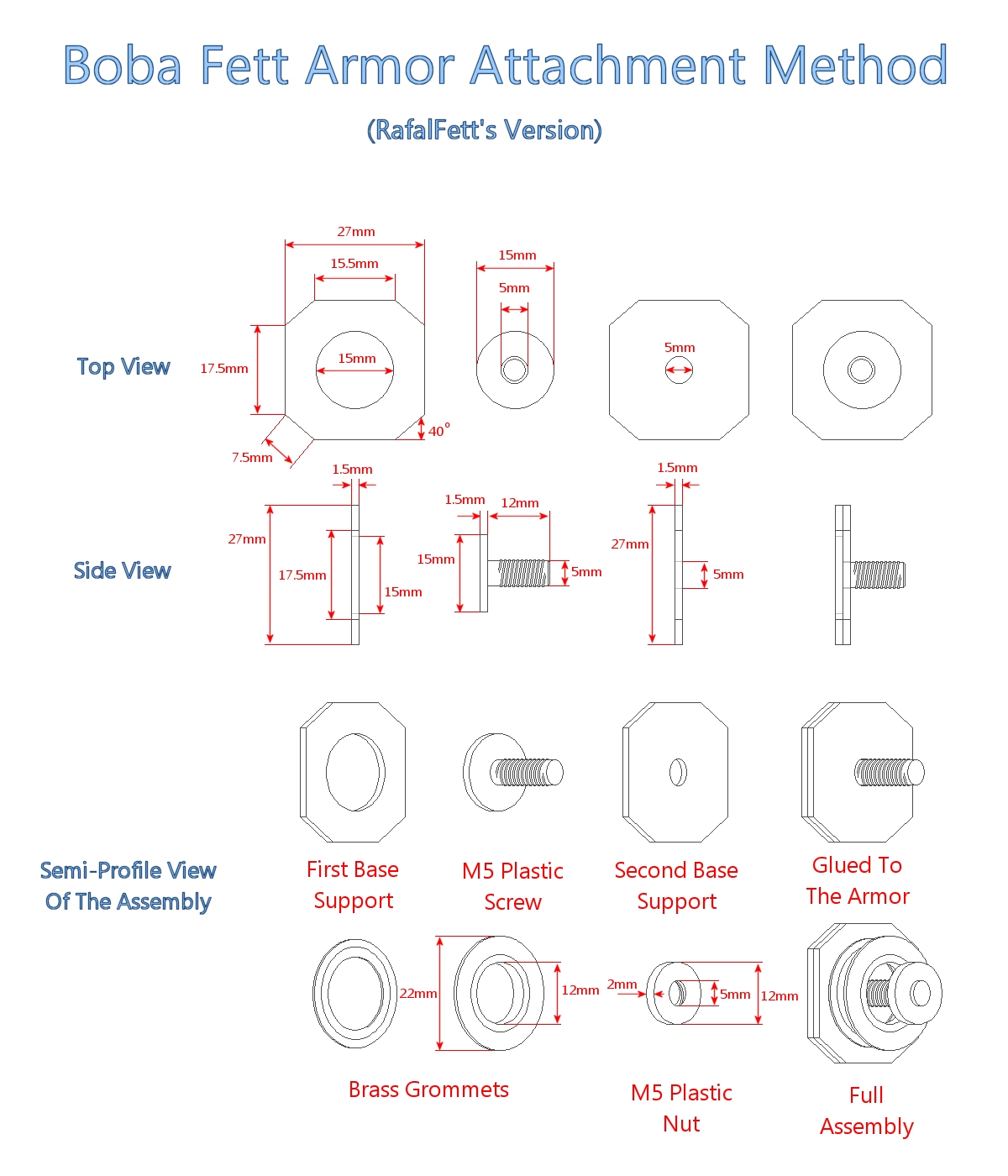

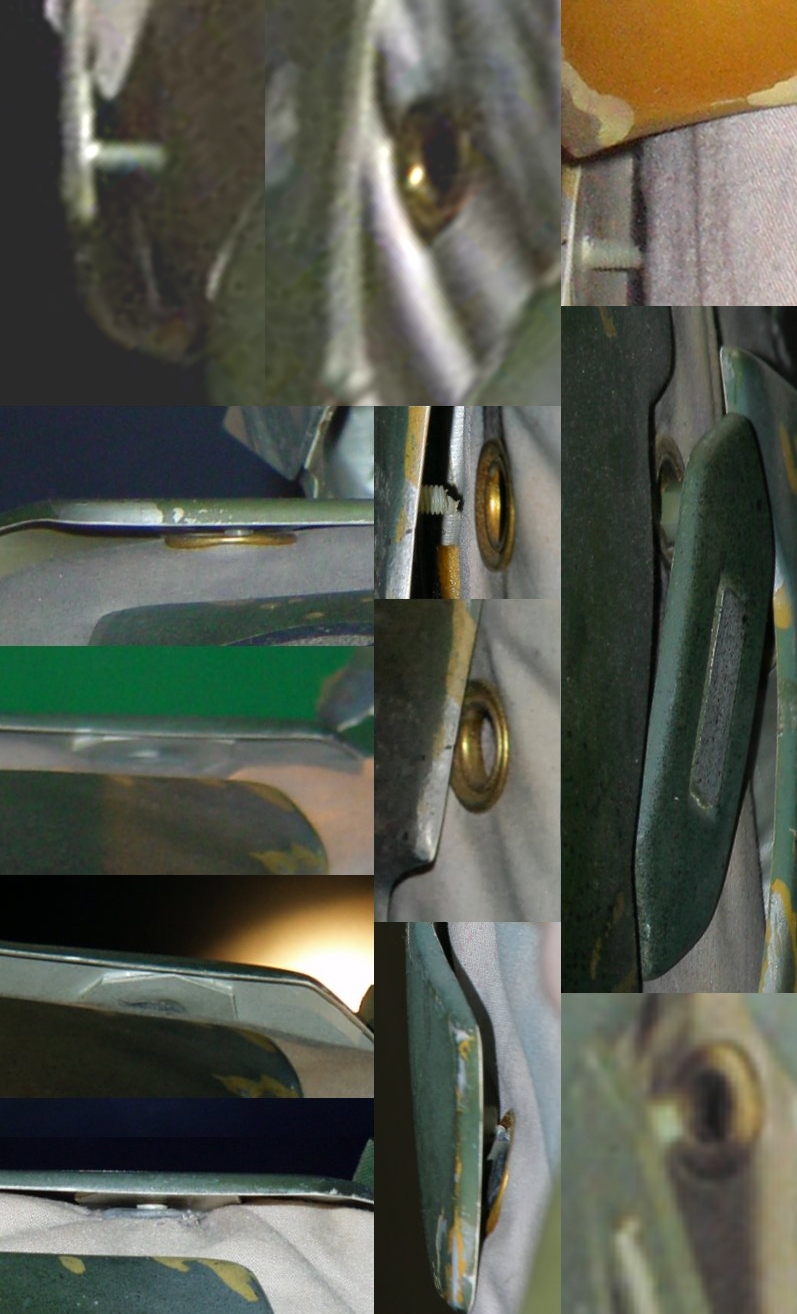

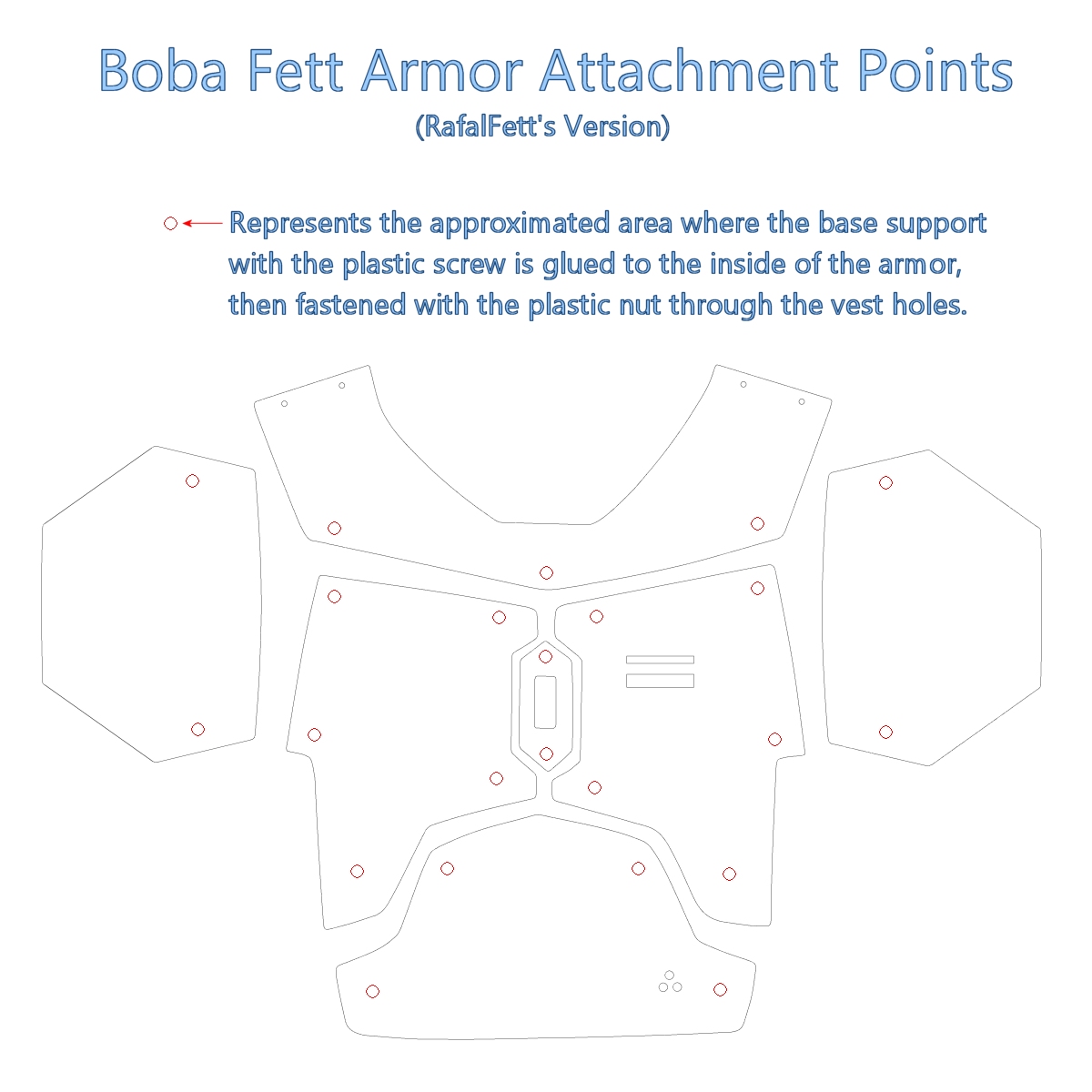

Boba Fett armor attachment method with measurements:
View attachment 38258 View attachment 38259 View attachment 38262 View attachment 38263

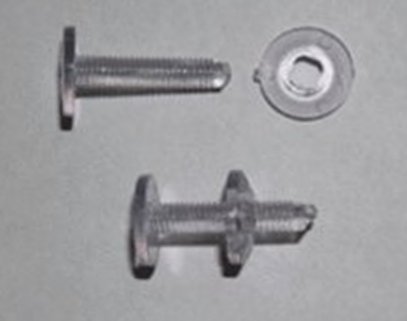

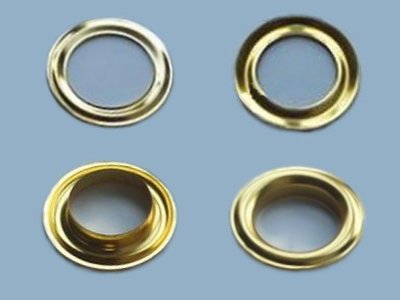

Here is an example of a plastic fastener and a brass grommet:
View attachment 38260 View attachment 38261



Notice: I will not post my ESB ammo belt and ammo pouch templates to not interfere with StrumFett's awesome project (read more here ==> Tutorial: Ammo Belts v2), instead I shared my work with him to use it in his great project.

That's it for now.

Have fun!
