Some of these files were in work for some time and now it's time to see the light. Because I'm not a professional draftsman, my files shows only the basic shapes and measurements, but I think this is more than enough to see the full picture. So, here are the files...

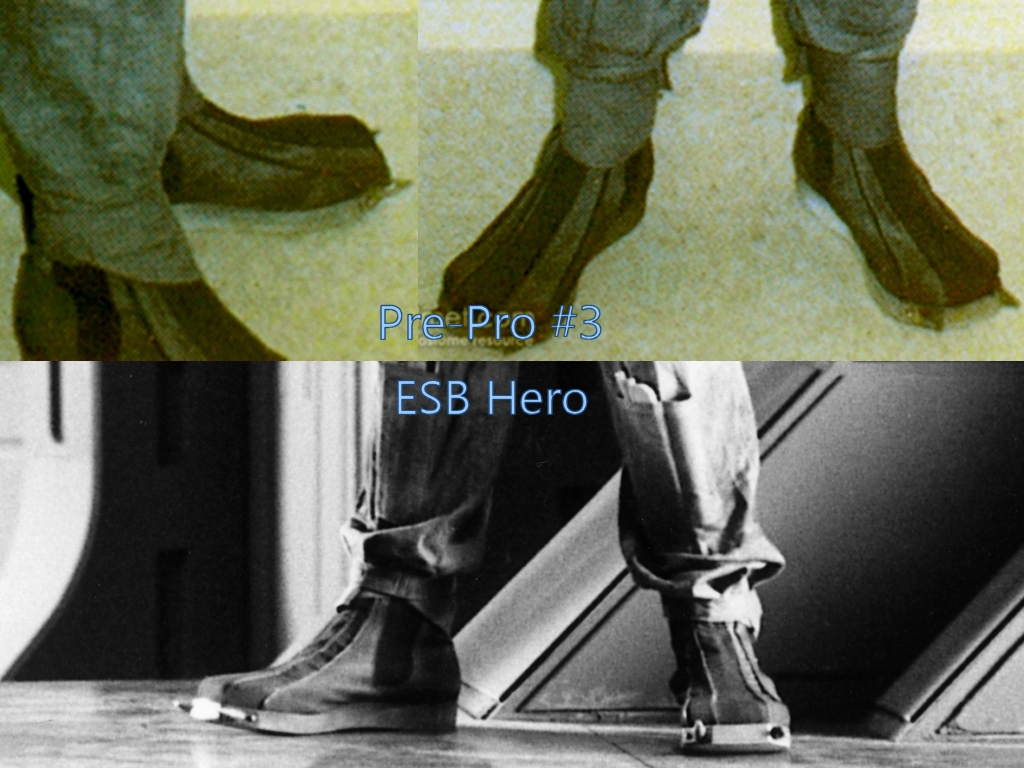

Boba Fett boot plate with spikes:

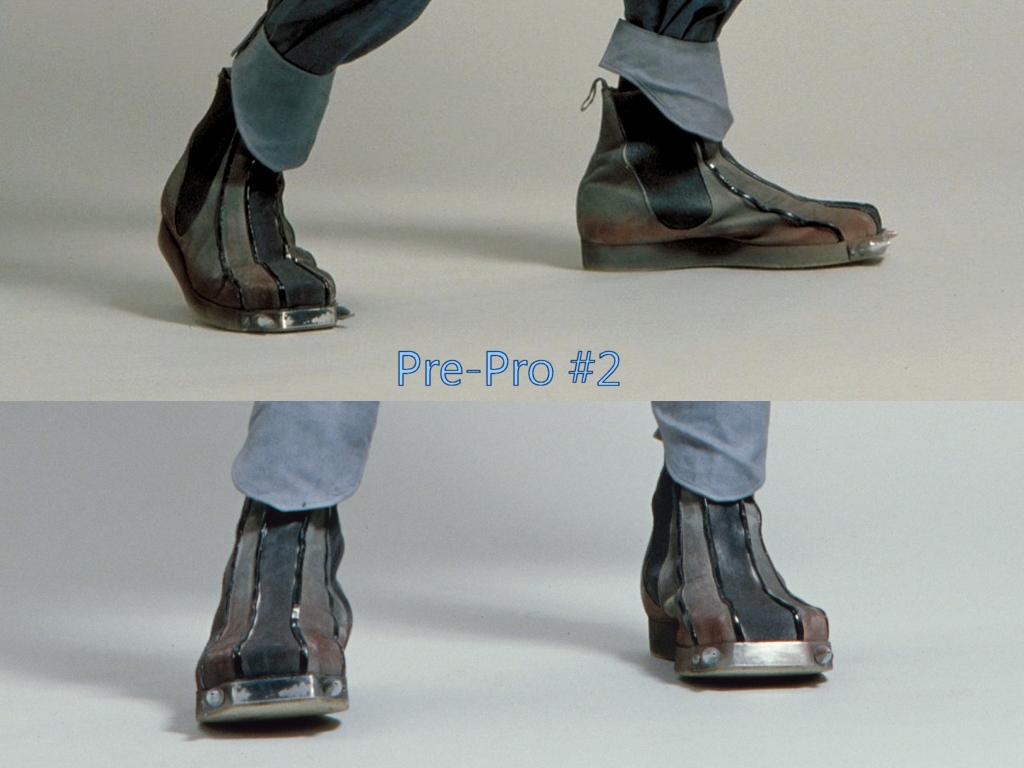

Boot Plate Measurements.jpg ST-PP1 Boot Spikes.jpg PP2 Boot Spikes.jpg PP3-ESB Boot Spikes.jpg ROTJ Boot Spikes.jpg Boot Spikes 2.jpg

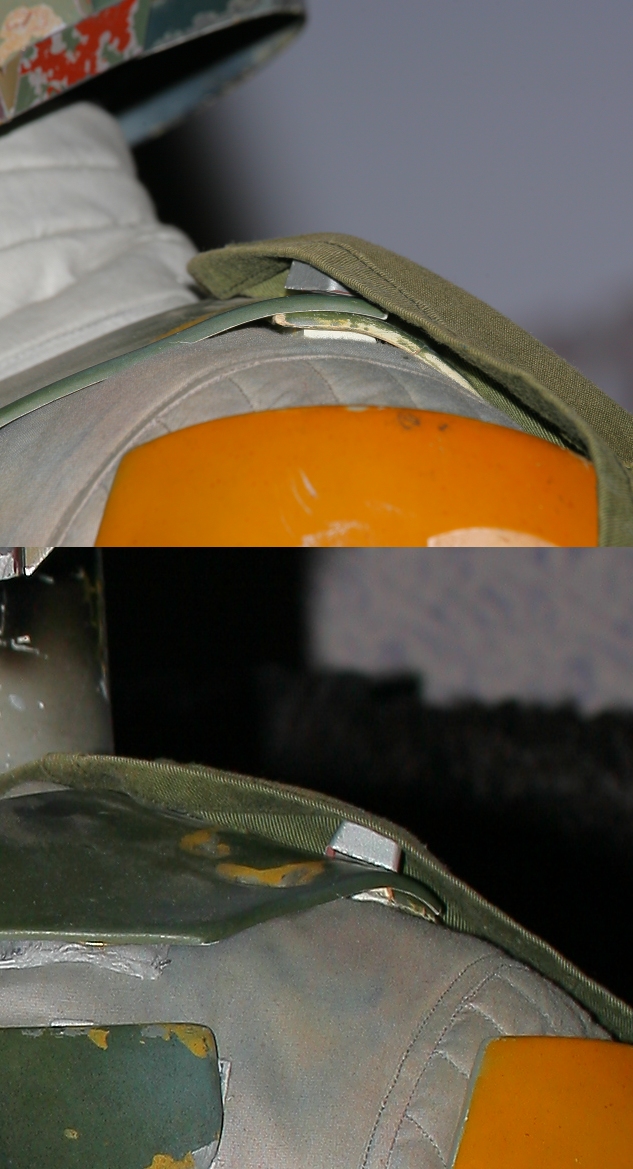

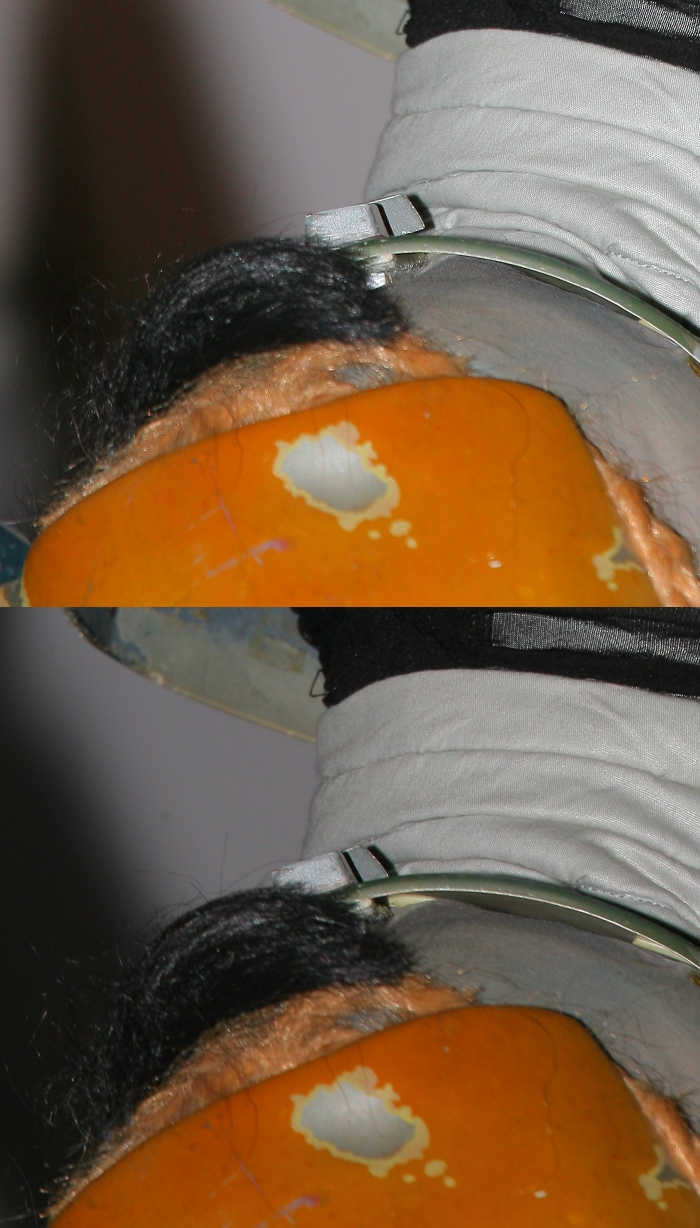

Boba Fett collar and cod stud attachment:

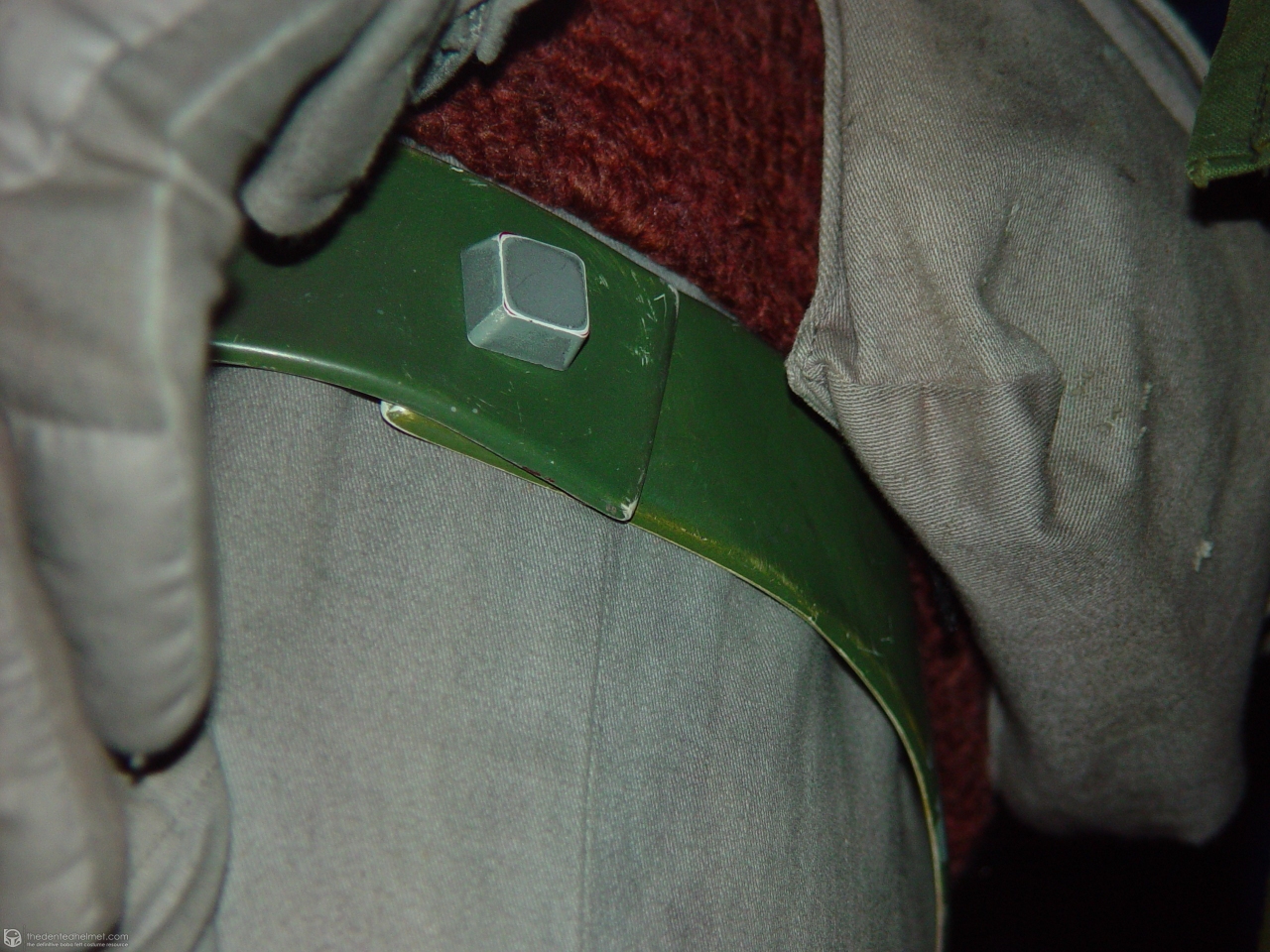

Shoulder Stud Attachment And Measurements.jpg Right Collar Attachment.jpg Left Collar Attachment.jpg Boba-Fett-Costume-MoM-102702-080.jpg


Boba Fett jetpack adjustment knob and right gauntlet darts:

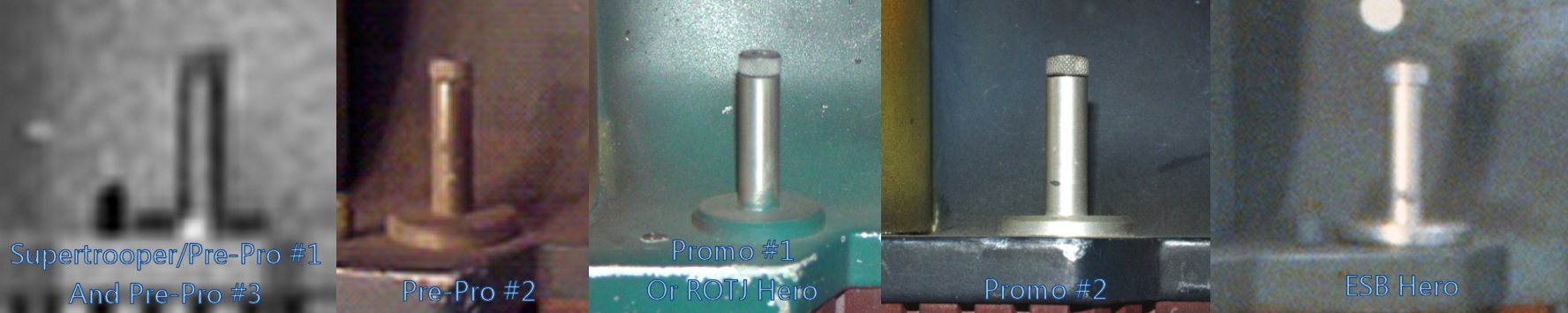

Jetpack Adjustment Knob Measurements.jpg Gauntlet Darts.jpg Jetpack Adjustment Knobs.jpg

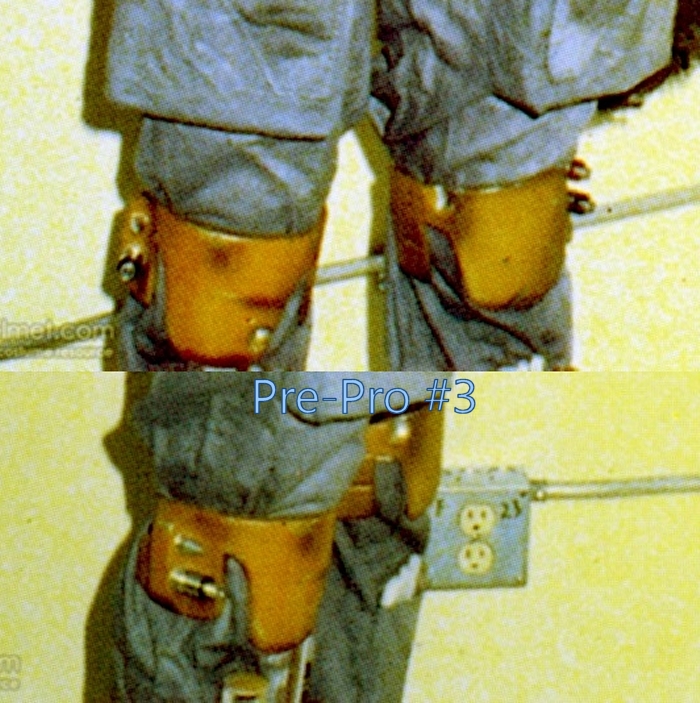

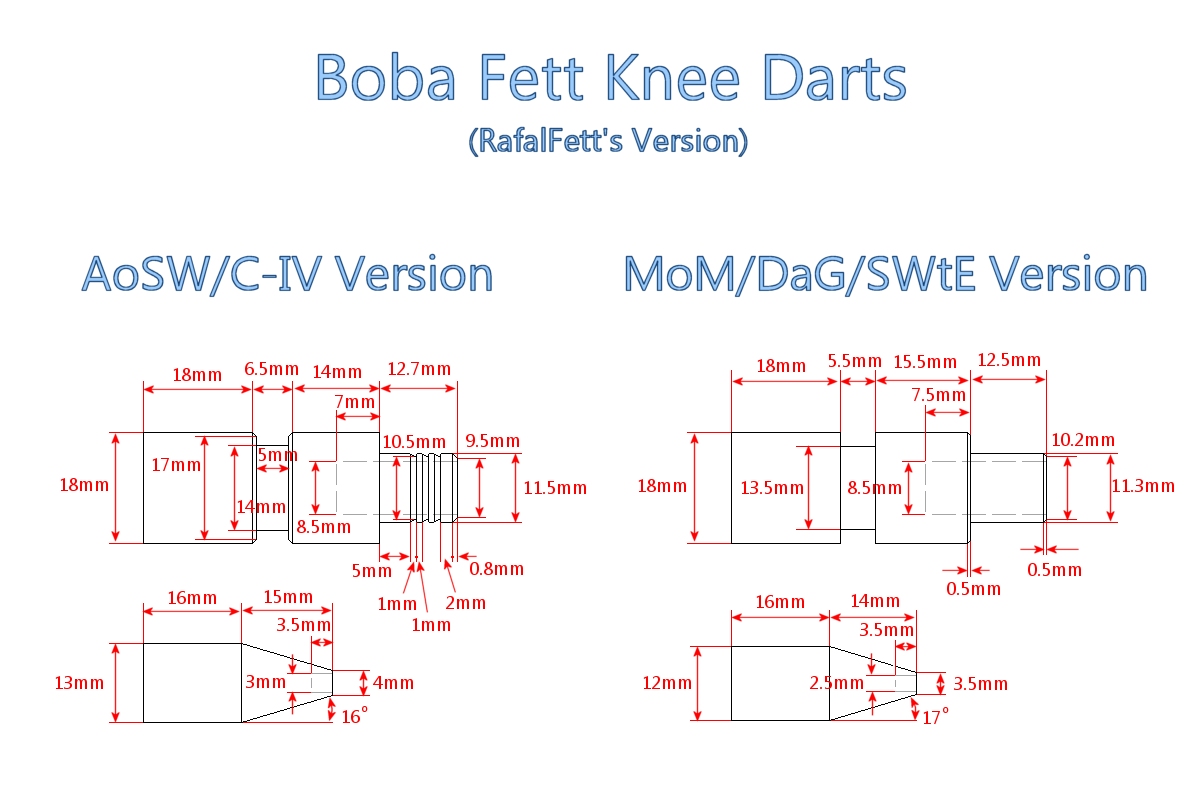

Boba Fett knee darts:

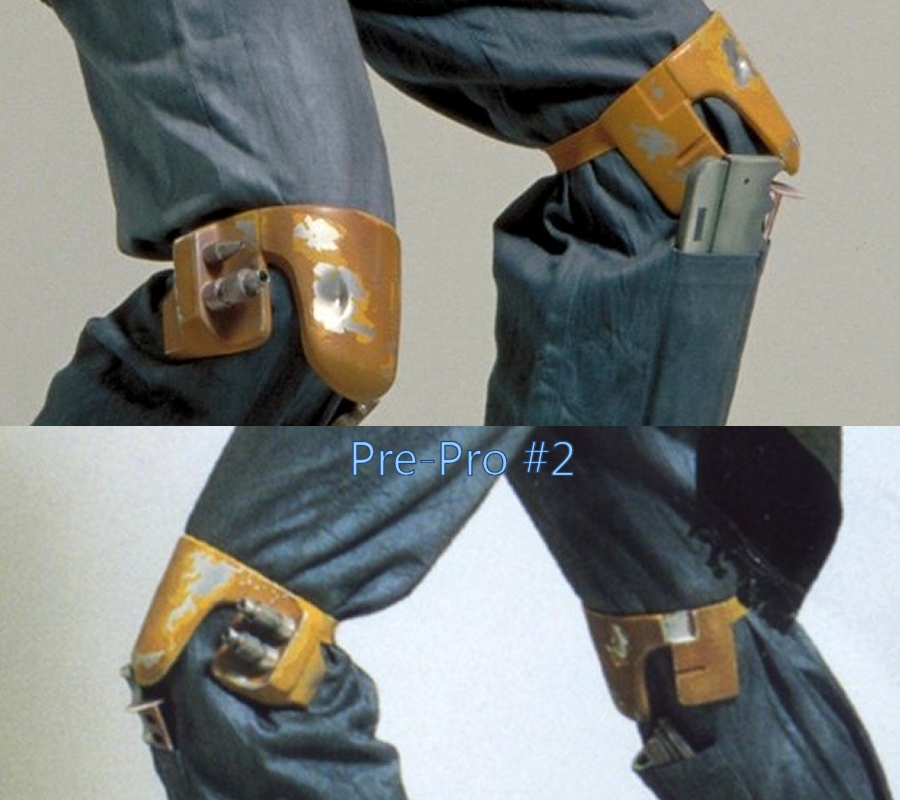

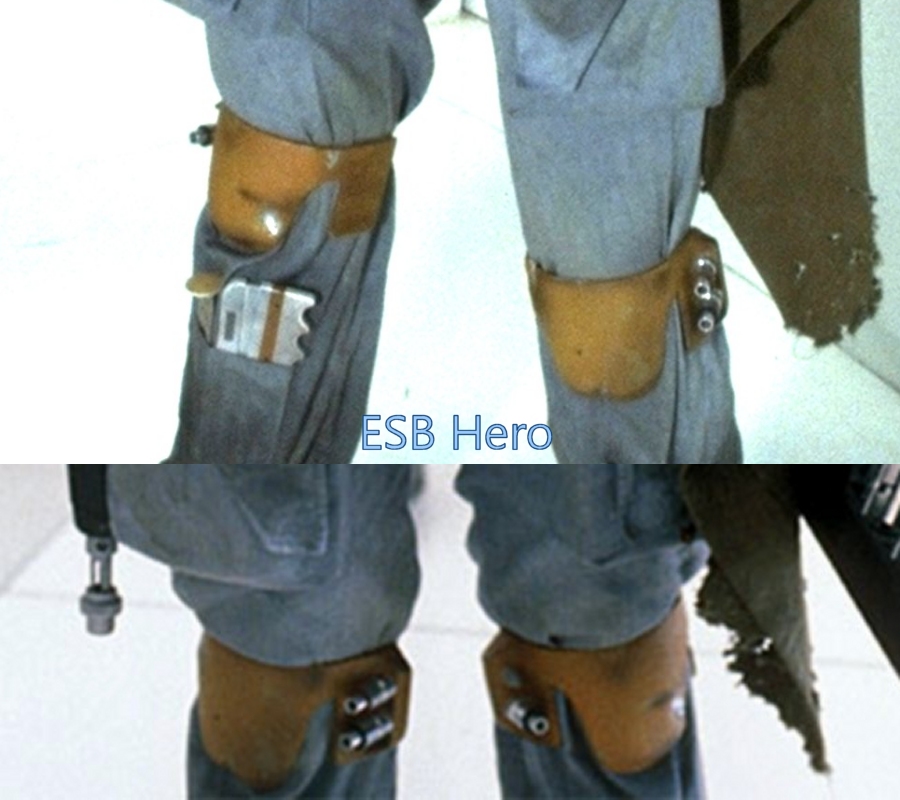

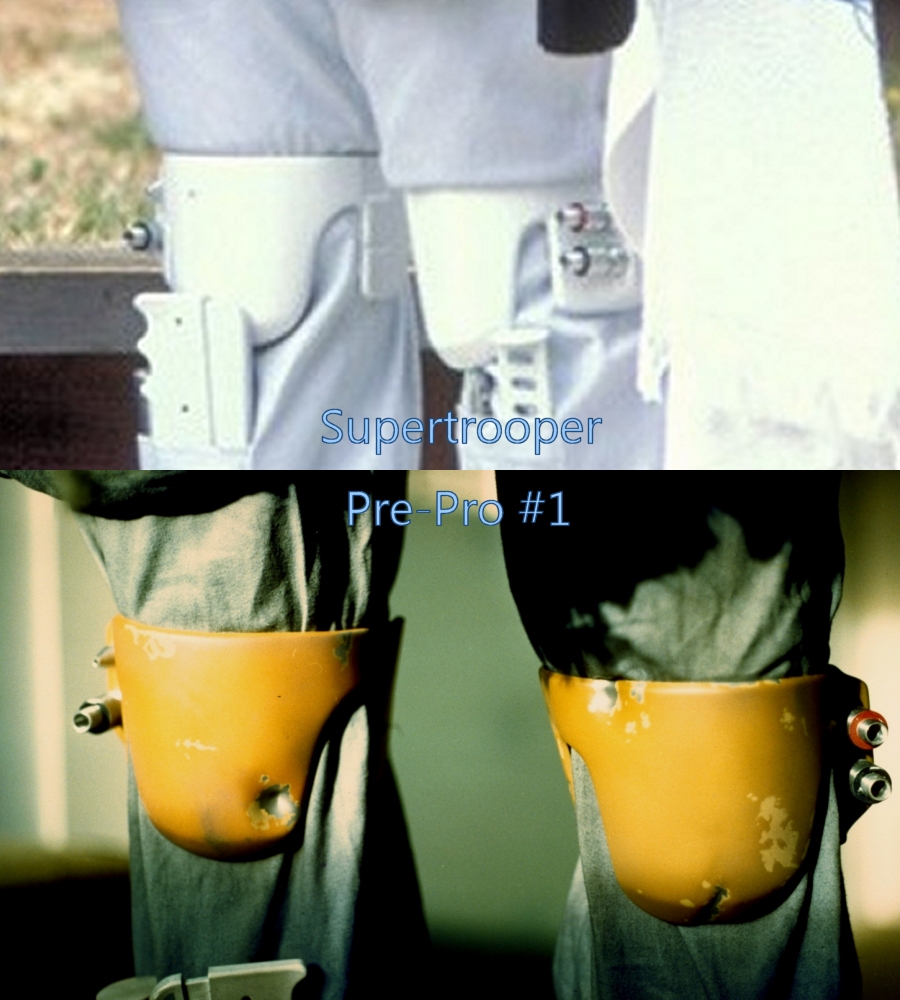

Knee Dart Measurements.jpg 2 Version Knee Darts.jpg ST-PP1 Knees.jpg PP2 Knees.jpg PP3 Knees.jpg ESB Knees.jpg ROTJ Knees.jpg


Boba Fett jetpack frame with harness rings:
Jetpack Frame Measurements.jpg JP Harness 1.jpg JP Harness 2.jpg

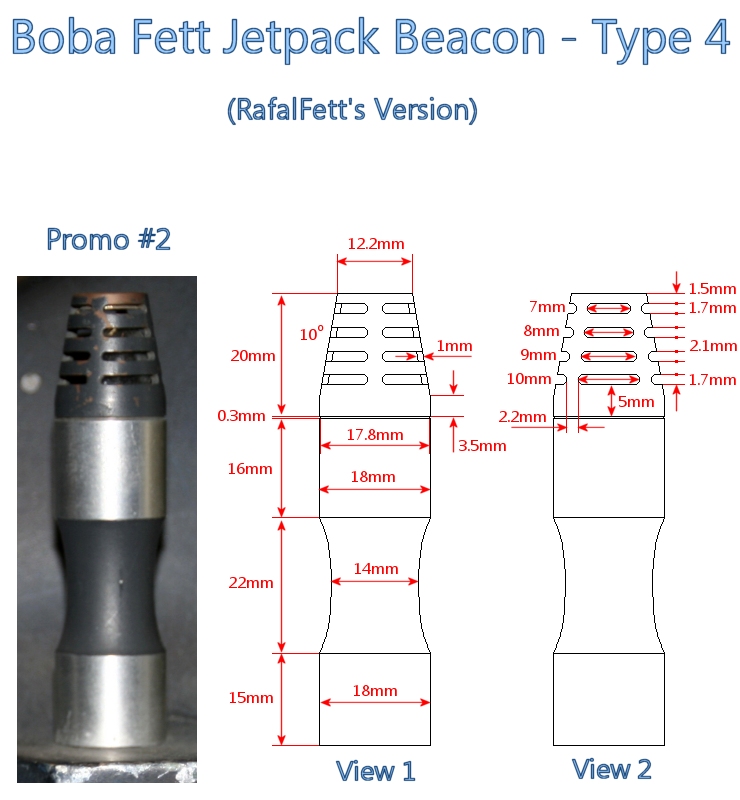

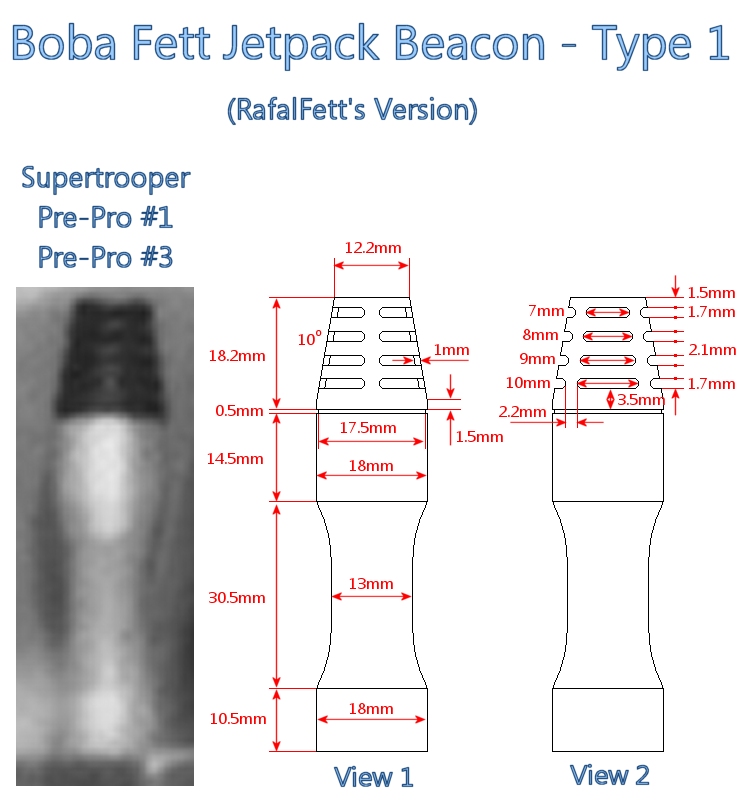

Boba Fett jetpack beacons:
Beacon 1 Template.jpg Beacon 2 Template.jpg Beacon 3 Template.jpg Beacon 4 Template.jpg


Boba Fett chest display:
Boba Fett Correct Chest Display.jpg ESB Chest Display Sequence.jpg ROTJ Chest Display Sequence.jpg ESB Original Chest Display.jpg

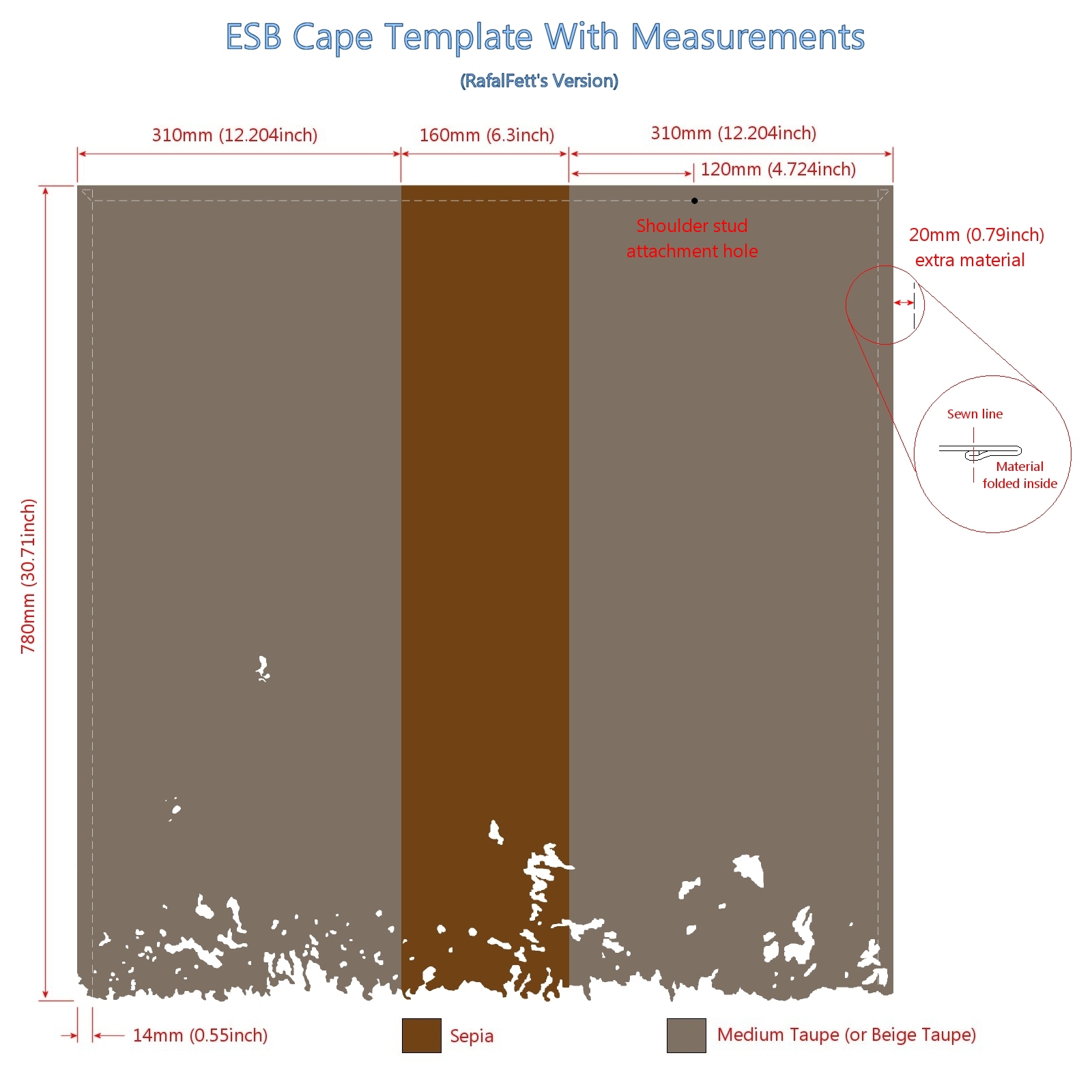

Boba Fett ESB Hero cape:
ESB Cape Template.jpg ESB Cape Reference 2.jpg

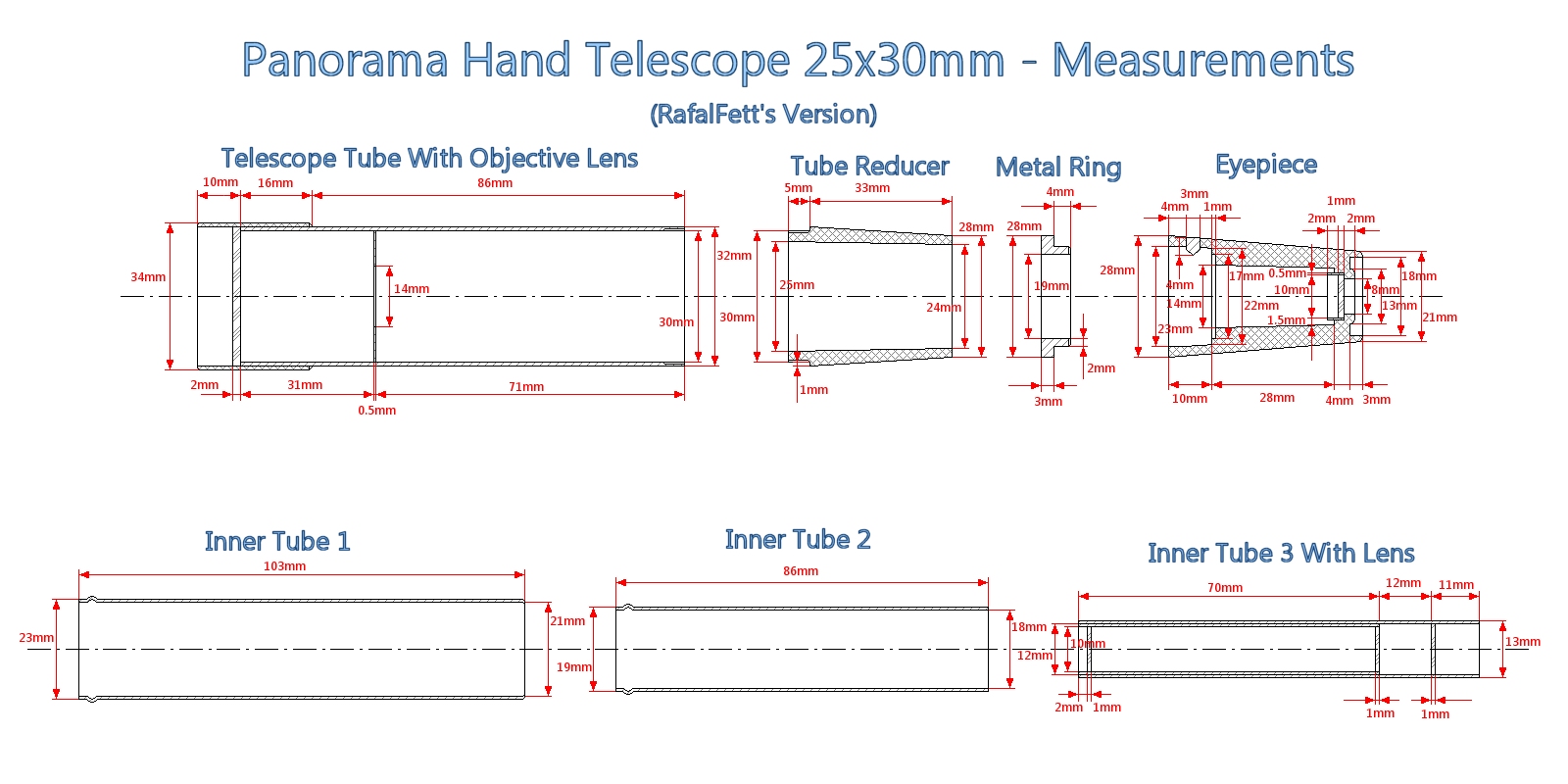

Boba Fett Pre-Pro and Promo sling gun barrel (actual hand telescope):

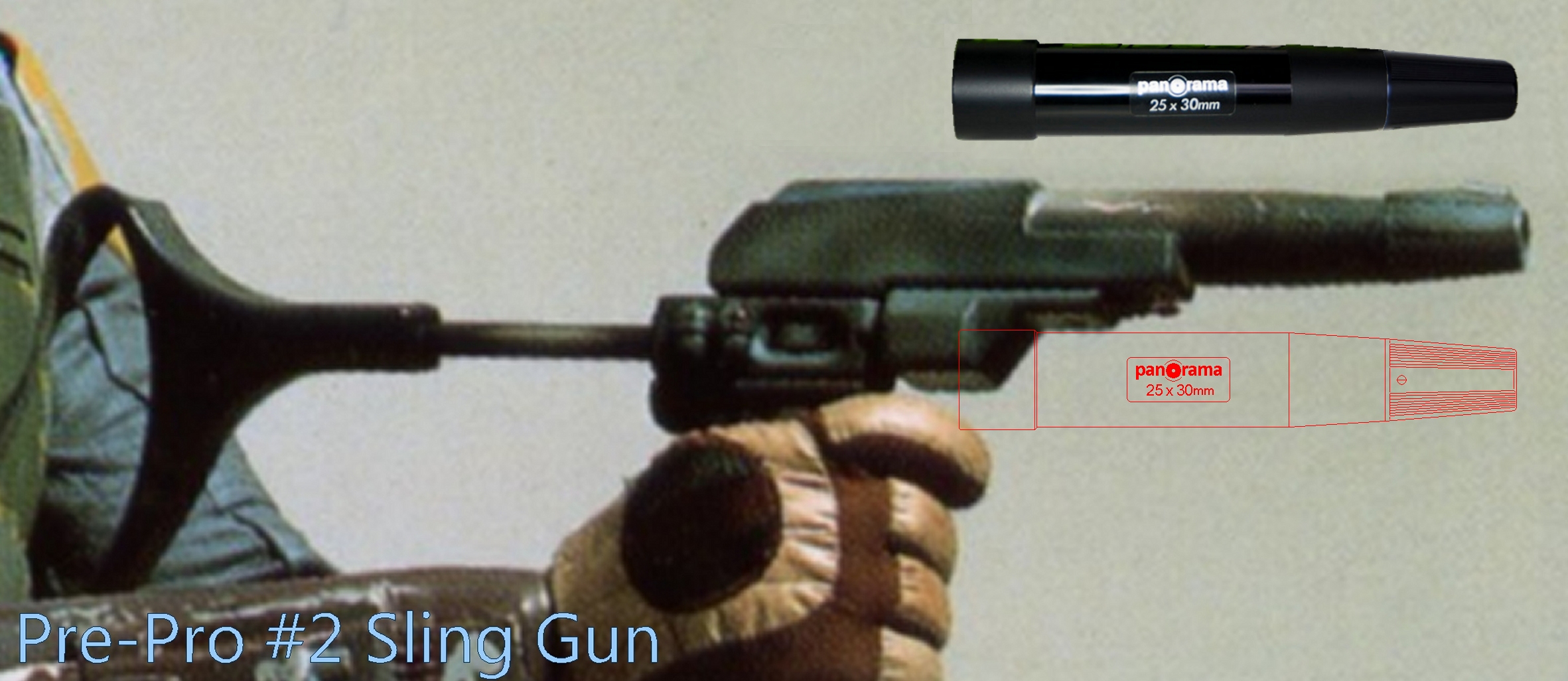

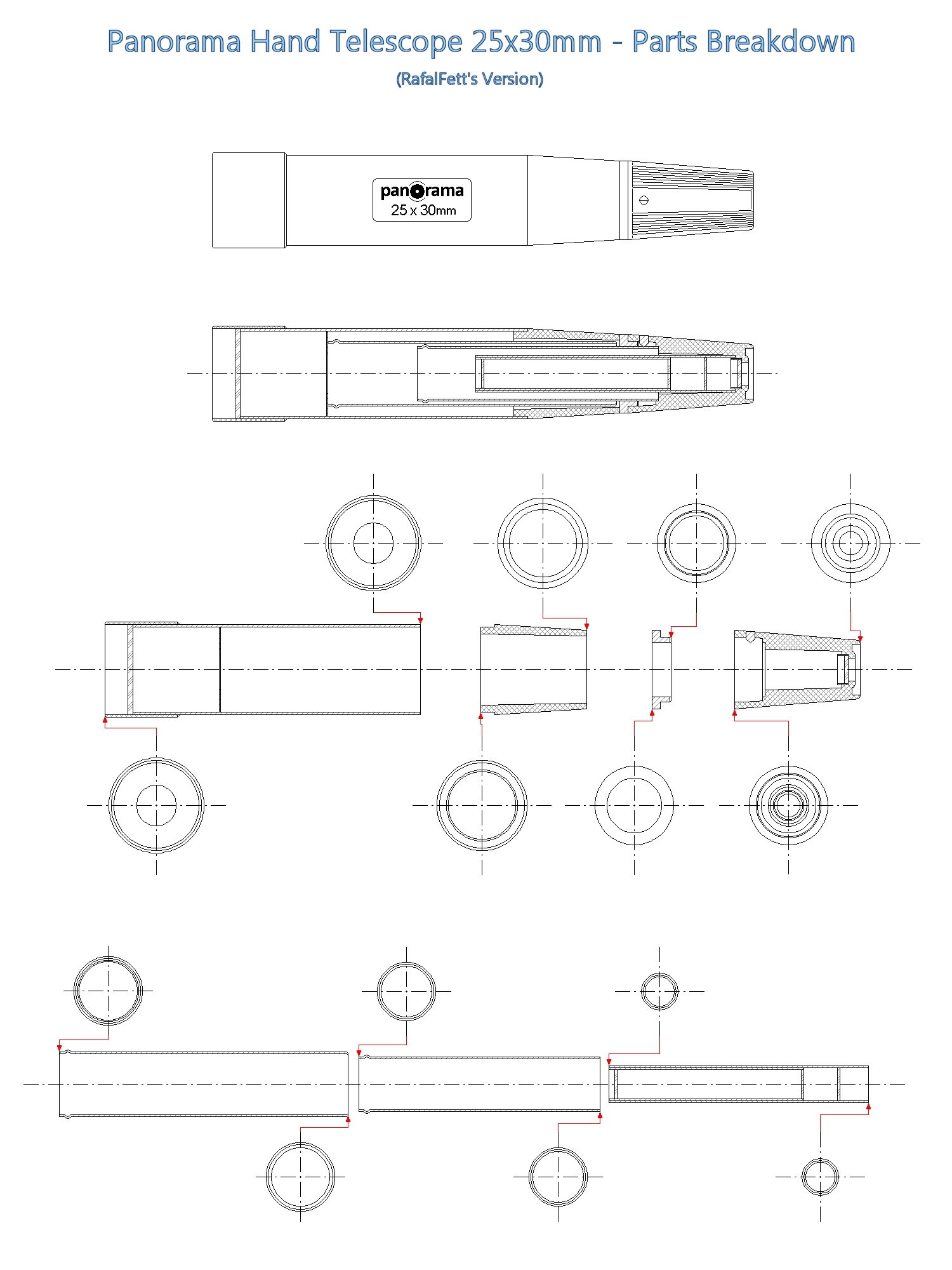

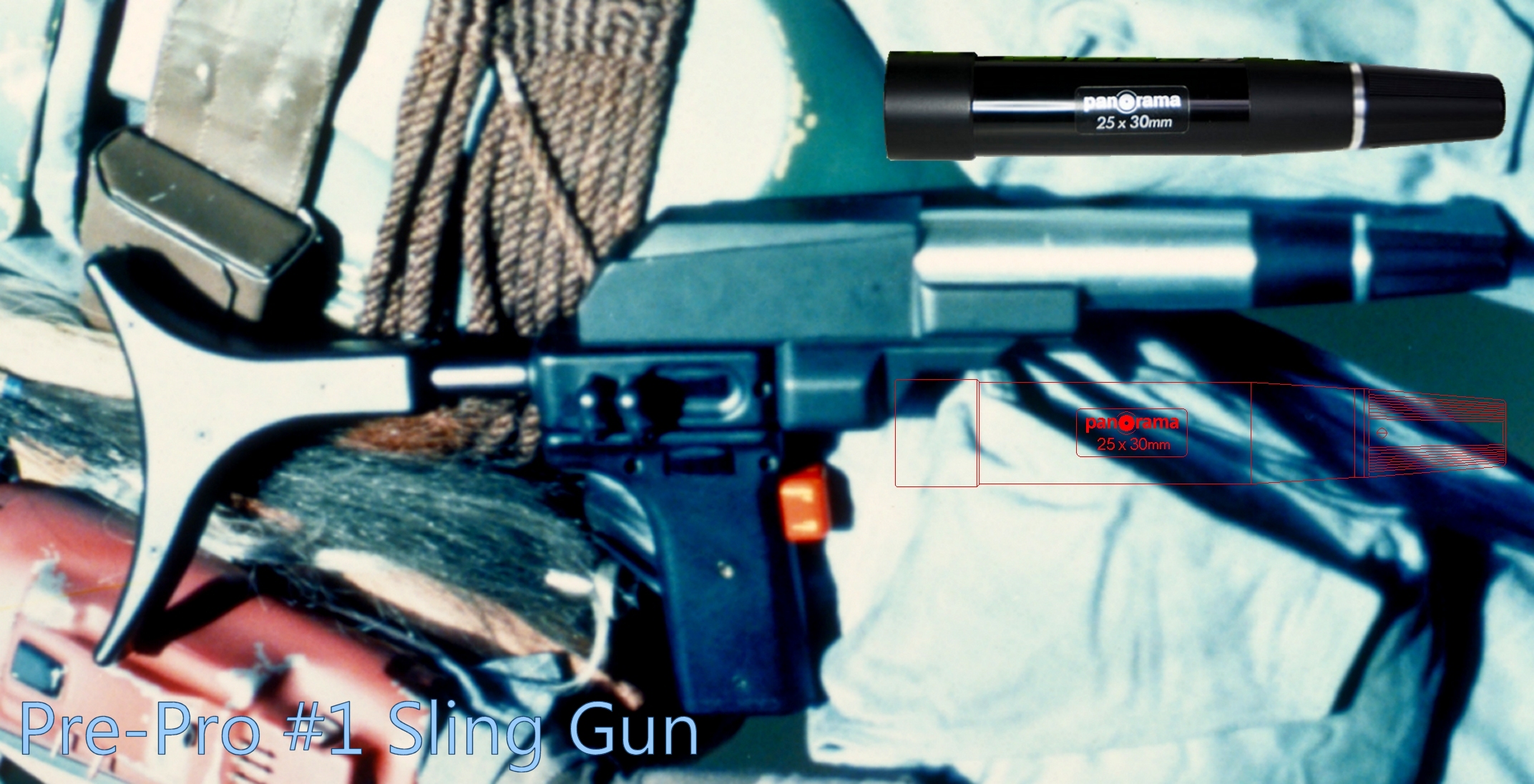

Telescope Template.jpg Telescope Template Measurement.jpg PP1 Sling Gun And Telescope 2.jpg PP2 Sling Gun And Telescope 2.jpg

Note that there are telescopes with different tube length and with different metal ring (or even with missing ring), but the overall dimensions looks the same.

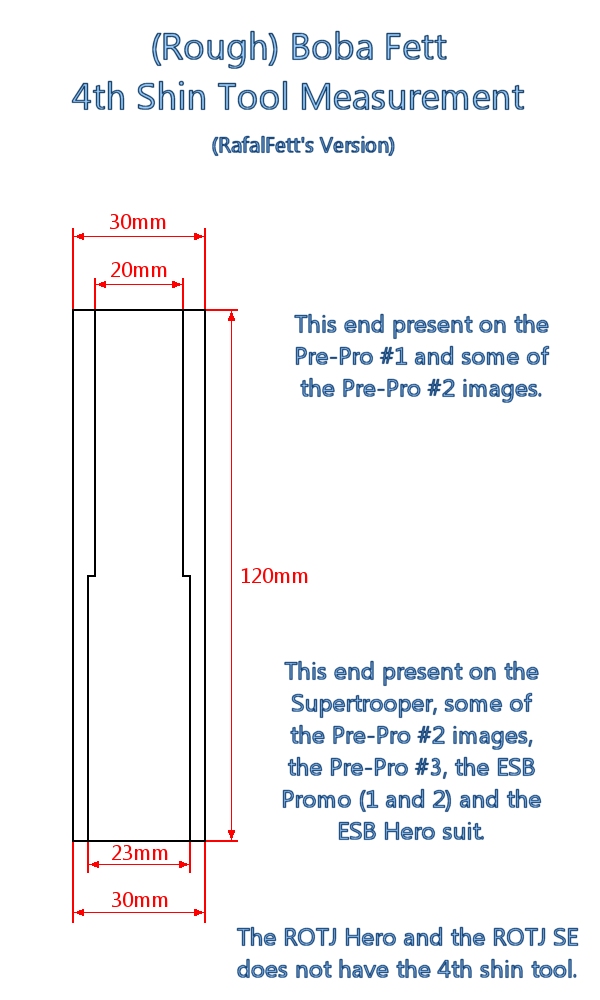

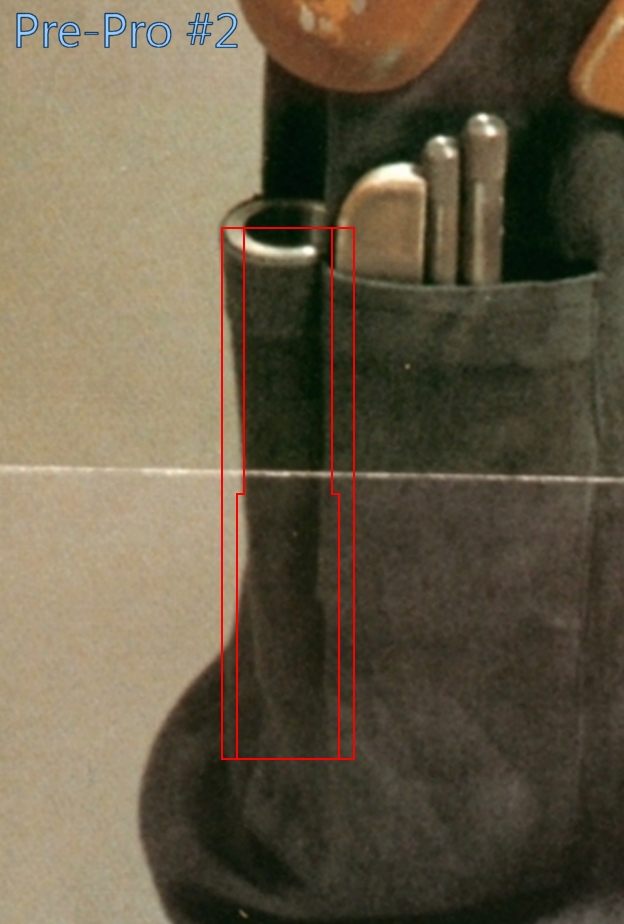

Boba Fett 4th shin tool (generic representation):
4th Shin Tool Template.jpg ST 4th Shin Tool.jpg PP1 4th Shin Tool.jpg PP2 4th Shin Tool 02.jpg PP2 4th Shin Tool 03.jpg PP3 4th Shin Tool.jpg


Boba Fett anti-security blades (or 3rd shin tool):
(You can find the updated image in the 3rd post ==> Post #3)


Boba Fett upper and lower jetpack hooks:
Jetpack Hook Measurements.jpg Boba-Fett-Return-of-the-Jedi-Jetpack-04.jpg

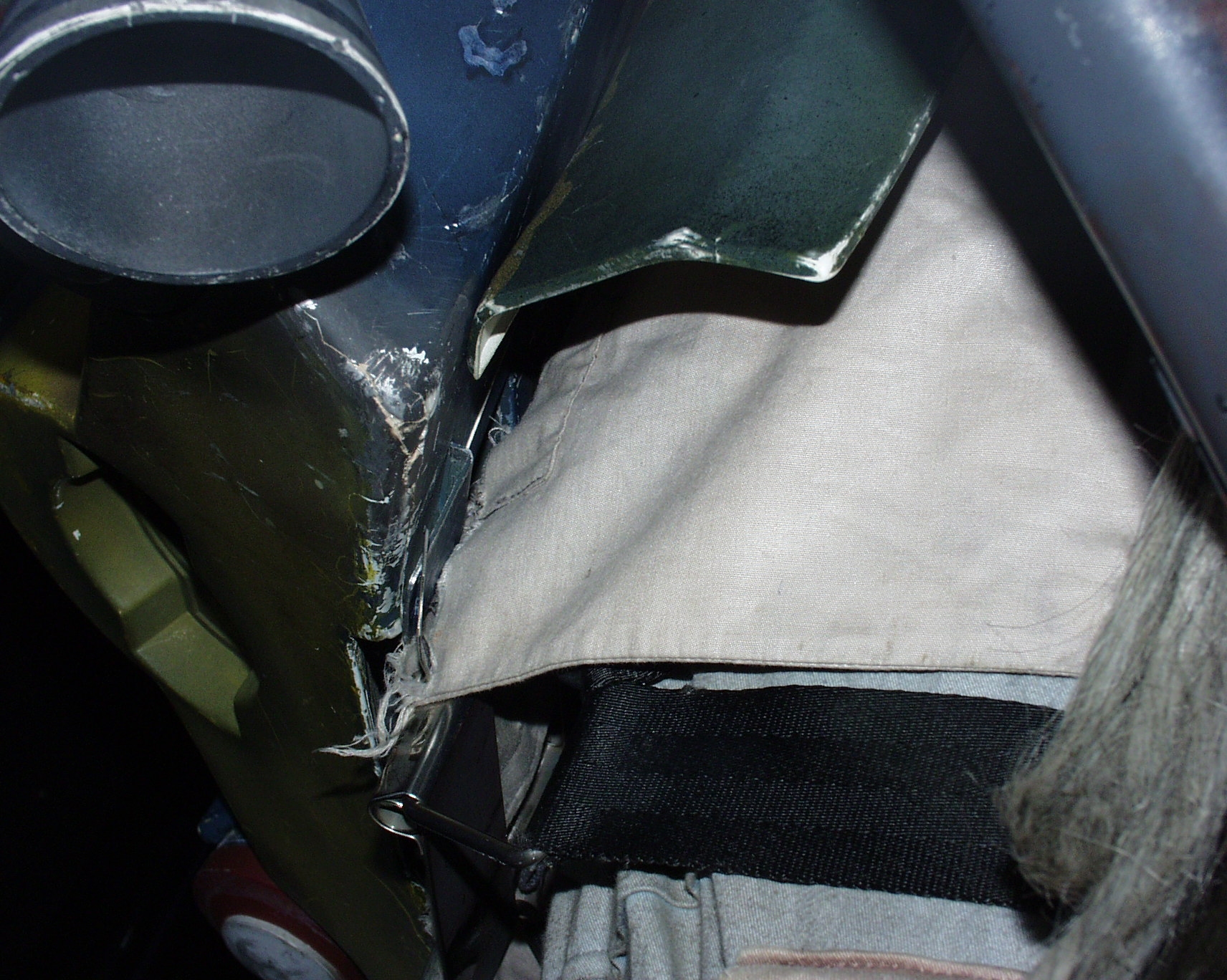

Note that the back and front plates are based on fan made parts and the measurements are more like a guideline, so you can modify them to your needs (except maybe the screw holes). The jetpack wall thickness is also an approximated value and you need to adjust the length of the screw to your jetpack's wall thickness. I did two versions of the lower hooks: the original version is based on this single image (I didn't find another image that shows clearly this area):


The front plate attachment method is purely my speculation in lack of better proofs. The variant version is the one that most of the fan made hooks are based. The screw with nut is also an approximated drawing, but I based most of the values using the screw head diameter seen on the upper hooks.

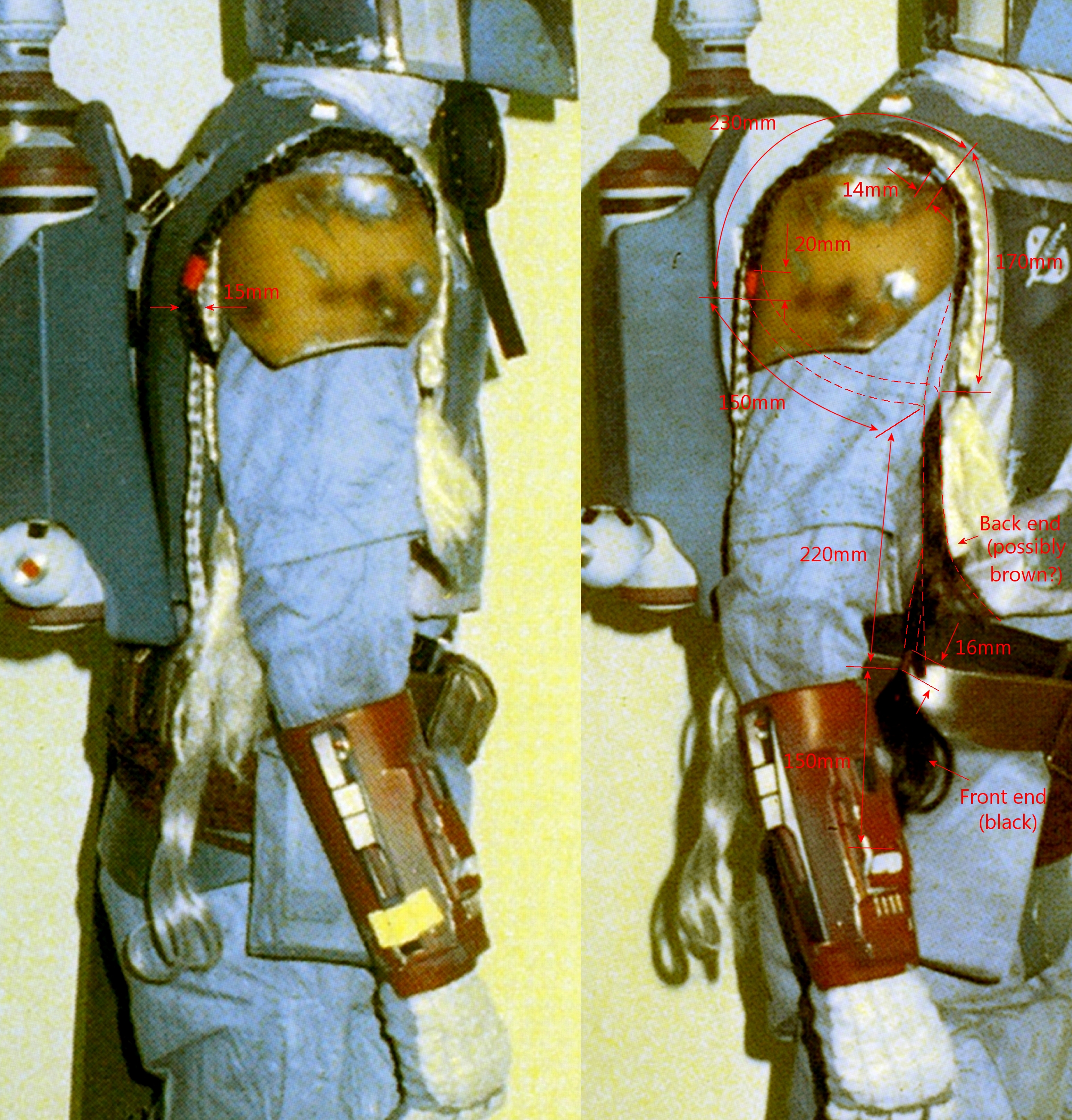

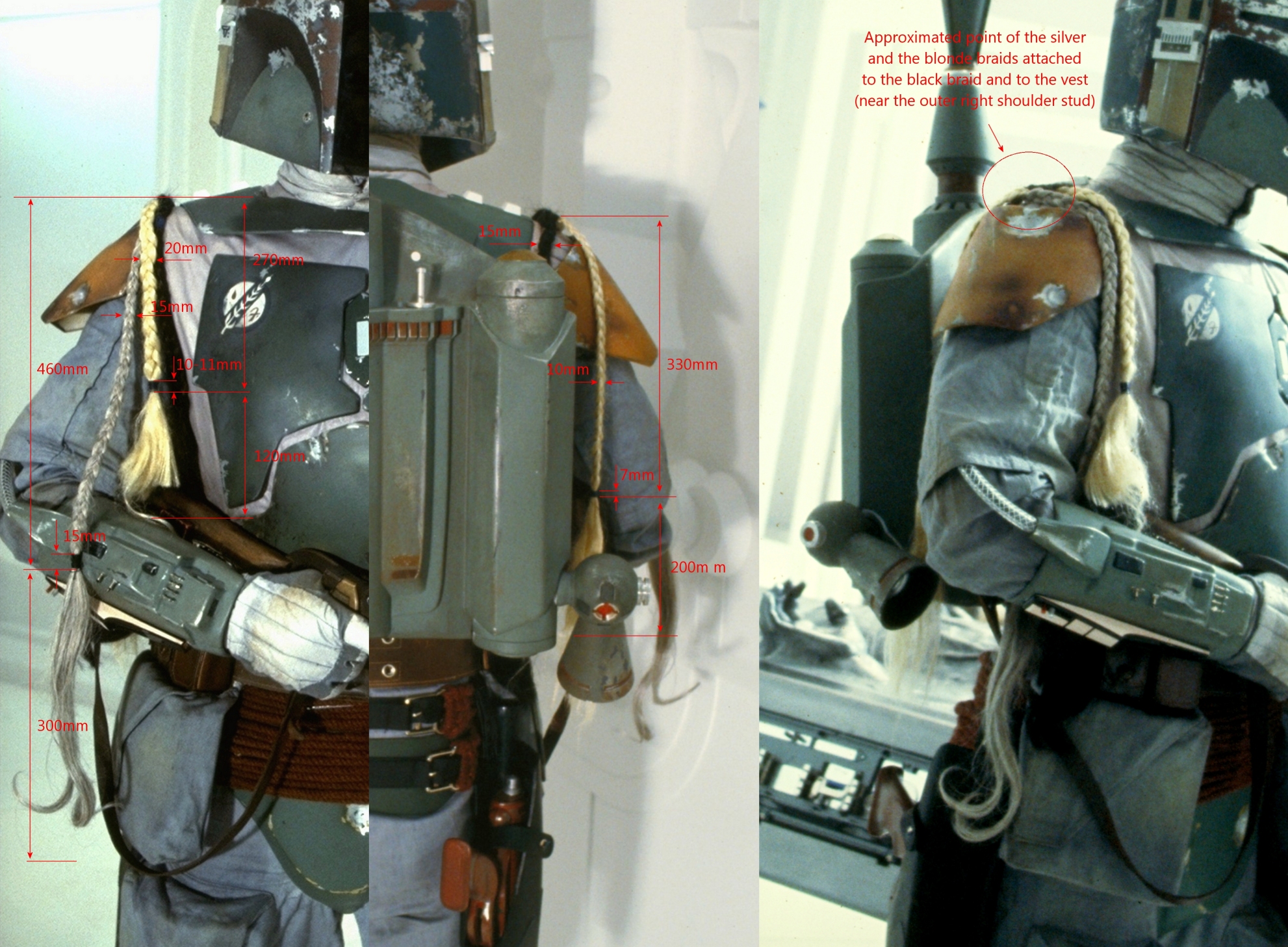

Boba Fett ESB hero/Pre-Pro #3 wookie braids (present on the ROTJ SE suit too in poor state):
ESB Wookie Braid Measurments.jpg ESB Wookie Braid Measurements.jpg PP3 To ESB Braids.jpg

Note that these measurements are approximated and are not set in stone. Read more info about the ESB Hero/Pre-Pro #3 wookie braids here ==> Need advice on black and grey braids please - Post #5

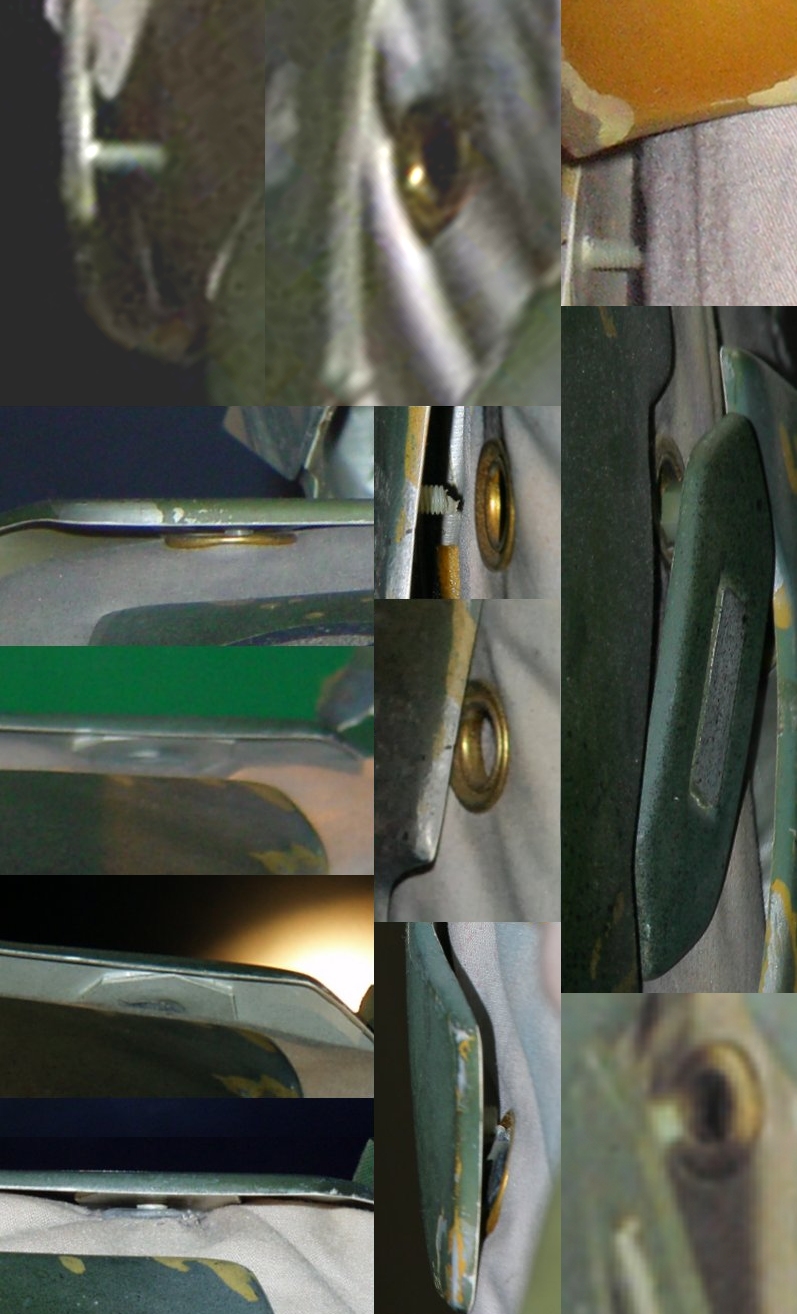

Boba Fett armor attachment method with measurements:
Armor Attachment Method Measurements.jpg Armor Attachment Points To The Vest.jpg Armor Attachment.jpg Shoulder Attachment.jpg

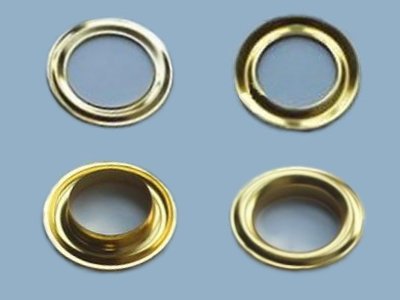

Here is an example of a plastic fastener and a brass grommet:
Plastic Fastner 5mm.jpg Brass Grommets 22mm.jpg



Notice: I will not post my ESB ammo belt and ammo pouch templates to not interfere with StrumFett's awesome project (read more here ==> Tutorial: Ammo Belts v2), instead I shared my work with him to use it in his great project.

That's it for now.

Have fun!

Boot Plate Measurements.jpg


Jetpack Adjustment Knob Measurements.jpg


Knee Dart Measurements.jpg


Beacon 3 Template.jpg


Beacon 1 Template.jpg


Beacon 2 Template.jpg


Beacon 4 Template.jpg


Boba Fett Correct Chest Display.jpg


ESB Cape Template.jpg


4th Shin Tool Template.jpg


Telescope Template.jpg


Telescope Template Measurement.jpg




ESB Wookie Braid Measurments.jpg


ESB Wookie Braid Measurements.jpg


PP3 To ESB Braids.jpg

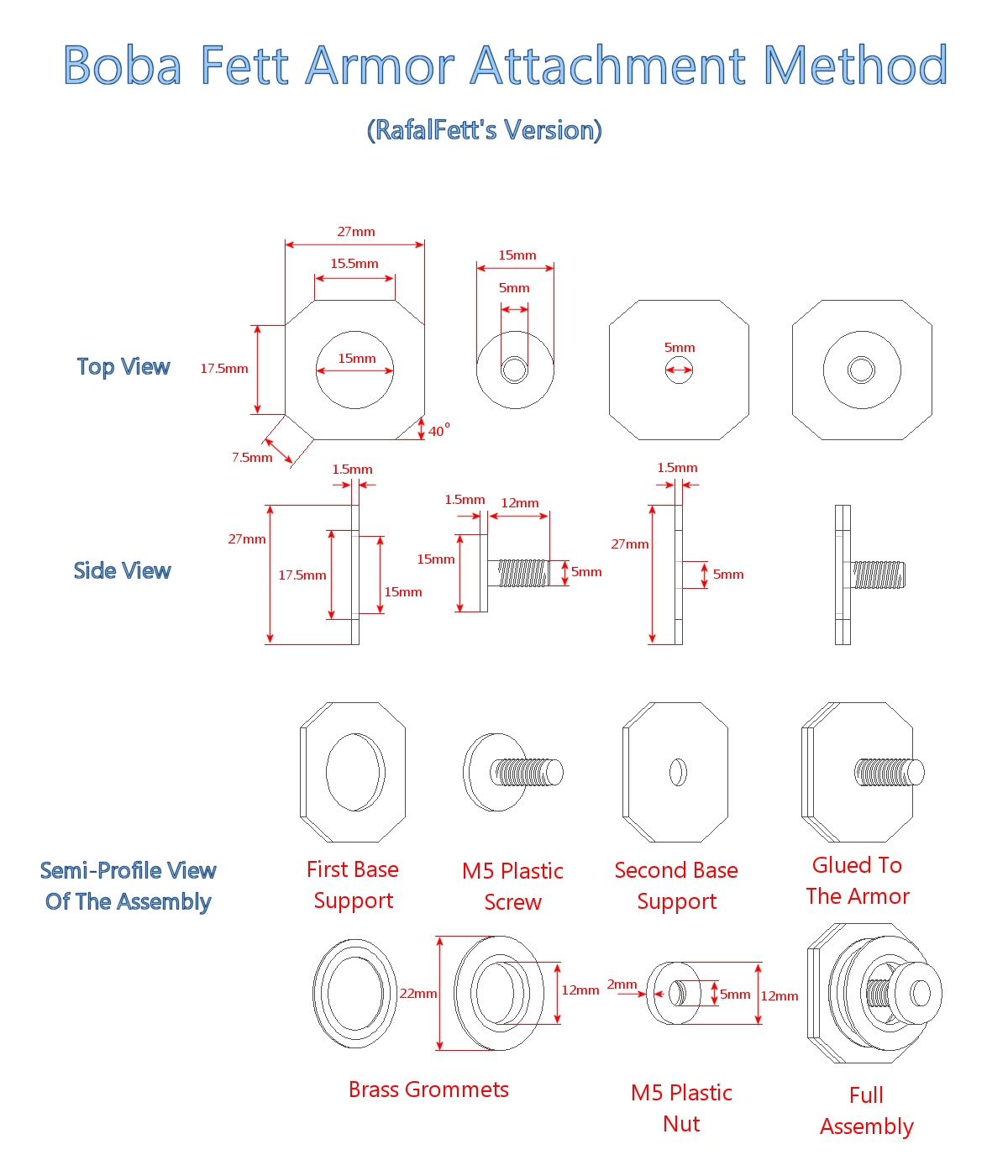

Armor Attachment Method Measurements.jpg


Armor Attachment Points To The Vest.jpg


Plastic Fastner 5mm.jpg


Brass Grommets 22mm.jpg


Armor Attachment.jpg

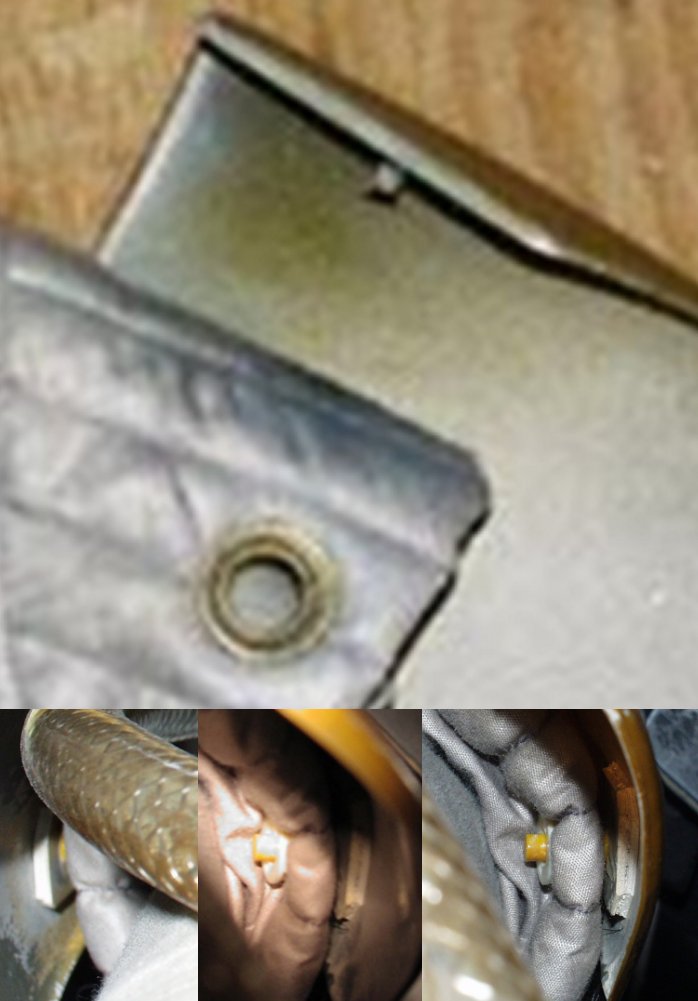

Shoulder Attachment.jpg


Boot Spikes 2.jpg


2 Version Knee Darts.jpg

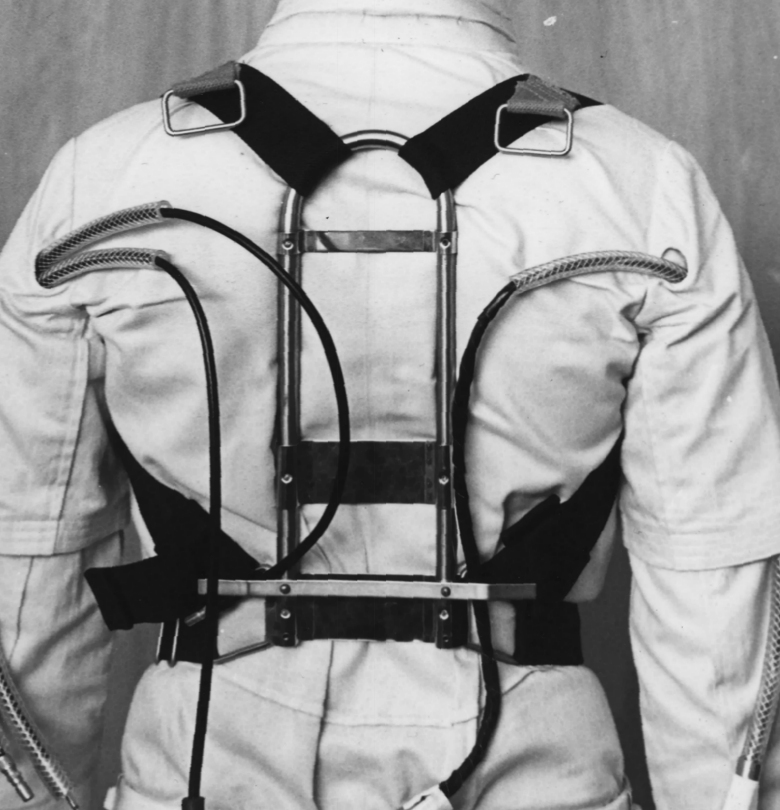

JP Harness 1.jpg

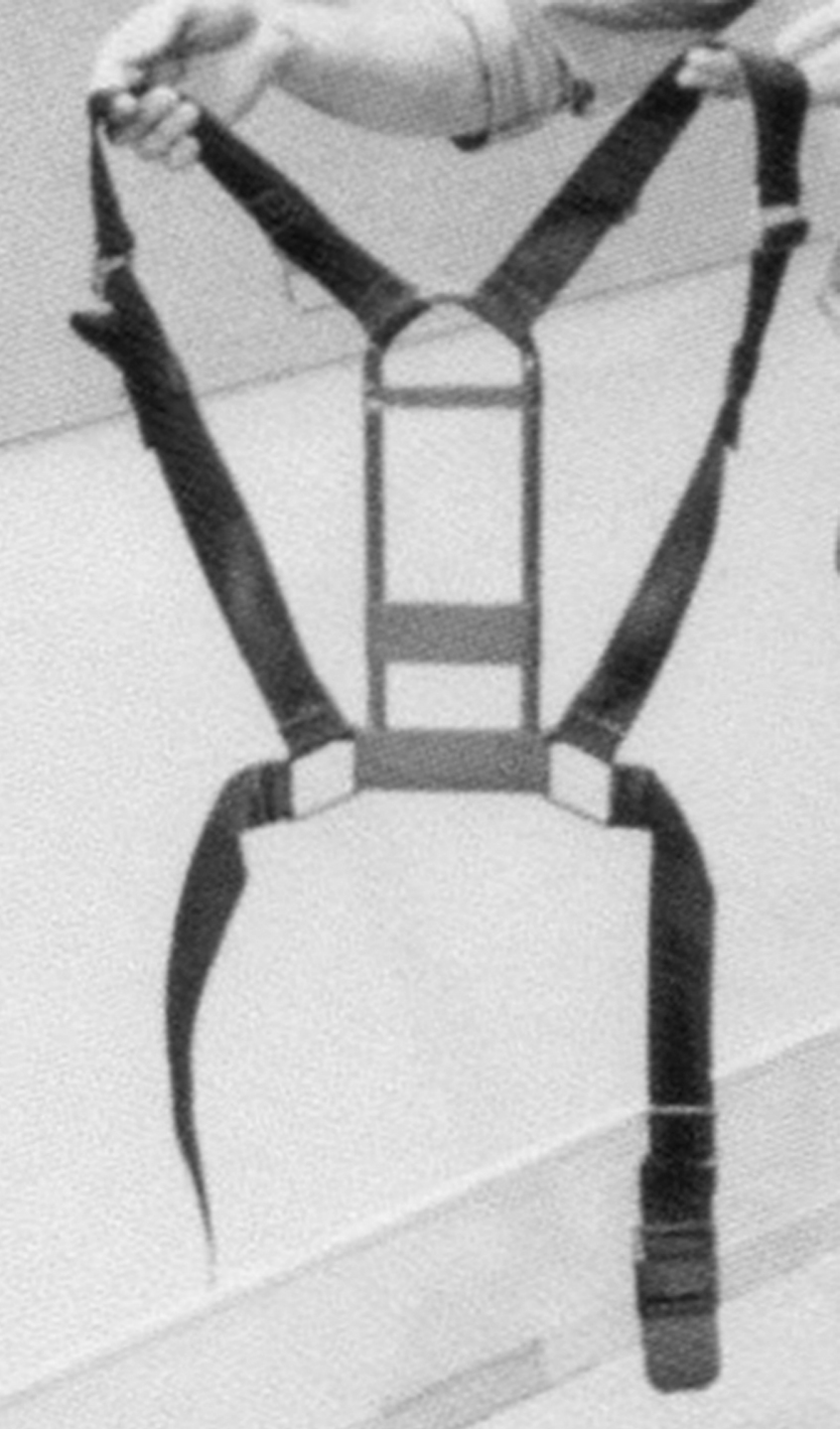

JP Harness 2.jpg

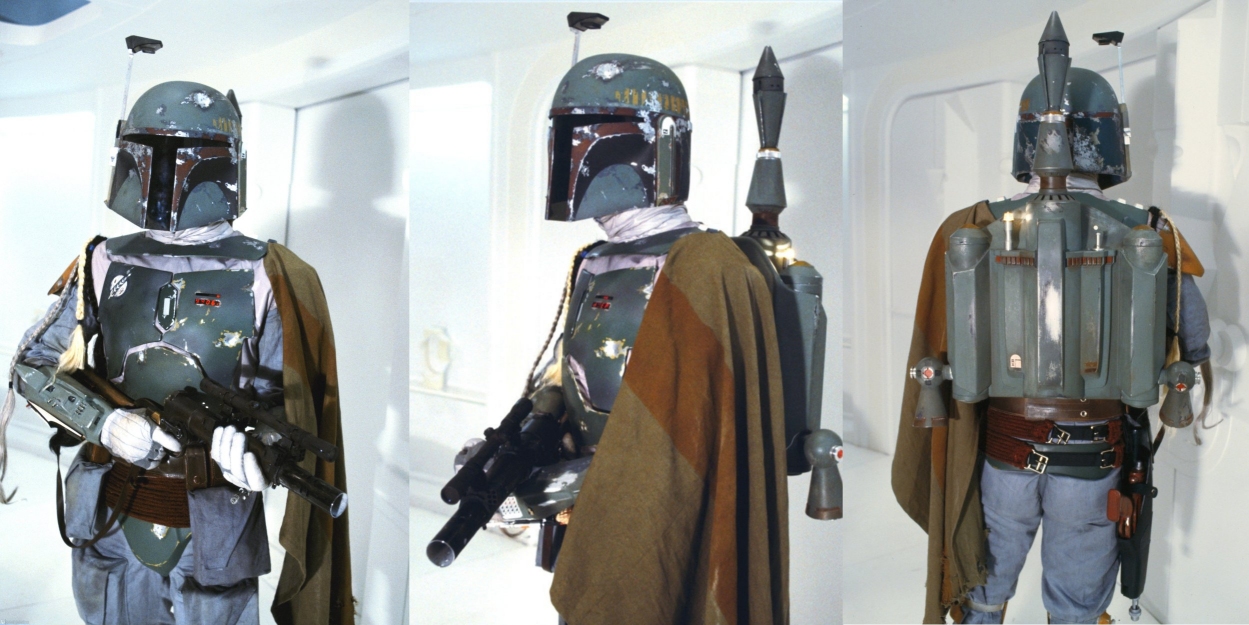

ESB Cape Reference 2.jpg


PP1 Sling Gun And Telescope 2.jpg


PP2 Sling Gun And Telescope 2.jpg

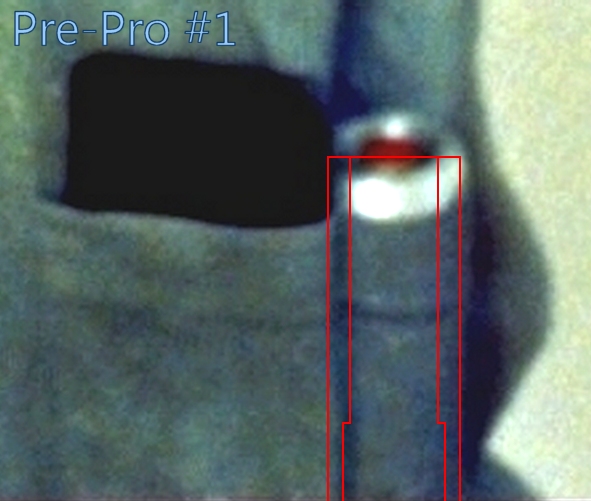

PP1 4th Shin Tool.jpg


PP2 4th Shin Tool 02.jpg


PP2 4th Shin Tool 03.jpg


PP3 4th Shin Tool.jpg


ST 4th Shin Tool.jpg




Right Collar Attachment.jpg


Left Collar Attachment.jpg


ESB Original Chest Display.jpg

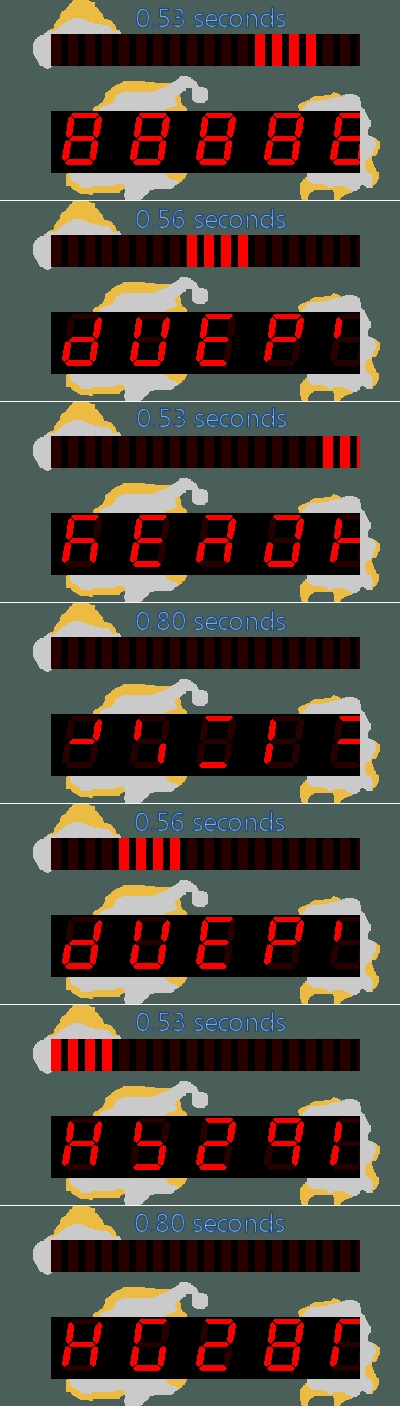

ESB Chest Display Sequence.jpg


ROTJ Chest Display Sequence.jpg


ST-PP1 Boot Spikes.jpg


PP2 Boot Spikes.jpg


PP3-ESB Boot Spikes.jpg


ROTJ Boot Spikes.jpg


ST-PP1 Knees.jpg


PP2 Knees.jpg


PP3 Knees.jpg


ESB Knees.jpg


ROTJ Knees.jpg


Gauntlet Darts.jpg


Jetpack Adjustment Knobs.jpg


Shoulder Stud Attachment And Measurements.jpg


Jetpack Hook Measurements.jpg




Jetpack Frame Measurements.jpg

Last edited:

Skiff

Jr Hunter
Nice work raf. I've been looking for this sort of comprehensive set of measurements for over a year now! Thanks heaps


RafalFett

Well-Known Hunter
Nice work raf. I've been looking for this sort of comprehensive set of measurements for over a year now! Thanks heaps
You're welcome!


-------------------------------
Update 19-10-2013
-------------------------------
Because I can't upload more images in the first post (the 24 attachment restriction/post) I will add them here. The 3rd shin tool (the anti-security blade) image was replaced because by mistake I named the 3rd piece as being part of the final Pre-Pro #1 suit, but it was changed to the 1st or 2nd version:

Boba Fett anti-security blades (or 3rd shin tool):

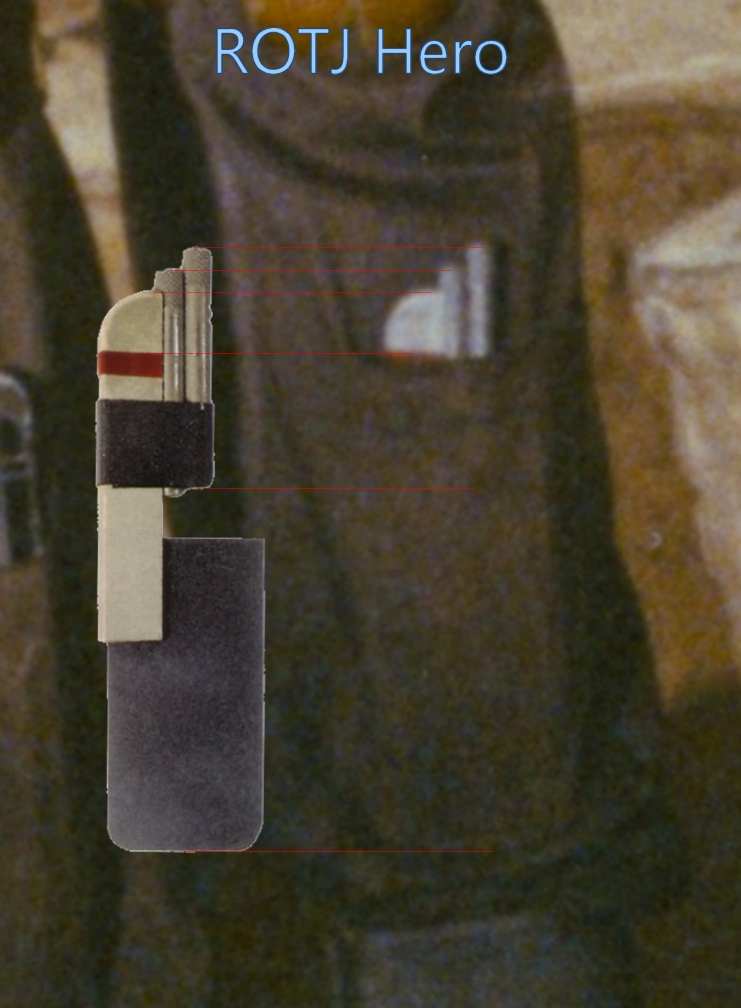

Anti Security Blade Template Measurements.jpg Sup-PP1 Early Knife.jpg PP1 Final Knife.jpg PP2-PP3-ESB Knifes.jpg ROTJ Knife.jpg

Note that the first and second positions (on the template image) are noted to belong to the same suits, but I did this because it's kind of hard to tell from the available images which tool was on which suit, so basically whatever type you choose, you won't go wrong (except the 3rd type which is a specific tool).

Boba Fett shin pockets with tools (with the ESB setup):
Shin Tools In Pockets.jpg Shin Pockets Description.jpg

The upper dashed red line is where the folded material ends (maybe double folded?) and gives that extra thickness to the pocket's upper strip. And while some of the pockets shows extra room, you have to consider that the shin tools are not flat, but bulkier parts and will fill the pockets, and sometimes you will have to squeeze in some of the tools.

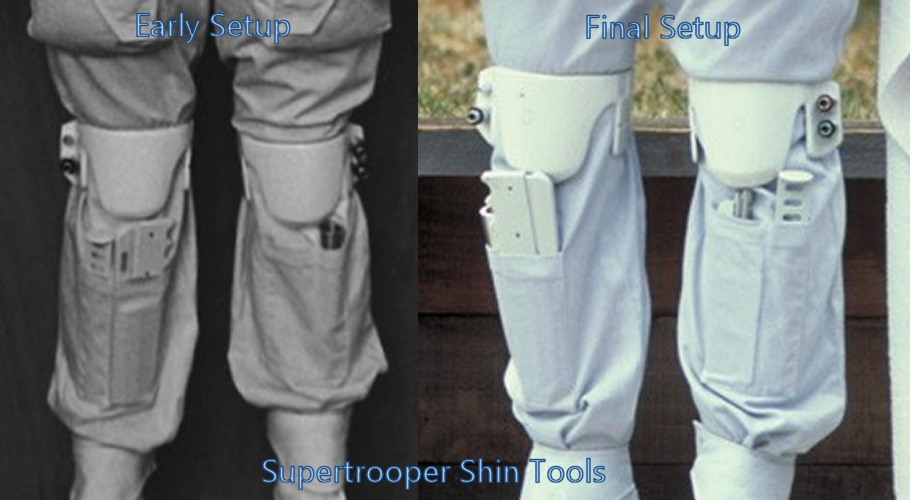

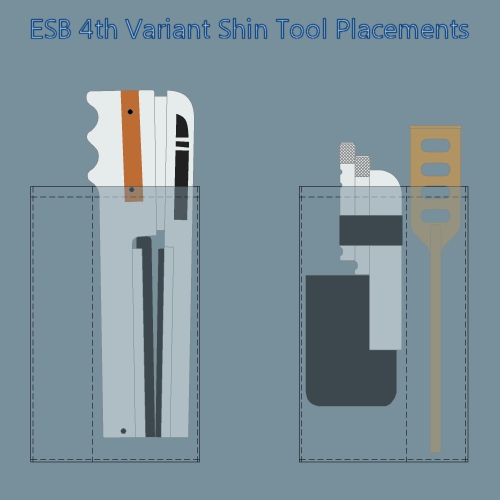

Boba Fett shin tool placements (in the shin pockets):

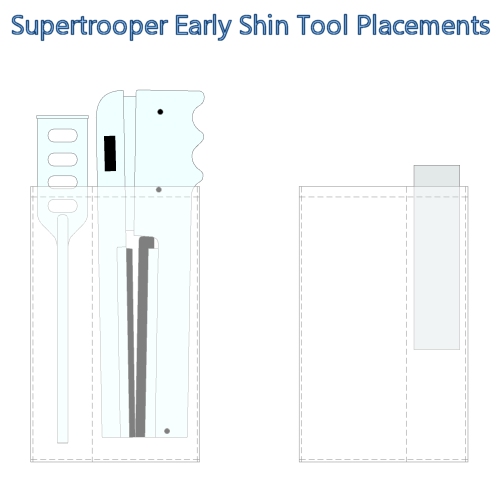

Supertrooper Early Shin Tools Placement.jpg Supertrooper Final Shin Tools Placement.jpg Supertrooper Shin Tools.jpg

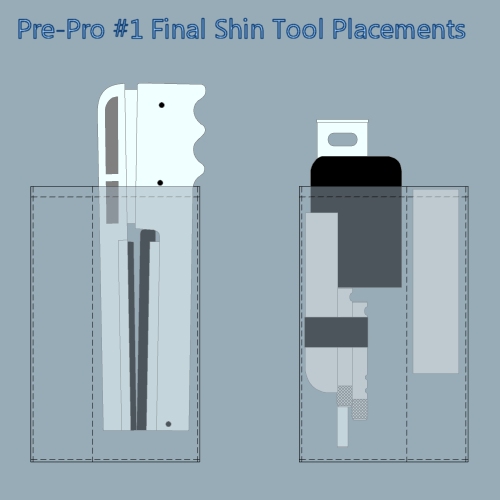

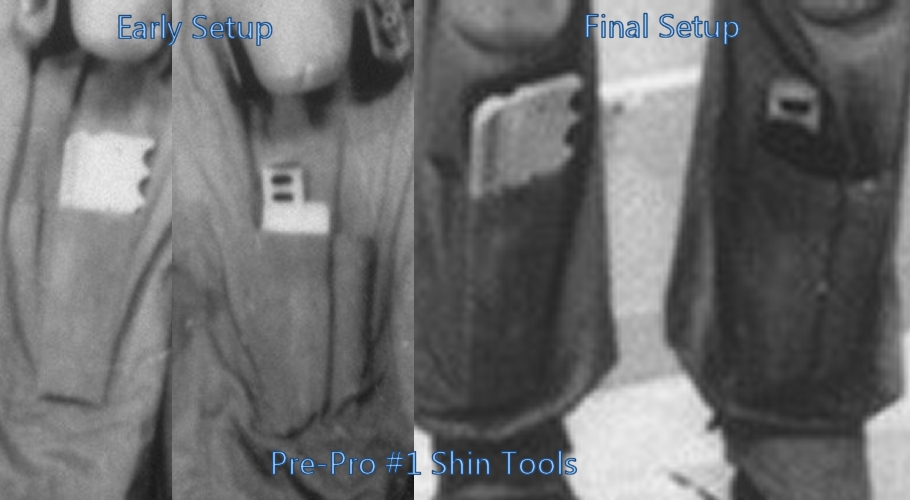

PP1 Early Shin Tools Placement.jpg PP1 Final Shin Tools Placement.jpg PP1 Shin Tools.jpg

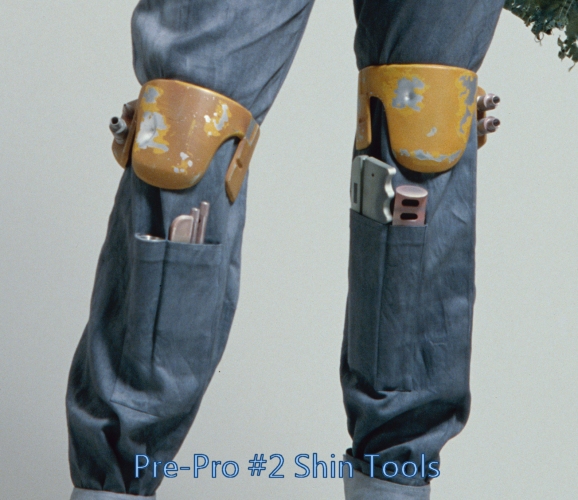

PP2 Shin Tools Placement.jpg PP2 Shin Tools.jpg

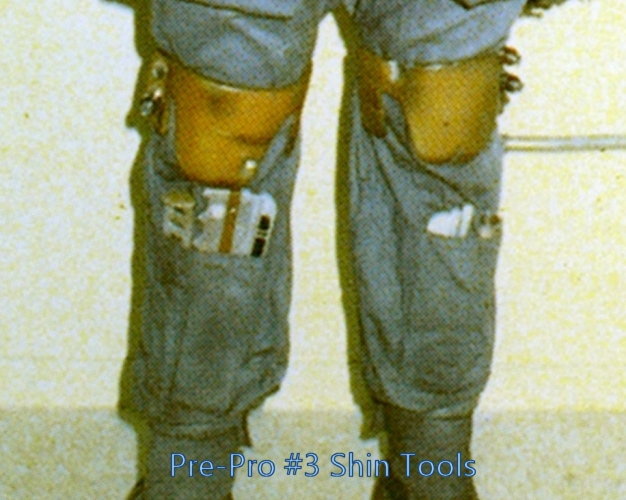

PP3 Shin Tools Placement.jpg PP3 Shin Tools.jpg

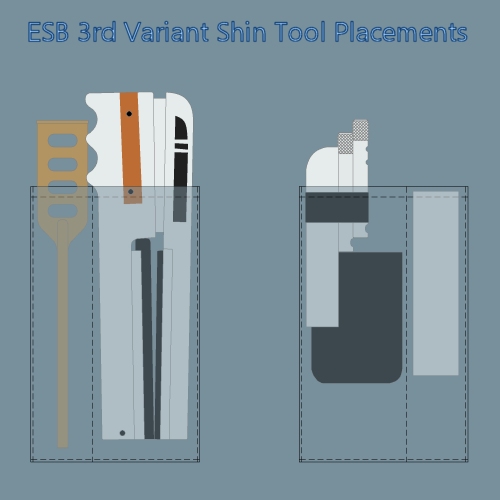

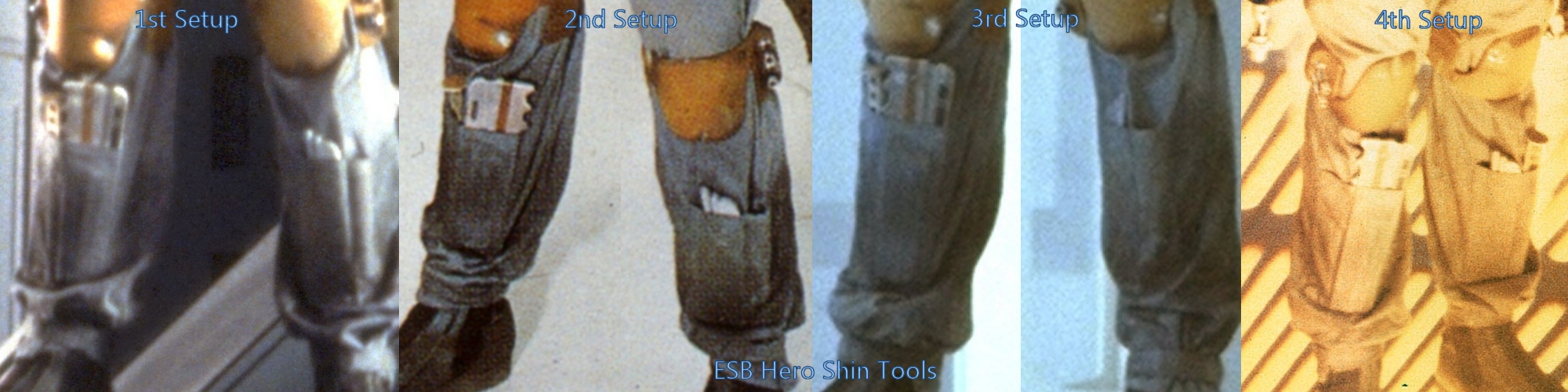

ESB 1st Variant Shin Tools Placement.jpg ESB 2nd Variant Shin Tools Placement.jpg ESB 3rd Variant Shin Tools Placement.jpg ESB 4th Variant Shin Tools Placement.jpg ESB Shin Tools.jpg

ROTJ Shin Tools Placement.jpg ROTJ Shin Tools.jpg

Anti Security Blade Template Measurements.jpg


Shin Tools In Pockets.jpg


Shin Pockets Description.jpg


Sup-PP1 Early Knife.jpg


PP1 Final Knife.jpg


PP2-PP3-ESB Knifes.jpg


ROTJ Knife.jpg


Supertrooper Early Shin Tools Placement.jpg


Supertrooper Final Shin Tools Placement.jpg


PP1 Early Shin Tools Placement.jpg


PP1 Final Shin Tools Placement.jpg


PP2 Shin Tools Placement.jpg


PP3 Shin Tools Placement.jpg


ESB 1st Variant Shin Tools Placement.jpg


ESB 2nd Variant Shin Tools Placement.jpg


ESB 3rd Variant Shin Tools Placement.jpg


ESB 4th Variant Shin Tools Placement.jpg

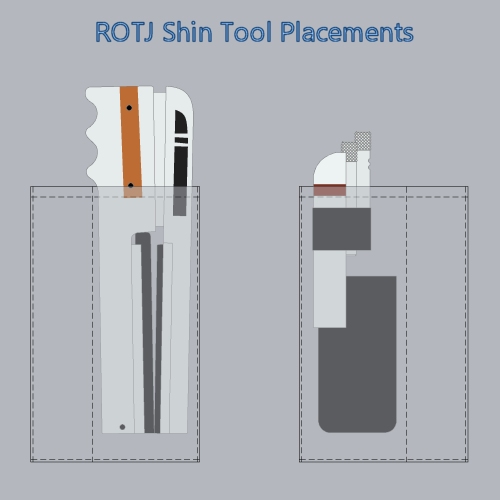

ROTJ Shin Tools Placement.jpg


Supertrooper Shin Tools.jpg


PP1 Shin Tools.jpg


PP2 Shin Tools.jpg


PP3 Shin Tools.jpg


ESB Shin Tools.jpg


ROTJ Shin Tools.jpg

Last edited by a moderator:

ZolarKresh

New Hunter
These are great and I am awed at the amount of work you put into these. Are you still working on your helmet templates, and will they be added to this thread?


RafalFett

Well-Known Hunter
These are great and I am awed at the amount of work you put into these. Are you still working on your helmet templates, and will they be added to this thread?
Thanks for the kind words, sir! I will post the helmet templates in its own thread that I already created 1 year ago but never updated (to my shame). The templates are 99% done, but I was delaying to post them because I wanted to do a sample helmet to see if everything fits well. I just hope that we don't have to wait too much for that to happen...


RafalFett

Well-Known Hunter
Finally finished the measurements for the Anti-Security Blades (or 3rd shin tool) and the resulted image was added to the first post.
