Gauntlet blueprints

[wizardofflight]

Well after some head scratching and searching the reference
material here are the draft blueprints for the left gauntlet and
rocket. Once I am satisfied with the draft I’ll start working on
the templates.

As always take a look and let me know what you all think

Alan

UPDATED JULY 3rd 2007!!!

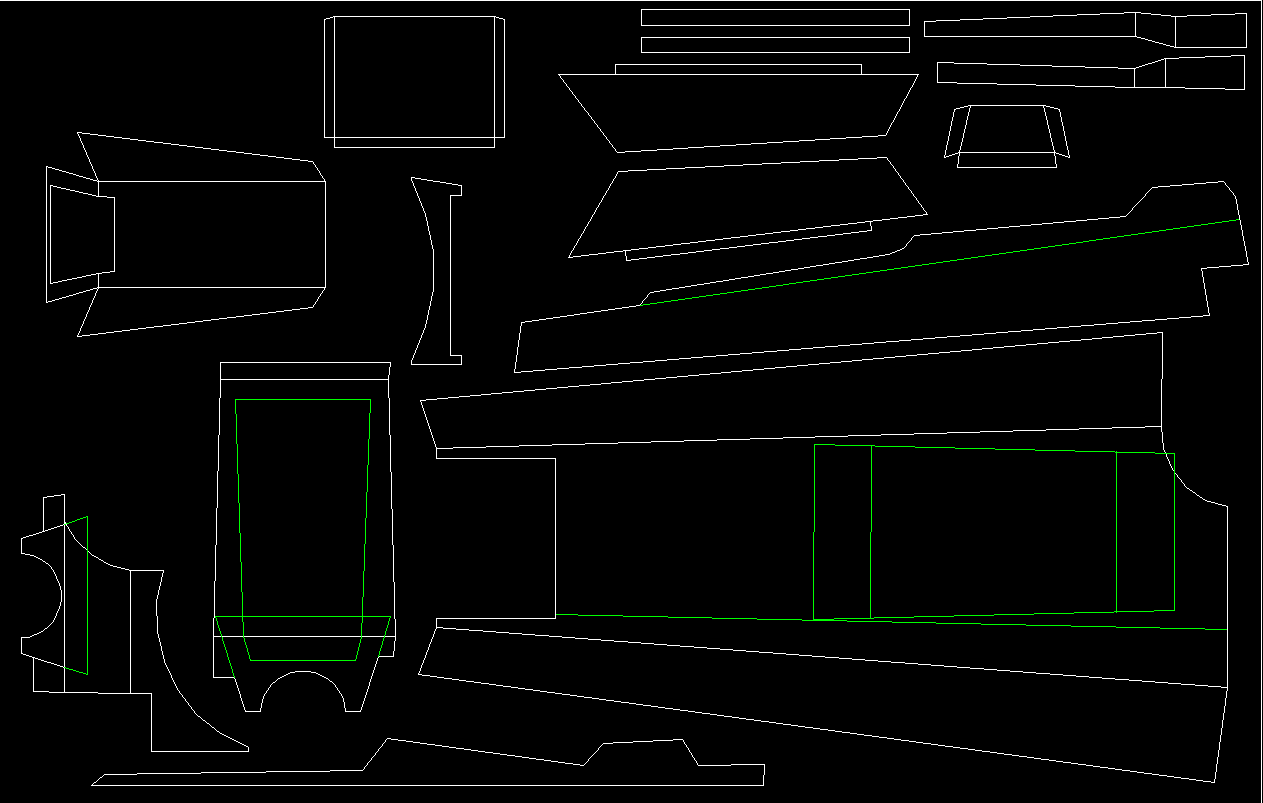

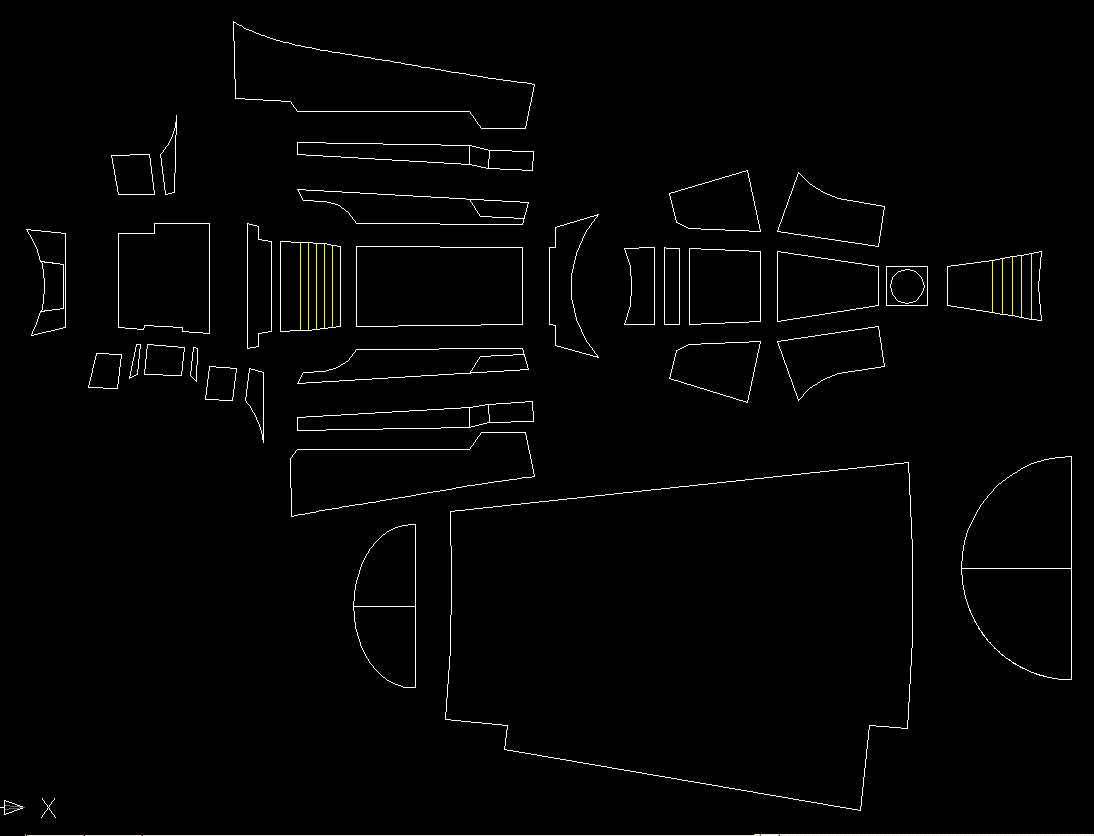

Here they are, ready for downloading. If you have any questions or comments please let me know.

I really want to give a very big THANK YOU! to MOJO-Fett for all of his help and encouragement with out it would have taken another 6 months before I managed to get motivated enough to finish them. He has done a great job of organizing and prototyping these templates, making them much easier to use and understand.

One thing to note: These templates DO NOT take into account material thickness. With that said if you use a thin material such as the 1mm FOAMEX as in the prototypes you really don’t need to worry about it. But if you start using anything over 1/16” make sure that you account for the extra material during your build.

These are set up to printout on standard 8.5” X 11” paper. Just set Acrobat to print the limits of the printer and they will print out full size and you are ready to go.

Right Gauntlet
http://www.propaholics.wolfchasers.com/uploader/users/Wizardofflight/BF RTG FlatPat Std A.pdf

Left Gauntlet
http://www.propaholics.wolfchasers.com/uploader/users/Wizardofflight/BF LTG FlatPat Std A.pdf

These are for the folks over across the pond. They are in the A4 paper size format. So you don’t have to worry about templates print out all messed up. Just set Acrobat to print to the limits of the printer and they will print out full size and you are ready to go.

Right Gauntlet
http://www.propaholics.wolfchasers.com/uploader/users/Wizardofflight/BF RTG FlatPat A4 A.pdf

Left Gauntlet
http://www.propaholics.wolfchasers.com/uploader/users/Wizardofflight/BF LTG FlatPat A4 A.pdf

Alan



[ZeroVisibilite]

Looks great(As usual) The armor templates you made worked great(easy to scale based on hieght) i rescaled them for my daugters Boba costume and it is turning out great. I'm anxiously awaiting the templates. Keep up the great work.
Zerovisibilite



[wizardofflight]

Thank you, glad to hear that they worked out so well. Do you have any pictures you can post? I'd love to see the results.

I think these templates are going to be a bit more envolved than I would like them to be, but hopefully I can get it right.

Alan



[CombatBaby]

Alan we love you

-=QuinN!



[Xombie]

You are the man! Scratch-built is definately the way to go and your templates are idiot-proof! Just wanted to say thanks for all the hard work that you put into these designs. Can't wait to see the finished product. If you need a "beta-tester" let me know!



[ACSS2]

These look awsome. Would you happen to be making some for Jango's gauntlets also?



[Boba Swede]

Anyone up for a CAD challange?

(or has it already been done? )



[wizardofflight]

Thank you all.

ACSS2

The Jango gauntlet are next on the list, actually they have already been started, but I have nothing worth posting yet just a bunch of construction lines.

"Boba Swede
Anyone up for a CAD challange?
(or has it already been done? )"

Ok, I'll bite, what's the challenge?

Alan



[ZeroVisibilite]

Click Here for picks using Wizards templates scaled for a 6 year old
Dude thanks again for your dedication to this. I am going to continue on with a Jango for her for next year(maybe some conventions also,We'll see)
Hope I didn't break any rules by posting a web page instead of pictures but I couldnt see chewing up 14 screens of hig res pics when some people won't want to see them

Zerovisibilite



[FettOfficer]

Great Job Alan! The prints look great. I'm
sure it will become very helpful for all the fetts who are
interested.



[protoFett]

Thats it! i was going to start my fett, but now i think i will just wait, after wizzard gets done my work will be a breeze!



[Boba Swede]

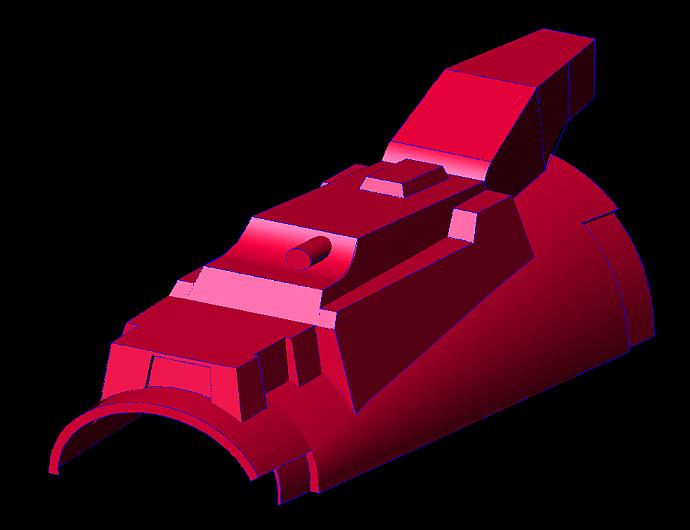

Wizardofflight>> Well the challange is to do the gauntlet schematics in 3D in AutoCAD. (or similar) Once that is done they can very easily be scaled to fit anyone.



[wizardofflight]

First I have updated the drawings above base on some feedback and additional details were added also I fixed some of the proportions, which were off just a bit. They are not done yet, but they are getting close

Zerovisibilite

That armor looks great! Can’t wait to see it finished. Please let
me know when you have it complete. Posting links isn’t a
problem at all.

Boba Swede

AutoCAD 14’s 3D capability is not what it could be, nothing like
Lightwave or 3D Max, but below is the wireframe of another
project that I am working on. Actually the hard part with the
gauntlets will be breaking them down into templates and
coming up with assemblies that make sense and can be
accomplished with standard hobby tools. Scaling will be
handled just like the armor templates. The gauntlet “rocket”
will be the toughest challenge to break down.

Thanks for the feedback, if you see anything that looks tweaked just let me know.

Alan



[CombatBaby]

mmmm, looking good still



[wizardofflight]

Hello,

It’s been a bit since the last update, spent last week in the sunny south on vitiation, a very nice break from rainy Seattle. But I have not been idle, I have finished the draft drawing for the right gauntlet. The flat patterns have been started as well.

So, take a look at the first post for the new drawing and let me know what you think of it.

Alan



[Arn Ma Brlou]

Hey Wizard! I like your other project, there. Brings back a lot of memories! I'd love to see it when it's all done!


m@



[wizardofflight]

I may never finish the 3D model but here are the orthos for the studio scale version.

http://www.angelfire.com/scifi2/wizardofflight/SSThunderfighter.html

Alan

Hey Wizard! I like your other project, there. Brings back a lot of memories! I'd love to see it when it's all done!


m@



[Arn Ma Brlou]

Nice! If you ever finish that one, would you do the four seat version as well?

m@

I may never finish the 3D model but here are the orthos for the studio scale version.

http://www.angelfire.com/scifi2/wizardofflight/SSThunderfighter.html

Alan



[wizardofflight]

Well, now that you mention it I did take a shot at the Quad a few years ago. Take a look;

http://www.angelfire.com/scifi2/wizardofflight/Quadfighter.html

But now that the studio scale drawings are done I'll need to update these.

Alan

P.S. Here is some more of my stuff: http://www.angelfire.com/scifi2/wizardofflight/

Nice! If you ever finish that one, would you do the four seat version as well?

m@



[Arn Ma Brlou]

Cool!!
