So, I got a NeoFett wireless servo and light kit a few years back for the rangefinder. My ESB build was on hold for a while but I’ve recently picked it up again and decided to try to tackle this.
I watched the tutorial (several times) for how to solder the lights and followed along with it as I did it.
The leds are all soldered to the board and NF’s video says to solder the wires to these four contacts. She says it doesn’t matter which one goes where, as long as you remember so that you can plug the wires in to the corresponding wires on the main board.

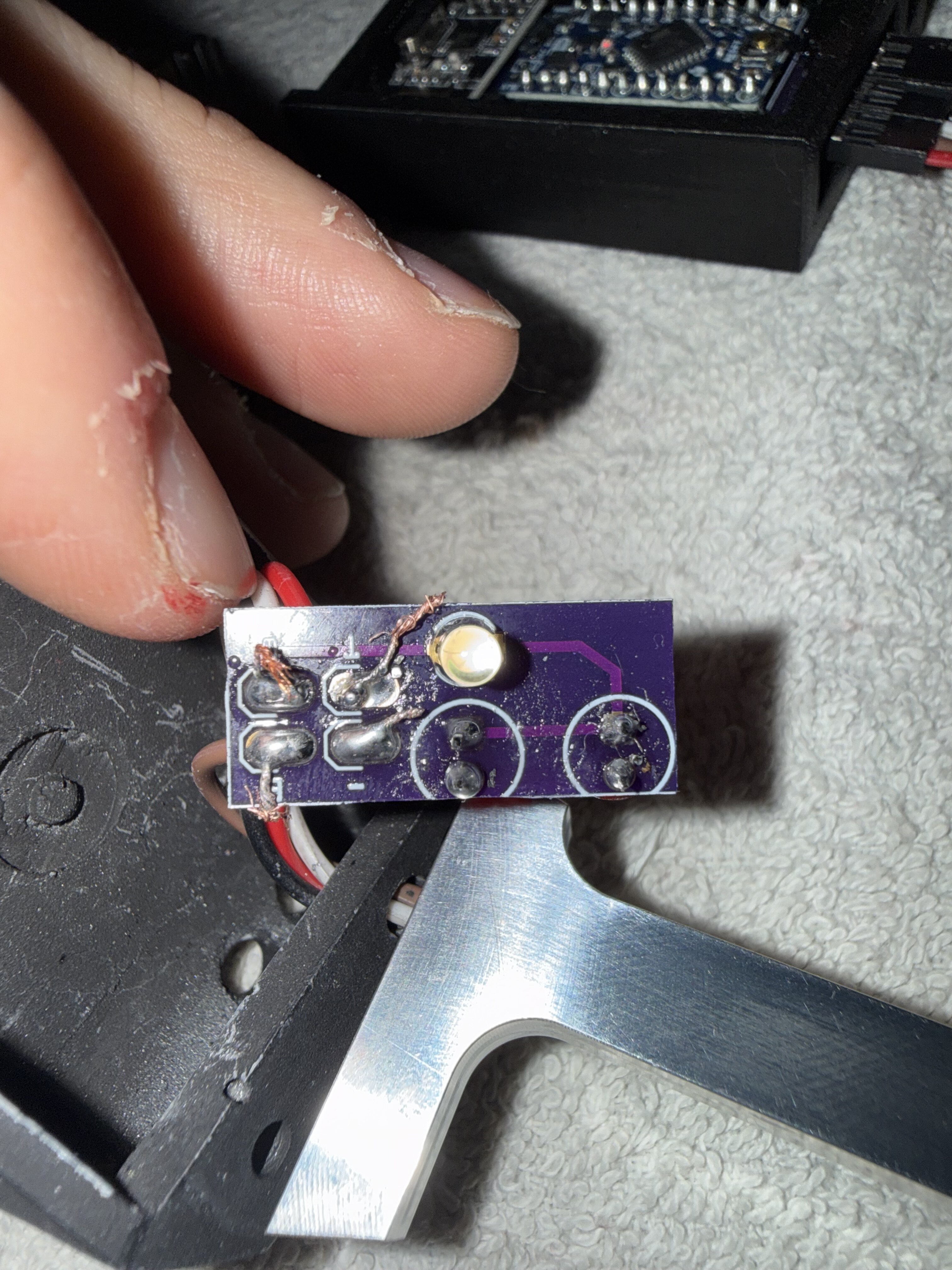

I know, my soldering is probably the worst you’ve seen. Today was my first time. You can’t really tell from the photo but black is attached to “-“. Brown to “B,” white to “W,” and red to “T.”

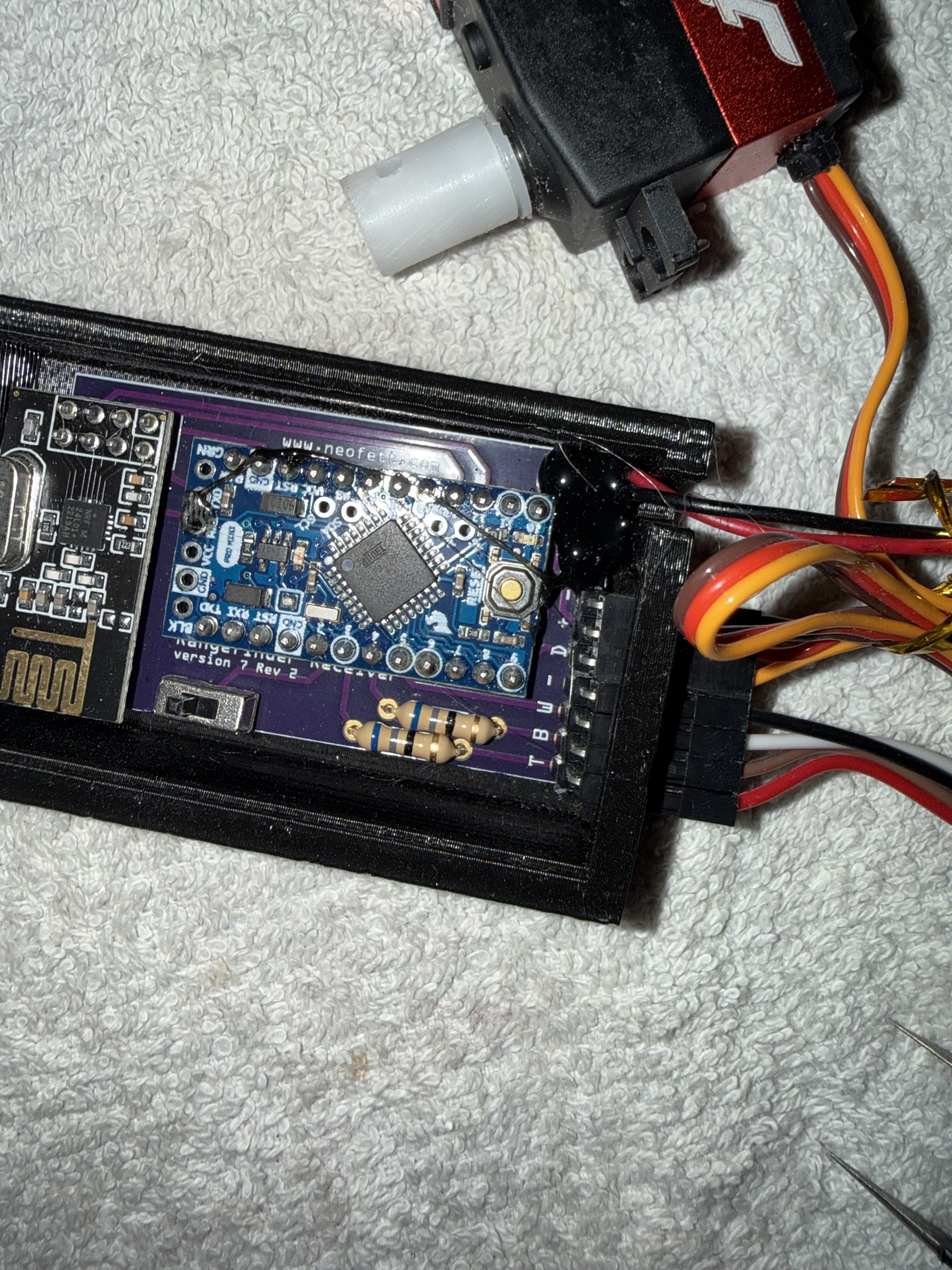

Here are the wires plugged in to the corresponding letters on the main board:
I put batteries in and turned it on to test it and…nothing. I can’t spot what I’ve done wrong and in case you hadn’t guessed, I know absolutely nothing about electronics and wiring so I’m completely clueless. Is this whole thing ruined now?
