Shin Tools Shin Tools build using PATERSON original "found parts".

Discussion in 'Boba Fett Costume' started by The5thHorseman, Apr 8, 2015.

  1. The5thHorseman

    The5thHorseman Jr Member

    Hi TDH,

    I have just finished this and thought i'd share the pictures i took along.
    This build is based upon the two found parts identified, namely: PATERSON Print Squeegee and PATERSON Chemical Mixer. The JA Mitchell parts are replica aluminium rods from Mojo-Fett.
    I haven't done the forth shin tool as it is optional and as it hasn't been sourced yet, i didn't want to bother doing something inaccurate.

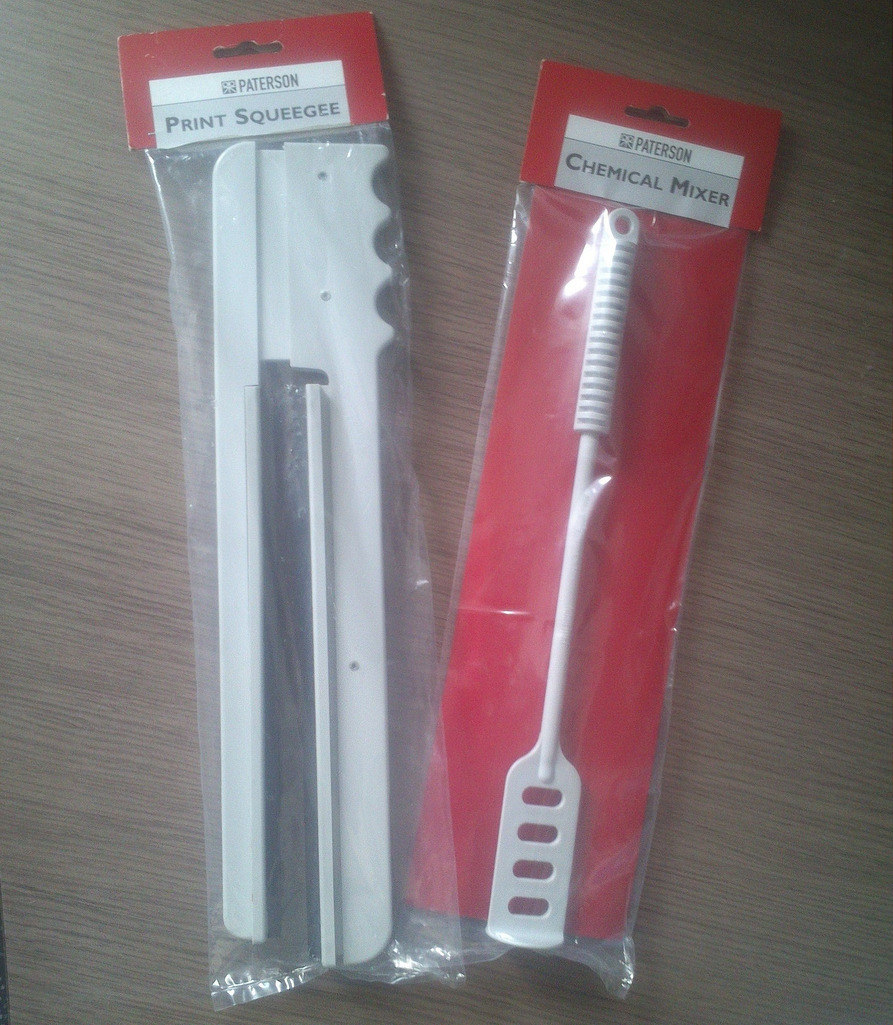

    1) The found parts used for the original props PATERSON Print Squeegee, et PATERSON Chemical Mixer. They aren't difficult to find on the web, hence i didn't see any reasons not to use them.

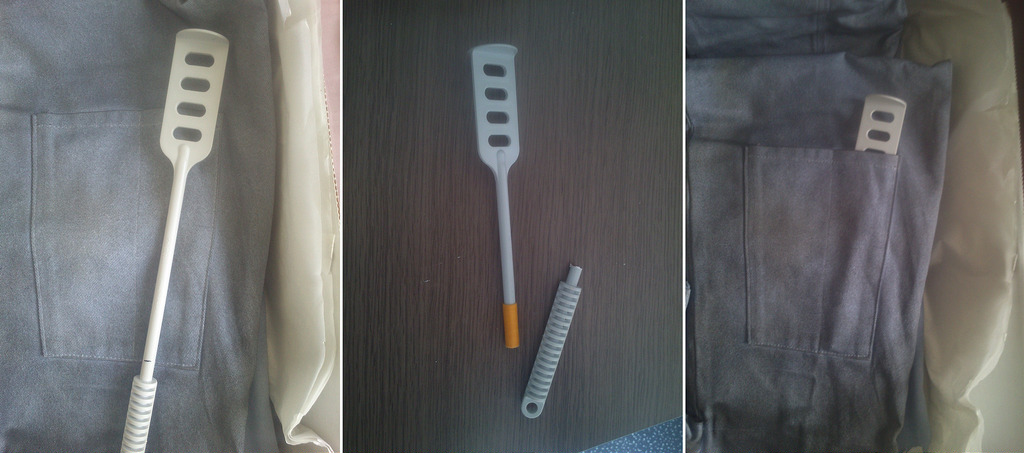

    2) First shin tool:
    a. Using your flightsuit and reference pics available, determine at what level you need to cut the Chemical Mixer. The third oval starting from the top should be barely visible. Once satisfied, place a mark.
    b. Cut the Chemical Mixer at the mark.
    c. Once fitted in its pocket.

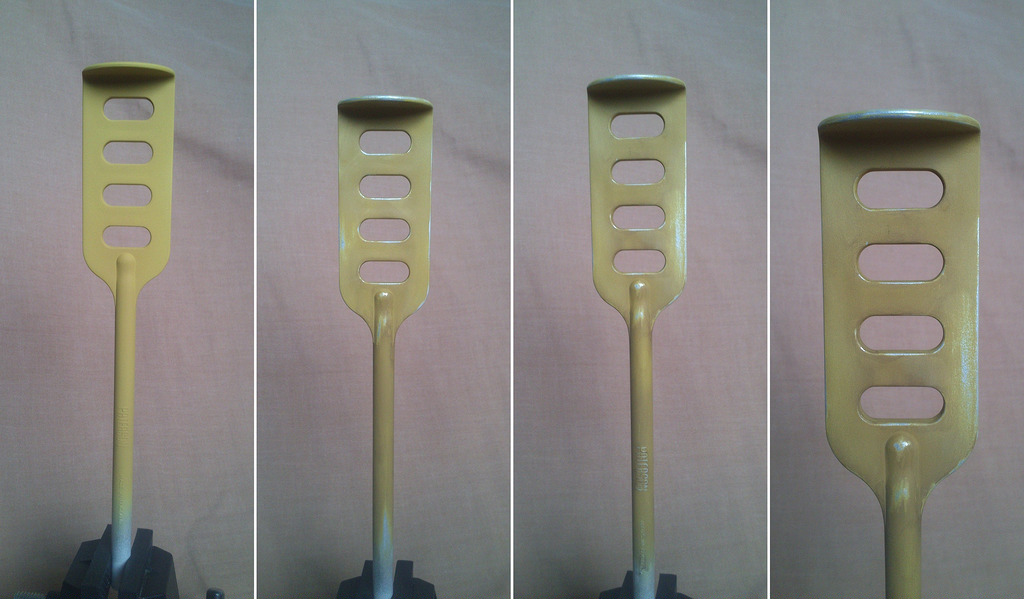

    3) Paint the Chemical Mixer entirely in metallic (no picture...).
    a. Airbrush the base color, mix 1:1 of Humbrol n°93+n°154
    b. c. d. Apply a wash of brown, i used acrylic for this. Then with some sandpaper (around 400 grit) and some wirewool (0000) sand away the top layer of paint up to the metallic coat underneath focusing on the ridges.

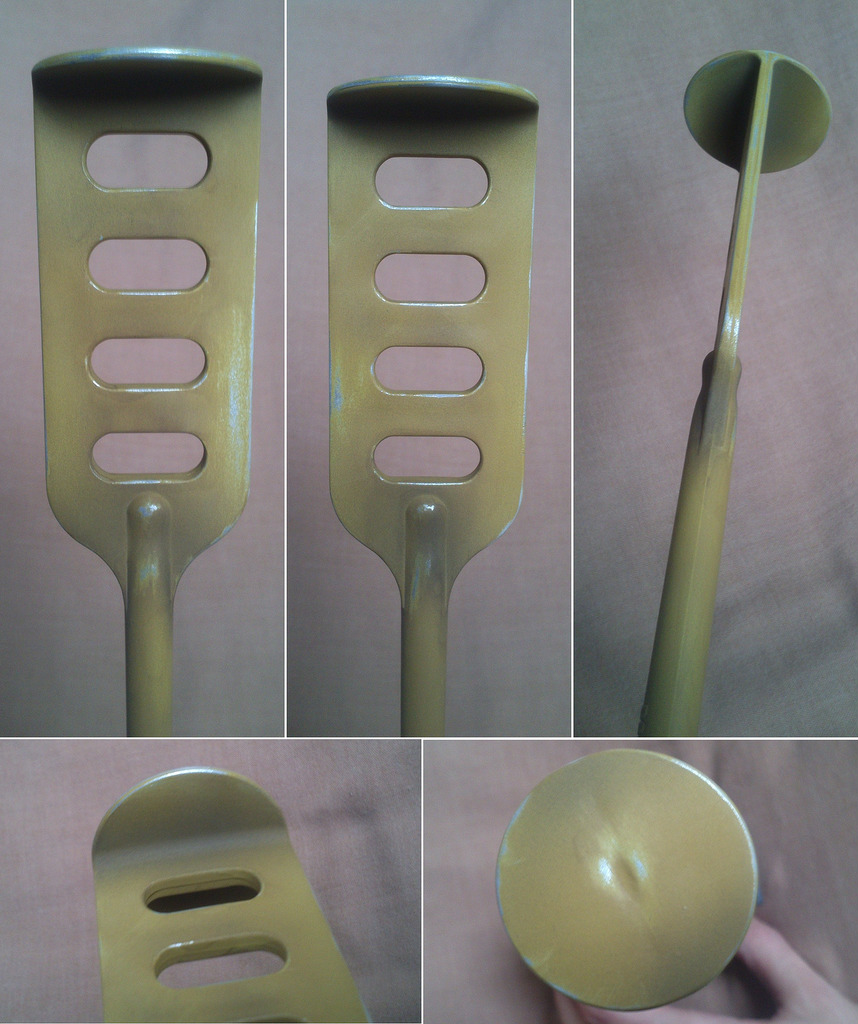

    4)
    a. b. c. d. e. Lastly, slight weathering with the airbrush using black n°33


    5) Second shin tool:

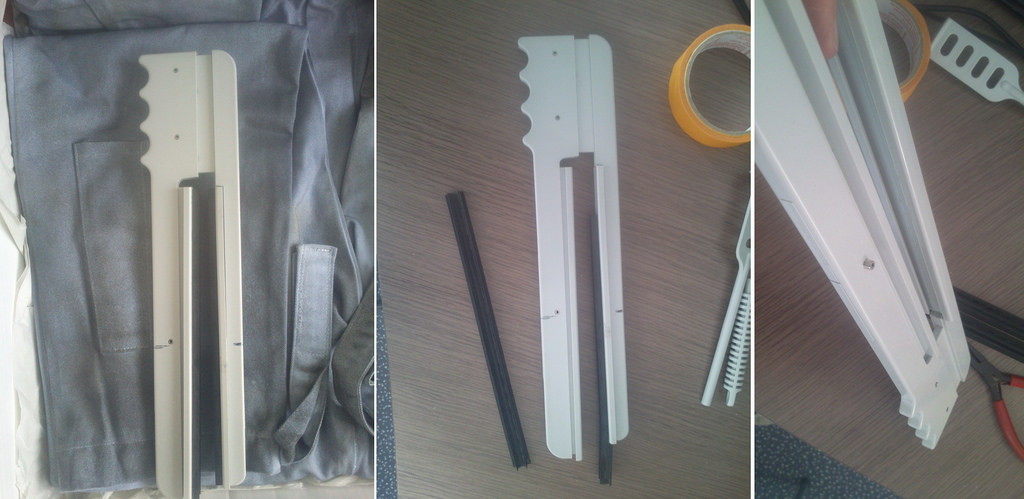

    a. Using your flightsuit and reference pics available, determine at what level you need to cut the Print Squeegee. Only the three teeth from the top must be visible. Once satisfied, place a mark.
    b. Remove the two trims from the Squeegee's arms.
    c. Remove the pin from the largest Squeegee's arm.


    6)

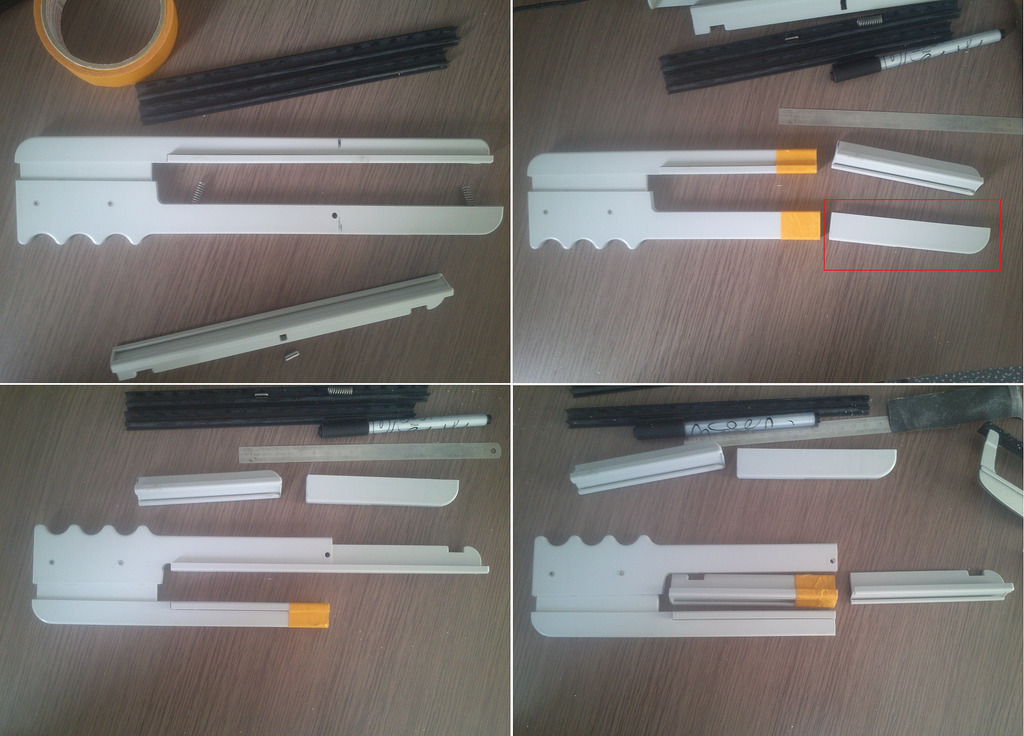

    a. Once the pin removed, unfit the inner arm from the outer and remove the two springs located inside.
    b. Cut the two Squeegee's arms where you marked it previously. Keep the part i framed in red, it will serve for the third shin tool. You can discard the rest.
    c. Fit back the inner arm into the outer and report the cut level.
    d. Cut the inner arm.


    7)
    a. The Squeegee's forth tooth needs to be grinded down for accuracy but also for the Squeegee to be able to fit inside its pocket.
    b. Inside, there's one of the two springs present in the handle, remove it.
    c. d. The forth tooth grinded down.

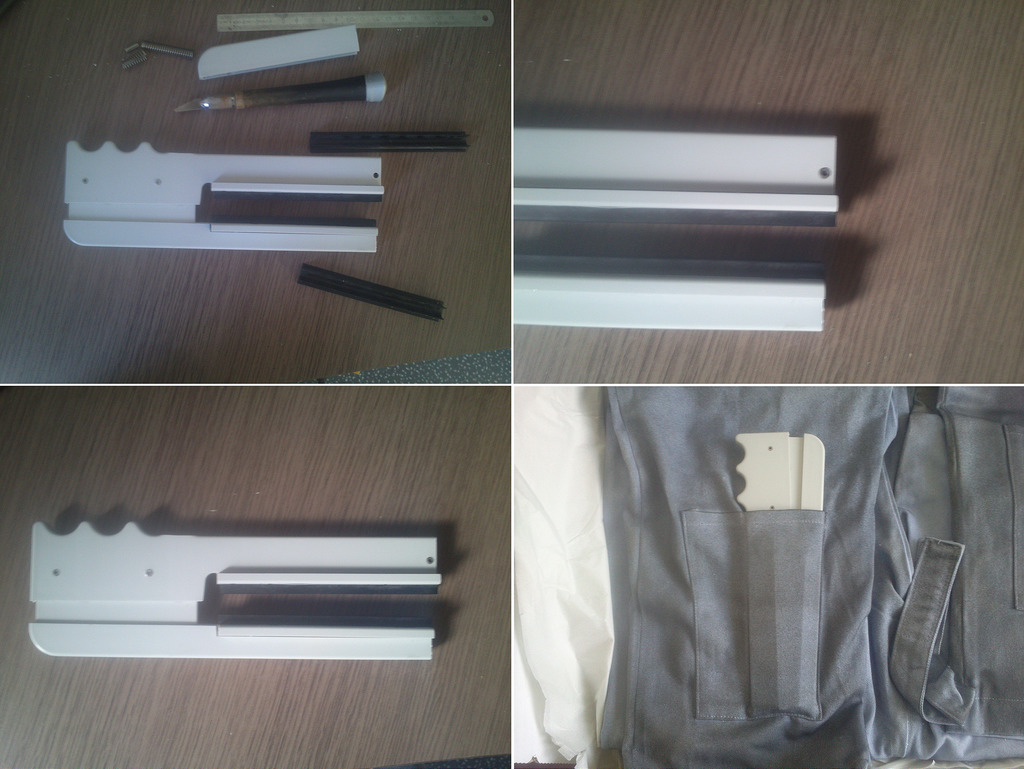

    8)
    a. Put back the two trims in place in the Squeegee's arms and then cut them to length.
    b. c. Glue the inner arm inside the outer, then put back in place the pin.
    d. The Squeegee in its pocket.

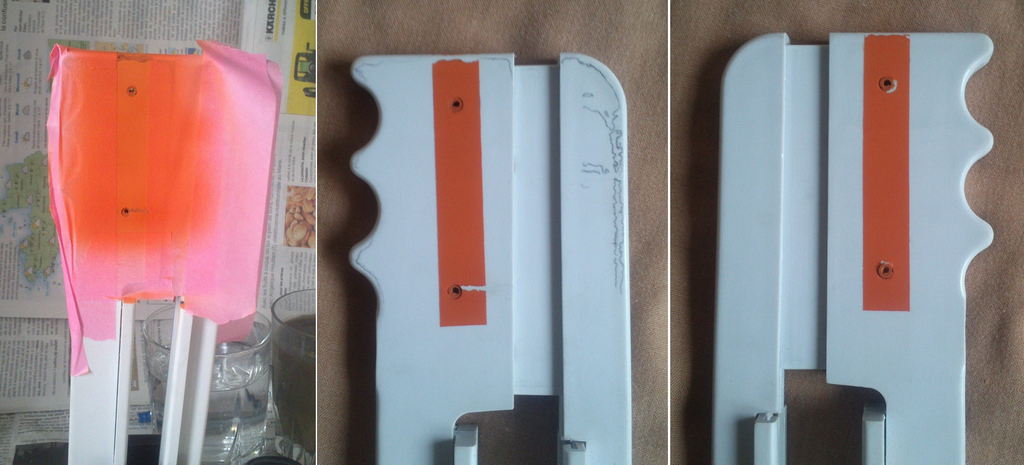

    9)
    a. b. c. Mask the orange vertical band per reference, then airbrush it with a 1:1 mix of Humbrol n°154+82 (with a tip of n°62 inside the mix).

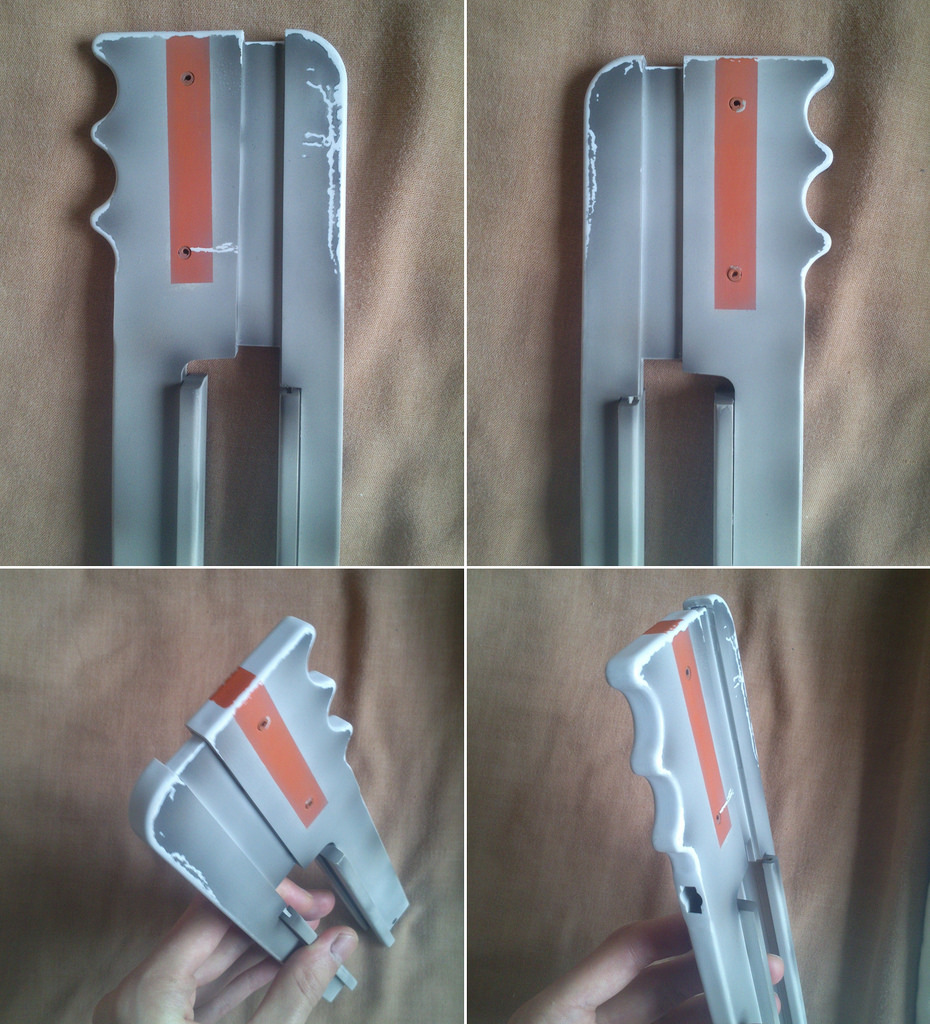

    10)
    a. b. c. d. Use Maskol to mask the damage and tape to mask the sides. Then, with the airbrush, weather the Squeegee with successively a layer of Grey n°106 (almost an uniform coat) , then Black n°33. I didn't mask the orange strip during this step so i could grim it at the same time. I the grimming is too heavy, you can buff back the orange with wirewool 0000.

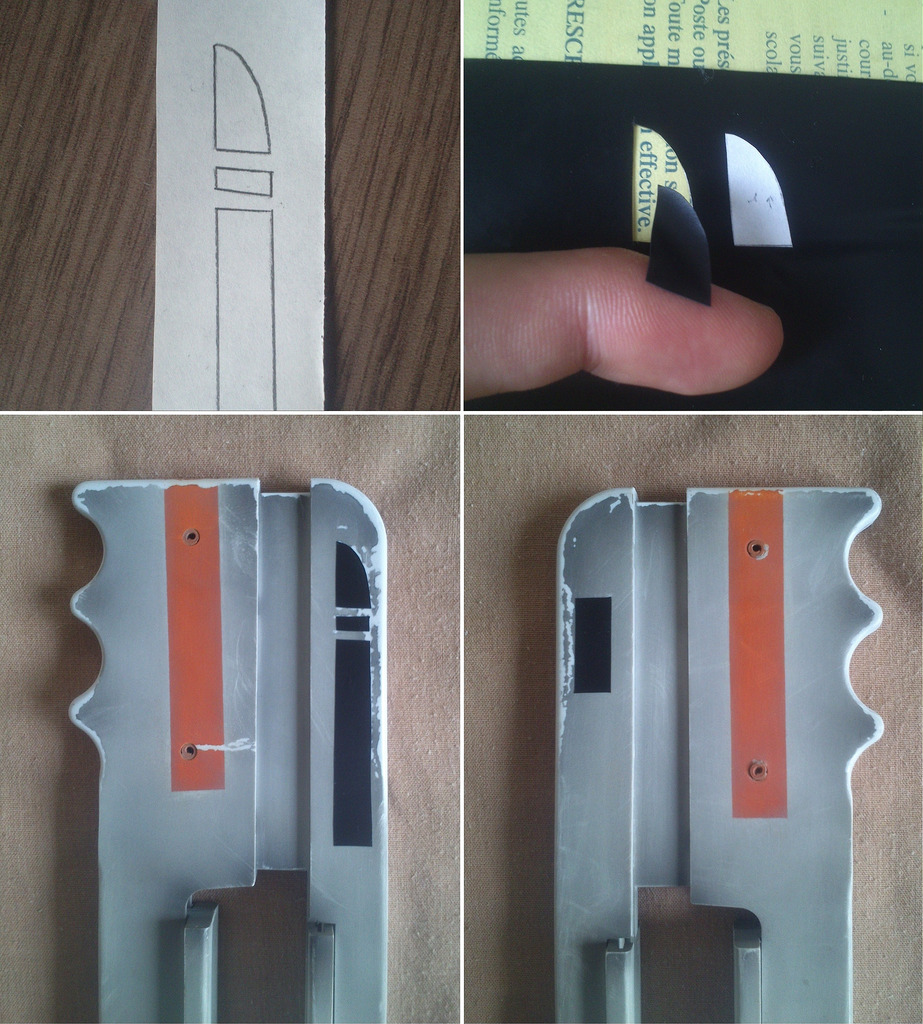

    11)
    a. Make a cardboard for the black pieces of tape.
    b. Report the cardboard on black tape and cut it out with a x-acto.
    c. d. The pieces of tape once set in position. At this time, i have also added few slight scratches on the Squeegee with sandpaper.

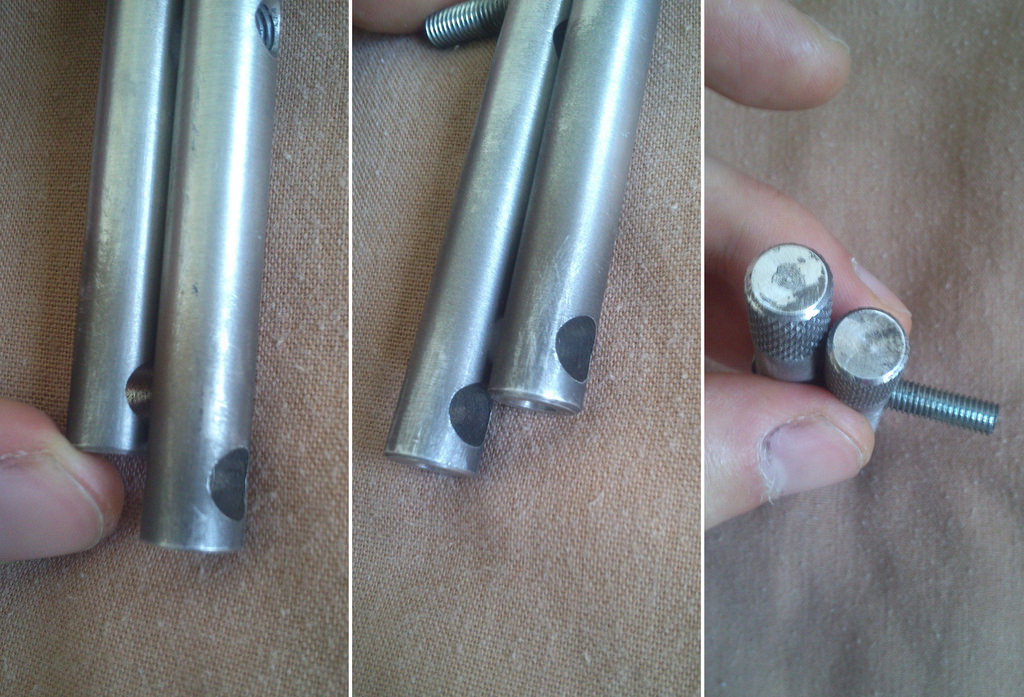

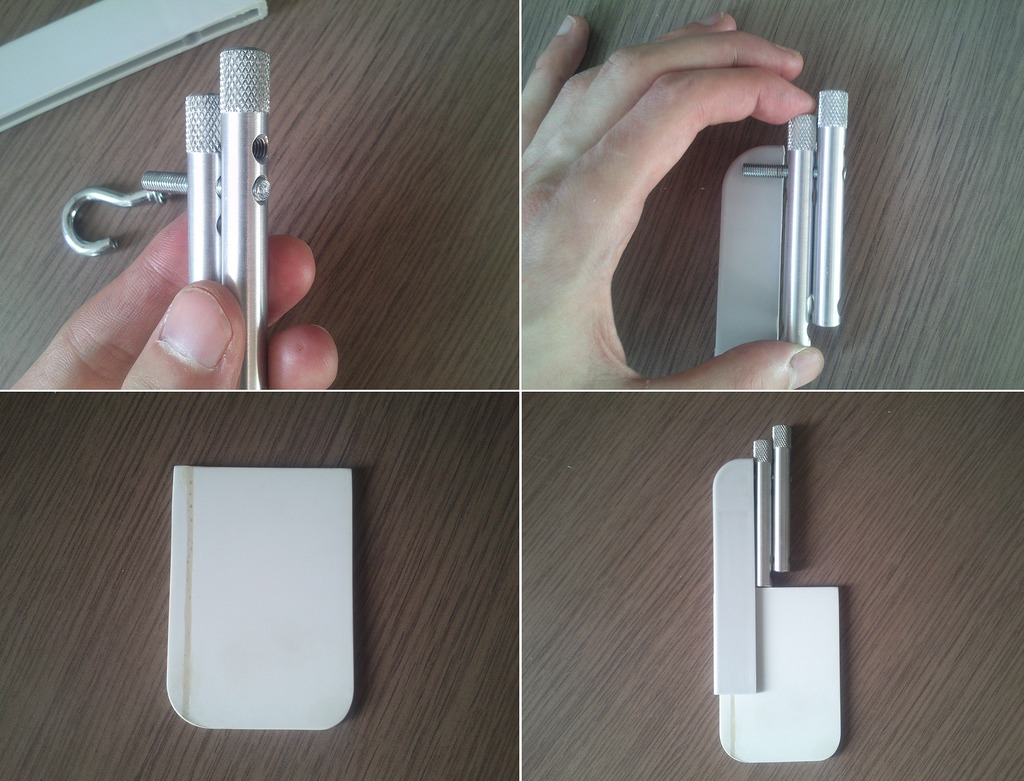

    12) Third shin tool:

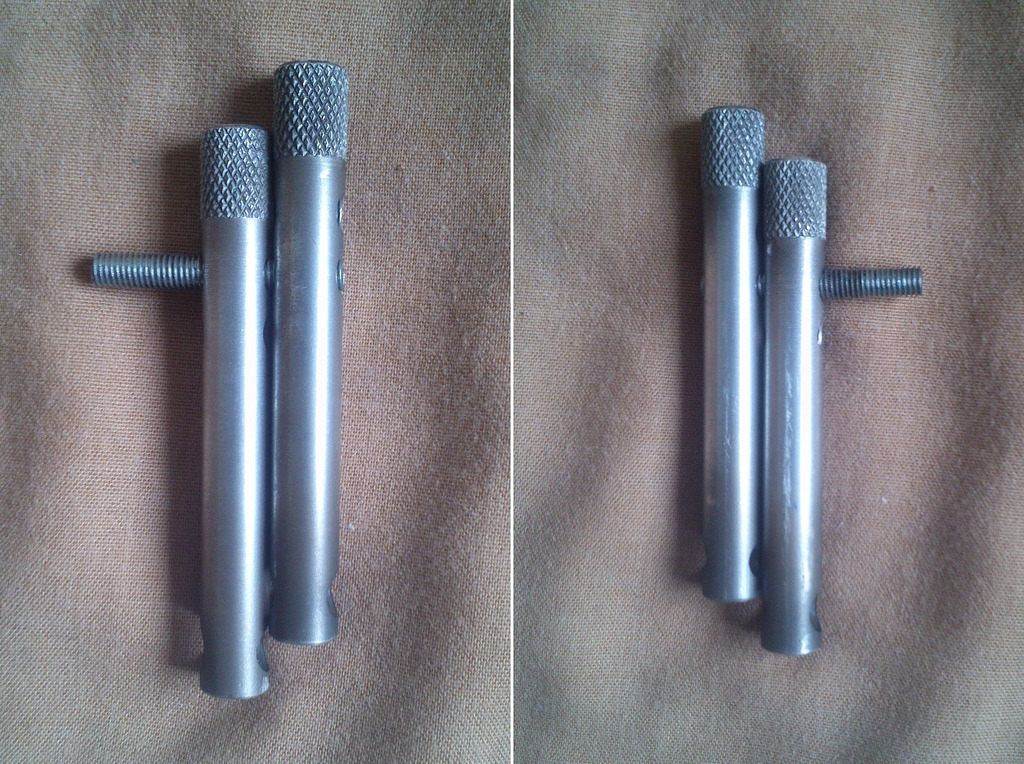

    a. Align then shift the aluminium rods and pass a M5 screw through them.
    b. I have kept the excess from the screw purposely as its lenght was helping me to position the rods .
    c. Cut a piece of ABS at the following dimensions: Width = 60mm (just make sure it fits inside your flightsuit's pocket), Height = 86mm, Thickness = 5mm. As it happens, mine is a patchwork of four different scraps of ABS... Don't forget to round off the two bottom corners.
    d. The third shin tool before painting. The grey part in which the ABS piece fits into being the Squeegee's part i previously framed in red.


    13)
    a. Paint in black the ABS piece.
    b. Use some sliver paint to weather it (when i think about it, i should have painted it metallic, then in black and weather it with sandpaper).

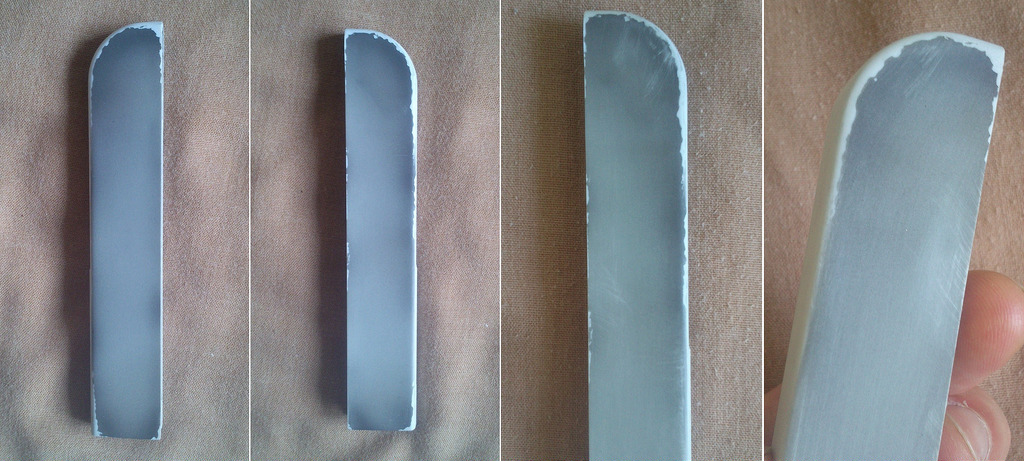

    14)
    a. b. Weather the Squeegee's part with the same colours used for the Squeegee, Grey n° 106, then black n°33.
    c. d. Use sandpaper to add few scratches.


    15)
    a. b. Wheather the aluminium rods with back n°33, and then acrylic Burnt Umber.


    16)
    a. b. c. Slight additionnal weathering with sandpaper.


    17) a. b. c. Tape the rods to the Squeegee's part. The superior edge of the tape should be positionned at about 30mm from the top of the Squeegee's part. The tape should be around 20mm wide.
    Once the rods are taped, glue the ABS piece.


    18)
    a. b. c. Additionnal weathering with rust colored pigments.

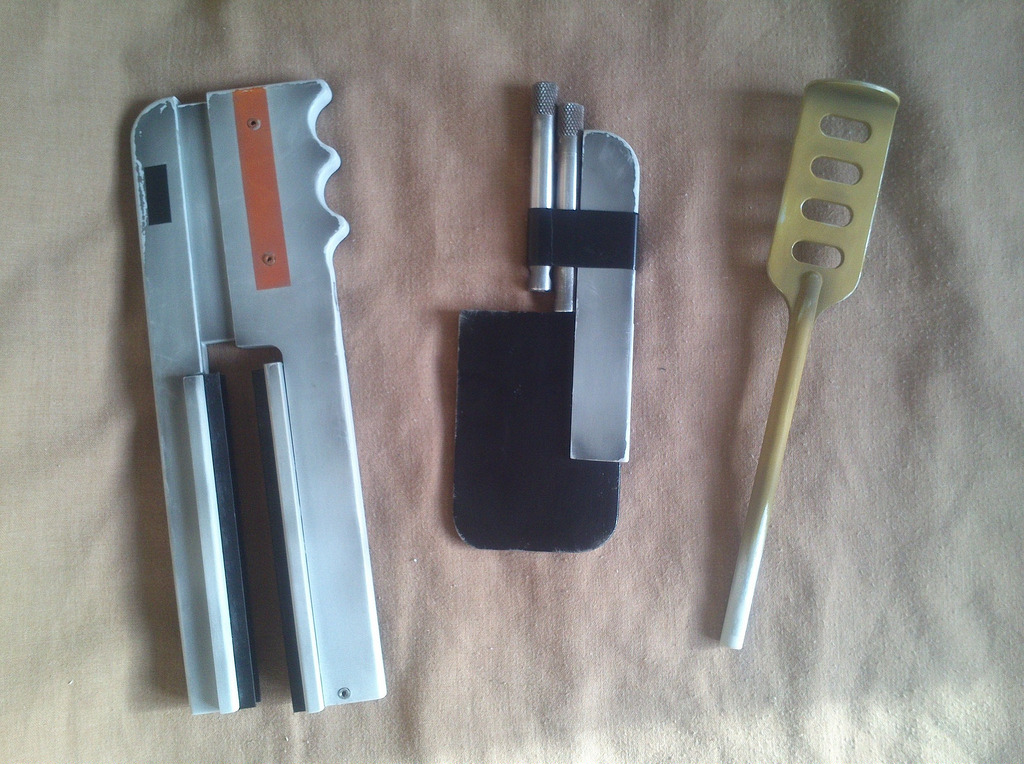

    19) End result 1.


    20) End result 2.

  2. Matty Matt

    Matty Matt Active Member

    Great looking tools. The weathering is especially nice!

  3. norgs79

    norgs79 Member

    Thanks for the thread, I'm about to start my shin tools so this really helps

  4. Darth Voorhees

    Darth Voorhees Well-Known Member

    Those look great! Nice job! PS: the rubber strips arent supposed to be put back in the squeege..technically...but they are hidden and it looks kinda cool ..just thought id mention that :) Again, nice job, the weathering is super!

  5. rnbuda

    rnbuda Active Member

    Great job! They look awesome, I may need to re-do mine after this post!

  6. 22ssplt

    22ssplt Active Member

    Outstanding job!

  7. The5thHorseman

    The5thHorseman Jr Member

    Thank you all! This was fun to do, even though it took longer me than expected.

    Didn't know that. I saw that Rafalfett left them on his diagrams so i thought i'd put them back on. Anyway, as you say they're hidden and very easy to remove if needed ;).

    Last edited by a moderator: Apr 8, 2015
  8. Syper

    Syper Member

    That's some quality work right there Brother:) Nice!

  9. Major

    Major Active Member

    Beautiful work.....

  10. RafalFett

    RafalFett Active Member

    There's no evidence regarding the rubber strips, so it's up to you if you leave it or remove it.

    You did a great job with the shin tools! For the 4th shin tool you can use an aluminum/steel tube as a replacement (for ESB the measurements from the lower part), as this is the closest thing to the real one (whatever was used):

    [​IMG]

    LostDreams likes this.
  11. The5thHorseman

    The5thHorseman Jr Member

    Thanks Raf. About the forth tool, i'll keep that in mind if ever i come across a steel tube.

  12. DanzoFett

    DanzoFett Member

    Excellent work :)

  13. thebeans

    thebeans Member

    Great job, very authentic looking(y)

  14. The5thHorseman

    The5thHorseman Jr Member

    Thank you all for the praises!

  15. RoboTarot

    RoboTarot Member

    Definitely bookmarking this thread for when my Paterson tools come in! Thank you!

  16. bcurtis

    bcurtis Active Member

    These really look fantastic, man! Excellent job!

  17. Cruzer

    Cruzer Well-Known Member

    Perfect!...I'll be using this tutorial this weekend. Thanks

  18. TheZeroEffect

    TheZeroEffect Member

    Damn.. this is a great tutorial on the shin tools, great step by step

  19. ROYSTERONE

    ROYSTERONE Jr Member

    Such a great thread ,amazing work !

  20. Lidocaine

    Lidocaine Jr Member

    Great work! Looks like I'll need to upgrade to the found parts for my shin tools next!

  21. Funkyred

    Funkyred Member

    I may have misread the post but I am curious to know where I get the aluminium screws that telecom to the 3rd shin tool ?

  22. gofarlow

    gofarlow Jr Member

    Well done. I will keep this in mind when I get to those parts. Thanks,

  23. BeastII

    BeastII New Member

    excellent .....great info....any theories on what these are supposedly used for(theoretically speaking of course;))

  24. Altair

    Altair New Member

    Nice job mate, I've got my Paterson squeegee and chemical mixer sitting here, so will have this thread bookmarked for when I get to them

  25. thinbluefett

    thinbluefett Member

    Can anyone tell me then difference between the ESB and ROTJ tools? I feel stupid because Im having a hard time finding a good pic and figuring it out.
