RafalFett's Misc Templates and Blueprints

RobaFett

Hunter
Ok! Raf here is another one are you going to JP measurements, I am trying to do a combo of WOF and my MOW JP measurements to do a scratch build as my MOW pack has warped due to the heat up here, and I would prefer to make one instead of rework the other, thought I would ask just being curious, and by the way not knocking the MOW.
cheers:D


RafalFett

Well-Known Hunter
Ok! Raf here is another one are you going to JP measurements, I am trying to do a combo of WOF and my MOW JP measurements to do a scratch build as my MOW pack has warped due to the heat up here, and I would prefer to make one instead of rework the other, thought I would ask just being curious, and by the way not knocking the MOW.
cheers:D
I have some basic measurements of the jetpack, but I will post the image when I'll get back from work.


RobaFett

Hunter
Only just started the rib so far, going to start doing the sides now, would be good to compare you have come up with as well.:cheers

Last edited by a moderator:

RafalFett

Well-Known Hunter

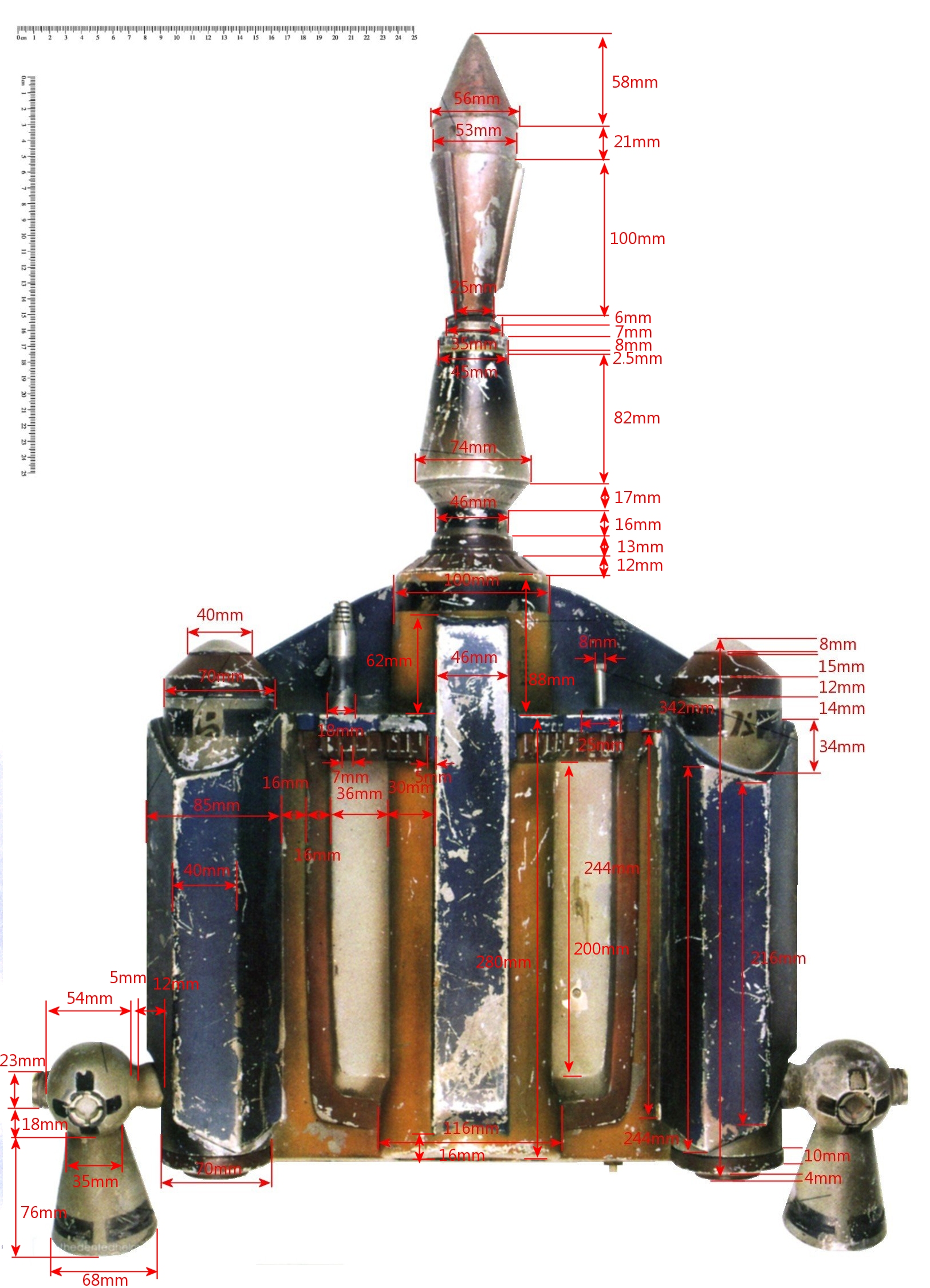

Here is the image with the ROTJ jetpack and some measurements:

Jetpack Measurements.jpg

I suggest to not rely only on these measurements as I'm not sure if all the values are correct.


RobaFett

Hunter
fuel cell.jpg

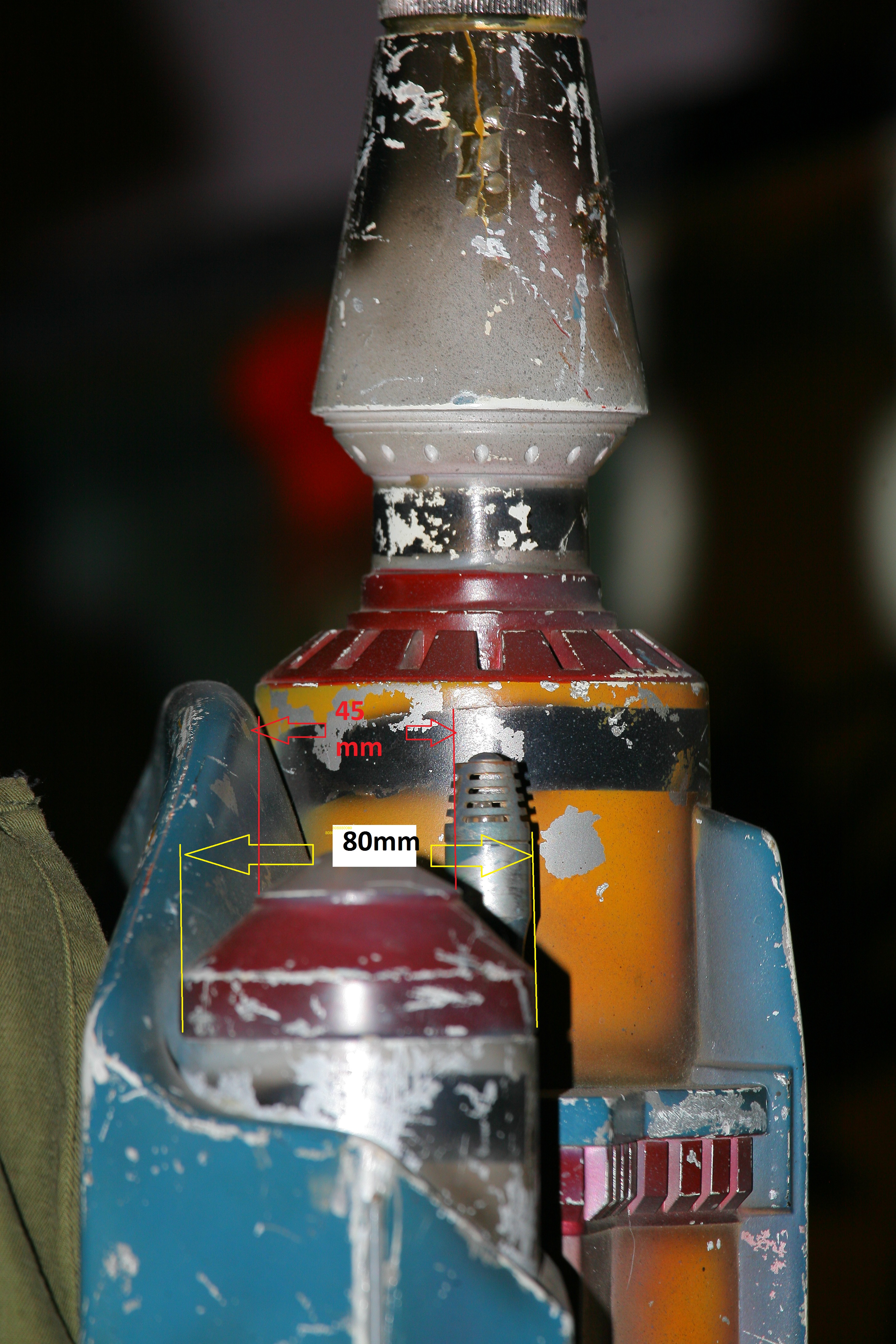

Ok this is what I have come up with the fuel cell cap, a lot of your measurements seem pretty spot on, cause I have already cut up the templates in cardboard ready for the foamex, I am a slow worker but will provide some progress, forgot to add to the pic the centre top of the cap diameter which I think is 15mm from what I get, sorry if my comp skills are not good with paint edit, and by the way Raf cheers for such a quick result , once again awesome effort!
cheers
Rob:D


RafalFett

Well-Known Hunter
View attachment 73171
Ok this is what I have come up with the fuel cell cap, a lot of your measurements seem pretty spot on, cause I have already cut up the templates in cardboard ready for the foamex, I am a slow worker but will provide some progress, forgot to add to the pic the centre top of the cap diameter which I think is 15mm from what I get, sorry if my comp skills are not good with paint edit, and by the way Raf cheers for such a quick result , once again awesome effort!
cheers
Rob:D

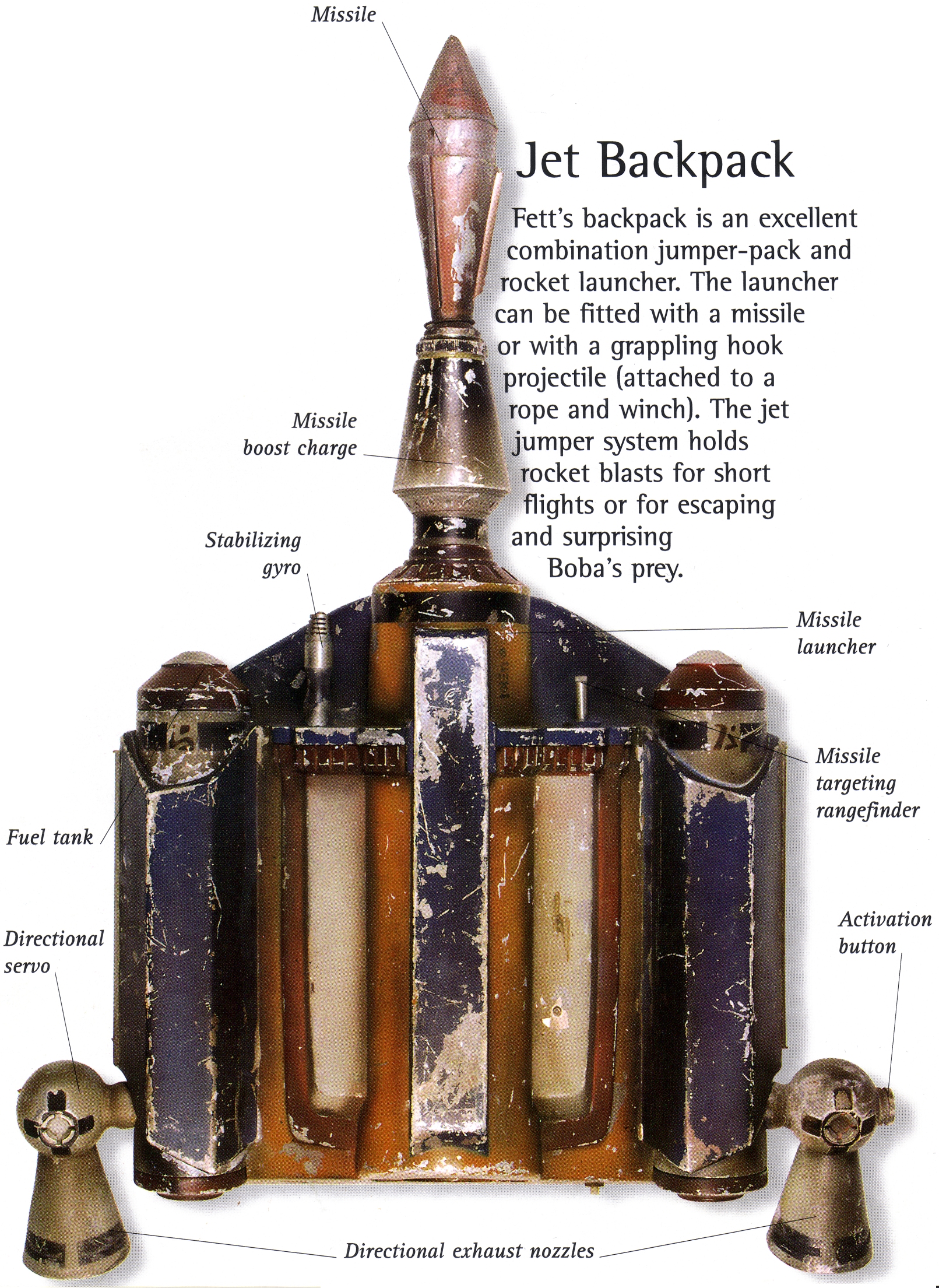

Thanks for your confidence! Some of the measurements were taken from the ROTJ jetpack images from the Gallery ==> Boba Fett Return of the Jedi Jetpack - Heilman Images.

I verified the measurement you posted and it is correct! I'll have to re-do my measurements and double check it to not allow any major errors. Thanks for the heads-up!


RobaFett

Hunter
Cheer Raf,
Didn't even think to use those pics from that collection, as I have them on file ( slap to the forehead ) will def have a look.
cheers

Great templates!

Is there any chance of getting one for the ESB sidearm holster sometime? The thing is ridiculously expensive for a real or even a cast. It would be nice to just scratch build a really accurate one.

Keep up the great work!


RafalFett

Well-Known Hunter
Great templates!

Is there any chance of getting one for the ESB sidearm holster sometime? The thing is ridiculously expensive for a real or even a cast. It would be nice to just scratch build a really accurate one.

Keep up the great work!
Thanks! Well... I might try to do some templates, the problem is that I don't know when this will happen. Possibly sooner then I think.


ASESOVRATES

New Hunter
It would really help me lot if someone could provide a detailed diagram as far as what part is what on the pack as well as plans for the entire pack. the plans and diagrams that i have found for small portions of it have been great but i need more.
