General Placement question

[Chris4321]

Hey guys, just had a basic question about the switches. What are the recommended distance between both switches?

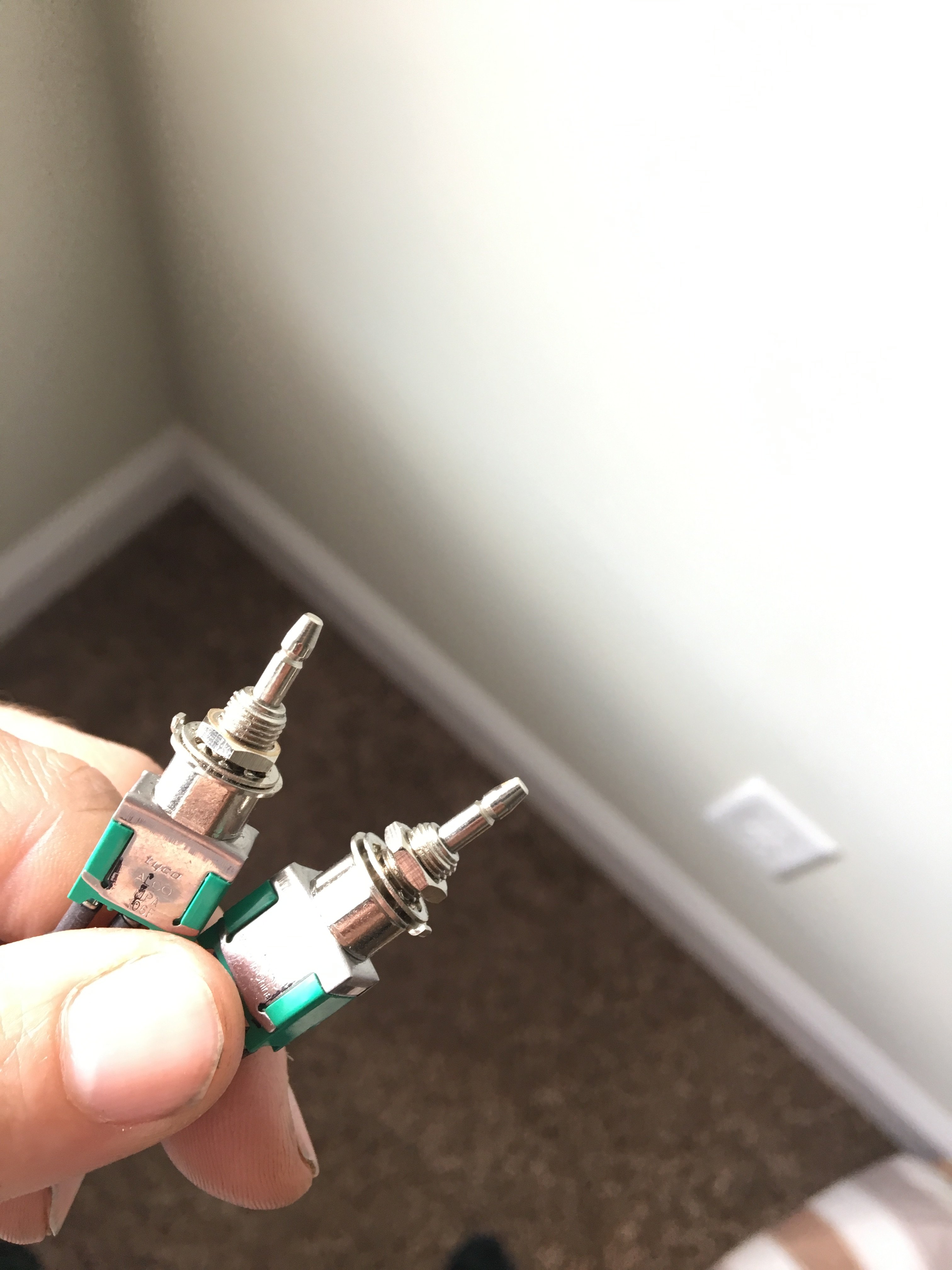

Attaching the picture of my gauntlets and switches itself. I don't want to re-drill any holes or anything which I also have to ask what is the recommended drill size or just keep drilling to fit? Do you guys apply any type of glue or anything to keep them steady? Thanks!

-Chris



[dv8r]

Hey guys, just had a basic question about the switches. What are the recommended distance between both switches?

Attaching the picture of my gauntlets and switches itself. I don't want to re-drill any holes or anything which I also have to ask what is the recommended drill size or just keep drilling to fit? Do you guys apply any type of glue or anything to keep them steady? Thanks!

-Chris

Hi Chris! You can see the relative placement of the switches on my gauntlet in this shot:



They are 16.5 mm apart, from the center of one pin to the center of the other. You can't really tell from this shot:



but I had to remove quite a bit of material from the inside of the gauntlet to get the switches to fit and protrude at the right angle, and mine are set in place using some JB Weld epoxy. I don't remember the size of the drill bit I used for the hole, but you can line the bit up with the threaded part of the switch to find one that is large enough to make a hole they will fit into (just don't go too big!).

Good luck with your build!



[RafalFett]

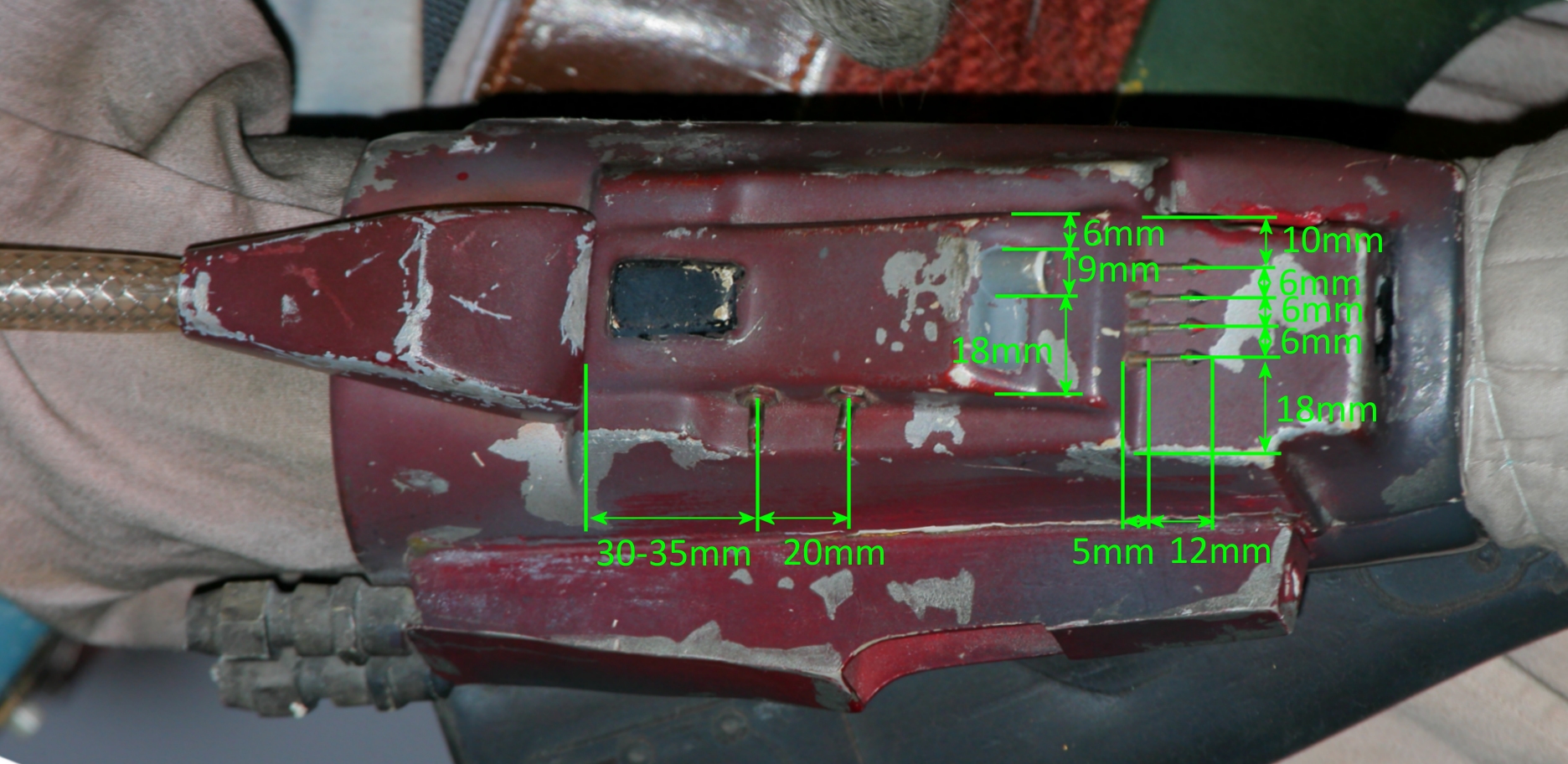

Here are some measurements of the Pre-Pro #2/modified ROTJ SE right gauntlet greeblie placements:



[Chris4321]

Here are some measurements of the Pre-Pro #2/modified ROTJ SE right gauntlet greeblie placements:

View attachment 106809

exactly what I needed. Thanks!

Ty Dv8r too!
