What do the pin outs look like on the back of the displays? Do they have a part number on the displays so you can look up their specs? It MIGHT be possible to order a kit from Fettronics or another manufacturer and use your displays instead, with the power sources/boards, that they supply in their kits? No idea if this would work, its just my first thought on it.


Ord Mantell

Jr Hunter
What do the pin outs look like on the back of the displays?
Just did some googling and found some threads on the RPF, one with this info but has not been updated for more than a year:

Valvo/(later)Philips ZM-1500 Series





ZM-1550
Characteristics





Pinout Diagram

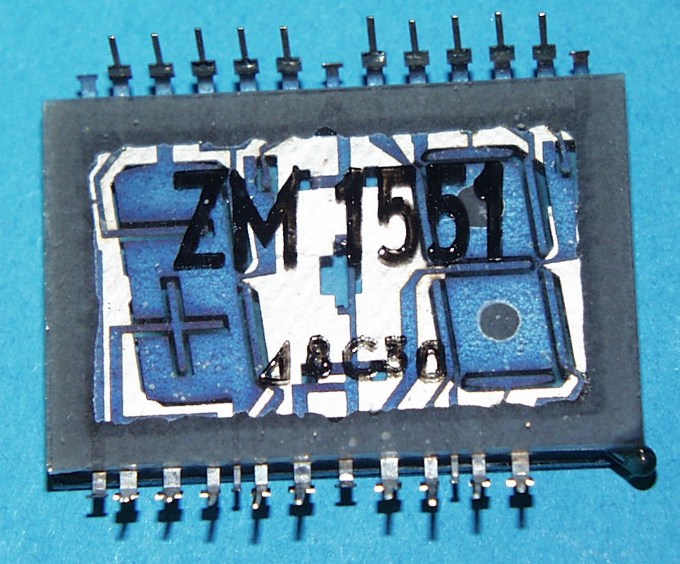

Zm-1551

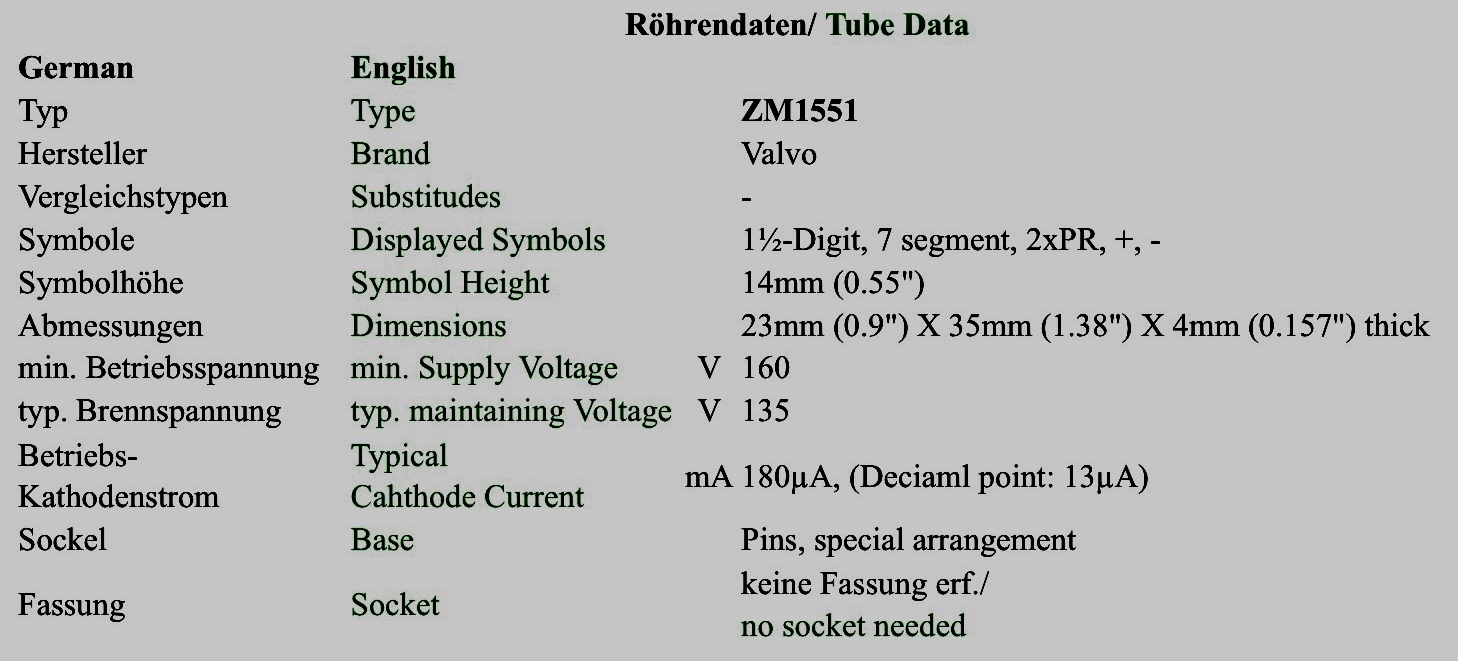

Characteristics

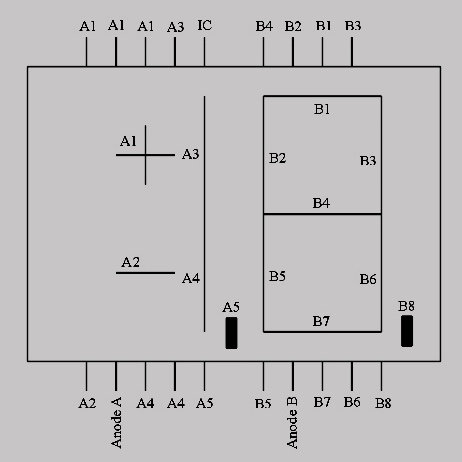

Pinout Diagram



Attachments

ShortFuse

Active Hunter
RPF is an awesome source- want to be completely amazed? Check out the large scale 1/6 Slave 1 build!!!!!
You don’t need to go that far. He has a thread here too.


Ord Mantell

Jr Hunter
Thanks. I'm aware. The solution to my problem is to buy a part from a member on the RPF but my old account was deleted and I've been unsuccessful at creating a new account. Keeps flagging my accounts as fake. At some point I'll try to get some help from the admins.
