Gauntlet dart spacing

[Fetthunter]

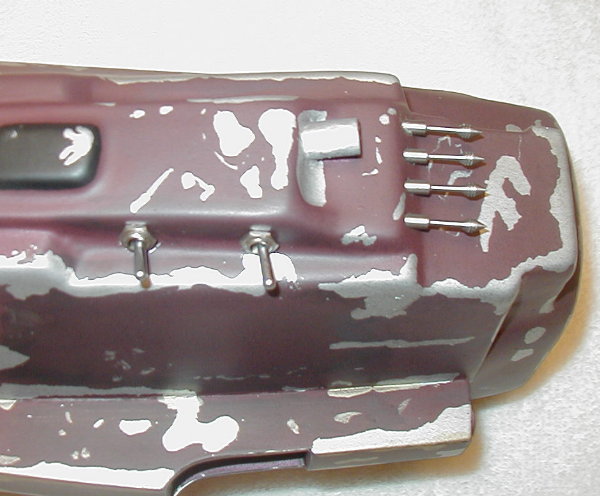

Does anyone know the spacing between the gauntlet darts? I'm getting ready to install my RusRep darts, and I want to make sure that they're spaced correctly.

Thanks, guys! :cheers



[Fetthunter]

Beuller? Beullller?

C'mon, someone has installed RussRep darts before, right?

OK. You're forcing me to pull out my calipers!



[Gator Fett]

PM Replied to.

I set mine at 5/16" apart.



[Kashyyyk4ABY]

Cool, I was wondering about the placement of those. Thanks Gator!



[Fetthunter]

PM replied to.

Thanks again! (and... again!).

J



[Mr Fett]

It's hard to tell exactly the real spacing. In some pics they look really close together, and other pics farther apart. The exhibit pics have them pretty close to each other.



[Fetthunter]

I don't suppose you guys know the spacing on the black pushbuttons on the left gauntlet, do ya?



[Tazman]

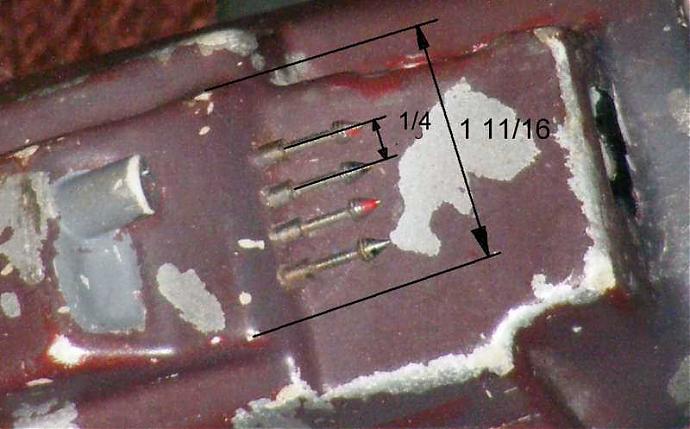

Maybe this will help.

I compared a C4 Photo with Alan´s templates.

This is the result:



[Tazman]

Forgot your second question:
The space between the buttons seems to be 1inch.

Thomas



[Fetthunter]

Maybe this will help.

I compared a C4 Photo with Alan´s templates.

This is the result:

That's cool. As a result of my gauntlets not being exactly the same size as the originals, my spacing ended up being .325" between darts, whereas in your pic the spacing is .250". Still, it's pretty close.

An inch between the buttons? That works... Do you know how far back from the front of the box the first button is? I've tried using the dimensions on Alan's CAD drawings, but I didn't know if the button spacing is correct? I'm assuming it is.



[Tazman]

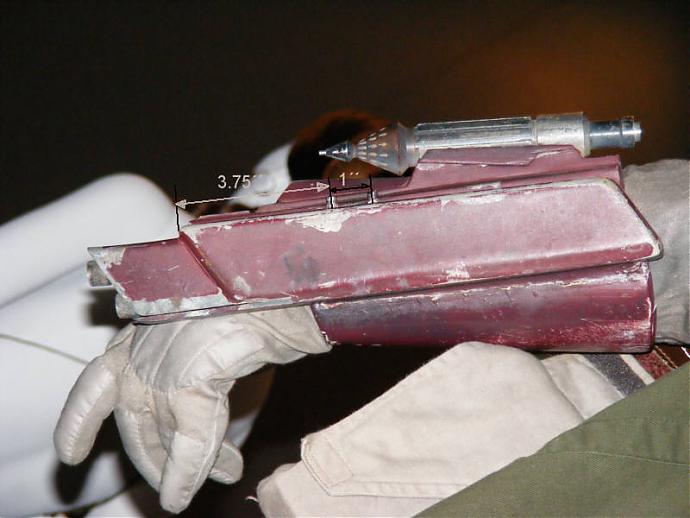

It´s 3.75 inches.

-Thomas



[Fetthunter]

Many thanks! :cheers

All of this information should be archived right up there along with the "right" paint colors!

J
