Functional Leather Ammo Belt Progress

Gator Fett

Active Hunter
After some internal debate over accuracy vs. functionality, I decided to try and make a functional leather ammo belt. First, I chose leather over vinyl because, just like my aluminum armor, leather just "feels" better to me. Secondly, I like the idea of having working components on my suit (ie. chest lights, range finder led & servo, voice amp, etc.). Ammo pouches that actually open will just be another functioning part of the suit. And while I am all for screen accuracy, and I am trying to get close, I know I will never get every detail just right, so I wanted to get some of my own personality into my suit.

With all of that said, I started with the search engine and gathered all of the various sizes for the ammo pouches. I still could not find a deffintive answer, so used TK409's template as my primary reference. Thanks Chris. (y)

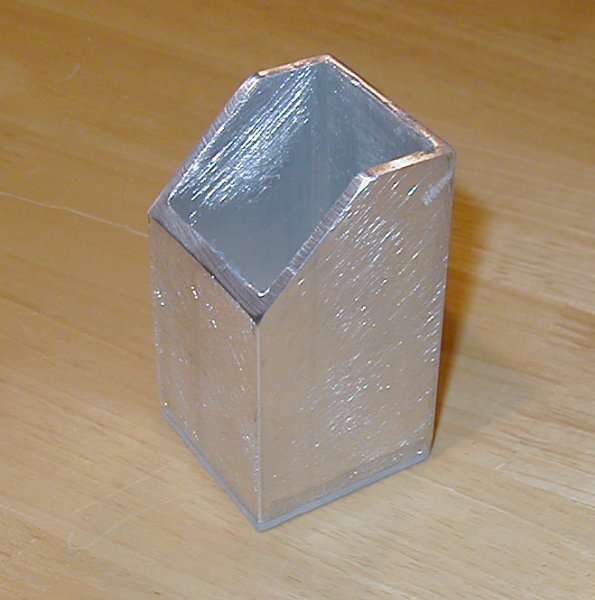

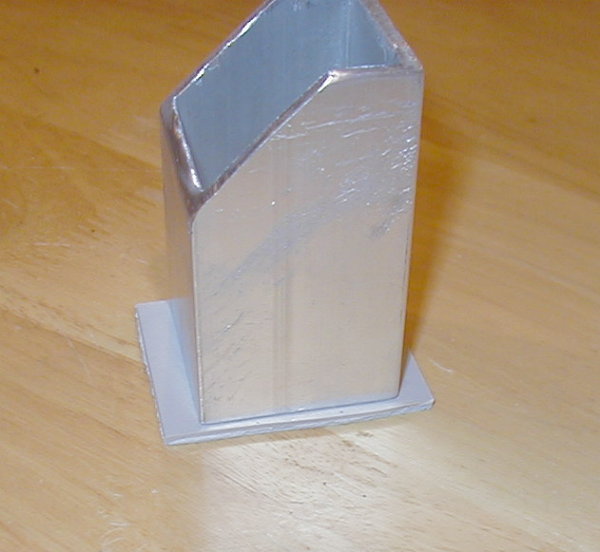

For a base I bought a 1-3/4" x 1-3/4" x 3' long aluminum square tube, and cut it to the approximate size of the wood block on TK409's site. I took an extra 1/8" off of the height to account for the piece of sintra that I would glue on the bottom of the block. Once the glue dried, I sanded the sintra to the size of the tube, and prepared the aluminum for the leather.







webchief

Well-Known Hunter
Nice base. Personally, I like the idea of a functioning pouch as well.

I have leather pouches as well but they don't open. I just like the added "real feel" that the real leather gives you.


TBone

Active Hunter
webchief said:
I have leather pouches as well but they don't open. I just like the added "real feel" that the real leather gives you.
...And they stand up to a lot of wear and tear as well. Some of my shoddy armor I had at the beginning dug in and sliced on my pouches. If they had been vinyl, I'm certain they would've worn through.

Awesome idea on the pouches, makes me wanna redo mine.


RBF

Well-Known Hunter
:) looks good!! nice idea, using the tube... hmmmm... gonna find my own way soon with this item, as I'm totally revising my Fett, and am now using a Jango ammo-belt.


Im all for screen accuracy aswell.. but being 17 I don't have a big enough wallet in most cases. I'm gonna work on a home made ammo-belt soon aswell, but I'll use vinyl... because of finincial reasons that is... well, we'll see... I can do a few tricks with paint, so it'll look nice I'm sure of that...


Christo Fett

Active Hunter
This is a great idea!

Have you tried to uphoslster one of the tube pieces yet? I'm curious if the flap on top will dent in where the opening of the tube is.

Also, what did you use to cut the tube? Very nice looking cut.


Gator Fett

Active Hunter
Spideyfett said:
Can you send me 8 of those please??:p
As soon as I can get you to paint my bucket. ;)

Christo Fett said:
Have you tried to uphoslster one of the tube pieces yet? I'm curious if the flap on top will dent in where the opening of the tube is.

Also, what did you use to cut the tube? Very nice looking cut.
I have not made the flaps yet, but I think the leather is thick enough not to sag into the opening of the tube. I will keep you posted.

I cut the tube with a floor mounted band saw, with at metal cutting blade. I then used a floor mounted 18" disk sander, to smooth the edges and even out the cuts. Lastly, I finished off the edges with a sanding drum on my Dremel. I have access to an industrial metal shop at work. :p One of the small perks for working in the auto industry.

Gator


Gator Fett

Active Hunter

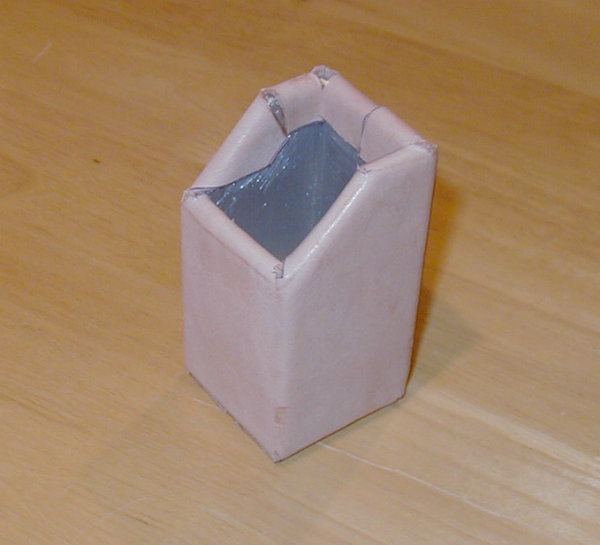

Over the last few days I was able to make the pattern for the leather pouch. I followed the same method that TK409 outlines on his site. However, since the top of the tube is open, I had to modify the template slightly to accomidate the pouch opening.

In the second pic you can see that the leather at the tube opening wraps around and into the pouch, rather than just over the top of a wodden block. The top flap will end up being seperate, and wrap around from the front to the back and over the top of the pouch. Again, similar to TK409's pouches. The last pic shows the height of the pouch, without the flap.

Gator







RBF

Well-Known Hunter
:D wha that's awesome!!! and REAL leather... great job man! but are you gonna dye them a little to make them darker? it looks a little pale...


Christo Fett

Active Hunter
Looking great! I wanna know how much this all leather and steel belt weighs when you're done. But more important than that, I want to know what you are going to keep in all of those pouches, tic-tacs? marbles? the Schwartz?


Gator Fett

Active Hunter
Christo Fett said:
the Schwartz?
:lol:

Thanks for the support guys. Sorry for the lack of updates, but I was on vacation for a couple of weeks, and then it took me a week or so to get back into things.

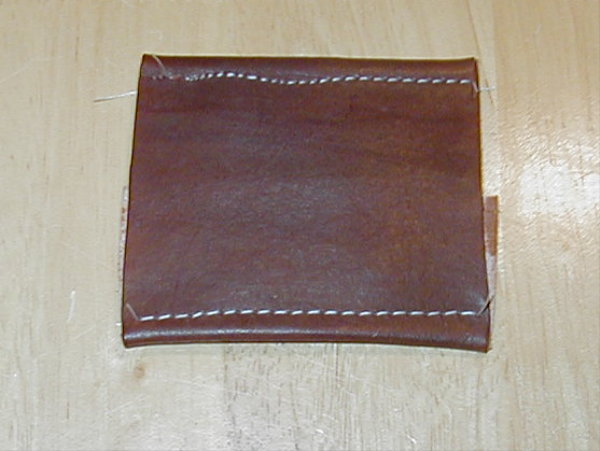

Anyway ... I finished attaching the leather to the 8 pouches, and have started on the flaps and the belt. Before I go any further, I made a sample piece and tested out the dye.

I am looking for some feedback on the color and the stitching. The top row of stitching got screwed up when I tried to use the foot pedel on my sewing maching. I did the lower row by hand, using the wheel on the side of the maching and turing the wheel one stitch at a time. What do you all think?

Gator







cal196

Well-Known Hunter
Hand stitching is superior to a machine, always has been always will, it takes ALOT longer but it looks so much better. That being said, the original belt isnt near perfect, that might be to good! :lol:


Christo Fett

Active Hunter
Looks like you're in the home stretch. The dye color looks nice to me, not sure if it's screen accurate (I'm no expert), but it looks sharp!


batninja

Well-Known Hunter

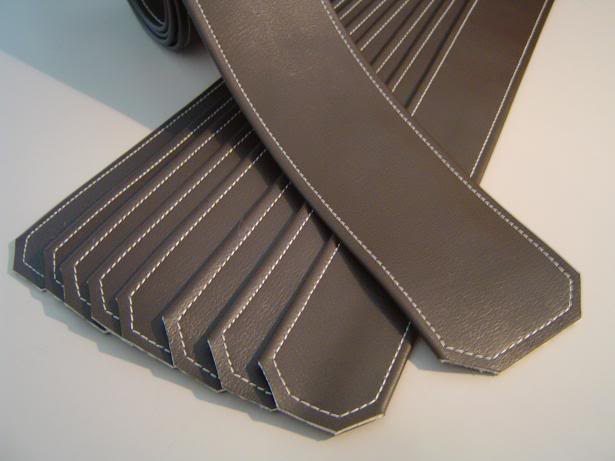

Have you tried using a Teflon presser foot when doing the stitching? I don't know if it'll help for leather, but it was great for vinyl:





Attachments

Gator Fett

Active Hunter

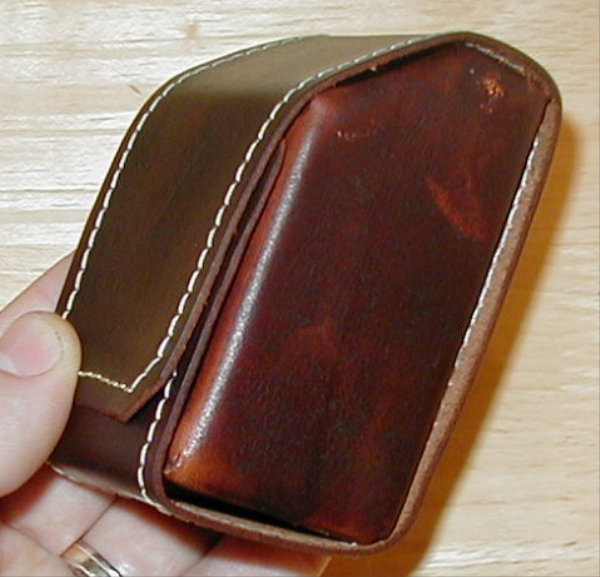

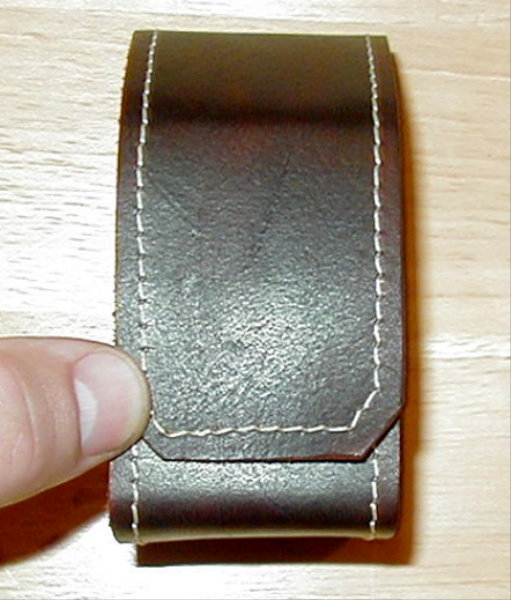

One pouch done ... 7 to go. The flap is not glued on yet, so if you think I should change something on the flap, let me know.

Gator
