Hello,

I have added some smaller knee armor templates to the first post.

In addition to the standard 4.5" wide there are now 4" and 3.5" wide templates. Dimension refers to the width of the knee.

Alan


arquitecto

New Hunter
Alan a preciate your work, tanks too you, i´m about to finish mi bobafett armor............here some pics of mi knee atemp...........




Last edited by a moderator:

Boba Pat

New Hunter
Hey there I can't thank you enough for posting this stuff! Knee armor was my first attempt on my mando costume and your work was a huge asset in getting me on the right track! Cheers!

I'm not sure I quite understand how to construct the dart blocks. I can gather from the blueprints that angles and dimensions of the front and sides, but I can't figure out the tops and bottoms and how they slope. Does that make sense?

EDIT:
Disregard that. I understand what to do now

Last edited by a moderator:

DarthBrik

New Hunter
I need some help on the darts themselves has anybody tryed turning them on a wood lathe? and about the demensions I havent been able to find any.


Mojo Fett

Well-Known Hunter
I haven't tgried turning them on a wood lathe but I have on a CNC, as for the dims posted I think they are a little on the large side....


wizardofflight

Active Hunter

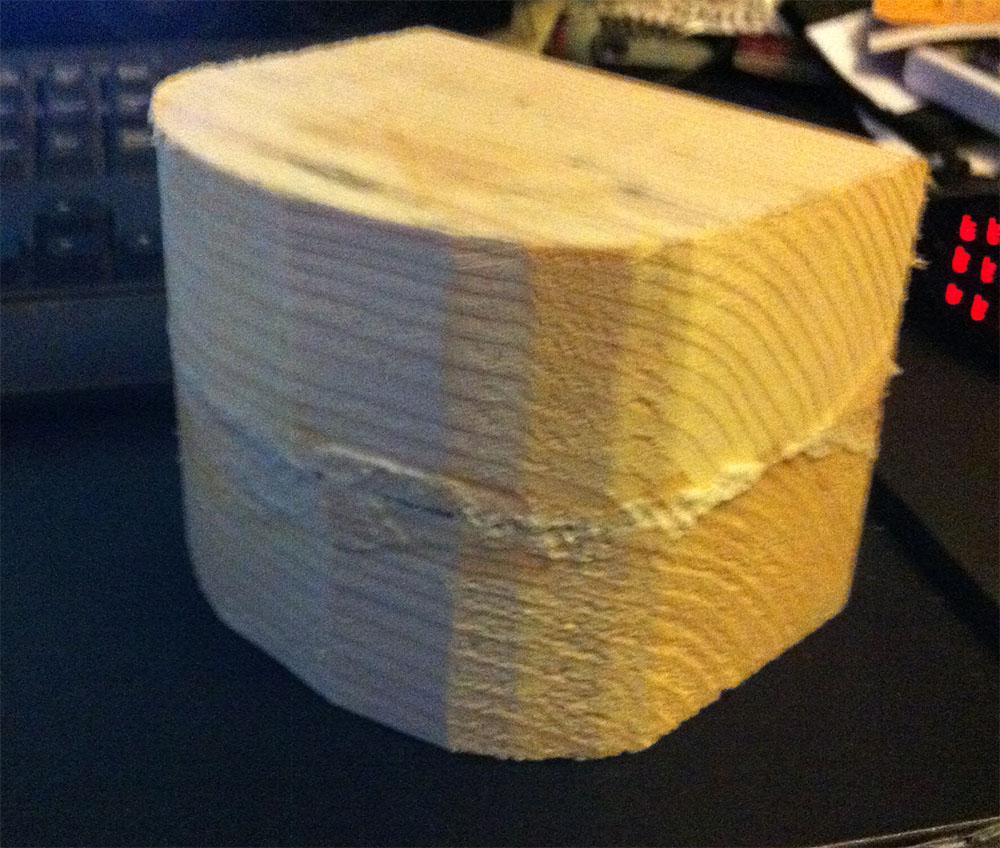

It is just a block made up of 3/4" pine cut to the shape in the templates and laminated together and then sanded smooth.

Hope that helps. If you need more please let me know

Alan


necronomicon

New Hunter
Alan, Many thanks for these and the other templates you have posted, absolutely fantastic and allowed me to build a suit of Fett armour, which otherwise would have not been possible for me, heartfelt thanks for the amount of work you have put in and shared with this community. Regards
Neil
