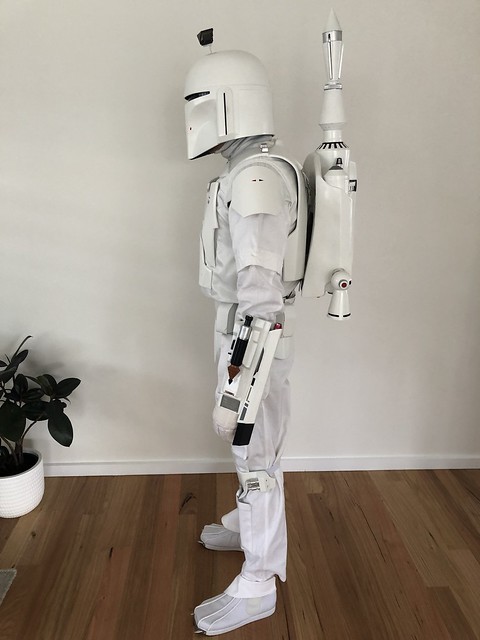

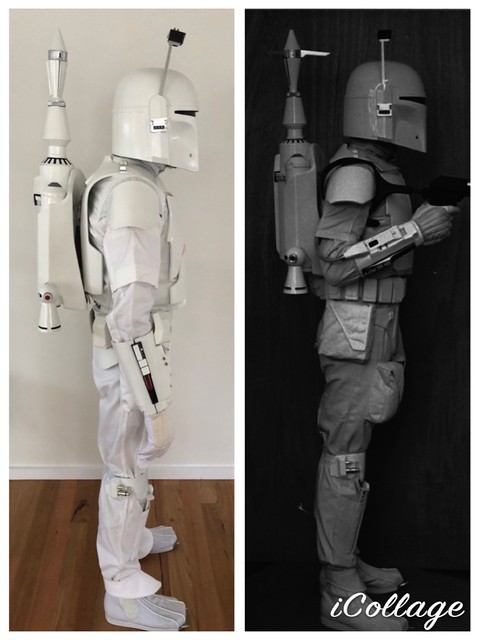

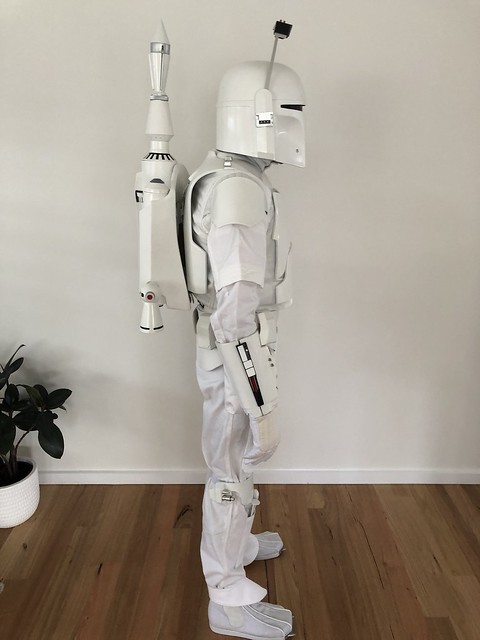

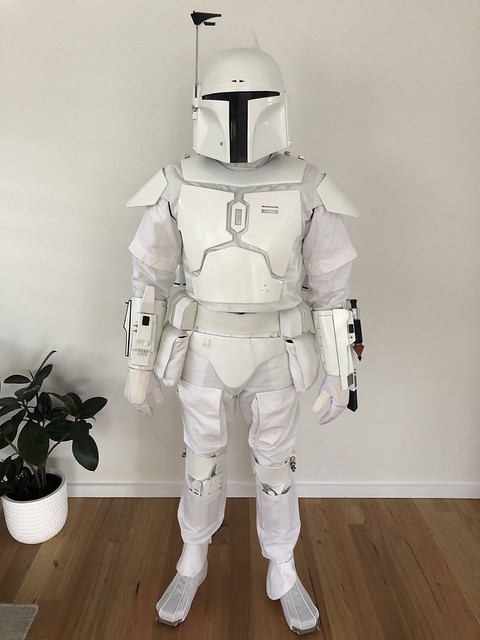

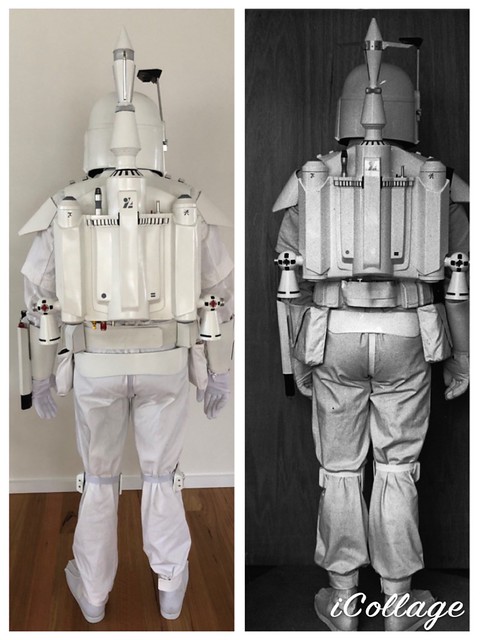

This build has actually been underway since 2019, and is only now coming to a conclusion. I wanted to share my build with you all, which has been heavily inspired by the awesome super trooper build by 01Hawk, and the excellent research and templates from Rafalfett.
Firstly to go over the inventory of my build.
Helmet: Bobamaker V4 helmet
Chest Armour:
Kidney Armour
Back Armour
Shoulder Armour
Knee Armour
Jetpack
Left Gauntlet
Right Gauntlet
Cape:
Flak Vest
Neck Seal
Flight Suit
Ammo Belt

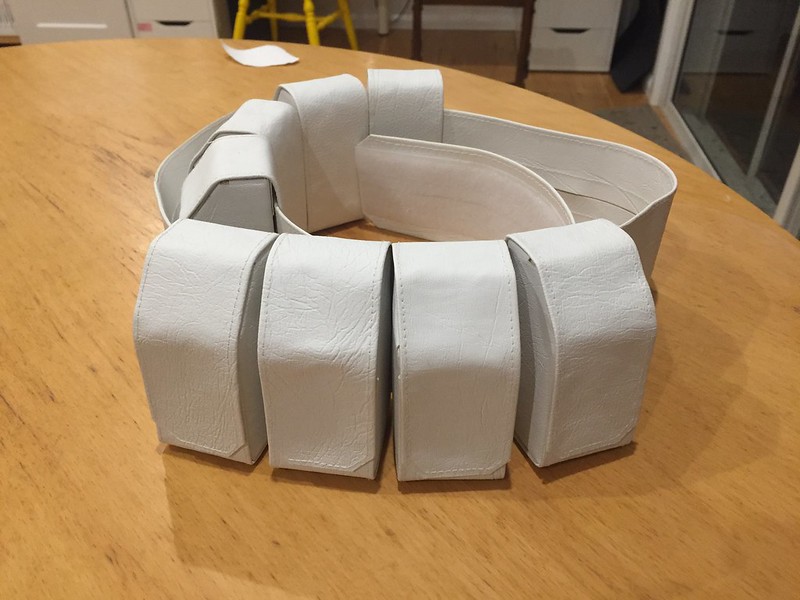

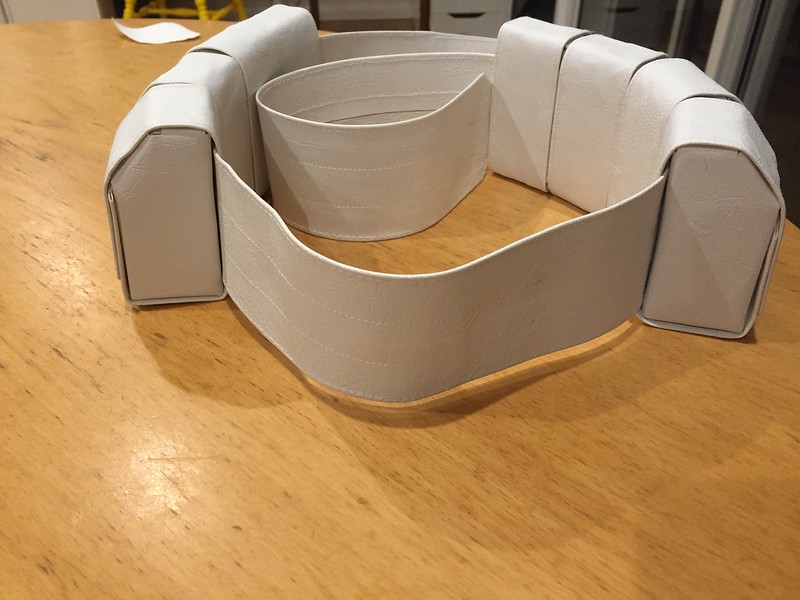

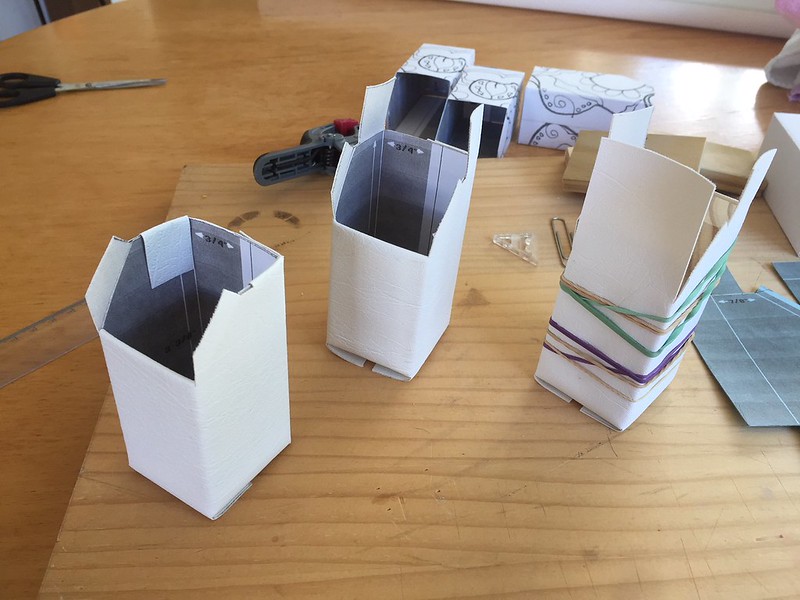

Ammo Belt / Hip Pouches
Gloves
Shin Tools
Boots
Spats
There are plenty of photos of various parts of the costume build, that are very similar to other build threads, so the parts of the build I want to show are for the gauntlets. Scratch building these was enjoyable, but very time consuming and some aspects were a bit frustrating. The irregular angles made it hard at times!

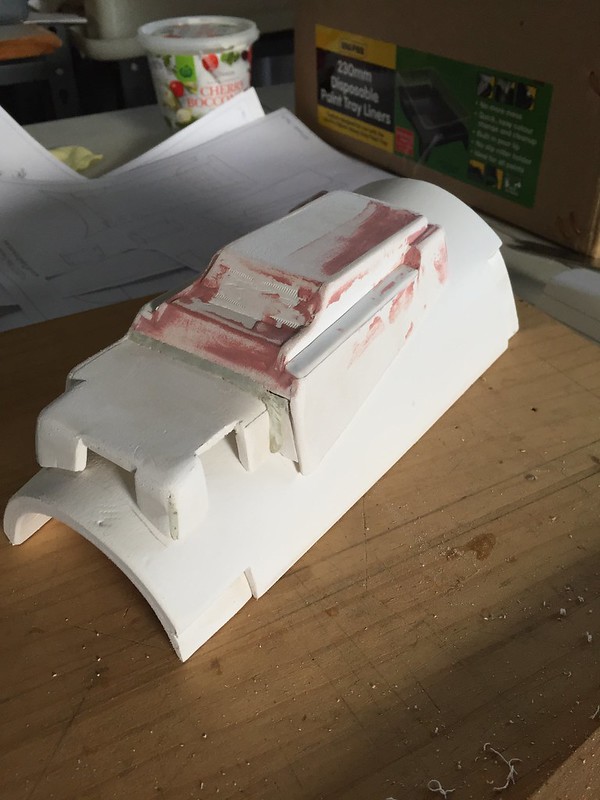

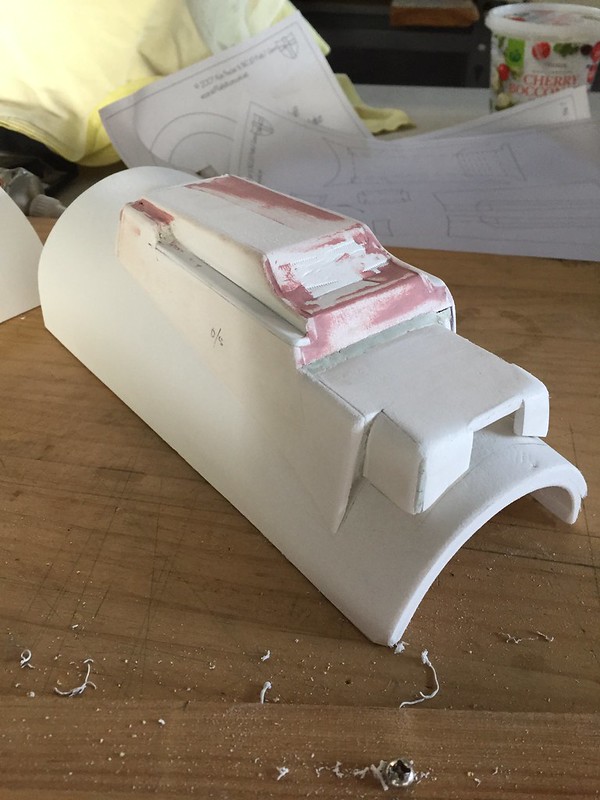

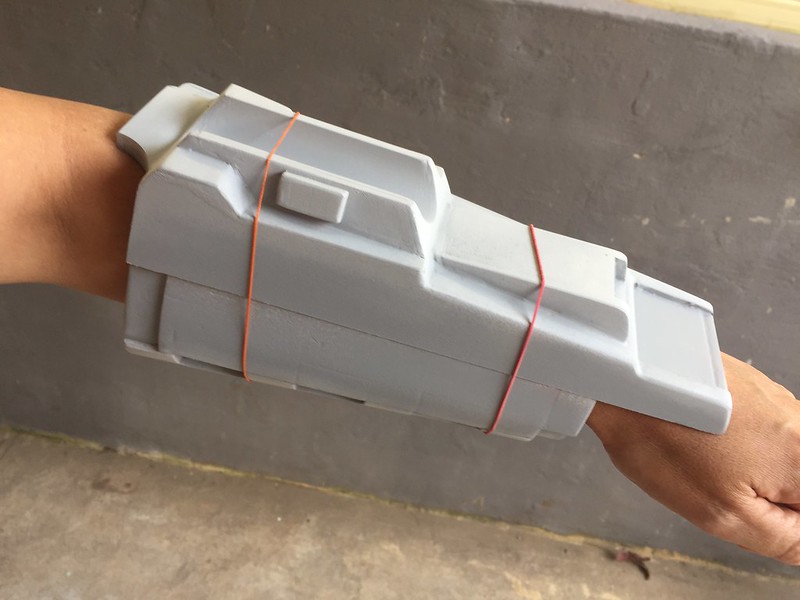

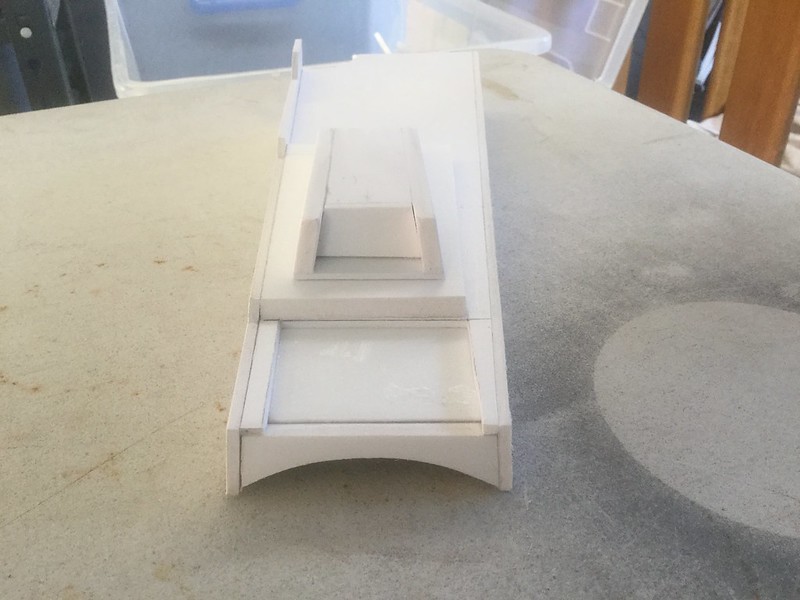

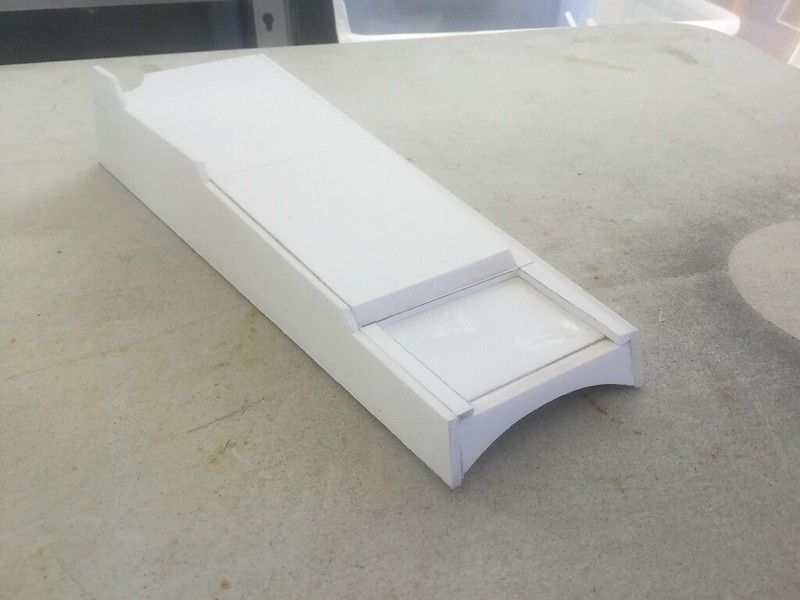

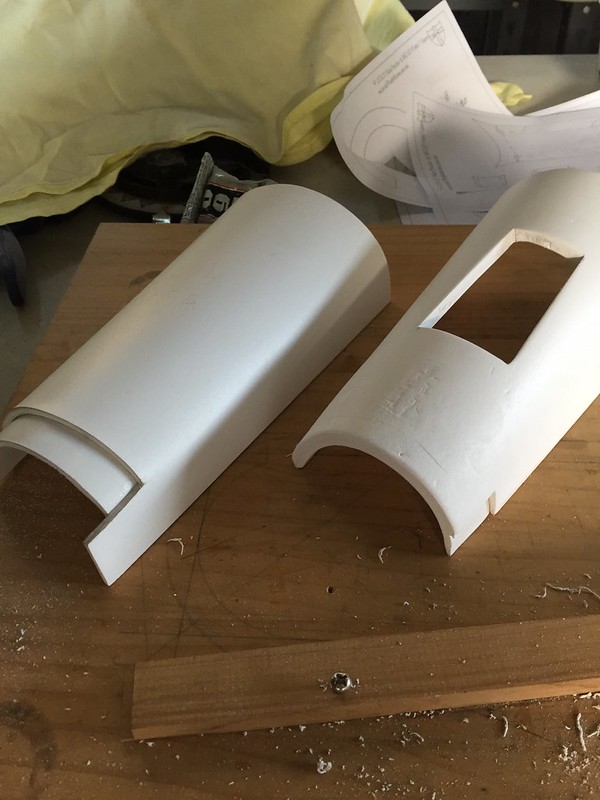

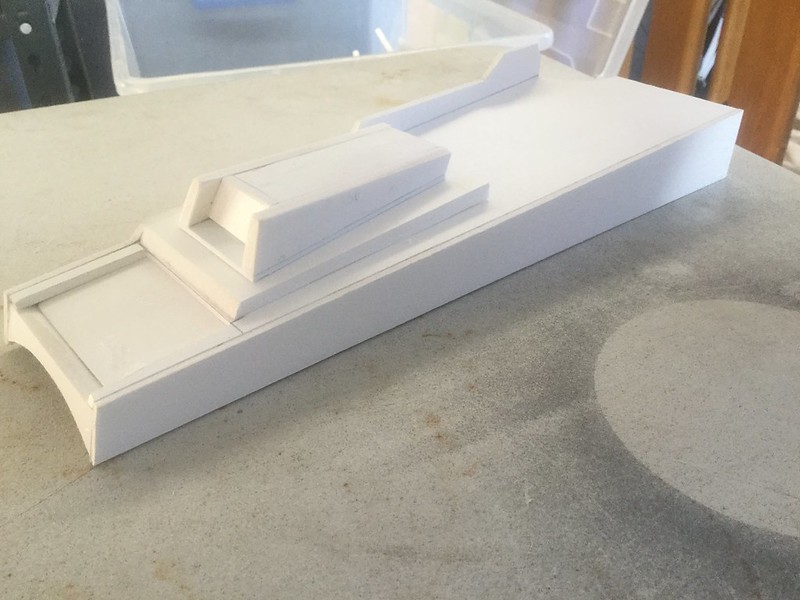

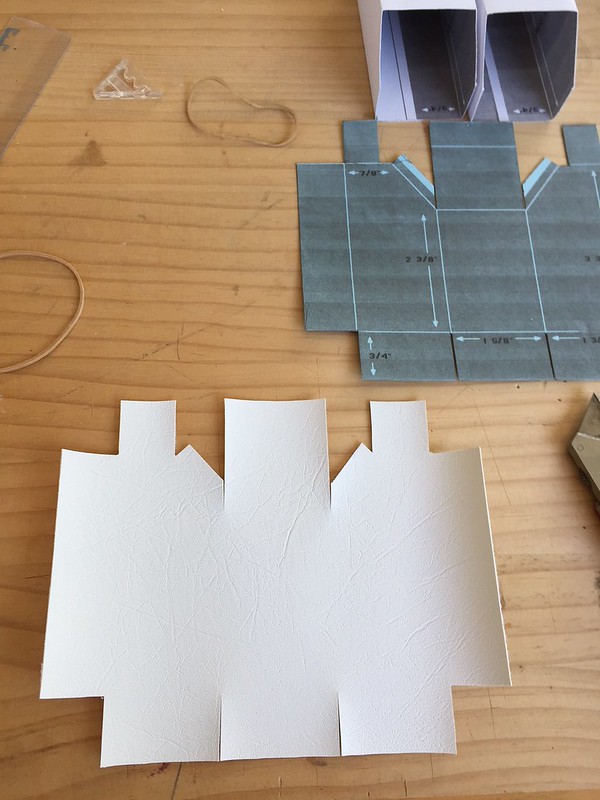

I started with the right gauntlet, and missed a few photos right at the very start. The main housing a flat pieces that are then curved to shape, but the upper gauntlet casing is the unique piece. It actually comprises several parts that are constructed individually and then put together. For these parts I mainly used 3mm expanded PVC foam sheet, as it is easier to heat and bend. Putty filler was used around some of the joins where it was hard to get a perfect fit. Other ‘rounded’ areas also require putty filler to show the shape.
Untitled by jamie milner, on Flickr
Untitled by jamie milner, on Flickr
Untitled by jamie milner, on Flickr
Untitled by jamie milner, on Flickr

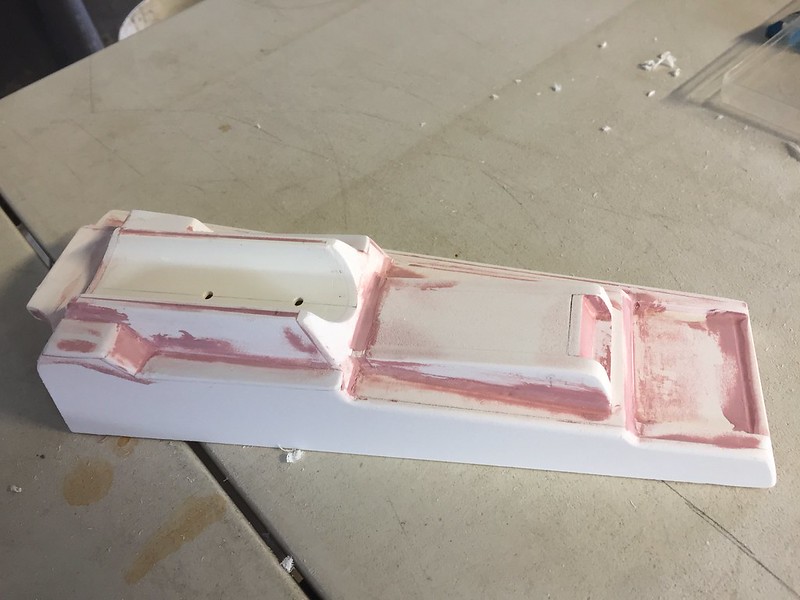

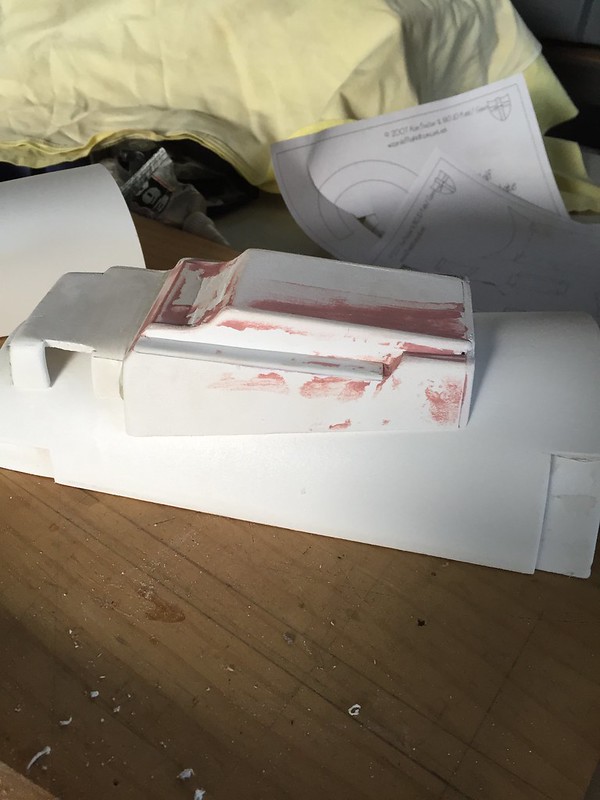

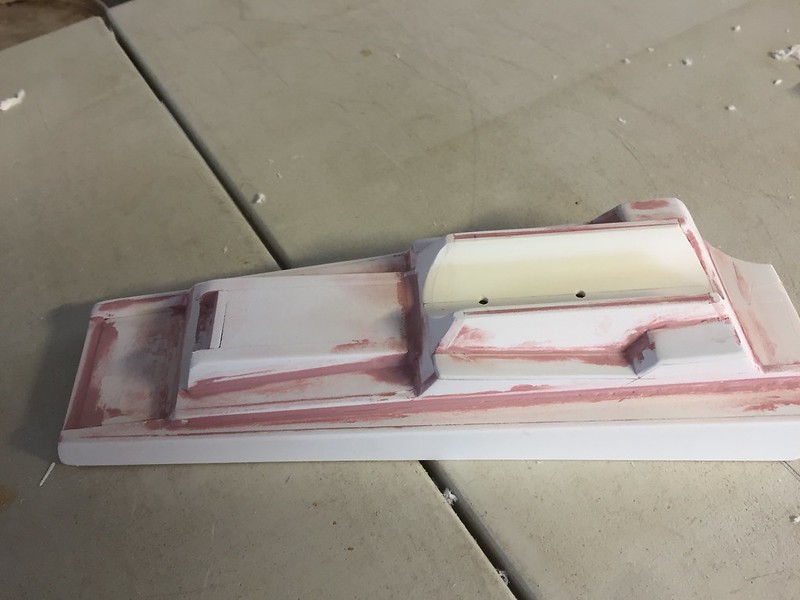

The next part was supper hard. Where the top sits on, and slides down the sides, the top has the appearance of blending in to meet the housing. So this needed heaps of filler to start getting the blend and smooth as possible. Following that, layers of spray putty to try and fill all the little gaps and dints all over the place.
Untitled by jamie milner, on Flickr
Untitled by jamie milner, on Flickr

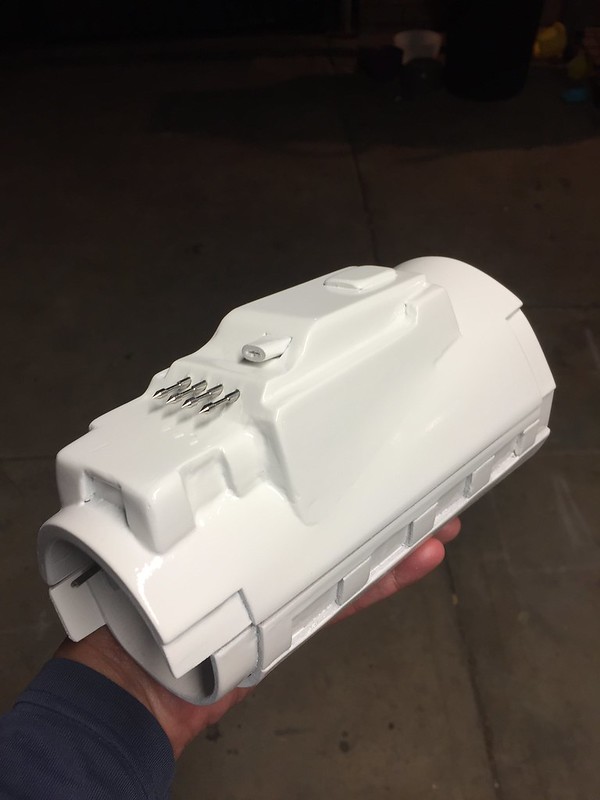

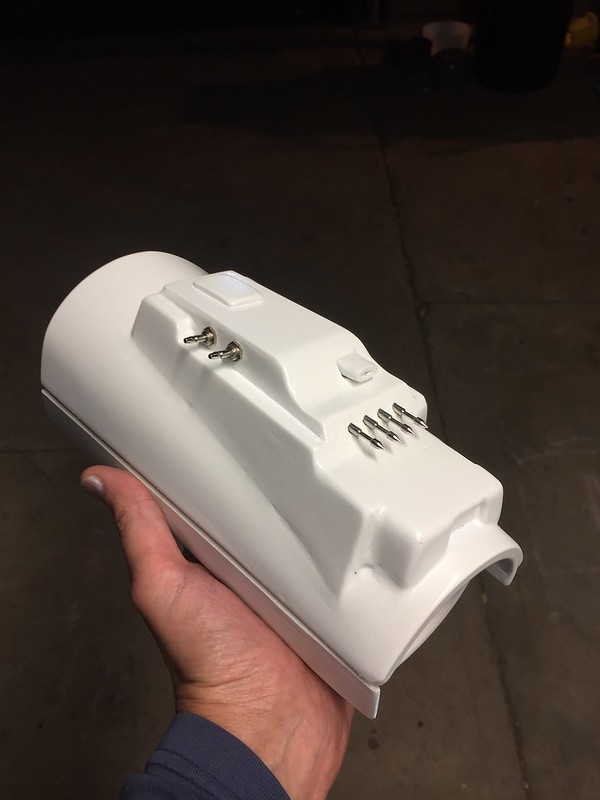

As you can see from the pics, holes were allowed for in the casing for the darts and also for the Alco switches.
The left gauntlet was in some ways easier to build. Its geometry is more angular and not so rounded as right. Although it was sometimes hard to hold tiny pieces of PVC sheet together at the correct angles, it came together quickly.
Untitled by jamie milner, on Flickr
Untitled by jamie milner, on Flickr
Untitled by jamie milner, on Flickr
Untitled by jamie milner, on Flickr

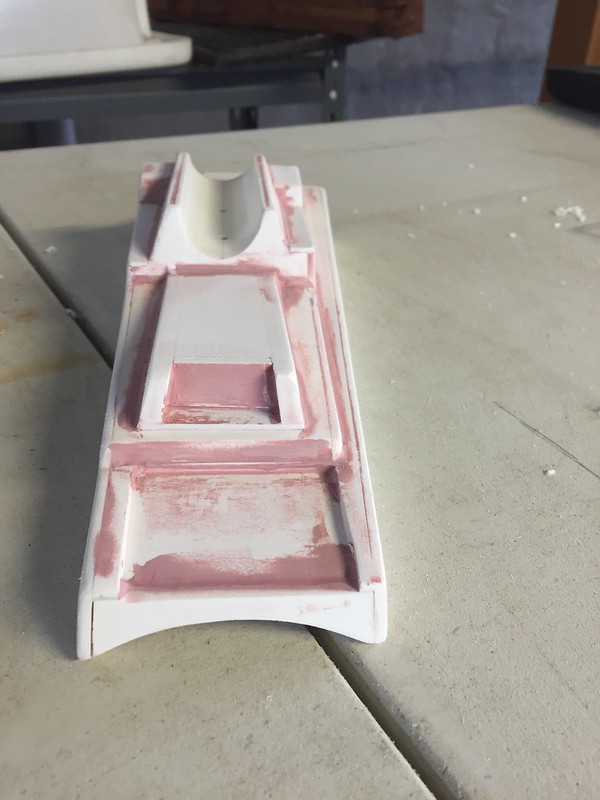

On the left gauntlet, the casing under the rocket has to be rounded so instead of PVC sheet, this was PVC pipe matches for diameter so it would snuggly fit the rocket. As before, plenty of filler for all the little gaps and dints.
Untitled by jamie milner, on Flickr
Untitled by jamie milner, on Flickr
Untitled by jamie milner, on Flickr
Layering of spray putty.
Untitled by jamie milner, on Flickr
Untitled by jamie milner, on Flickr

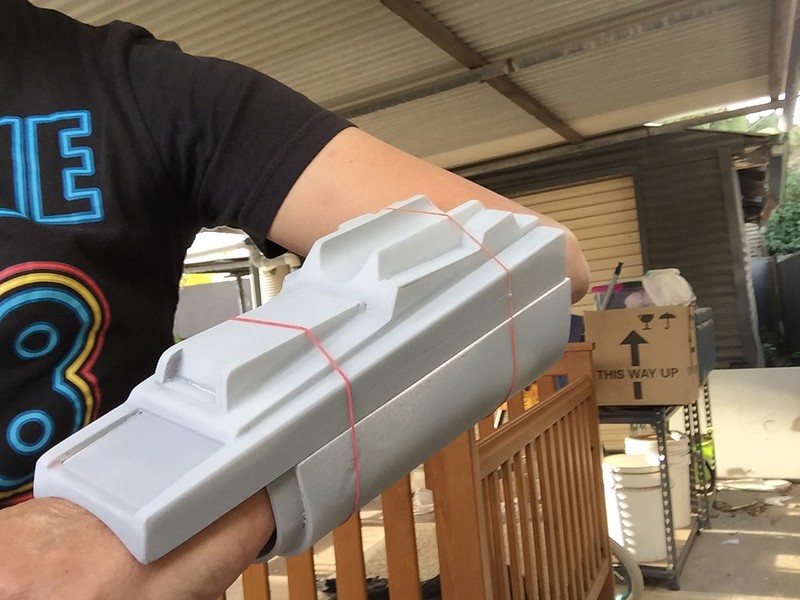

After the spray putty comes sanding, and then more sanding, and then more spray putty and then more sanding. Then comes painting.
Untitled by jamie milner, on Flickr
Untitled by jamie milner, on Flickr
Untitled by jamie milner, on Flickr
Untitled by jamie milner, on Flickr
Untitled by jamie milner, on Flickr

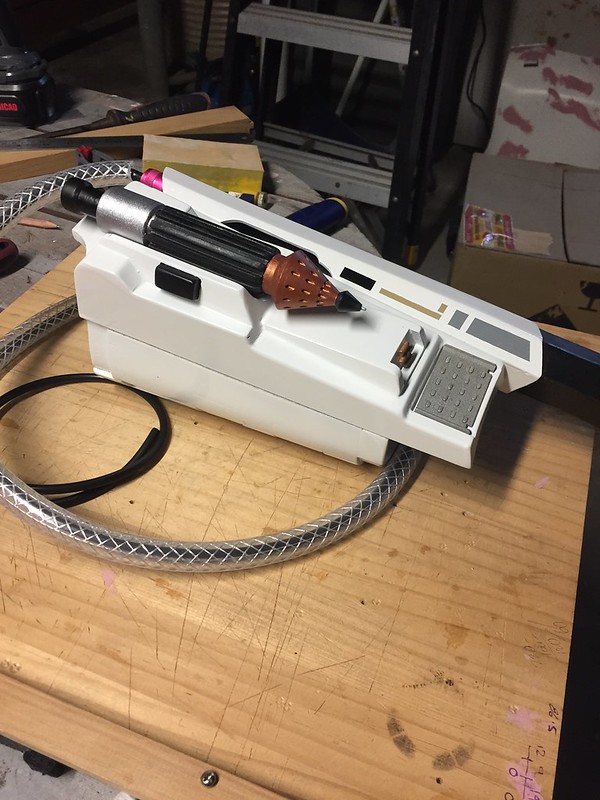

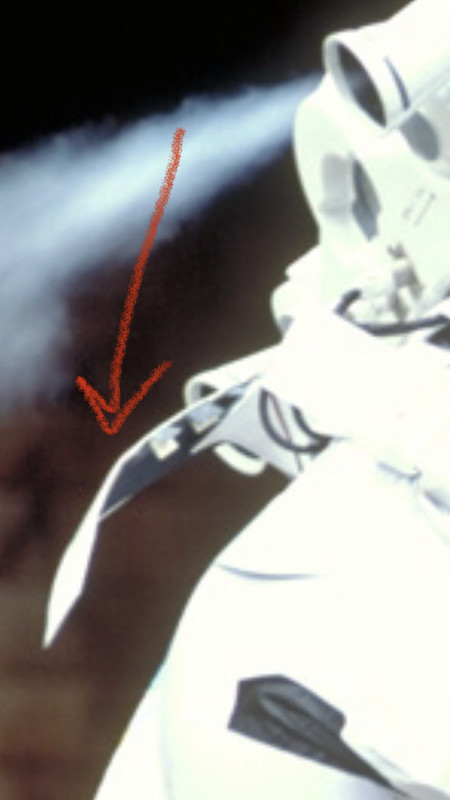

I still have a couple of jobs to do on the gauntlets to finish them off. On the right gauntlet, I have a globe to imitate the light that was installed, but I haven't yet placed a button / switch. I don't intend on this being a working light, so a small square piece should be fine for now, although I will hopefully intend to have a replica every ready switch.
On the right gauntlet, there are 2 things: 1) switch next to the black rectangle, and 2) the draft 501st CRL calls for a red LED at the rear of the rocket, which I am yet to fully decipher the type of LED required. For both left and right gauntlet, I have gauntlet hosing that is clear vinyl hose, but I intend to replace with a different hose with better flexibility, as my current hose os very stiff.
That's enough for now. Next post I will go over the scratch build of the belt and ammo pouches.
