Hey All...long time lurker, first time post. Have started a custom bucket after researching a ton on the boards and the interwebs. Going to post progress here as well as things I've learned. This board has been such a GREAT resource. Any and all feedback is welcomed. This is my first ever bucket, and after I'm done I will start the rest of the costume.
So, like most of the scratch builders out there, I started with the Wizard of Flight templates, but had some sizing issues between the dome and the mask (dome was too small.) This was because I figured out too late that "fit to page" is not necessarly a good option when printing a PDF, especially if the mask and dome templates are in two different files...
I later tried a combo of WOF template with RafalFett's because I had already started the mask and before I continued wanted to make sure I would have a dome that fit, and again, that did not work out well, so I finally ended up using the RafalFett v2 templates and so far so good.

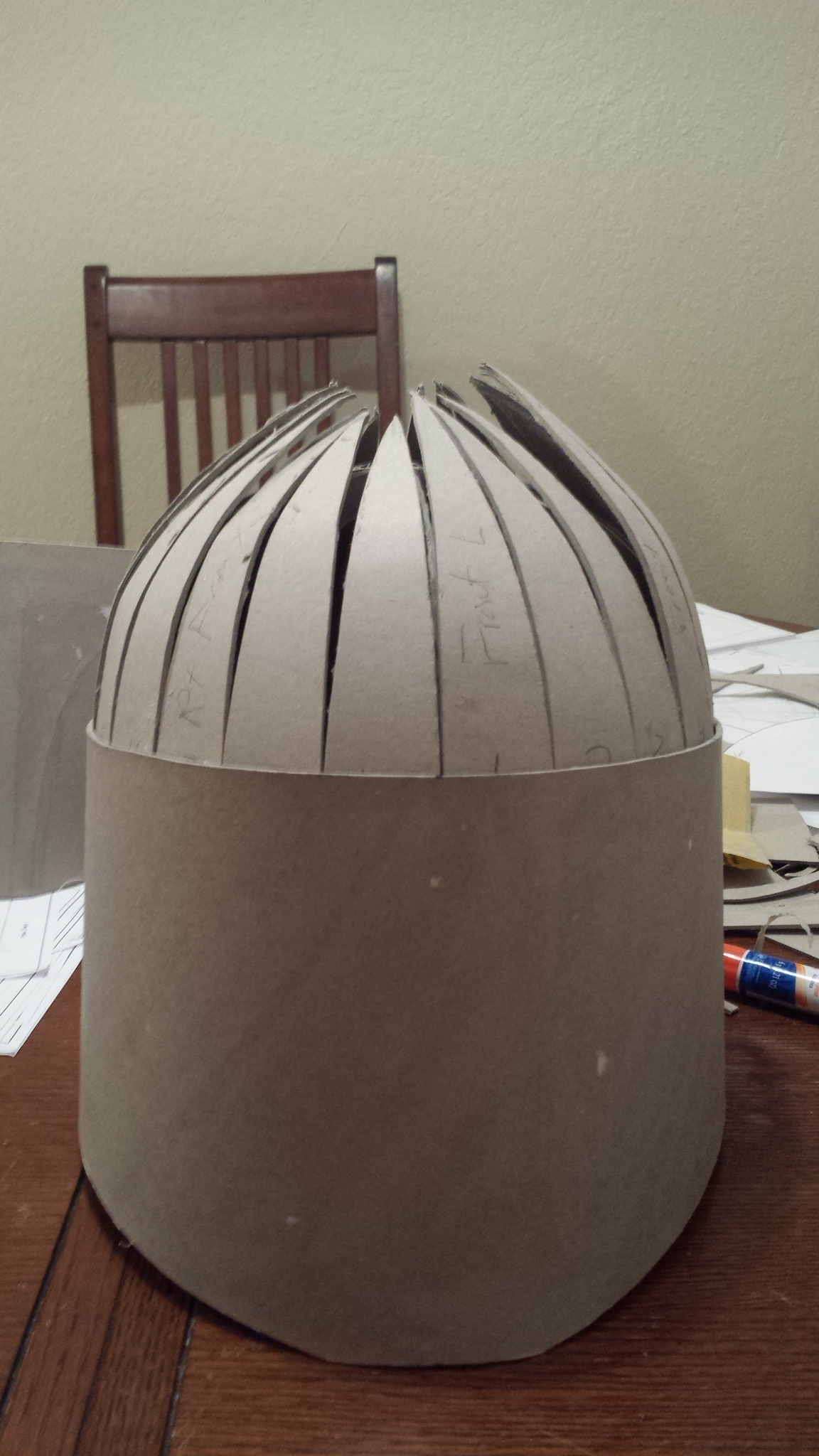

So, after starting over, I made sure to completely build the mask and dome using RF templates out of posterboard for sizing purposes and to make sure the bucket was going to fit. Thank goodness, because I ended up having to resize the PDF's a bit to get the right fit. I had read to do this in other posts, but was too anxious to get started and skipped it.
Lesson #1: BE PATIENT
So after prototyping with posterboard, it was off to Hobby Lobby to get some 2mm cardboard for the real thing. I decided to use it for both the inner and outer parts of the bucket for extra strength.

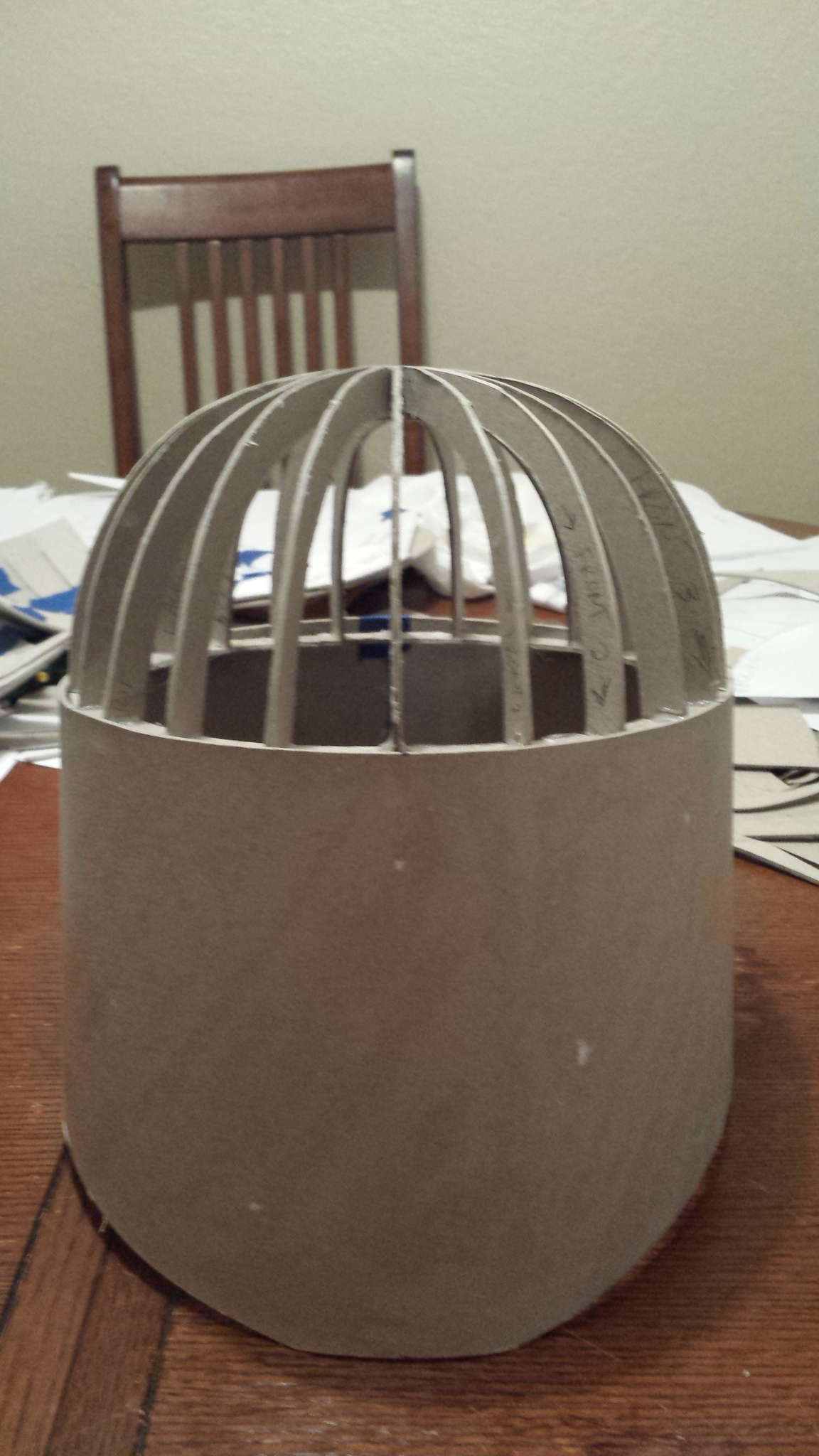

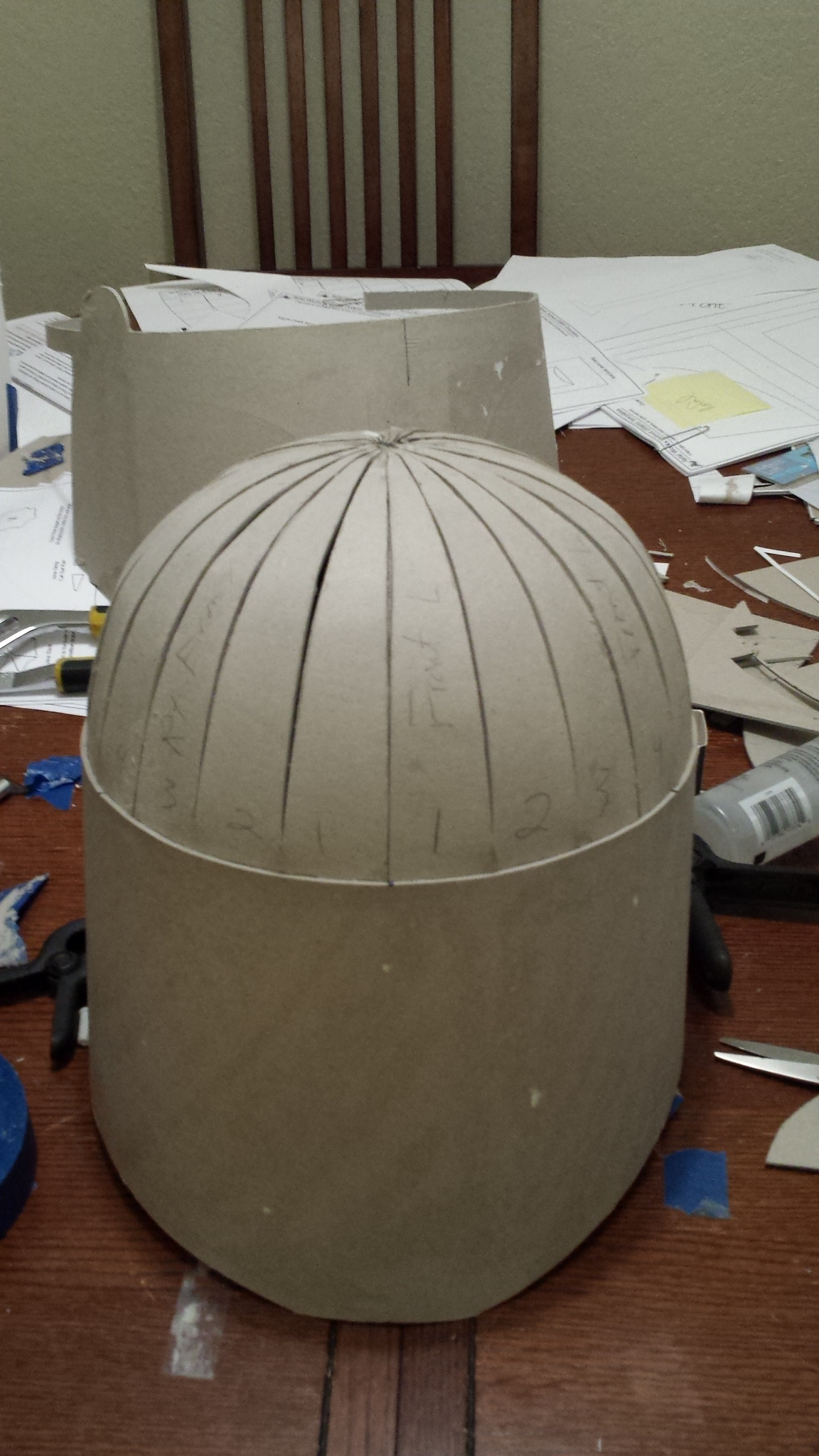

The dome on the RF templates is a little more involved, but the extra supports really help with getting a good shape.

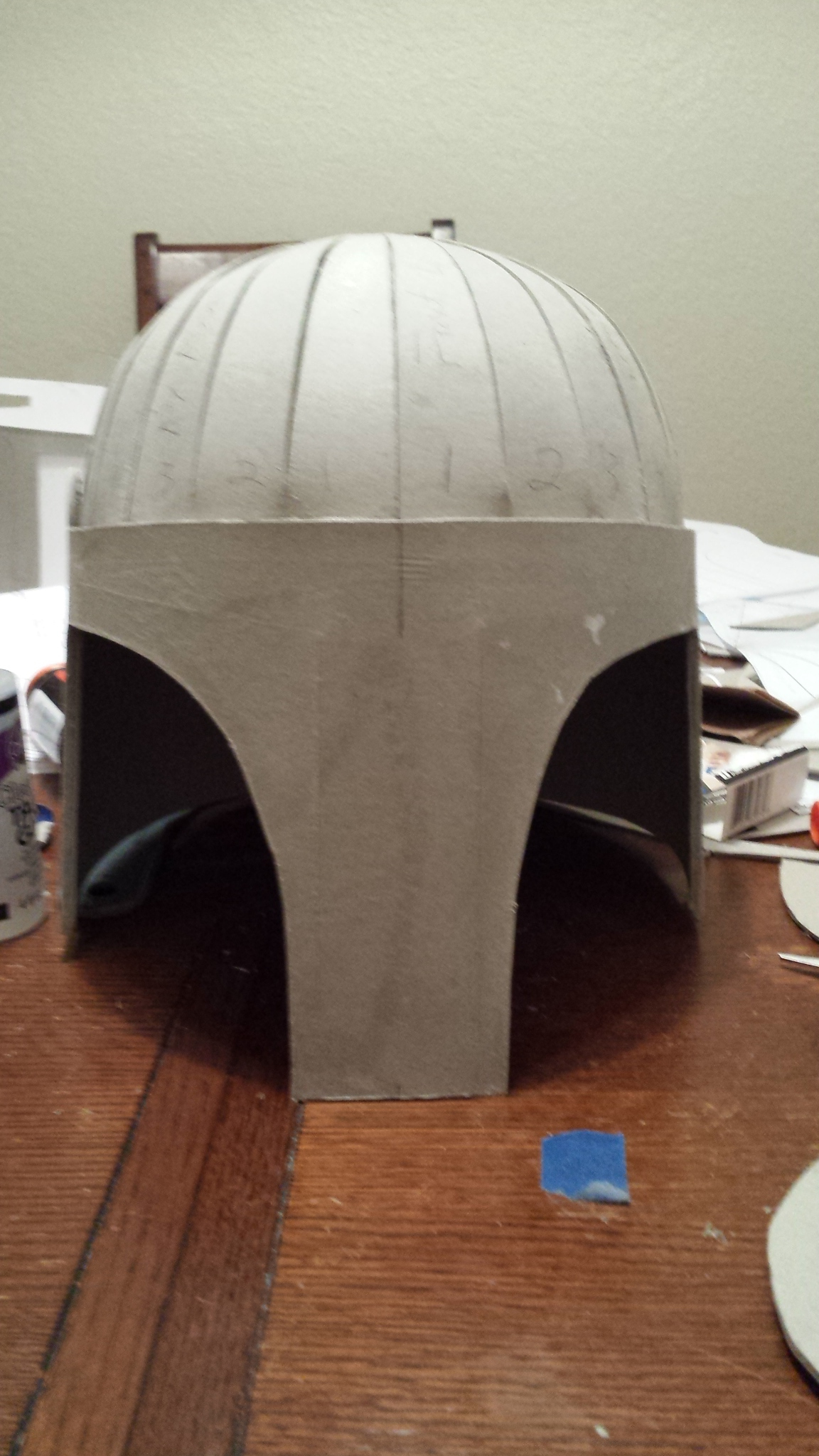

Next I attached the outer part of the mask...in other posts I've see where almost the complete bottom half was done before attaching the dome, but again, I wanted to make sure it was all going to fit and being my first build I was figuring out how everything went together.

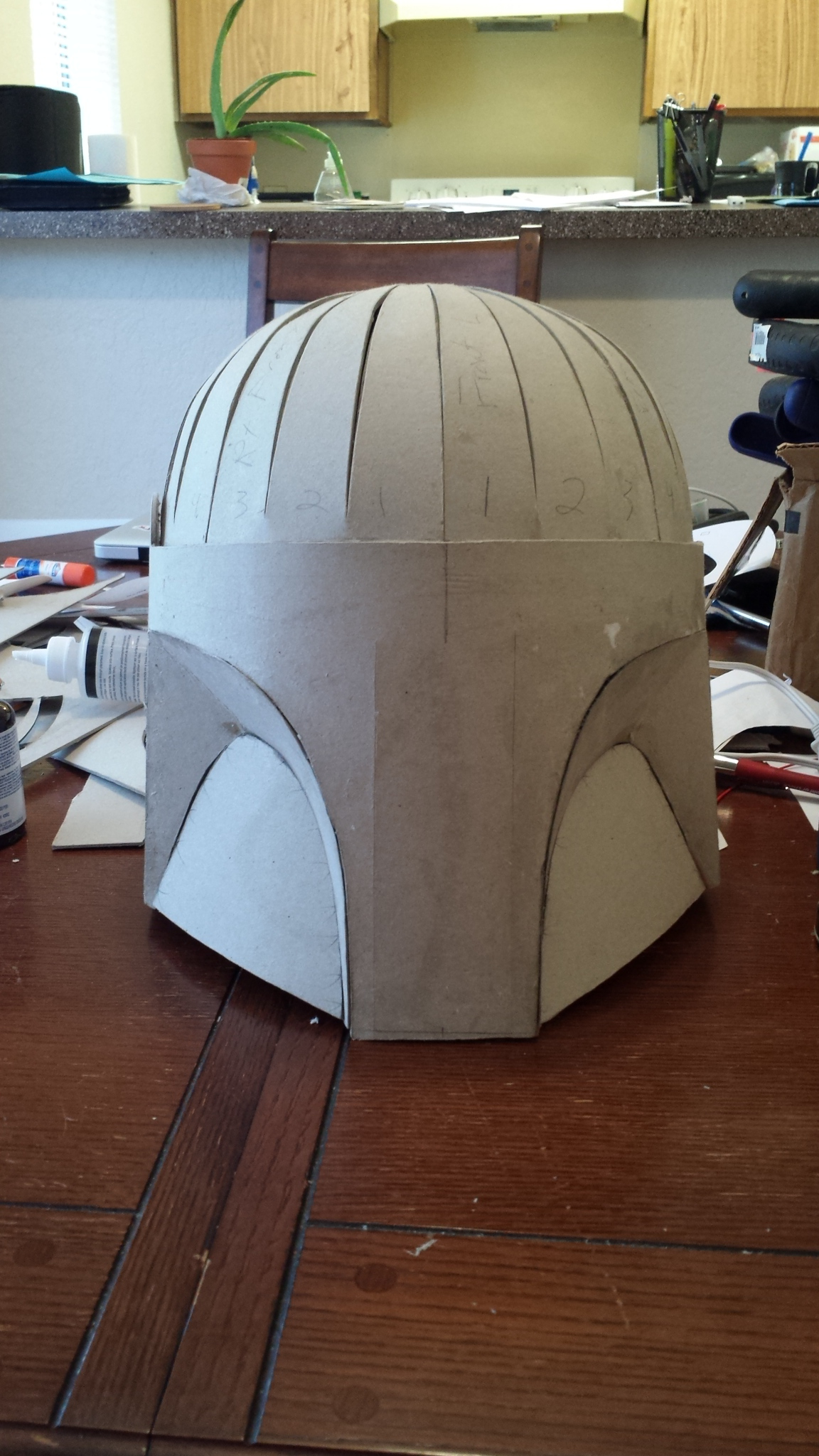

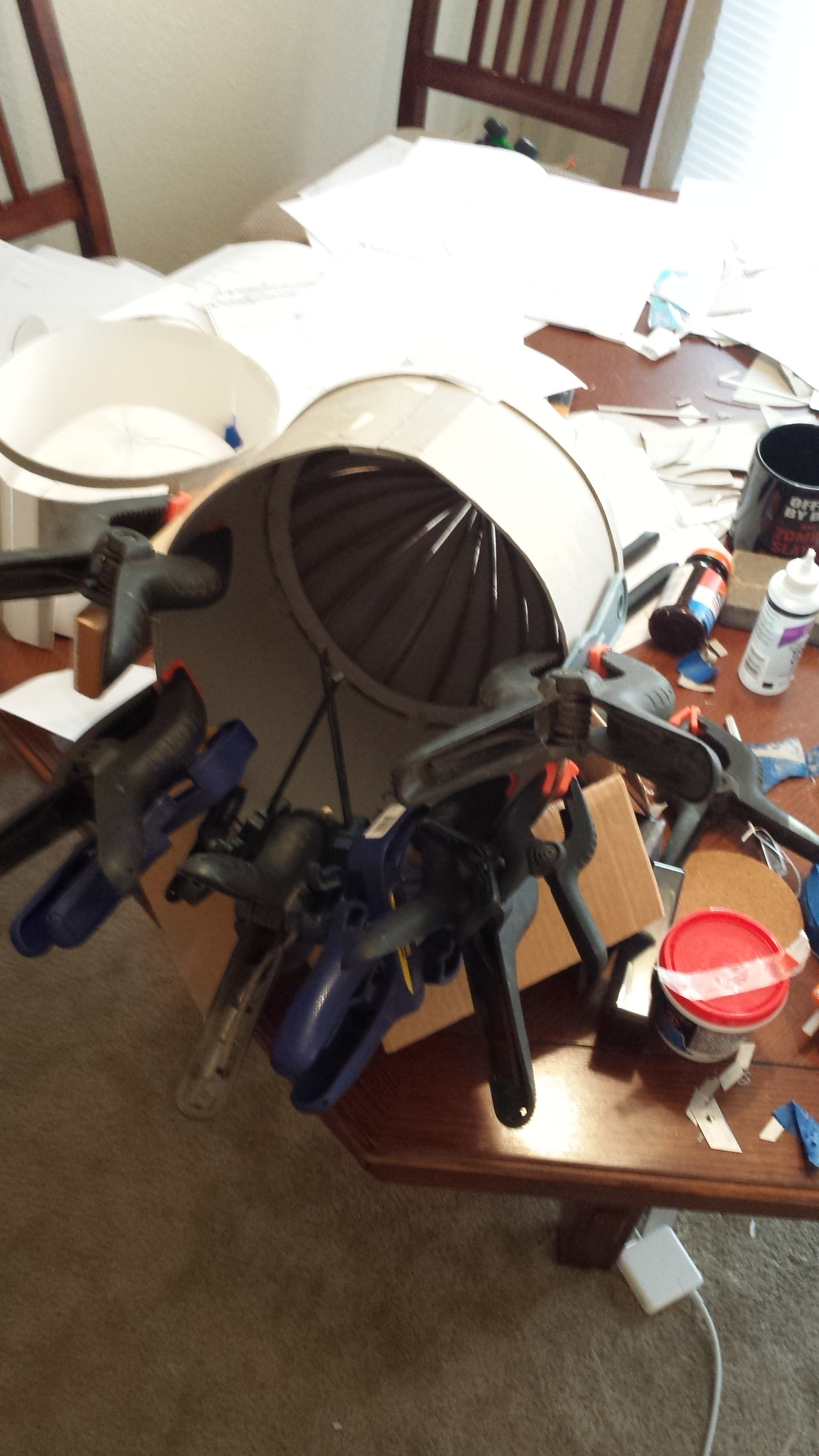

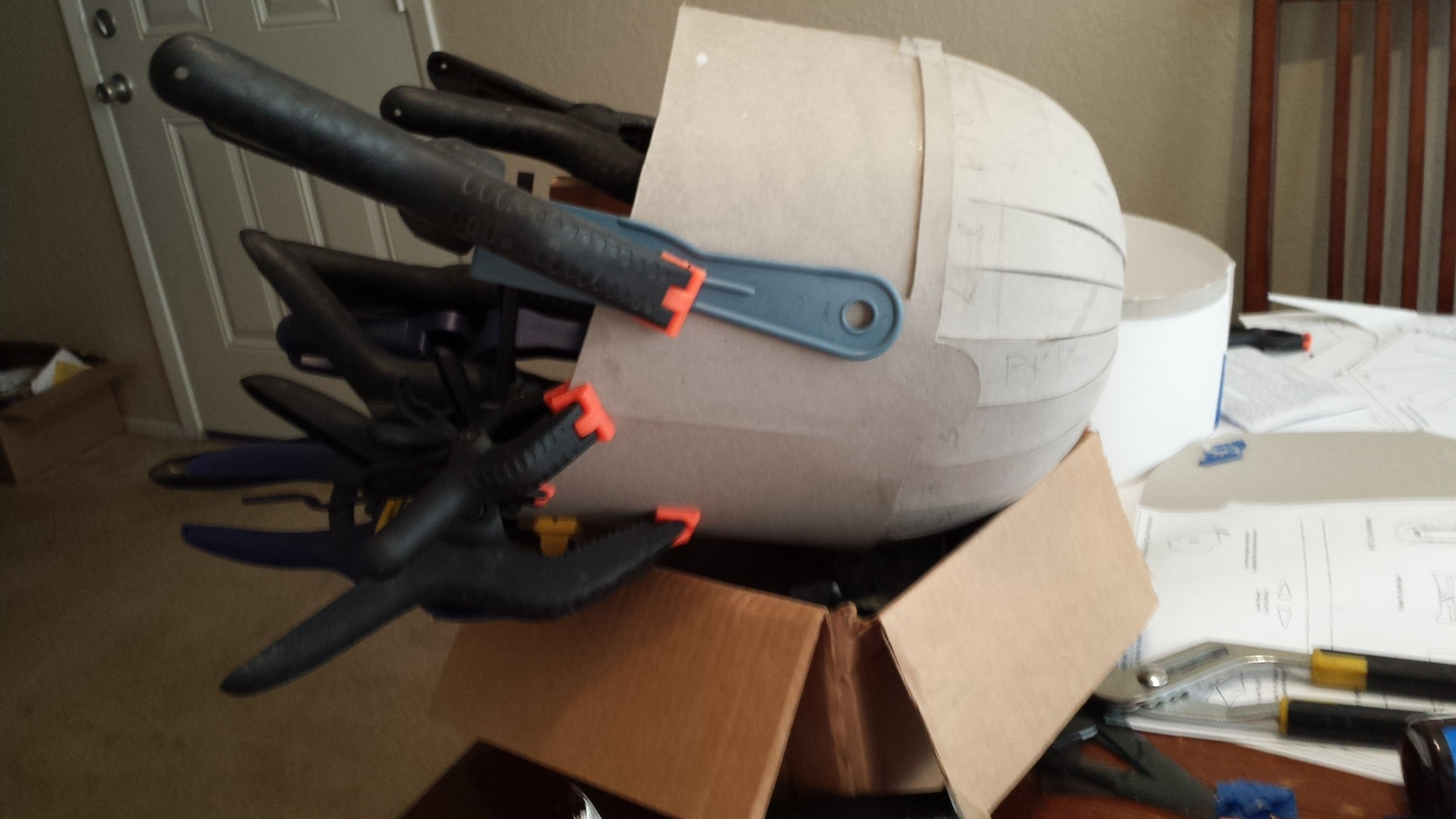

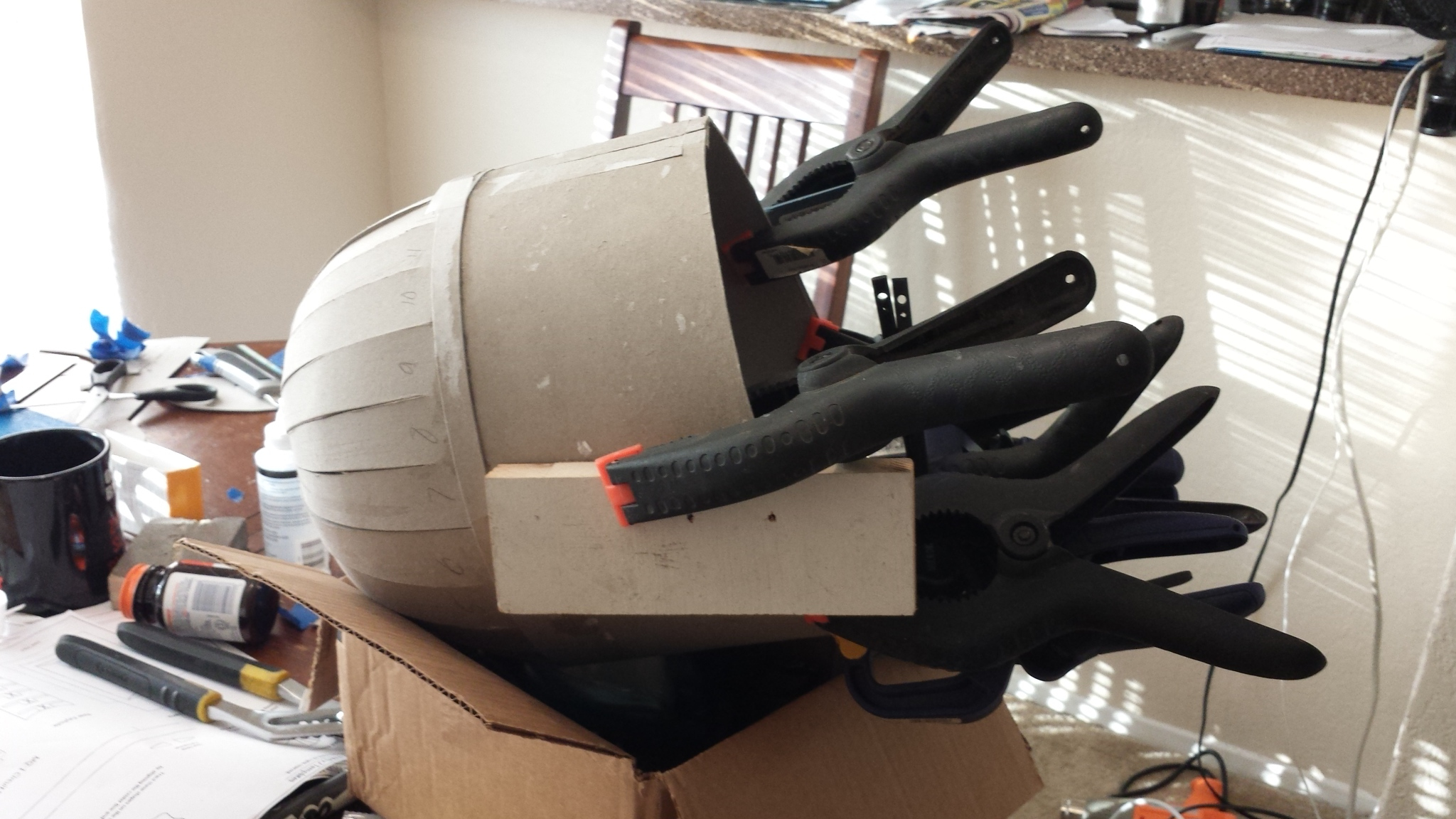

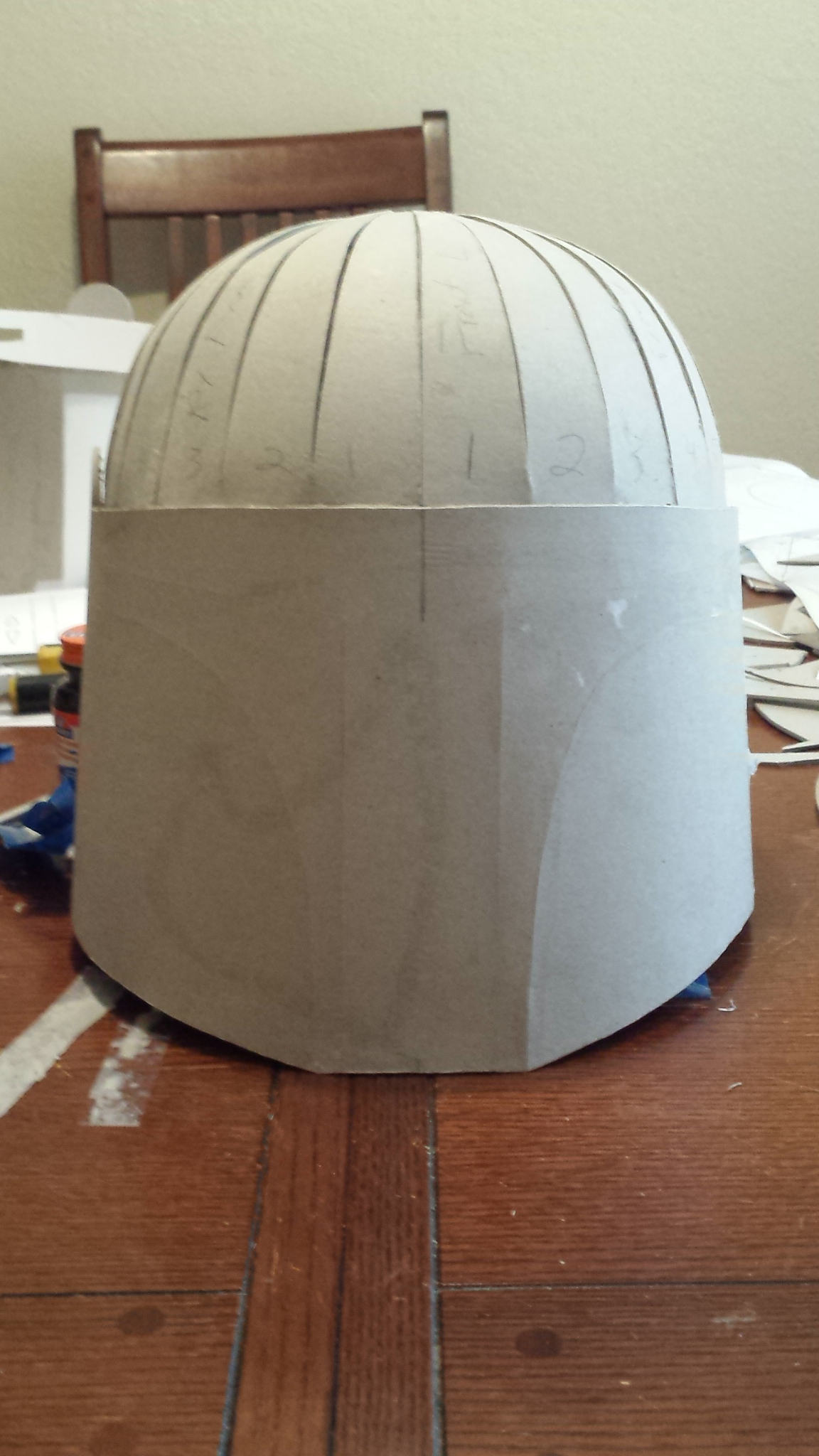

Below is the mask attached with light surface cuts for the visor and cheeks. I later took a pencil and traced them to have more distinct lines for cutting. Even thought I was using a spray bottle to help soften the cardboard for shaping, I had to use a lot of clamps to make sure the outer part of the mask was glued really well.
Lesson #2: YOU CAN NEVER HAVE TOO MANY CLAMPS

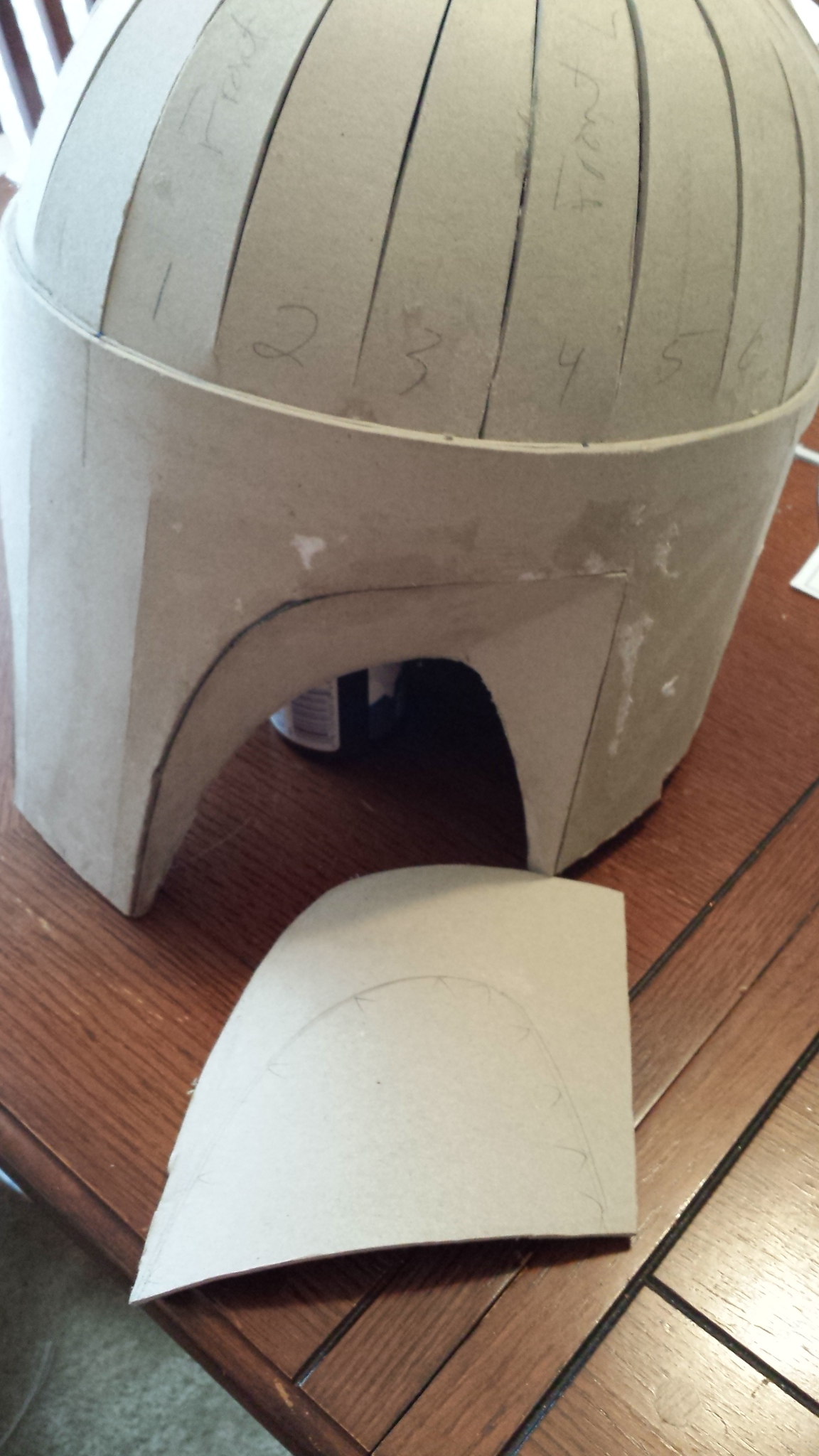

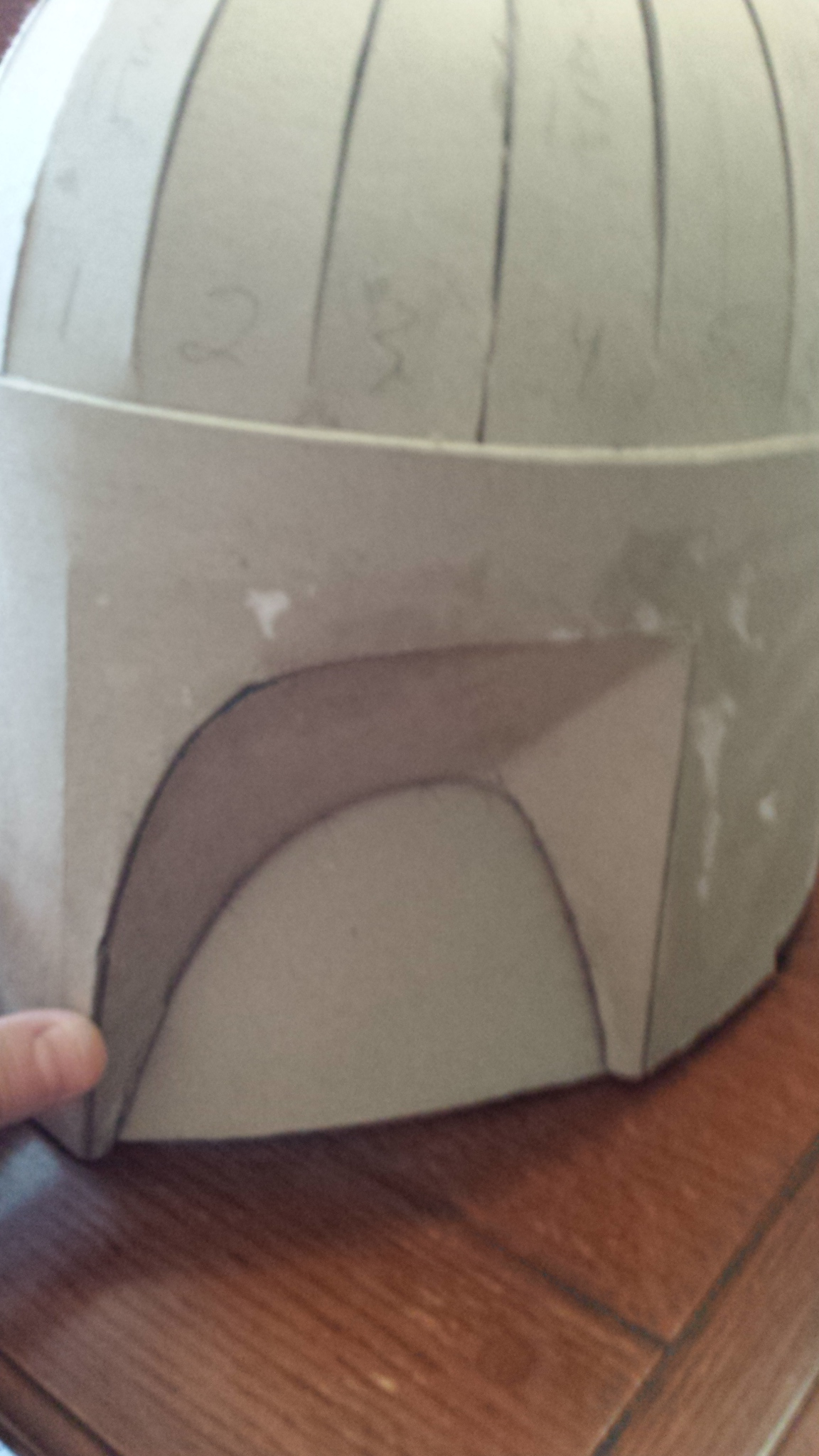

Next it was time to cut out the cheeks. My research showed that this could be tricky to get the right fit. I cut a 45 degree angle on the upper cheek parts like I saw from RafalFett's v2 build (or was it Antman?) Anyway, YES do that

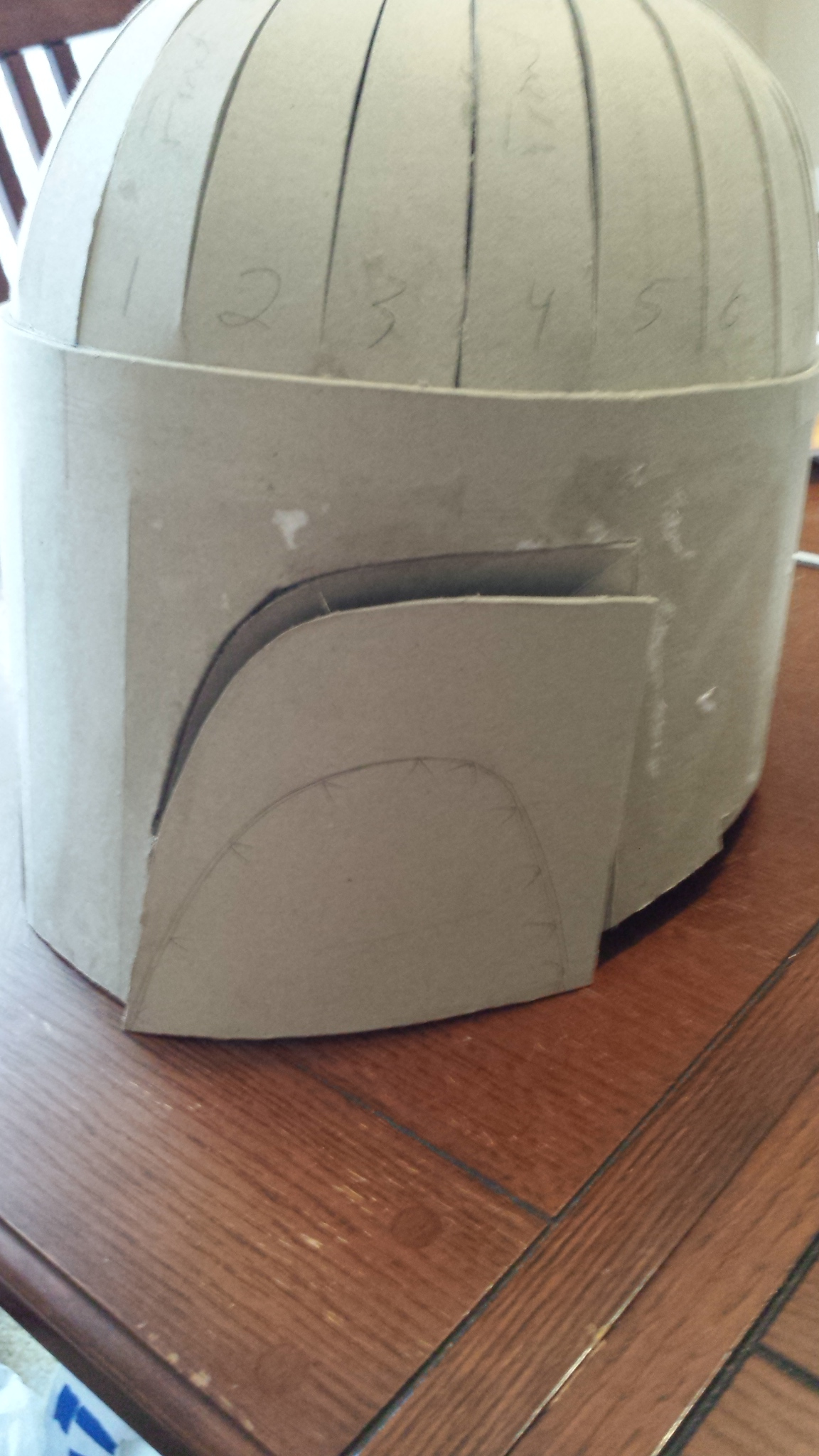

They fit much better. I had trouble getting the lower cheeks to fit well, and then I noticed that the parts I had cut out from the cheeks had the same curve as the mask so I put the cutout part behind the upper cheeks and traced the curve and VIOLA! They fit perfectly. They are not as straight as you see on other buckets, but I liked the way they kind of flared out.

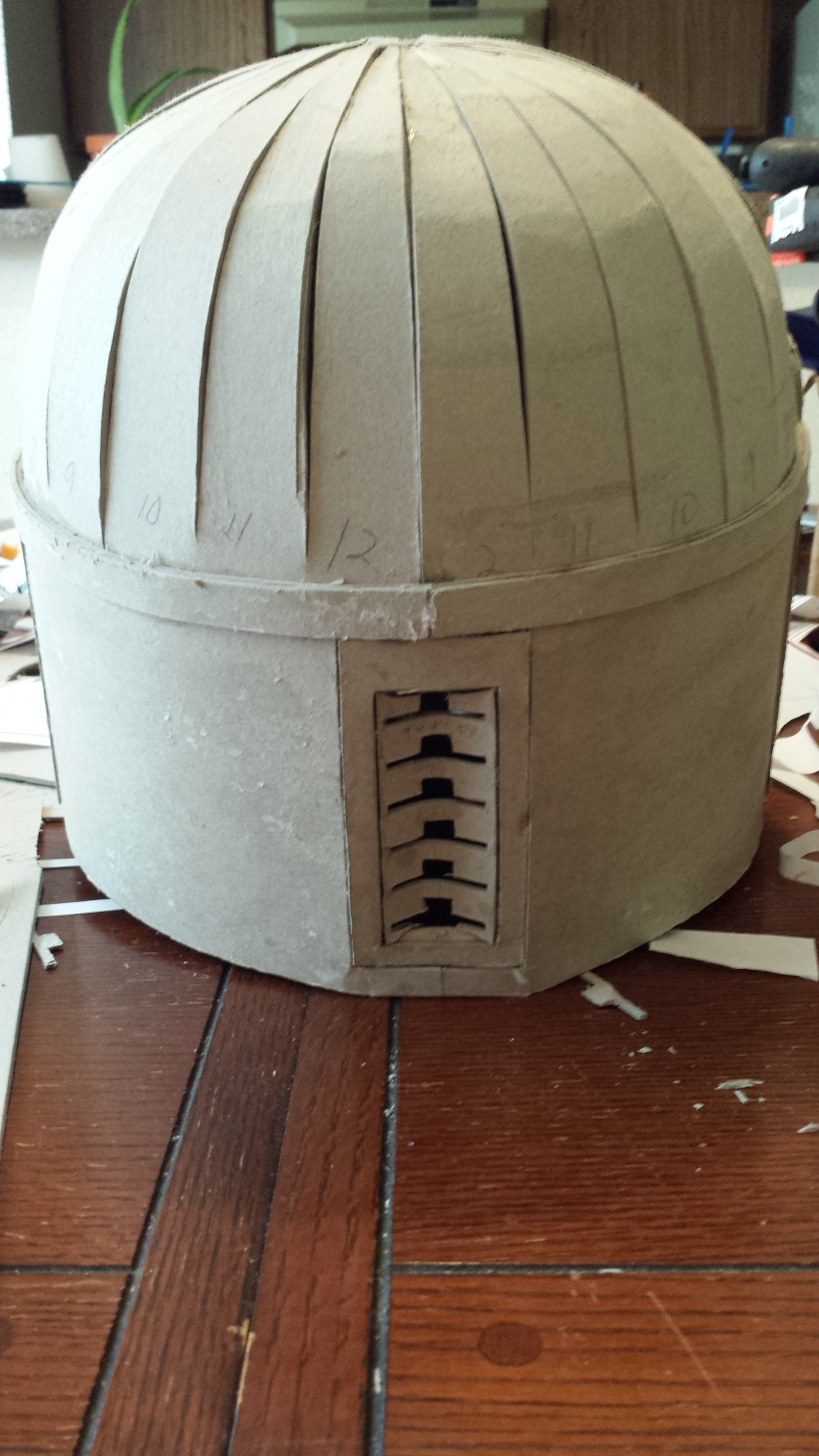

So yes I had been test fitting the helmet as I went to make sure I would have enough room inside to add fans and other things later, but now it's time to cut out the visor just enough to see what it looks like when it's on. I also added the keyhole in the back. Not 'too' happy with it, but giving myself a break as it is my first bucket, and I think I can 'fix it in post,' as they say

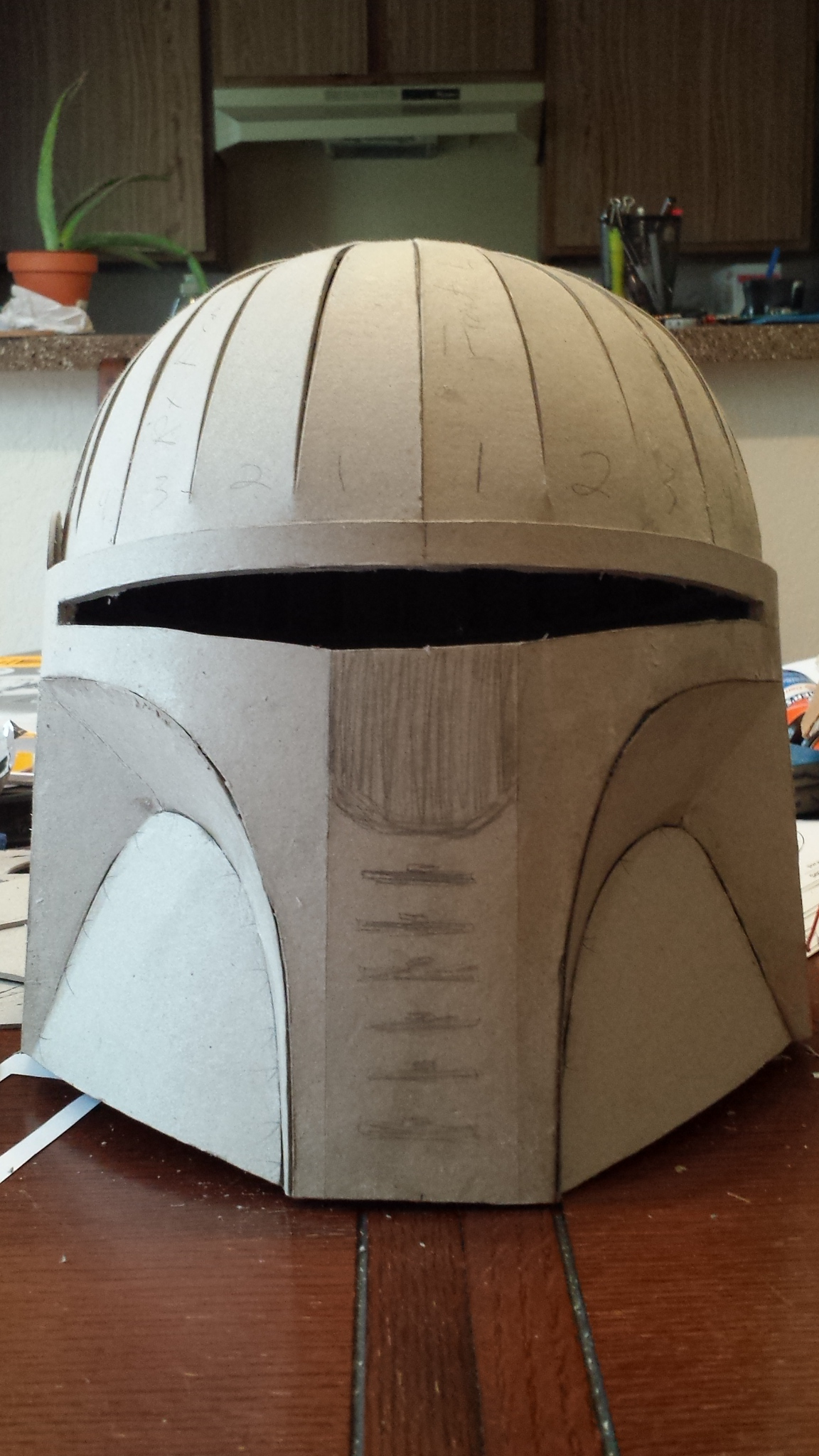

I'm not a 100% sure how I want to do the visor. I don't think I want to do a standard T-visor, so I have been searching the interwebs for ideas. Trying to be a little original here. I penciled one of my ideas on the mask

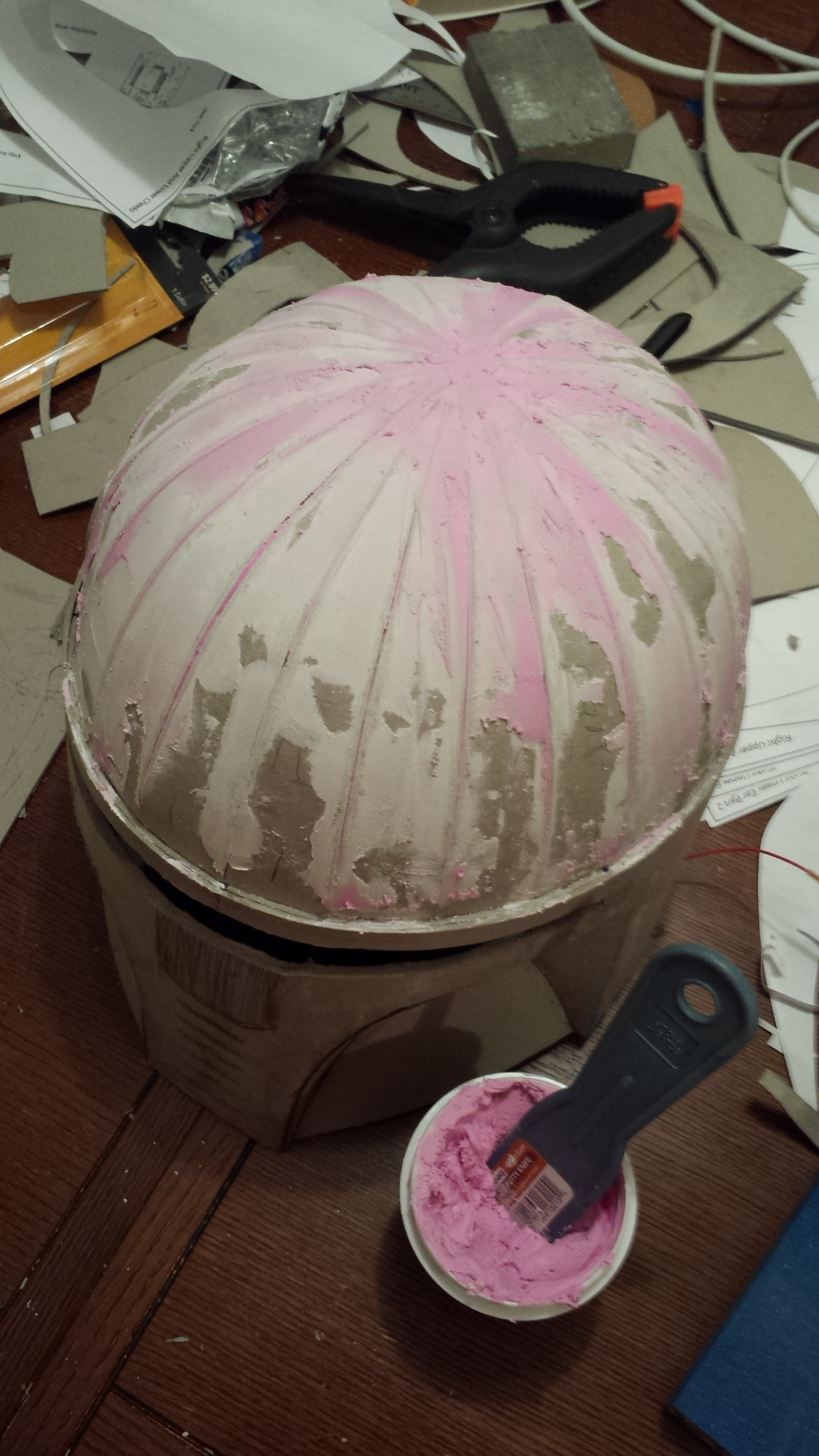

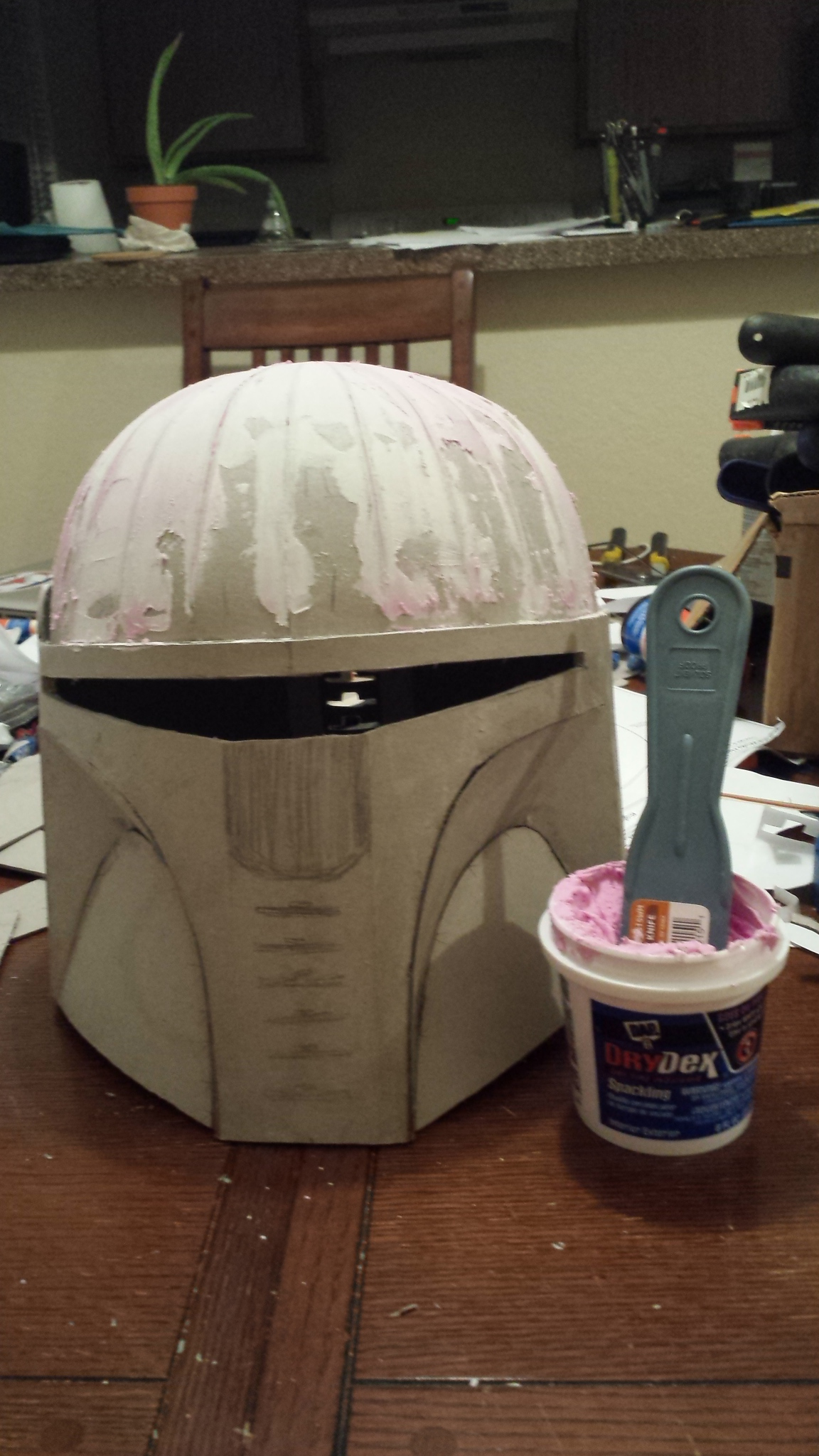

Finally, it's time to close up the seams and prep for fiberglassing. I took standard caulk to the cheek parts (but forgot to take a picture) and used spackle on the dome to fill in the gaps and start to shape it.

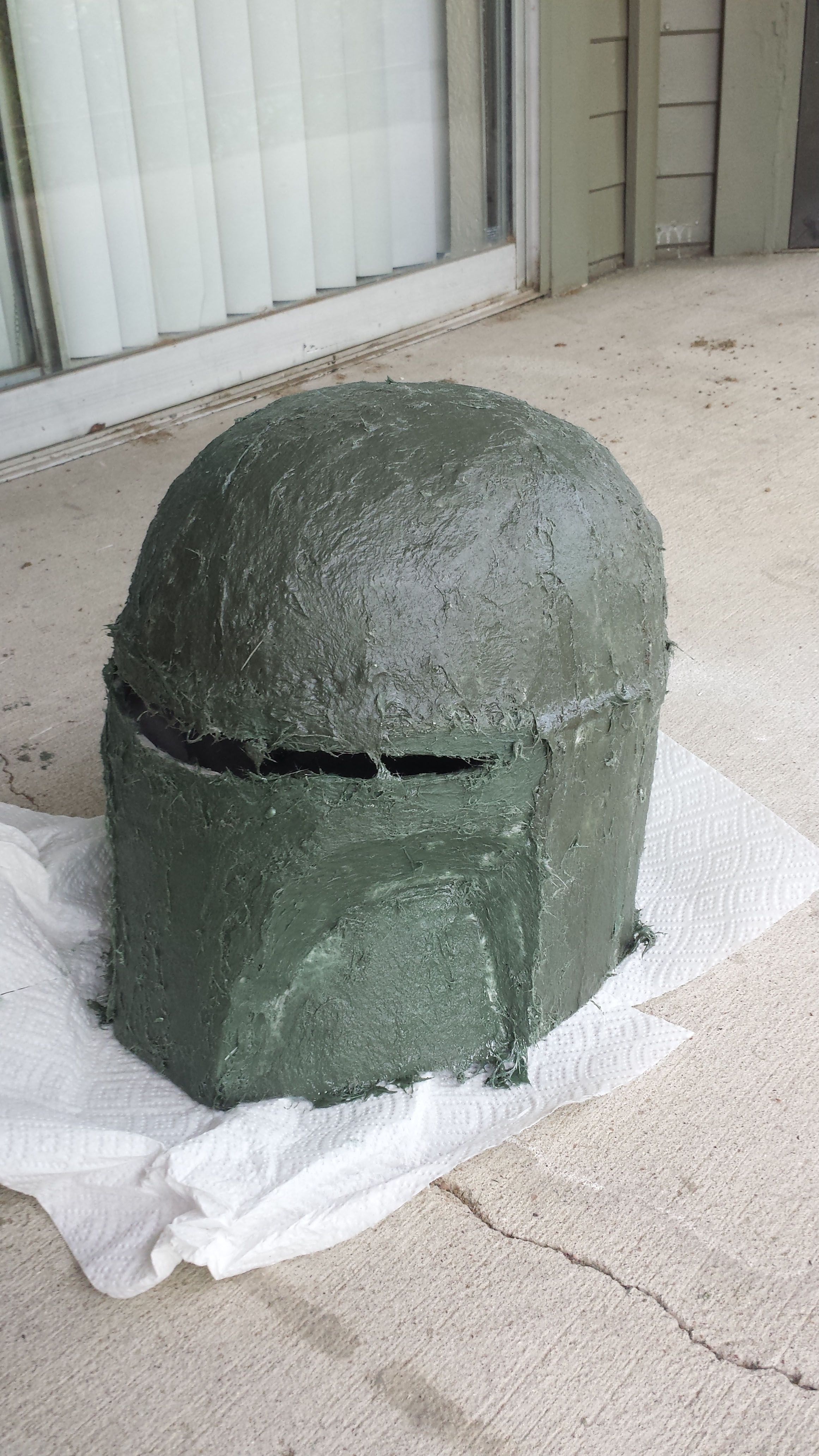

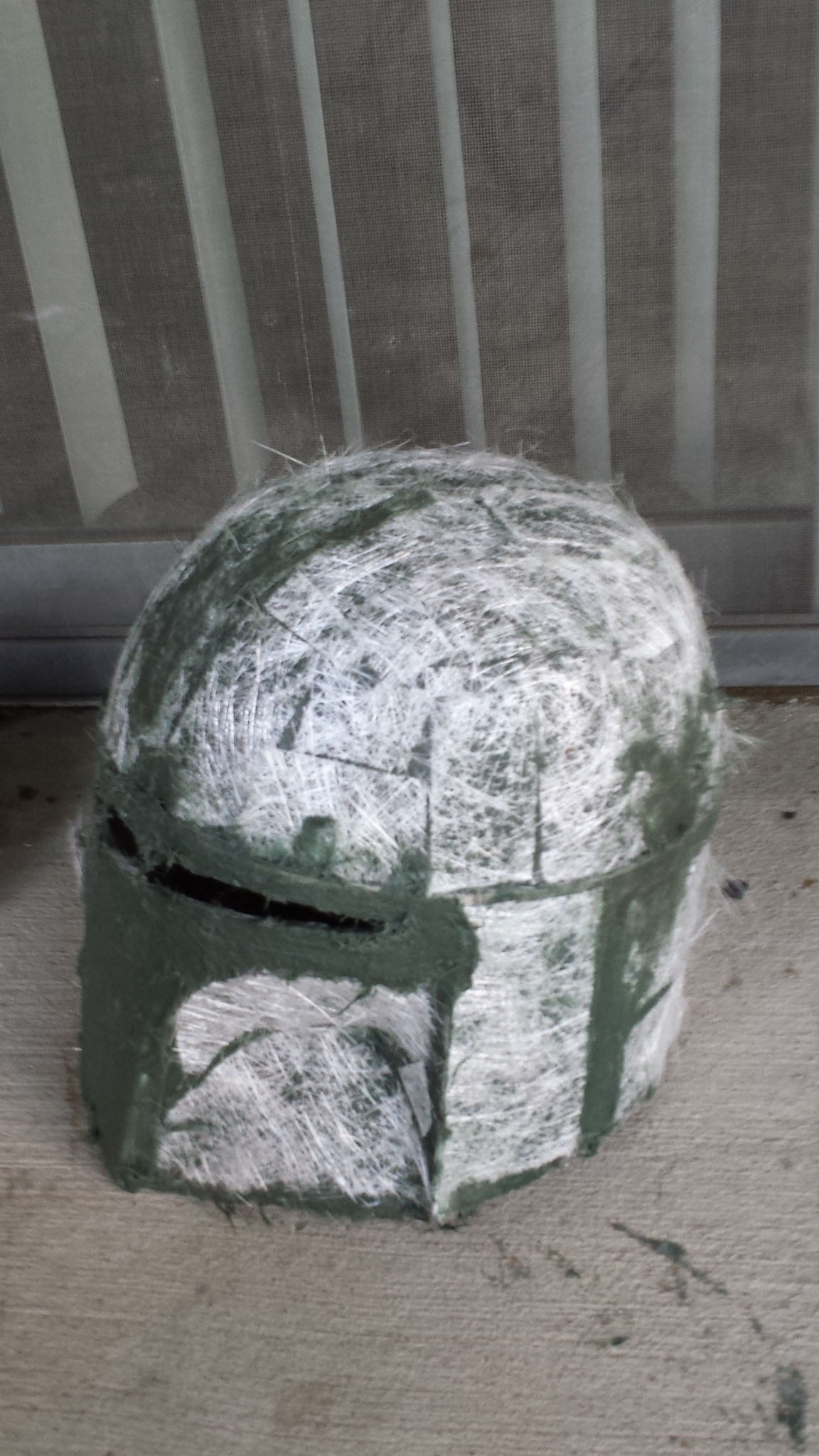

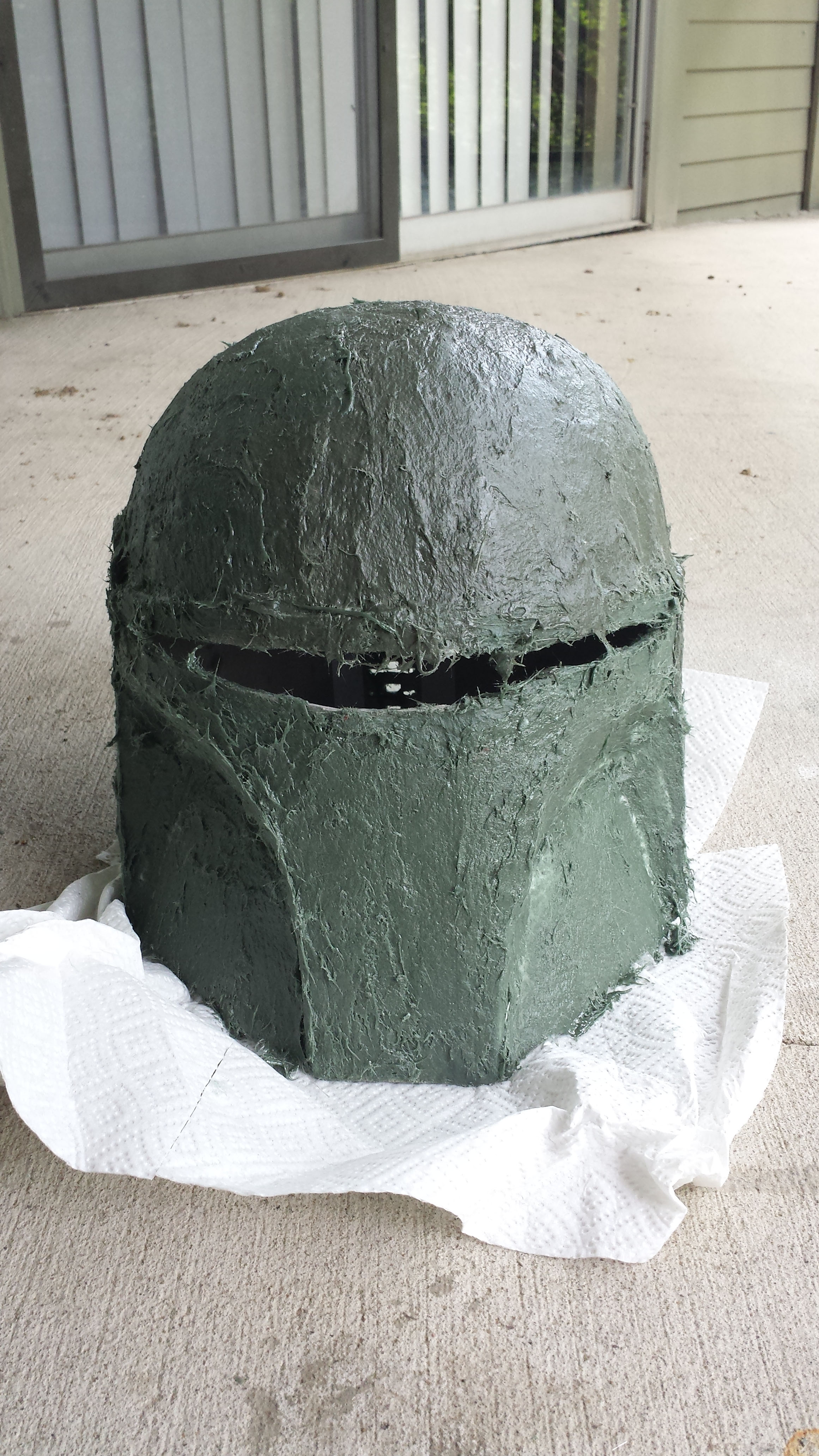

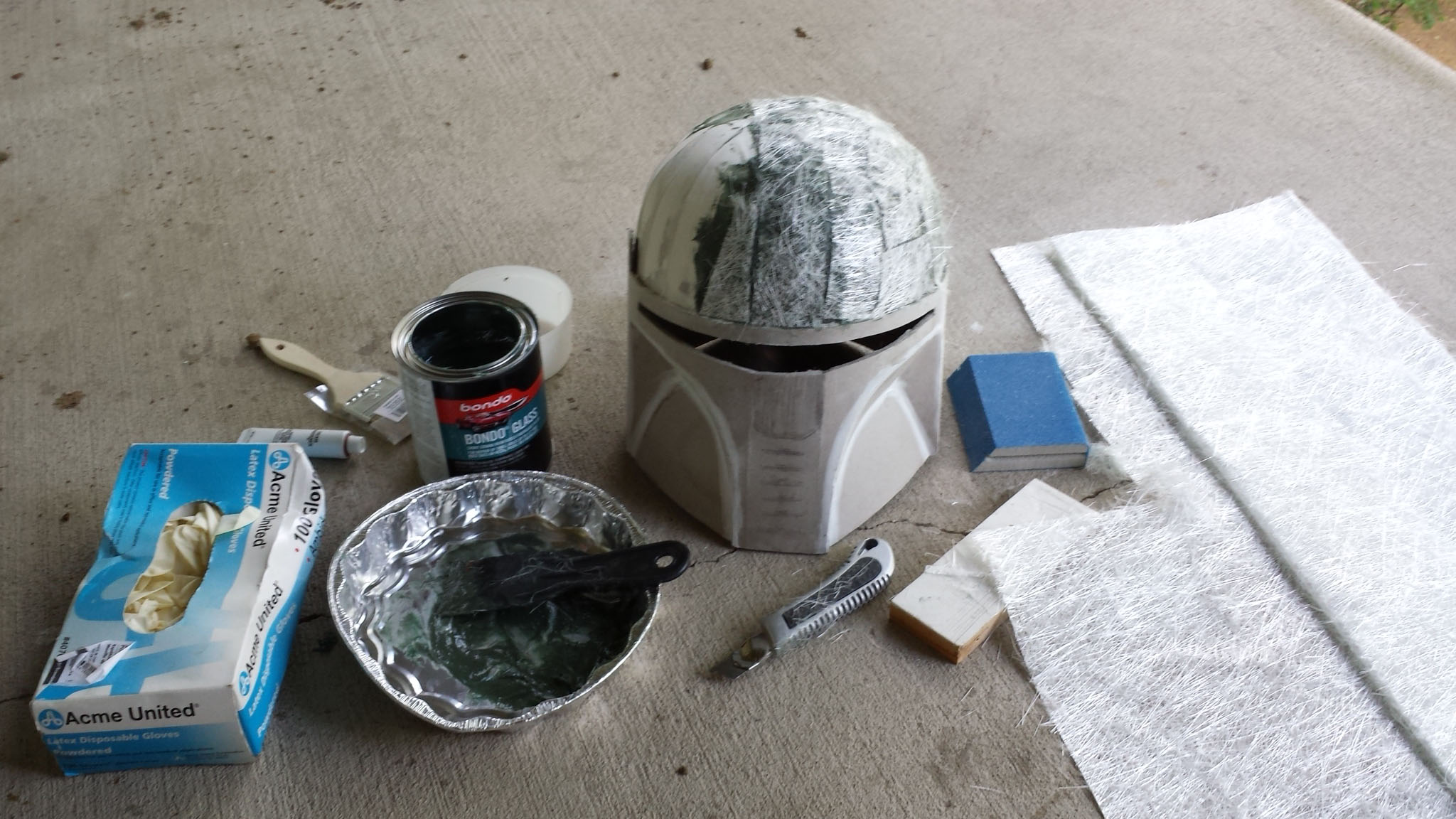

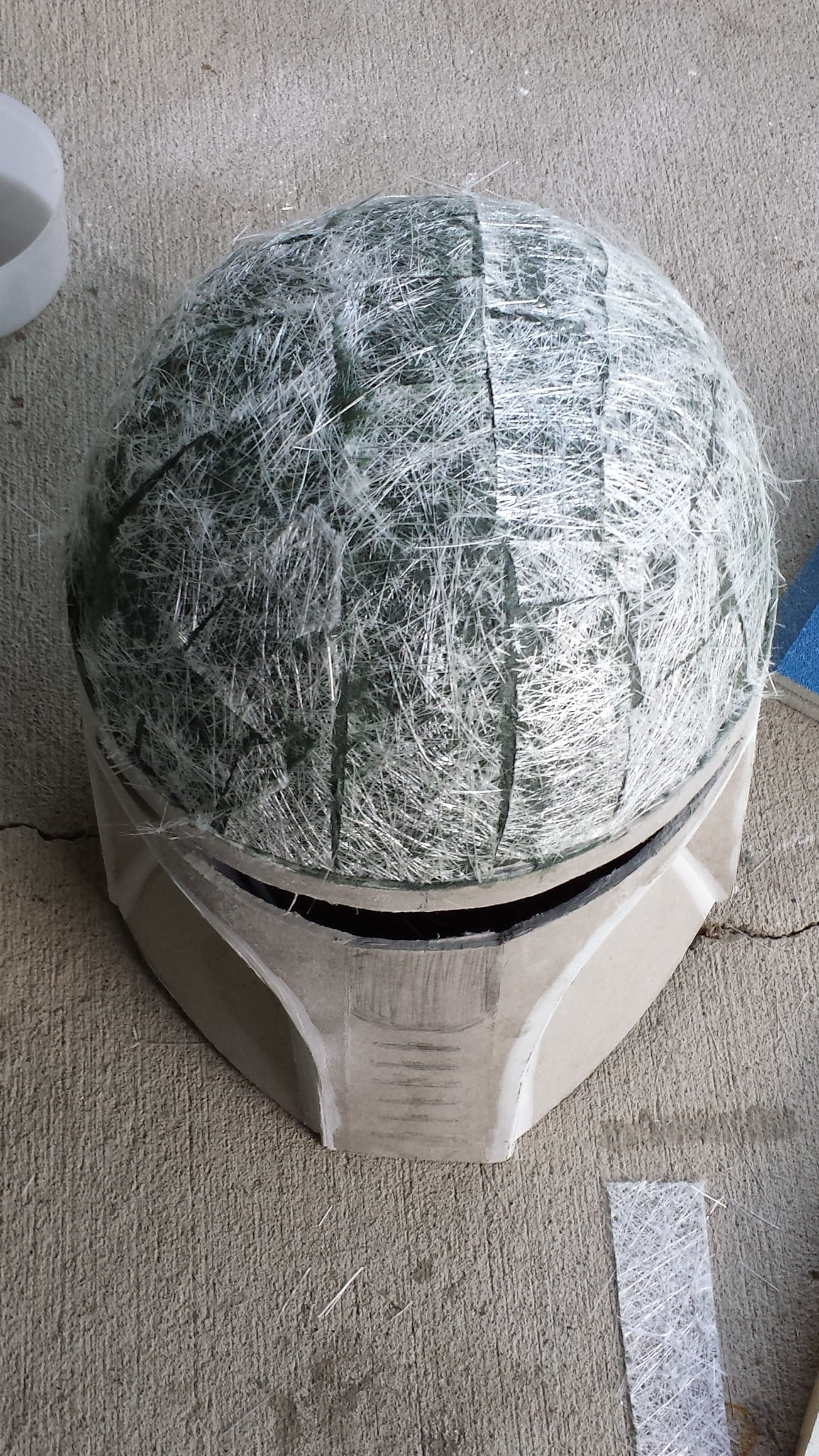

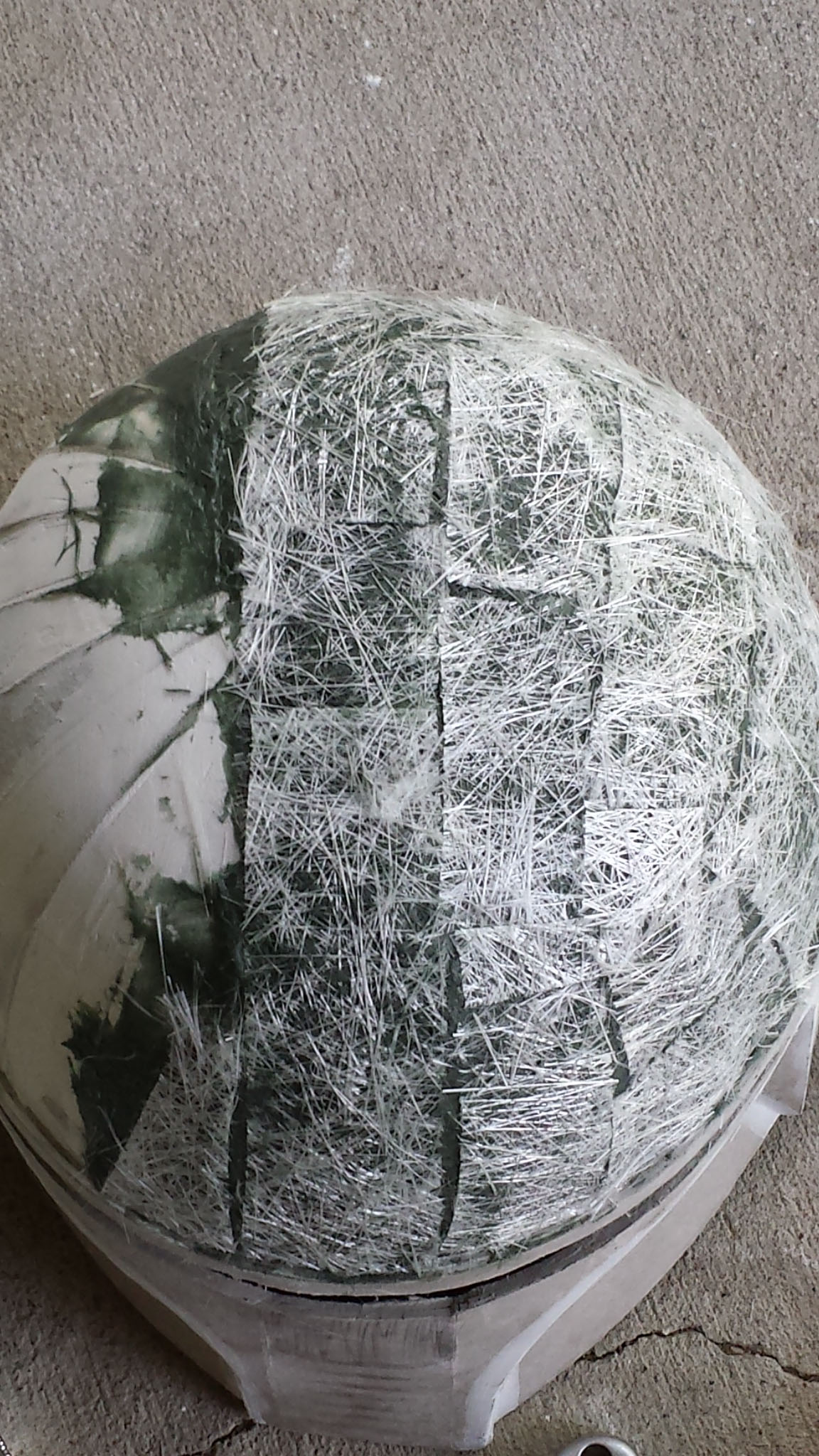

Next post I'll tackle the fiberglassing.
So, like most of the scratch builders out there, I started with the Wizard of Flight templates, but had some sizing issues between the dome and the mask (dome was too small.) This was because I figured out too late that "fit to page" is not necessarly a good option when printing a PDF, especially if the mask and dome templates are in two different files...
I later tried a combo of WOF template with RafalFett's because I had already started the mask and before I continued wanted to make sure I would have a dome that fit, and again, that did not work out well, so I finally ended up using the RafalFett v2 templates and so far so good.
So, after starting over, I made sure to completely build the mask and dome using RF templates out of posterboard for sizing purposes and to make sure the bucket was going to fit. Thank goodness, because I ended up having to resize the PDF's a bit to get the right fit. I had read to do this in other posts, but was too anxious to get started and skipped it.
Lesson #1: BE PATIENT

So after prototyping with posterboard, it was off to Hobby Lobby to get some 2mm cardboard for the real thing. I decided to use it for both the inner and outer parts of the bucket for extra strength.



The dome on the RF templates is a little more involved, but the extra supports really help with getting a good shape.
Next I attached the outer part of the mask...in other posts I've see where almost the complete bottom half was done before attaching the dome, but again, I wanted to make sure it was all going to fit and being my first build I was figuring out how everything went together.
Below is the mask attached with light surface cuts for the visor and cheeks. I later took a pencil and traced them to have more distinct lines for cutting. Even thought I was using a spray bottle to help soften the cardboard for shaping, I had to use a lot of clamps to make sure the outer part of the mask was glued really well.
Lesson #2: YOU CAN NEVER HAVE TOO MANY CLAMPS




Next it was time to cut out the cheeks. My research showed that this could be tricky to get the right fit. I cut a 45 degree angle on the upper cheek parts like I saw from RafalFett's v2 build (or was it Antman?) Anyway, YES do that






So yes I had been test fitting the helmet as I went to make sure I would have enough room inside to add fans and other things later, but now it's time to cut out the visor just enough to see what it looks like when it's on. I also added the keyhole in the back. Not 'too' happy with it, but giving myself a break as it is my first bucket, and I think I can 'fix it in post,' as they say



I'm not a 100% sure how I want to do the visor. I don't think I want to do a standard T-visor, so I have been searching the interwebs for ideas. Trying to be a little original here. I penciled one of my ideas on the mask

Finally, it's time to close up the seams and prep for fiberglassing. I took standard caulk to the cheek parts (but forgot to take a picture) and used spackle on the dome to fill in the gaps and start to shape it.


Next post I'll tackle the fiberglassing.
