UPDATED PRINTABLE ARMOR TEMPLATES - In various sizes

[Josepo]

The 5-3 (<== click this to download the template) is what you need.

Im 1m 80cm which one do I need to print?



[RafalFett]

Im 1m 80cm which one do I need to print?

By doing a simple online conversion from meter to feet, you'll get 1,8 m = 5.9 ft, so you need the 5-9 one (click here to download ==> https://www.thedentedhelmet.com/forums/attachments/boba-fett-armor-5-9-pdf.52013/).



[Josepo]

By doing a simple online conversion from meter to feet, you'll get 1,8 m = 5.9 ft, so you need the 5-9 one (click here to download ==> https://www.thedentedhelmet.com/forums/attachments/boba-fett-armor-5-9-pdf.52013/).

Wow!
Its the one i was goig to print!
Thanks you, Alan.



[RafalFett]

Wow!
Its the one i was goig to print!
Thanks you, Alan.

I'm glad I was a help for you, but I'm not Alan (wizardofflight), which is the original poster of this thread.



[Josepo]

Do you have any forearm template of boba (I mean this part):



[Josepo]

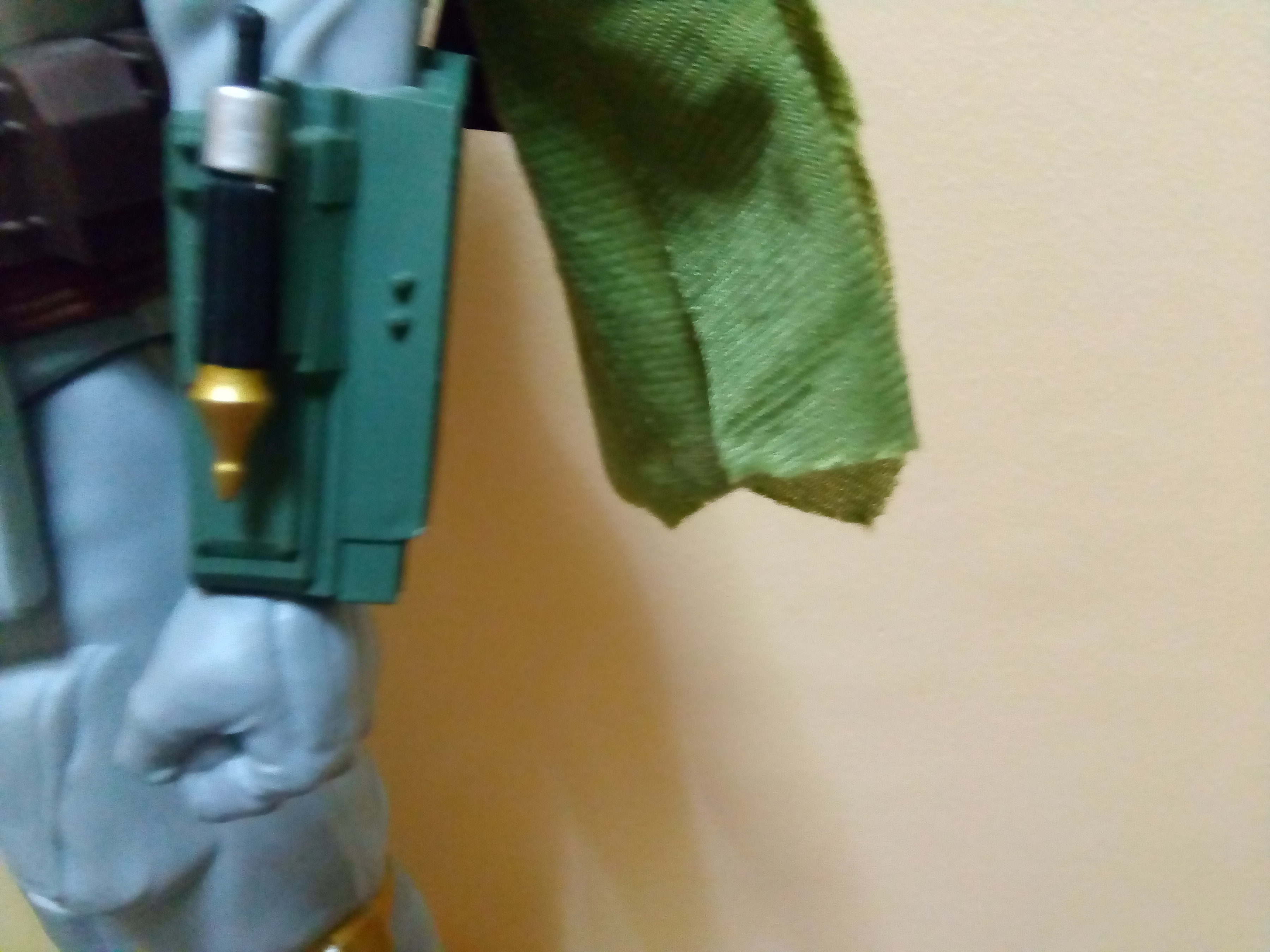

Do you have any forearm template of boba (I mean this part): View attachment 154227

The part where has a flamethrower and a small rocket.



[Josepo]

I'm glad I was a help for you, but I'm not Alan (wizardofflight), which is the original poster of this thread.

Sorry. I make mistakes usualy like this one. I respect you a lot.



[TDR1411]

I'm 1 m, 72-73 cm or 5ft 7-5ft 8, which one do I need?



[StarlordFett]

I'm 5ft 9 and 48inch chest.. quite muscular would you recommend I go for the medium size templates or large.

Also am I missing something, or confused I can not see thigh armour or leg armour is that on another post/thread?

I'm based in the UK too if there are other Uk folk here

Awesome work too!



[Frank]

Thank you very much for uploading these files... it's much appreciated!!!! This is a huge help for my armour build.



[Swwolf36]

F

UPDATED 6/25/08 Small Size Armor Added
Size from 5'-6" down to 3'-4"

Hello,

Well, I finally got around to converting my Boba Fett Armor CAD files into standard GIF images that will print out on standard 8 ½” X 11” paper they come in three basic sizes, but I have included scaling factors to cover folks from 5’3” to 6’. For those over 6’ I will be working on an extra large version in the near future. For the time being you can try print the Large Templates at scaling factors of over 100%, but you will have to print out the templates out on additional sheets

Each Zip file is over 3 MB each, and they each contain 22 files. The armor files consist of 20 8 ½” X 11” pages and 1 layout drawing, some of the armor pieces have to be printed on multiple sheets and then spliced together. I have included witness marks on these sheets to facilitate matching up the pieces. These files are full size and do not require the “Fit To Page” print option, simple print at 100%.

The 22st file is a printer test page that contains a 5” scale in both the horizontal and vertical, I’d recommend printing this page before attempting to print the templates to verify that your printer will not distort them. Just print it out and measure both scales they should equal 5” each, if not then check your printer options

My bandwidth is limited and with the size of these files it won’t take long to exceed it, please be patient they will be online for some time

See the Jango section for downloadable Jango armor templates.

If you have any questions or comments please let me know

Alan
wizardofflight@comcast.net
Fantastic, one that has my size, thank you so much for your hard work and sharing, Adie
