Kill Stripe Size

[starsaber25]

Hello all. I’m about to stencil out my kill stripes on my ROTJ Hero helmet. I’ve been using Rafal stencils throughout my build but I just don’t think I have the sizes correct. Would someone be able to tell me the length and width of the kill stripes. I know some vary but what is the general measurement. Thanks.



[Short4ATrooper]

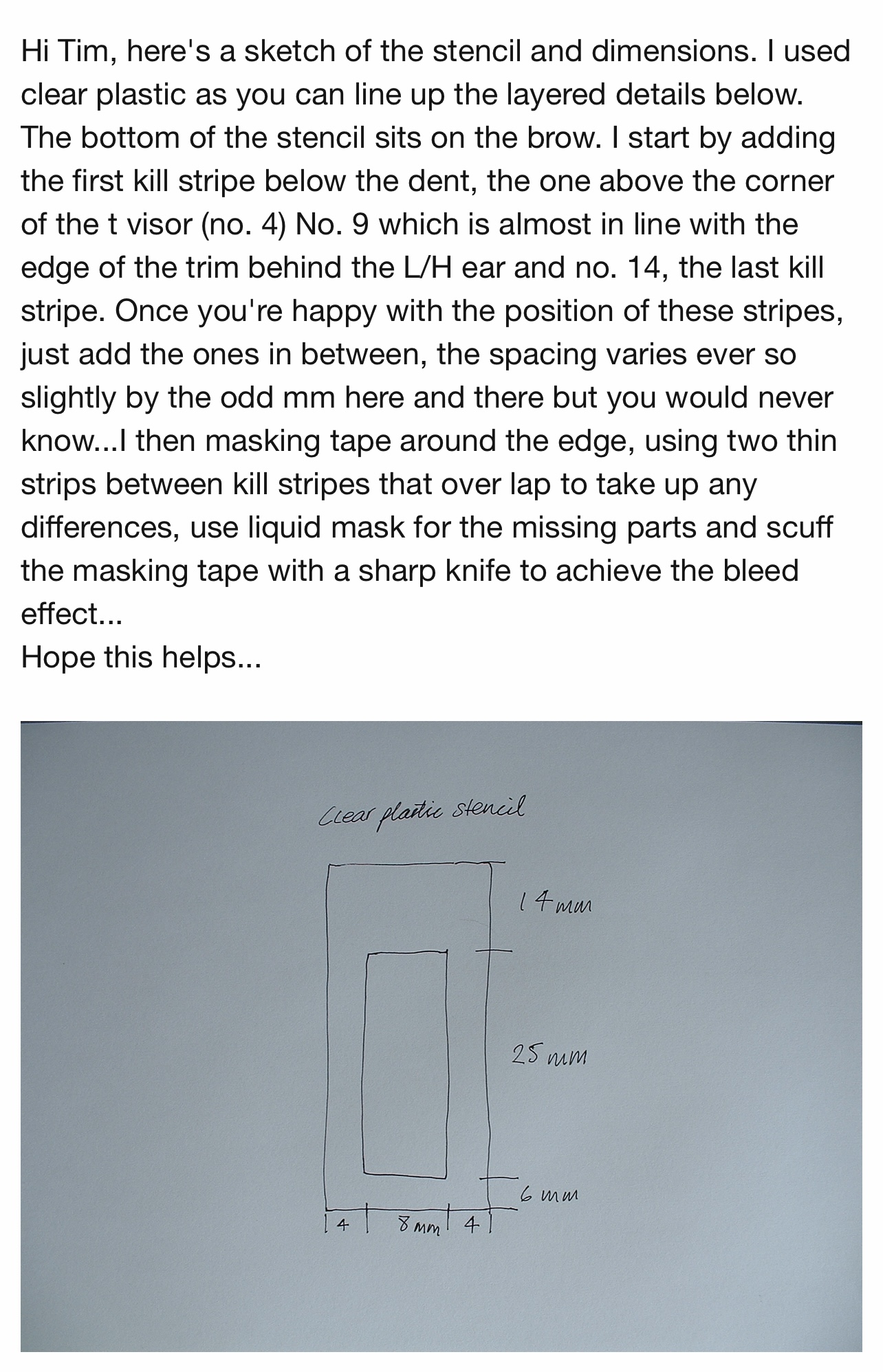

Hope this helps, from a Terminal Fettler paint up thread:

So, in general - each strip is 8mm wide x 25mm tall with a 4mm gap between each stripe.

All stripes are 6mm up from the trim.



[starsaber25]

Thank you so much!!



[Eli Jinn]

Hope this helps, from a Terminal Fettler paint up thread:

View attachment 235589

So, in general - each strip is 8mm wide x 25mm tall with a 4mm gap between each stripe.

All stripes are 6mm up from the trim.

Aren't the ROTJ kill stripes smaller than the ESB ones? If I'm not mistaken, that template was from an esb paintup.



[superjedi]

Yes, that write up with measurements is for ESB.



[Short4ATrooper]

Yes, that write up with measurements is for ESB.

Oops! My bad. Disregard in that case then.



[starsaber25]

Well ok then. Does anyone have the measurements for ROTJ Hero?



[starsaber25]

Would anyone be able to help out? Thanks



[Eli Jinn]

Would anyone be able to help out? Thanks

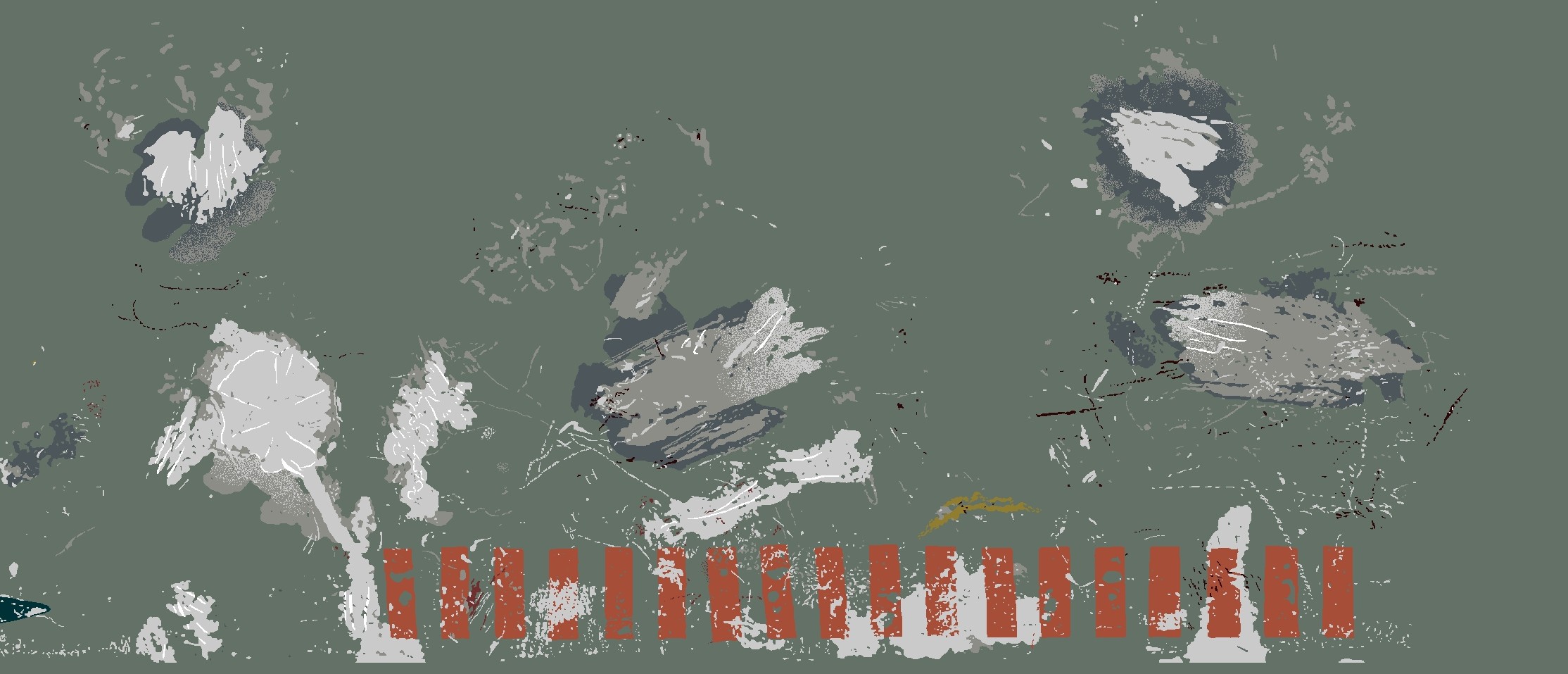

Sorry, I don't have anything. My best advice would be to carefully compare the sizes with the rest of the damage on the helmet using this image as a guide:

Or you could use the separated killstripe "decal" that RafalFett made for this thread and trust that he sized them out properly.
Or maybe he will see this thread and swoop in with an answer himself.



[ShortFuse]

Would anyone be able to help out? Thanks

Sorry, I must have missed this post somehow. The ROTJ killstripes are approximately 6mm wide x 20mm tall,, with 5mm space in between each one. I say approximately because some helmets may be different than others and the killstripes would need to be scaled up or down to fit the scale. These measurements should fit the "hero" sized helmets though.



[starsaber25]

Sorry, I must have missed this post somehow. The ROTJ killstripes are approximately 6mm wide x 20mm tall,, with 5mm space in between each one. I say approximately because some helmets may be different than others and the killstripes would need to be scaled up or down to fit the scale. These measurements should fit the "hero" sized helmets though.

Thank you so much for the help!!
