Jango Holster buckle thingy?????

tc2917

Active Hunter
Not sure what it is actually called? But question is what are you guys using to make it. and do you have any templates or measurements?

I am speaking of the the chrome piece pictured.



Jango 5204

Active Hunter
I used sintra. Cruzer uses PVC pipe I believe. cut it so it has a flat back. I'm sure Cruzer could provide a measurement.


Master Fett

New Hunter
I would also be very interested in a pattern for the size of this. I plan on making mine out of a strip of aluminium, but need help on the scale of the thing.
Much thanks in advance


Cruzer

Well-Known Hunter
I call it a "d-ring holder"...since it holds the d-rings on the Jango holster rig...and have made more than I'd like to remember (50-give or take a few).

I searched high and low for a handle, thingy, anything made of aluminum, fiberglass, resin, etc. that had the accurate shape (1/2 round top, flat bottom) and the closest I came was an aluminum handle to a pair of garden cutting shears from Target. But it still wasn't accurate enough because it was about a 2/3 round top.

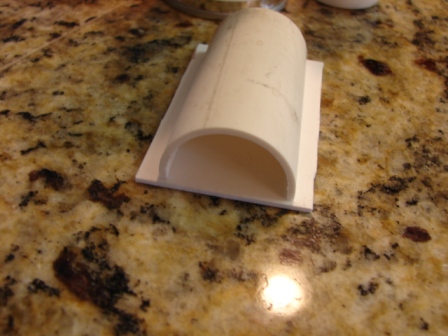

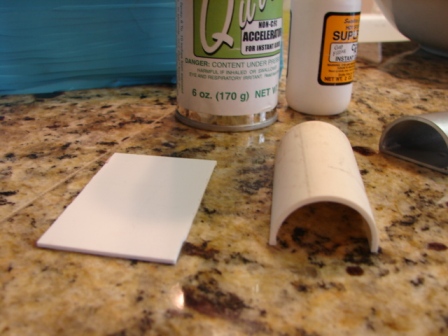

So, I make my own out of 1" pvc class 200 pipe and 1/16" styrene sheet. Glue the two pieces together, trim, sand, primer, sand, R&B, and glue it to a piece of leather to be screen accurate.

Here are a few pics that might help you in your build. I think the accurate width is somewhere between 2.25"-2.5", but I usually make mine about 2.75" to accomodate taller heights than Temura's. (y)

Hope this helps,
-Cruzer











Cruzer

Well-Known Hunter
No problem.
If it turns out to be too much trouble and $$ gathering everything up for just one holder, let me know and I can probably hook you up with the pieces for cost plus shipping.(y)


tc2917

Active Hunter
No problem.
If it turns out to be too much trouble and $$ gathering everything up for just one holder, let me know and I can probably hook you up with the pieces for cost plus shipping.(y)

Thanks Cruzer! I actually had all the material lying around the shop! I will post up some pics later. I just finished the girth belt so I take pics and post all together!
