Don’t know quite what happen to my original thread went to add an update on the flat pattern templates and thread was gone. Must have gotten dropped in the last move. This was the original link: http://www.thedentedhelmet.com/sh.....the pinnacle of Jango Fett gauntlets!! Alan


Attachments

Last edited by a moderator:

GCNgamer128

Sr Hunter
The second you finish these gauntlet templates, they are going to be lasered ;) So be sure to shoot these files to me in CAD! Thanks ahead of time :)

Andy


wizardofflight

Well-Known Hunter
I am still working on the flat patterns for both the Boba & Jango gauntlets. I just had a major break through. Now if I can get some time to work on them it shouldn't take too long, so stay tuned.

All of my drawings and templates are done using reverse engineering techniques from photos of the props.

Alan


KaanE

Well-Known Hunter
On having printed it as fax, Which is the scale?

If you have it, if not nothing happens.

;)


wizardofflight

Well-Known Hunter
I am still working out the kinks and when they are done I will be posting a complete set of flat pattern templates with all of the info that you will need to create a set of gauntlets. The gauntlets have proven to be one of the toughest pieces of Fett armor to blueprint. I only get a hour or so a night to work on them so it takes time.

Alan

Last edited by a moderator:

KaanE

Well-Known Hunter
Hi guys, comparing it with that of Jango 0.75, printing it as fax it goes out for me to multiply for 2'3 cm.

Regards:)

PD: My forearm is of 25'5 cm

Last edited by a moderator:

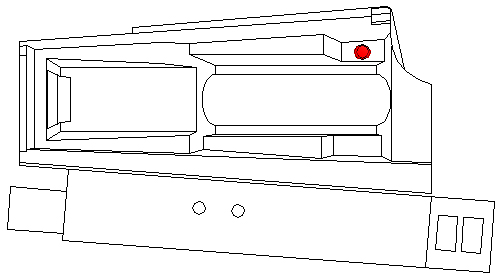

I was going through AOTC frame by frame during the jango-obiwan scene, as well as the special features in the bucket head section, and noticed something appears bright red on the jango costumes left outside guantlet, anyone know what it is? is/are one of the nozzle tips painted red possibly?


Skupilkinson

Active Hunter
Hi, this is my first post.

Alan, love your templates! I'm just waiting to get supplies to get started on my own Fett gear.

Any updates??


wizardofflight

Well-Known Hunter
I am still working on them. I have nearly finished the Boba Fett version I just need to do a test fit and most kilely have to update the drawings. Then I can get back to Jango's.

Christmas has put me behind and I have a cold. I am only up now because I had a coughing fit and had to sit up for a while.

These are next on the list to be completed.

Alan


wizardofflight

Well-Known Hunter
Sorry I haven't finished these yet, to be honest I have gotten a little burned out. I have spent the better part of the last 2 years creating Fett patterns so I am working on a few other projects to take a break, plus I have a couple of commissions that need to be completed before I can get back to my own Boba Fett and the gauntlet patterns.

But, I can say that that I have completed the basic 2D drawings for the Jango gauntlets; also I am in the process of learning Rhino. Once I have created the gauntlets in Rhino, with just a few clicks Rhino will make flat patterns, which will save a ton of time.

I haven't given up on these, just needed a rest.

Alan
