Gauntlet Hose Connector

Jesuit24

Hunter
Could anyone offer me my options when it comes to making the hose connectors? I'm scratch building SE gaunts from WOF's templates but I'm unsure how to get hold of these greebles. Halp.


Necronaut

Hunter
I couldn't find the right diameter on their by-the-foot rolls of tubing. Instead, I bought one of their kitchen sink spray wand sets. The hose is about the right size.


Jesuit24

Hunter
Right now I'm looking for the hose connectors rather than the hose itself (although those hose options will come in useful). I'm in the UK, so Home Depot, Lowes, etc won't ship to me. I've had a look in Wickes and B&Q, but nothing quite looks right.


Peregrinus

Active Hunter
D'you mean the sticky-out remnants of the connectors on the side of the right gauntlet? Or the connector attaching the hose to the rocket on the left gauntlet?

--Jonah


Jesuit24

Hunter
The two right gauntlet nubs. I plan to stick with the on screen version rather than the promo version. I found the pieces listed here on TDH on Home Depot's online store (with a different make of pipe coupling), but there's no international shipping option. I found a listing on ebay for 5 flare nuts but they're rather overpriced when the shipping comes into it.


Peregrinus

Active Hunter
If you can find three 1/8" close nipples (no, I'm not making that up) and two 1/8" straight couplings to match, and two 1/4" flare nuts, and a bit over a foot of 1/4" brass or steel tubing, and some more brass or steel tubing that fits snug over the 1/4" stuff, and a small tubing/pipe cutting tool, you're most of the way there. These are the parts I got from my local hardware store:



You should be able to find something quite close to that -- standard or metric -- locally. Here's how they line up to the originals (I used the laser caliper dots to scale the picture up to 1:1):









I cut one of the nipples in half and screwed those bits into the "downstream" ends of the two couplers, cut and ground to the right length, glued a bit of the larger tubing over the 1/4" stuff, and that gives a nice enough fit for the epoxy to secure the whole thing to the tubing once you're done. The other two nipples get shortened a bit -- as you can see from the last picture above, they're a bit too long out of the pack. Once you've got it all the right length and glued together, you can paint them in an appropriate steel/aluminum/whatever metallic finish.

Useful?

[ETA: If you can't find this stuff locally, or anything equivalent/better, PM me and we can sort out having me snag some and send it to you.]

--Jonah

Last edited by a moderator:

Don Vanth

New Hunter

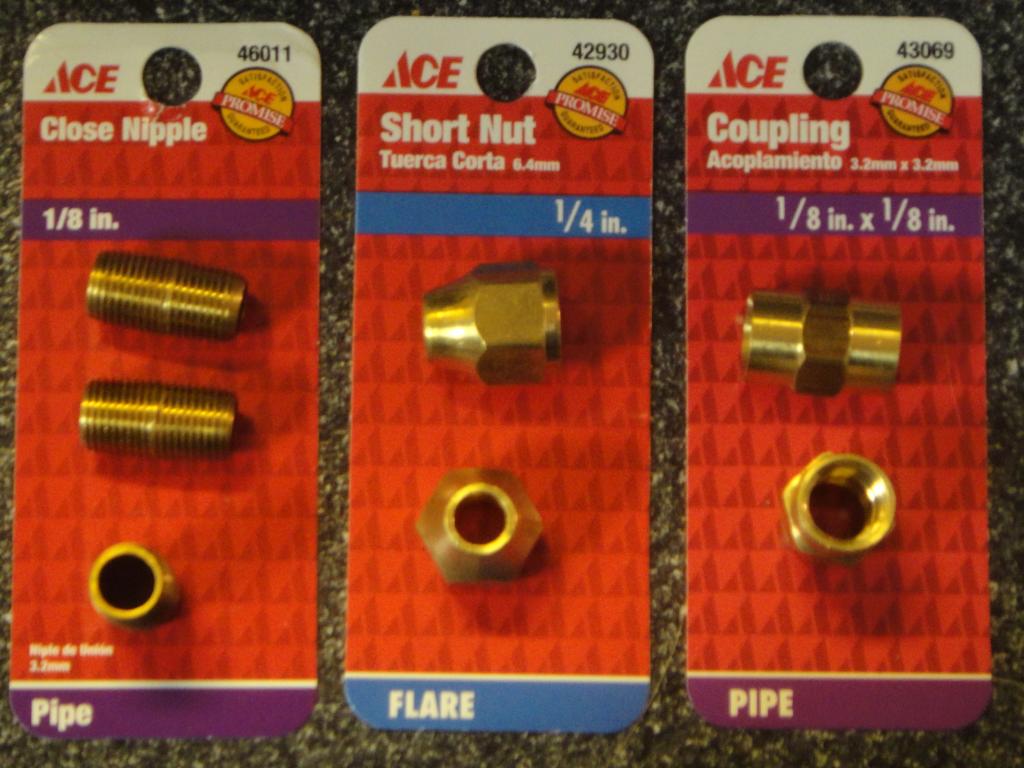

If you can find three 1/8" close nipples (no, I'm not making that up) and two 1/8" straight couplings to match, and two 1/4" flare nuts, and a bit over a foot of 1/4" brass or steel tubing, and some more brass or steel tubing that fits snug over the 1/4" stuff, and a small tubing/pipe cutting tool, you're most of the way there. These are the parts I got from my local hardware store:

View attachment 133857

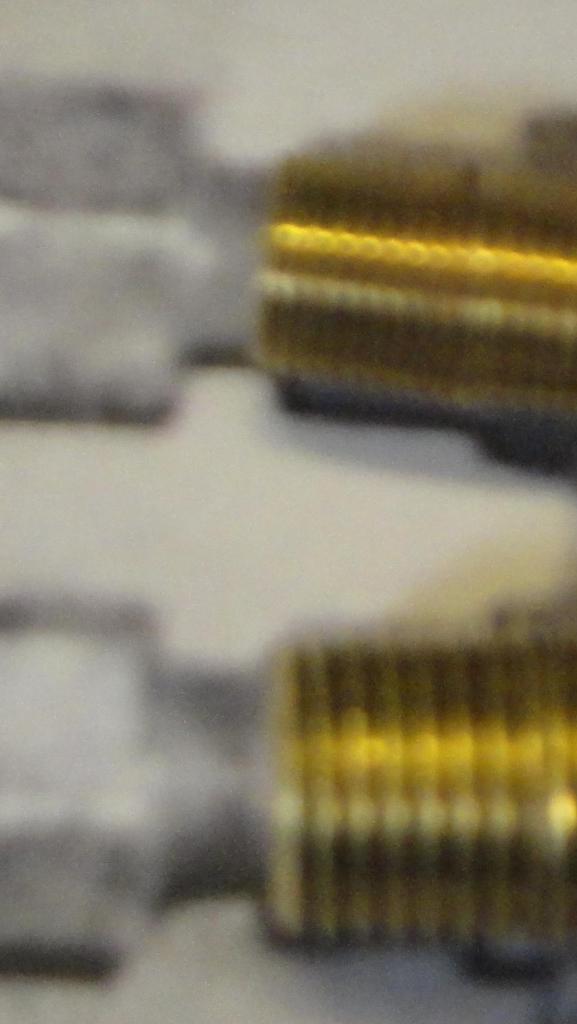

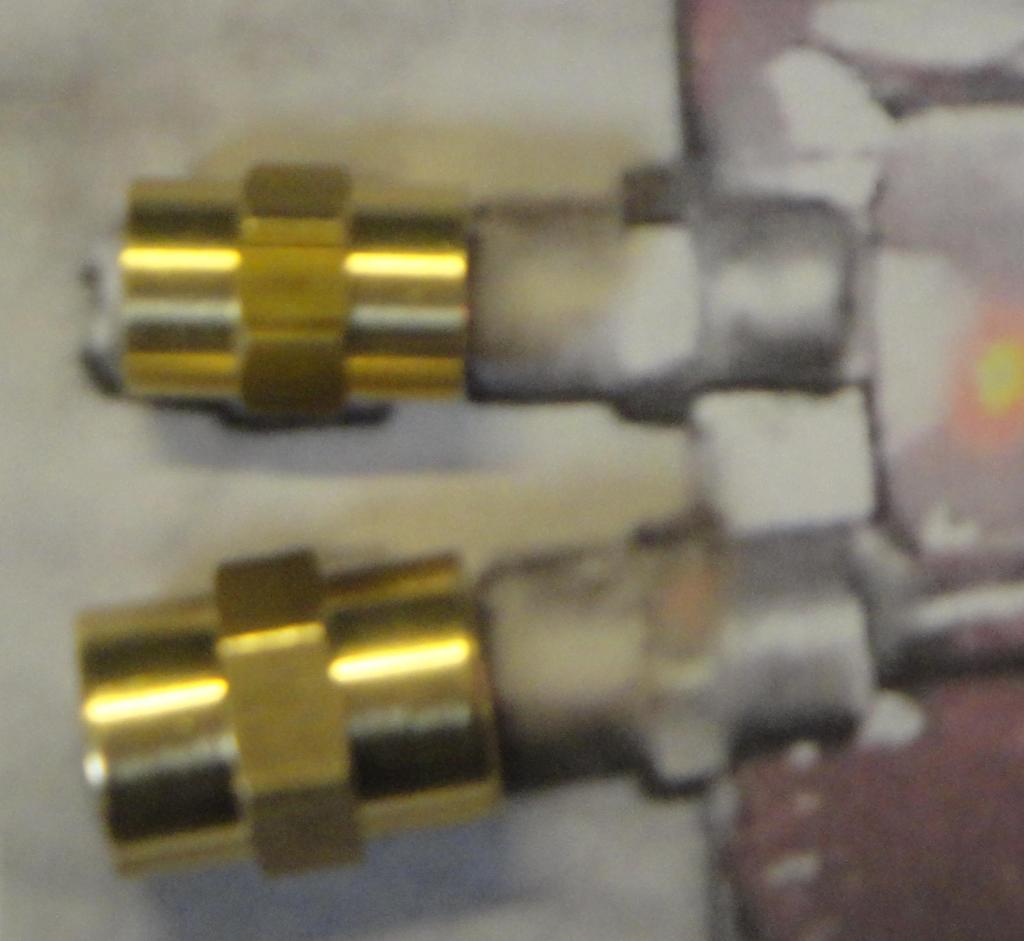

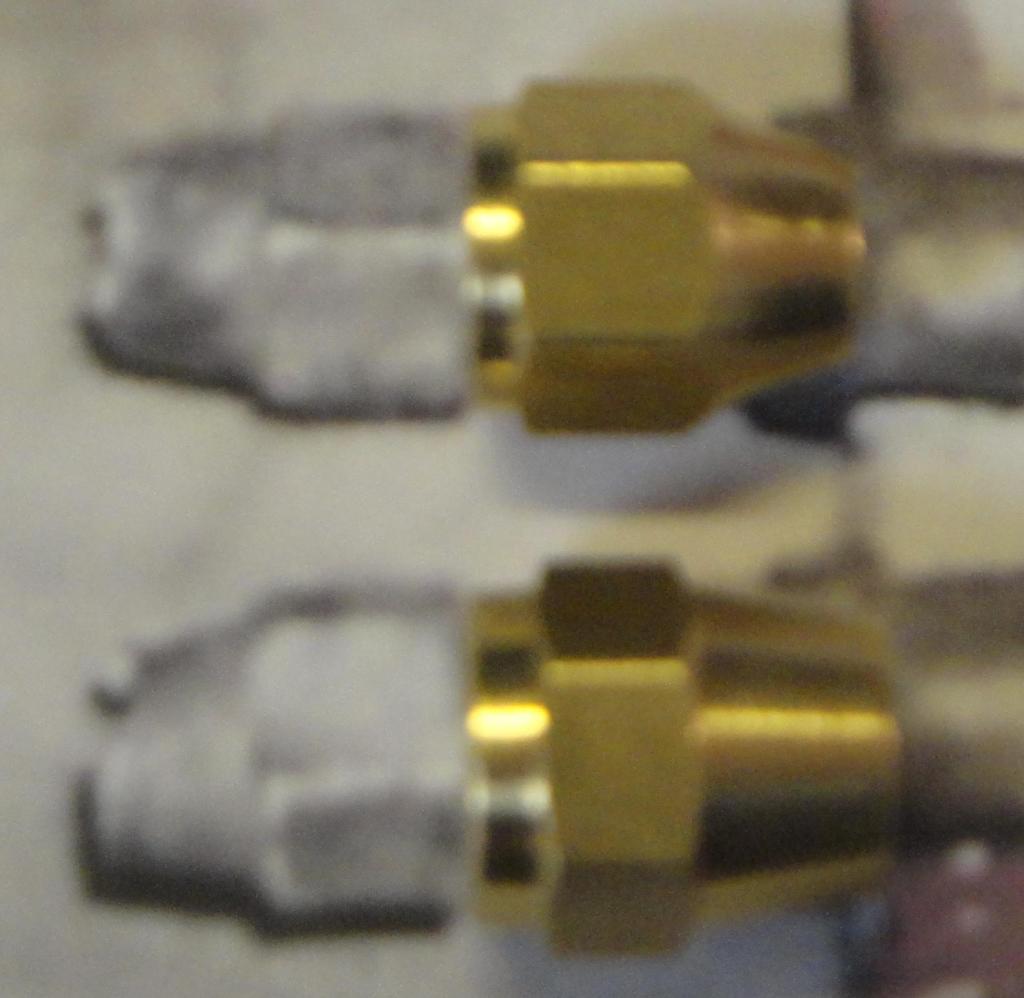

You should be able to find something quite close to that -- standard or metric -- locally. Here's how they line up to the originals (I used the laser caliper dots to scale the picture up to 1:1):

View attachment 133858

View attachment 133859

View attachment 133860

View attachment 133861

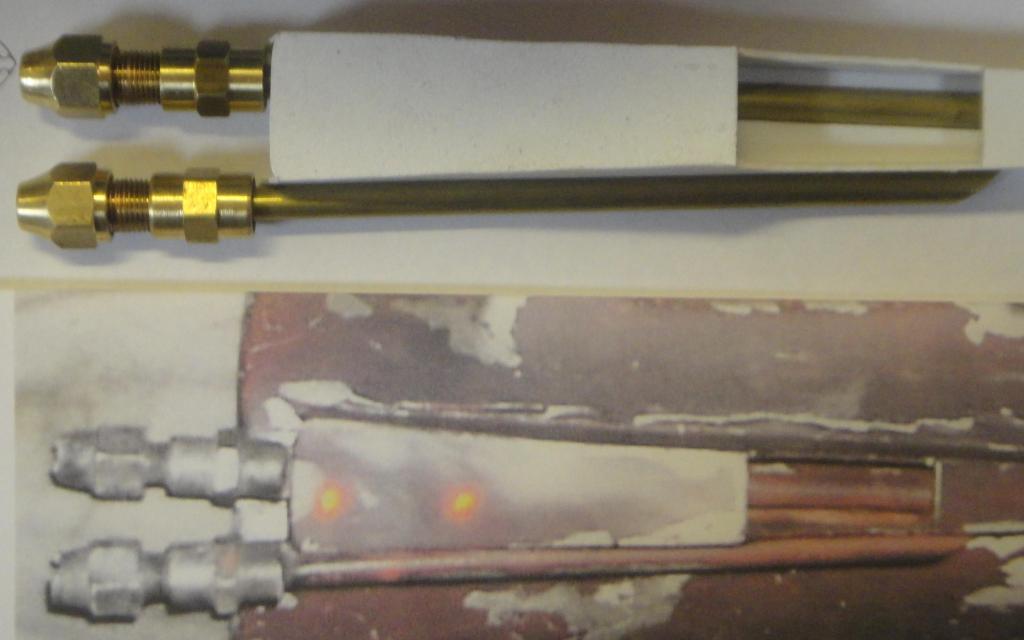

I cut one of the nipples in half and screwed those bits into the "downstream" ends of the two couplers, cut and ground to the right length, glued a bit of the larger tubing over the 1/4" stuff, and that gives a nice enough fit for the epoxy to secure the whole thing to the tubing once you're done. The other two nipples get shortened a bit -- as you can see from the last picture above, they're a bit too long out of the pack. Once you've got it all the right length and glued together, you can paint them in an appropriate steel/aluminum/whatever metallic finish.

Useful?

[ETA: If you can't find this stuff locally, or anything equivalent/better, PM me and we can sort out having me snag some and send it to you.]

--Jonah
2022 Update - my local ACE Hardware had two of the parts, but the 1/8"x1/8" Pipe Coupling is now being produced as a full hex (no cylindrical portions). The good news: the part was easily found at my local Lowe's.
After various other part attempts, many being too large, these sizes really work.

For those doing Cobb Vanth, there's a shot where he puts on his helmet with his right arm - the couplings are flipped from Boba Fett - flare nut is against the gauntlet. When you buy something off Jawas, it apparently doesn't come with instructions.
