So I'm almost done with my bucket, just need to finish the back and final weatherings, and I've decided to plunge into the world of scratch built gauntlets. To accurately scale the gauntlets to reference pictures can anyone tell me the dimensions of the areas outlined in the attached picture? (basically from end to end) Thanx in advance



[slave1pilot]

What is that left pic from?
the paint on the Whipcord is odd.

So I'm almost done with my bucket, just need to finish the back and final weatherings, and I've decided to plunge into the world of scratch built gauntlets. To accurately scale the gauntlets to reference pictures can anyone tell me the dimensions of the areas outlined in the attached picture? (basically from end to end) Thanx in advance



[Nutcore]

What is that left pic from?
the paint on the Whipcord is odd.

Thats is from the 3rd pre-pro suit (images are from brak's ref cd BTW)



[slave1pilot]

I didn't realize that the pre-pro had the White & grey gloves.
hmm..



[Nutcore]

I didn't realize that the pre-pro had the White & grey gloves.
hmm..

I believe by the 3rd pre-pro suit the gloves had already evolved to those seen in ESB



[slave1pilot]

Thanx.
now back on topic,
Do you need measurements of the real deal, or from some fan-mades?



[Nutcore]

I'd like measurements of real deal but I sure most fan mades are pretty close so either or will do.



[slave1pilot]

the measurements that I got off of a pair of Ruffkintoy's is
8 1/2 inches & 9 inches respectively.
Howver , the left gaunt is 10 3/8 inches on the flamethrower side.
I'm sure that someone here has exact measurements all the way around.

here's a thread of blueprints.
http://www.thedentedhelmet.com/showthread.php?t=9553
perhaps pghfett has some measurements as well.



[pghfett]

I just out this up a day or two ago...

Hey everyone, welcome a newb here LOL!

I am about 90%done with my fett costume and thought I'd share with the group the blue prints I made to construct my gauntlets. These are to scale and include the "yellow" pre-production gauntlet (all scaled to my forearmsize of coarse) Any way anyone scratch building are welcome to them. Also they were taken from pics blown up to scale from various images I located. Any imput is welcome check them out here...

http://photobucket.com/albums/b292/pghfett/



[pghfett]

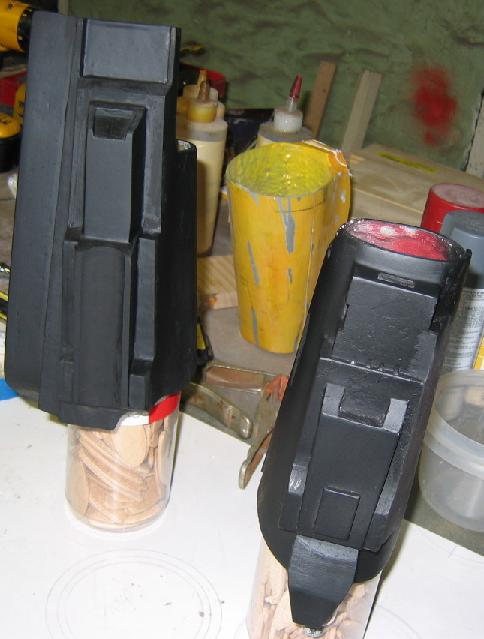

I added some prelimary pics of my scratch built gauntlets there not done - I'm a noobie - so try to understand they were made from my bluprints I put up a day ago

http://photobucket.com/albums/b292/pghfett/



[Nutcore]

I added some prelimary pics of my scratch built gauntlets there not done - I'm a noobie - so try to understand they were made from my bluprints I put up a day ago

http://photobucket.com/albums/b292/pghfett/

Yes I saw this thread about your blueprints but when I try to view them it says operation timed out.



[slave1pilot]

I cropped & resized the pics for you.



[pghfett]

thanks I resized my blue prints too.



[pghfett]

You all are too nice to a clueless noob like me... :confused



[Jango Fett Jr]

Wow! That is some fantastic work! What did you make these out of?



[pghfett]

West system epoxy and fiberglass mesh - they are not finished as you can see, I threw a coat of black primer on them for the pics. They are VERY durable and dont "float" around on my forearms. Now that my newbie butt figured out how to put up pics Ill put up some more with greebles on for show.
here they are, a newbie is schooled LOL



[Nutcore]

The Calculator pad is 1.5 X 2 inches correct?



[darkjediknight]

I added some prelimary pics of my scratch built gauntlets there not done - I'm a noobie - so try to understand they were made from my bluprints I put up a day ago

http://photobucket.com/albums/b292/pghfett/

what are the other dimensions on your blue prints, i know the one gauntlet it says its 10" but i need to know the width and height of them so i can scale them correctly when i print them out. thank you



[pghfett]

The calc pad is 2" X 1 1/2"
I will post the actual size of the drawings soon here, I'm at work right now.
Please excuse the black primer - temp to show design - also note the gauntlets pictured are only 75% done - I still have to add the flame thrower extention and some other minor areas that need feathered out and such. Sorry for the fragmented threat I'm a noobie at this. New pics will be up soon.
