Blaster Fettastic ESB EE-3 Found Parts Build


Fettastic

Active Hunter
So rad this is going to be a clone from the clone who used it lol. Do you know how much it will weigh when it's complete?

Haha good one! I mean the Webley's themselves are solid steel and feel heavier than they actually are so I estimate it will probably weigh around 10lb. I will weigh it when it is complete though for sure.


ConvergenceProp

Active Hunter
Haha good one! I mean the Webley's themselves are solid steel and feel heavier than they actually are so I estimate it will probably weigh around 10lb. I will weigh it when it is complete though for sure.
I think mine checks in at around 12lbs. Curious to see where yours sits Cam!

EDIT: Threw her on the kitchen scale and she weighs 8lbs 13oz
12’s a different toy

Last edited:

Fettastic

Active Hunter
Thanks to Dana, I got my beautiful barrel mounts and breech discs. Just need to get my scope back, work on my sling, and find 4 accurate Hirschmann AM Plugs.



Fettastic

Active Hunter

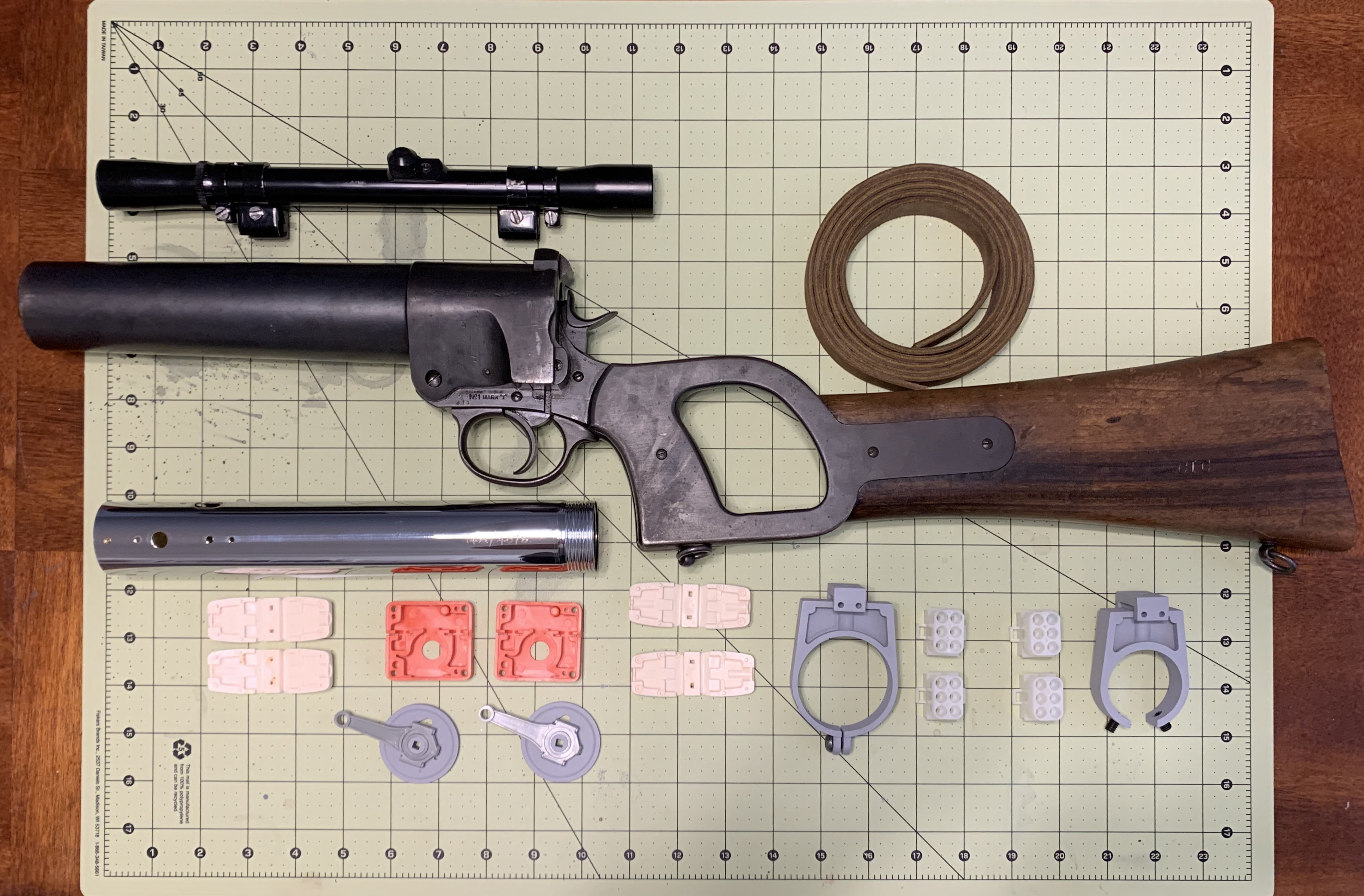

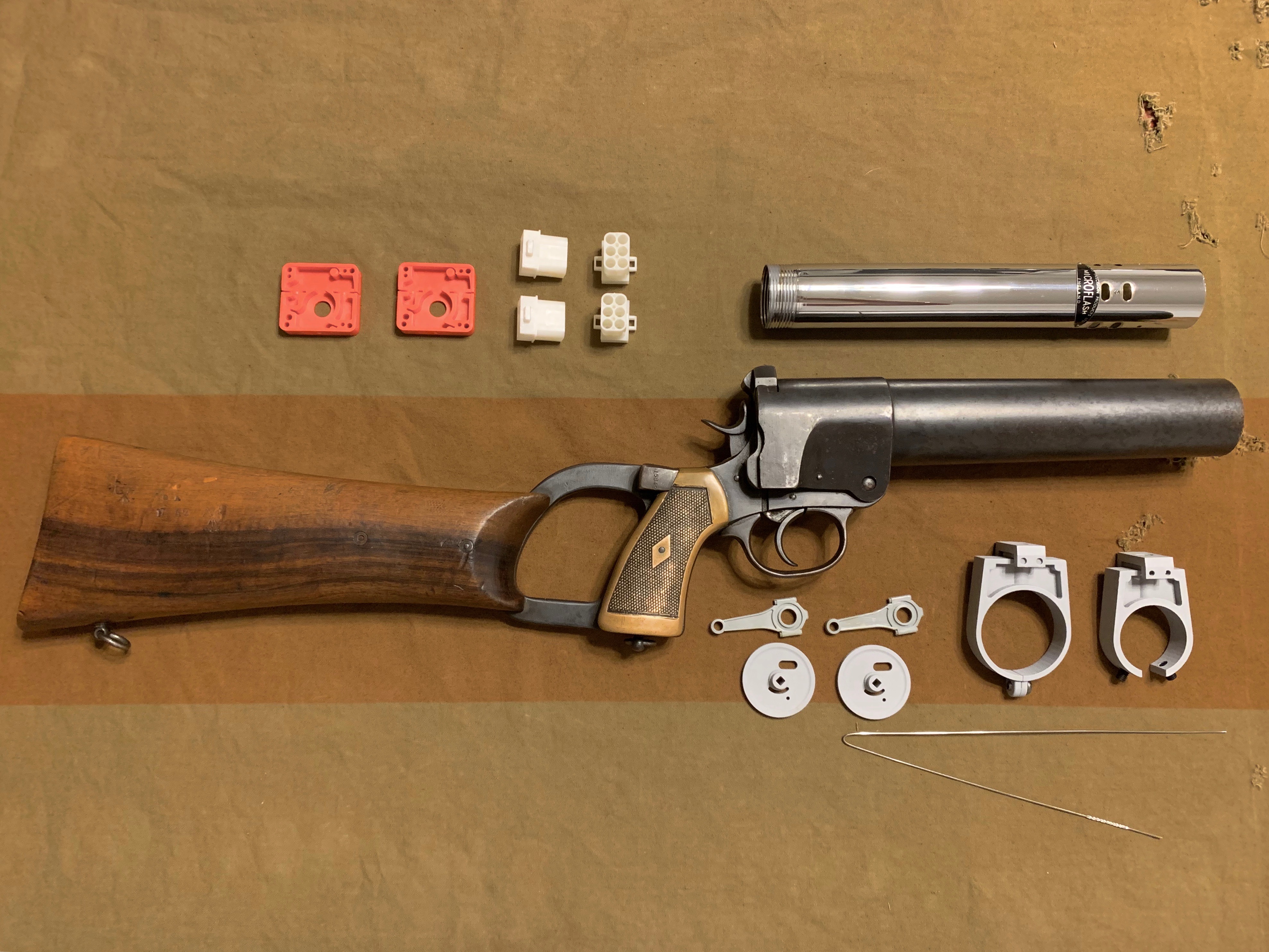

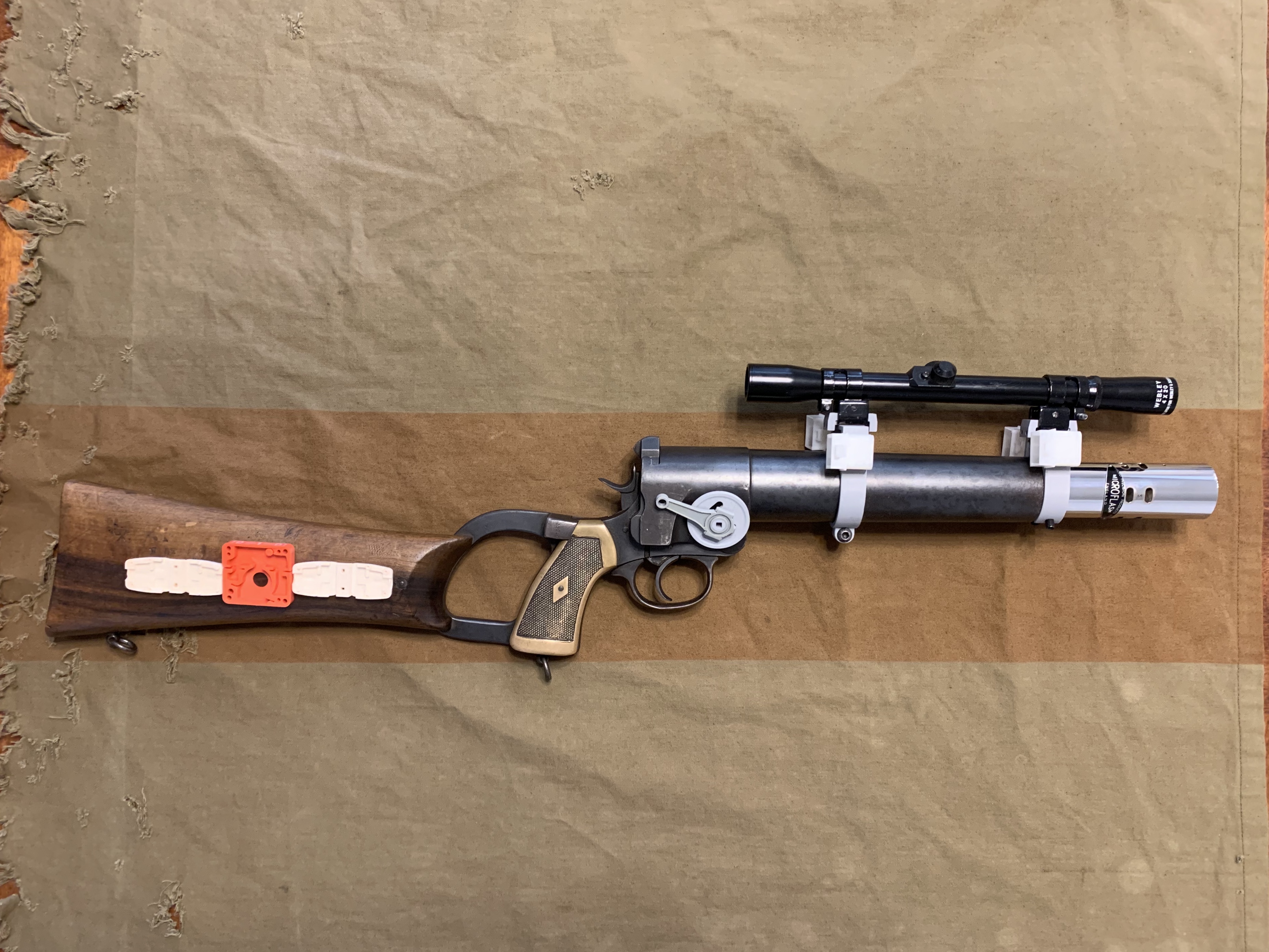

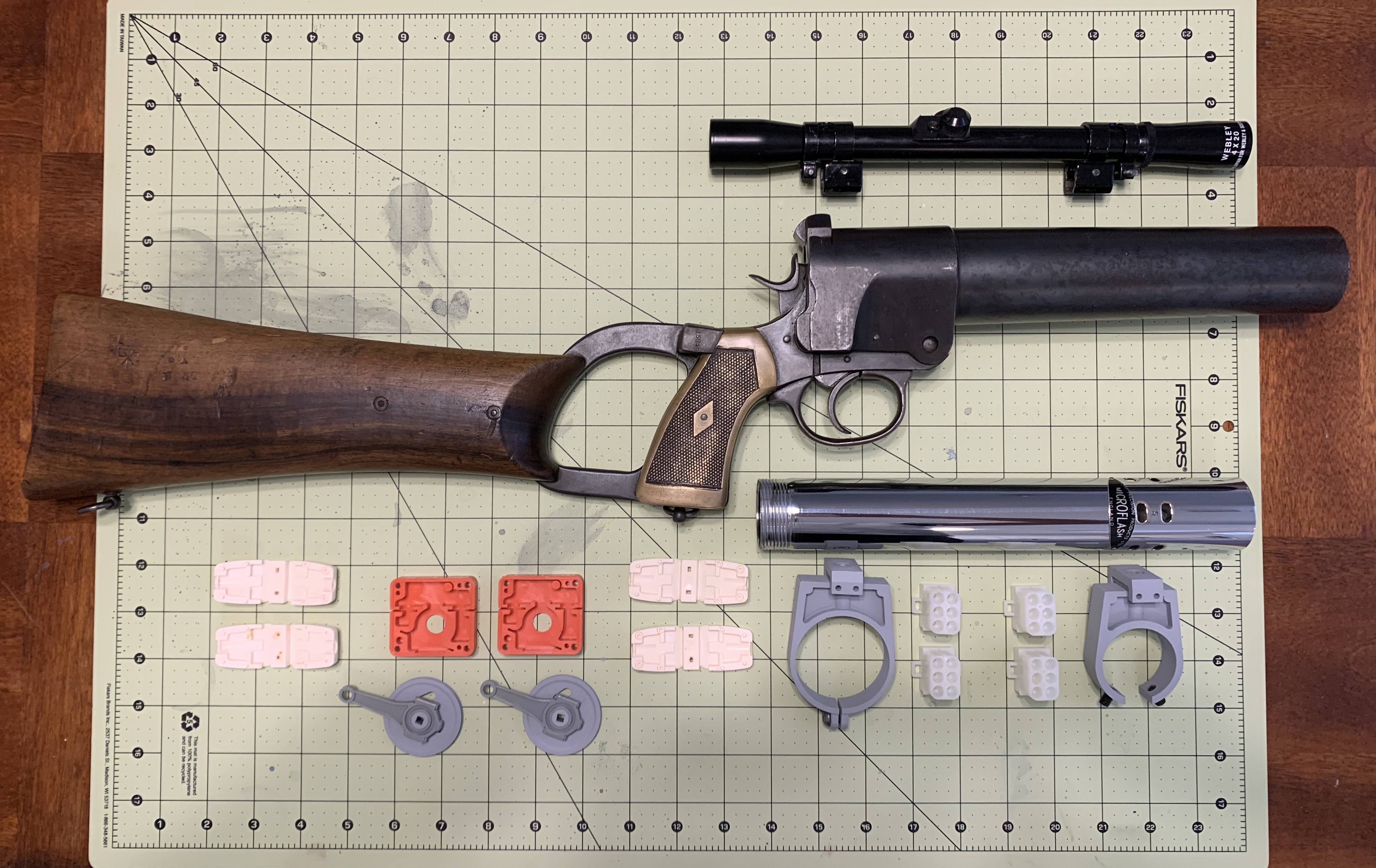

Alright!!! Finally, I have everything that has been identified and is now in order for this epic, found parts, Boba Fett, ESB, EE-3 Blaster build and will now start the assembly and painting process.
Disclaimer: (Nothing will be permanent or damaging to the original and historic Flare Gun)

Actual Found Parts List:

Webley & Scott No.1 Mk1 Flare Pistol

- Serial # 15849
- Original Bluing Finish
- Original dated stock
- Served and stamped in WWI 1917, WWII 1942, 1943
-Original sling rings
Resources... miscellaneous-webley-and-scott-flare-gun-information

Micro Precision Products (MPP) Micro Flash
- Correct Variant Large B-Port
- Royal Airforce (RAF) military stamp
- Serial # 14A/4678

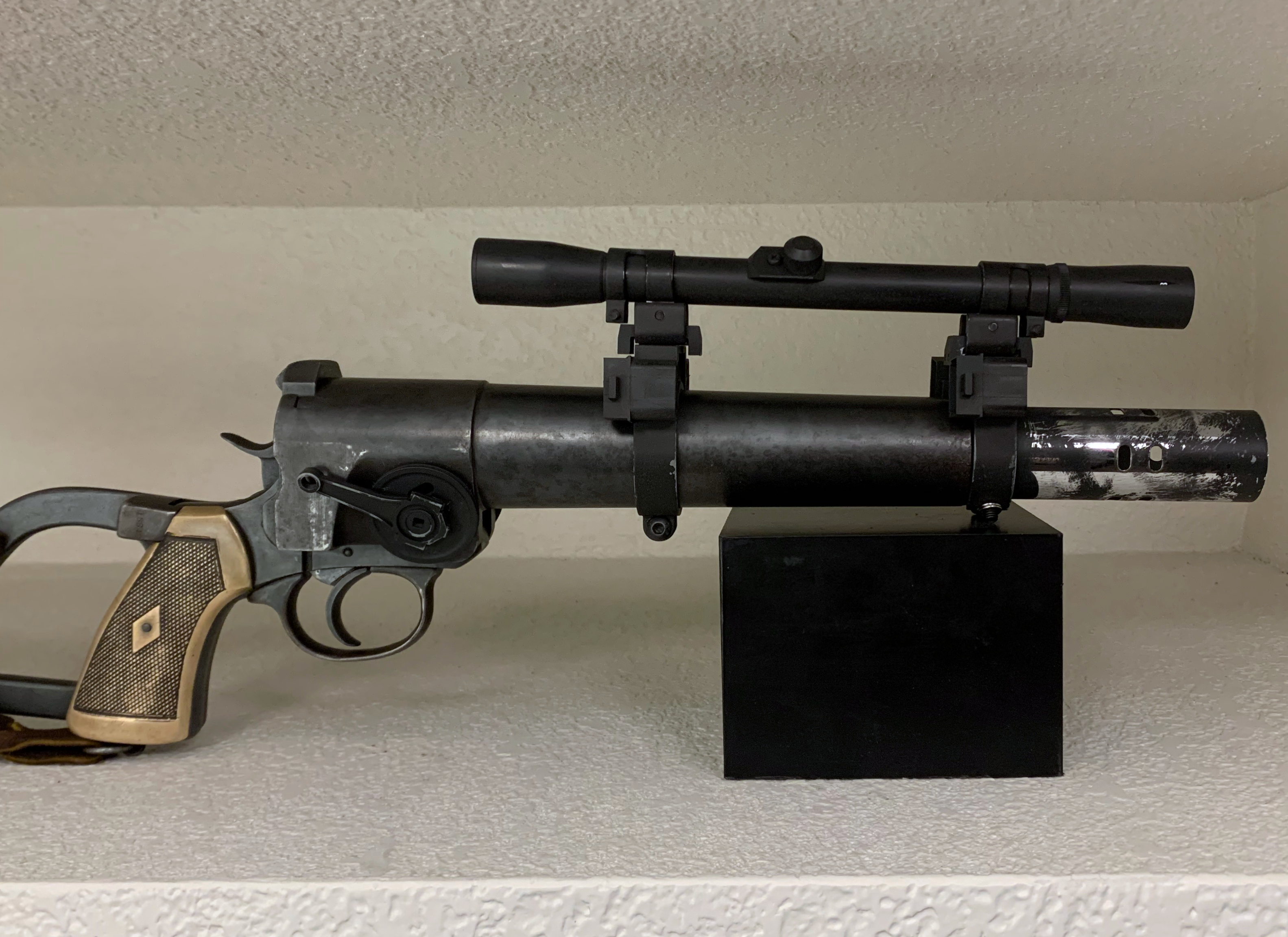

Webley & Scott 4x20 Scope
- Assumed to be all original
- Correct plastic eyepiece
- Correct locking ring
- Correct tube
- Correct windage and elevation screws
- Correct objective bell
- Correct screw in ring
- Correct tall feet "Hero" scope mounts
Resources... ee3-vintage-scopes-and-scope-ring-types

LMK AM Aerial Earth Plugs
- Quantity (4)
1970's Revell Visible V8 Piston Rods
- Quantity (2)
Unimax Fail Safe Switch type "O"
- Quantity (2)

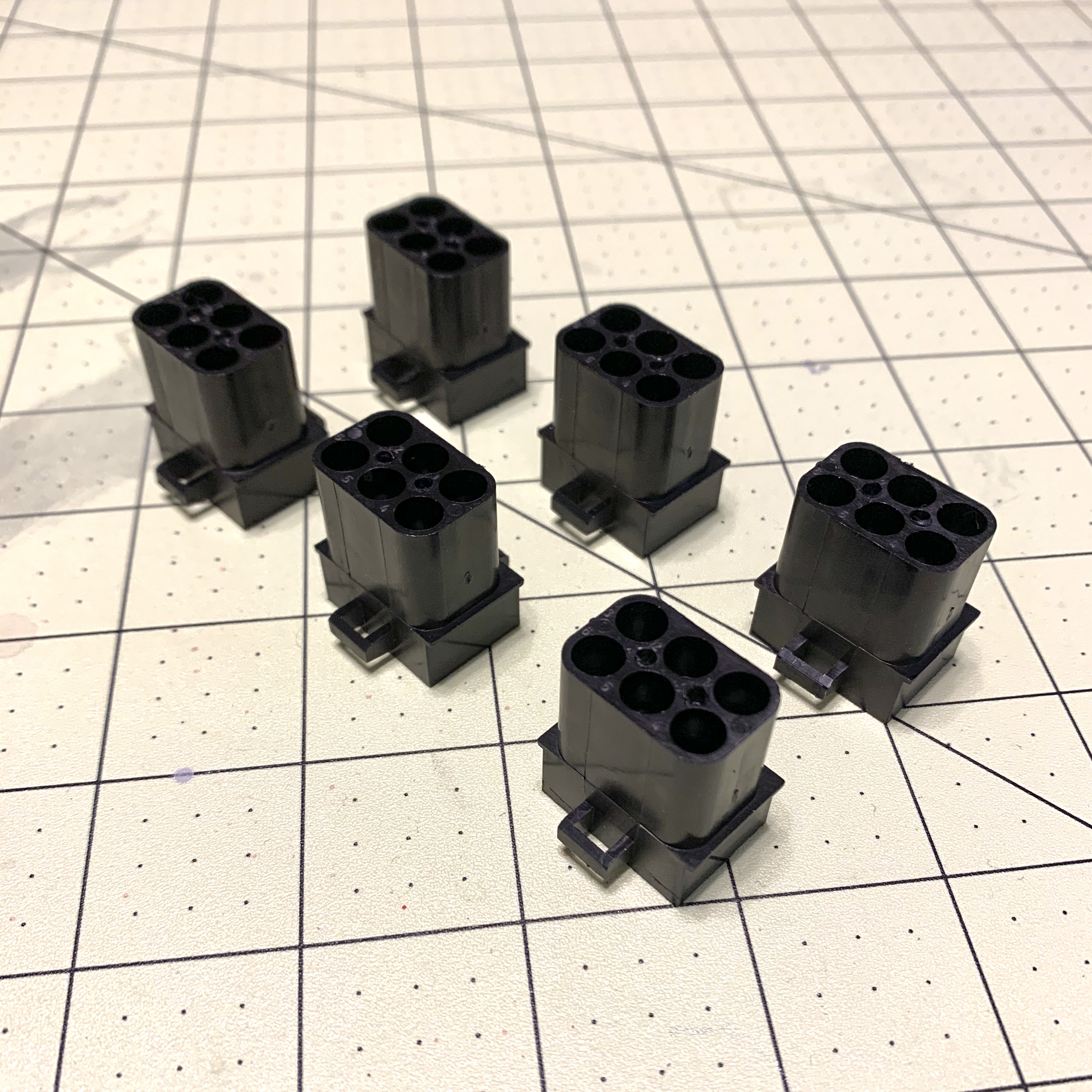

Mate-N-Lok 6 way Pin Housing
- Quanity (4)
- Disclaimer - Exact Variant Still unknown and unidentified

Resources... PartsofSW

Modeled/Extra Parts List

Breech Disc Greeblie

- 3d Printed
- Modeled from reference photo's
-Actual Disc Greeblie used Still unknown and unidentified

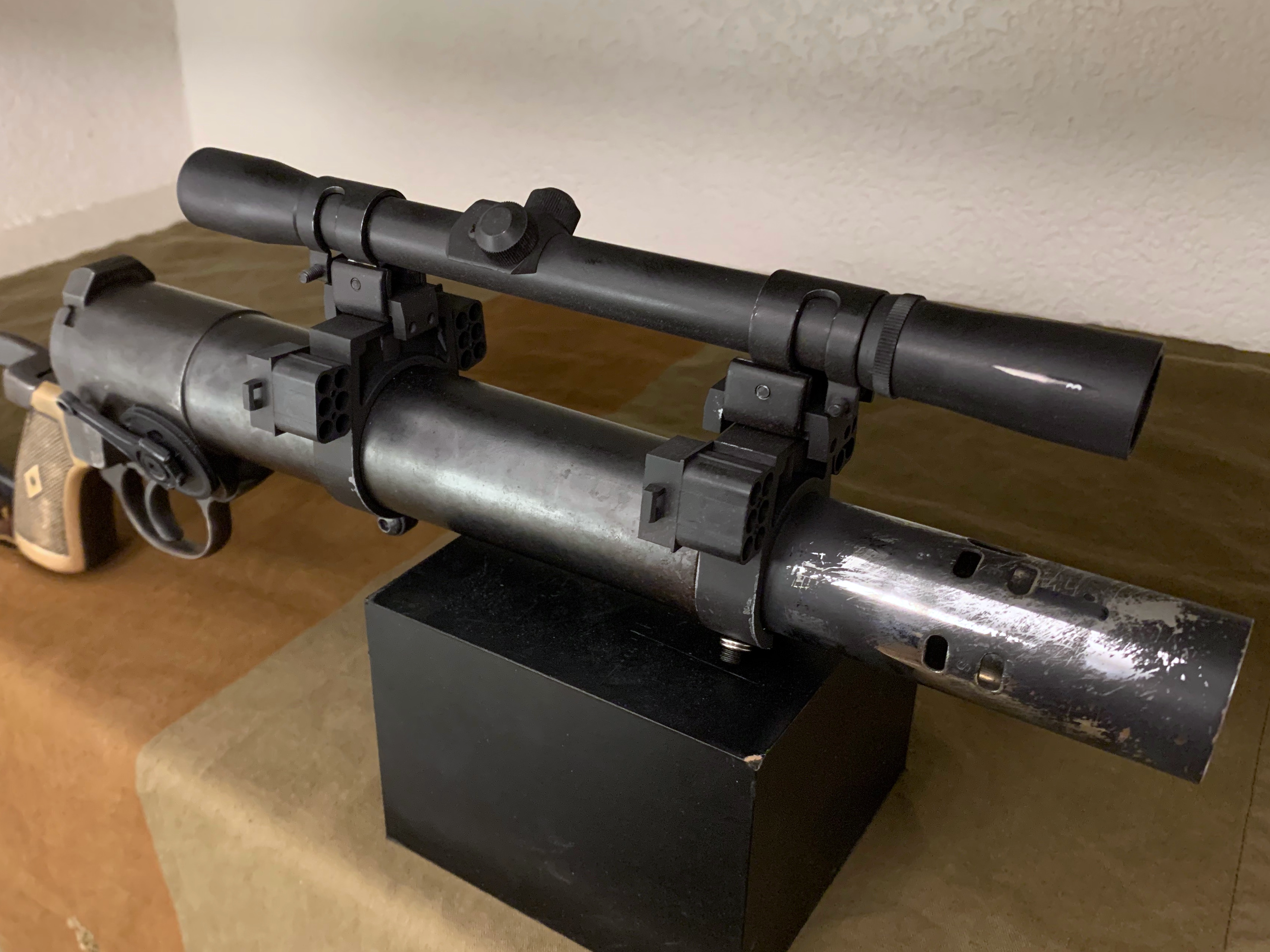

Barrel Clamps
- 3d Printed
- Modeled from reference photo's and after vintage pipe clamps
-Actual Pipe Clamps used Still unknown and unidentified
Scope Mount to Pipe Clamp Mounts
- 3d Printed
- Modeled from reference photo's
-Actual mounts used Still unknown and unidentified
Miscellaneous Nuts and Screws
- All metric sizes

NEW FOUND PARTS DUE TO THE MANDALORIAN
Leather Sling
- Recently discovered leather part made from the hide of a Mature female Blurrg before mating.
- Just Kidding... Amazon.com leather, 18mm wide by 3mm thick, medium brown.









Attachments

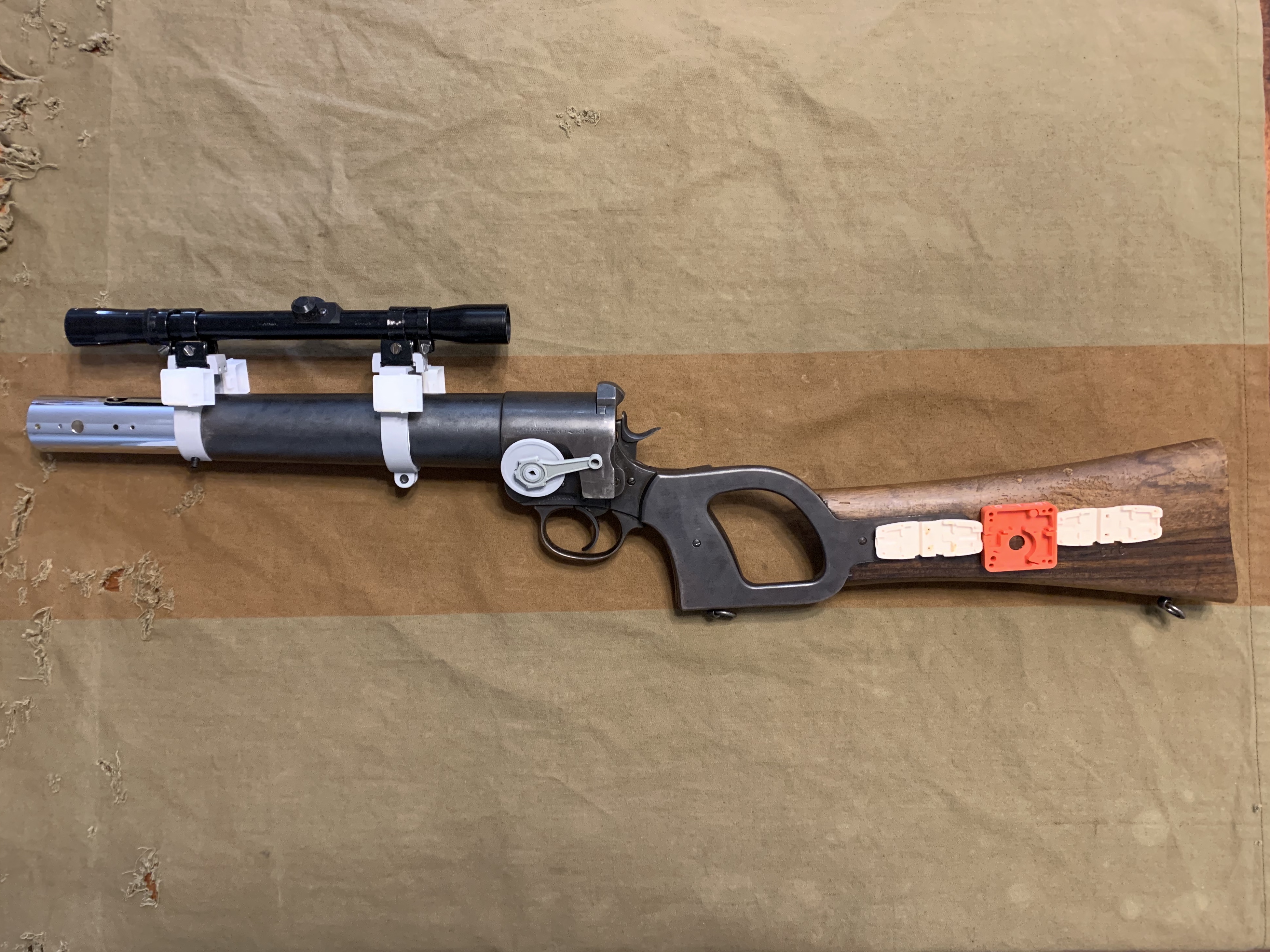

  • IMG_5368.jpg
    3 MB · Views: 121

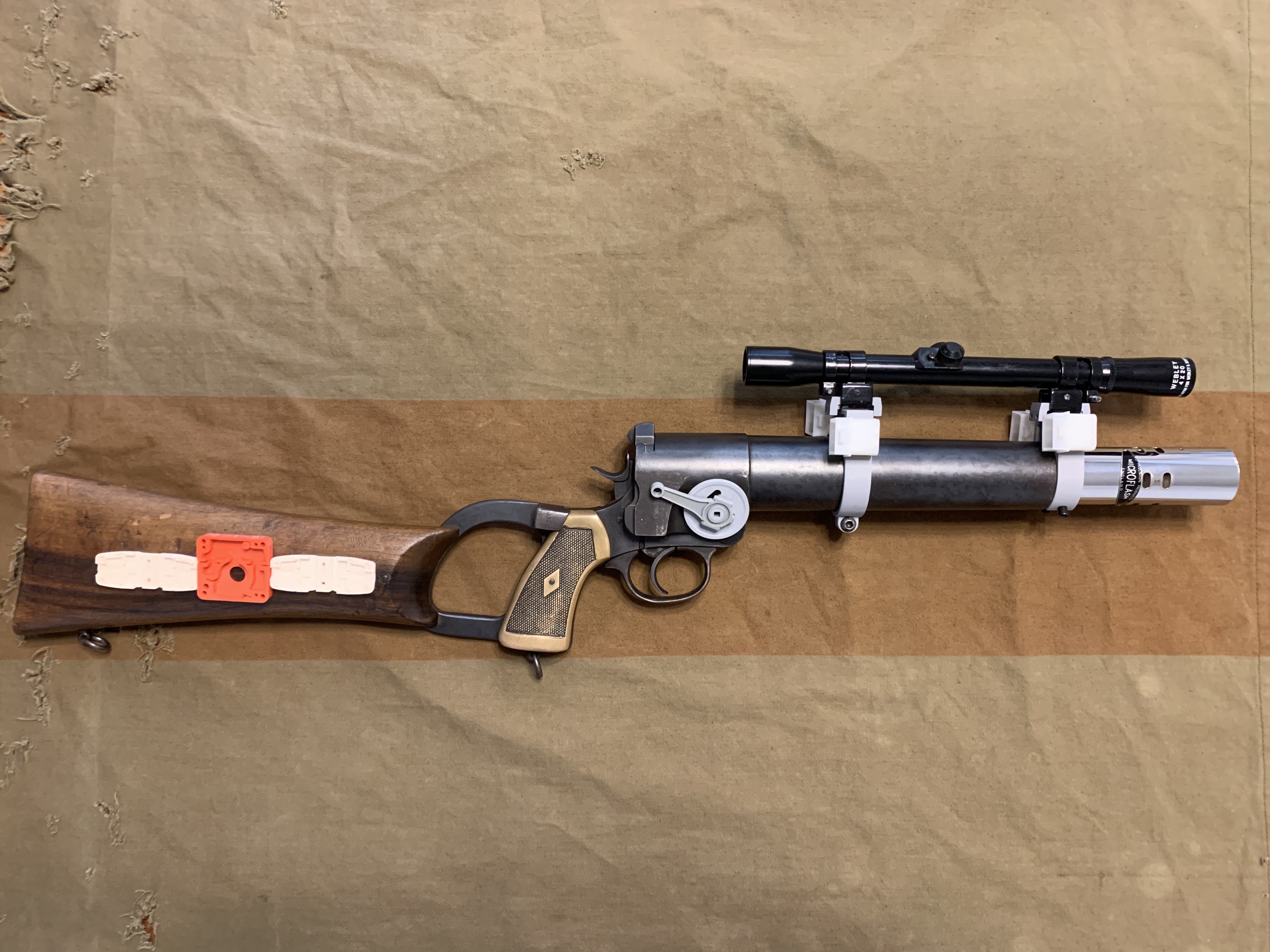

  • IMG_5349.jpg
    2.7 MB · Views: 144
Last edited:

Fettastic

Active Hunter
I'll try and remember the process.
Cameron,
can you walk me through the dye proces? It would be helpful if you could pitch at the level of a witless infant.

Andy


This will probably do a better job than me explaining it. It's a long video but everything is in there you should neet. Cheers.
