Divers Buckle and belt triglide tutorial

[full metal fett]

As I get so many questions about how the buckle and triglide are used I thought it was time to put up a few pictures of how the set up goes together.



[full metal fett]

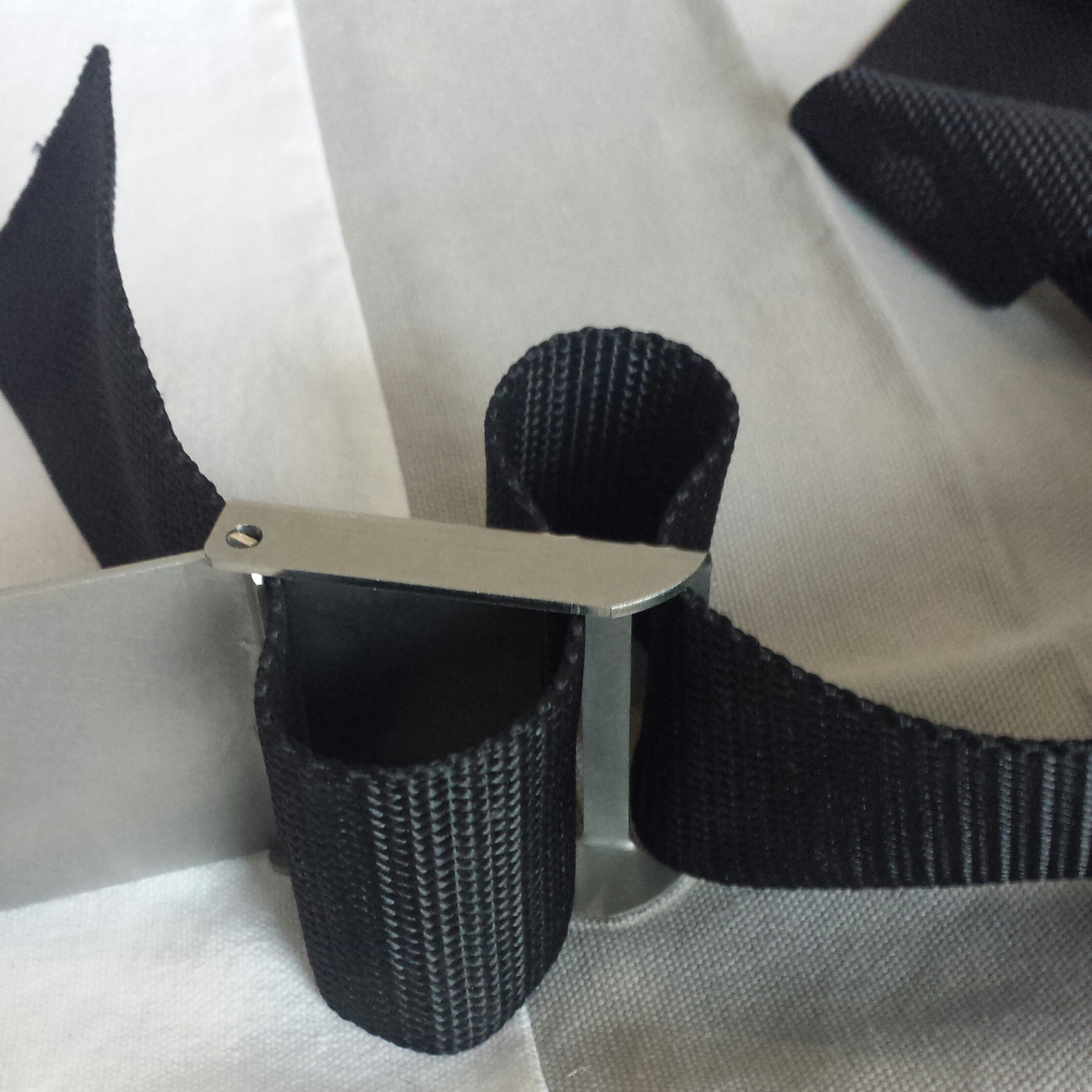

These two pictures show the path of the belt webbing that threads through the ladder lock and is fixed to the belt.



[full metal fett]

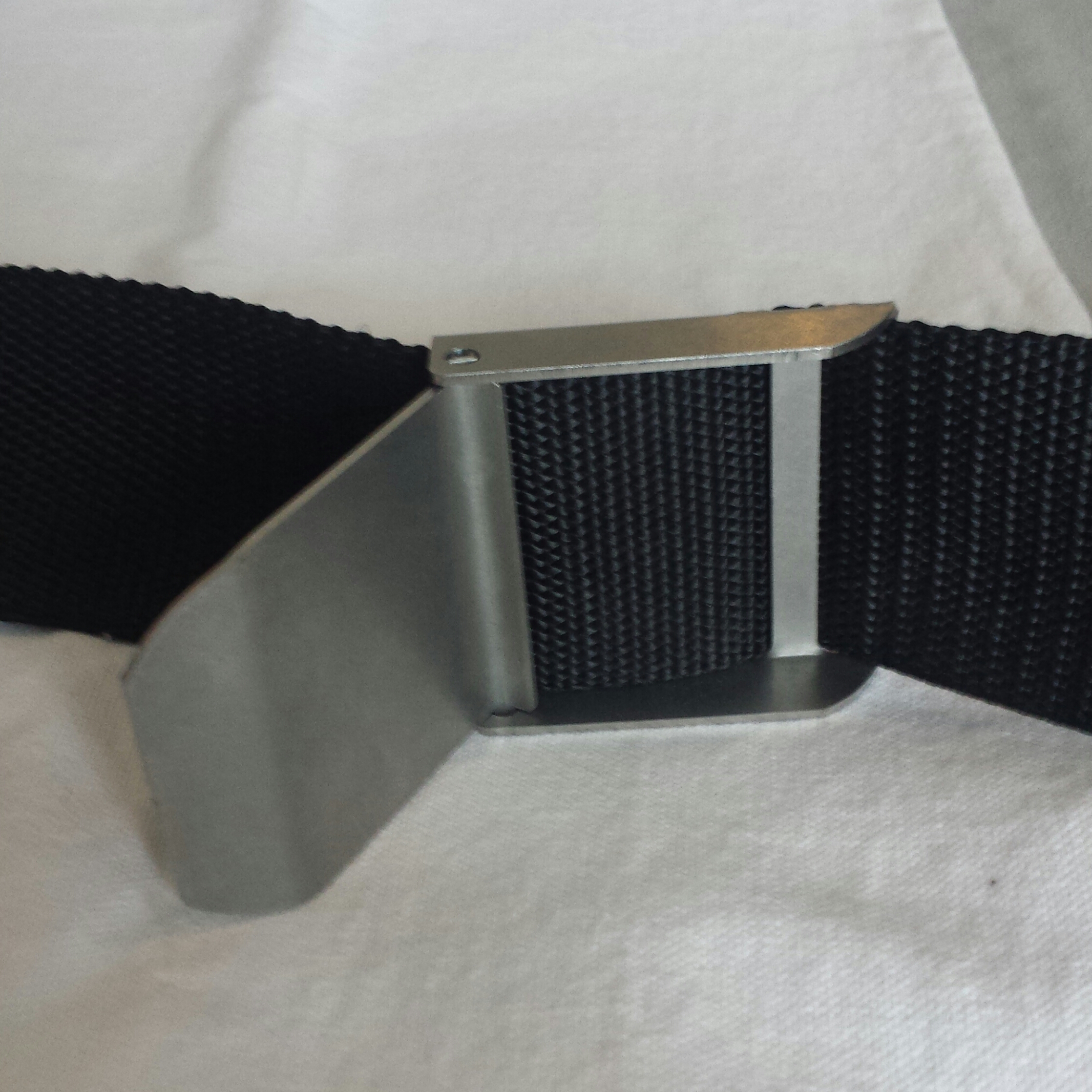

These pictures show the belt webbing drawn tight through the buckles ladder lock. Shown front and back.



[full metal fett]

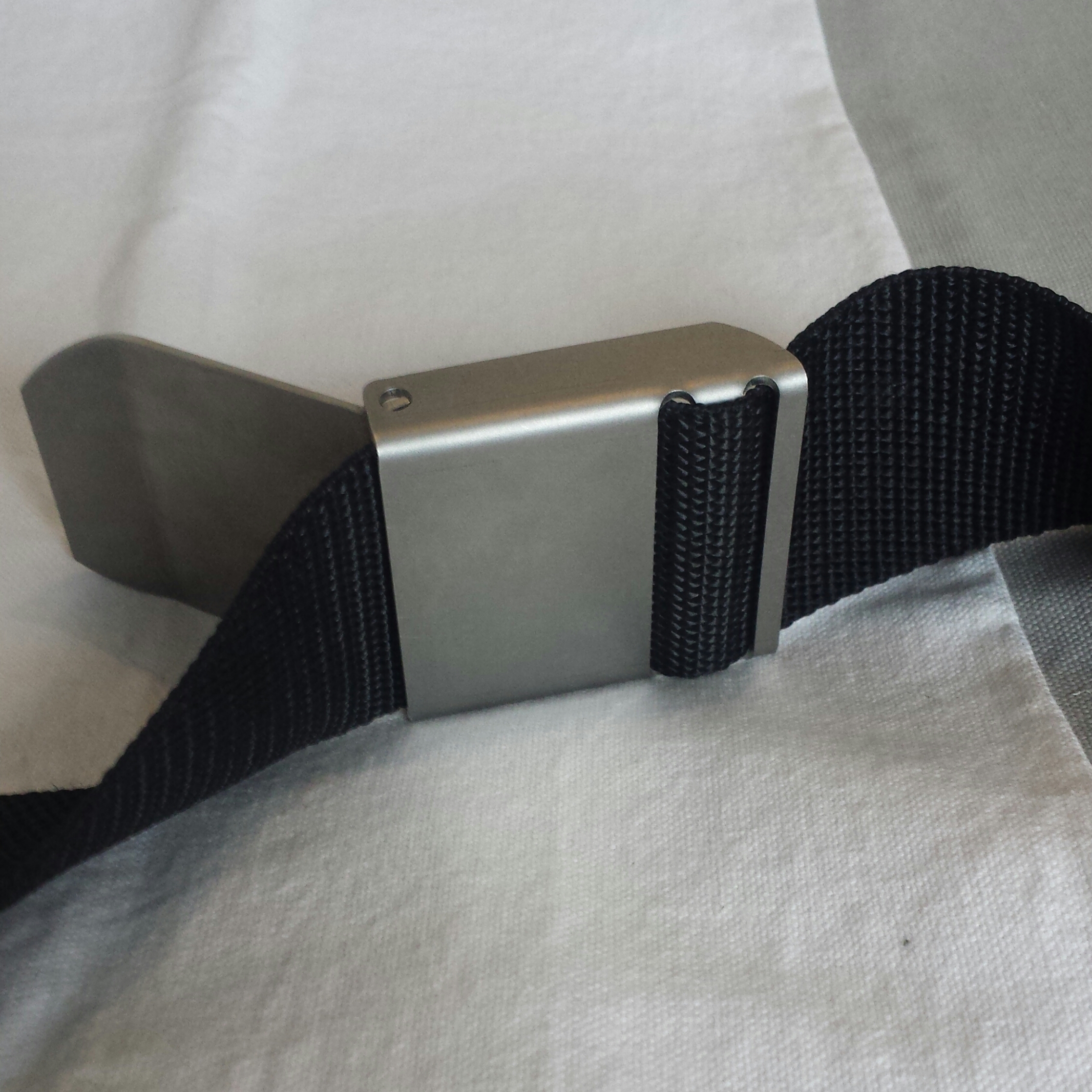

The next two pictures show how the looses end of the webbing goes through the buckle. It goes under the pull tab,but OVER the webbing that goes through the ladder lock. When you close the pull tab it shuts onto TWO thicknesses of belt webbing.



[full metal fett]

Now the triglide is a little more compicated.

It really comes into play when used with a metal harness frame as the belt is in TWO halfs,one on each side of the harness frame.

The loose end of the belt should be sewn to the harness,but the buckle end if fixed to the harness with the x triglide.



[full metal fett]

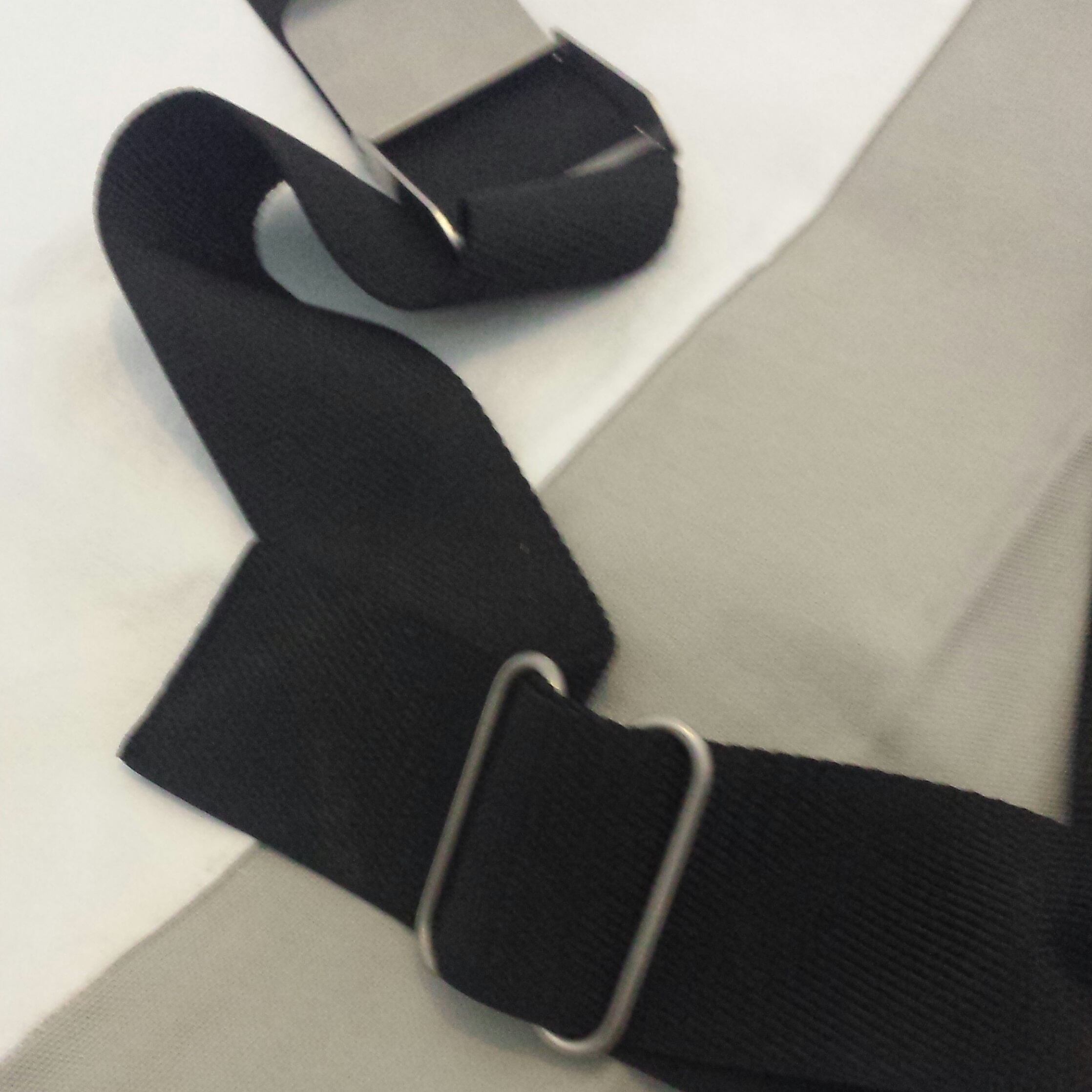

These pictures show the path the webbing takes through the x triglide,then through the square ring on the bottom of the harness and back towards the triglide.



[full metal fett]

The webbing is then treaded back on itself through the triglide and pulled tight.



[full metal fett]

Hope this helps. Feel free to ask for better pictures or instructions.

Mods maybe Sticky this one as it keeps comming up.

Don't forget to visit and like my facebook page "Full Metal Fett" "Product/Service"



[The5thHorseman]

Just perfect! So easier to understand with pictures. Thank you.



[Furious]

Thank you so much!!!!



[Bounty1138]

Thanks. I think I've been doing it wrong, but it still worked



[SPY007]

Where can I find the correct tri glide?



[Lidocaine]

Thanks! My dad and I spent a couple minutes the other night trying to make sure we got this right, looks like we were actually correct!



[Furious]

Where can I find the correct tri glide?

http://www.thedentedhelmet.com/f31/replica-us-divers-pp1-supertrooper-buckle-48916/



[SPY007]

Thank, Furious. I had not read the original post.



[full metal fett]

Bump for Jc27



[The5thHorseman]

I have just finished my harness strapping using this method for the belt and it works like a charm.



[Brokk]

Thank you for posting this.
I vote this thread for a sticky



[full metal fett]

Bump for Scott
