Blaster CNC Machined Scope barrel ring mounts

[TD4242]

going to see about getting these satin black anodized.



[TD4242]

Today I realized that my large scope ring is about .030 of an inch off center. Has to do with the original design that I did. Wow this sucks. Thirty thousandths of an inch isn't much but it's not perfect.

I've redone the original design to insure it's symmetrical, but I have 12 sets of mounts I was hoping to sell and now I really can't. I've redone the design to fix it and started re-doing the machining programs and such but wow this sucks.

Starting to realize why machined parts are so damn expensive. I guess these will still be good test parts. Learning can be expensive.



[TD4242]

OK, everything fixed and new scope ring mounts made. Still have to do the part the scope mounts to, the U'ish part that fits over the tops. I have stock and a plan. lets see how it works out.

Also working on a video showing the full machining process beginning to end of the scope mounts in my CNC machine.



[TD4242]

Man I hate editing videos. had everything almost ready to go and found the audio quality was horrible. going to do some reshots and should have a real video up soon.

For the impatient yet very patient, Here is a 50+ minute video of the full raw uncut machining process.

Caution, mostly boring, really long video:



[TD4242]

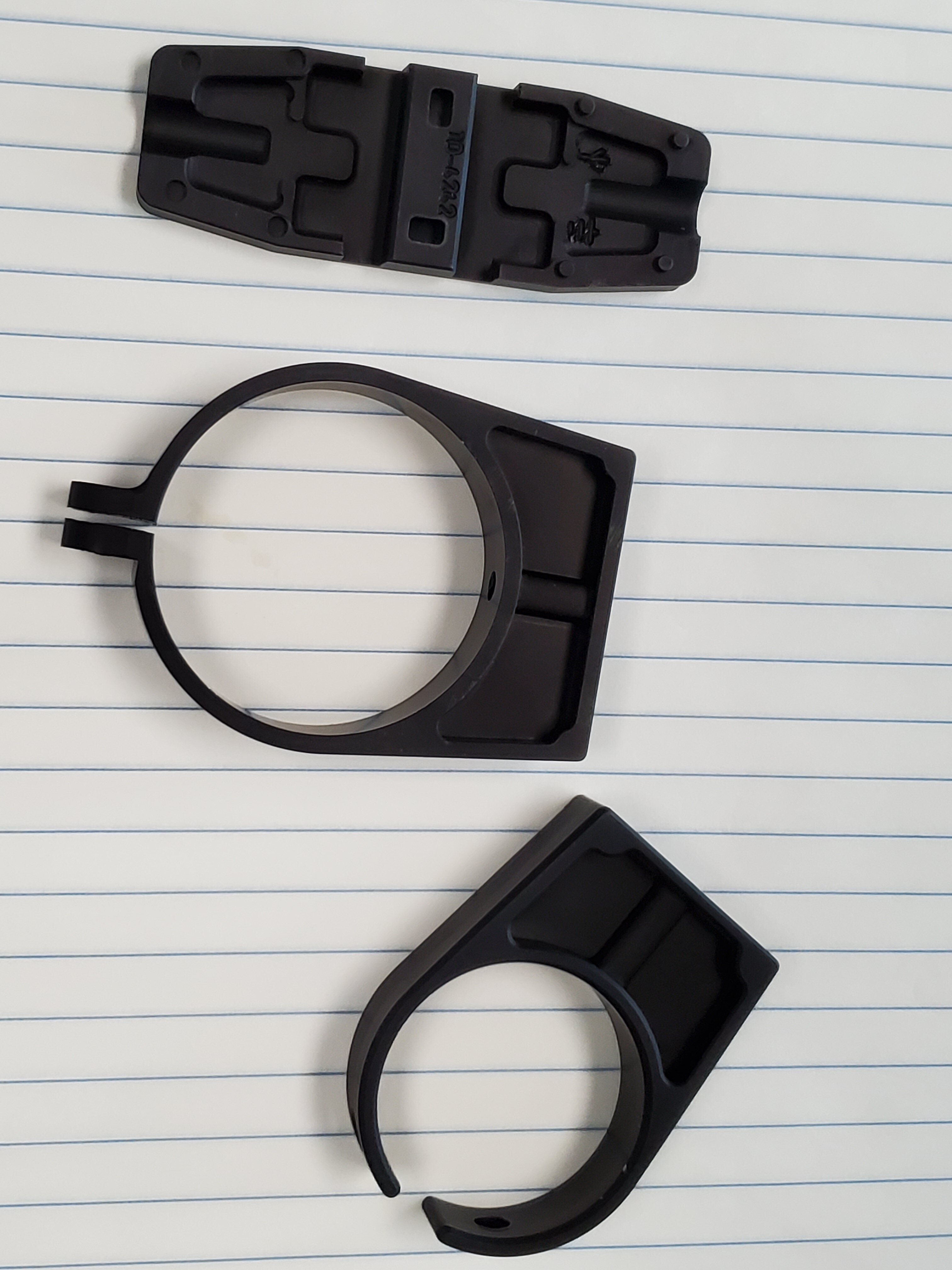

Getting really close. A few manual parts, split the large ring clap part, drill tap the small rings for the set screws.

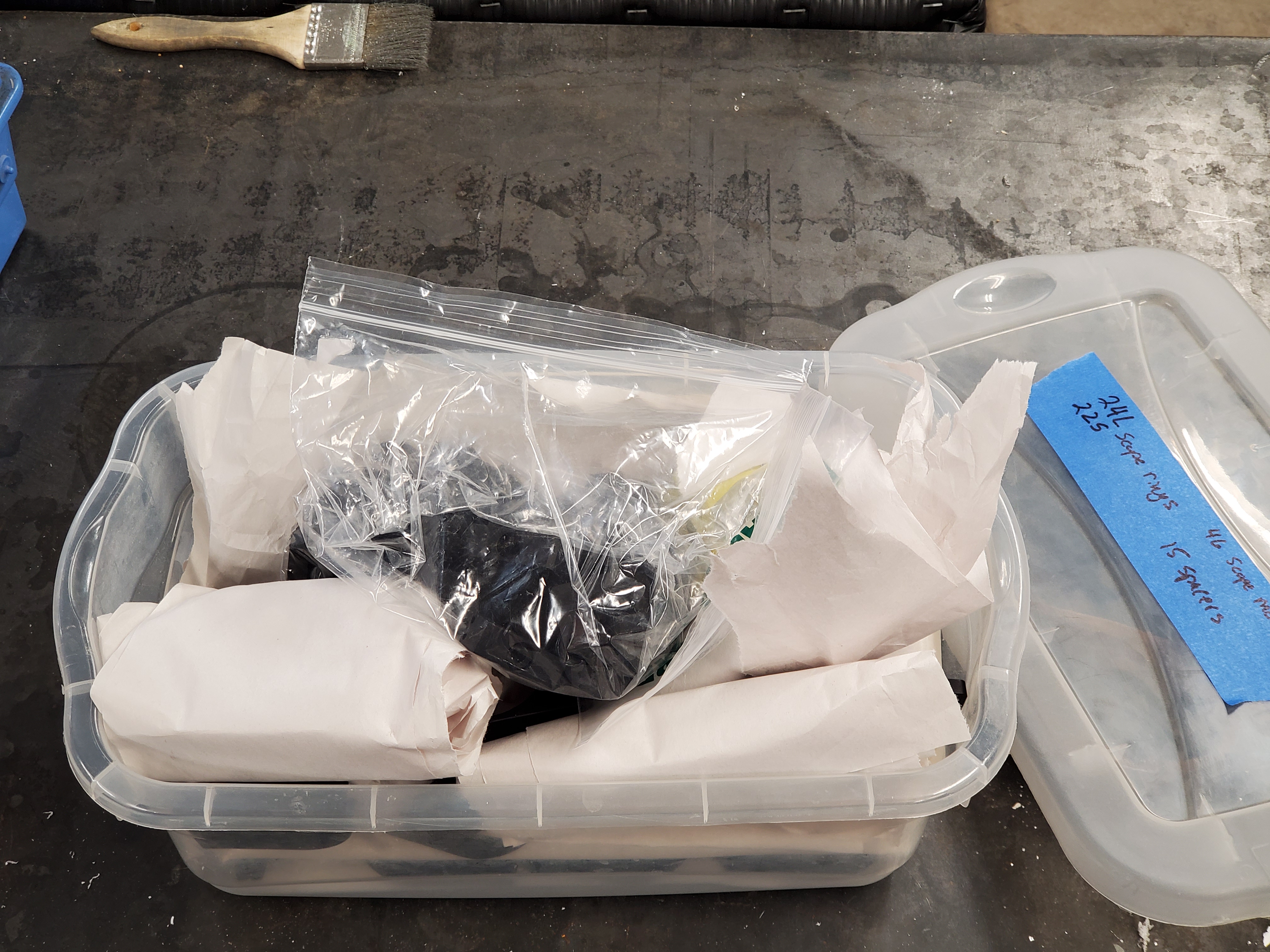

and then a bucket of parts go off to be anodized.



[intwenothor]

Anyone who makes their own parts deserves much respect. Lovely.
You've got to sort that scope out though.



[TD4242]

You've got to sort that scope out though.

yea, it's close but not quite right. have some feelers out looking for a more correct version. I may atleast machine some caps to give the adjustment knobs a more correct look, I may even be able to modify the base some to achieve the correct look.



[intwenothor]

Another consideration might be to try to obtain one of the 4x15 versions of the scope, which will be a lot cheaper than the 4x20 model. Then you could cut it down and stick an objective bell on the end.



[TD4242]

It's not perfect but I may have found a good 70s era 4x15 with at least the correct site adjustment. Making a franken scope now until I can find something better.



[TD4242]

Just dropped of everything to be anodized. should be about a week. should also have another video for this and the split plugs.



[TD4242]

Okay, I promised a machining video with my current setup that wasn't 45 minutes.



[Frogman11]

DANG! Nice work. I'm just starting mine, looking for as many original parts as I can



[TD4242]

Couldn't wait until I get home. Just picked up on during lunch. Once I get home I'll post a bit more.



[TD4242]

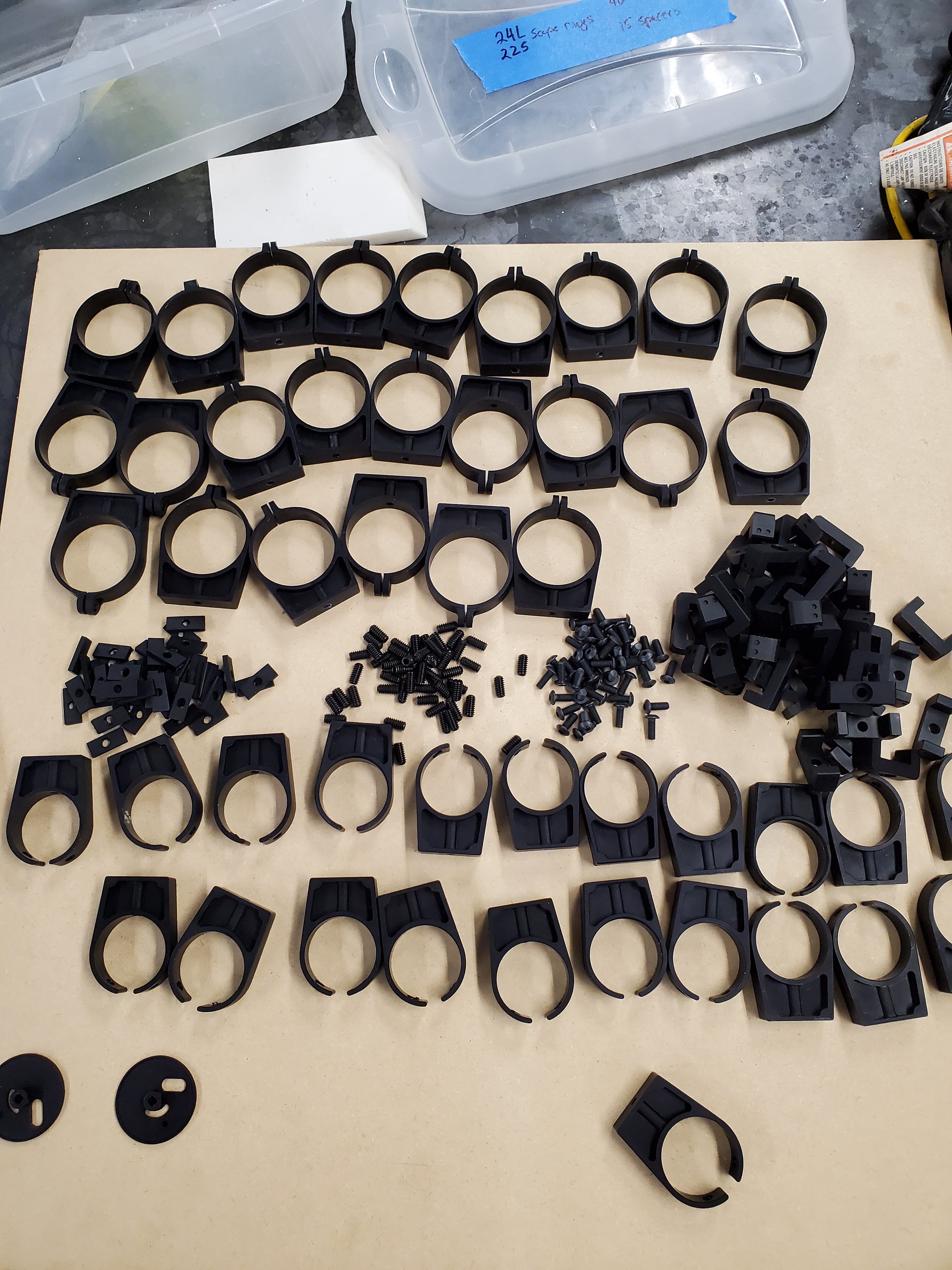

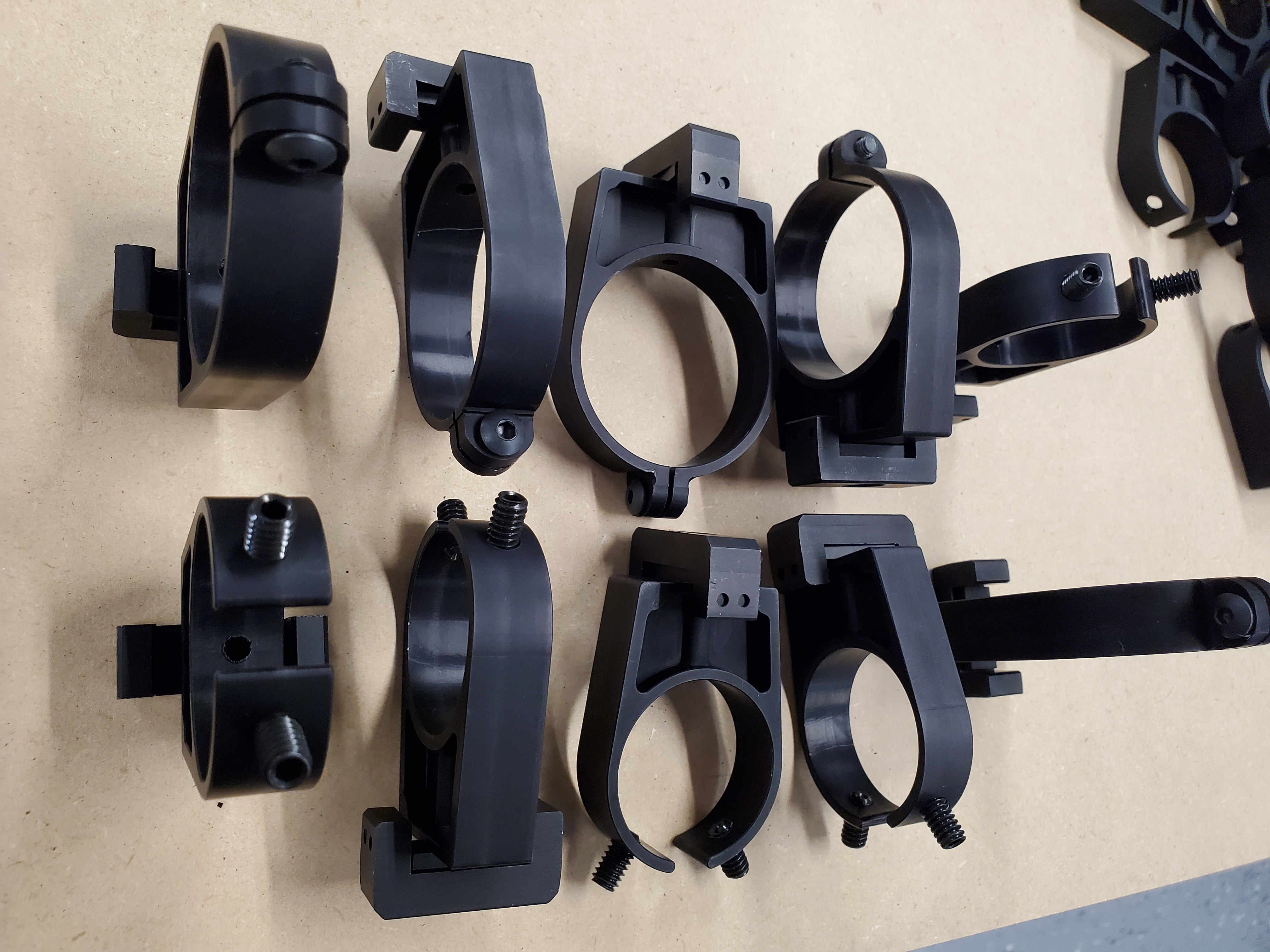

A few assembled mounts.



[Frogman11]

Nice. How much for a set of the mounts?



[TD4242]

Still trying to figure out both a reasonable price and something that doesn't put me too far in the hole. Right now there's almost no way I could sell these at the price I'd like and even come close to break even without selling in the 1000s. I'll say for right now I want it to be less than $100 for a complete set. Once it's all finalized I'll post in the cargo hold.



[TD4242]

Still trying to figure out both a reasonable price and something that doesn't put me too far in the hole. Right now there's almost no way I could sell these at the price I'd like and even come close to break even without selling in the 1000s. I'll say for right now I want it to be less than $100 for a complete set. Once it's all finalized I'll post in the cargo hold.

EDIT: quick update on "price I'd like" I judge this by what I'd like to pay for them if I didn't have access. Of course I'd like to get $1000 for each part as that'd pay everything off and get me well primed for the next job. I don't think anyone would pay that much, they're not worth that much and I want people to be able to afford them if they want them.



[TD4242]

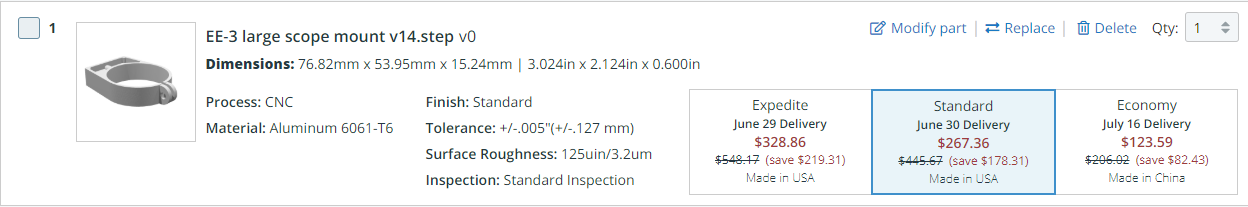

Just to get an idea, I got a quote to have these made from a normal machine shop, this is same material and no anodizing.

Most importantly, this is for one of the 6 parts that make up the set.

I will be significantly cheaper than this.



[clonecollector]

I would be in for a set.



[TD4242]

Finishing up assembly and will plan for packaging. Should be posting to the cargo hold today with a signup list. I'll put clonecollector and Frogman11 as #1 and #2 signups unless you let me know you don't want a set.
