Let's get this new Jango build started

[momeraths24]

Once again I like to start by thanking everyone that sent their warm welcome.


So let's go ahead and get this little new Jango build started shall we?

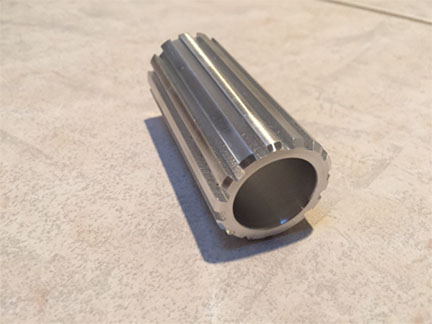

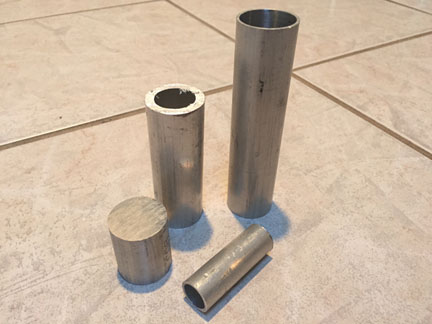

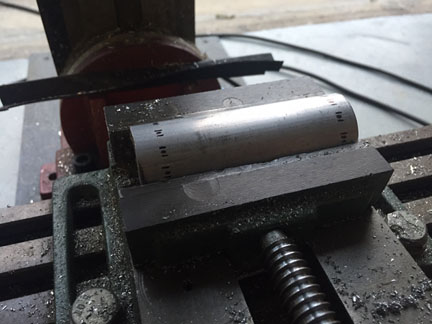

I wanted to start with something that I'm a bit more familiar with so I figured to start with the gauntlet missile. The plan is build it out of aluminum and anodize it.
I hoped to have more of this item complete but I'm going to take my time to make this build as nice as I can make it.

More pictures will follow.

Franchesky



[Cruzer]

Umm...wow!


Sent from my iPhone



[Mullreel]

That body looks great. Can't wait to see the rest of the missile



[TK3944]

Wow! That's looking awesome. You planning on machining the blasters as well?



[momeraths24]

Wow! That's looking awesome. You planning on machining the blasters as well?

Thank you guys for the complements.
Not sure yet if I'm going to CNC the blasters. If I do it will probably be one of the last things I do.

I like to start making one of the gauntlet next. Wish me luck.

Franchesky



[momeraths24]

So I had a little time tonight after working on GB orders and I figure to do a bit of work on this Jango build to keep things moving.

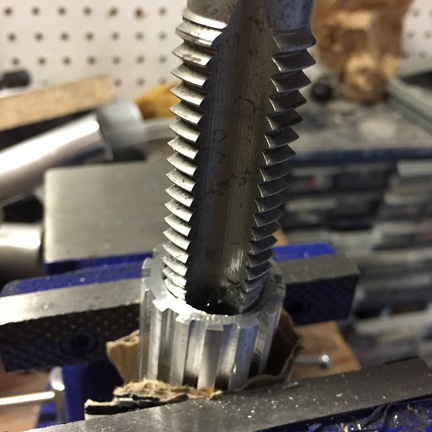

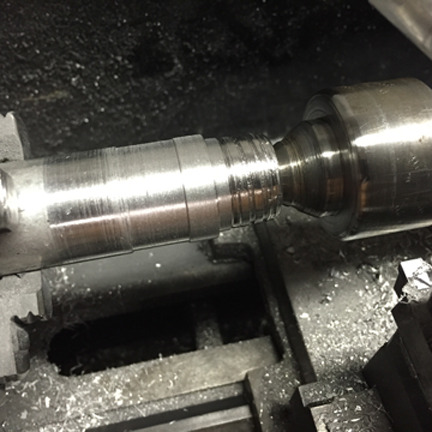

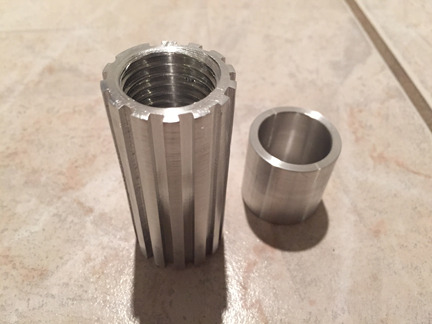

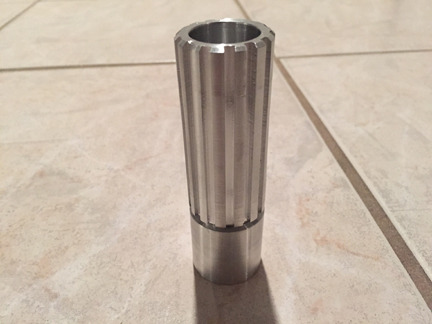

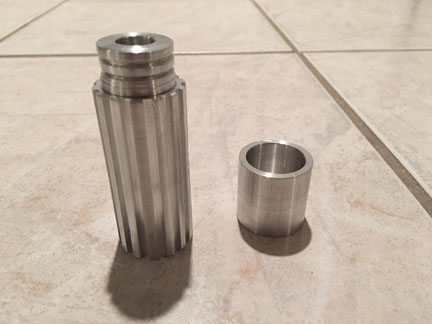

Since I'm looking to make this item hollow and as light as possible, I decided to thread the main body of the missile. I also made an internal locking system to connect the back of the missile with the main body.

If everything works out like I have it design, the missile could be some what functional instead of just having it for looks.

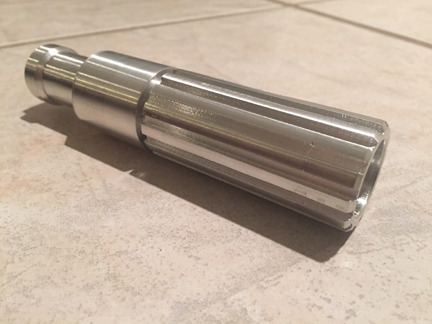

Here are more pictures of the build. Hope you guys like them.

Franchesky



[Mullreel]

that's purdy



[xanthis02]

Amazing talent this is going to be an interesting build



[momeraths24]

Here is another small update for this new Jango build. My time has been limited but I'll continue to put little time here and there for this build.

Since I need this missile to be hollow, I decided to fabricate all of the main parts separately to make it easy to manage.

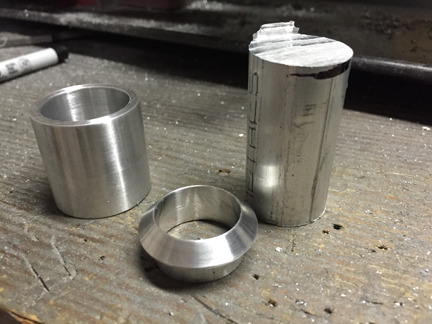

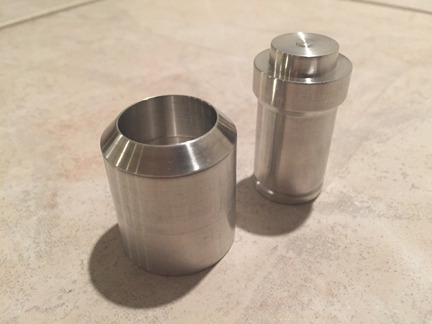

The back section of the missile has 3 components that once put together will be light weight and strong.

Here are some progress pictures.

Franchesky

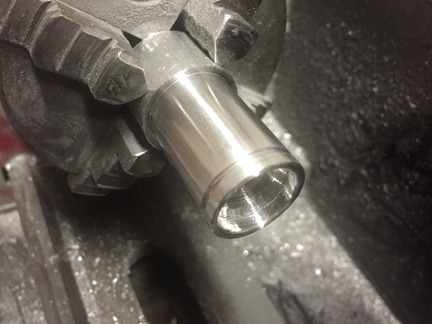

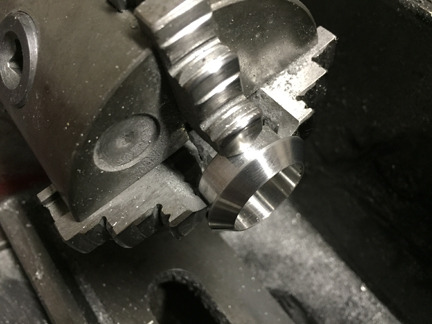

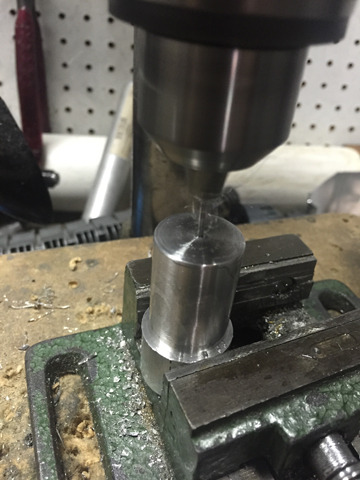

For this part I gradually made the hole bigger making it completely hollow.

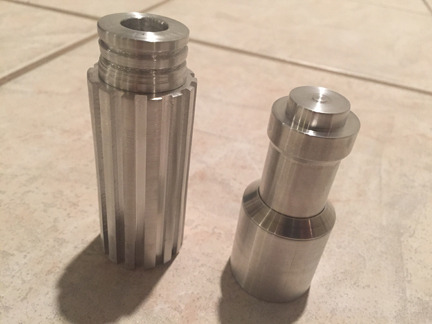

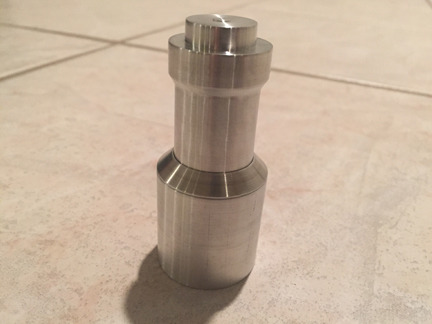

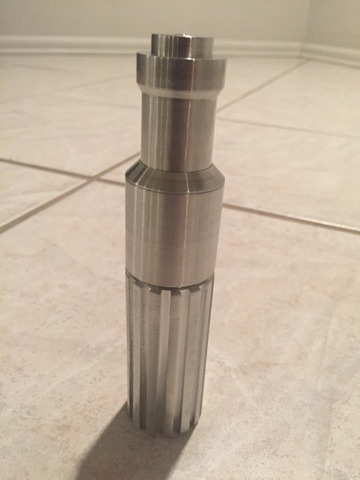

Here are the parts completed.



[MrSWman]

Defiantly watching this. Awesome work!



[momeraths24]

I'm currently working on the top section of the missile. I tried making it out of 1 piece but it's just a royal pain so I'm going CNC on this.

Pictures of of the progress will be up soon.

Franchesky



[JAMBO]

looks great i wish i knew how to make thing like that cant wait to see the finished product



[momeraths24]

I haven't done much with the missile but I figured to work on something easy to keep this build moving.

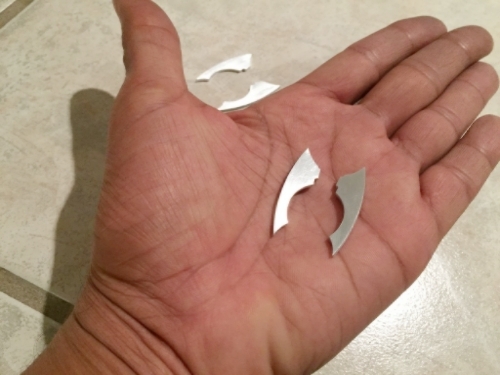

I milled the fins for the grappling hook. I'm working on the body of the grappling hook and then the top section.

I like to thank Xanthis02 for sharing the print.

Franchesky



[pkbud74]

Very cool. Great work.



[Mullreel]

I would buy a set of those fins off of you (or trade some Jango stuff) if you were inclined to make more. Those look nice.



[xanthis02]

Your welcome I'd buy a set of fins as well to see if they fit my Darkside Dart if you don't know already you need 3 fins



[momeraths24]

I made 2 sets of 3 fins this weekend and I'm planning on making more this upcoming week.

I could start an interest list on my FB page (Anhcon Designs) if there's enough interest.

I'm not familiar with how they do for selling and the rules on this forum but you guys are welcome to contact me with anything that you might need.

I did a test for the body of the grappling hook and it needs modification to the cnc code. I'm sure I can get it done this week, this way it will be easy to install the fins.

Franchesky



[alvomedia]

very nice!



[phophjoph]

Wow great stuff! Gonna keep a watch on this thread.
