Yet another ToEleven scratch build

[syllander]

Hope the casting goes well man! Looking forward to seeing this go forward.



[toofastrobot]

I'm excited to see your casts!



[Cyris]

This project has really been on fire! Everything from the sculpt of the dent, to the lower left cheek, to the subtle take on the brow has panned out perfectly! I'm also eager to see how this next phase goes. Will you be attempting a glove mold? Good luck!



[ToEleven]

Thanks fellas!

I may as well post up where I'm at with this today.

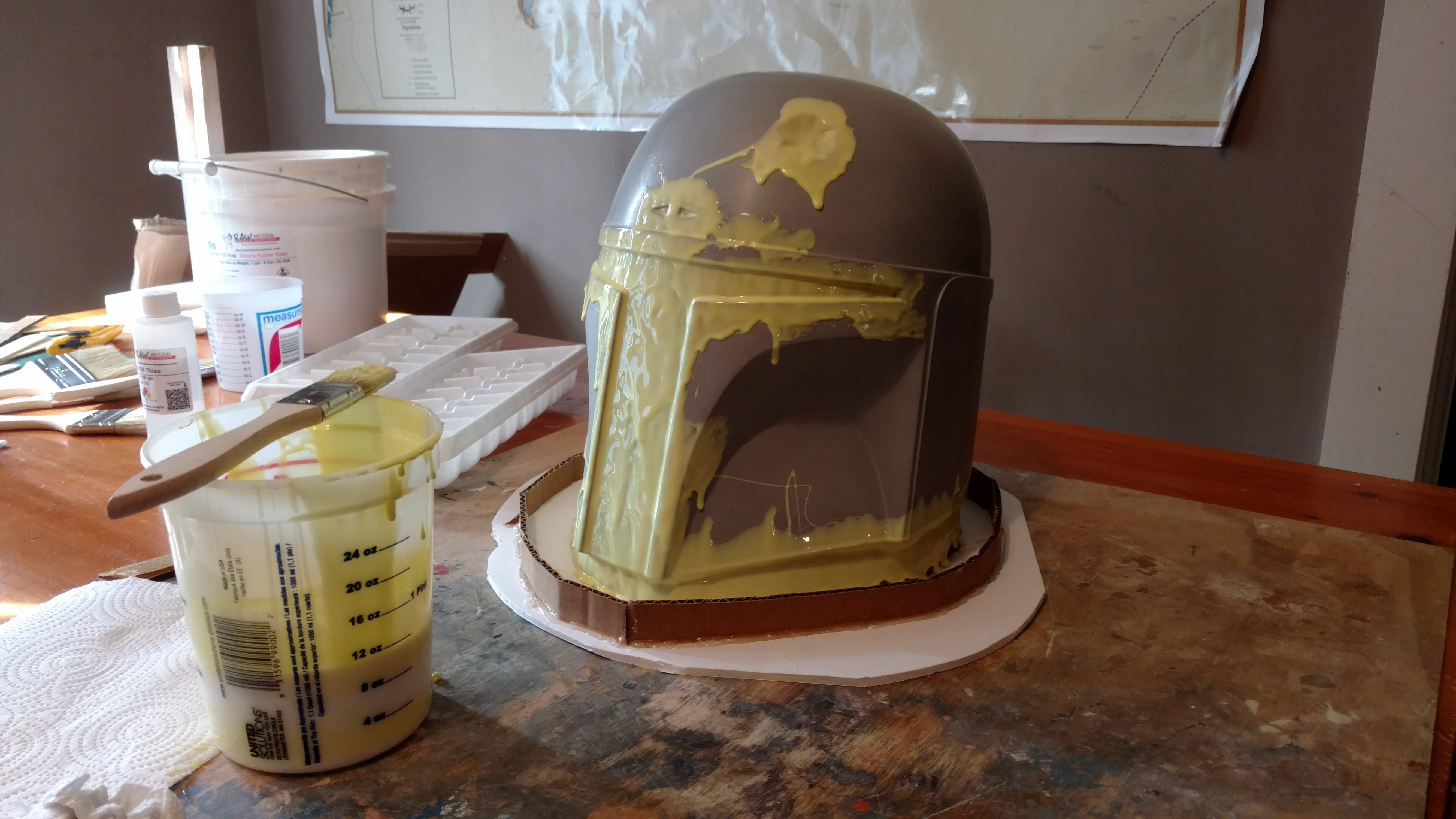

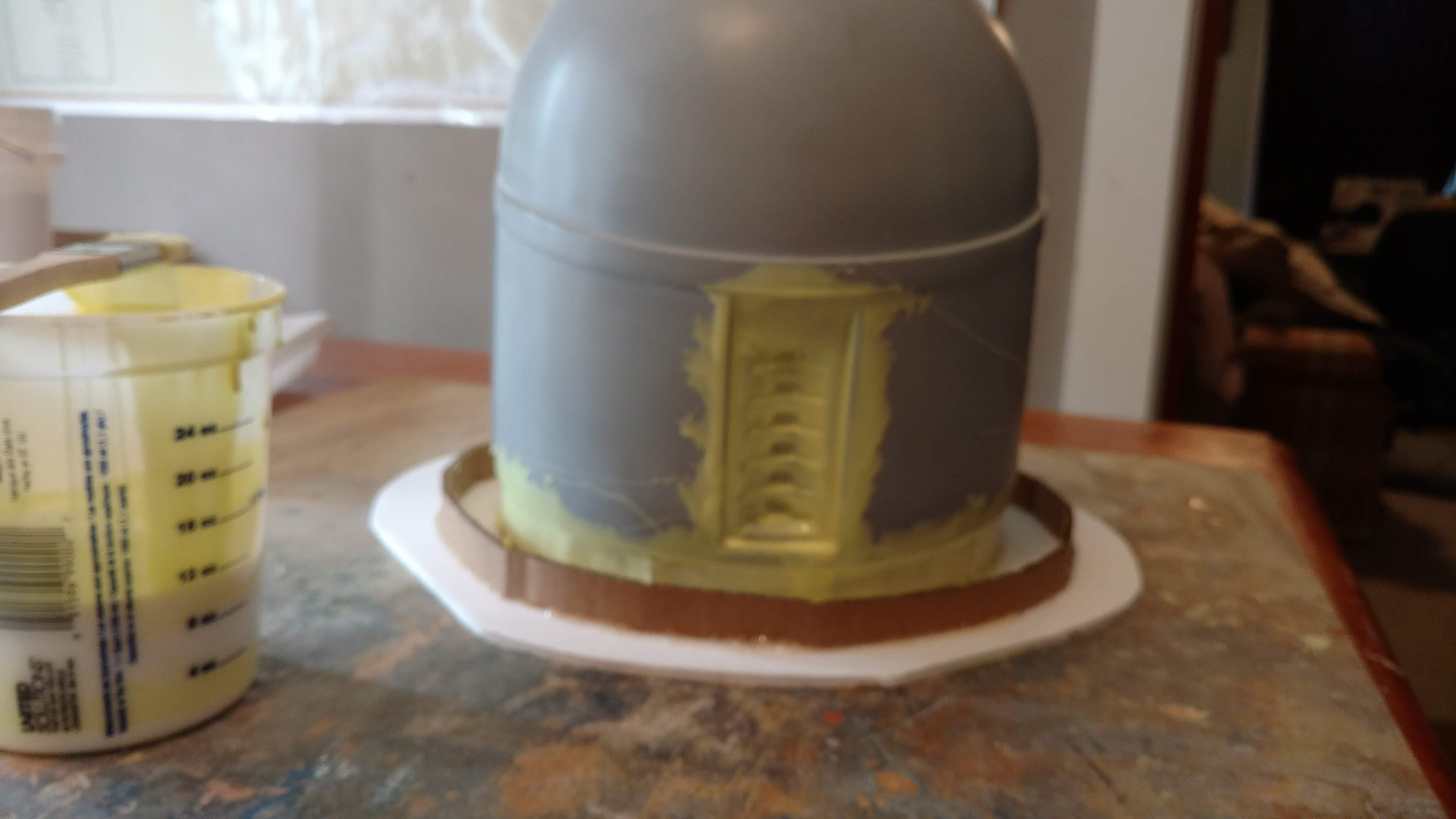

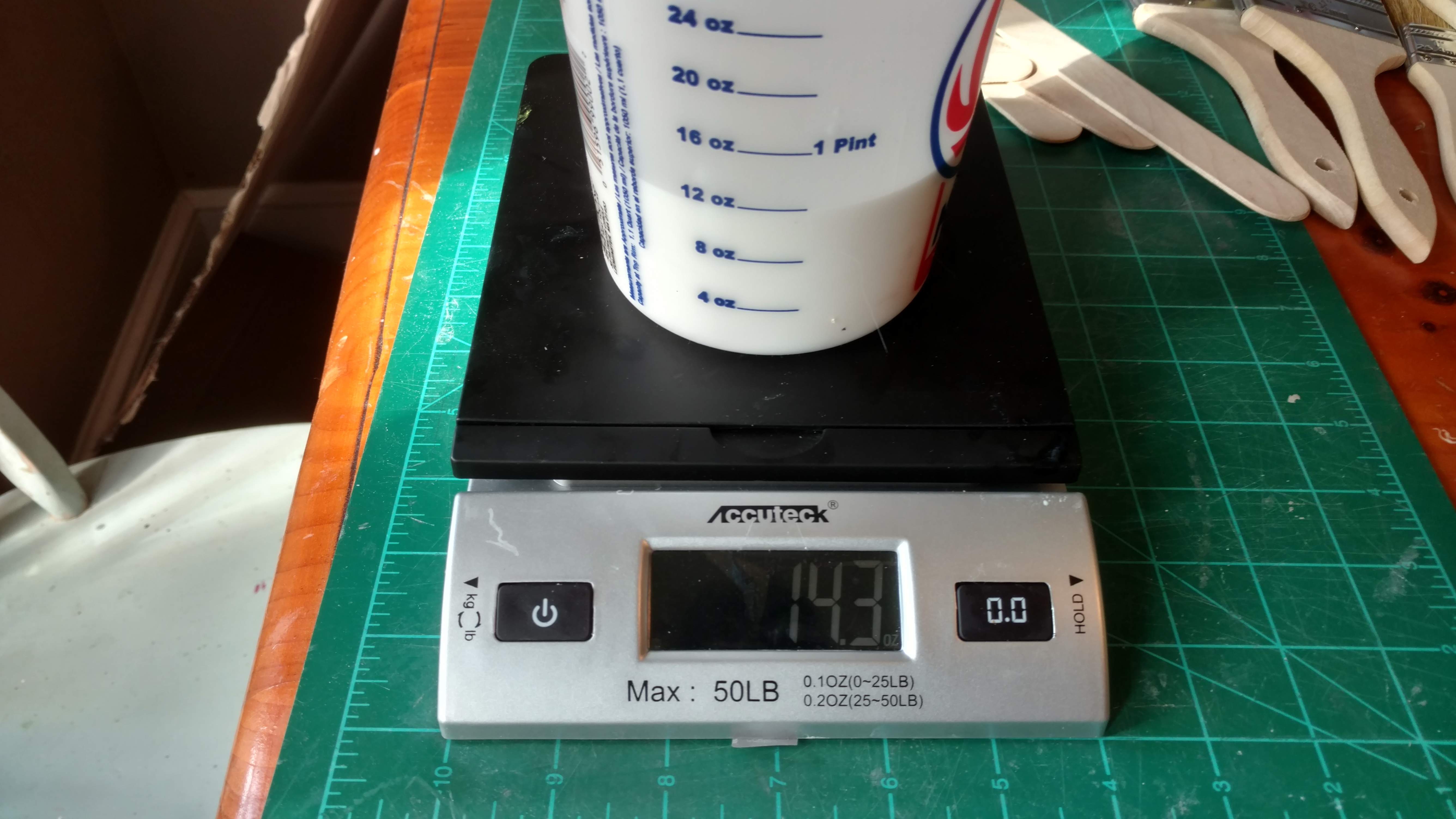

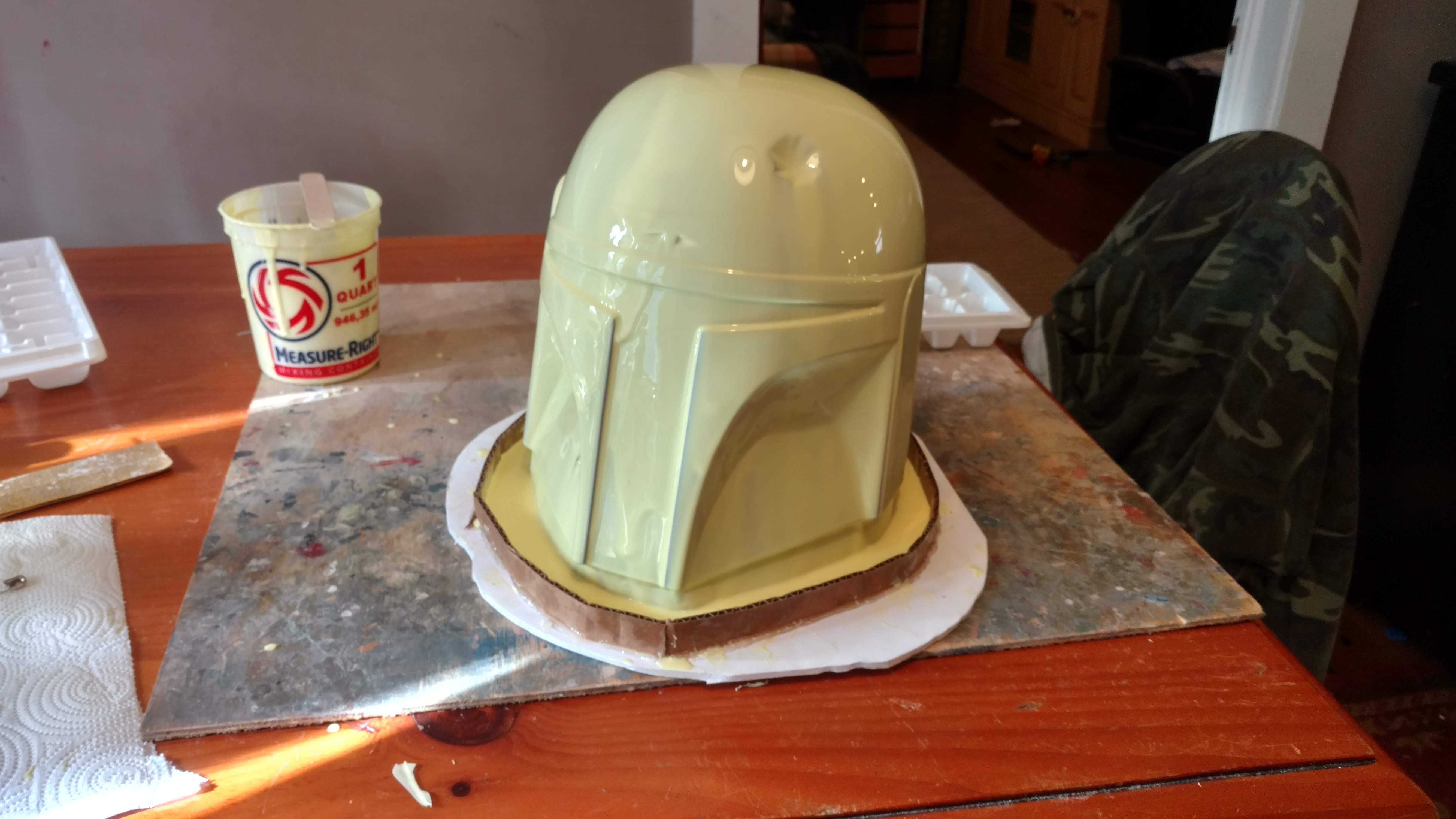

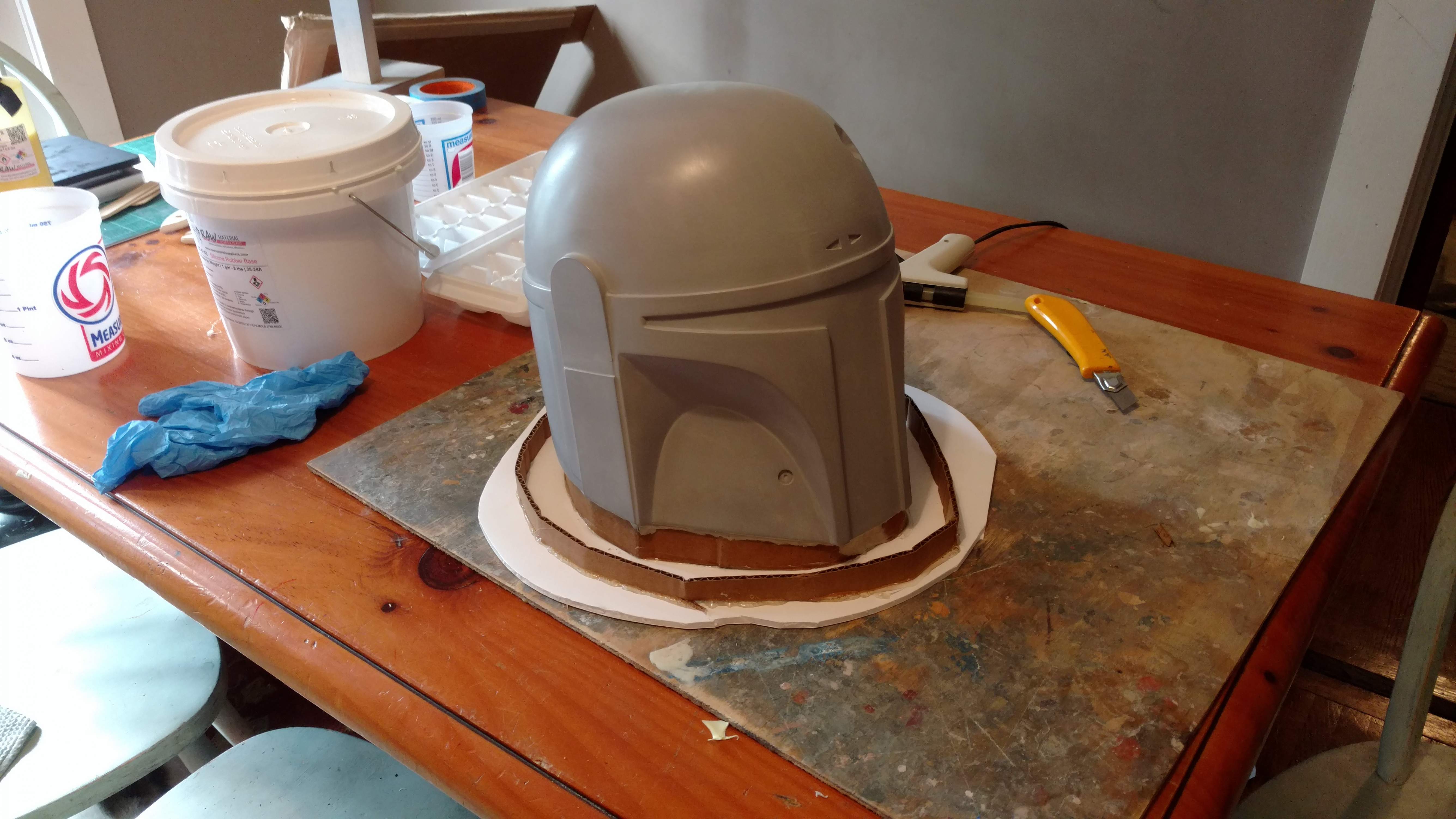

I'm working on a brush-on mold with tin cure silicone I ordered from raw material suppliers. It's pretty easy to work with...I did 1 other mold with it and had good results.



[ToEleven]

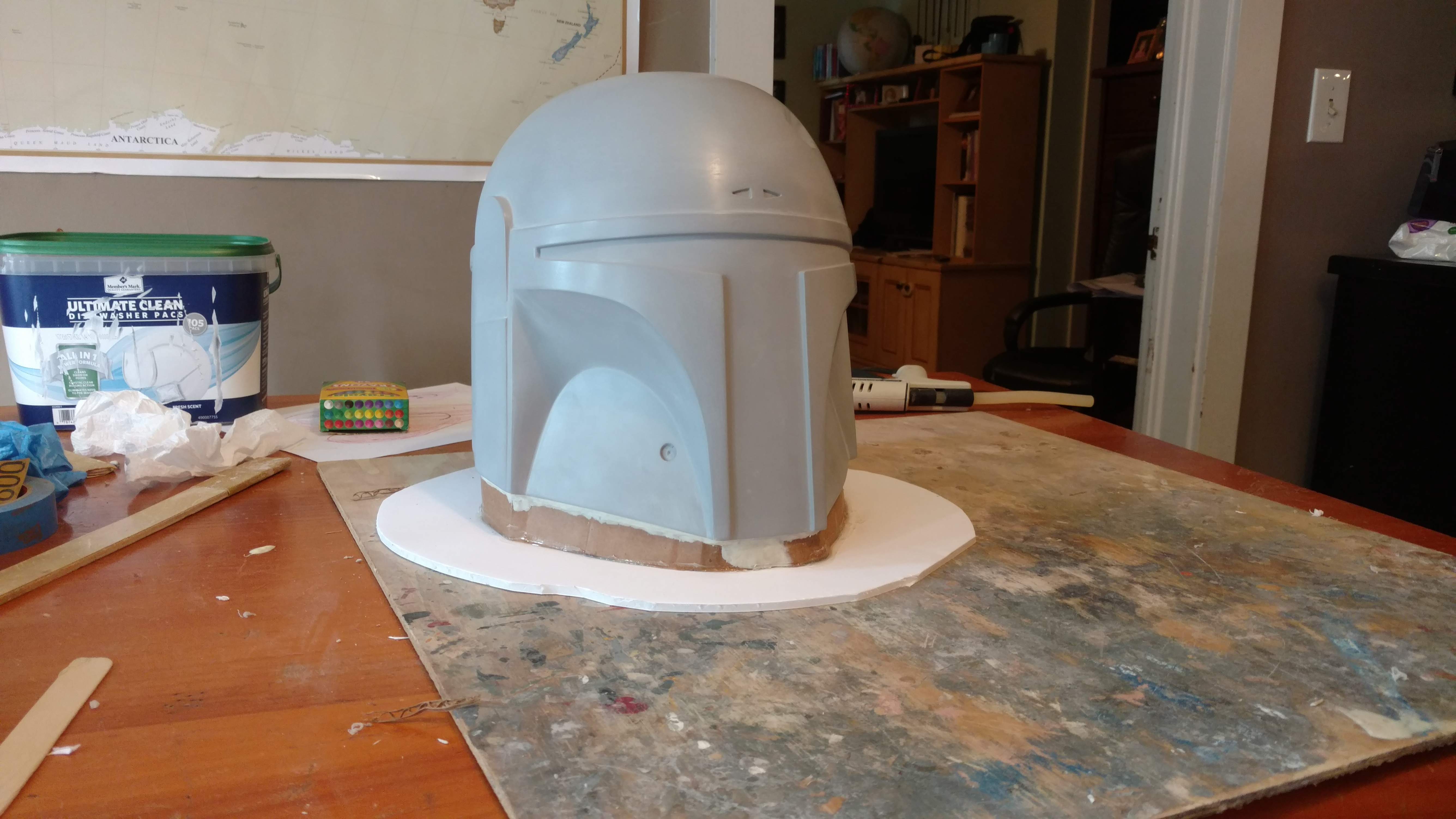

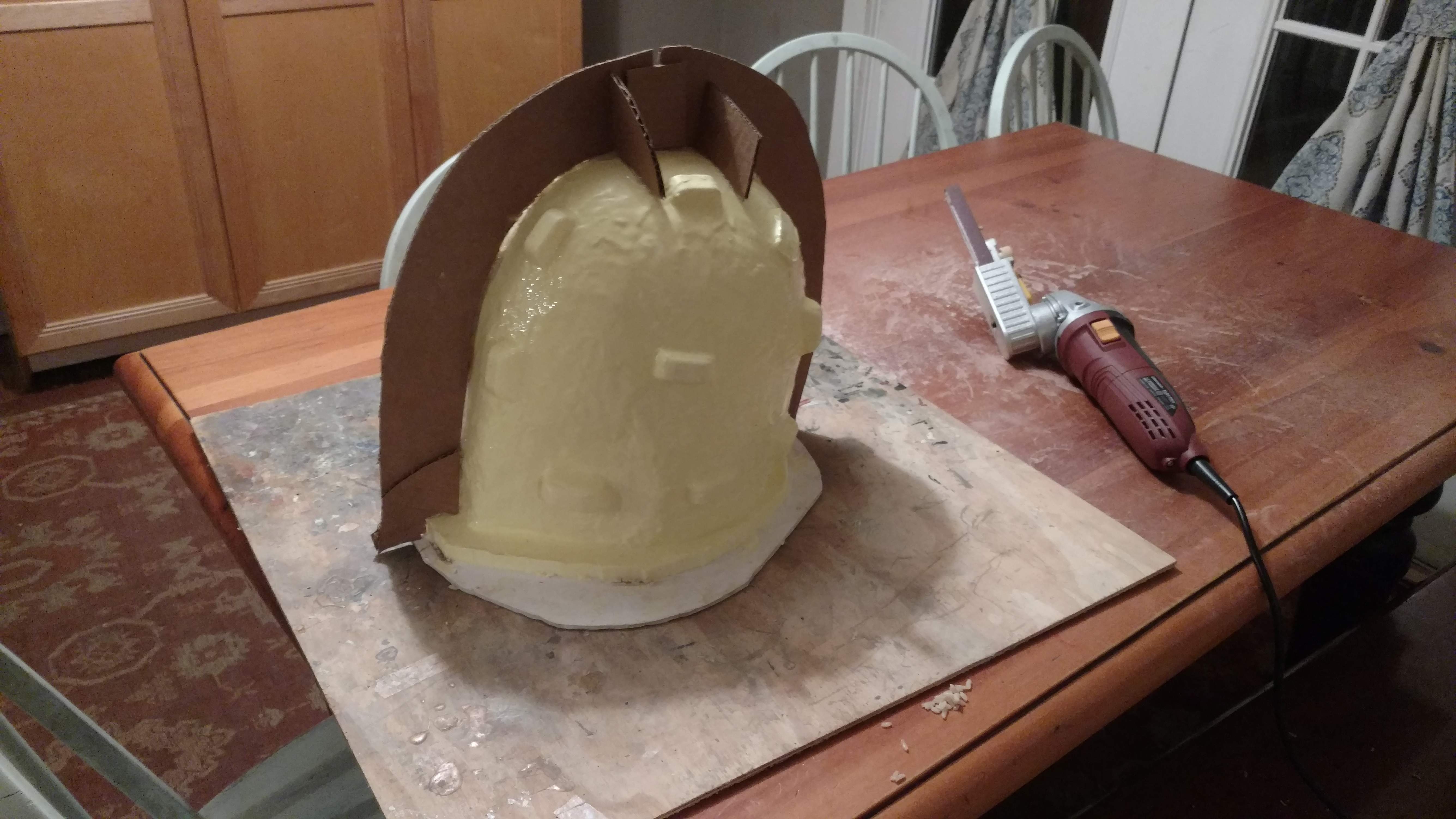

For anyone who like pictures of the molding process (possibly done incorrectly), I figured I would share where I'm at.


Apparently in reverse order...



[Silverstalker]

For anyone who like pictures of the molding process (possibly done incorrectly), I figured I would share where I'm at.

View attachment 96238View attachment 96240View attachment 96241View attachment 96242View attachment 96243
Apparently in reverse order...

Yes....yes I do I would like top learn about molding, I want to make a cast for my self one day just to ''do it'' so yeah share away



[ToEleven]

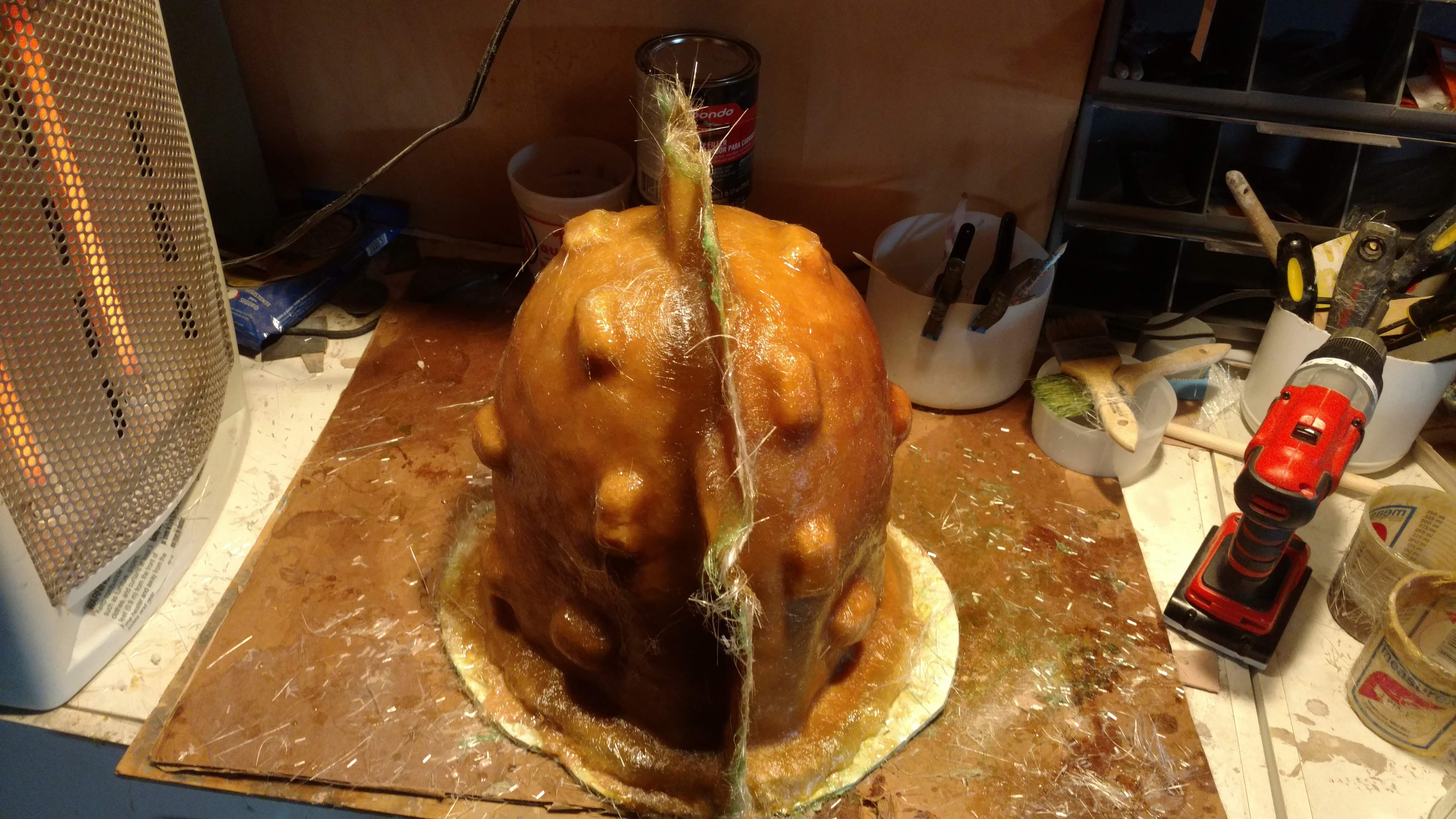

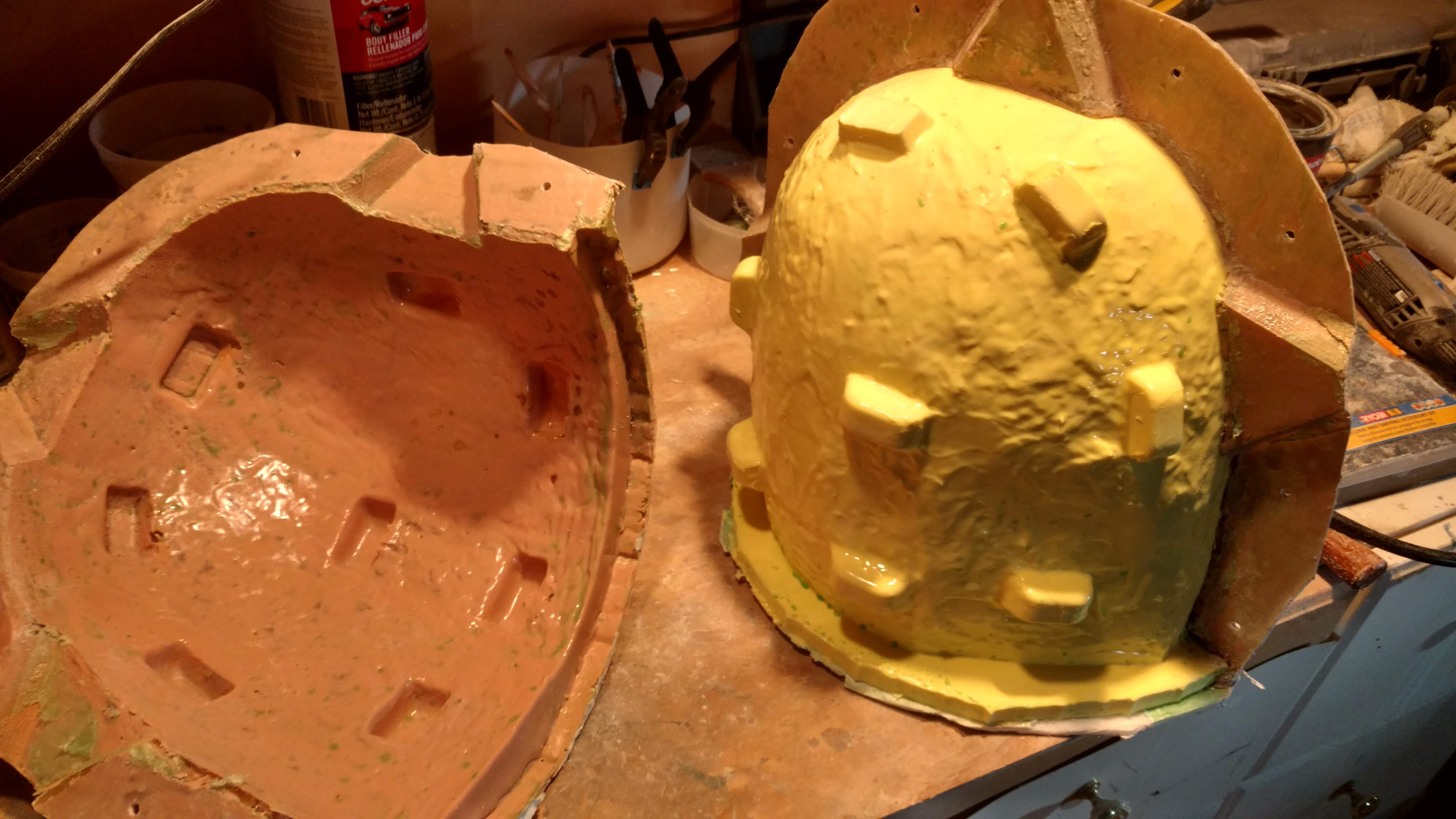

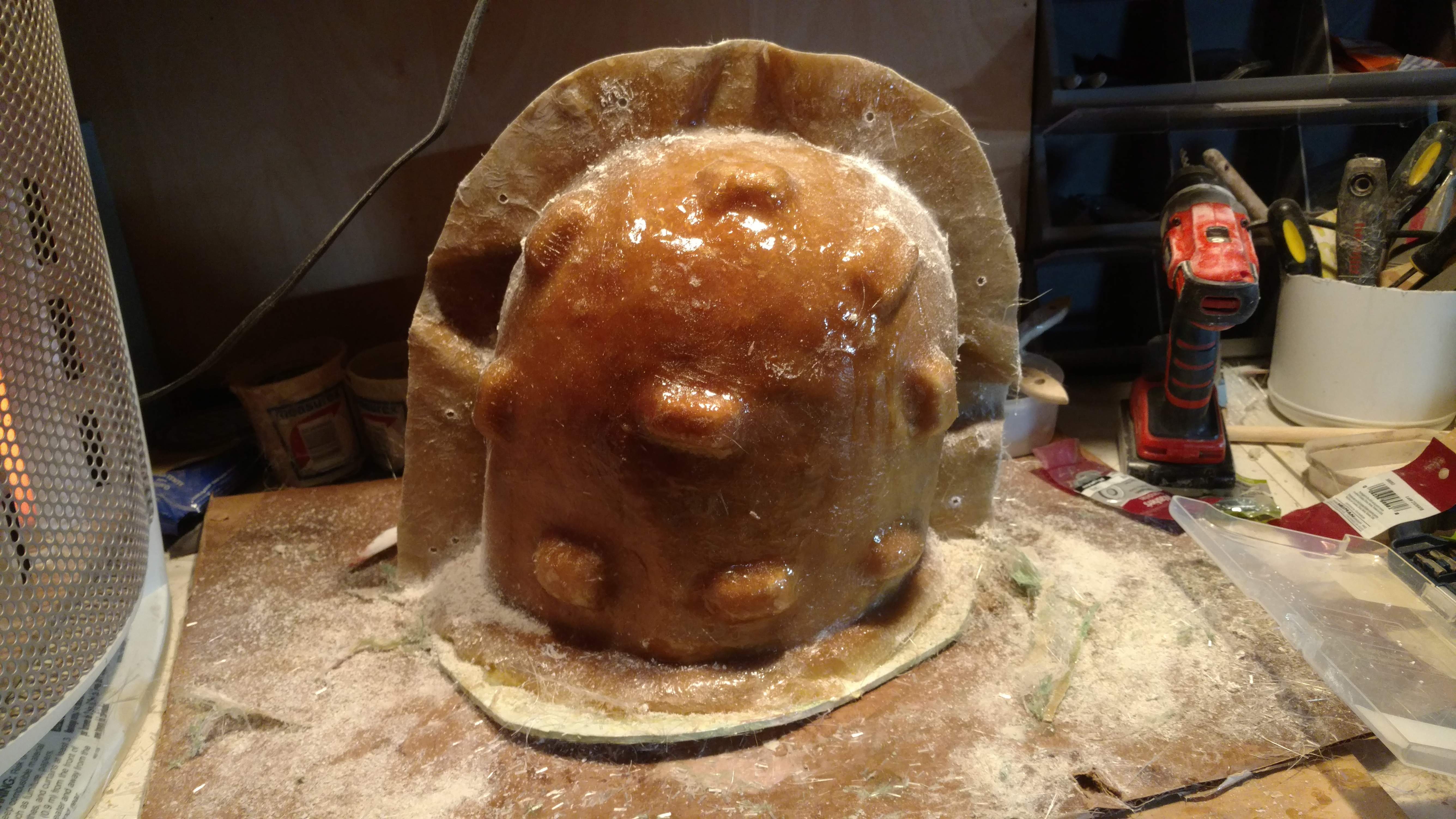

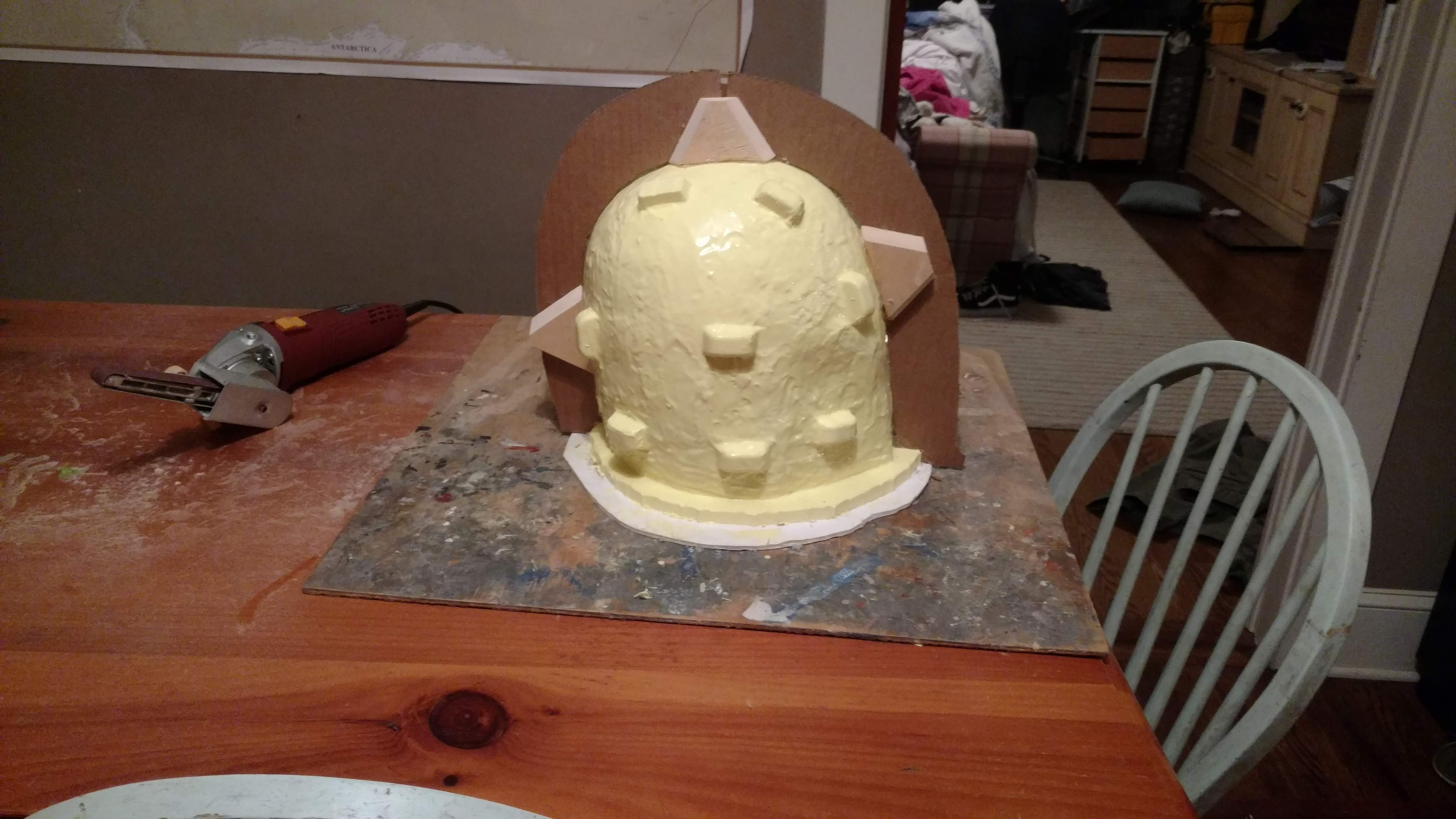

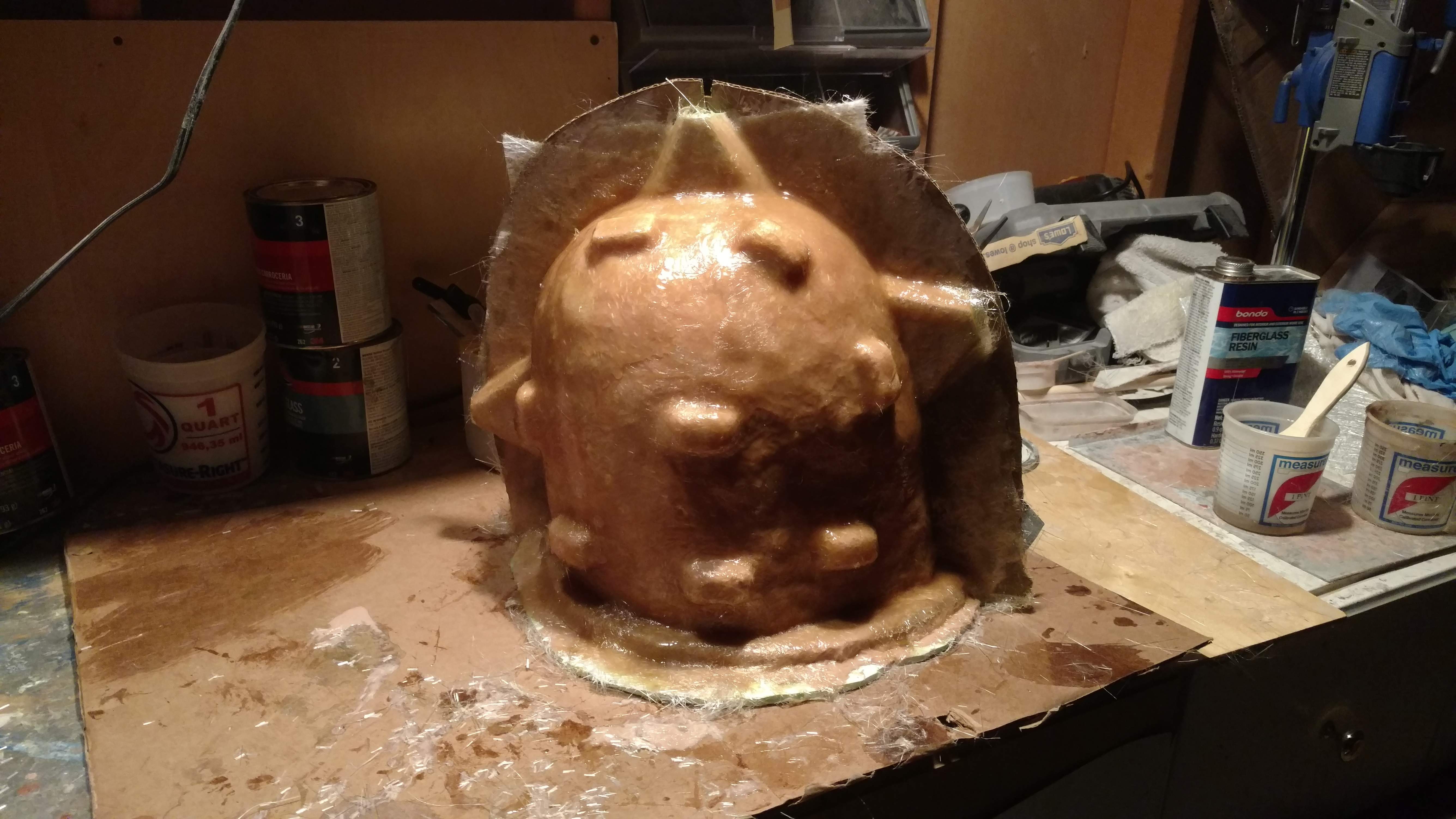

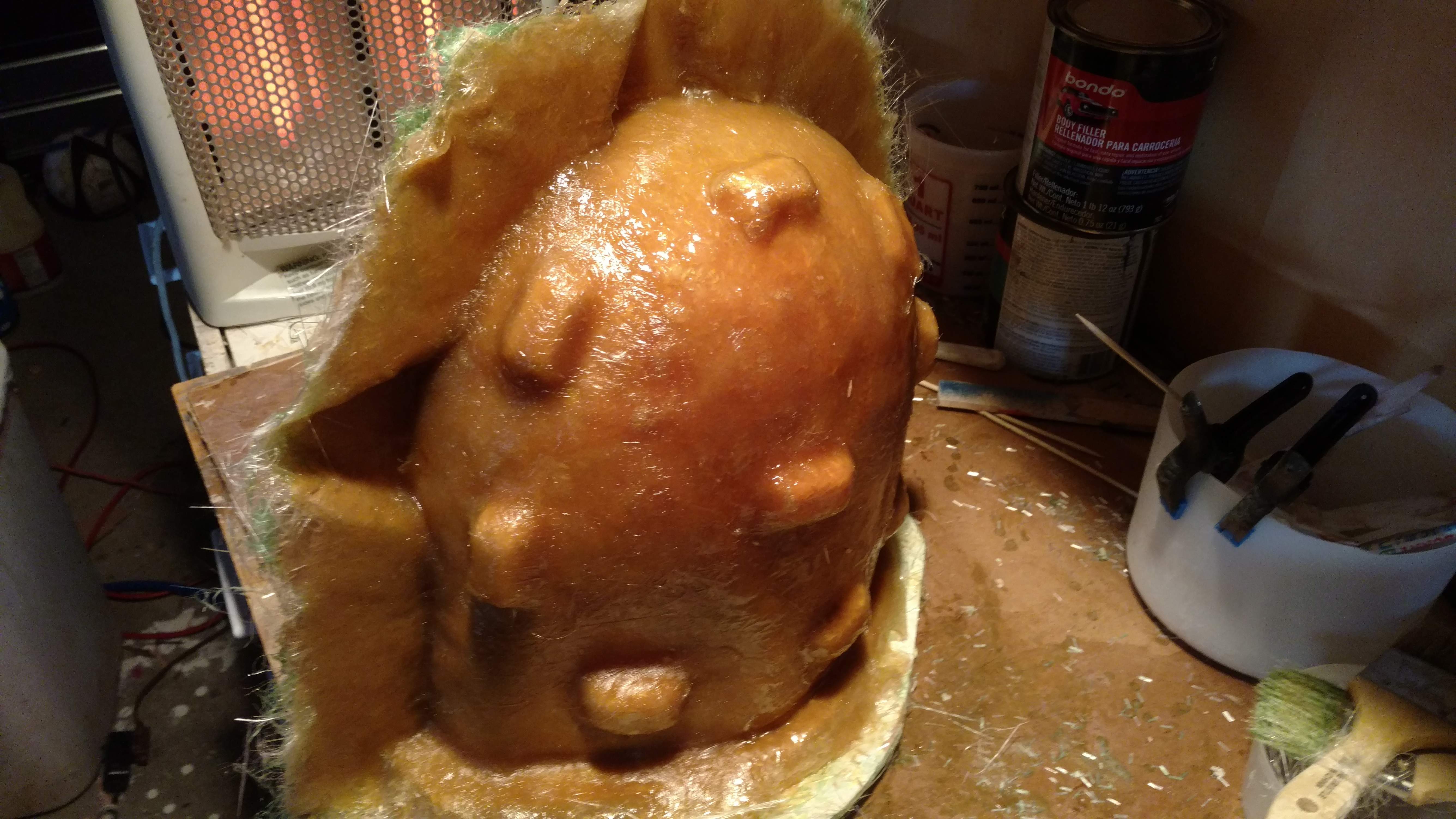

Another round of pics. Brushed on a couple coats of PVA and fiberglassed the other half of the mother mold. Also cracked it open and cleaned up the excess hairs from hell.



What you see on the inside of the mother mold is just a rondo (resin+bondo) el cheapo gelcoat. Also, the silicone I'm using is shore 28, which I was able to roll of the buck with a little bit of effort without making a cut.

Anyway, I'm a little ahead of where I thought I would be...I should have a cast pulled by the weekend.

...still need to do the ear molds.

Here is the silicone I'm using if anyone is interested.



[RichardJones]

Your helmet turned out really clean! Thanks for showing your mold process, your hard work really shows through!



[Silverstalker]

on to a winner there pal,



[ShortFuse]

Magnificent



[intwenothor]

Consistently impressed.



[Jayvee]

Just loving this!



[mainst69]

OK, off topic, but what model Les Paul and what amp is that in post 38?!



[ToEleven]

OK, off topic, but what model Les Paul and what amp is that in post 38?!

'96 Studio Gibson LP and the amp is a Matchless HC-30 clone I built myself...goes to eleven of course. :cool The cab has a Celestion greenback and weber blue alnico.



[mainst69]

PM sent



[ToEleven]

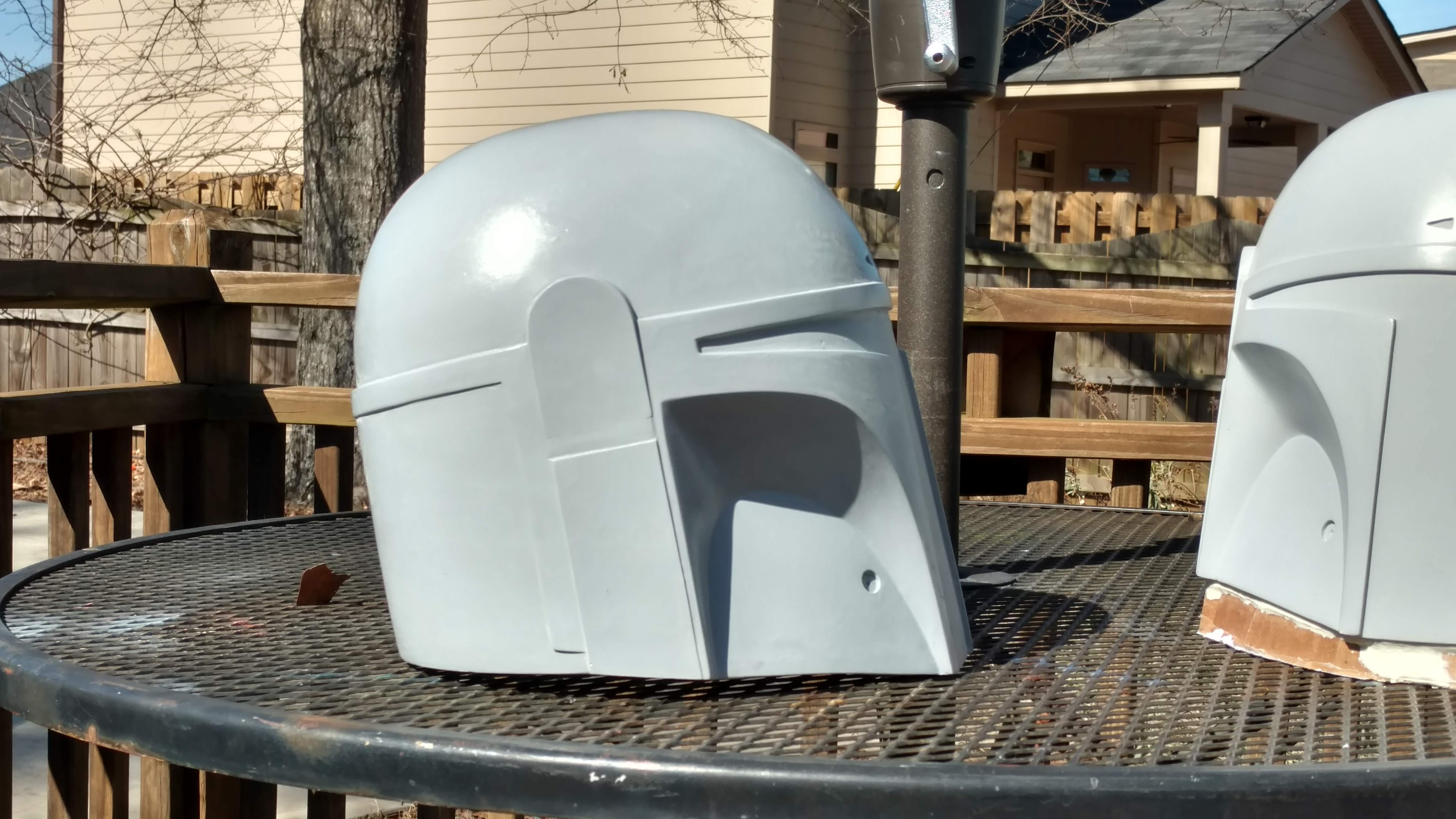

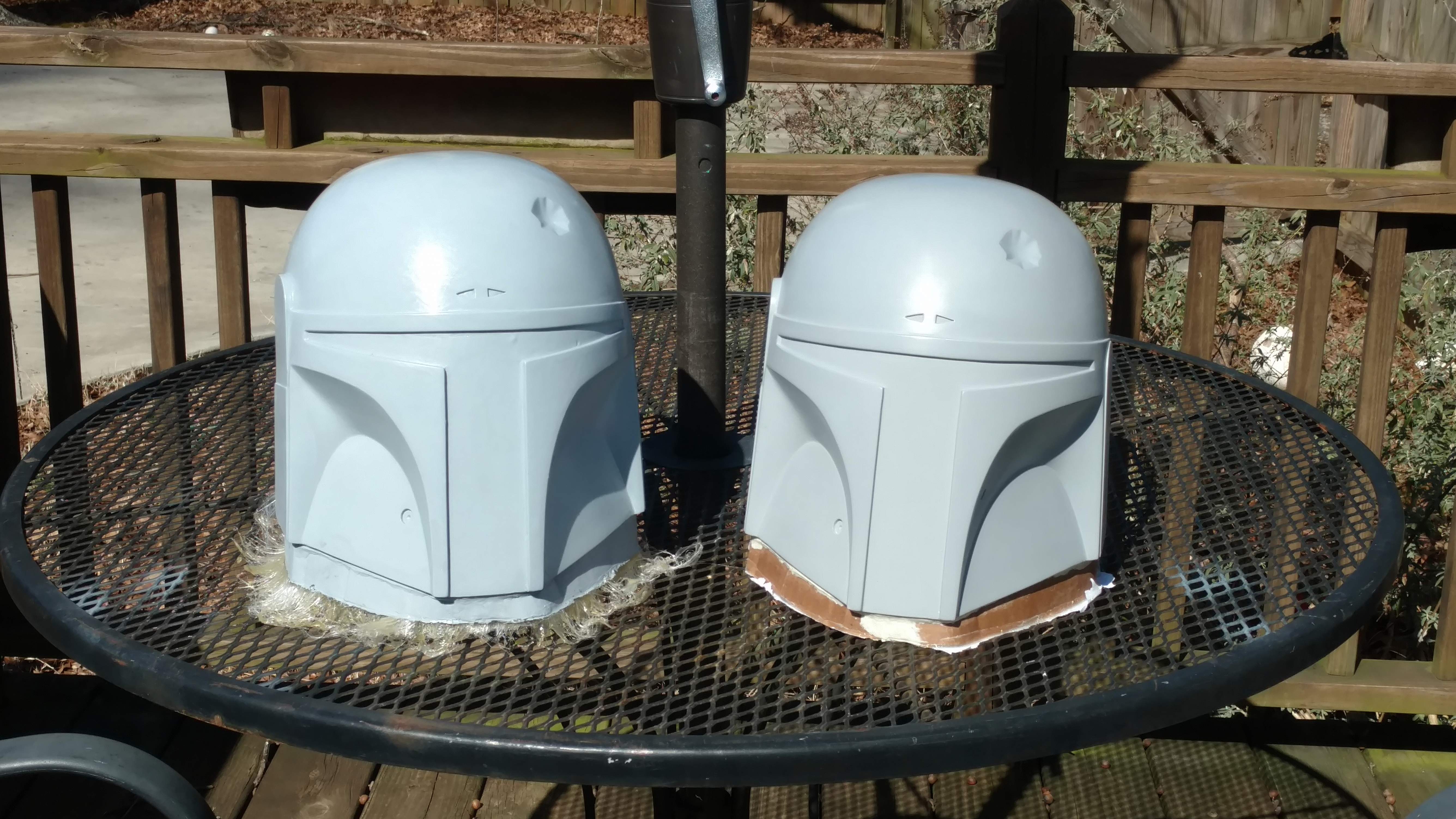

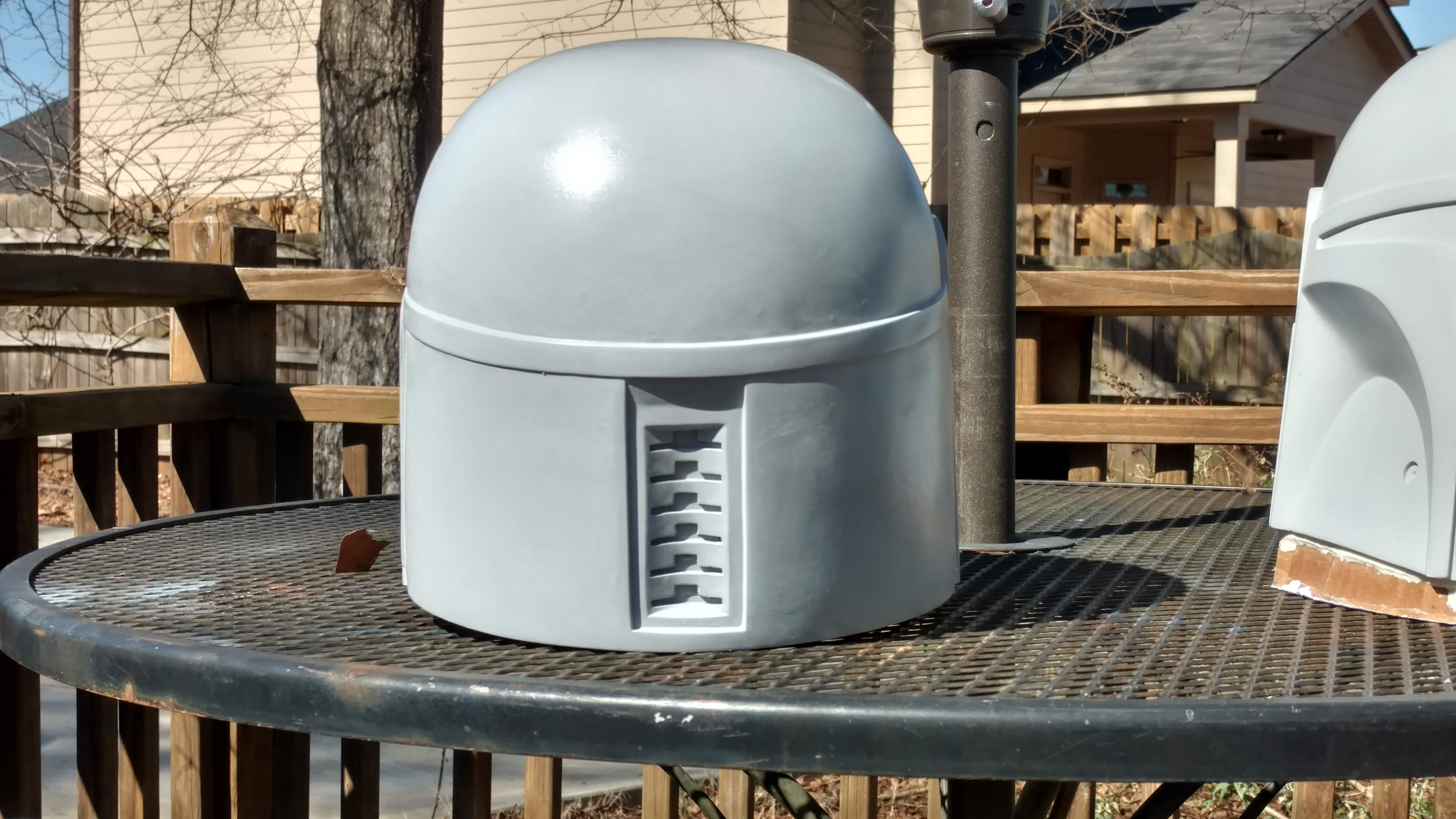

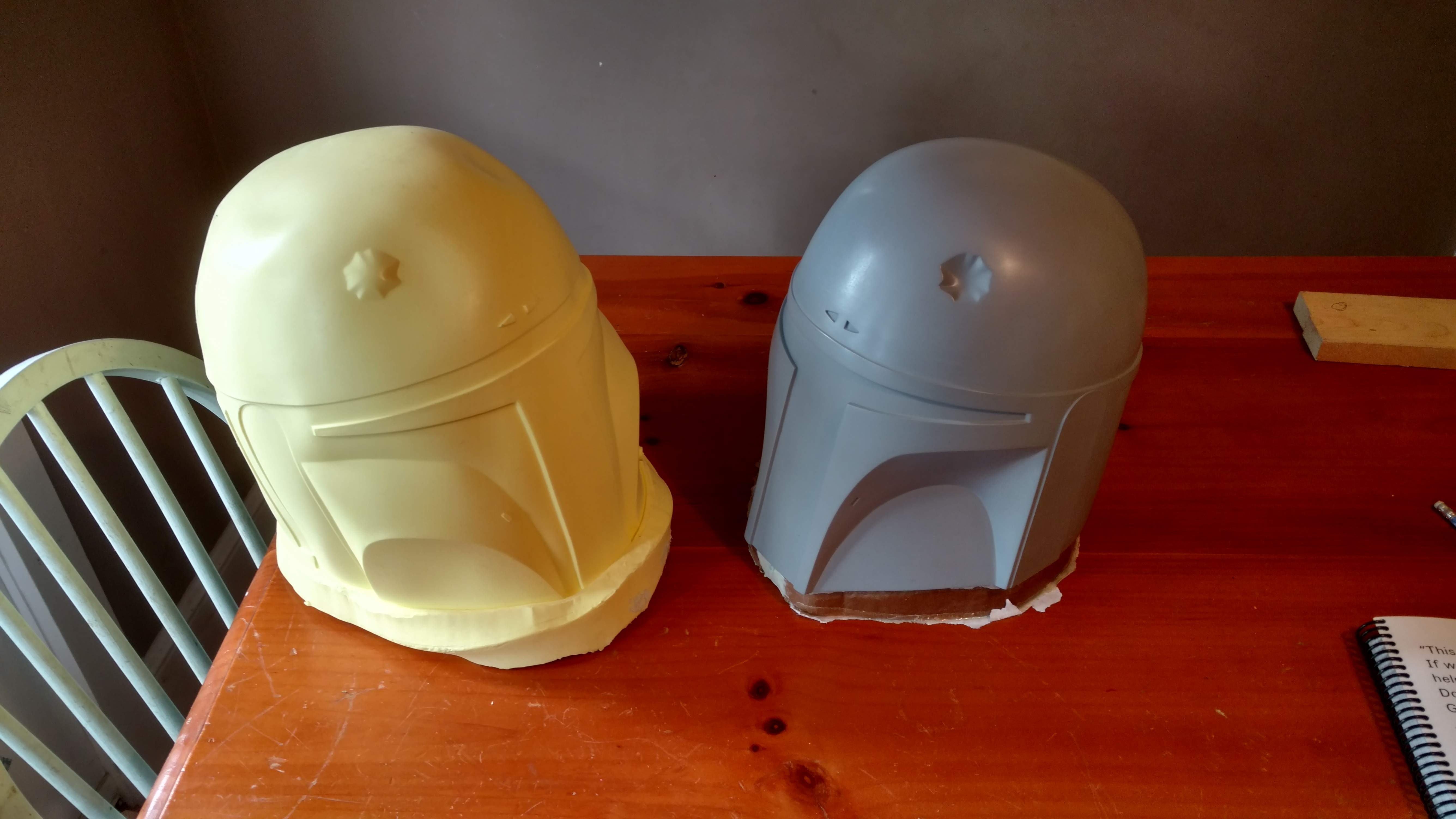

Ok, I finally got a halfway decent cast pulled. I say halfway because I believe the Stoner mold release I'm using is causing a weird reaction with he polyester gelcoat leaving a small ripple effect, which a little sanding and primer will take care of... also, I know I have a few voids in my silicone jacket behind the 1st layer which leave a very small bump in a few places which can be easily sanded out. Other than that I'm stoked about this helmet!!! I'll probably redo the mold at some point anyway.

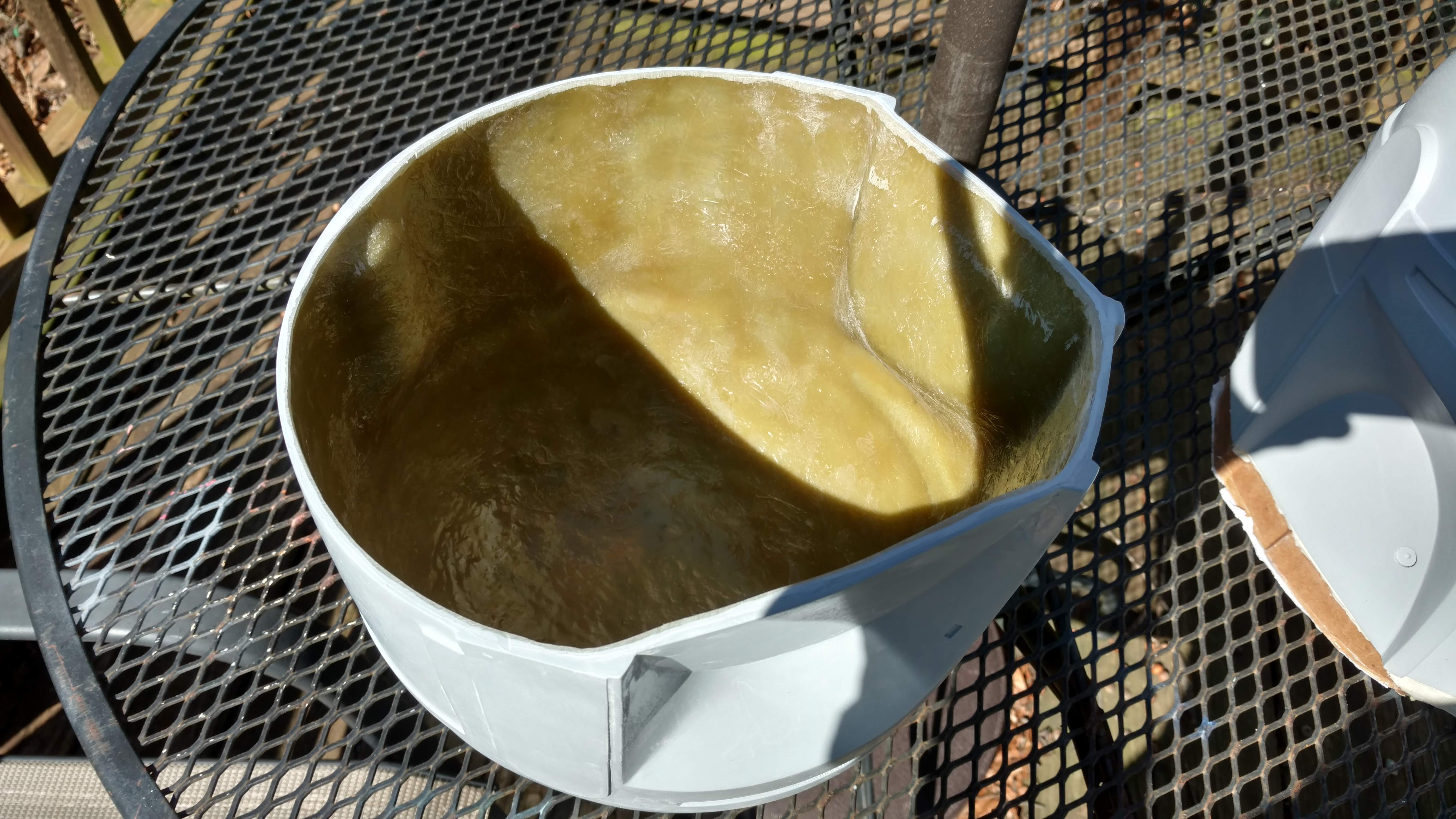

I used 2 layers of fiberglass after the gelcoat which makes this thing as hard as a rock. I'm not sure if this is overkill. Maybe someone can chime in and enlighten me.




Now on to the ears and Rangefinder.



[Silverstalker]

Great outcome looks solid too



[Cyris]

Now that's a solid-looking helmet! You have every reason to be stoked--that casting job looks great!! If and when you decide to make some kits, just say the word!

A little sanding is required for all helmets anyway, and that cast is already looking clean. Feel free to get some life out of that mold before you consider doing another!



[ToEleven]

Thanks guys. Definitely no new molds anytime soon, but I'm always seeing what I can improve. My goal is(has become) to provide a kit so stay tuned. I've got a few more hurdles ahead to get to that point.



[intwenothor]

I'm still really liking that dent. To eleven indeed.
