Wooden stock prep
- Thread starter Funkyred
- Start date
ConvergenceProp
Active Hunter

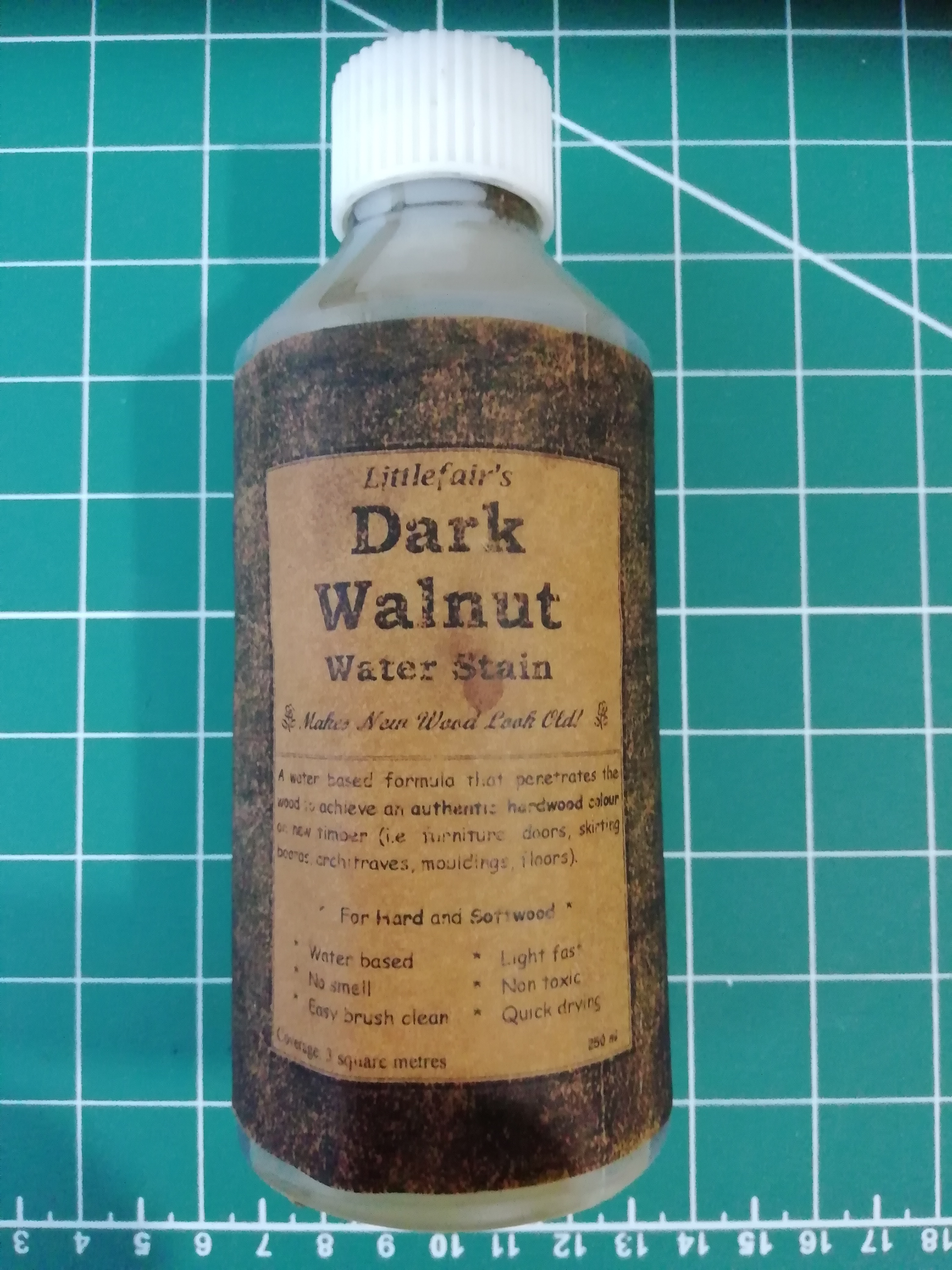

I use Boiled Linseed Oil followed by a very light coat of Danish Oil: Dark Walnut on my stocks once I've got it shaped and sanded to my liking
deathxcircle
Hunter
I am in the market for one myself. Where did you order yours from?

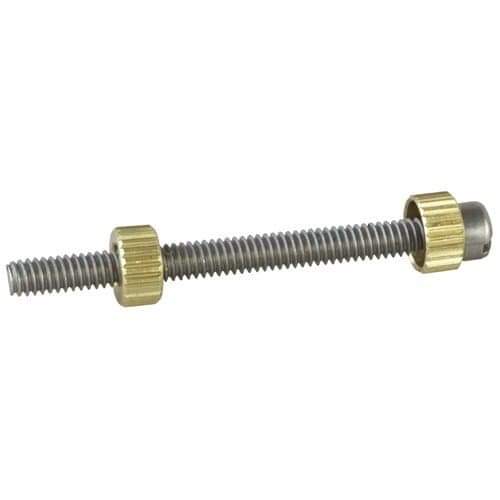

The escutcheon-screws finally arrived from the states after being stranded due to the weather. I was given the heads up on these by Intwenothor after searching for grip screws as I didn't want to use Chicago screws . They come in packs of 6 so I have spares.

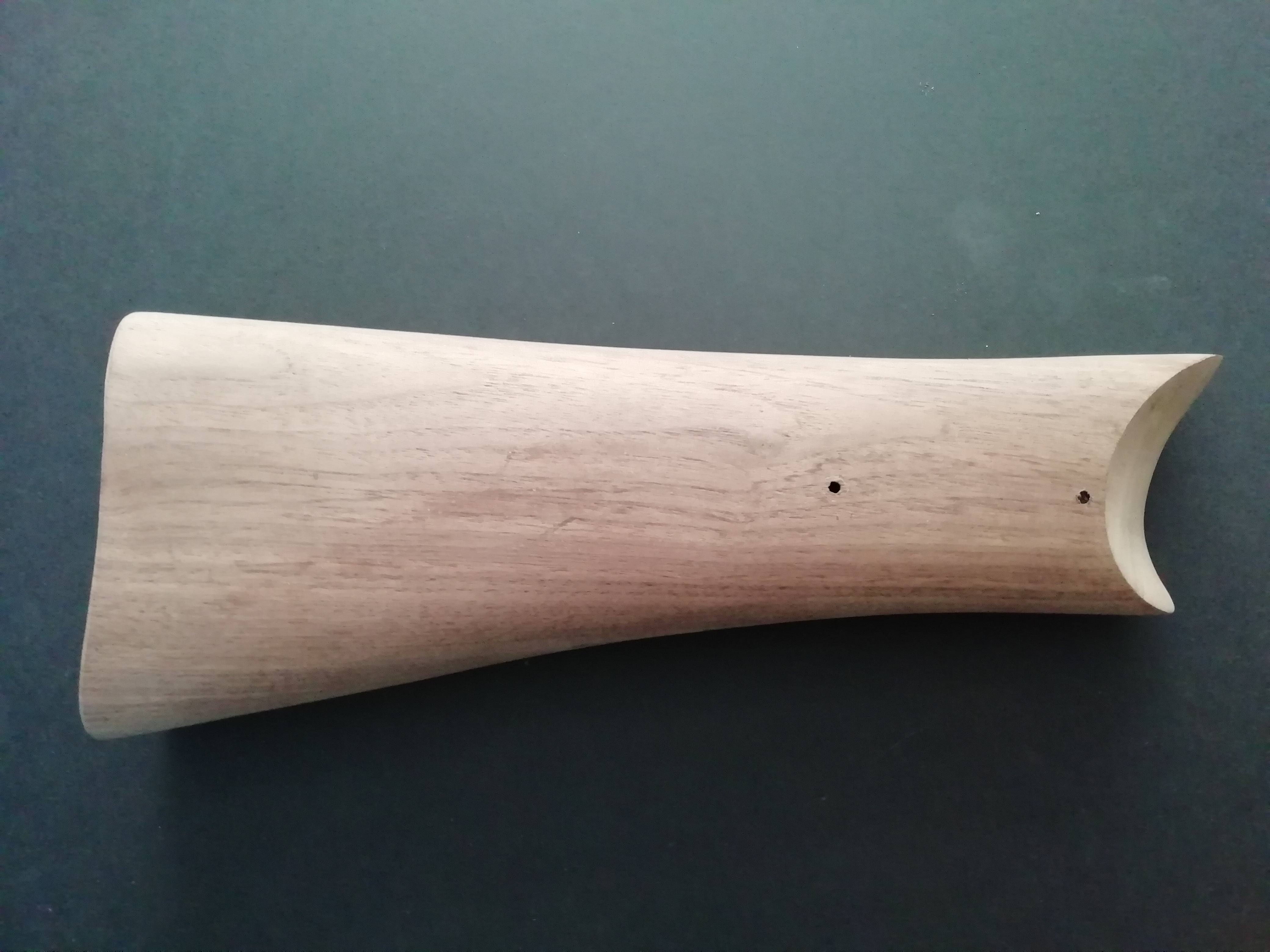

I first drilled pilot holes for the bolts
I then drilled the countersunk holes for the brass nuts on both sides.

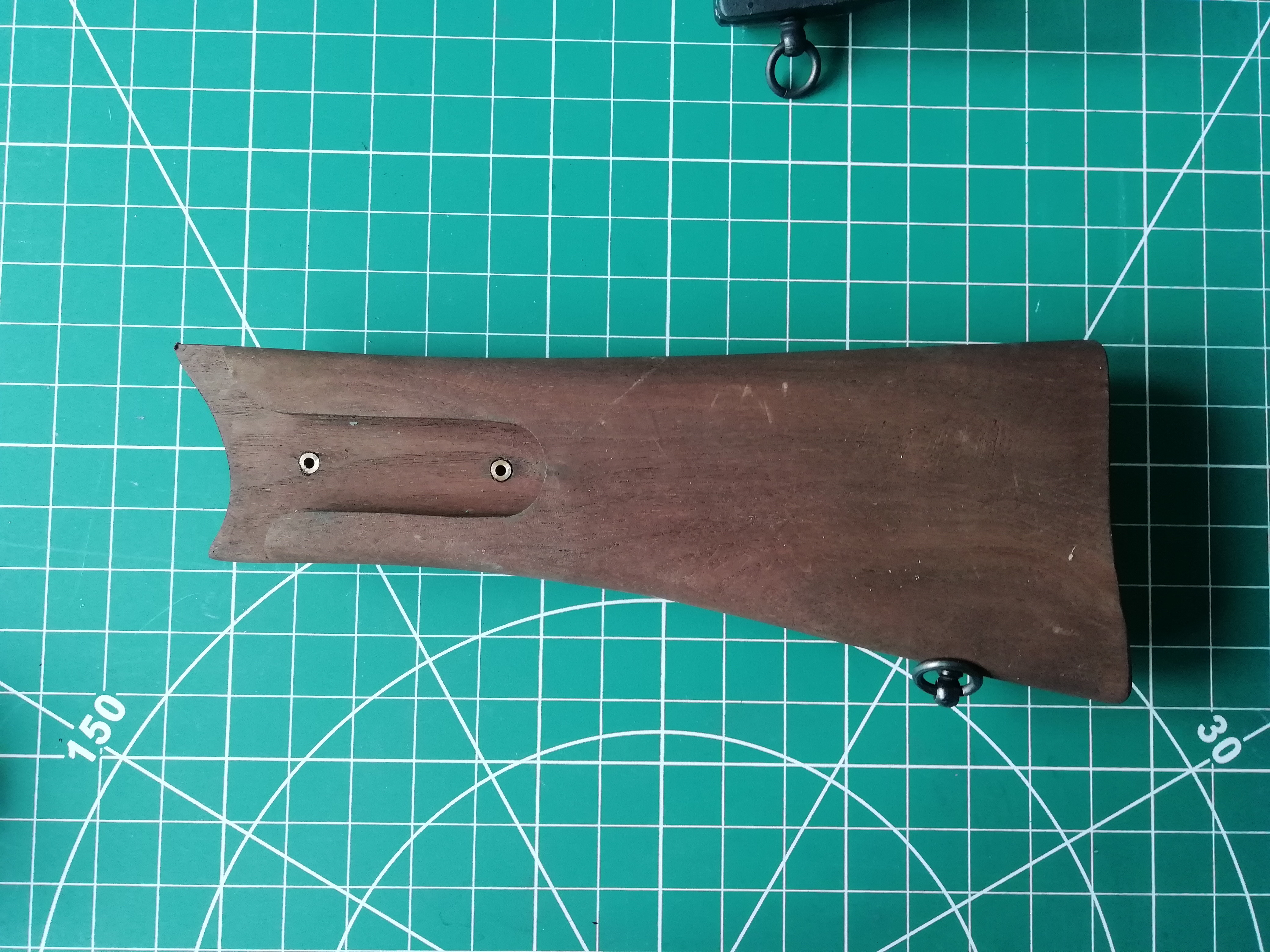

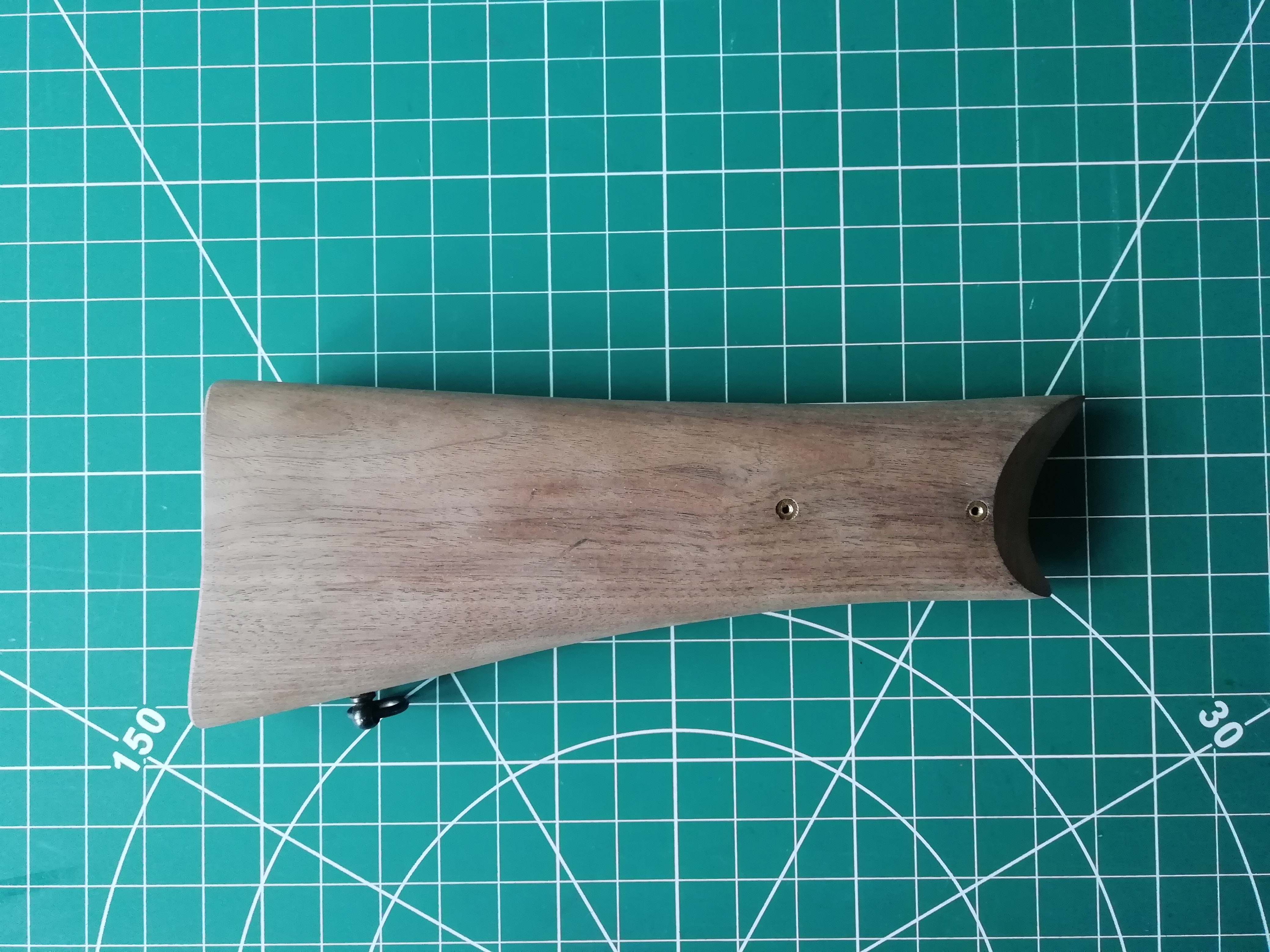

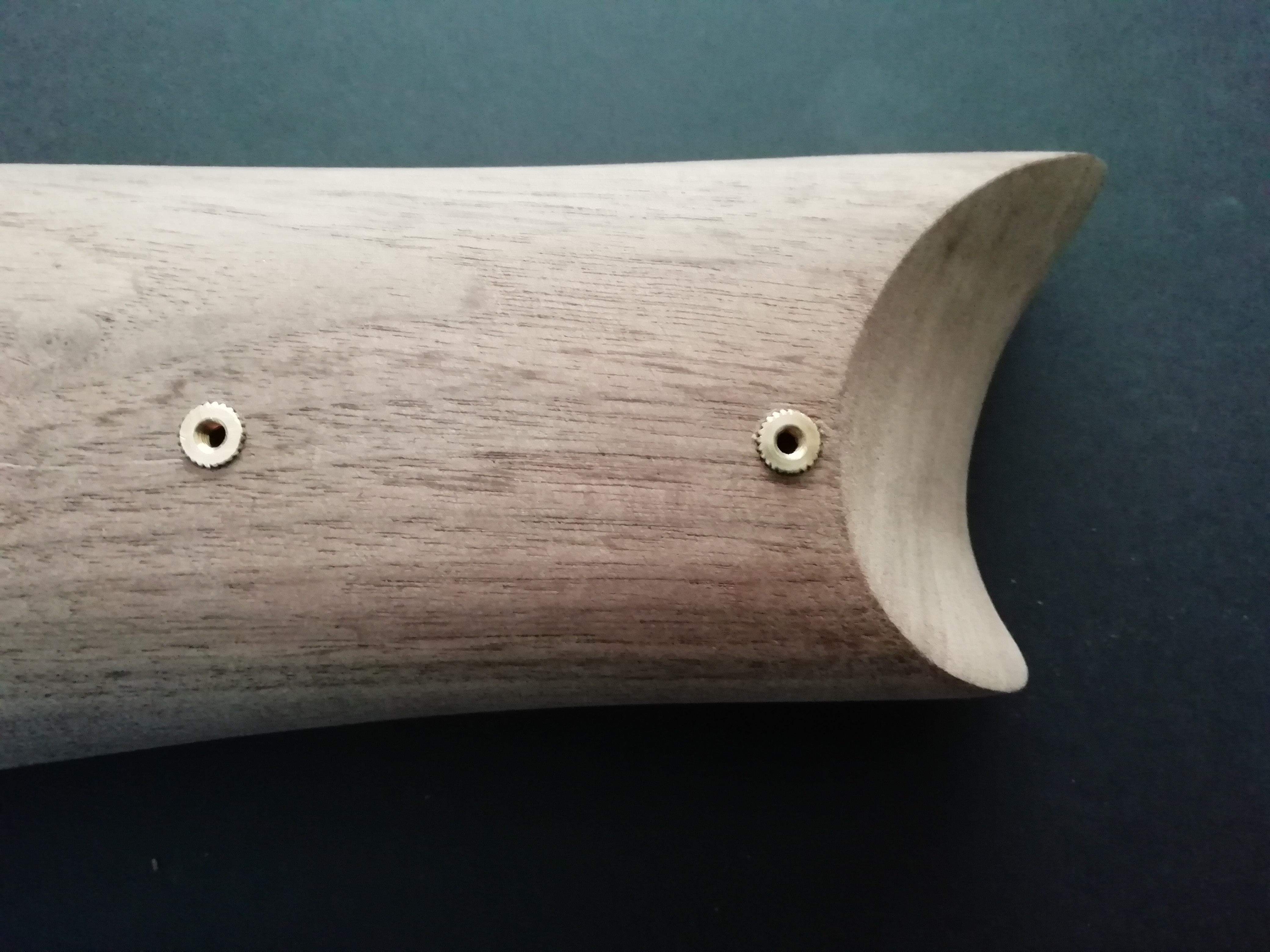

I then bolted the D-ring into the stock , the bolts pulled the nuts into the stock to fix it securely in place. The bolt closest to the grip had to be cut down a bit as it protruded slightly through the side of the stock but I am quite happy how they turned out . Now for the stain / oil.
Original
Where I got them from , they are based and ship from the US but have branches across the globe.
https://www.brownells.com/gunsmith-...e/metal-screws/escutcheon-screws-prod388.aspx
I first drilled pilot holes for the bolts
I then drilled the countersunk holes for the brass nuts on both sides.
I then bolted the D-ring into the stock , the bolts pulled the nuts into the stock to fix it securely in place. The bolt closest to the grip had to be cut down a bit as it protruded slightly through the side of the stock but I am quite happy how they turned out . Now for the stain / oil.
Original
Where I got them from , they are based and ship from the US but have branches across the globe.
https://www.brownells.com/gunsmith-...e/metal-screws/escutcheon-screws-prod388.aspx
Attachments
Last edited:
These are nice ! I used these on my build also!
Great Job
Great Job
Last edited:

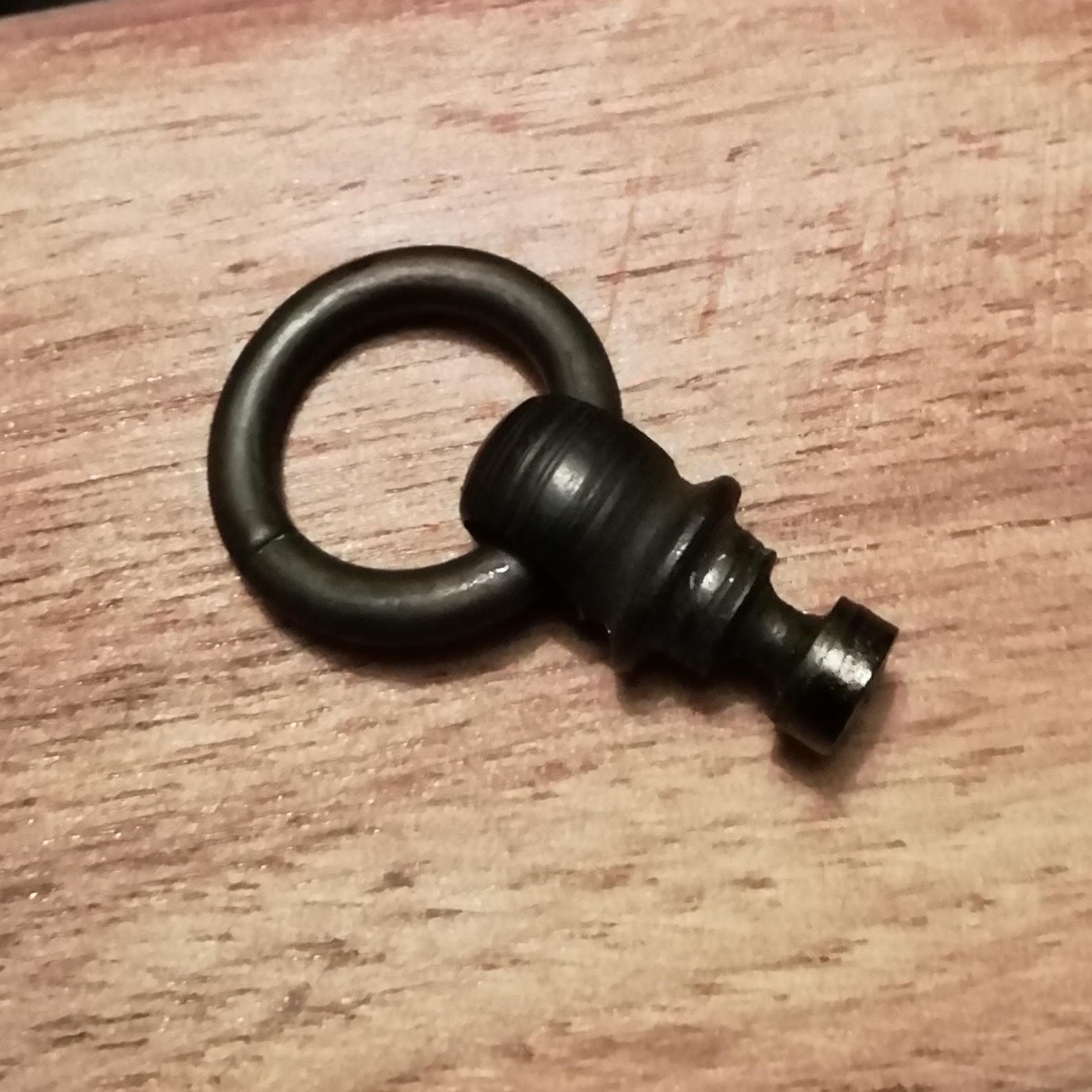

I purchased couple of webley lanyard swivel posts from a company in the States. Everywhere I found them the words "pin not include" was written which I found confusing. It was only when I realised the units didn't swivel idependantly and as I prized the grip off my sidewinder webley the pin statement started to make sense.

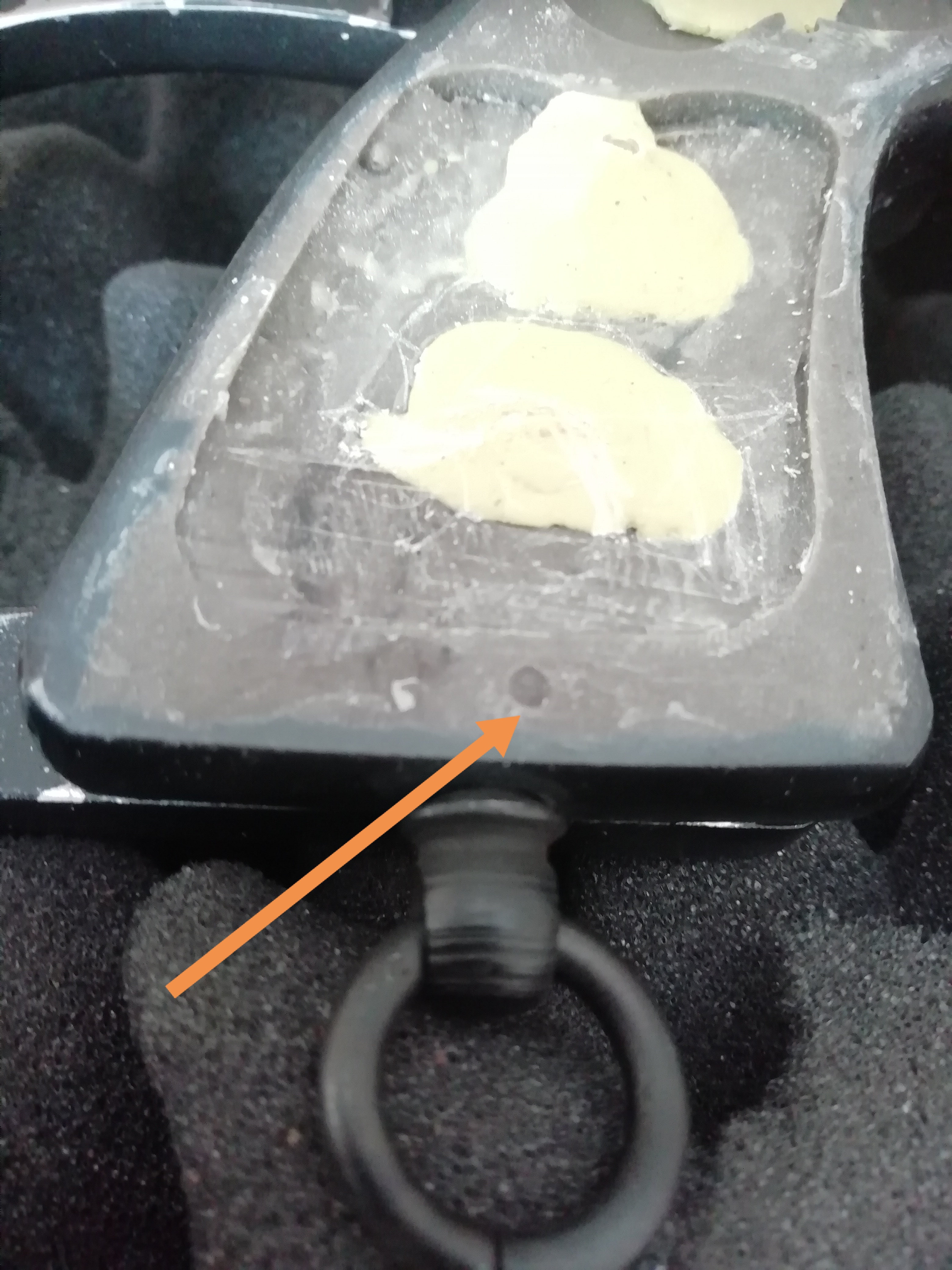

The casting from an original flare gun shows an indentation where a hole should be. The pin went through the hole and locks the post in place.

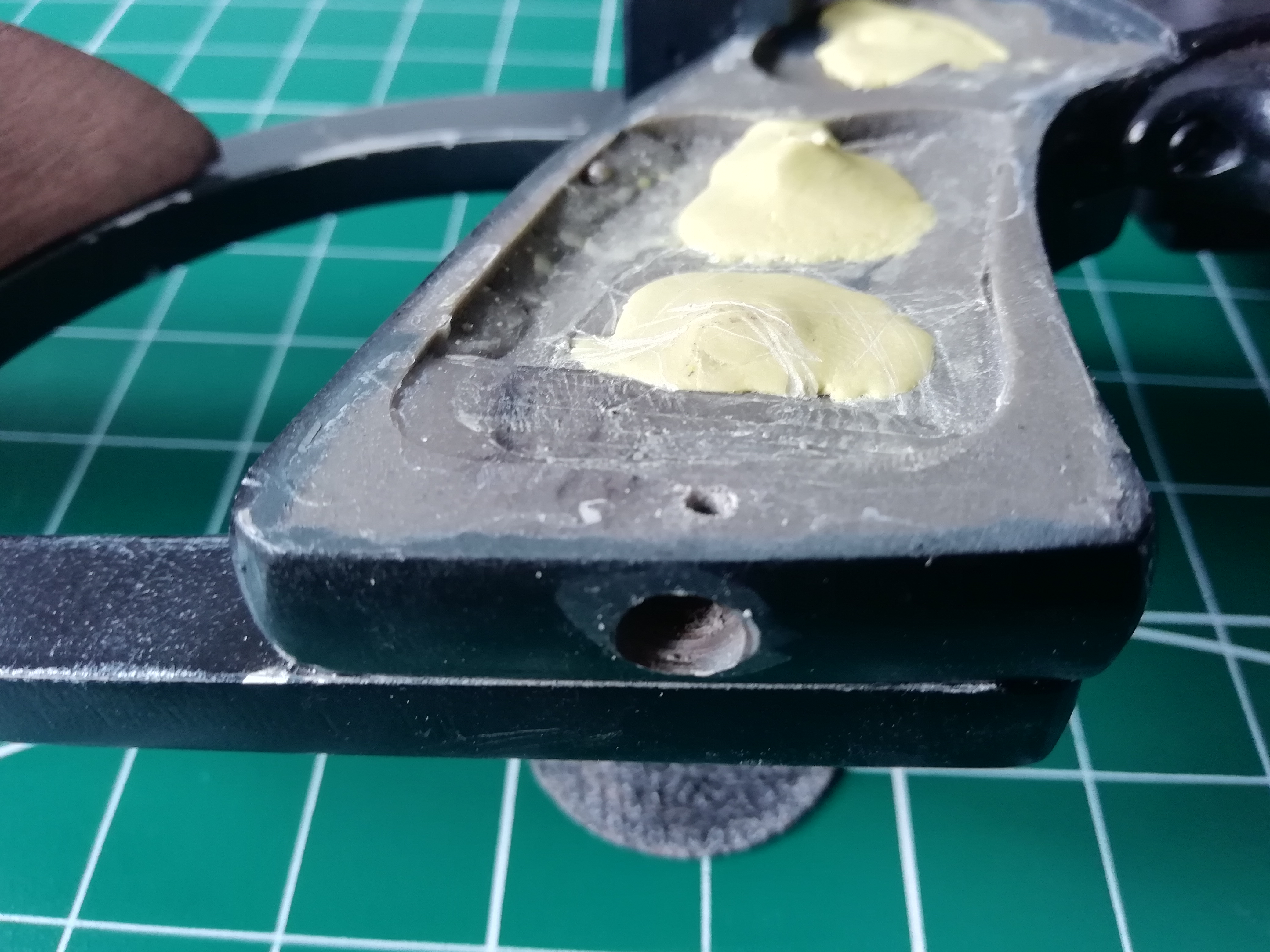

I fired up the dremel and drilled a pilot hole
Cut down a panel pin and fitted it all together.

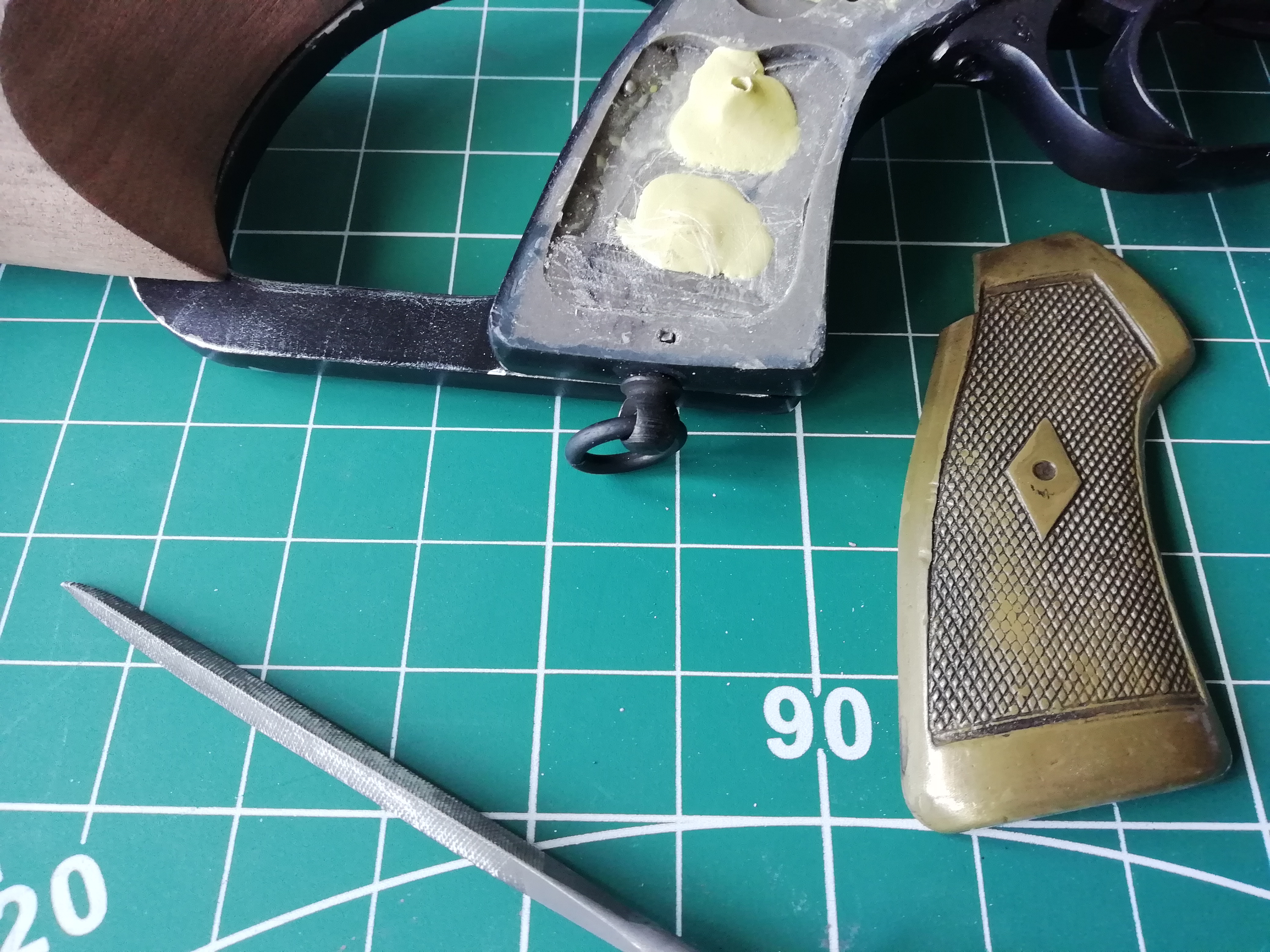

Fitted quite well and locks it in place and now swivels

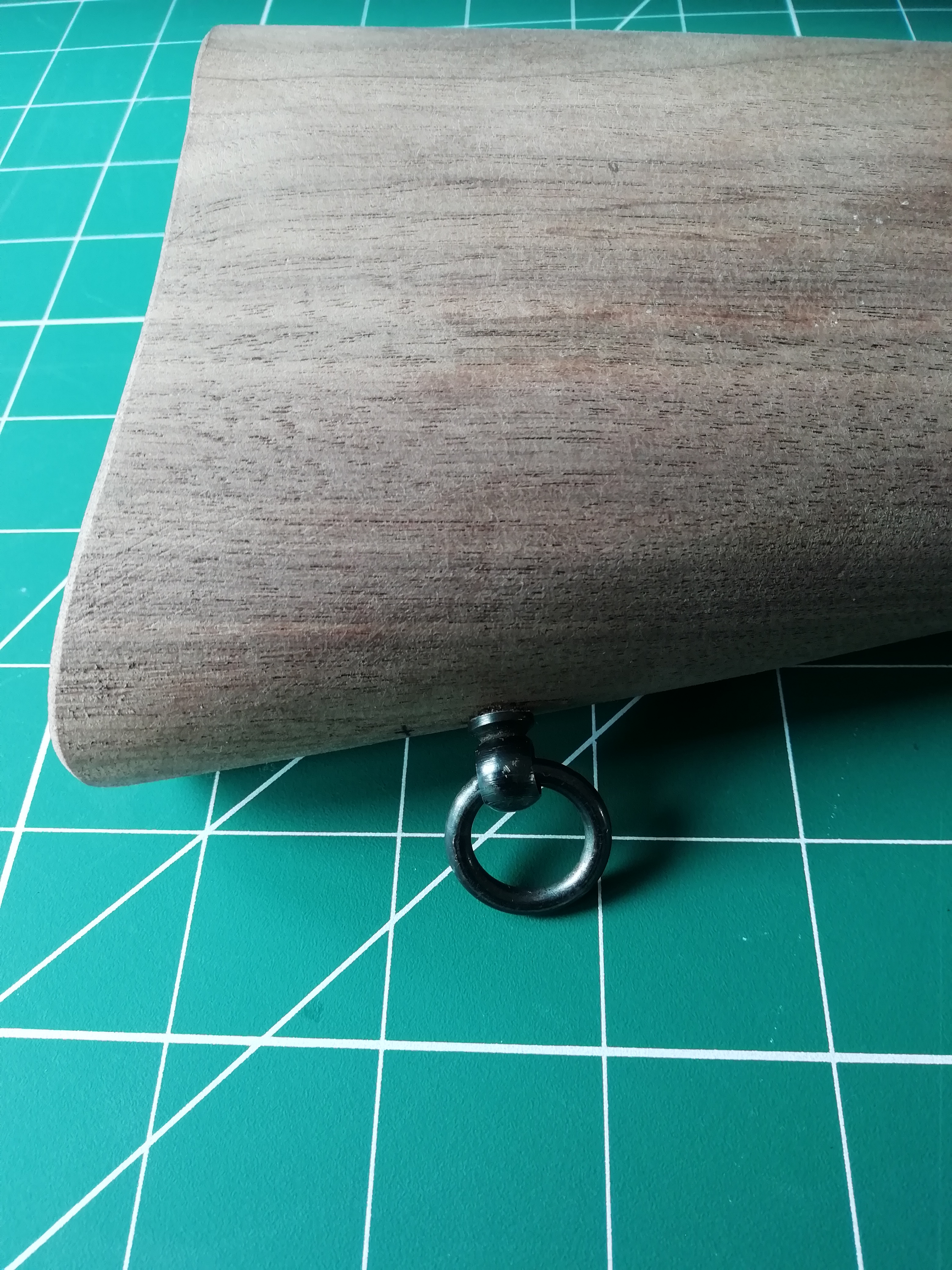

The stock post brought its own issues, while waiting for the posts to arrive I found an old TDH thread by 99centTaco about them and the other members searches. (they haven't been made for 100 years) Apparently the stock post has a screw thread.
So I had to push mine into the stock and glue it in position as per carbon chamber screen shot.

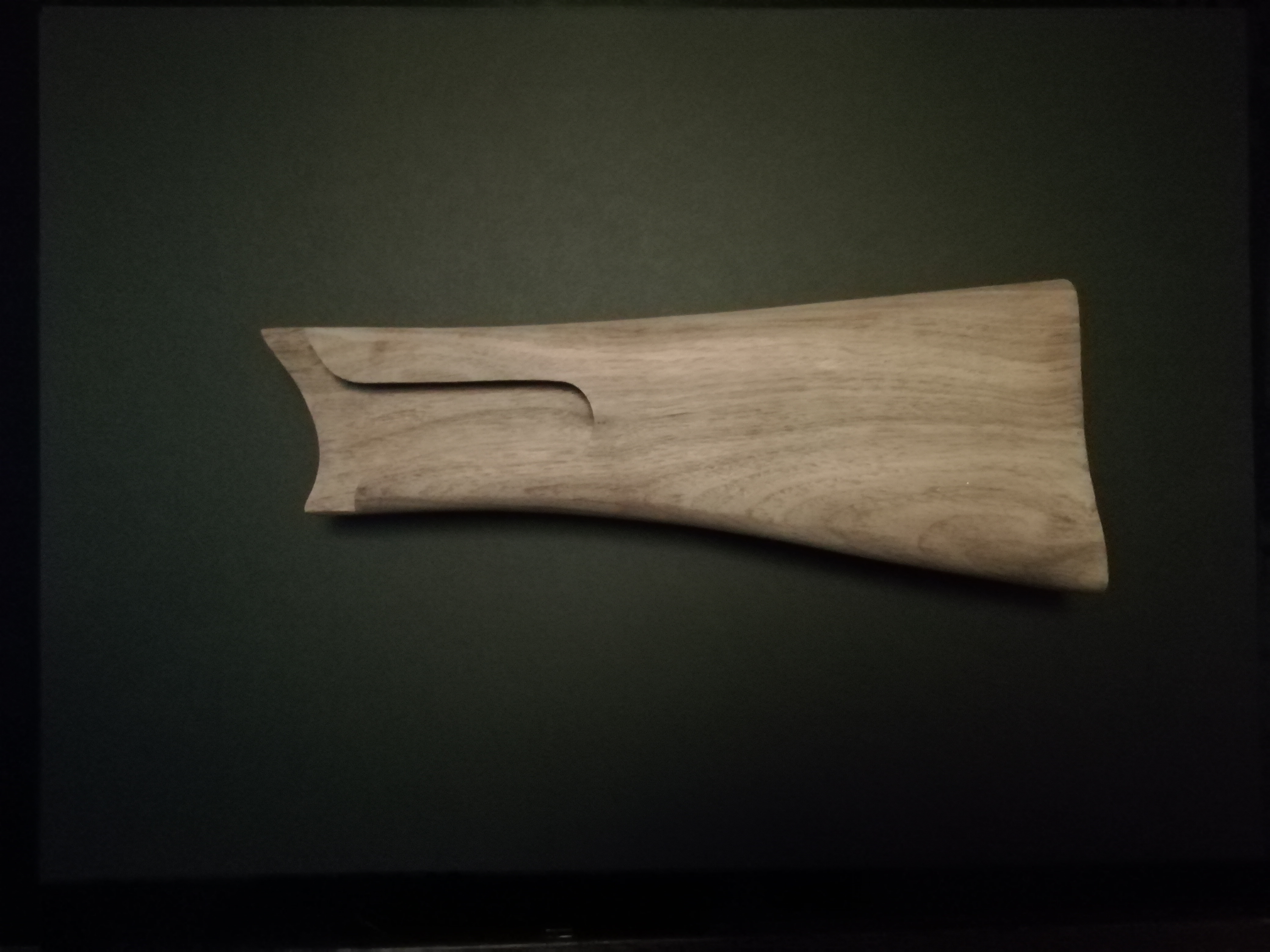

Toying with the idea of splitting the stock on the top next after seeing Mbuda do it recently and then stain/oil it....
Here is the link to the website that sells the reproduction lanyard rings
The casting from an original flare gun shows an indentation where a hole should be. The pin went through the hole and locks the post in place.
I fired up the dremel and drilled a pilot hole
Cut down a panel pin and fitted it all together.
Fitted quite well and locks it in place and now swivels
The stock post brought its own issues, while waiting for the posts to arrive I found an old TDH thread by 99centTaco about them and the other members searches. (they haven't been made for 100 years) Apparently the stock post has a screw thread.
So I had to push mine into the stock and glue it in position as per carbon chamber screen shot.
Toying with the idea of splitting the stock on the top next after seeing Mbuda do it recently and then stain/oil it....
Here is the link to the website that sells the reproduction lanyard rings
Last edited:
Greg Schlueter
Active Hunter
Wow awesome work.
No........ I was in 2 minds. I am still tempted tho do you have any reference images of it?
ConvergenceProp
Active Hunter
I made a tutorial a while back covering the missing chunk in the stock. Never became a sticky though
www.thedentedhelmet.com
Blaster - ConvergenceProps - Missing Chunk in Hero ESB Webley Stock: A Tutorial (Pic Intense)
Helping a buddy upgrade his EE-3 with a spare Woodman walnut stock I had laying around, so I figured I'd make a tutorial for this little known feature while I was at it. Before going any further though... PLEASE PLEASE PLEASE DO NOT DO THIS TO AN ORIGINAL WEBLEY STOCK If you’re one of the...
