Hi guys. Today I want to start my thread. At start I want to apologize for my english, this is not my native language. This topiс also a chance for me to improve my language skill.


I start build helmet at 17.07.2012. At the beginning I don't know anything about mandalorian, Boba Fett, organization and itc. I just want to build a helmet)


Unfortunately many photos “died” with my HDD, but I still have some to share with you.


I would be grateful if my experience will be helpful for someone.


Enough letters, let’s go images, and some video.


Helmet I build from cardboard by Alan Sinclair templates, many thanks for him.

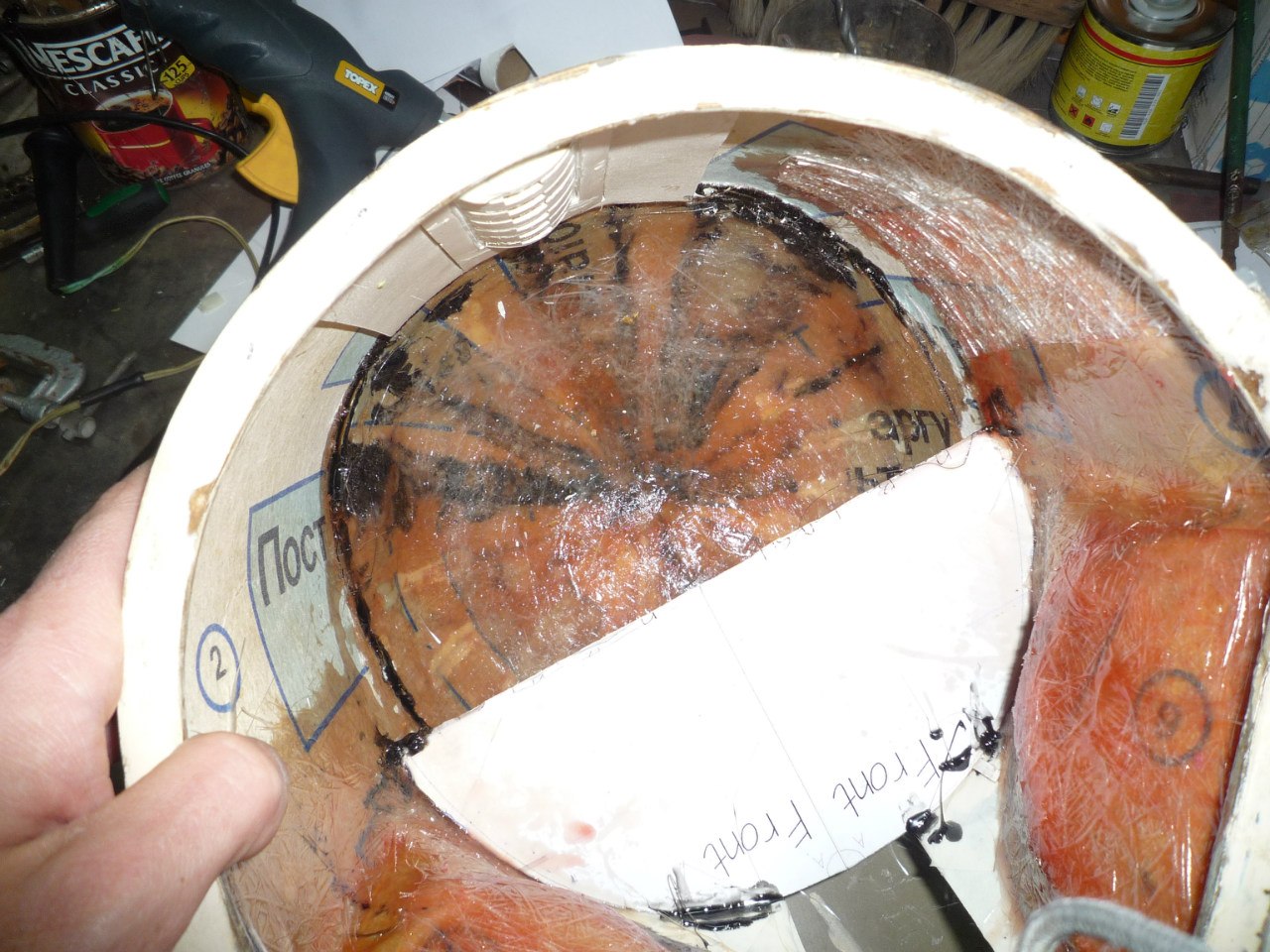

All be fine untill I want to strengthen helmet by epoxy resin and fiberglass cloth.


Inside helmet I have ribs of stiffness, I broke them - wanted to walk through the resin inside. There was no danger.


Ff3JENsVLbp4-_a42Ju-2Bfmvto2TJBsy4hz-NYFz-m8mmZkP9jJA2NHTpcJIcnbvq6HUWlzPBhTNNSHqZ14IHA5_JPO1INZ.jpg

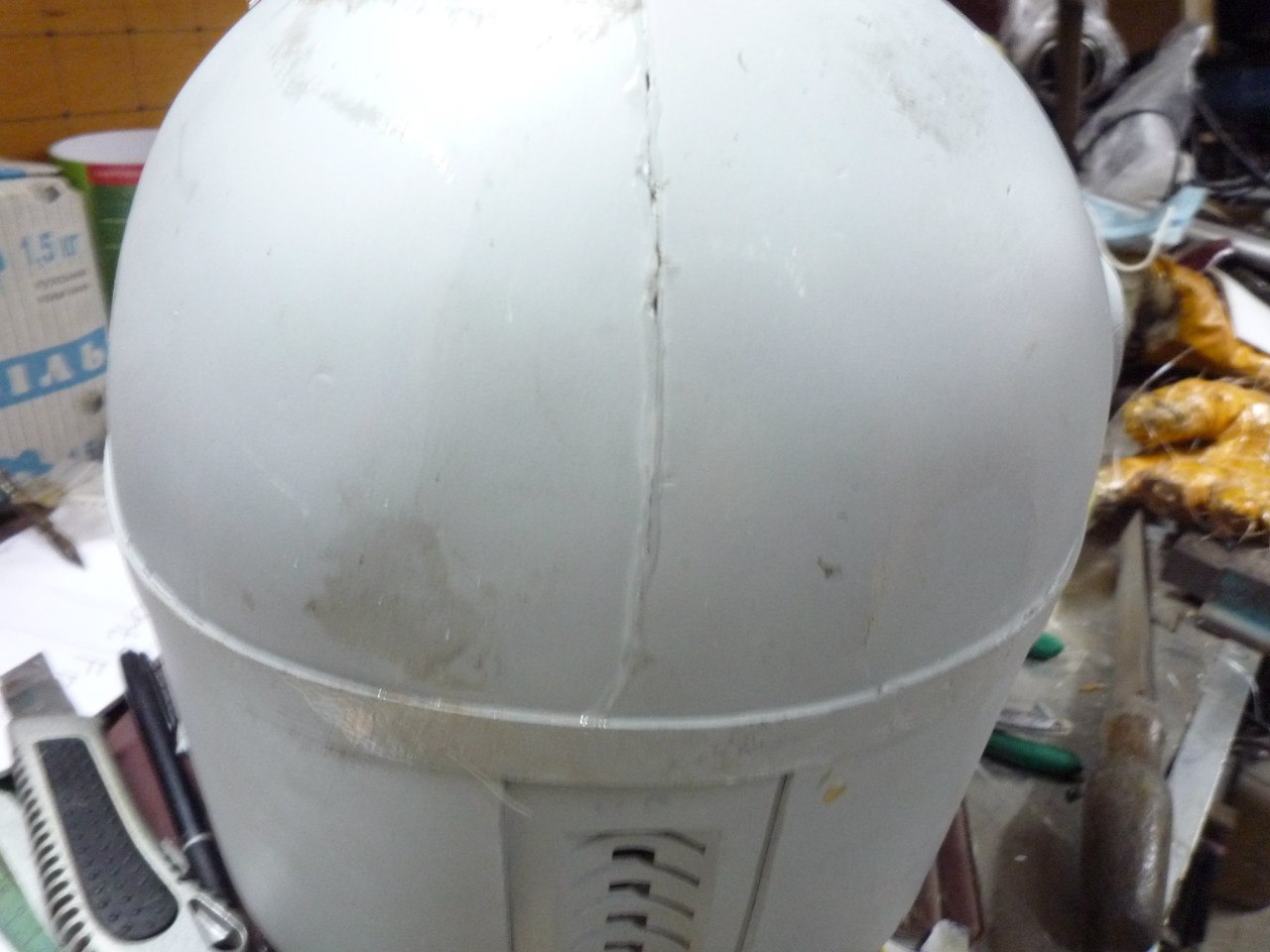

In the work the helmet fell - cracked the dome, burst in front.


_-xdpS3O1kYPdX8CmhtdTOD-H3YH48sCvnLng5CaobNjy0F9EgzizMunZoNt7Roue7X8OfTxtu53WE9RVrFVHVpb_Zun6Sea.jpg



There is nothing that can not be repaired with glue)


qsYcC8kSVV_6fqv-xior76W5twfLZb92i7H8cnfBZHyy2SNbfSFfHkY-YwUzRIdtfiMBCUd6WdoYe1jXsAn6-nfex1qRv35p.jpg

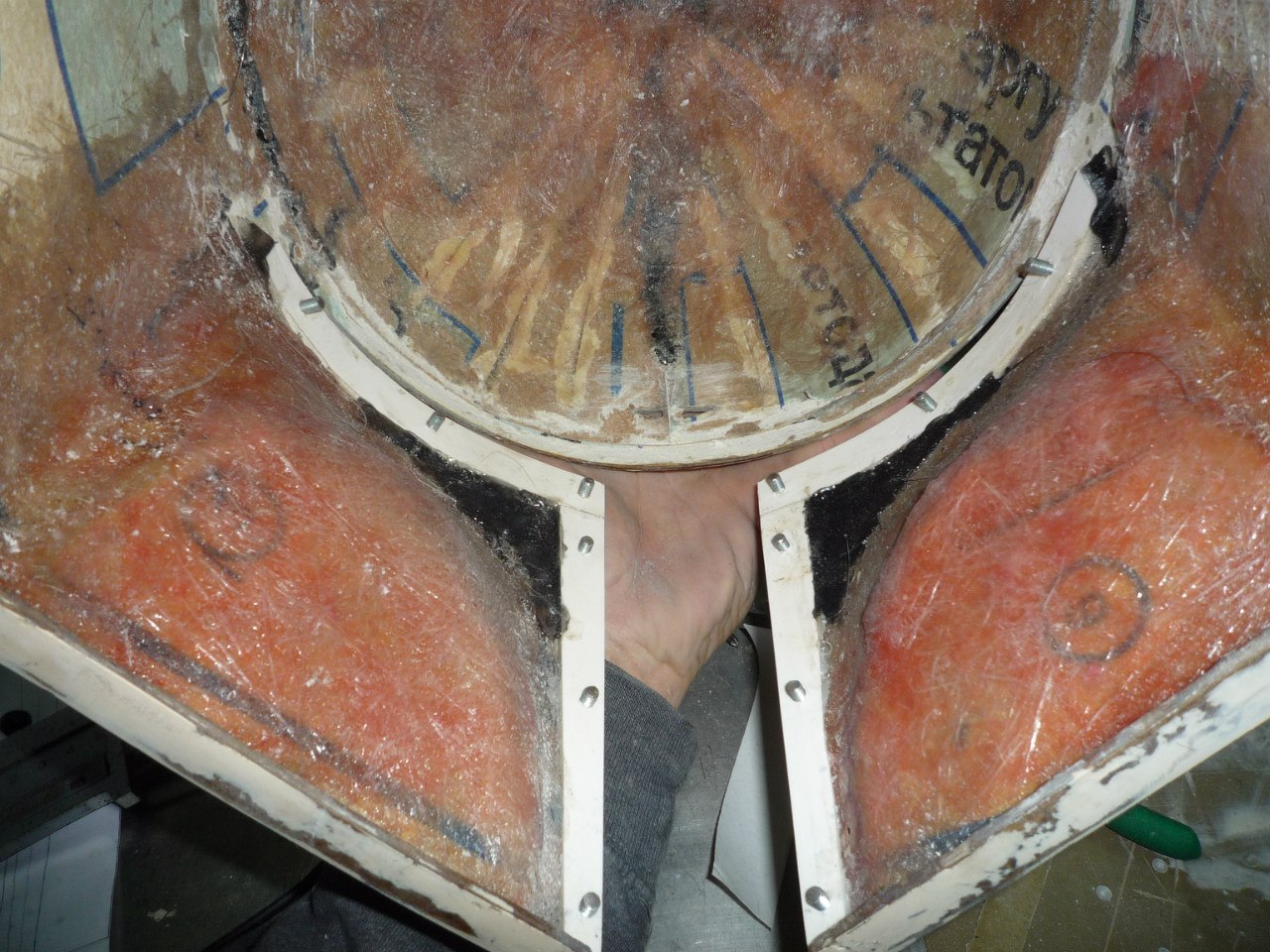

But I had one little problem. I cut out the visor too early and helmet lost shape (If you read this do not do like I do. Cut visor at end!) I made the inner shape of helmet from pvc and glue it inside by hot glue.


8Y5yXKNHpnqKYtMf66Fu70hLcy2XOlvTWa1nPf_vJC7ANSZ19LJVjs8SwkWs_xpuuTZaJWnljrbIptc0NJ7NKvwln8MauUE1.jpg



And this works )


0fpyTwtSqfccKjmp0xyGI9ZNDx_y0urTRwynkBGX8kZr0I0rP0HkJWg9tbpBf6M5xze2YfqvE_DT_PJvalWpM6cbVBYEsJnc.jpg

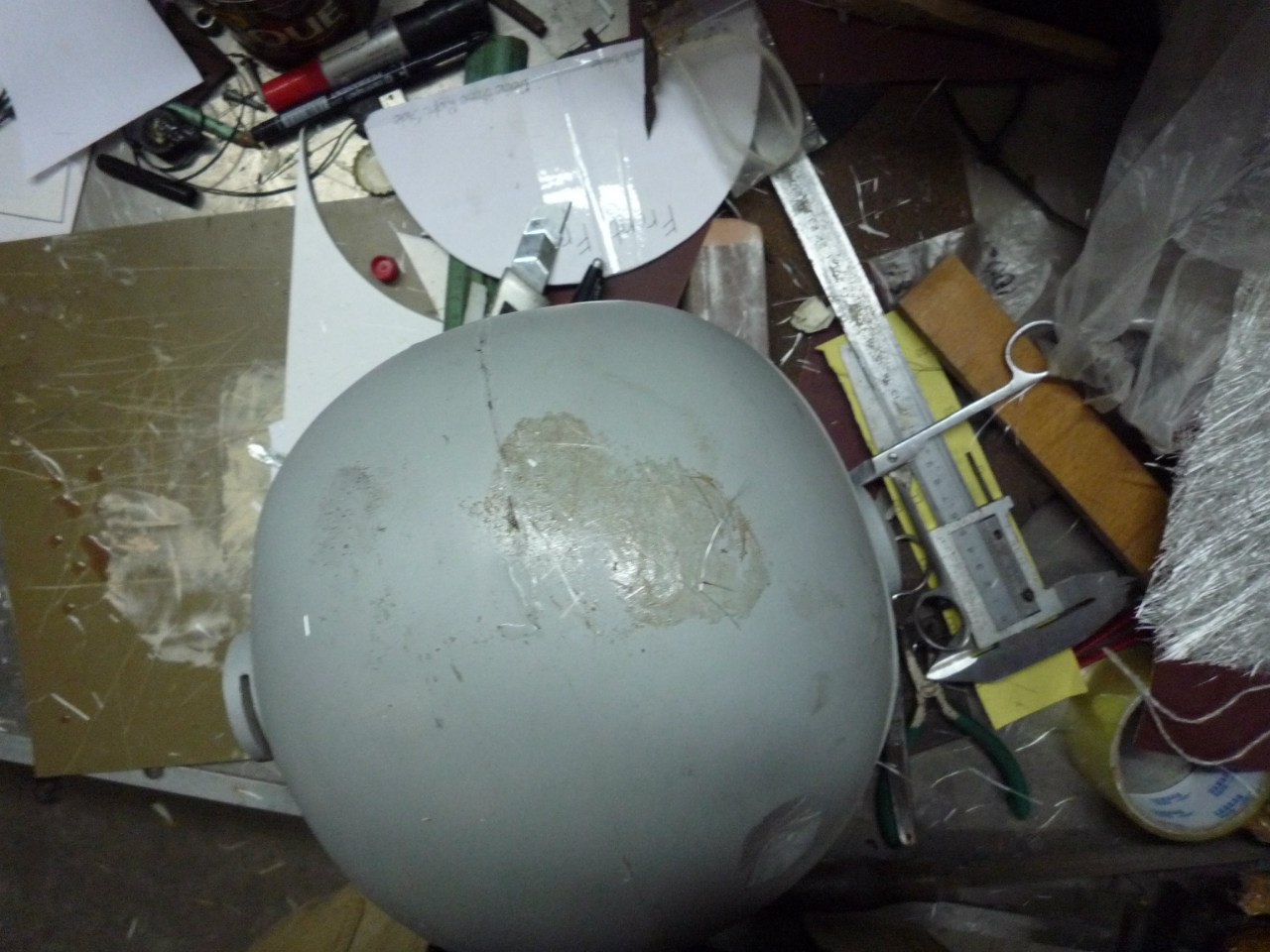

Without experience I use more than necessary epoxy the dome.

- the helmet became heavier by about 200 grams

+ Now you can chop the nuts with a helmet )




After that I start to think how to attach visor to helmet (Now I know that exist this great forum where I can see how other people do, but then I don’t know this). And I start to improvise )

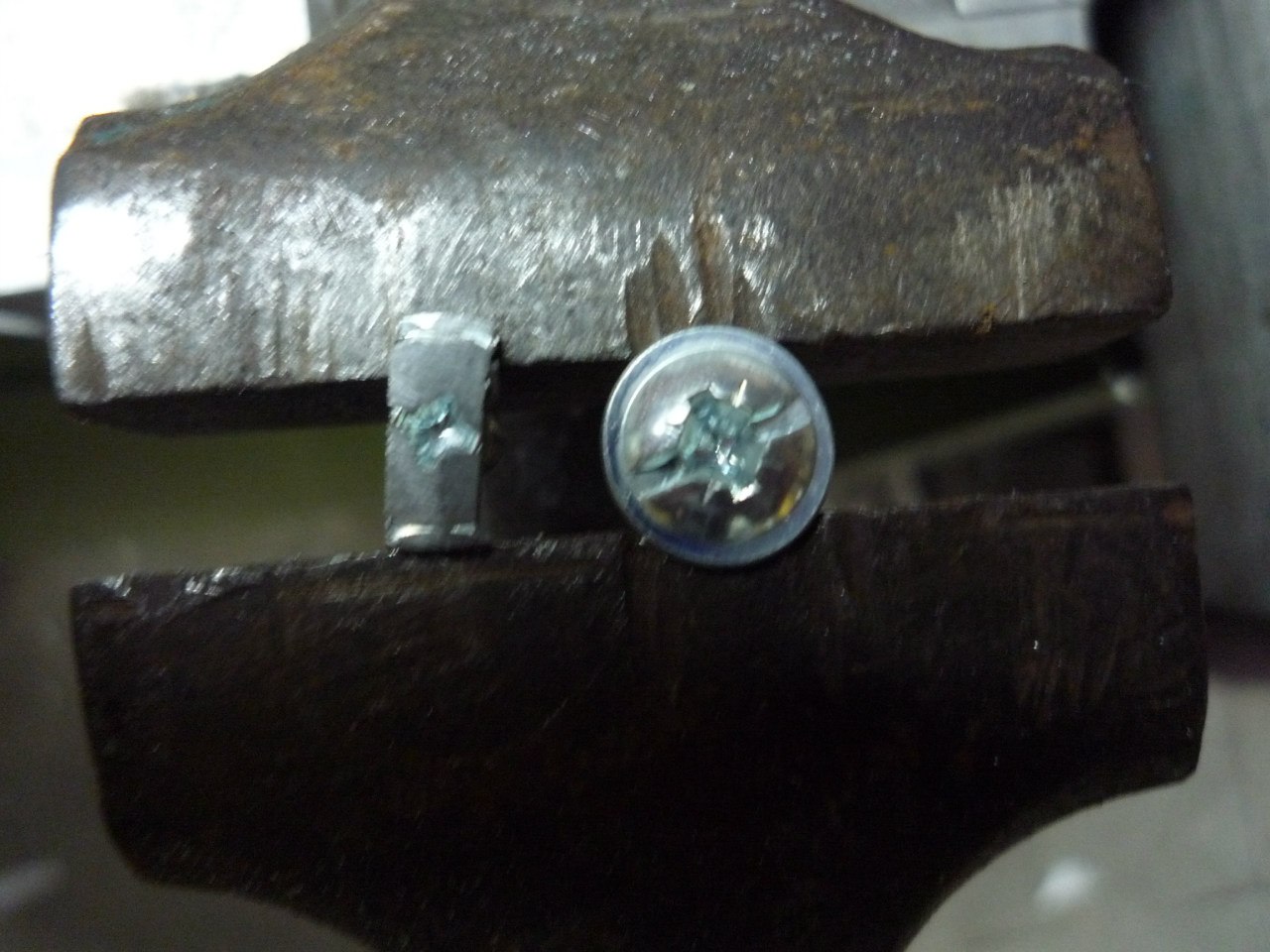

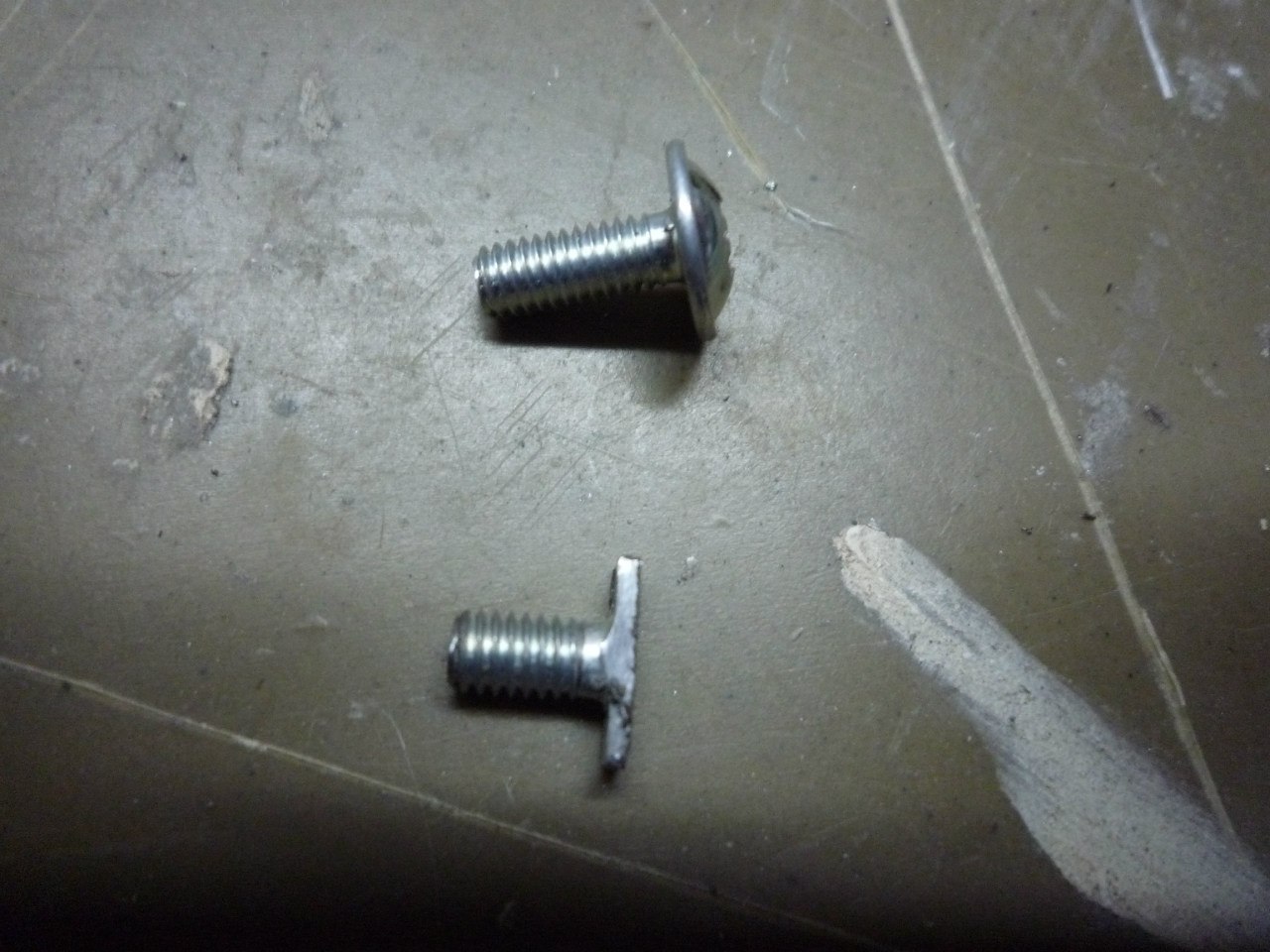

From bolts 4x10 with a hacksaw and file I turned out these things.

lB0nUSGbXdxxNA1fW3Pm_C66SppEHUMmnBnF2CBzYVWln01xYb0Pqyp6KJmViUe-RRQsD18ikrvUNA-ZfGhxDzmSAdKoMIWR.jpg
GN6vEMAk82ul52gTZgsscekSzGaPD2GMNOgyjSSLH9w5fIMRttQnUiMUDXZhEwE8p-1ToWgGClTWHHtbSM4uHYN3rTw0-y58.jpg

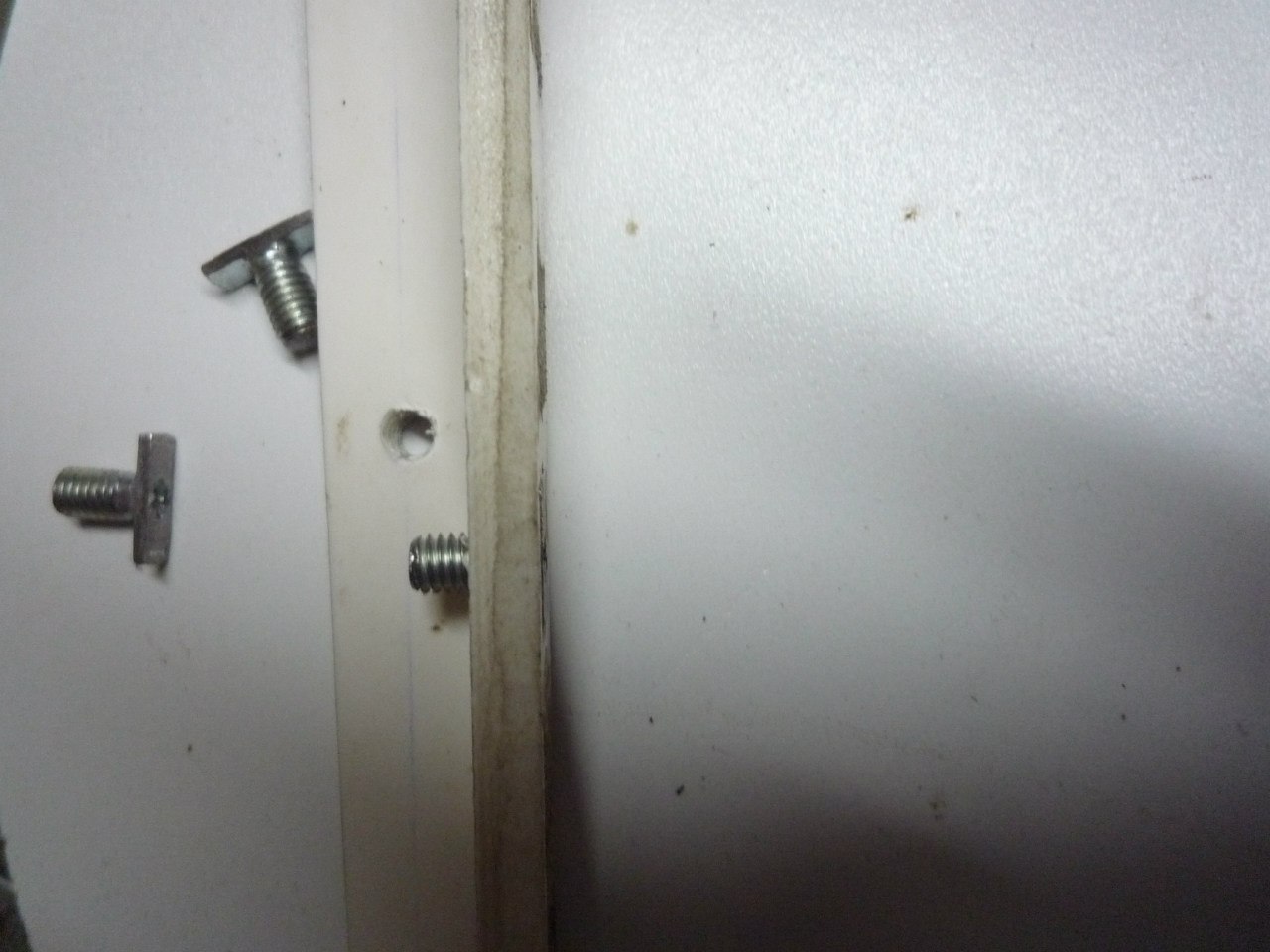

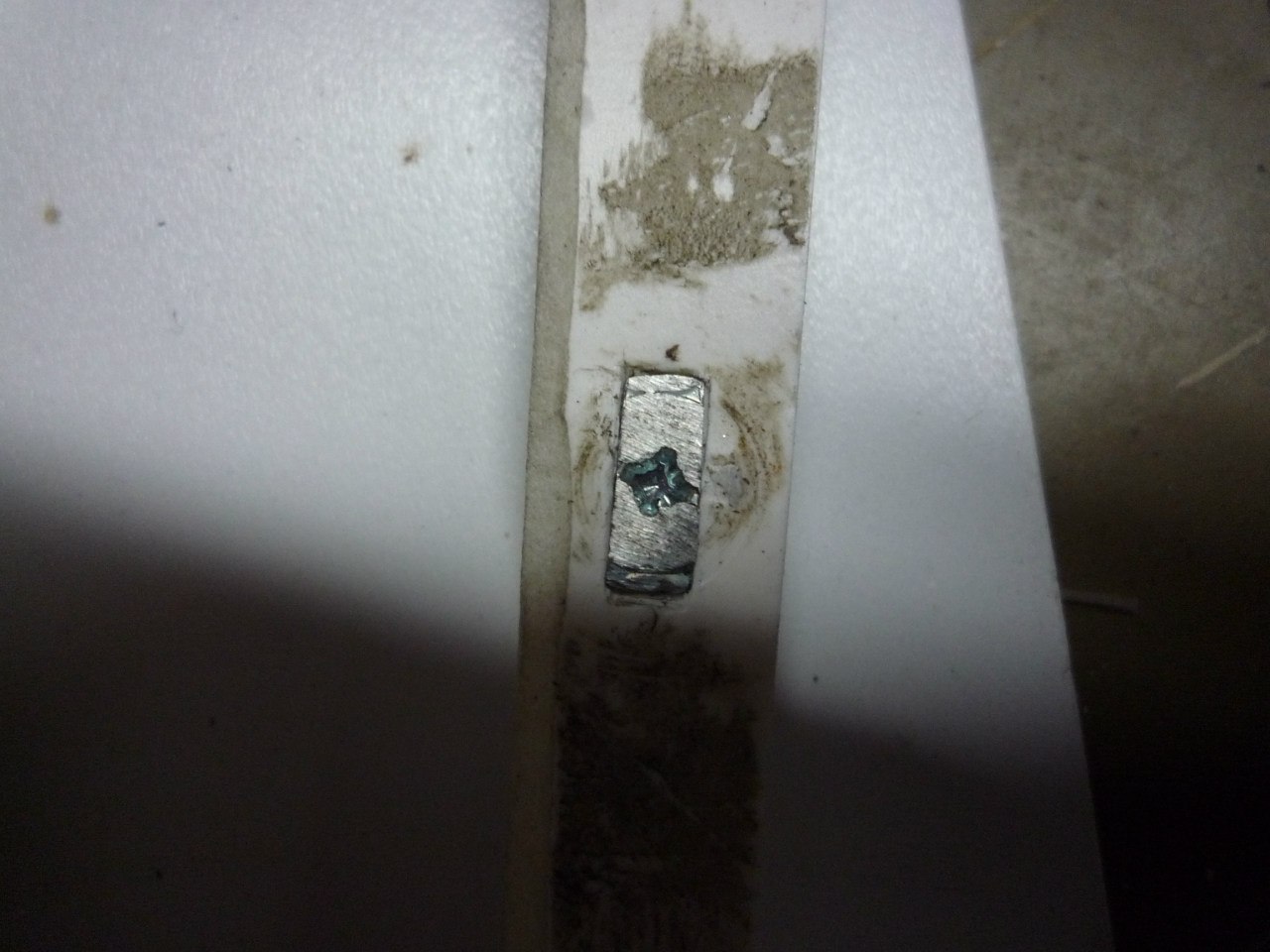

I fixed them in 4 mm pvc, cut the grooves in the form of "rectangular" hats and insert the bolts there (they sit very tightly)

xCtGXEjdi1vXg-ge1M8NyW8d2RA6f3C2XgM2GQoQKNaJ7h9aq_8QuaVm5S9lhI1eLpenY8qLOi7KAl4AhX9U3l6gyXD6JON-.jpg


gXB_6_UO-fPyqfjlVH99mZxl5iWJ6nA7GxBDMGuPE13B9j_f-otV2MiHjg1KAa8pLQJktH7zKS4mItVSN6BbzQvrT0FeuFHE.jpg


cHslgwouiZeVlRcd7n8YRJEfGNzSTswxZa3WKTnYB981xgg89LfGCz09XvgpdImyRqW4nGLtl5nWGDfyMoPmTlXEfbZlK56t.jpg



Glue them, into a helmet.


l4FQGLDfj4h-gjvaeGVeoYmI3O2GhcQh8PKrljID091msO4Khstk1-Zie4fmNV2icFiv55Y5VpLI0zvS3eNclyCRn1BVcOn4.jpg


yDvLig4xZo6NtiXqwCeDa2PLgdajhJmRbxLtk1yoH2IQgOmZ5IGhF6EWAAidhU7ccb2ToOav7ZukEOZnFi4pSbs9TP77Oza9.jpg

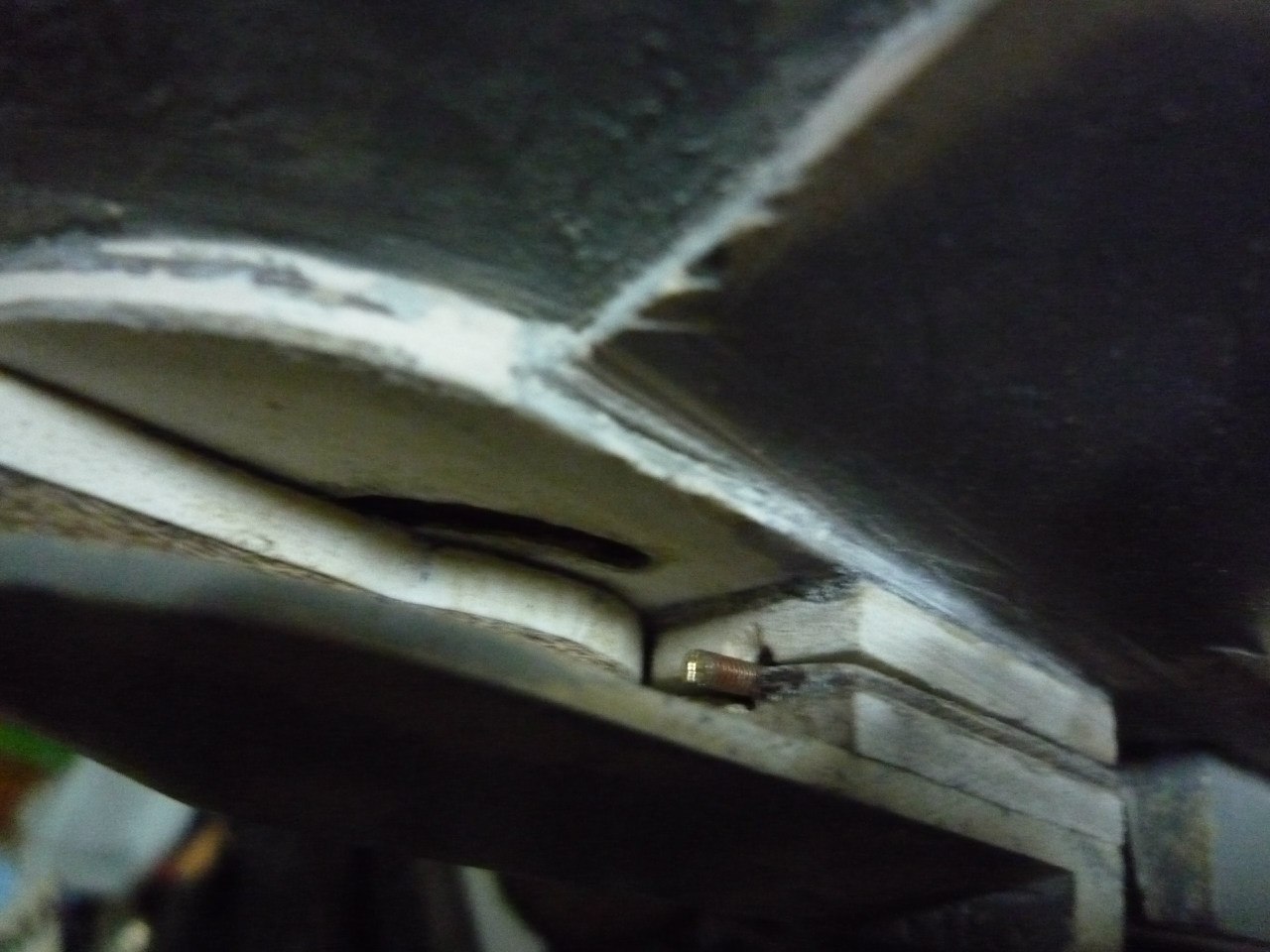

That how this looks inside

CMS5JPQHdBMbKXNCY3wBr6-vQGdvH-g2jr07VAVviKRIYIzkRhUNvwCT-buT0DsggniiInKmtPr7s-l55dfrLBVOAs80dI0F.jpg



That how this looks outside

BsxVIOWZ8nnyXa5fOz3ryHbhThwZBJBiTi5gAYAo2UQwmpNrce5oclXXj1mhXF_teuXjQRwaluGtoxlfeDDB--QWCdZTXbb1.jpg



Using the same technology, we glue the whole form of the visor

UyAW8zk31uM0zBJDHgXkpsb8EgGvXGmEOP5ptiB0eEjpnu9C2hOb0aTGepgSb0-bW9lZJHyLC5XYFTZOBu9LbrfYKHX_sT3x.jpg


Gi3jlY9vs7FzaAc8XCQq0plzJIDVtFB73PRl3de8MjMQ53BD5lTXeyFWYVDKuKNNfDRXKB9F5MlOGN_F6zmD1iQdwlx2SlIq.jpg



Time to try on the head

aIIaQ_-YJte8ociO4sfRgHKfnUdQgzKYcv4uZdnqVTi2AHOnrAlT-LZf0F8Uj5WC3RiCojZDaprWLsrkUtaCAoqb9llV_TNz.jpg



Add some details:

O2PctrcWEozLg2hpvgrZzrjQ-vEU46IAI_PqmRb7xjNxi2MmDX3XH1OudoN__8UFmO3lNaGMrZQJLzXMuIP9OoTflYuKqZu1.jpg
WaESeNYoC1ykUt6og3OjMp1TOgoH935PhVg2feu-eWYiQ5sr_SrFAQzisAt-QK56x2qclwf7Z-Uvk_7QpqZxhuqc2Fir0Ec9.jpg



Everything seemed to be leveled, compared to how it was.

L0EcdF0yBoH-j4s6wfoWWHGzXsJ-iHFz2z6bsc-4in_bfJ0v5cG7xK5KxzxR97OqSaLBftmbnM8n2Z4OH7xaSAzEk_CeJIxZ.jpg


Mickey

New Hunter

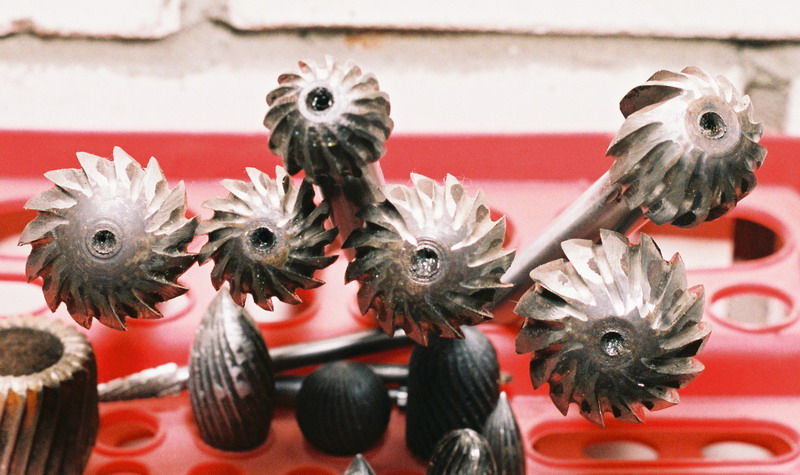

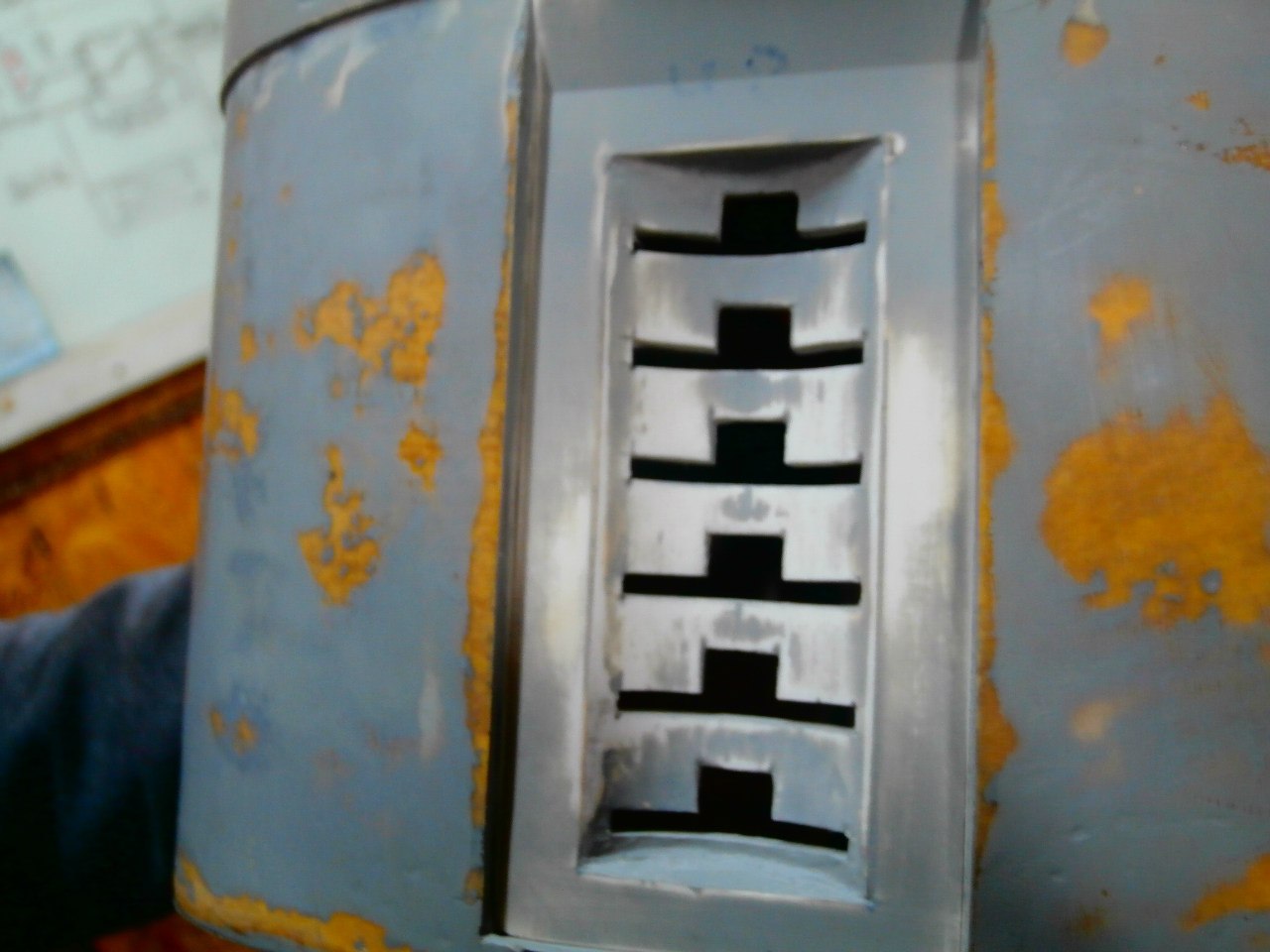

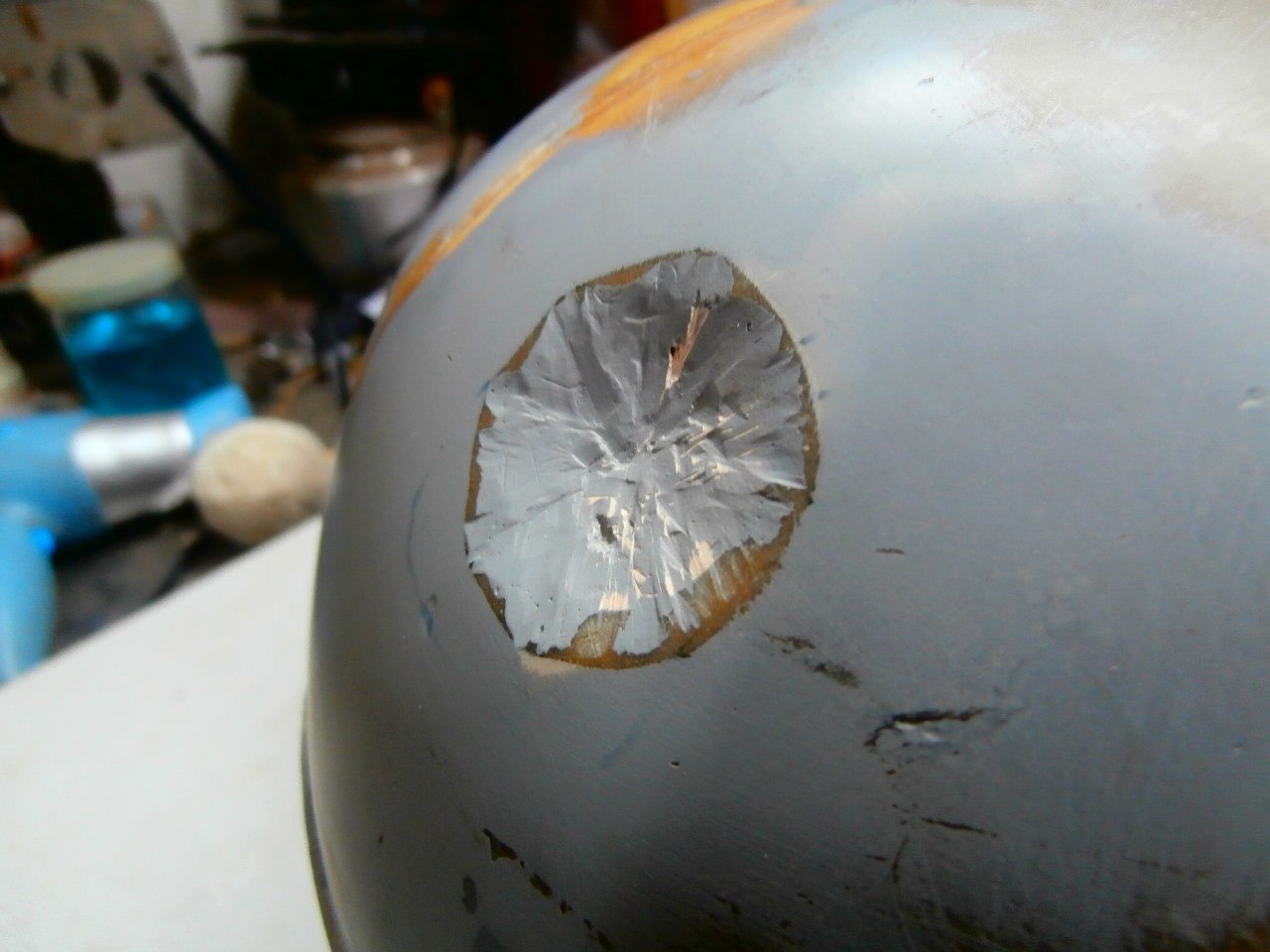

Interesting fact №1. Dent from laser shot made by boring milling cutter (I don’t know how it was in english) like this

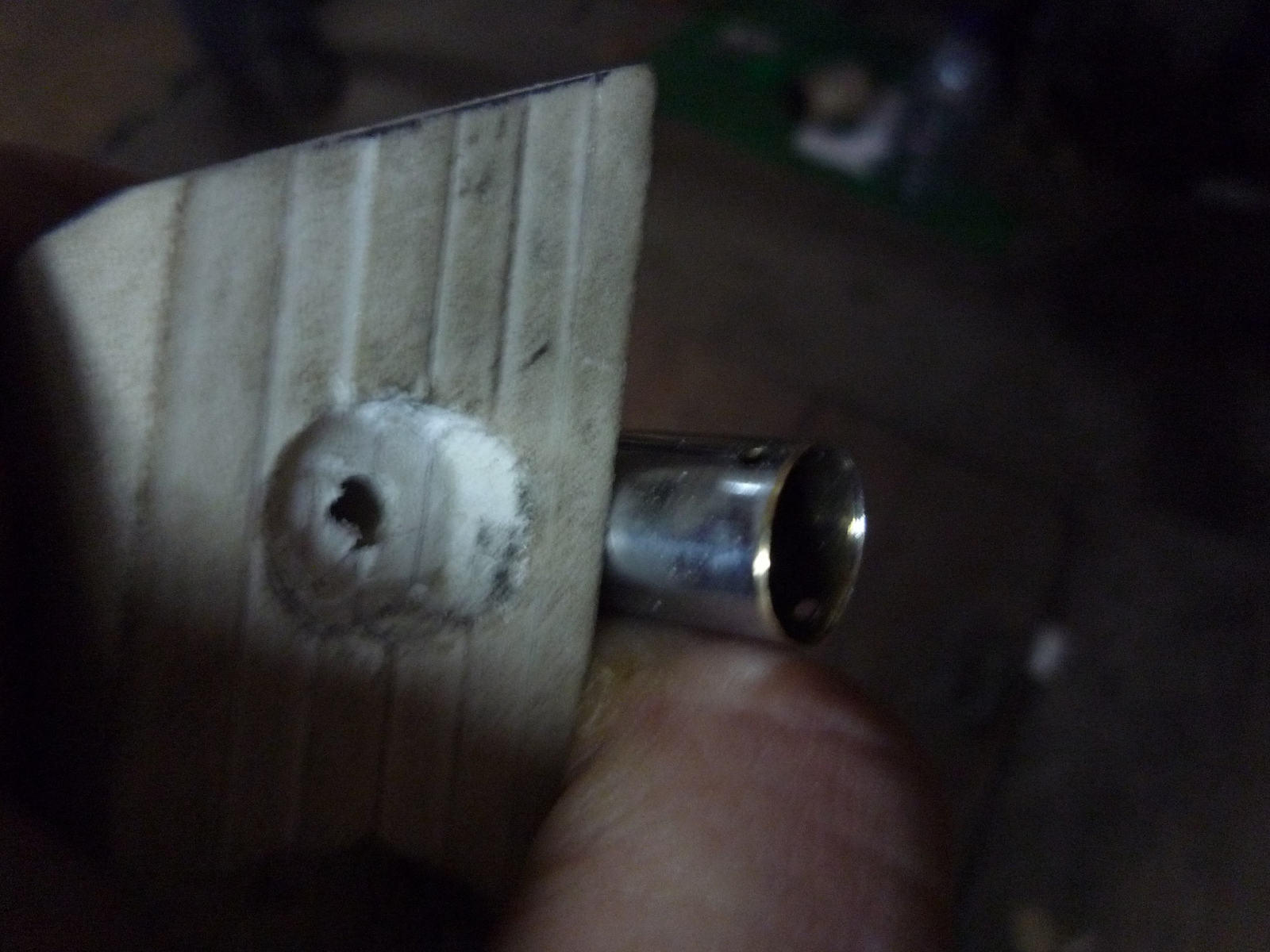

voPdXbocRDZ6chizYNGNVqUnDLfqMS49kiWOWMlCIyiGNR5c2ep0KXjphxyChJY3oDbbhcBALNSfb6vaCNjiIfCzeYFR1YXf.jpg



and finished with filler

a5_idv8KTWcoIeu55UaGEG12SKtwdOIbk1ZIOIYAX4AE60lsrIjrzTEd-r-kiwVykt2-3bqReB7unm5aFvZCeYg-tDMhn4gI.jpg

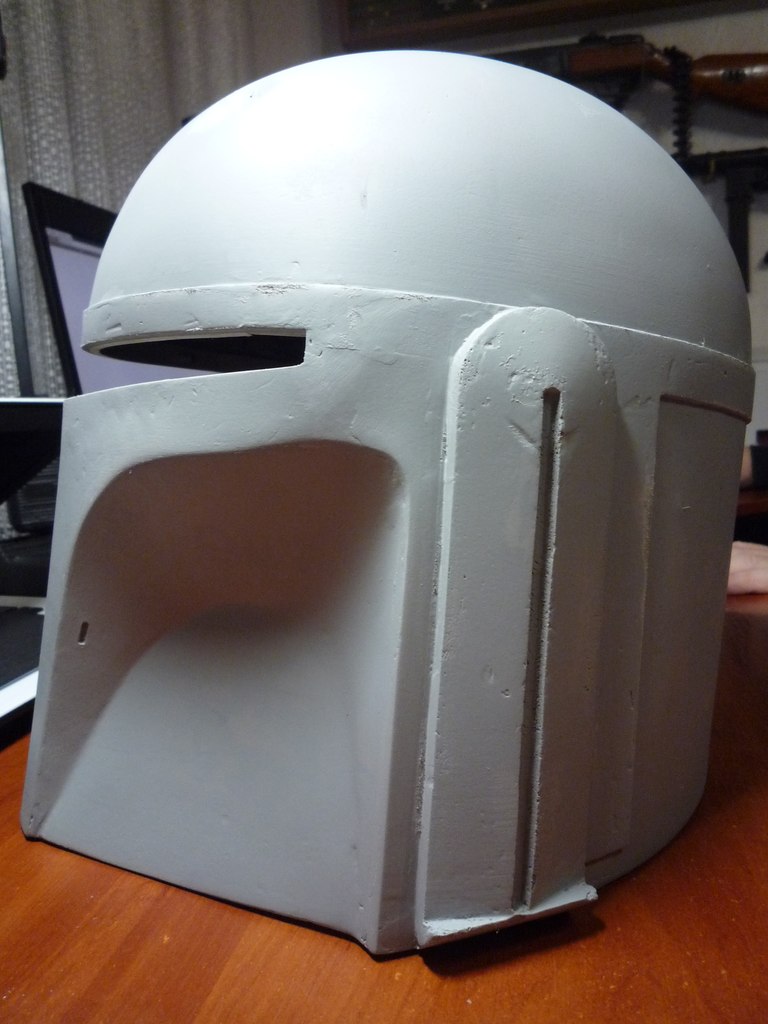

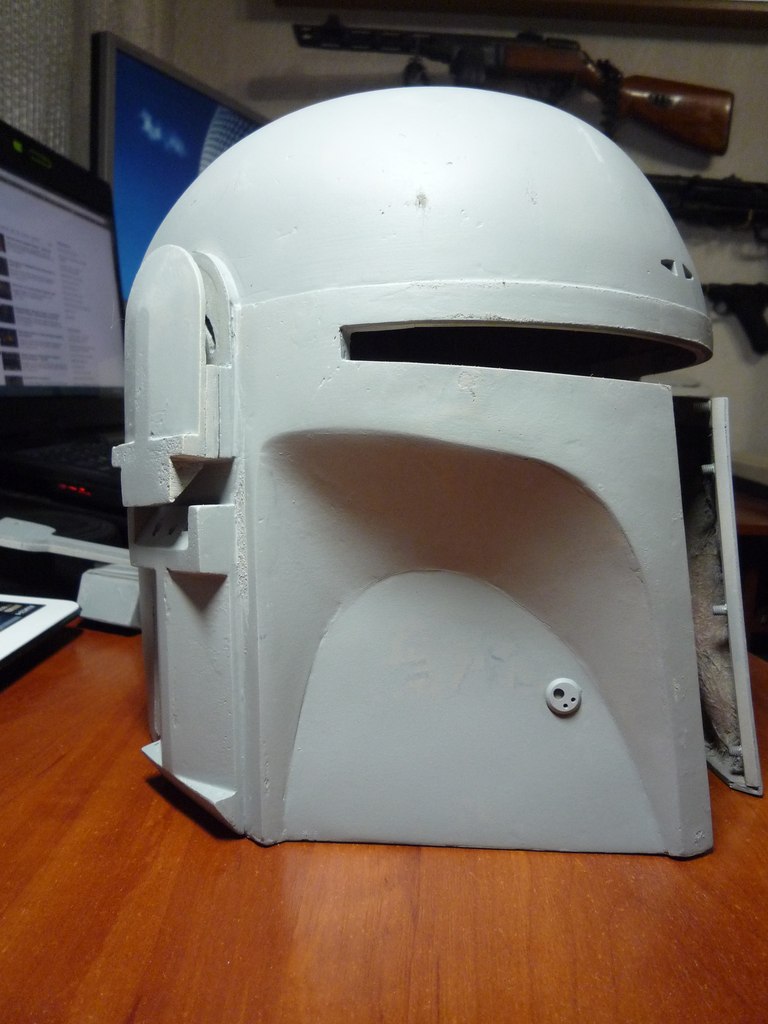

I little increased the size of the visor because it was not comfortable to me

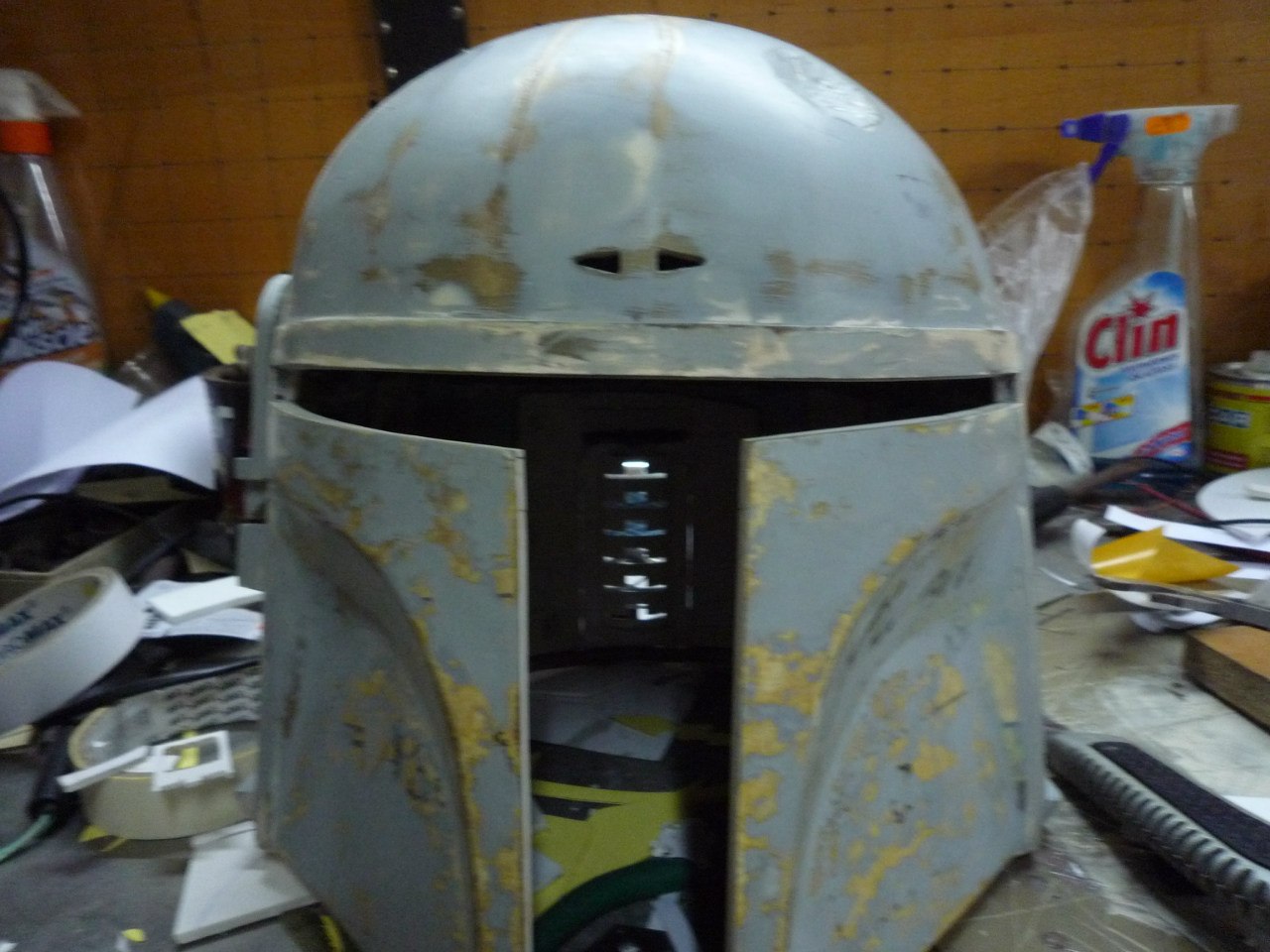

J3Mpsa2MDzTOdv9CJF79P20KTuJB-_glt9rOuRmCokRfTbDXPL1l0FmaWRAg9HvPJLAVajJaNHg8A0gjuY5cwrP0lF1tdWoK.jpg

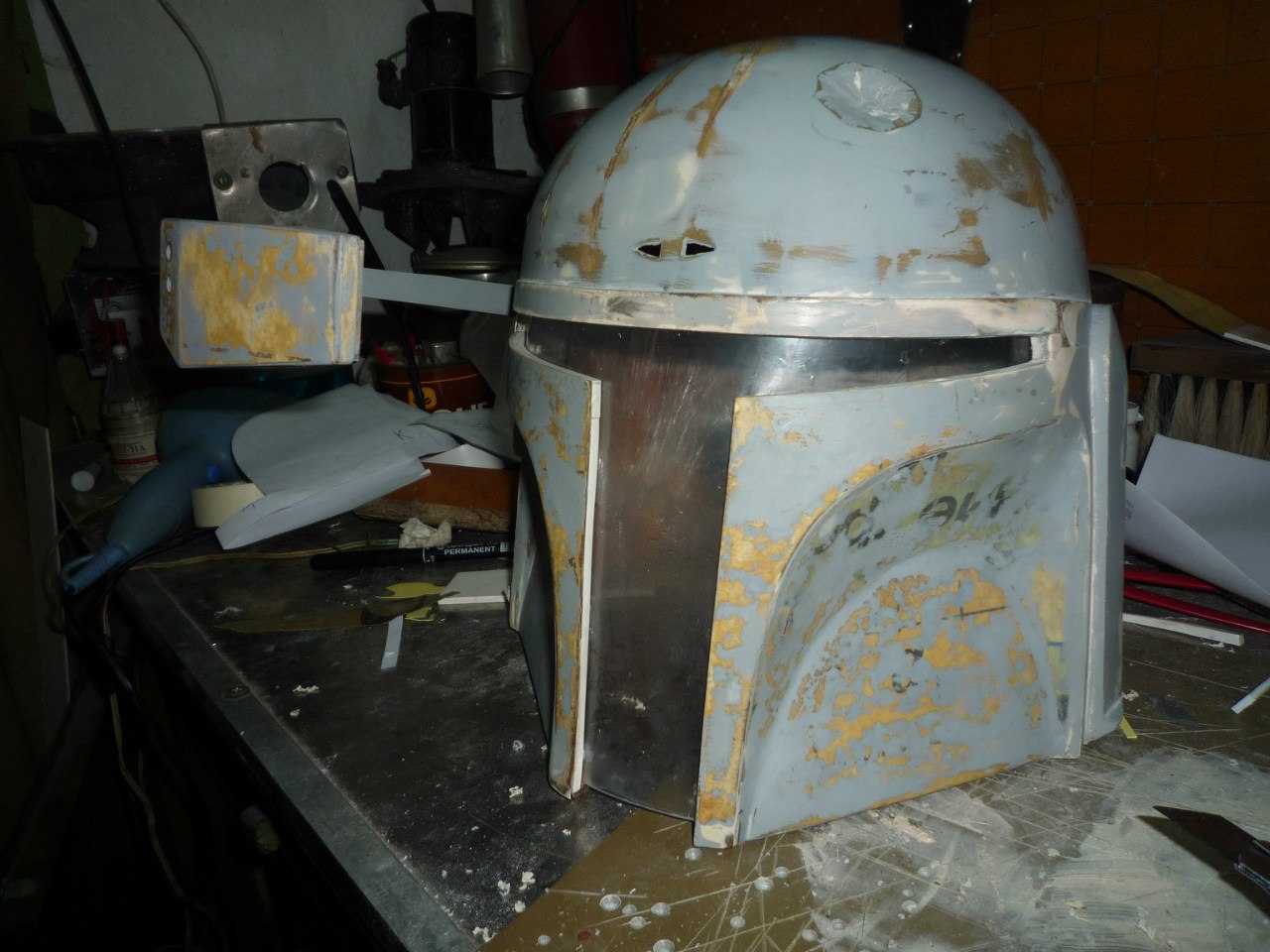

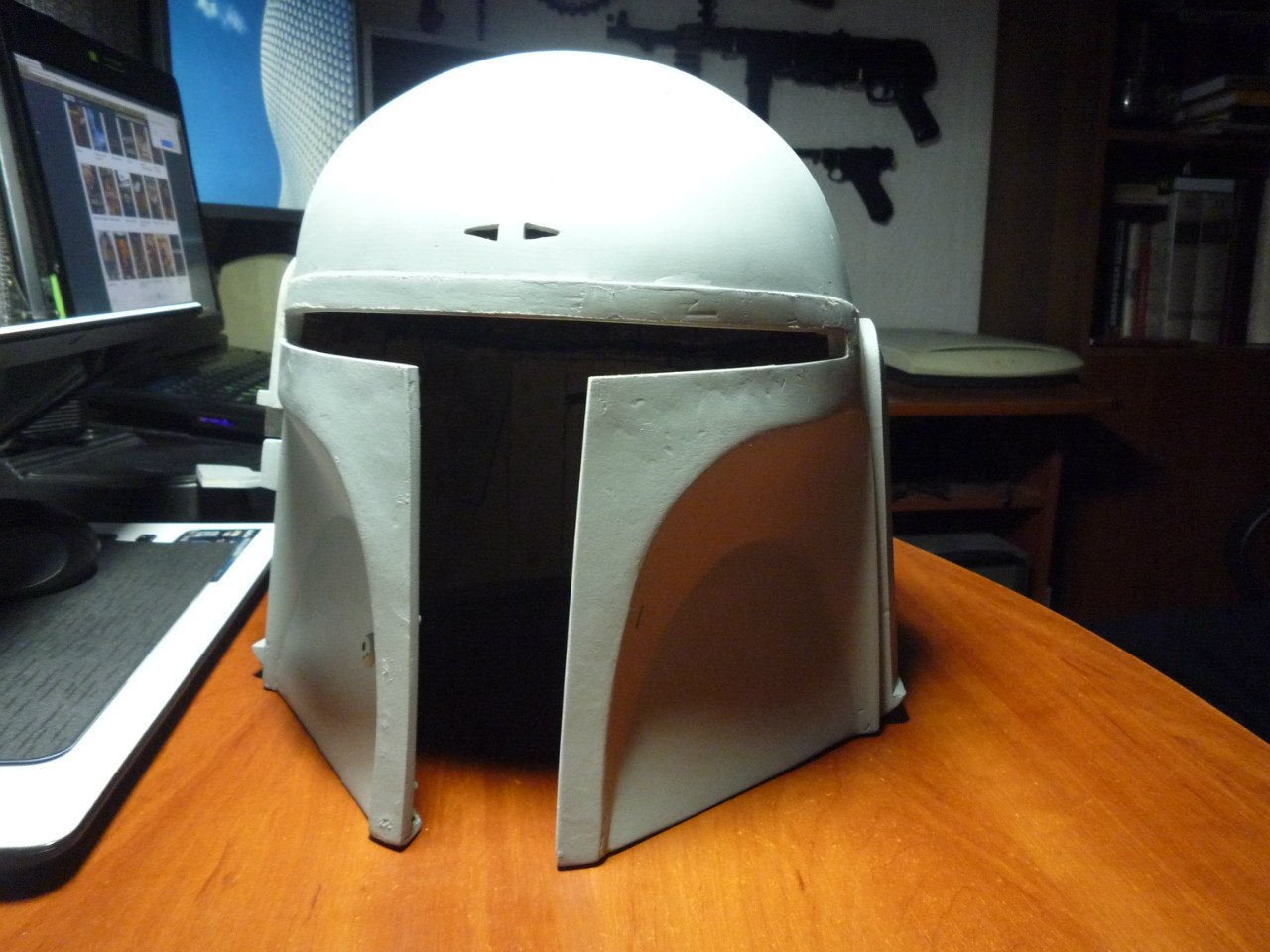

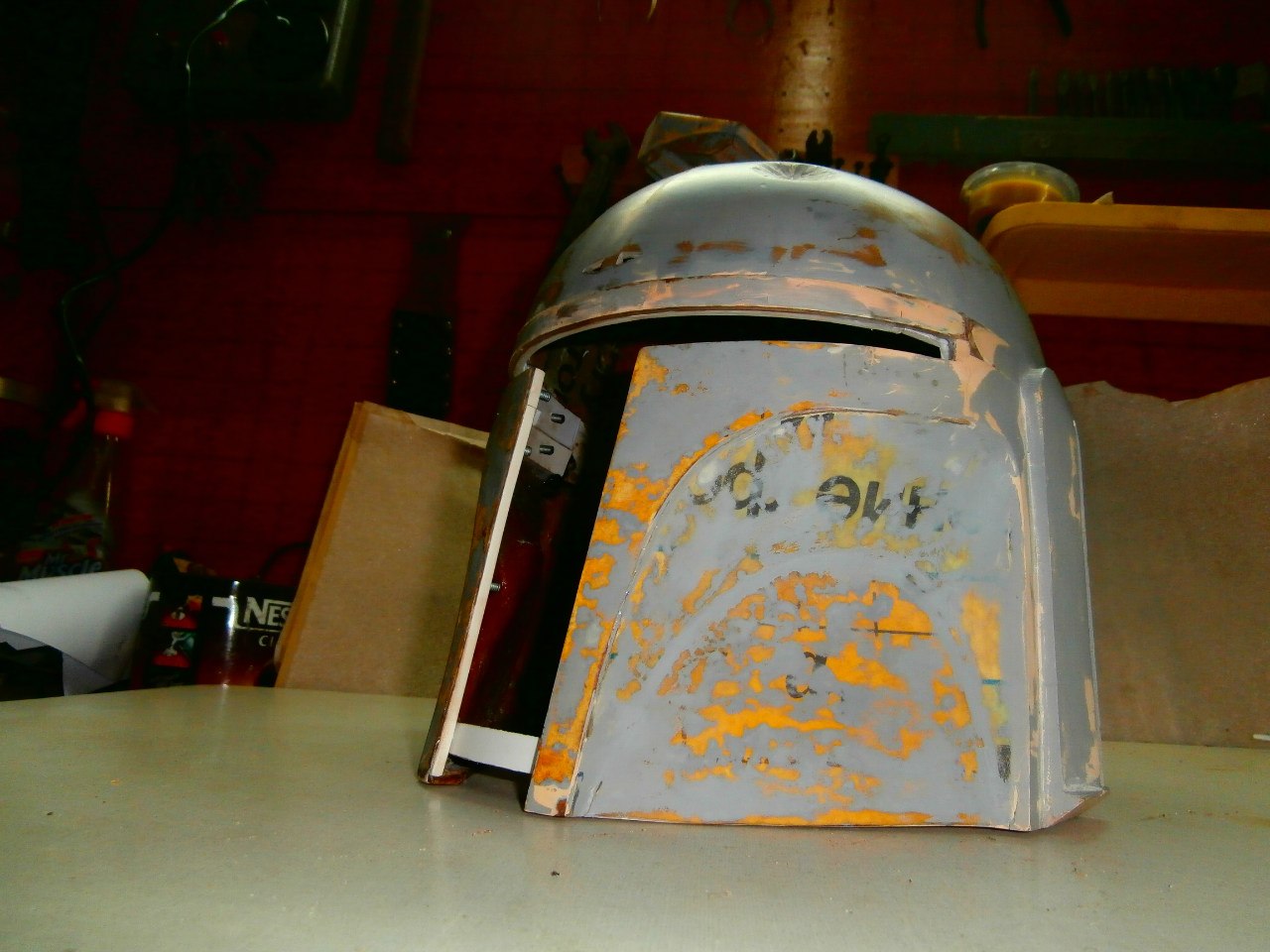

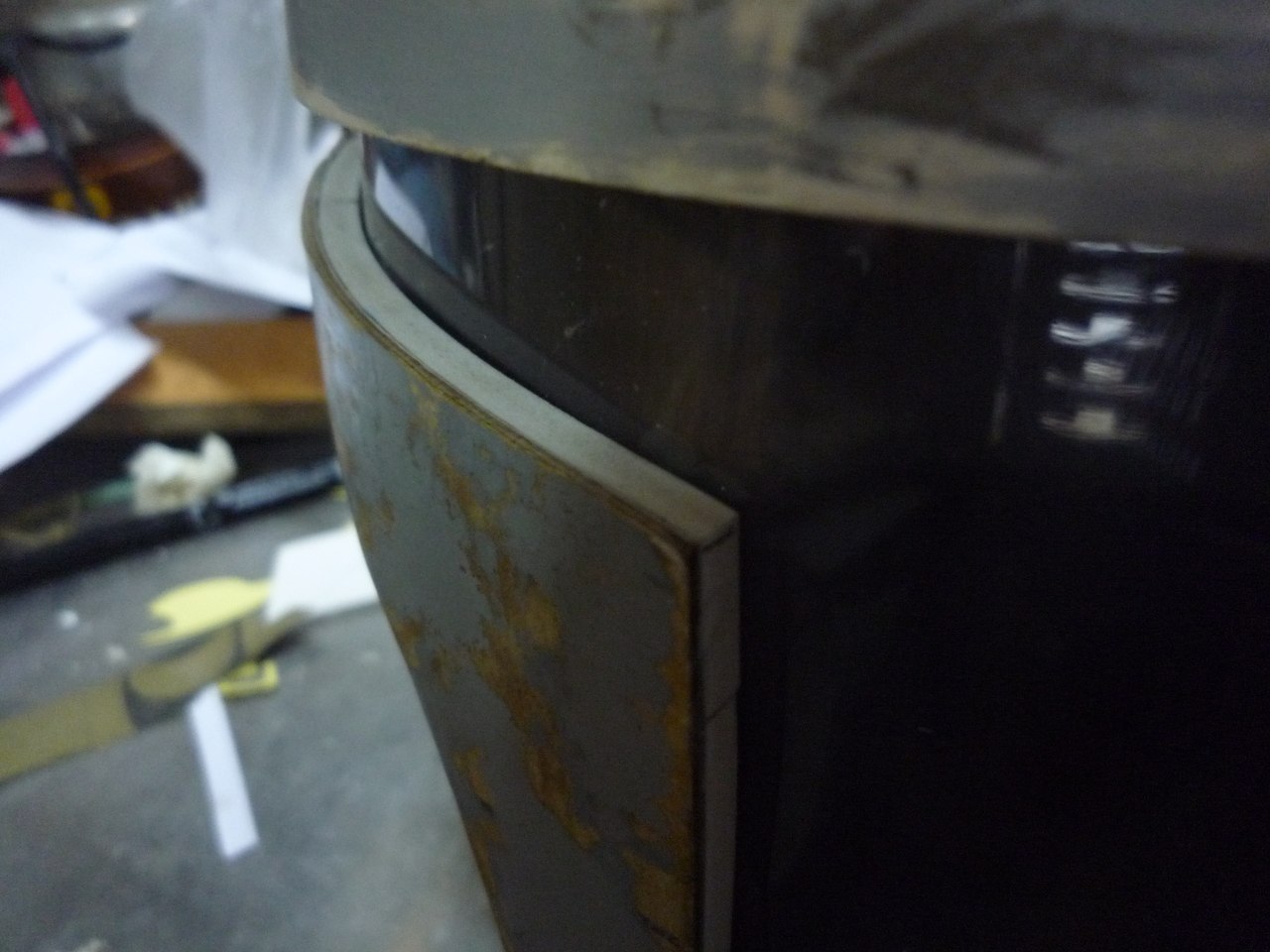

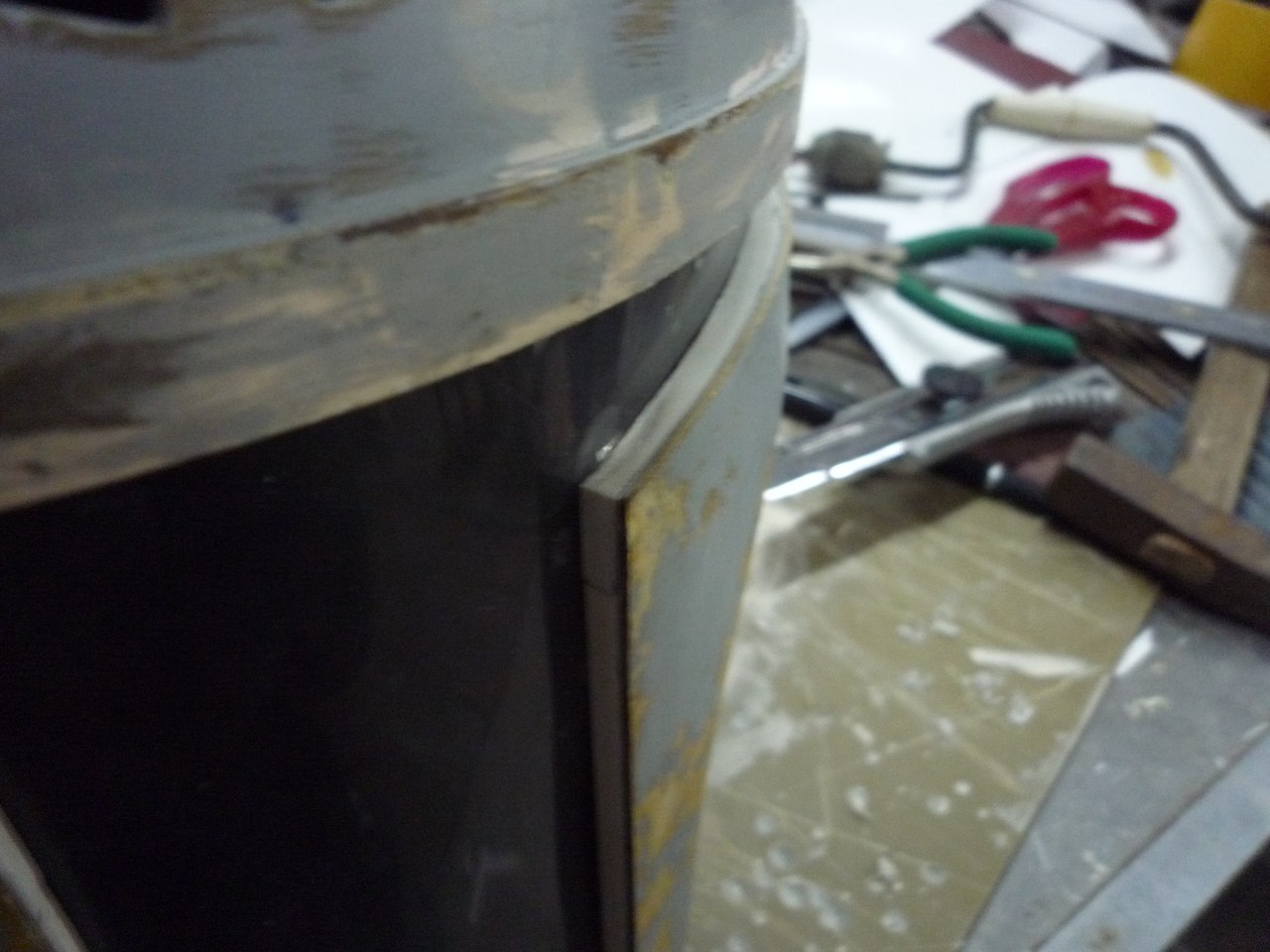

first trial installation of the visor


izI3TIiFK7Wretc-dKGToFZxozivBZxUwD4oTaarPi72rRo3O_GhUKjZ-uSA6EYtlJCYx5Rj0phZGNnPQ9DF6km0njHZ2JkI.jpg


82w7YREw7w7SZy3u2aGELozmtbVOaYULEvZVX00aa7B0E-Zr3Vt00iS5PPxYDbkPT9w_-VU4nYmFNs_btobstYbniTQk6ydi.jpg
Vf_d9Ox0OJYkku2utDfJLtgyWqnMlojUFNQijBHTx4_SdnrevfPi4lrtVuZdlZwINjaWtcA6I5foKIS7Zx8RXNpqWs_TsZ9y.jpg
JsHkc7A79hCTQrWVBXLOTzaTjlsvkru03cVDXcXym9UEeDZvEu12lzGg2PZOYTRS-LxQWlxKNrAdQ7PfodJ8R_CwCjifl1rp.jpg


eOoV6gbtSiJasve5IAaqAiEO-09r-GOdgFWFYXXIDFqO0hpSFsIsn5GLywlyjz0mM7MAdTI0UQcwz1HK0IHDCI4-miiJx60h.jpg

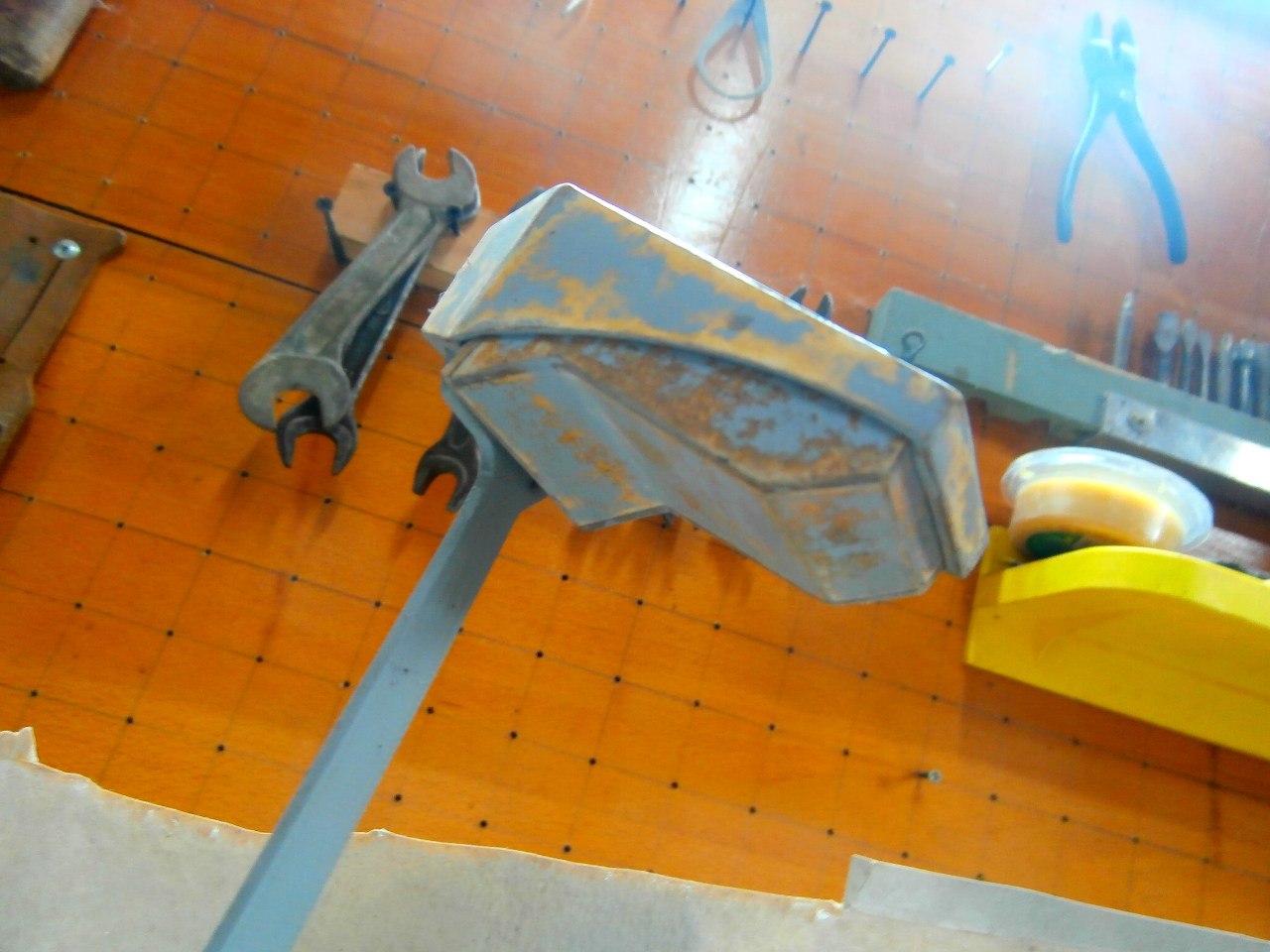

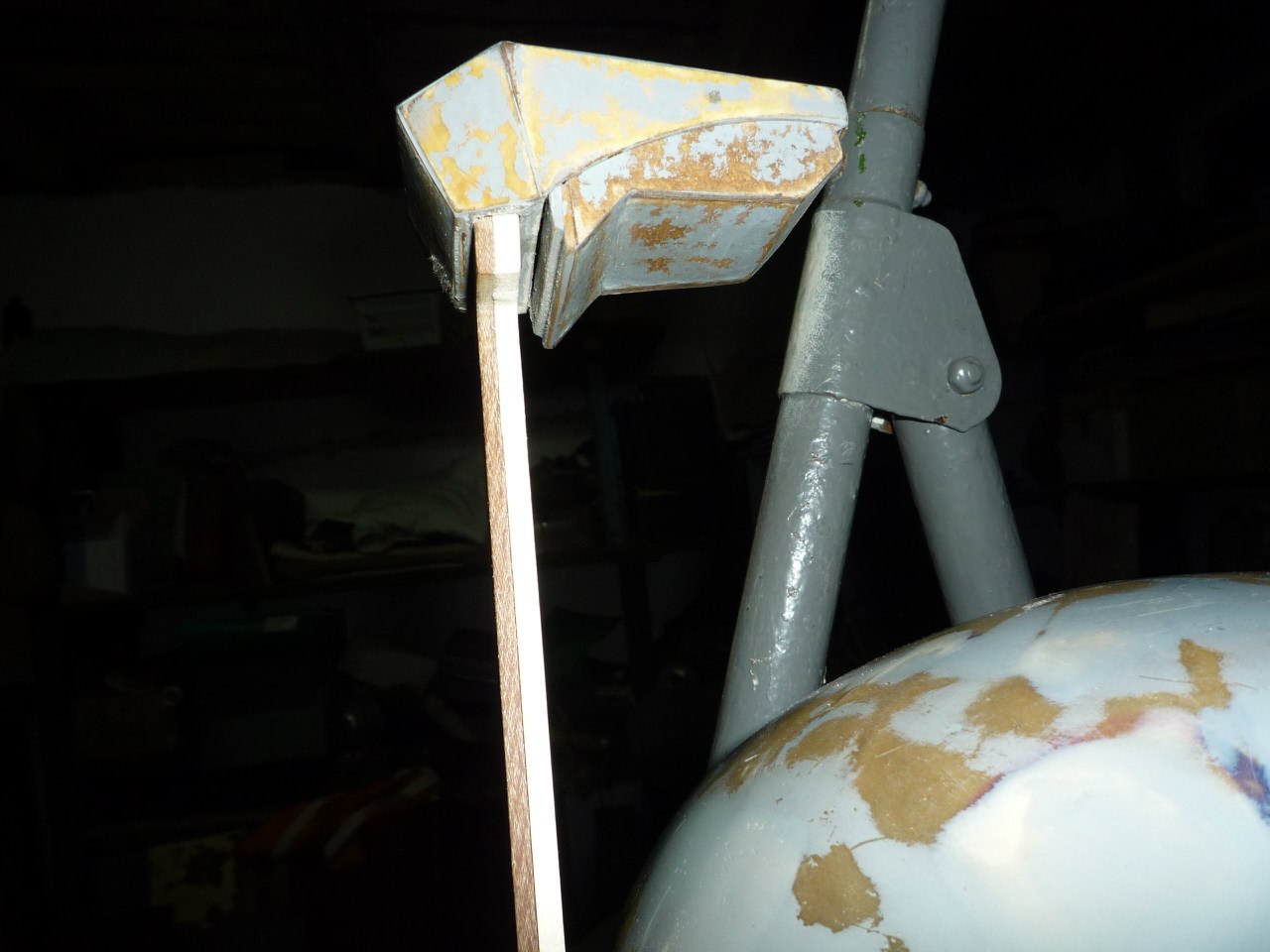

At this time I decided to make my rangefinder stalk more stronger and thicken.

IDoVXdDQWwco6fsmBUXZgpxFCF-VYBgyXYSGWo6qzAt3KTeoI6qIbsPYlADH9FWR8n0w5AZaABSx-27SM4wFsVBGIAZkvWl3.jpg


Cut off the ear

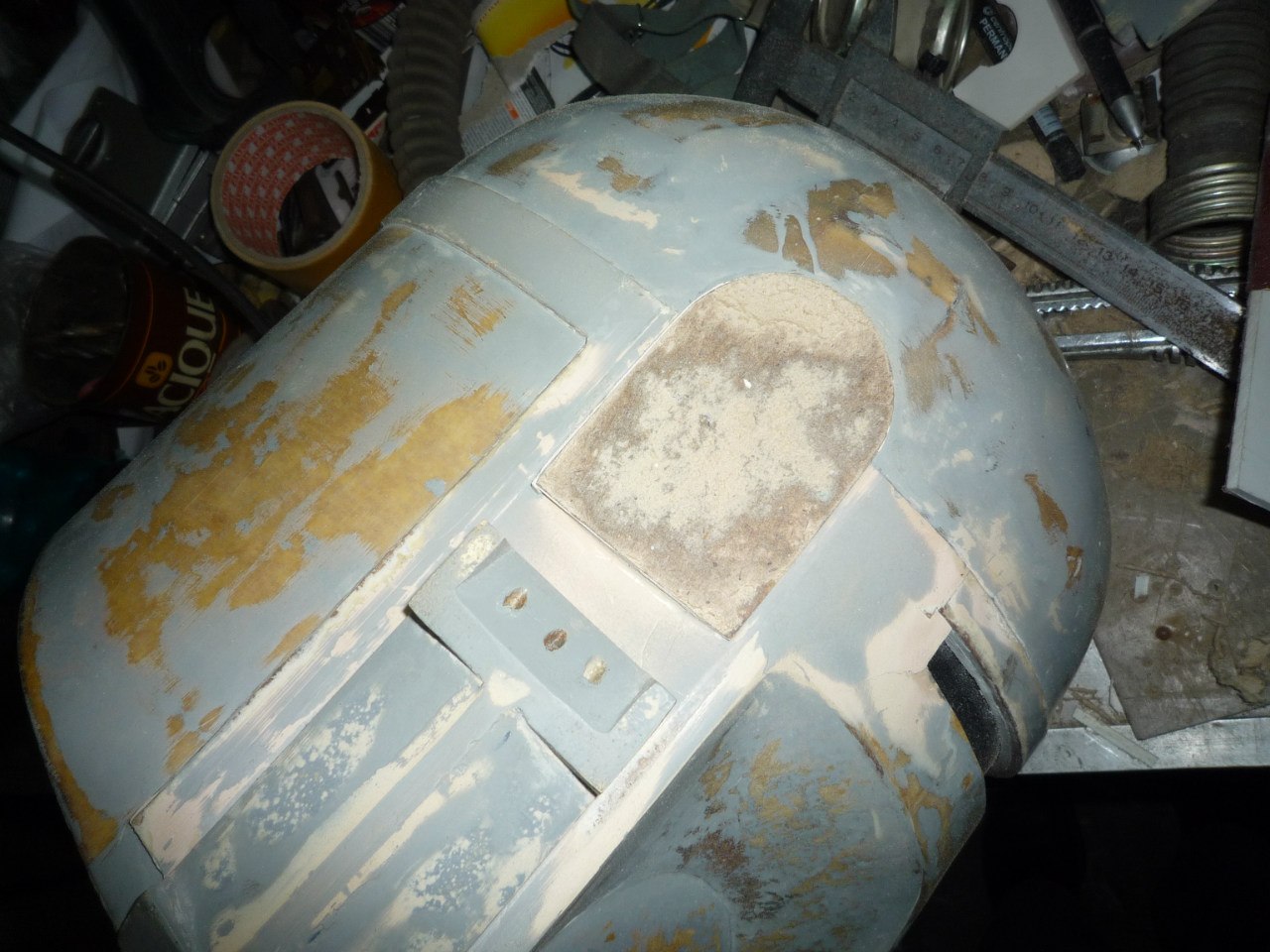

PlPulvlx2km6eEJSJeb7Dr3jnDQRNTCvkPyraIt8jPnDNSsx37HtpbpyetpwS-r3XM9E8hPsvgLFbr1TmWknwidZXBjOVaGY.jpg

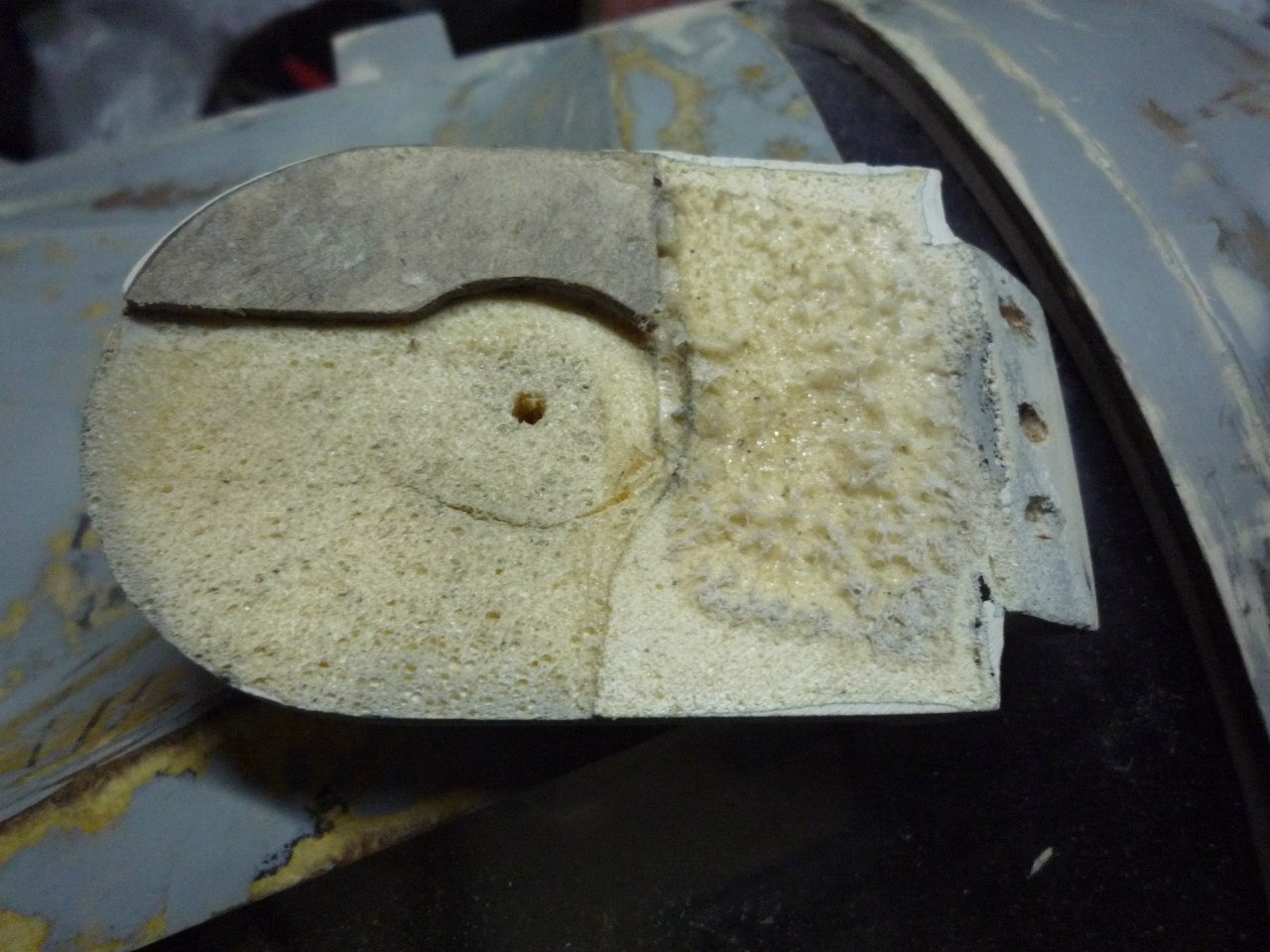

Interesting fact №2. The ears were cut from the hard styrofoam.


The glue I used, eroded the styrofoam from which the ears were made.

SeirBtvNDFKfq6xaQhcHbUBvW5tKIhULqrafdUMAtMfs0GDTSAj1_E9lxMZsYBBxeXtlfapKPuy59ak3vhaEohhC9W0pifsg.jpg



Сut out the second half for the rangefinder stalk. Now I think why I did not use plastic?

leBd_U-0OB7hljc7NdRnzoQ3XrJ5yUZsvzWjjp-p3NLZUYrjX9p_Ic1BXYrXmrpdyz0ZbdtlMEoCHdg2ELhou2-grGIijW2L.jpg

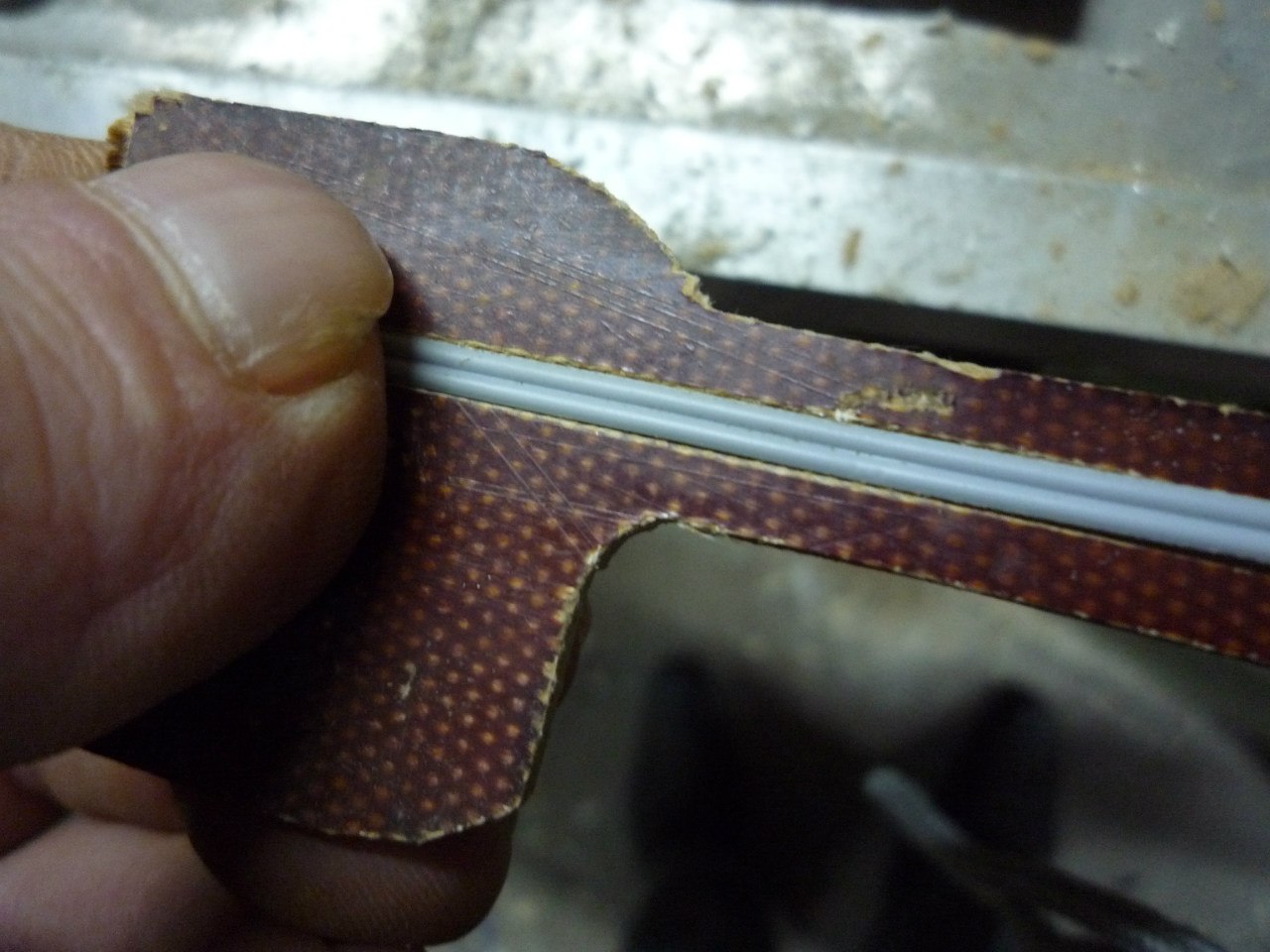

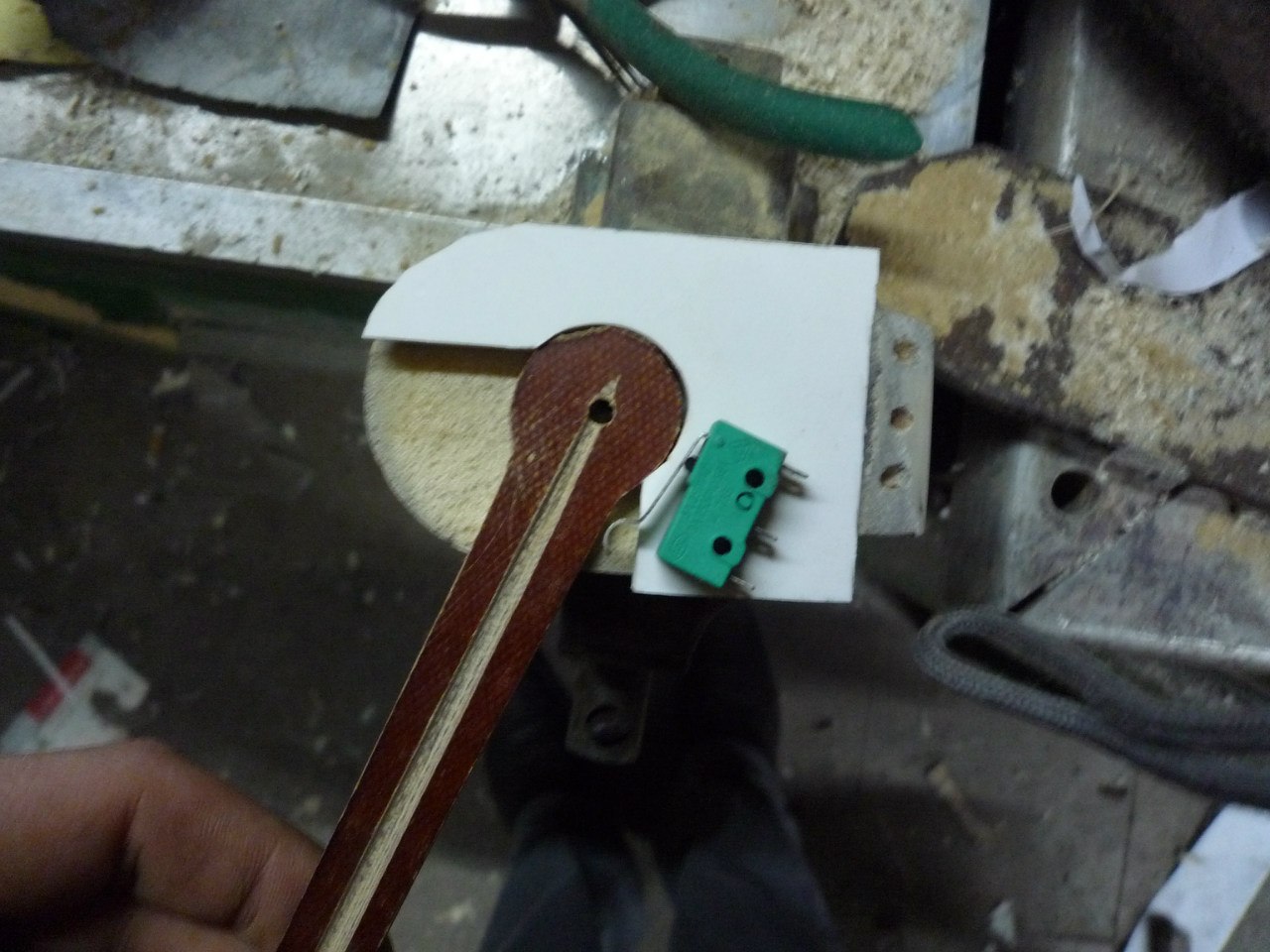

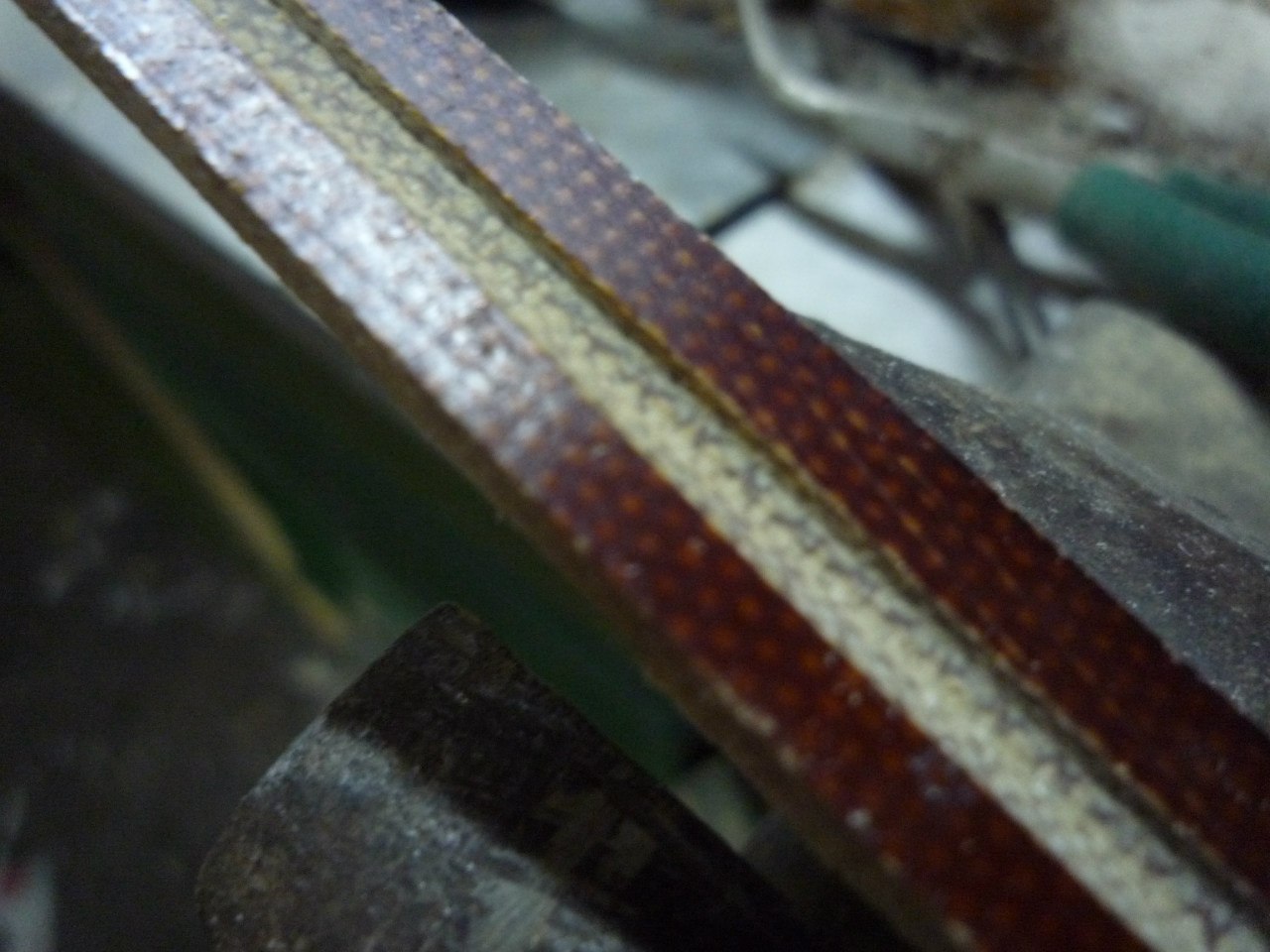

Made a groove for the wire in both halves of the stalk.

6DRU2SfZqt3uaYURAFsbGFYKG3Rc9krBGd9eHTsywdPYrelLUPBvH3fuLqlaKp7ZBVHUknkVxAdbXGKtOGxZ_yiz7jX65Cog.jpg
RgVcm0J-FiX8vbUtF1weU2IVlFtlxNbSlsUSAaxTFzwxtyyYDInsXBbnu42tCbOa9NbaPWyvLnL7wLg-Jl68zBKWiOSyF1hl.jpg


Exemplary layout.

0VEx4vwIaL0oUTuf86Hq7nCG2bMtCny46F58OwP4XvHXjnsUceNoItg4F-umNNfbjLFnzrGCa1U0iZN2RcCH2a2cwnKxsFIz.jpg


PJSSi1s31b7-aogGdZSTOC35iOKQz5GQLORIOXT1cSKurqIQmLeAwRG_kJCgO12nOVajsBK2RJpV-PnxxdLHcZ6gBuVZ1uyt.jpg


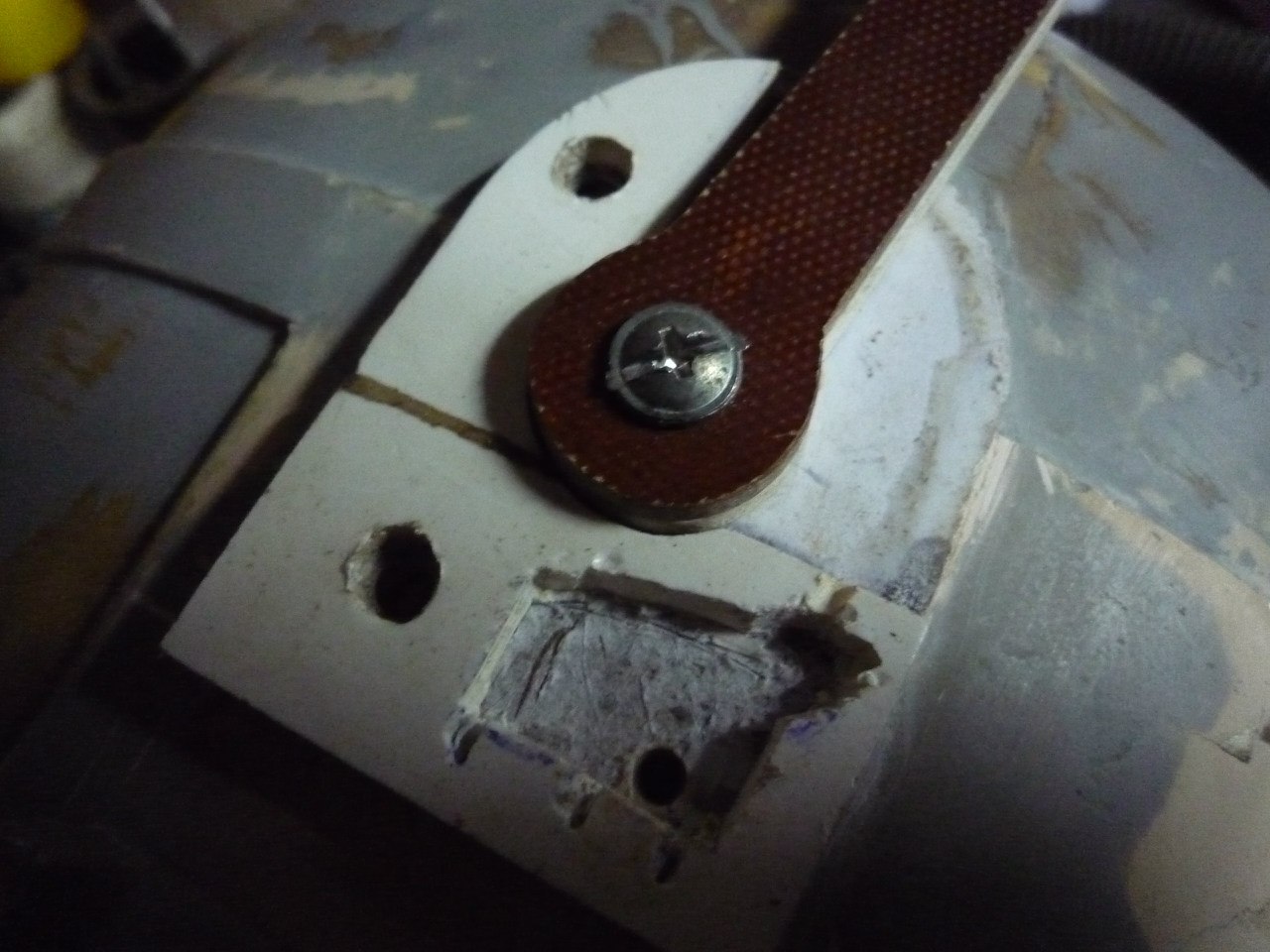

kyPiw5aMuFfCXRRmTQLgnGx7S2HVGfKl0QaCB1VcSkP0fVNWjiLiJvazap4oXhYgLbGHKrjqPNgwDJniEzecyBW8IiQD89_b.jpg


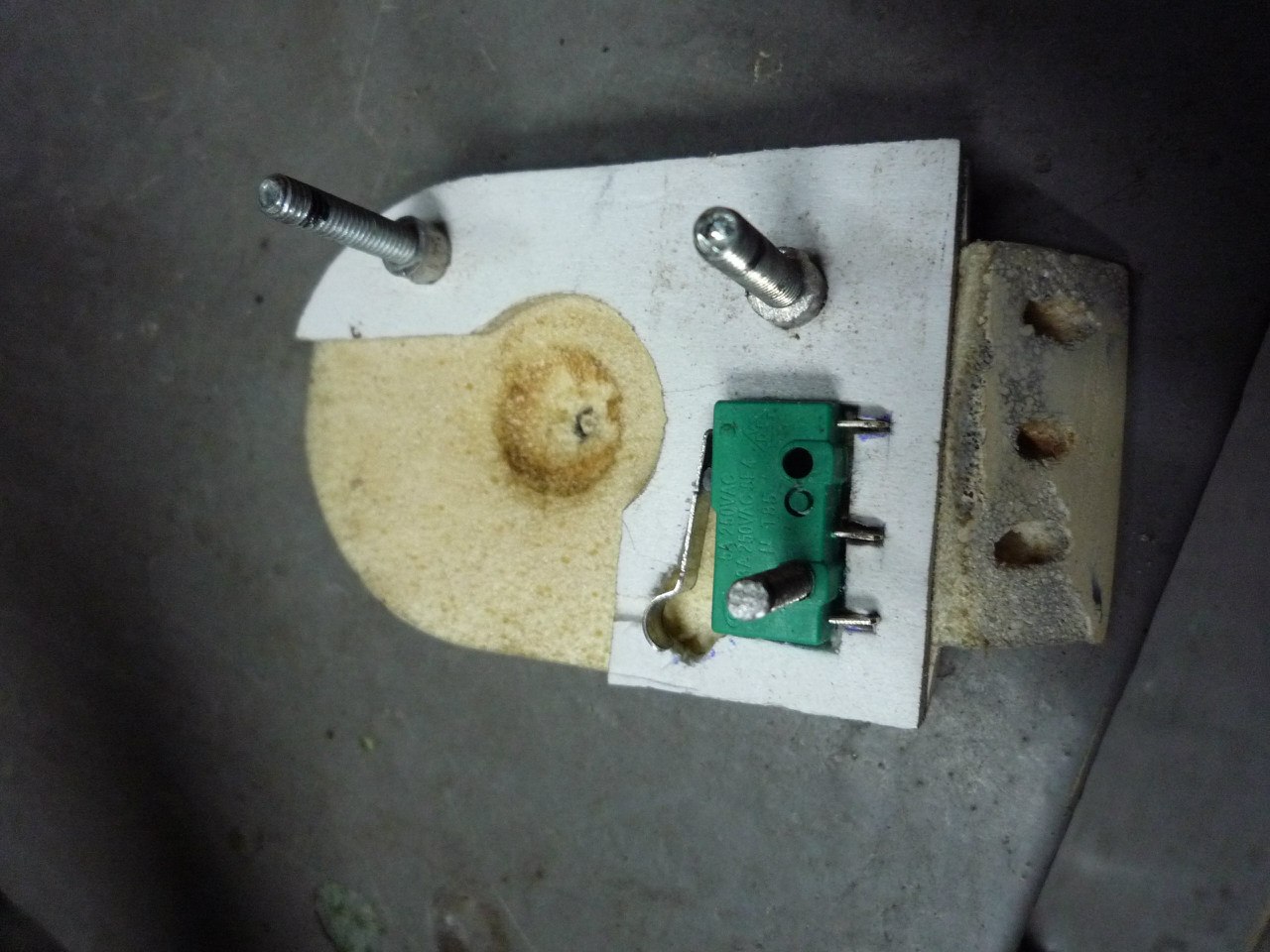

UQcPJskaEqnQz0cmjkRL3cBS1C_umtBLNY-bl6nB2zYTcEogzSAj5P0H9RsfOghZnBxxjmVEpBELbzbj6VLRk05q-nCcSAWC.jpg


kHfNFY73hHFv56YpdrqCGrGkGwPSCPJfO18glPXR2vsHPOyeaBVeYXtpIRLaVEtSrgXa8s-TQb4al3d498u2XVZuYKNk2YwB.jpg

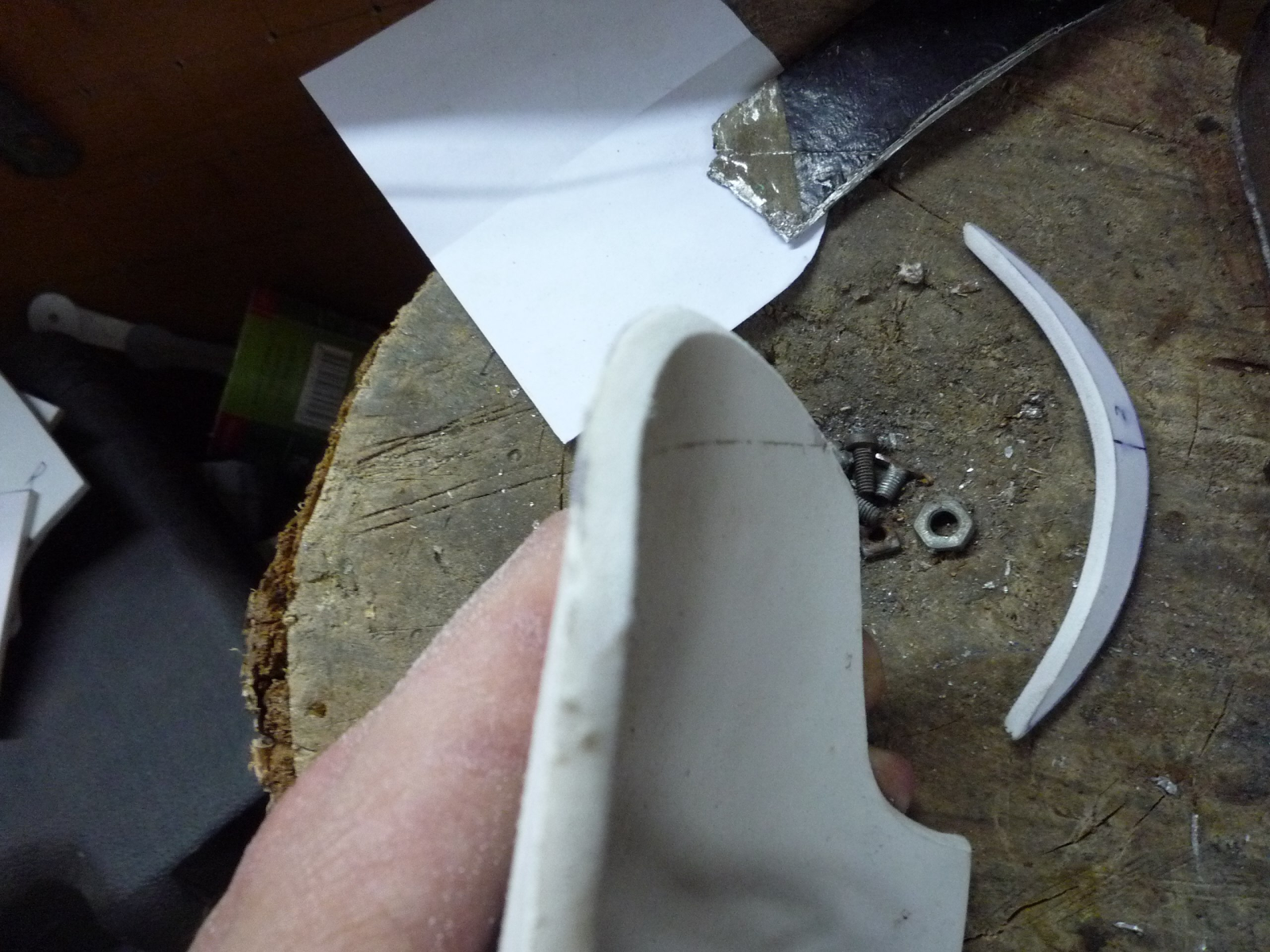

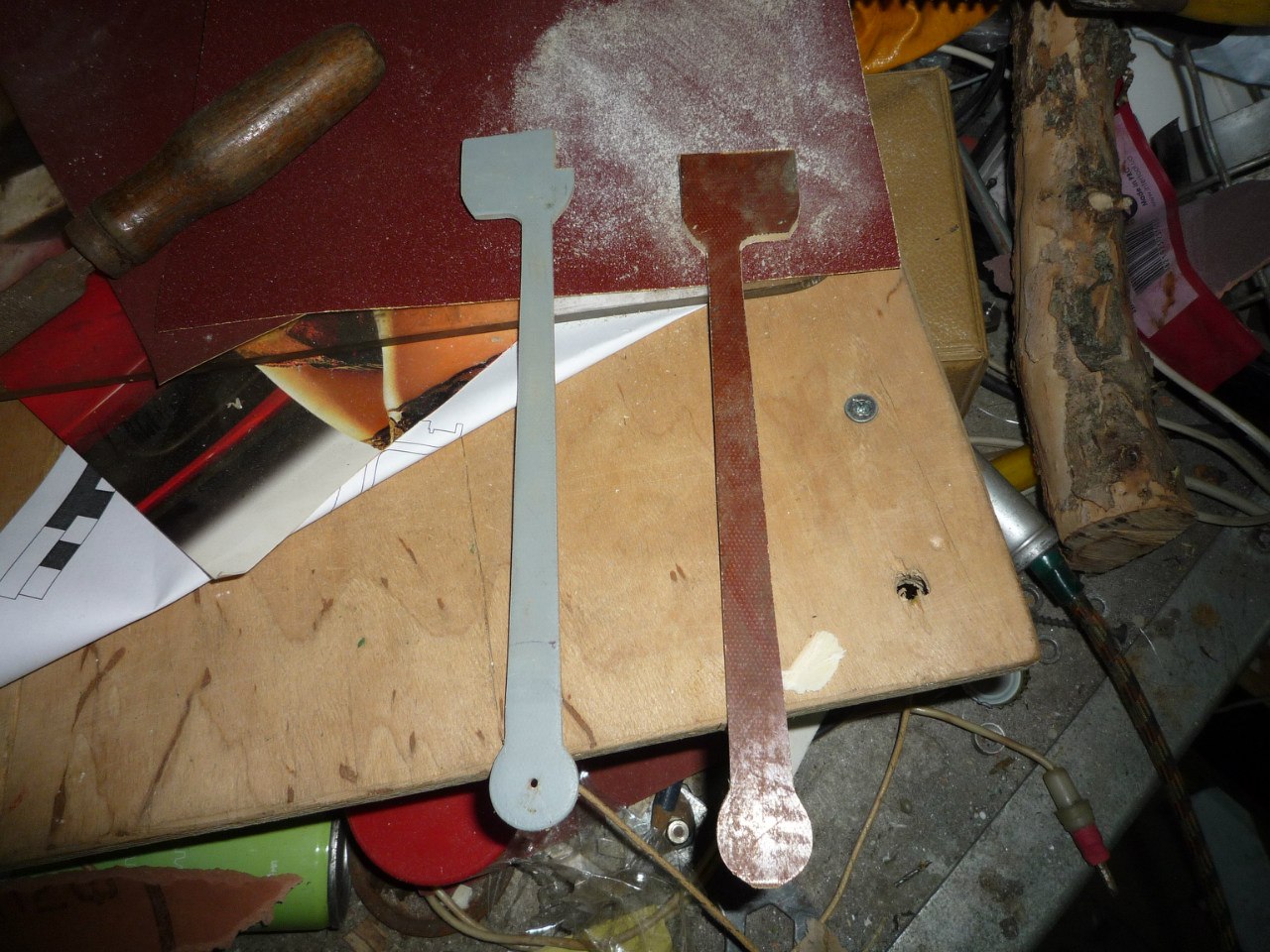

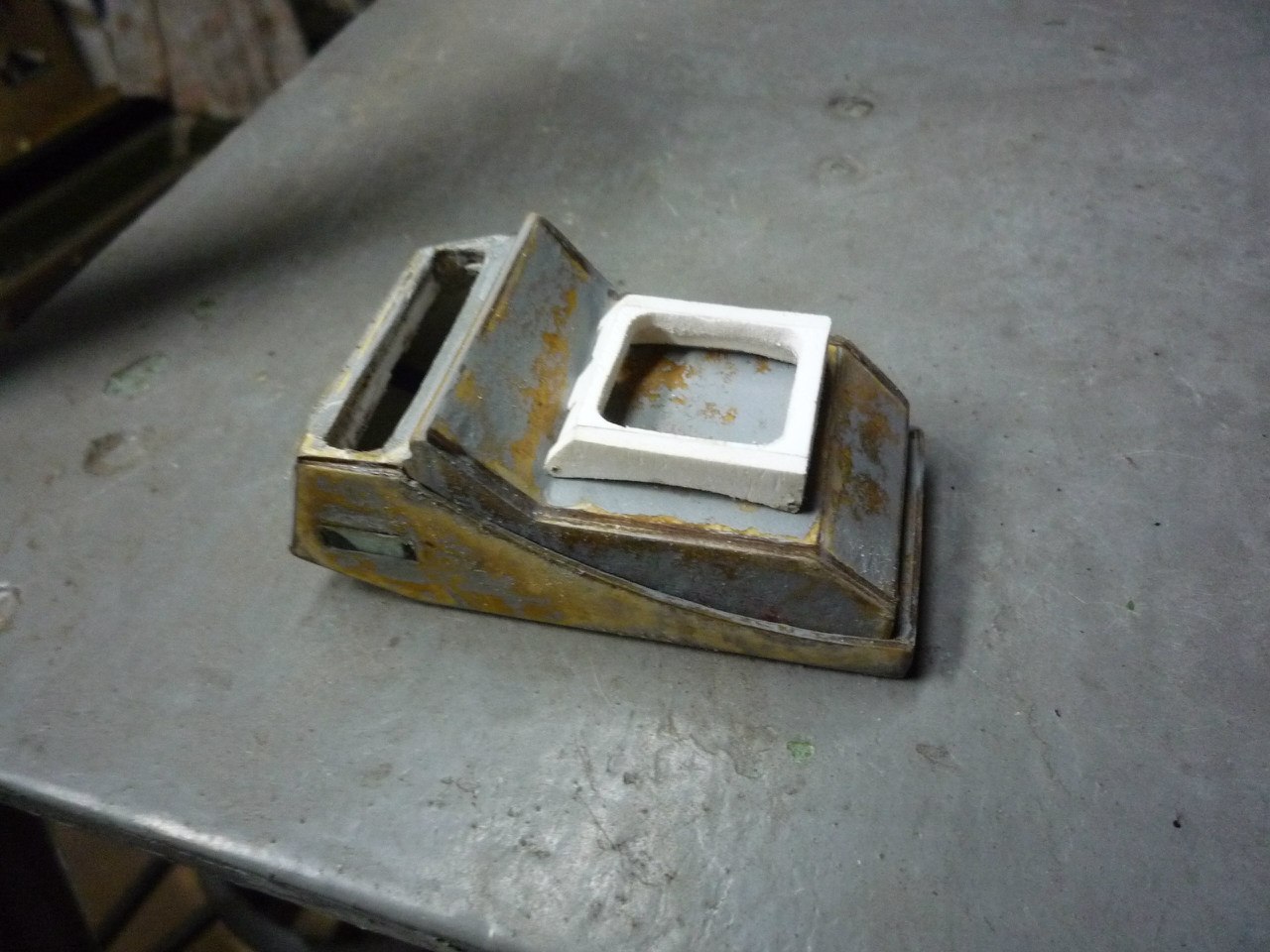

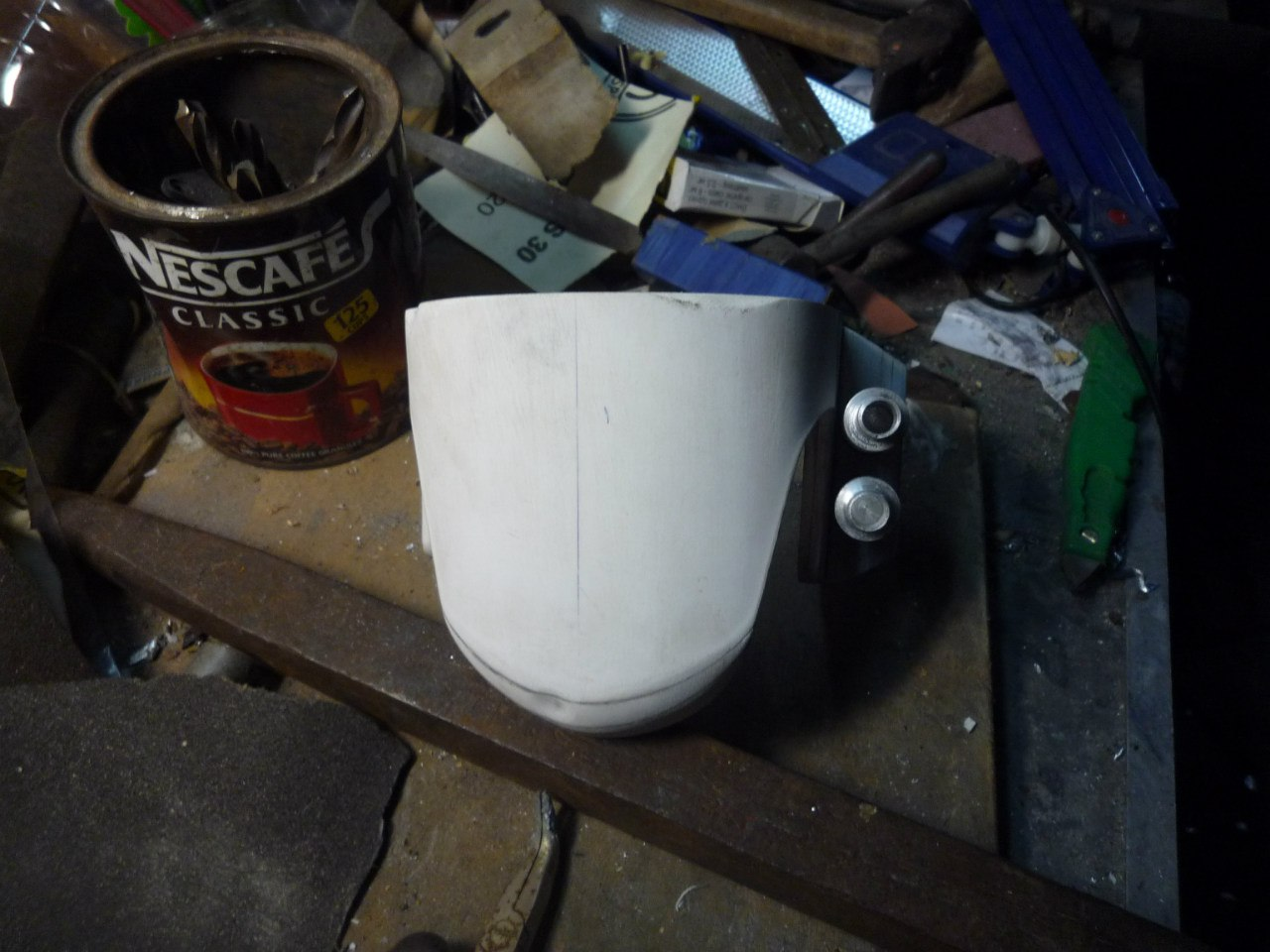

With 3 try I made this small detail from pvc.

kTlWwAoAYEKL1JjYHU7SMVR37wW0BqUIGvqm2fPv9qP_GtLGE9ttY0OvtXtdXsSD5-G_do7QBoZYXI8hZdyNbiqi80SjV2Yh.jpg


Mickey

New Hunter
And this is all what I make in 2014)

5k3RrBZVp69GBjo6qsIgt25_r_sbDK-30Y3s7fWPB25gPGdb24nUsYuLy7BdlM89m2OPyFnKnc-WIngQ_JZas0lI0IsBCwST.jpg
HlGW5wvUJecBMUq7S5o0OXRoV9gp24Nzx84LJJp-kNOg9SHzLbVTtSxypEuWP2lPzV3B7dU7Mxzdsv1b6CUNjRhmZZG33Unj.jpg
tpueeQ9wHZEtVjIwd0ygGds-qZk6EyWVySnmIBUkzx1qb4cQaEsHV1lVJnxUVUjtFJfhAhIczvvUzHJvUzwhq6eBEDT28lFh.jpg



You will see more interesting things if you follow my topic.


I will try to post new posts as far as possible.


Mickey

New Hunter
Today I want to tell you what I done in 2015)

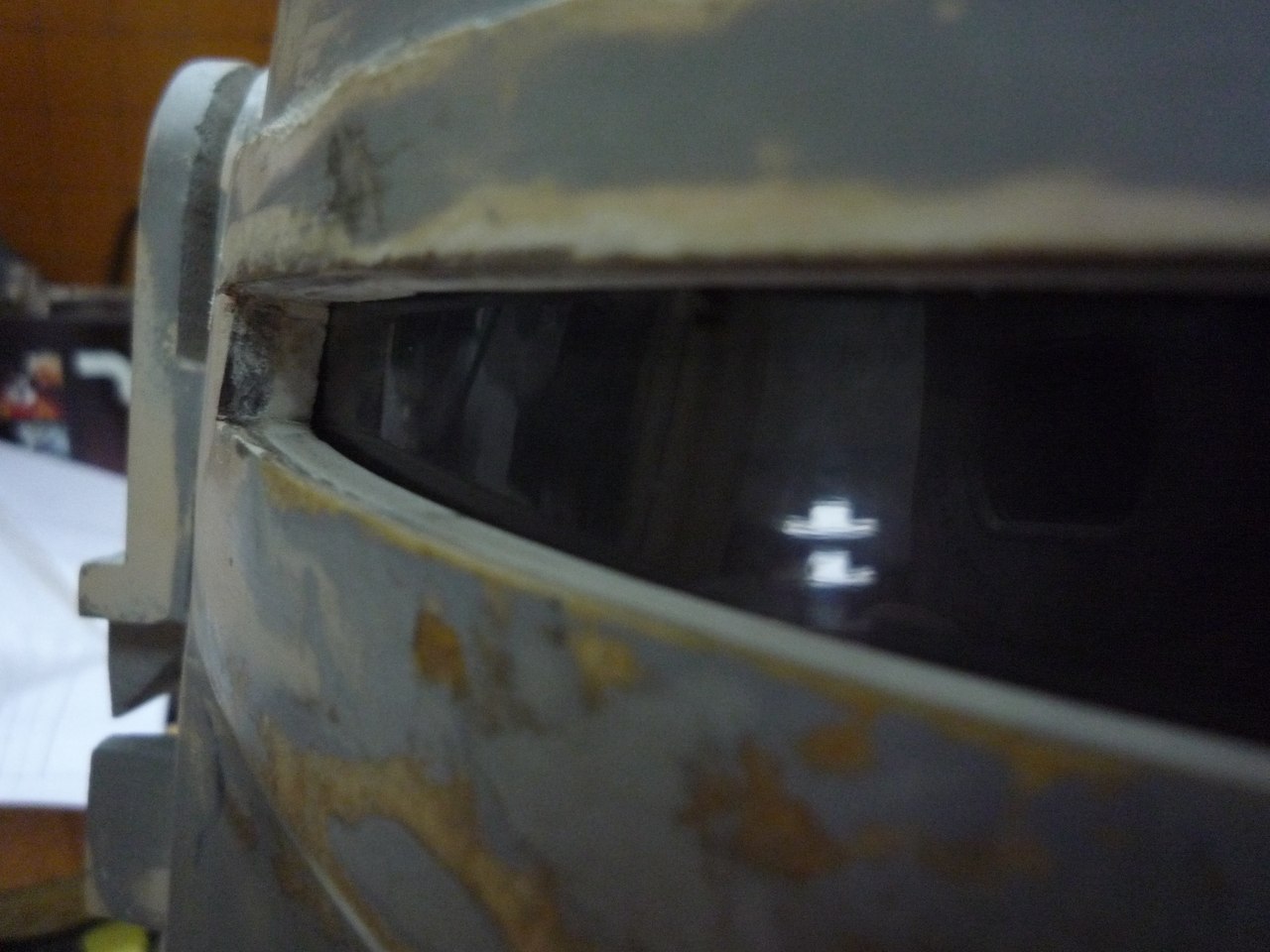

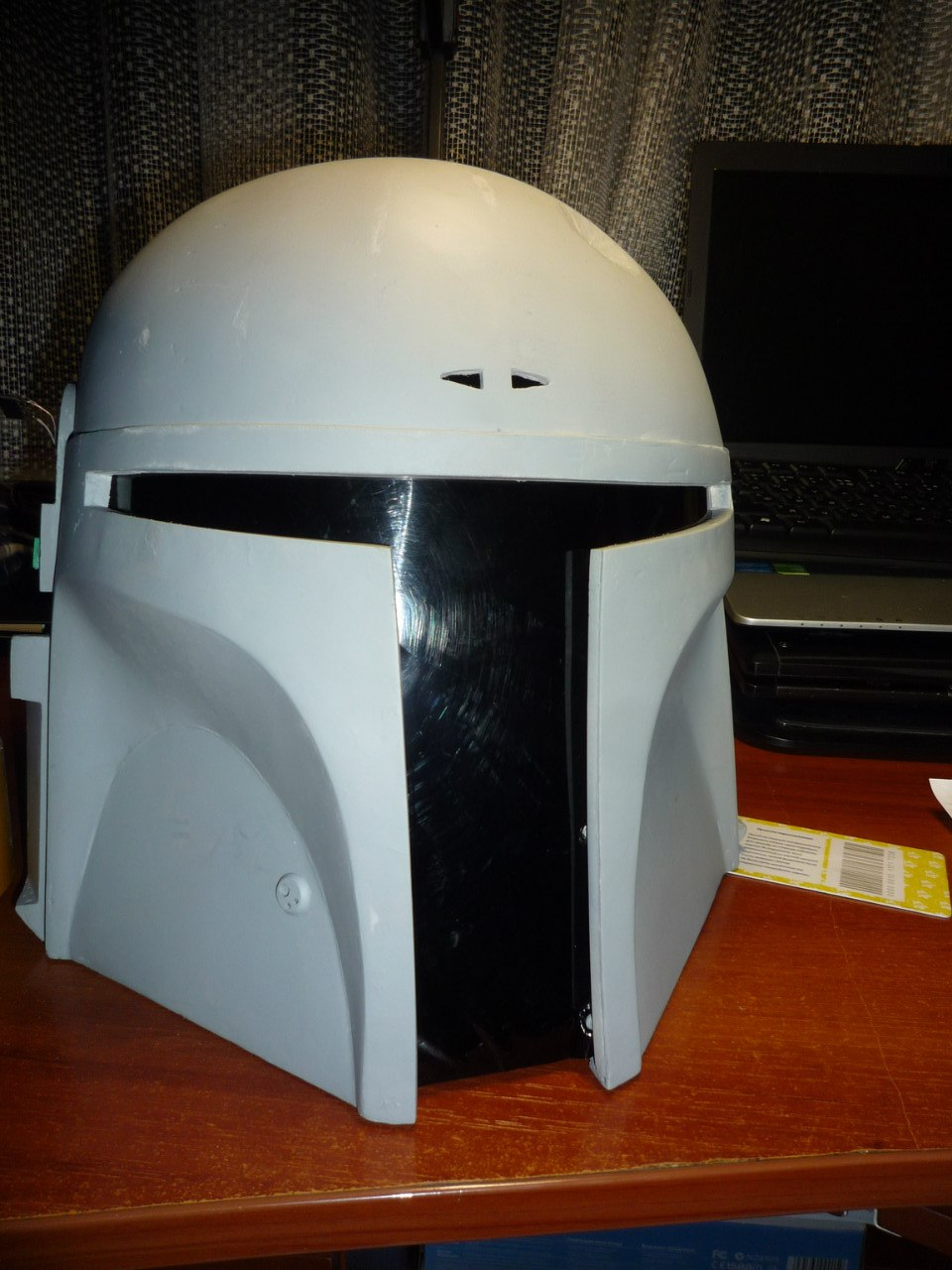

Year start from tinted visor and experimental install electronics.

RDIDcQ1BvGzOEm8s34o9MG6RCOJNXbUo7bmJtV2dsS5KGK_hRENThLDp7A_1CHkcpU-WjLu9Eol0SD0ALBi_cB-ObjCxursO.png


RjR-4rZTTjGKg2aXvJFz0x-HxEIZ6AriGS7fMI9GjEEzJi6Vd97lMA4omD0uHtm9UCd91vsQMdnIDzjaLsAoVP4oqGH0hSn2.png


Jcxw_Ca4LTE706BxMbxYBF94BNFbxnxdddsYSkxBnHCWvsu4i0Nwxt-WPQPXhie4ryIPCZ8C6BYZmGlKK2j5QV10EqoLp9CB.png


And how this works.


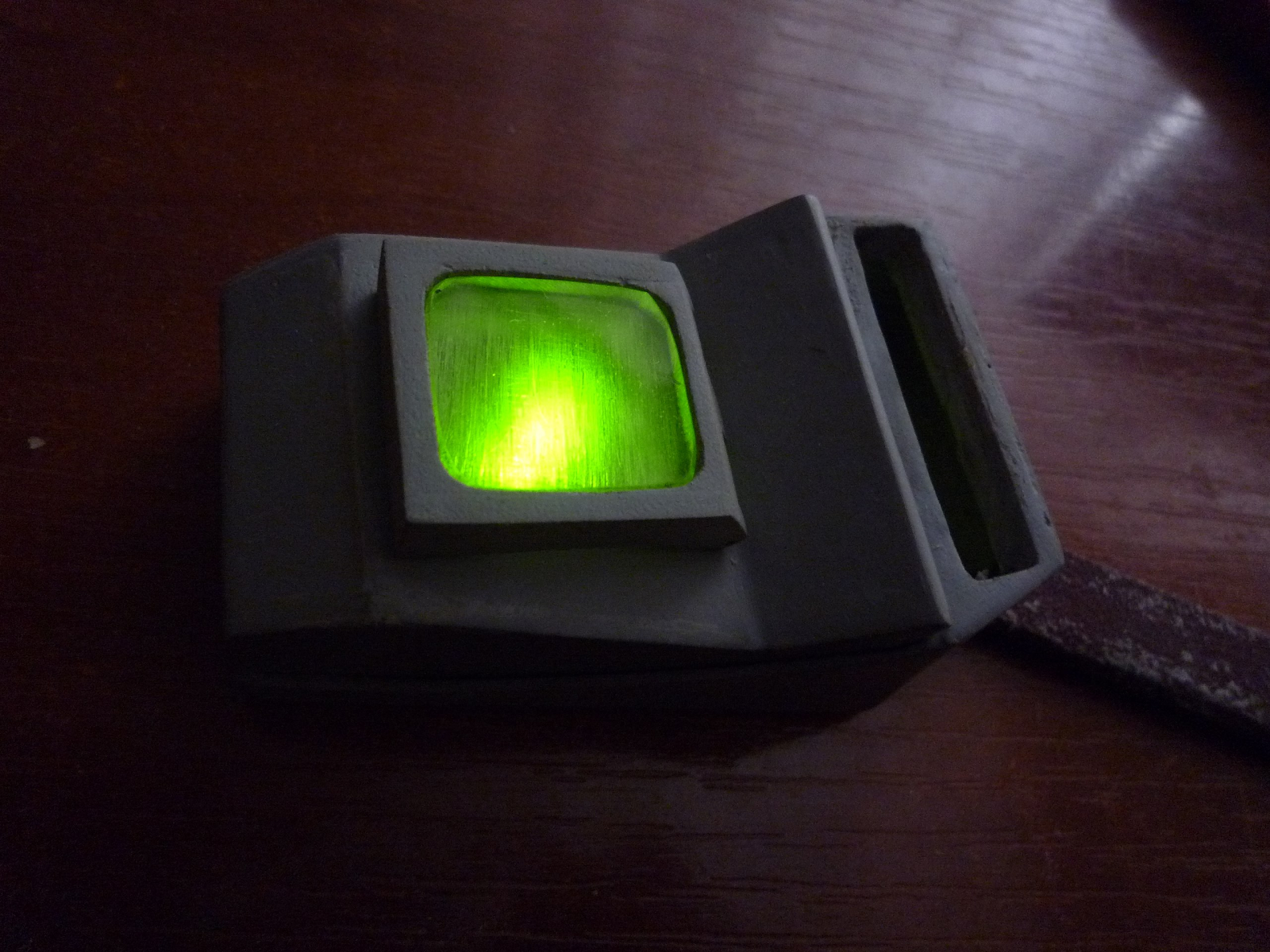

RFyLSU6v7aH6hWgpNfbs-7ZhvfIsP2Se9ZuXxx9UfrvzxIbOscqffCt0LK5wgojxDyjWDAn5lvU8FSPFuFyCAj6-3yl8rbE5.png

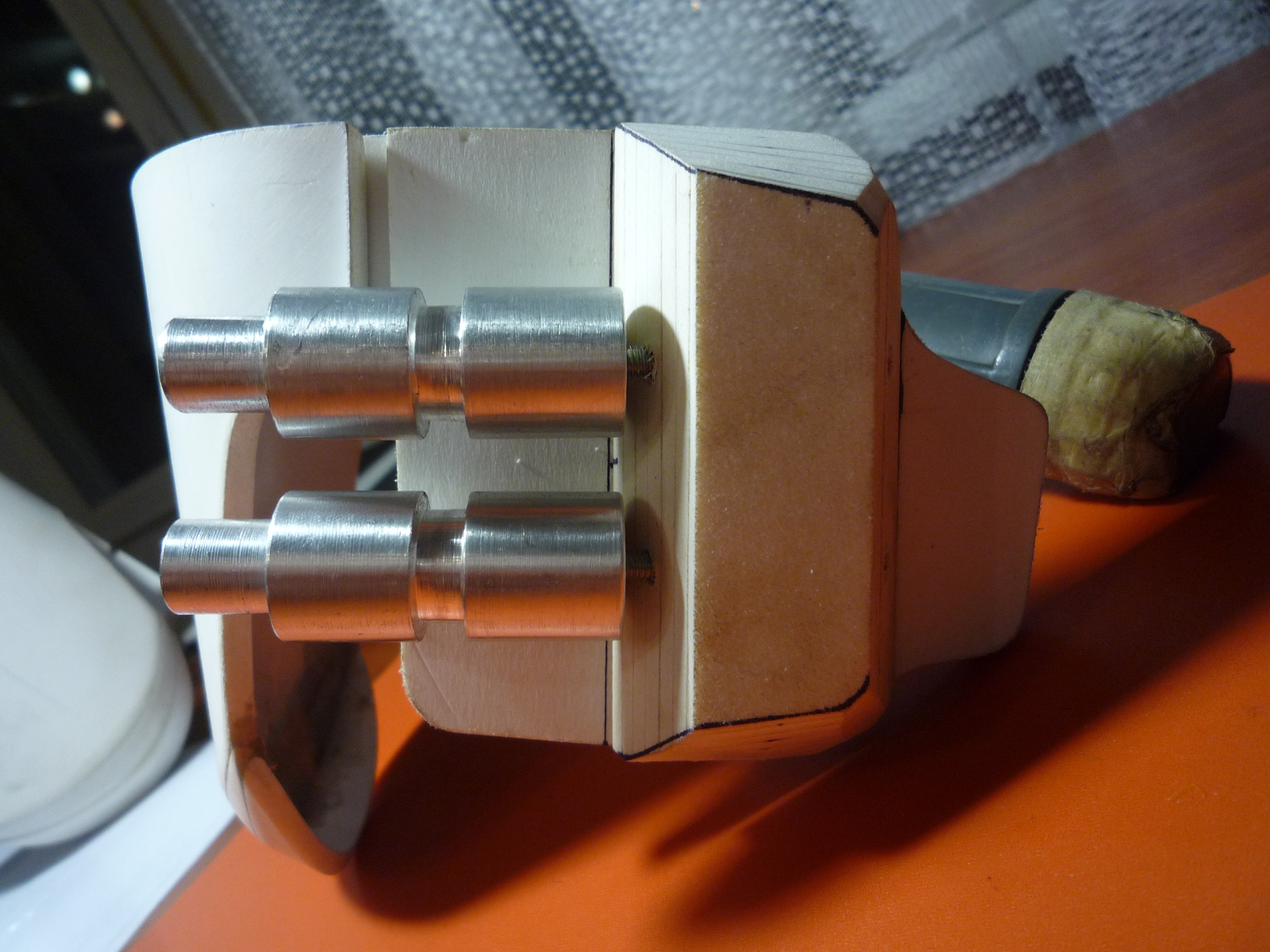

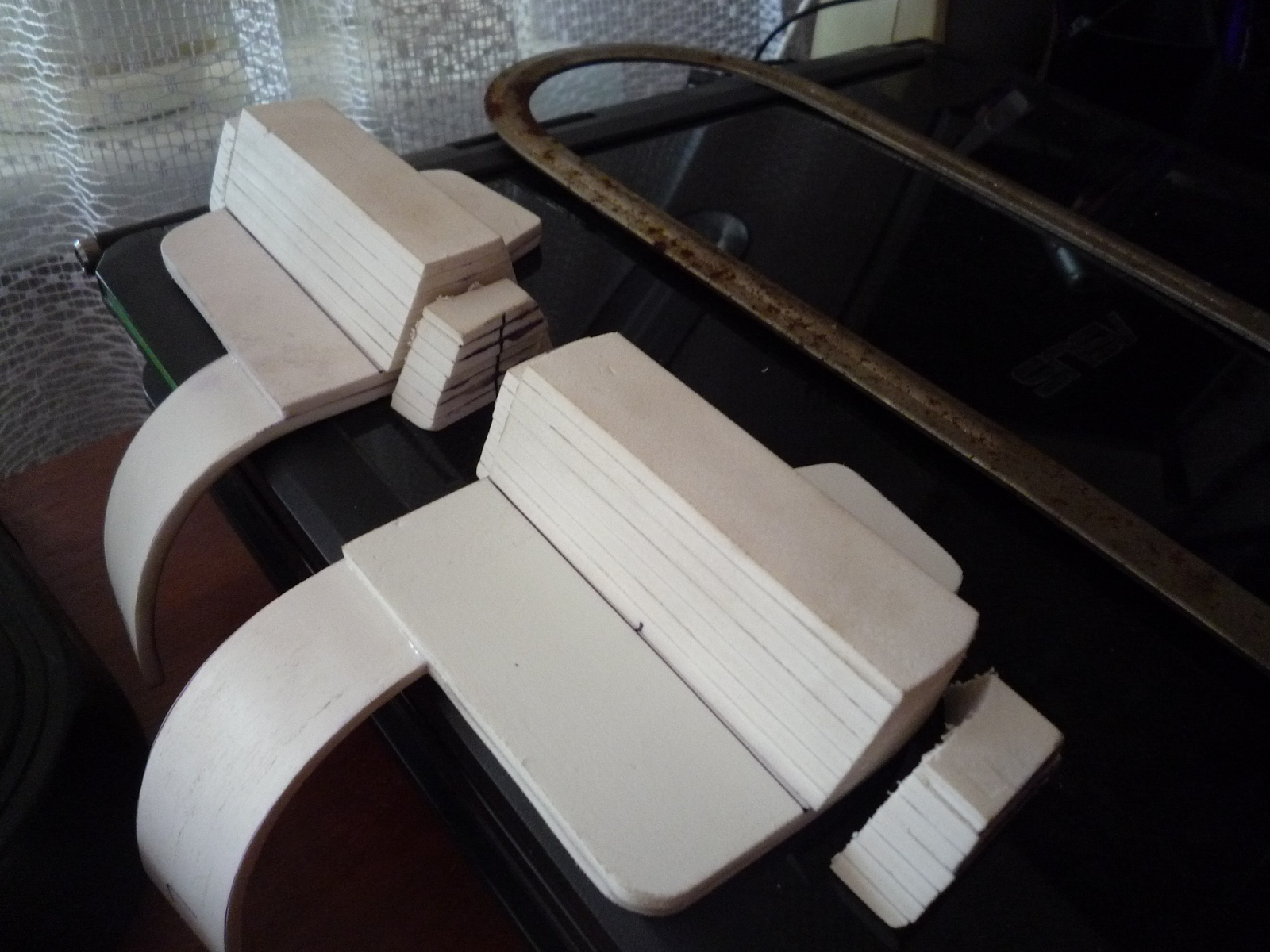

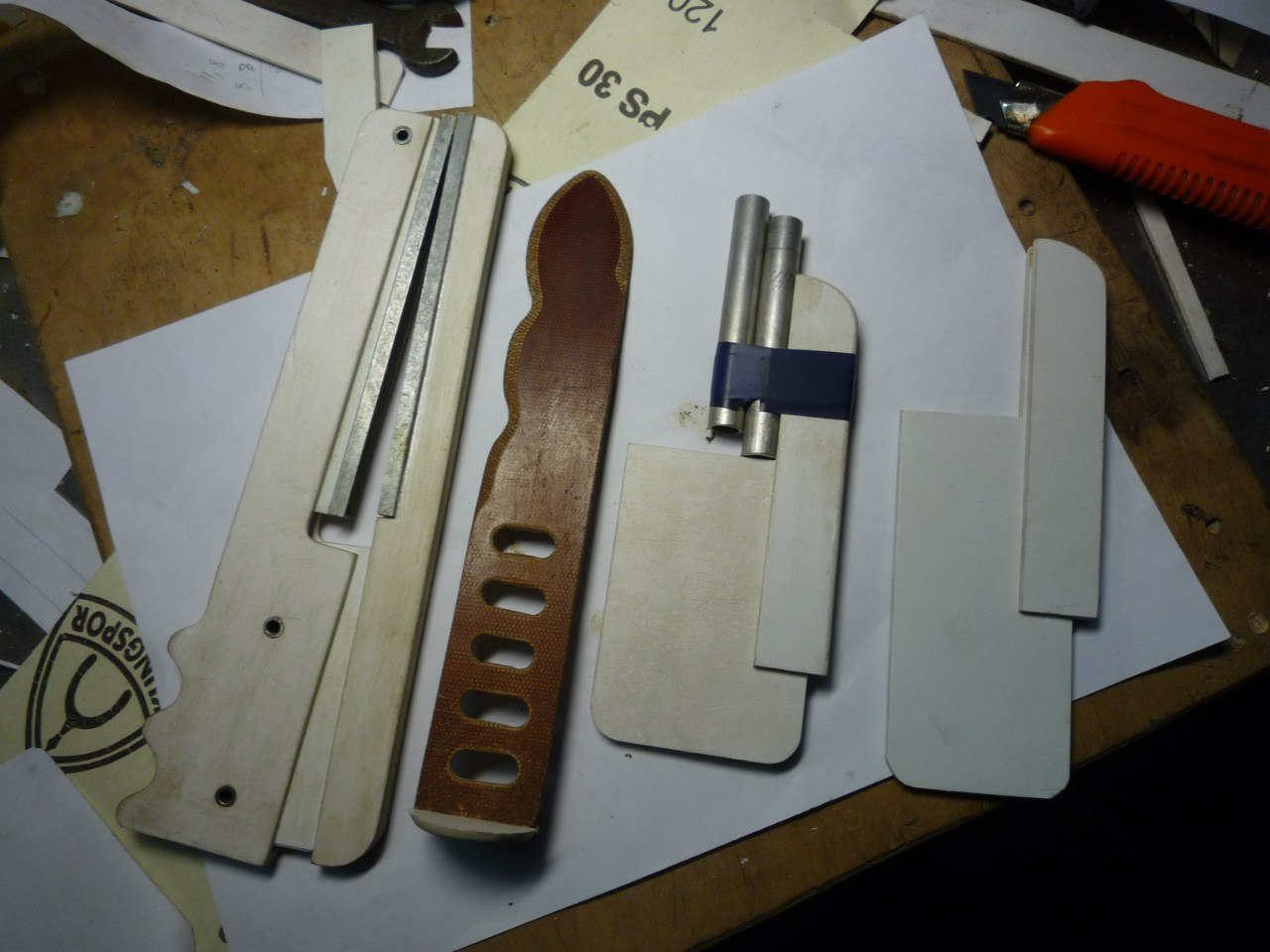

Trial assembly of a cardboard gauntlet before making of plastic to find out what problem can be.

AOXtVBuNLjnIcqE9SPMkHffkQv_sbtriWFIgukQ1Ik-PUGhRmuiWzcGZzi8Mo74r3yUwGMzhBarXEypXJvv0_uUV9wQtqwcN.png

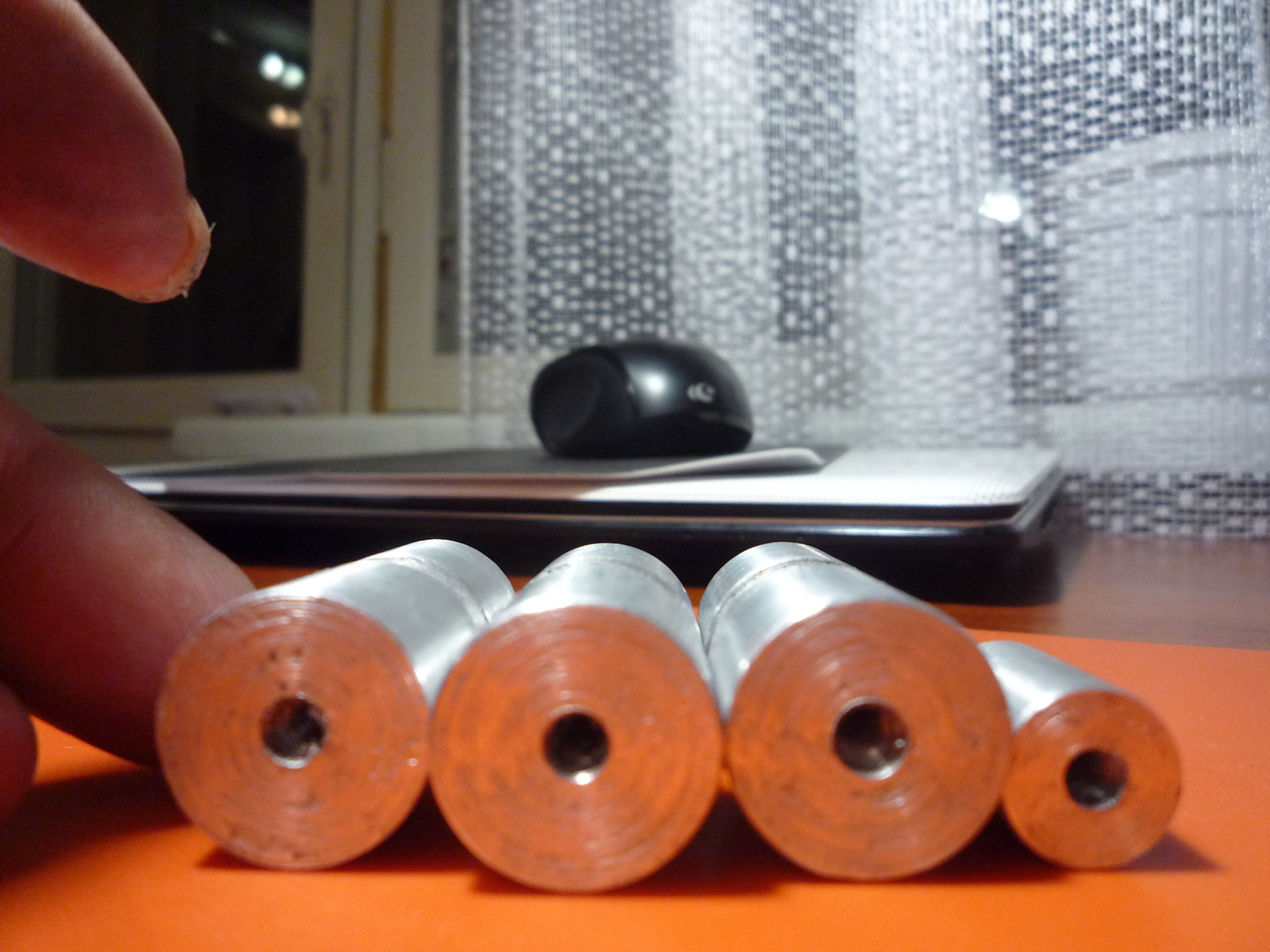

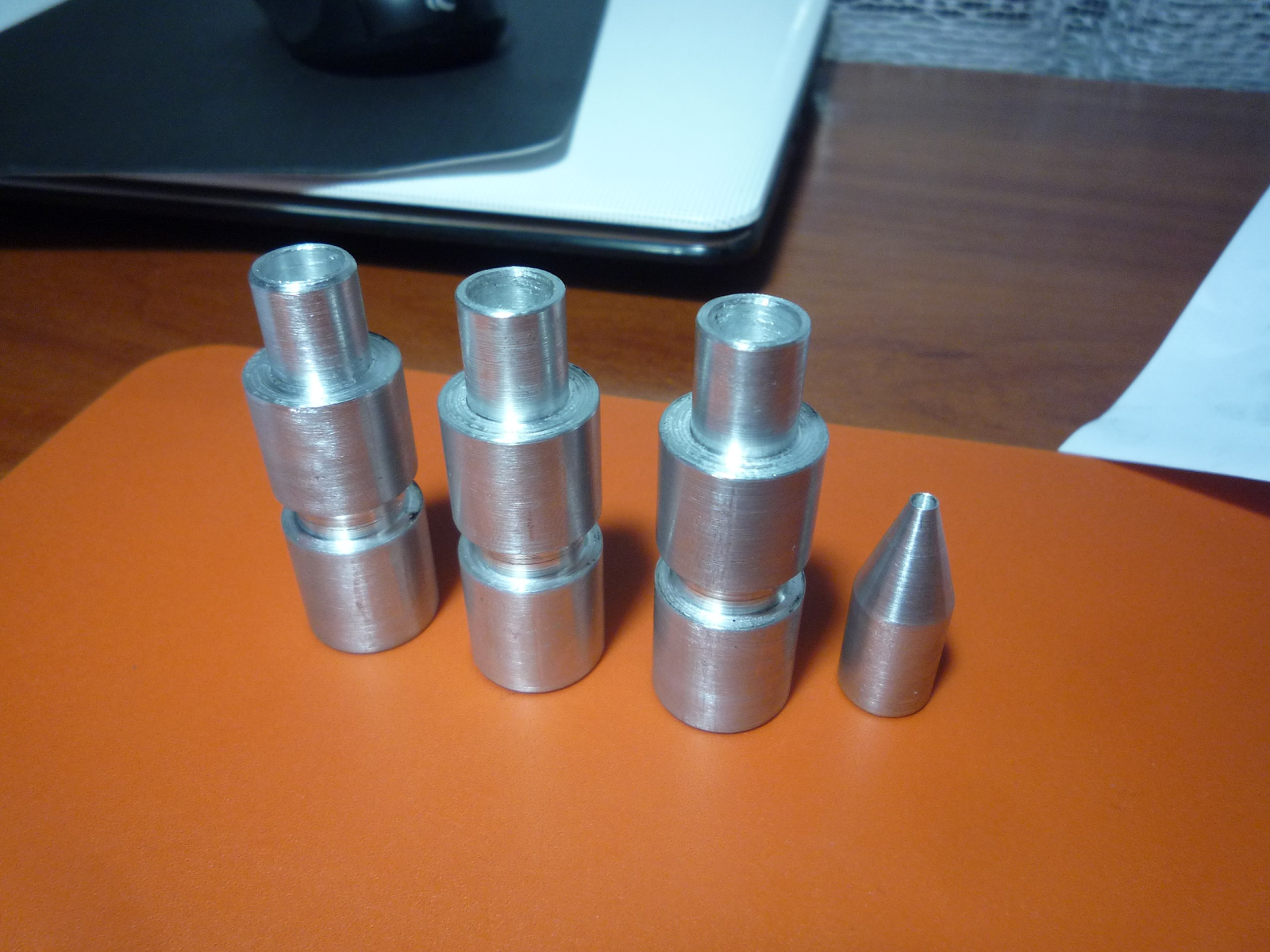

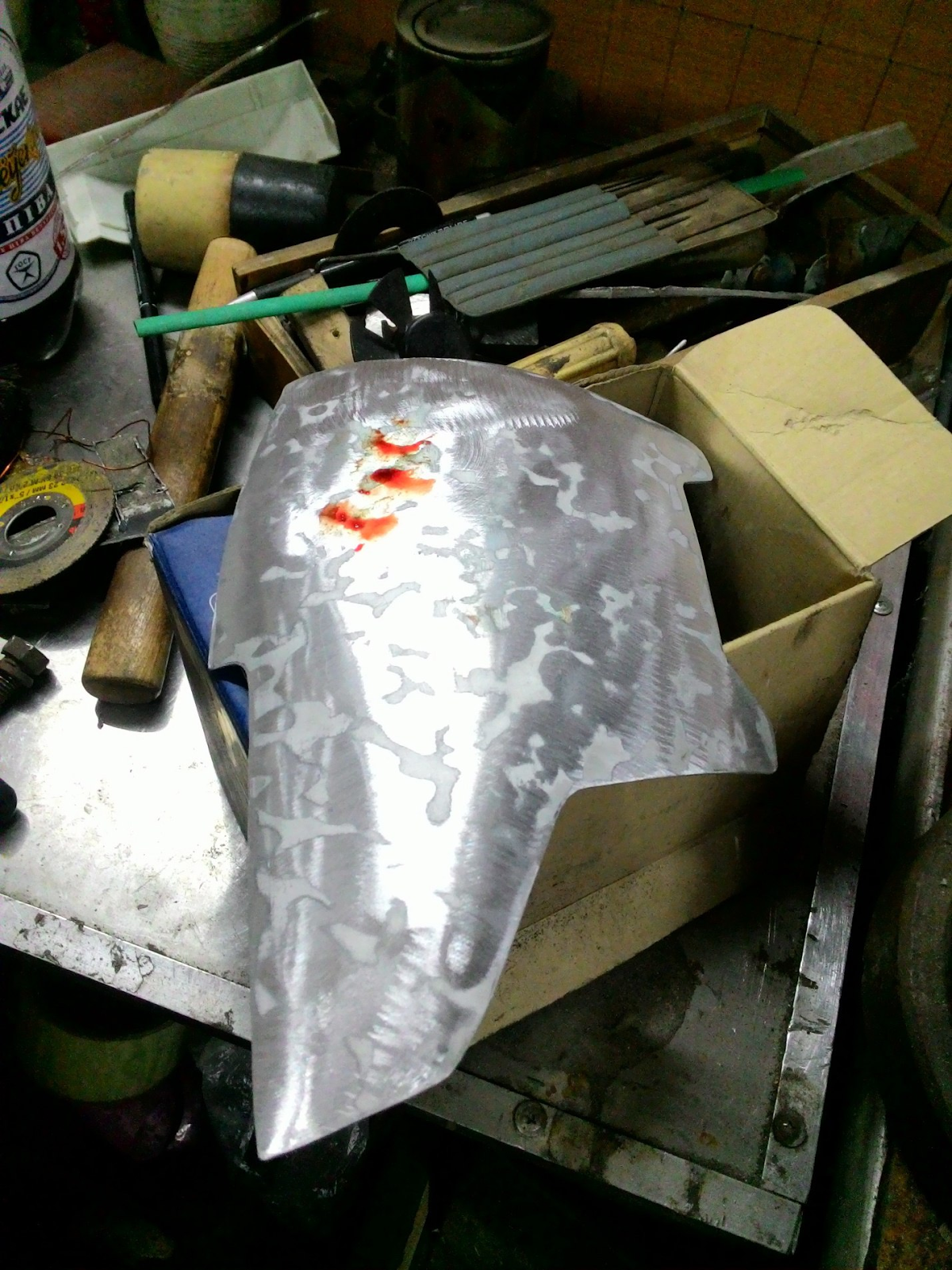

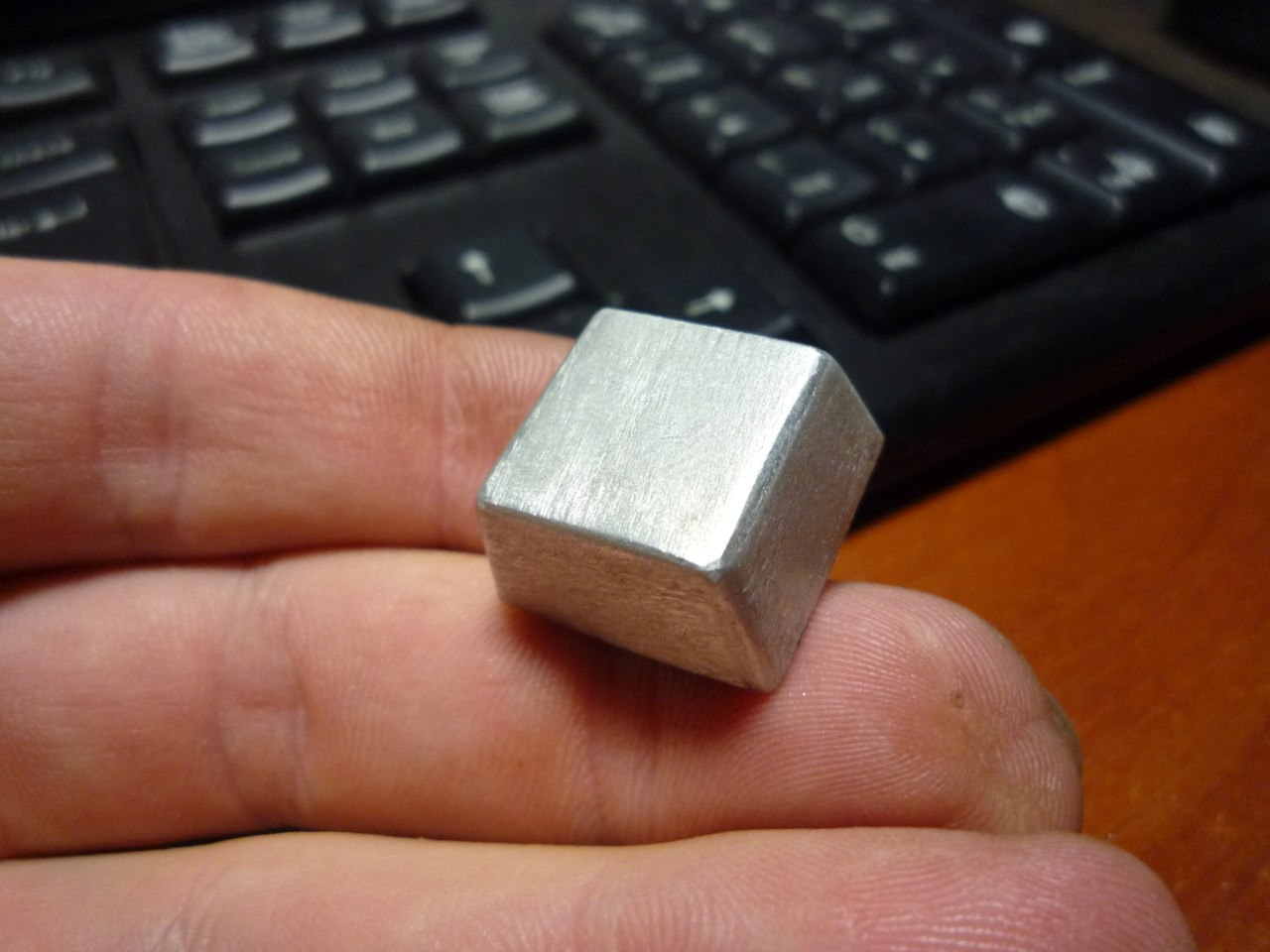

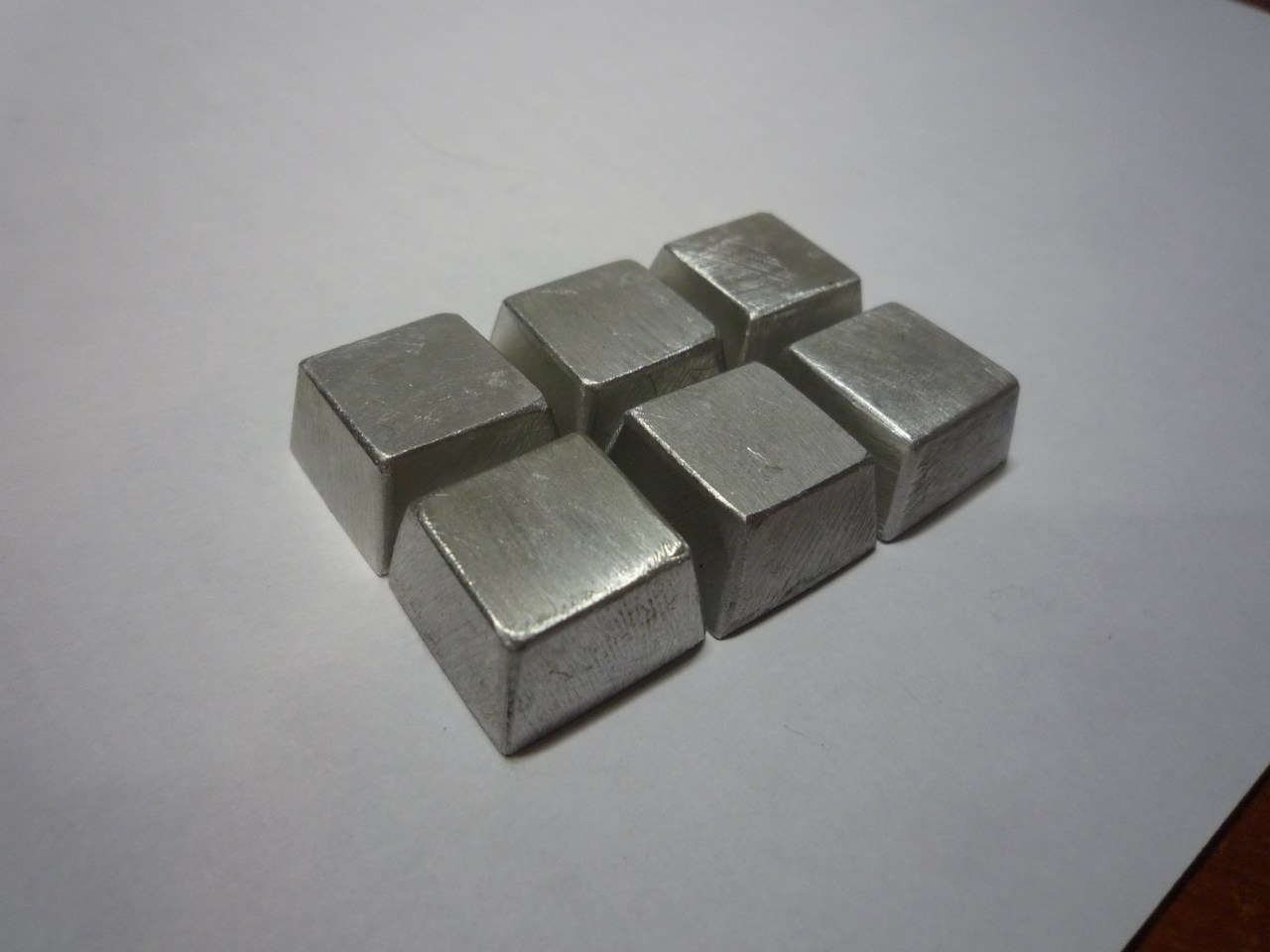

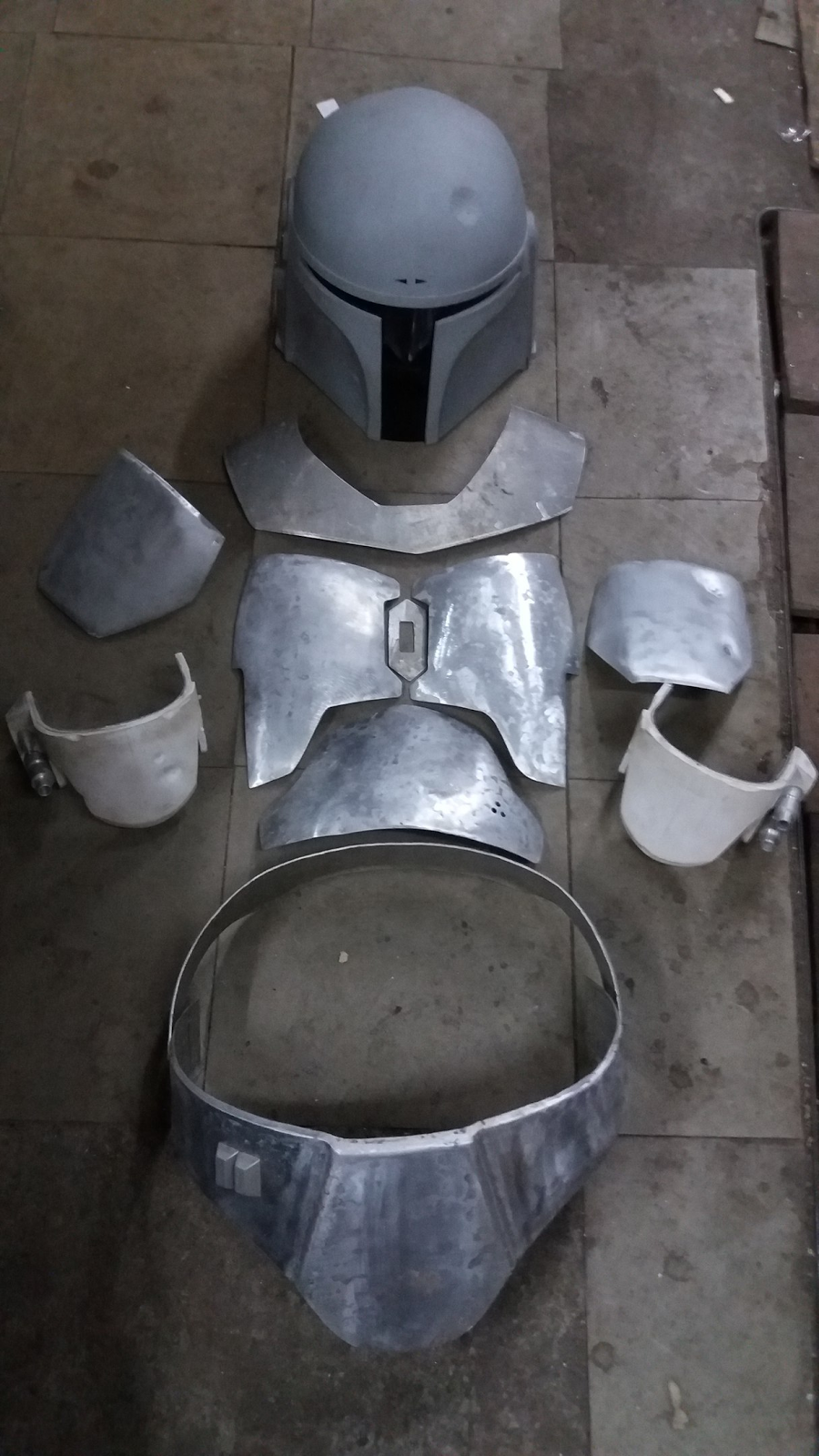

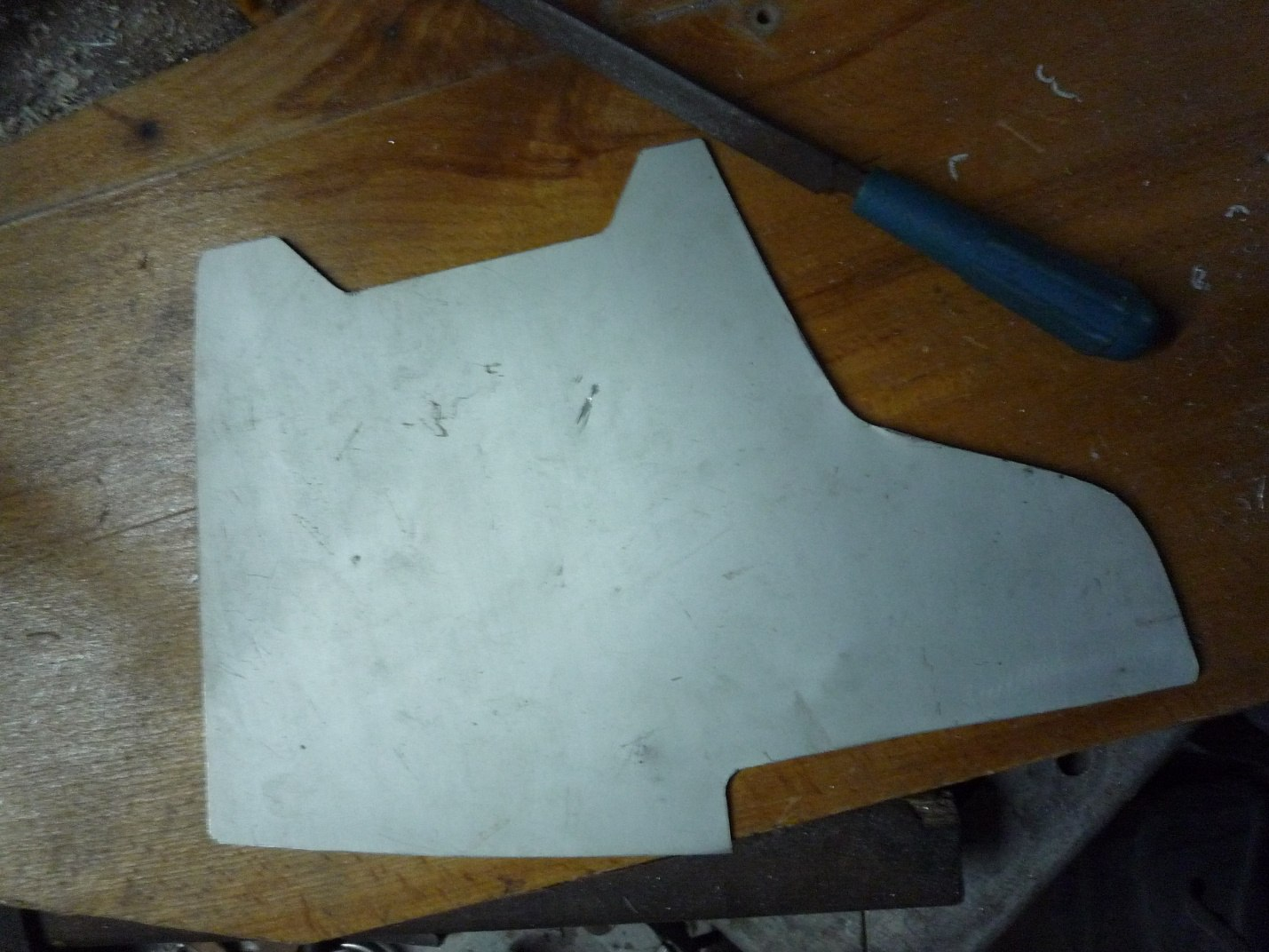

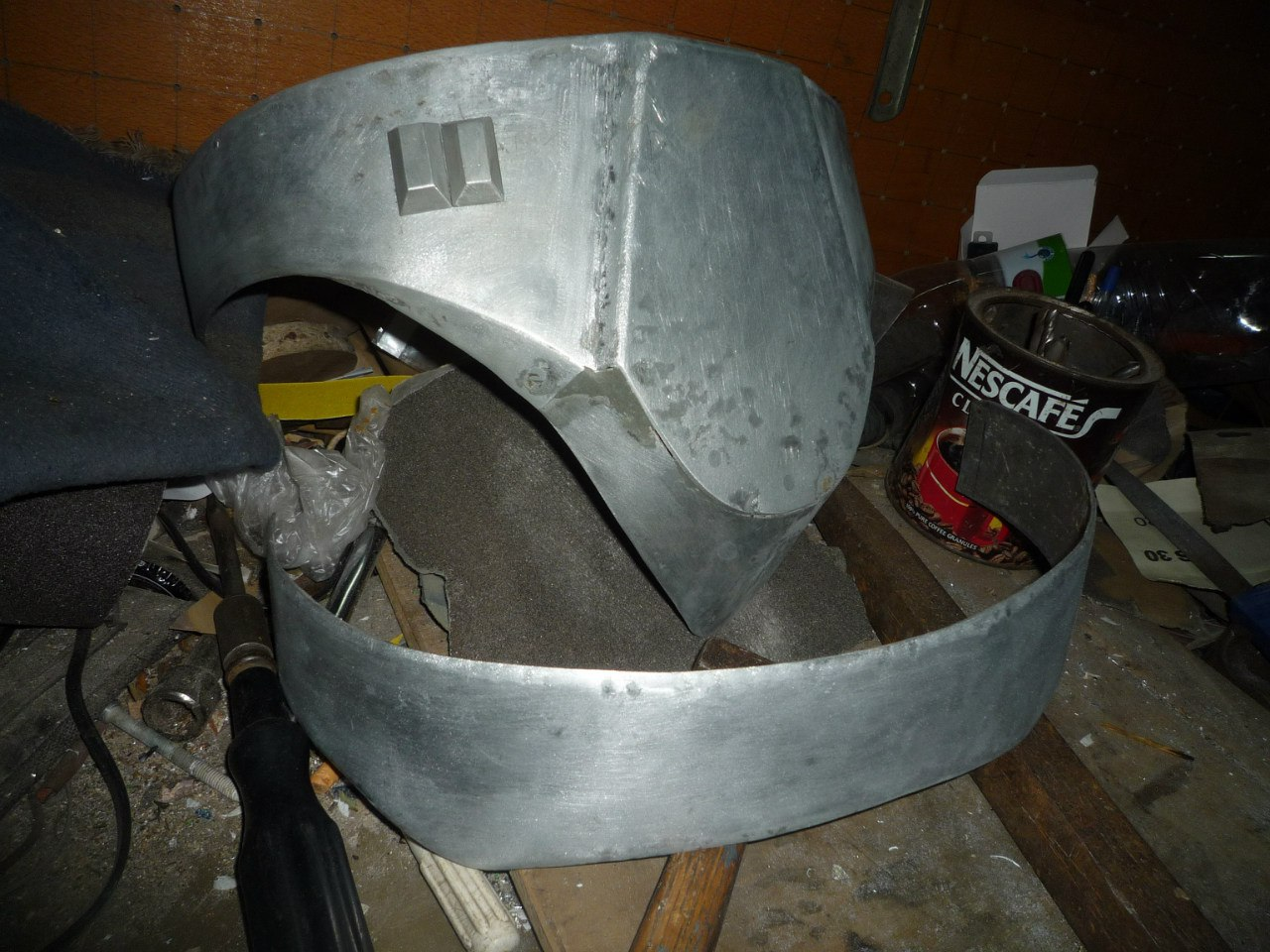

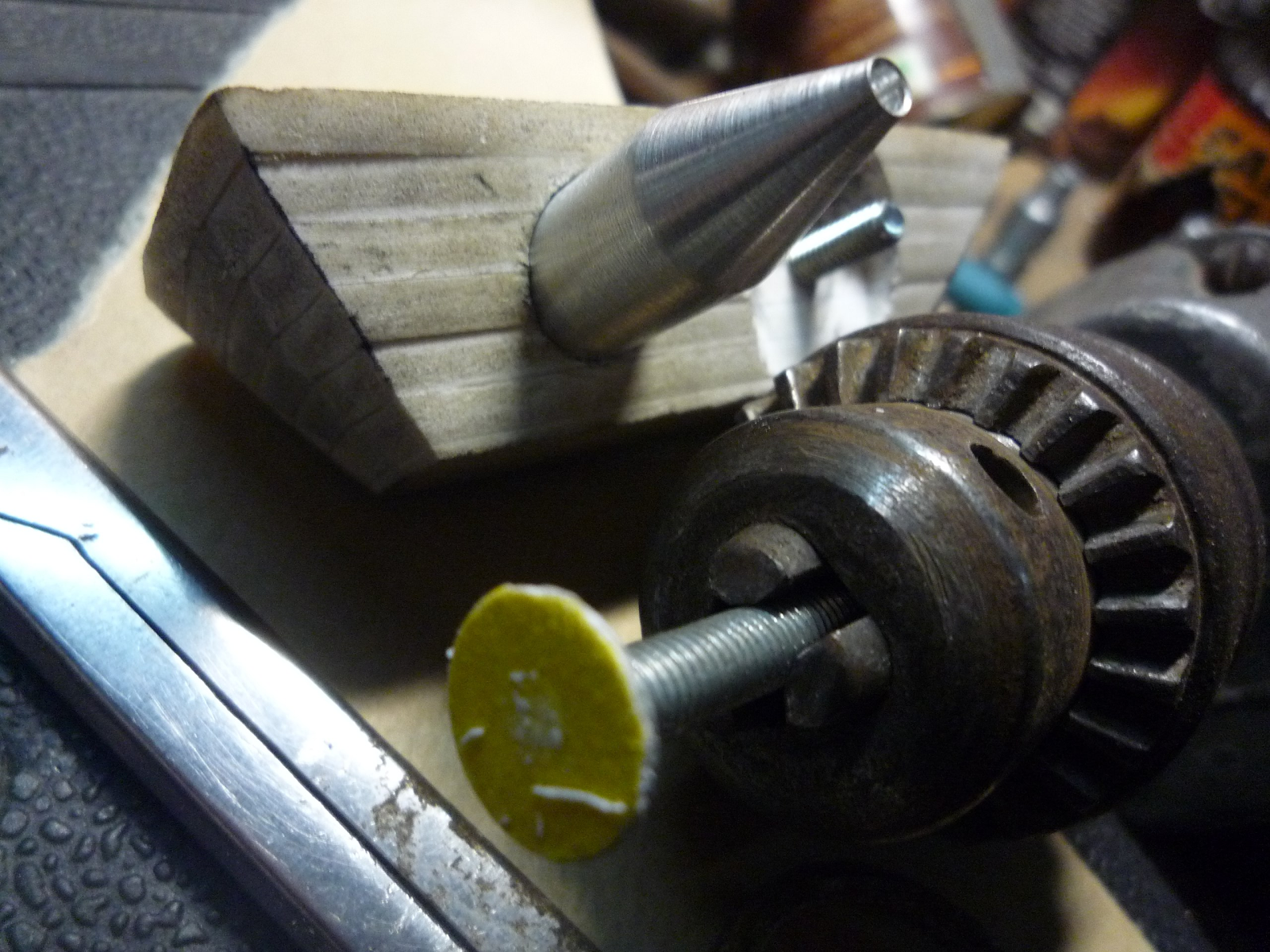

Make some aluminium details.

9Ac7P91XBxU98UpK5YLHSXr0u6NSYi2bme8Vq7zuQNoqSEDOFKhYb9rvt6KPNsl2fkbOlhvcJQY9s4nbEA8xs_zIOH0O9q4o.png


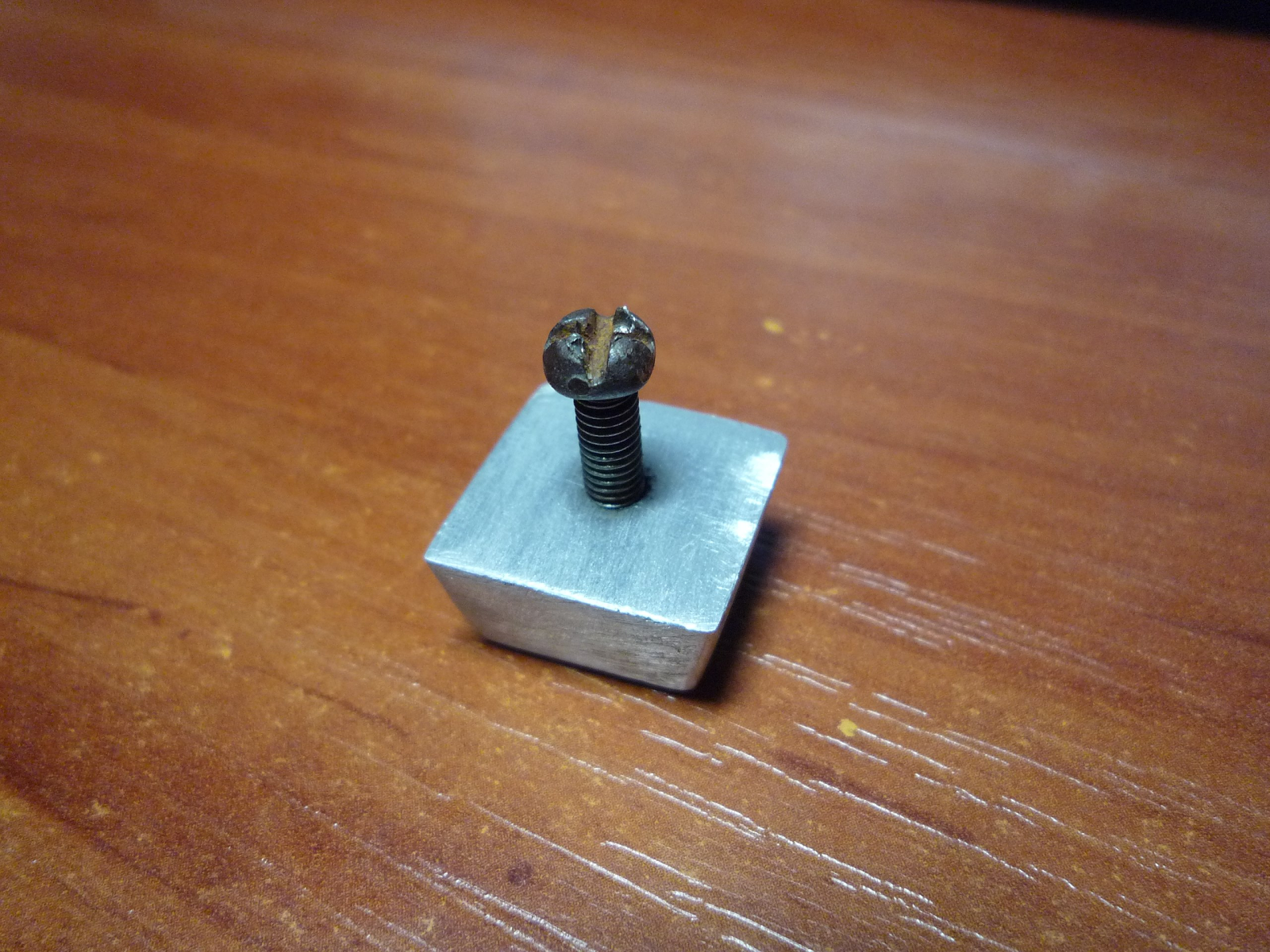

s9zEq01xLuGyyGpp40E4lGKXJTF1zq9IeJt04iFdkVol9vYGb9osF1uyz2pd9GgjT9gh7KkMOpdQsWyyuLihwaeI9uNeH8BB.png
OFVJheEJRr_IUyieLMHMkeQmFZmKr-RpuLFNasD82JSBWZadQUvcMEvErphfBD42upF2tDgM2cO1jncOUznWugbRJLDGpd1V.png

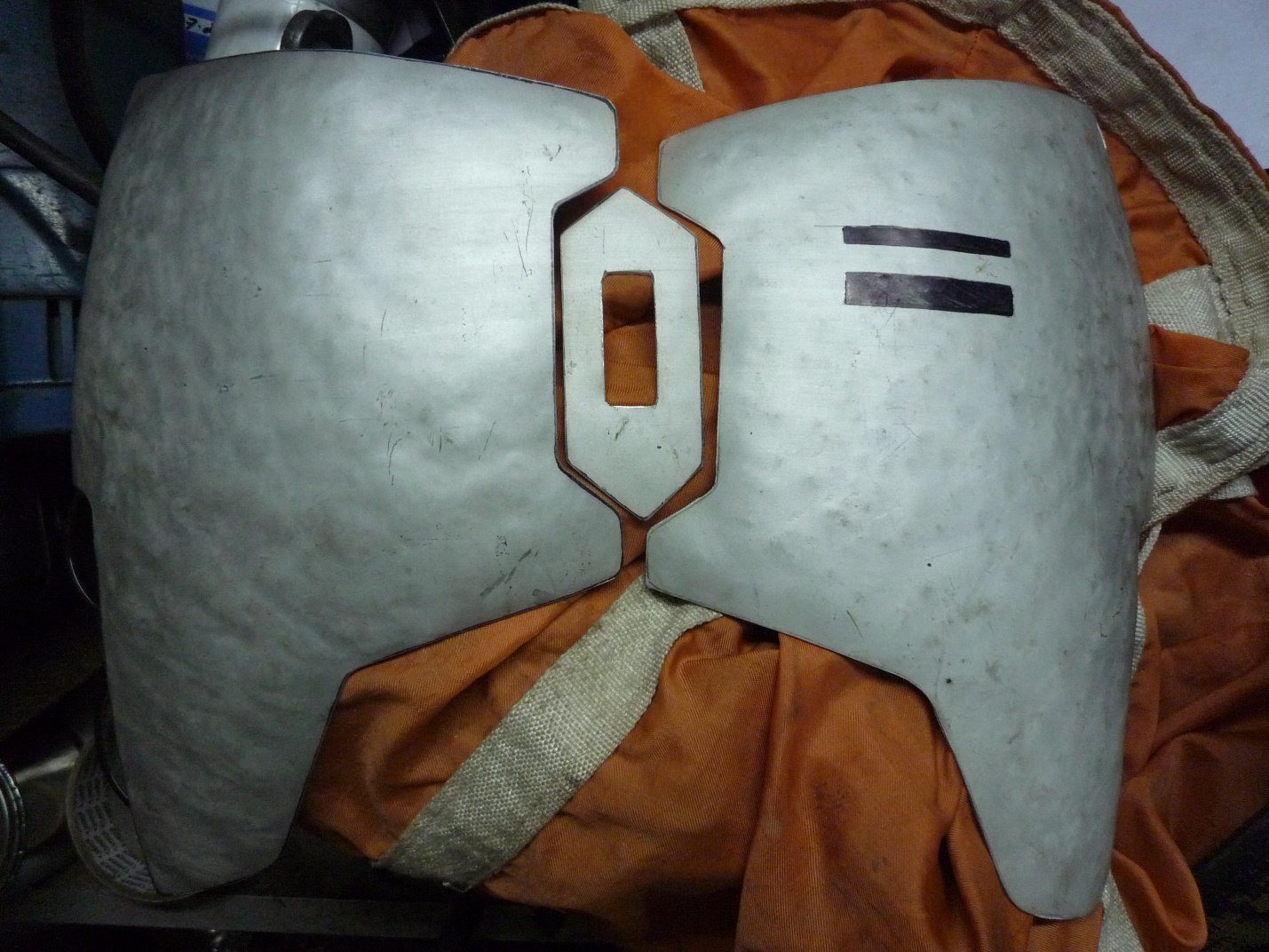

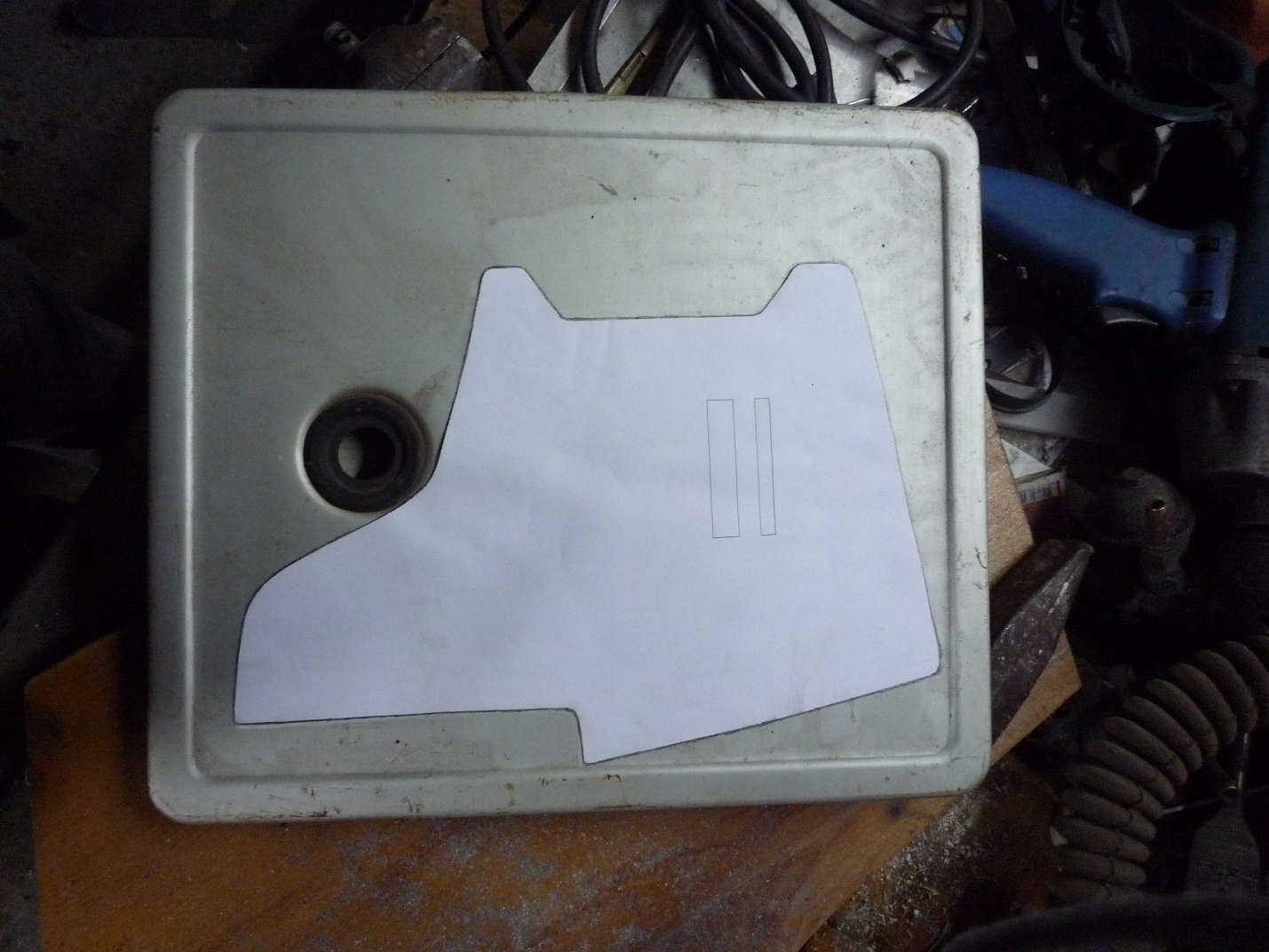

Starting of making knee armour.

5oAU0WLKyXaHCcAK1JXGhlsIUfkDSR3nrp_GkIxNSwrM0EDIyh7WXIKPIips8bYHyYI-IuwUNKiqo8zCHZeyxMuC6wvyASMe.png


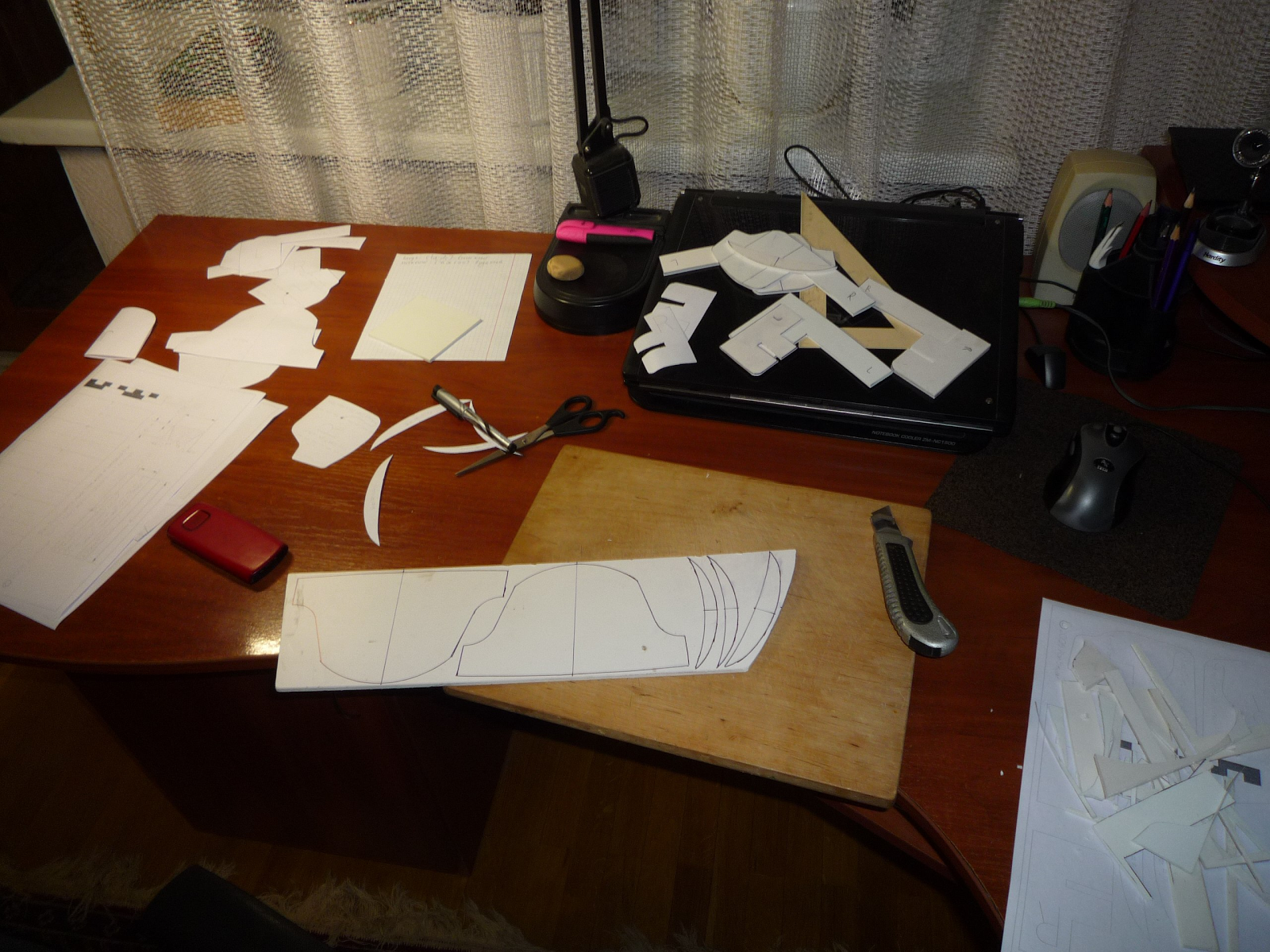

ztJxXwrzAj4Q4CUUuOXR8lbBsuI-HHkDyvXMotldW9shIXGkaeNgoehoWEJ70KAzwoixviKSUh3dgkrgPmxjbmnlFeJT89wm.png

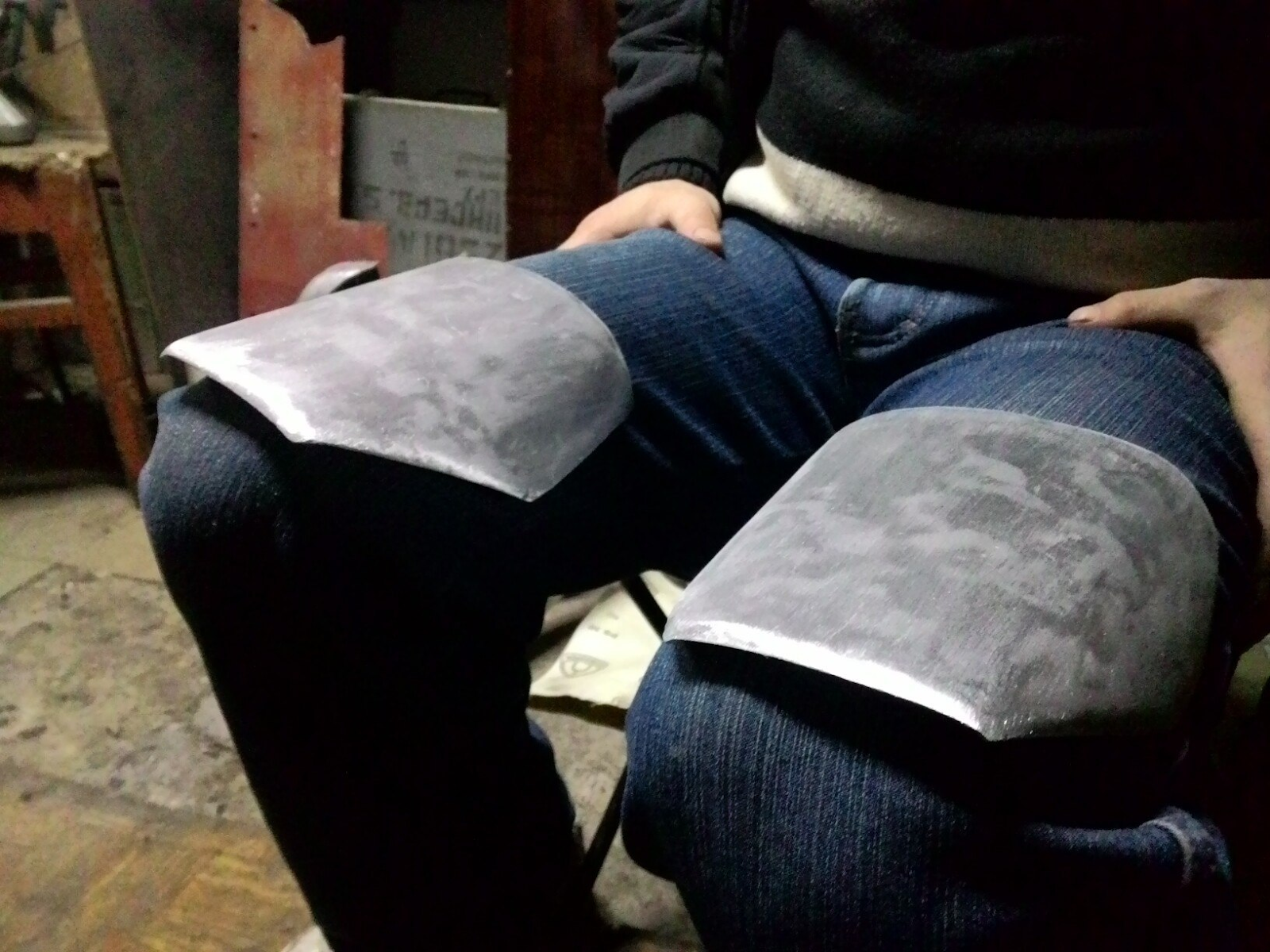

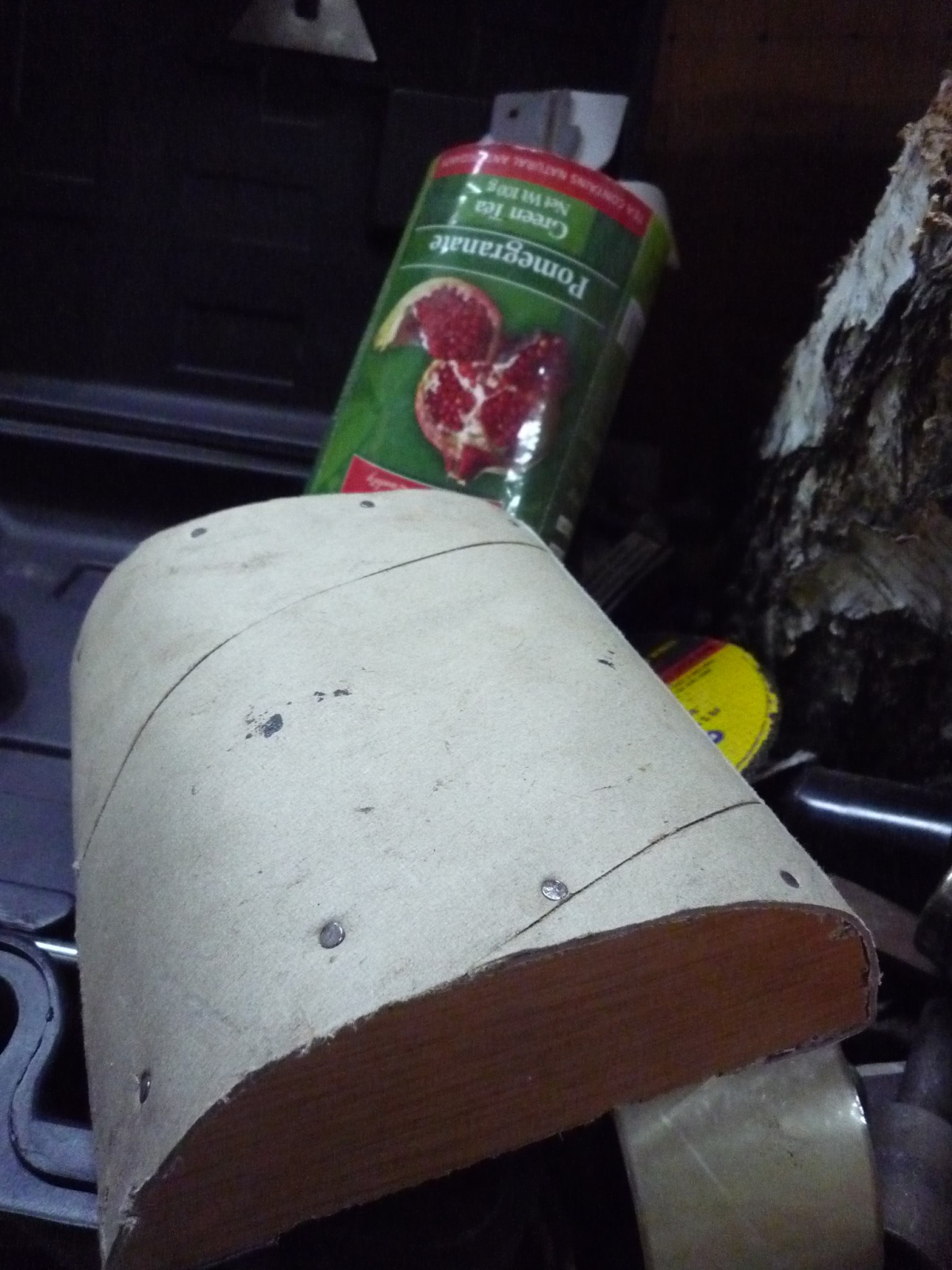

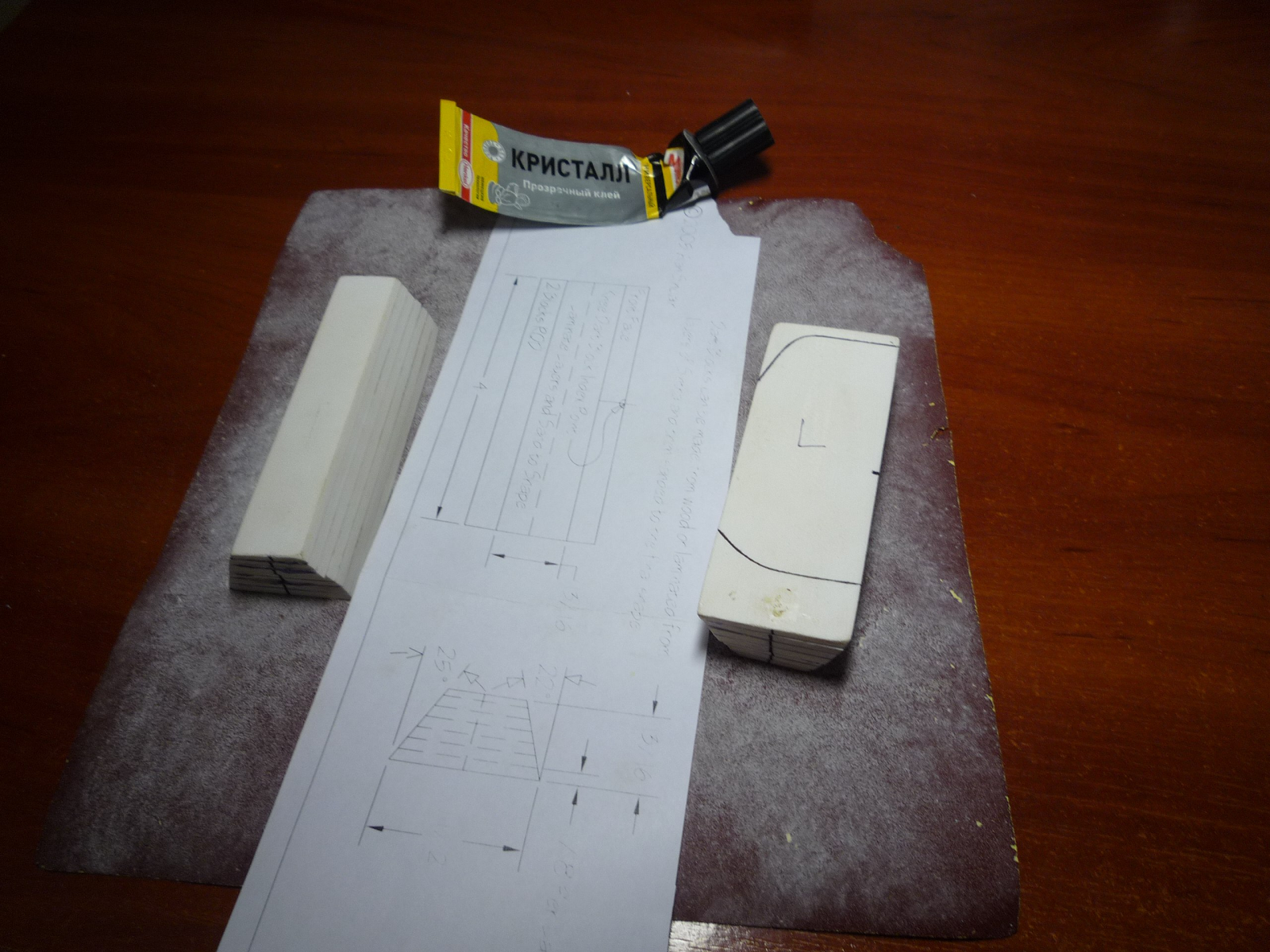

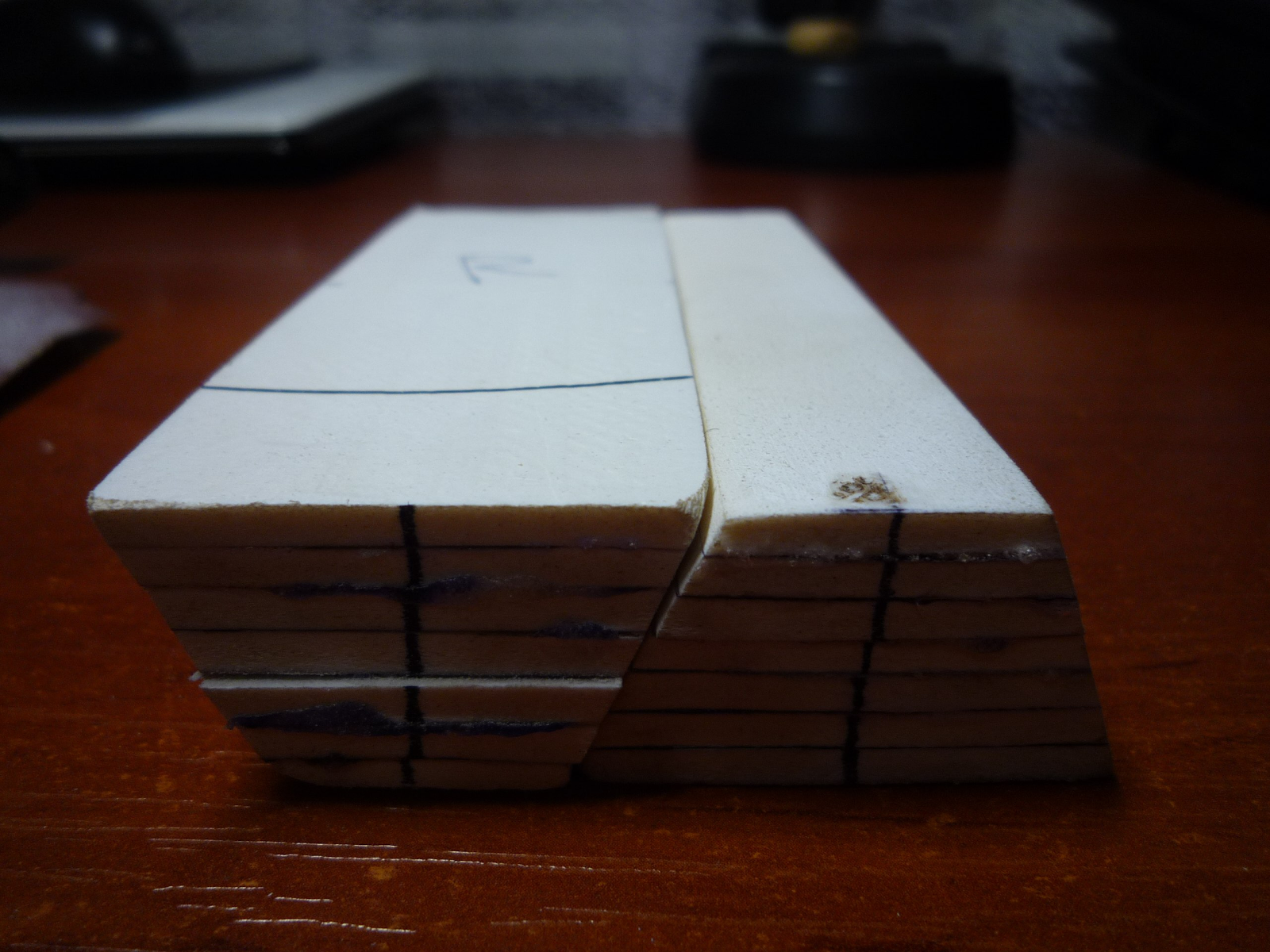

Making the shape of knee armour.

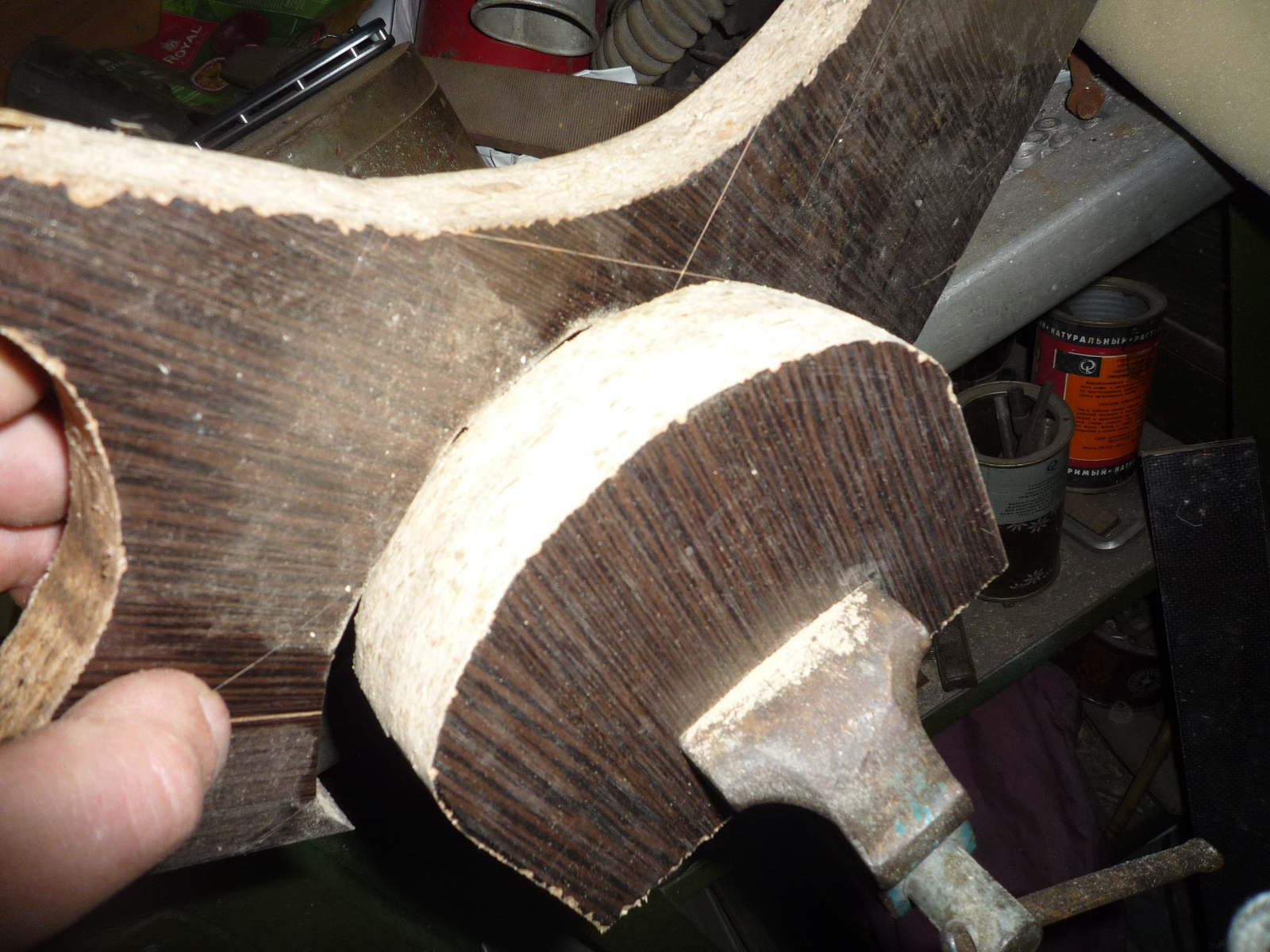

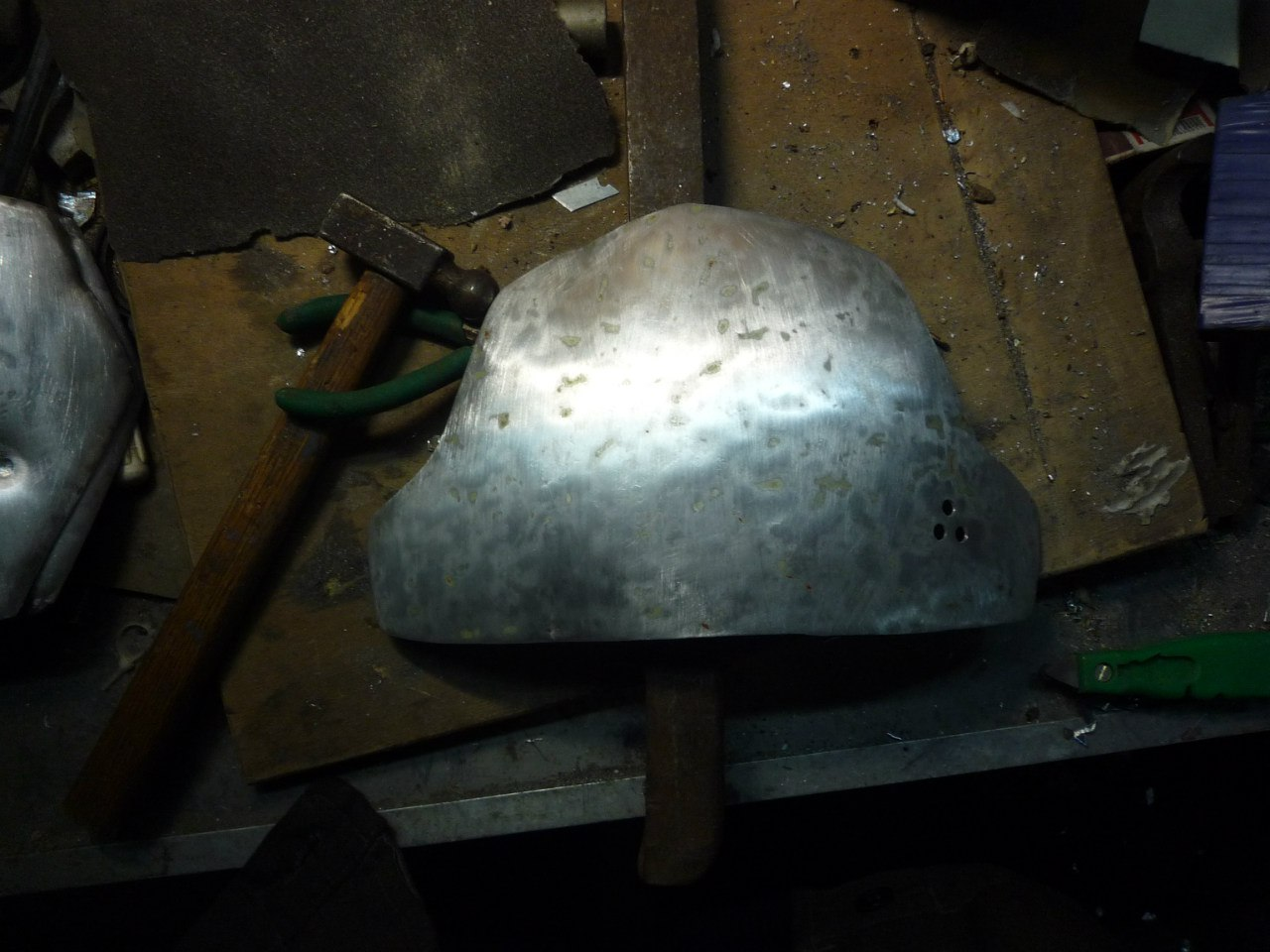

KUI5O2tS-eGUCm9y-wXWTn7-oBXE5Wkq0ft0mD7J02Lt8rvfs1s--9gt27IVyZdp92u_RioXlBVNnS2N28DGmVnoL633iZxG.png


X5-ASjVs8gq2DmriBwyGRV-VzrNFftnf6s_iA0rKNT-aJ5YS0OetZNbOhus9PgMXfXCtAEzSdHVHPgExqLyABXf_OOEhhk2e.png


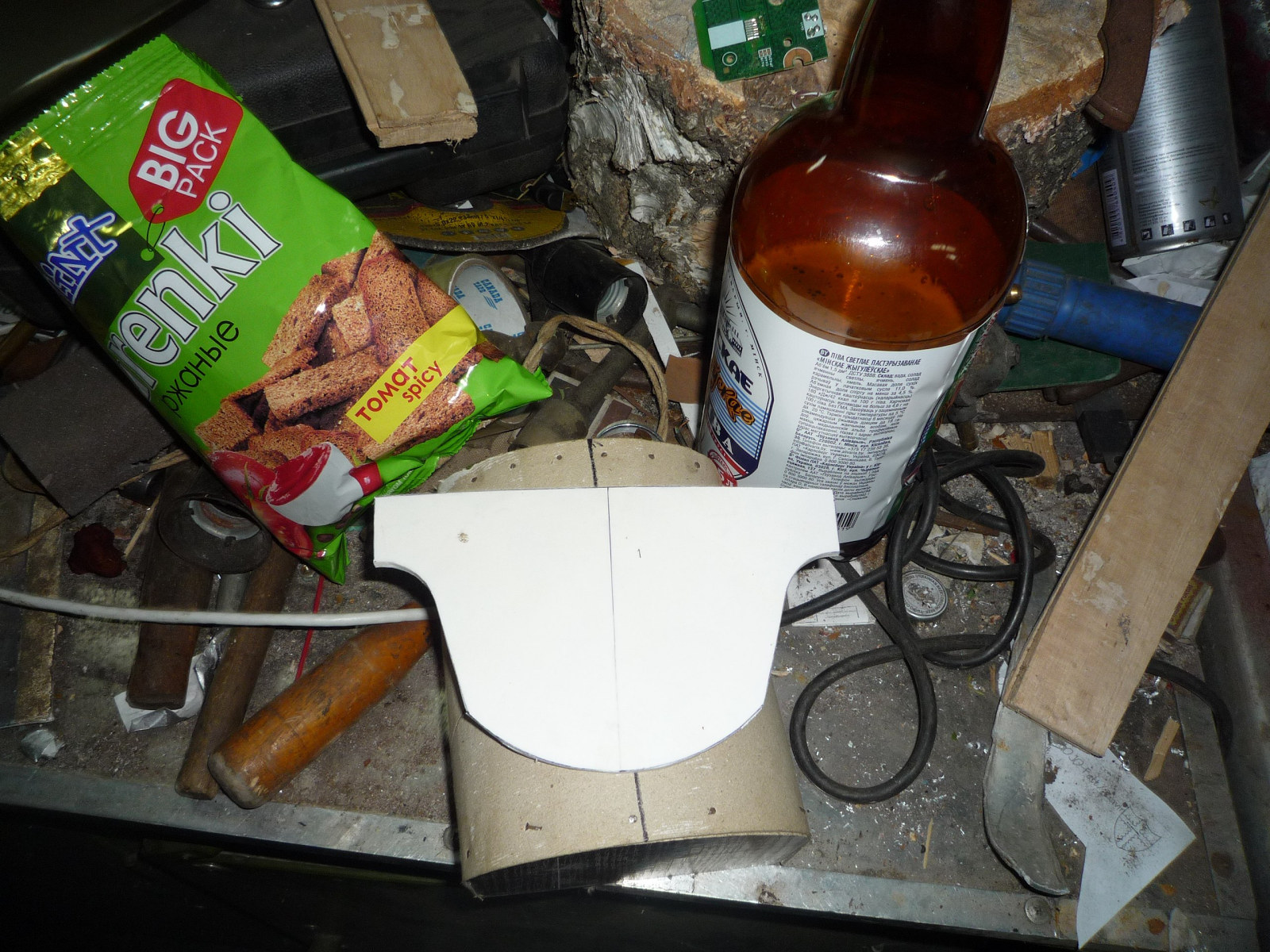

xROD6ps3cd0DozNEwMweIYGed1vt8dNT79t0yYzN6Xw-vzQ8MBG3eH4Bf_7zWGgZhLnxXmyi6bGQJGZeR6paitkwsoYMnLM9.png


D1XMGLklbHK5NWtT1kDcULpgVGfRVm7gQGZ9_s2AsiB_q9UwgiKhE_9nYuQIACFYVoS9Yv3c9veW9vpn1D2W5d0Cy6fZiT6k.png


jQsvp6SG2dn_5ULs9KWuivV6kNsGDmgEJDmOi4qfZGW-1D90wVRxECRoq8aWOdUS0B4vWvh0iu41dAUmVyH6DAx-dJn3PM8z.png


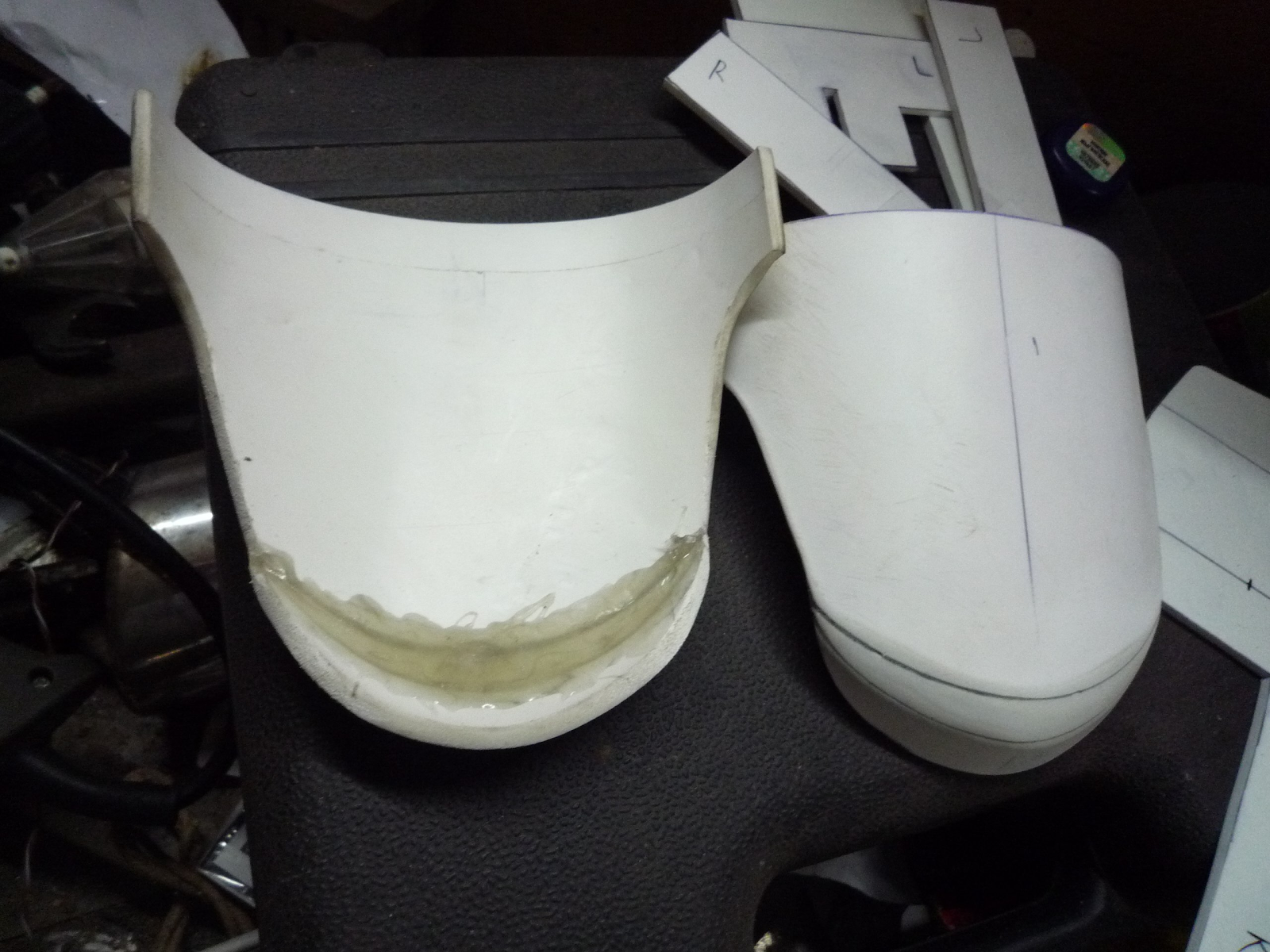

T4JXufOQh7--LJqI0qU2kcSg-xrd7Sdi786ygI8D58OvxQ_Jgg4cvtBNujUsct51tJO4ejExi6yhSTcnVS1wvnz5cT6-TGUc.png


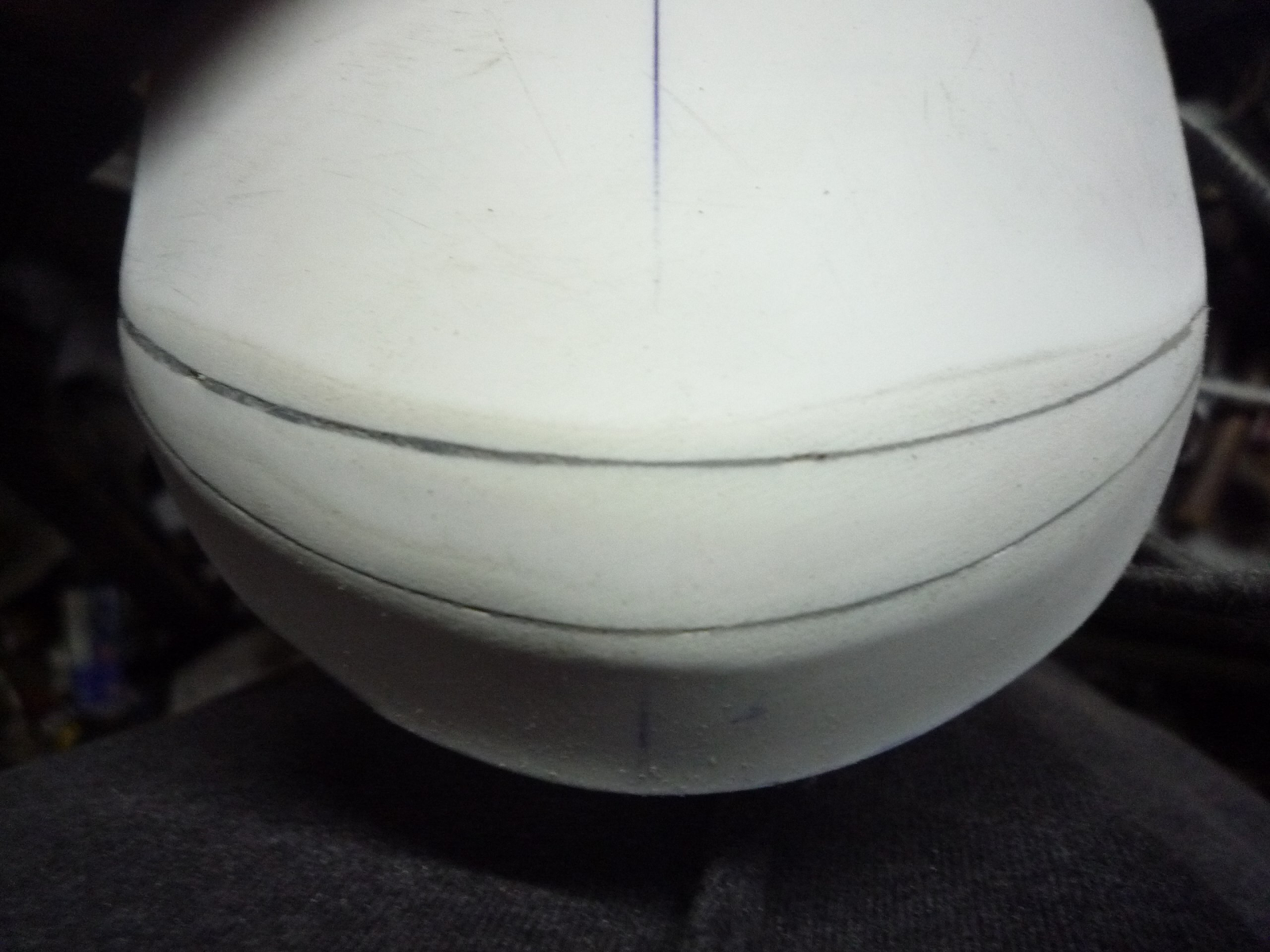

qqsA8aowolr2QTXmmXmx8fiH5RhSaN00y8g5Jf5upMNvWEj3qTWuGOl7CkQldzO7DzArkuys93W4llg3FpVDX2_6GVl4hX9m.png

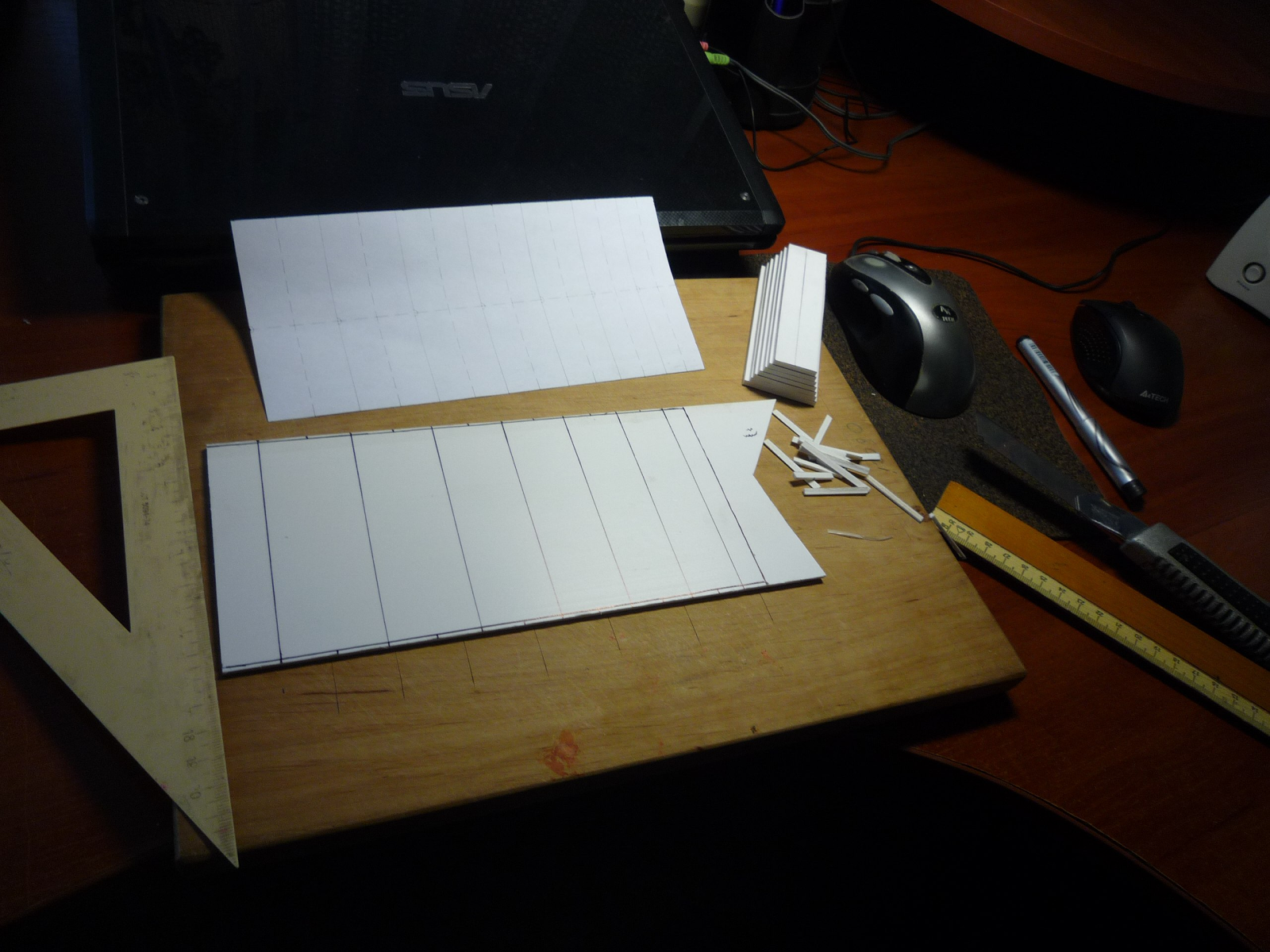

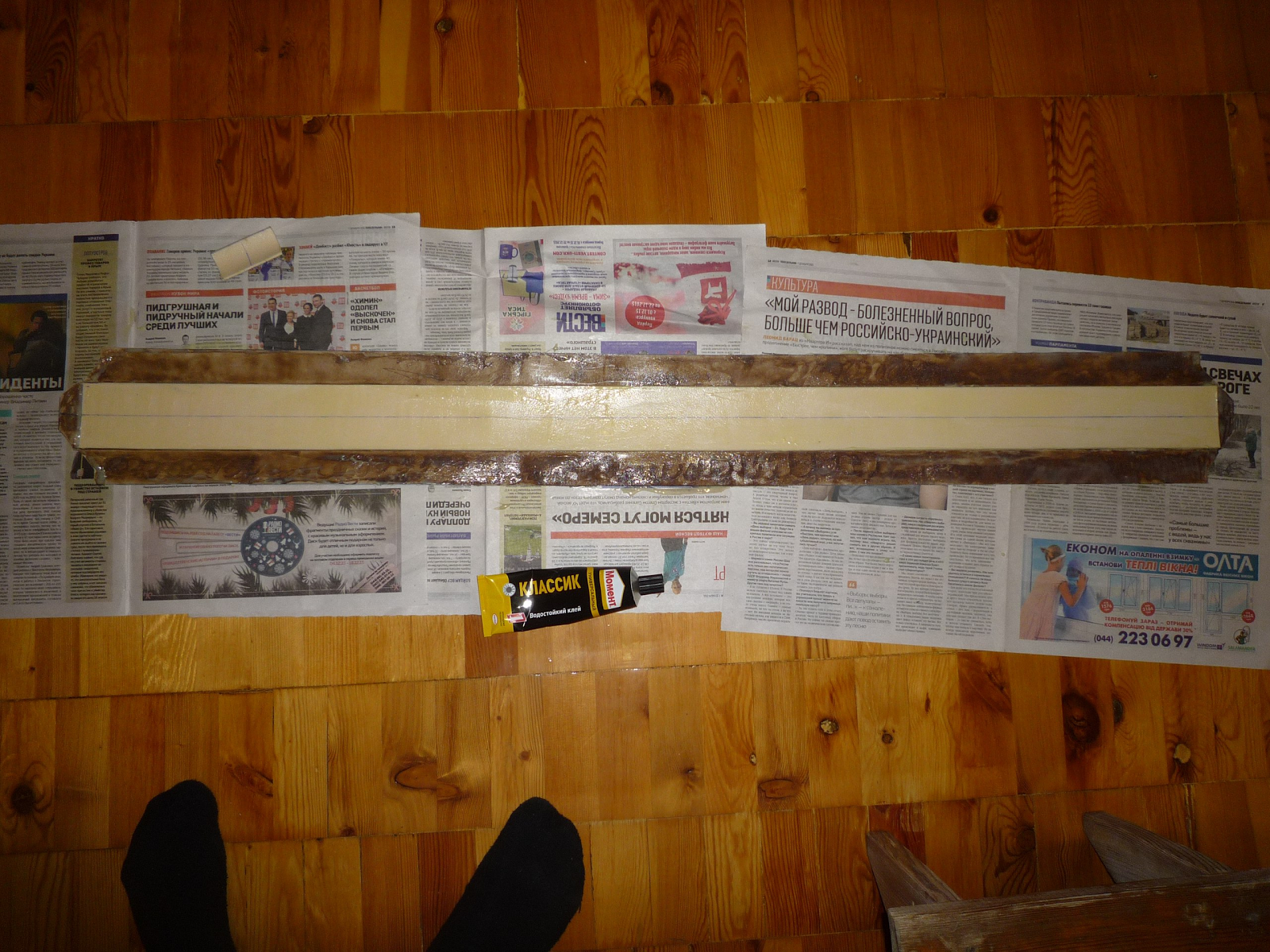

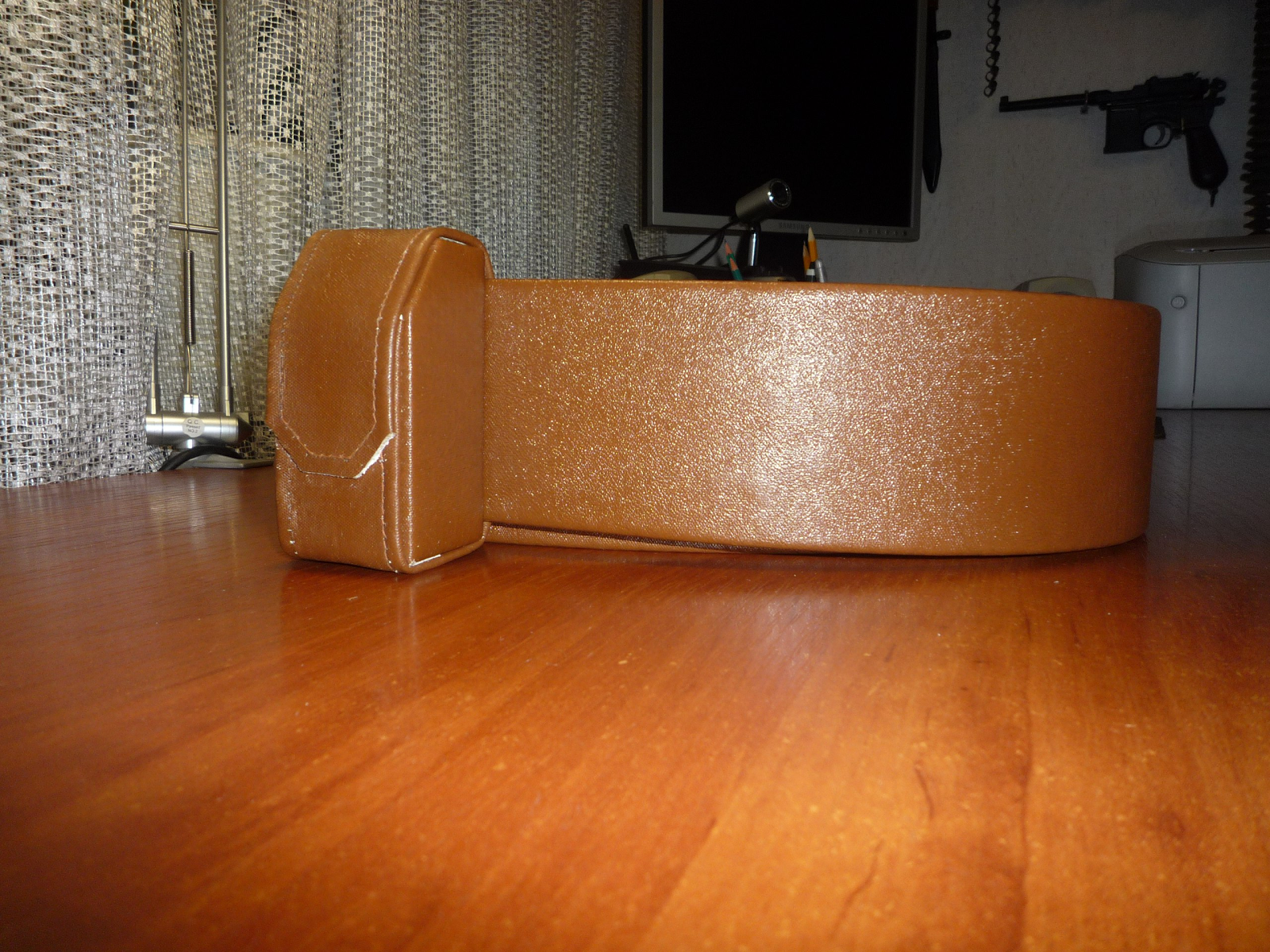

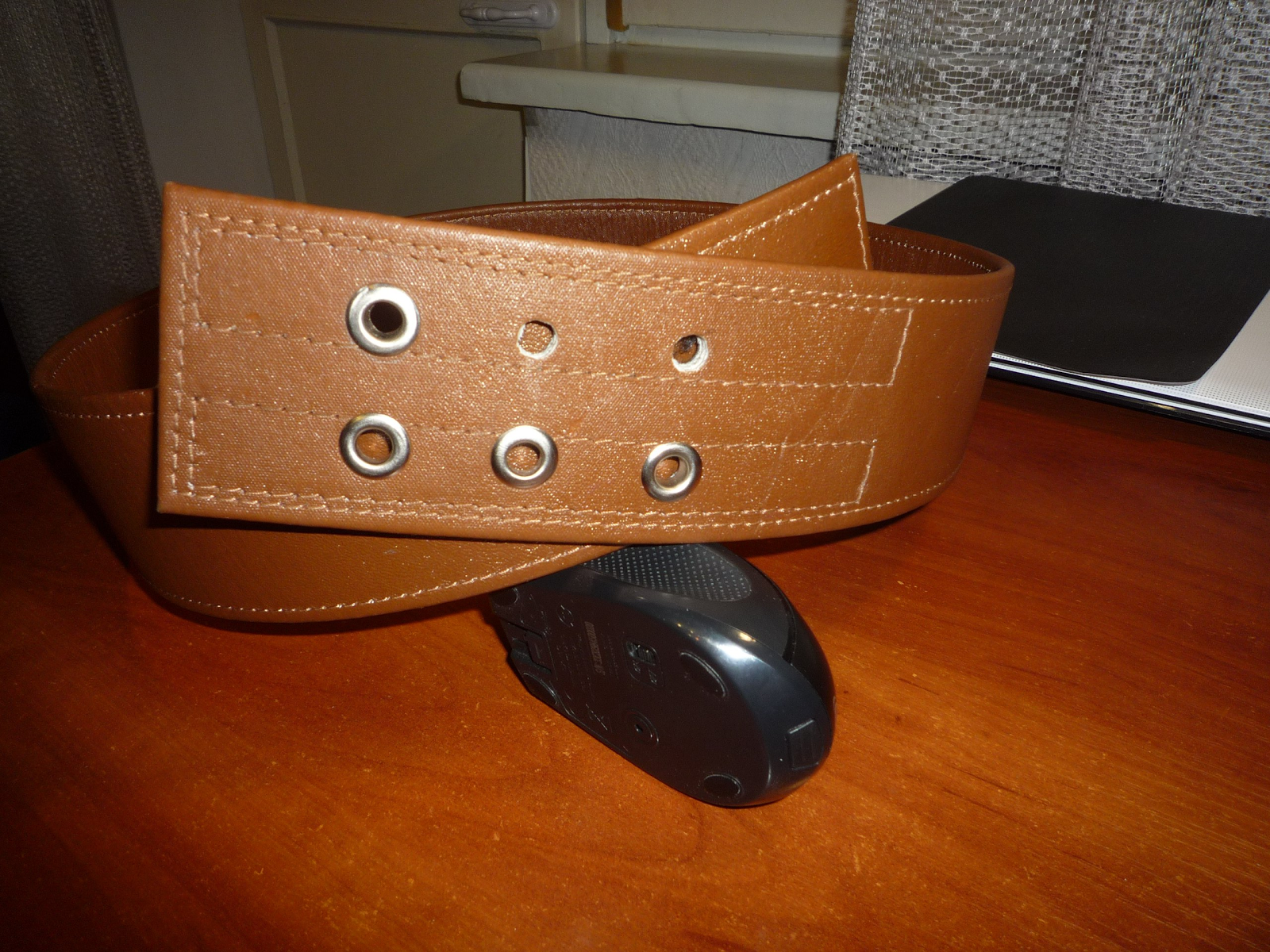

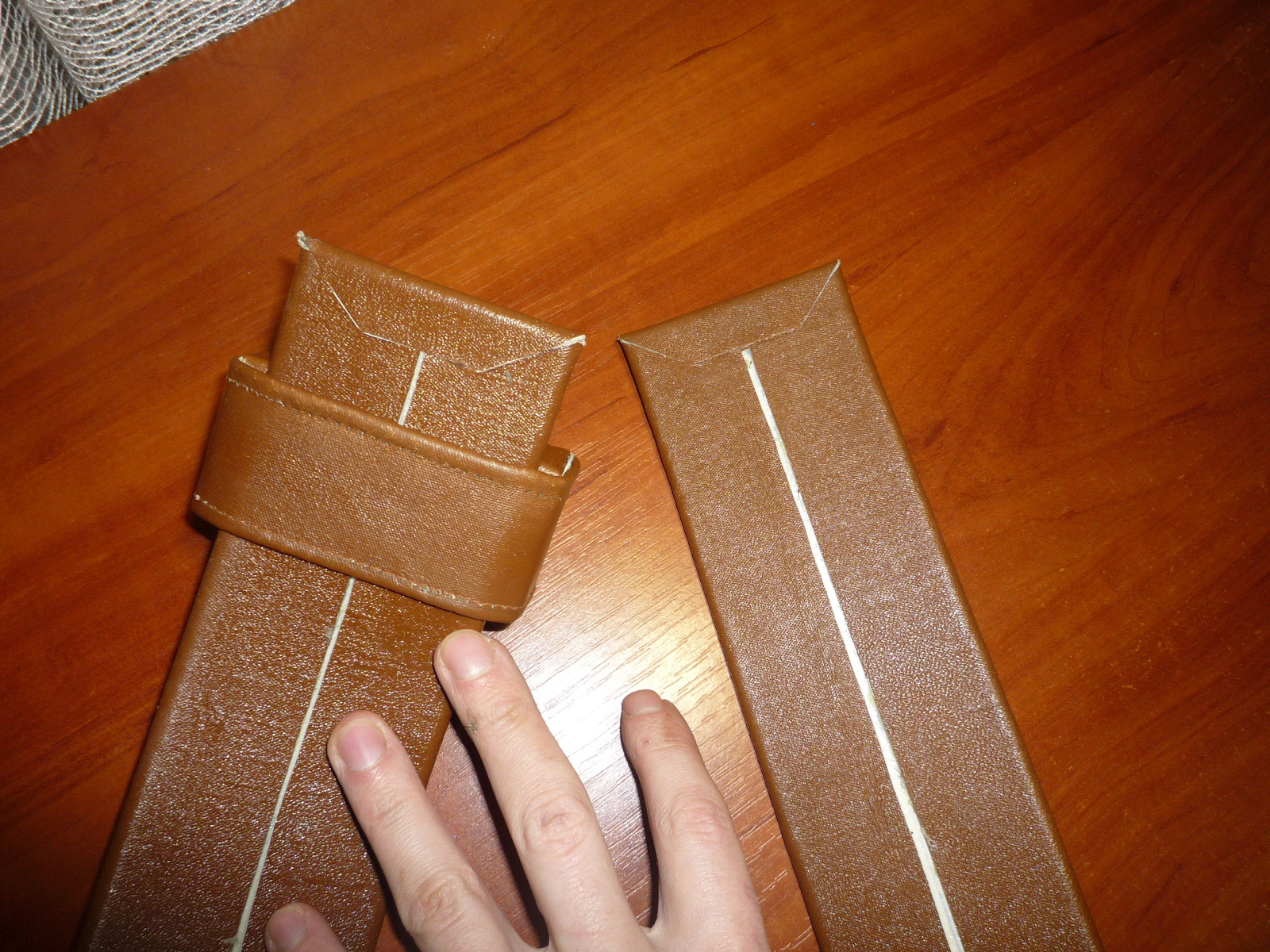

wNQjW8yd1cfbdKrn_qP6ivVE-lU4BA-c_s-cjPb-vsNCEM2wnT1n8nhWQuAjauTxkcyXcsY-46auxrLvVPuzugnltoRBDlsr.png


zNnFZJqS0alixKwZAB3tn4_QxPO6bpS2U2ddZyFH52eDyKL0A9zSU6Y-vATXt19Bwom0E1Ad7WlDt8hxBQk8GLyX4fT2d-Dd.png


_OgIb-HfEZmIv4BinmztUxhtWbySG3P4E4d0EOMr4RaNU27IdPsiqfTY2jooP3zCC2aq7jTzWEbg76sednWX-fKwSKoBm_Ty.png
