Blaster ROTJ Recipe

Discussion in 'Boba Fett Costume' started by Sidewinder, Apr 10, 2006.

  1. Sidewinder

    Sidewinder Active Member

    You will need:
    One resin Webley kit (I recomend Sidewinder's :D )
    Plastic pipe
    scope
    Resin scope rings
    assorted greeblies
    plenty of 'T' shape material (I shall be using blast-tech flavour)

    Ingredients pic:

    fett parts.JPG

    Last edited by a moderator: Nov 2, 2011
  2. asok

    asok Well-Known Member

    Where did you get the "T" shape material.

  3. Sidewinder

    Sidewinder Active Member

    I bought it by the foot a while ago from http://www.blast-tech.com.

    SAS


  4. Sidewinder

    Sidewinder Active Member

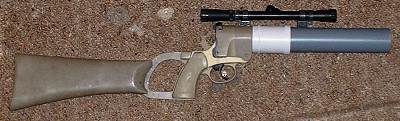

    Throw roughly together:

    ROTJ 1.JPG

  5. stonerook

    stonerook Active Member

    do you have the blast-tech part number?

  6. Sidewinder

    Sidewinder Active Member

  7. stonerook

    stonerook Active Member

  8. pennywise

    pennywise Active Member

    Awsome Sidewinder! Let see the rest!!!(y)

  9. kurtyboy

    kurtyboy Active Member

    Some new parts on their way to you Sidewinder!

  10. Sidewinder

    Sidewinder Active Member

  11. Caomhanach

    Caomhanach Member

    Whats the dia (ID and OD) of the pipe you use for the barrel? (And the length..)

  12. Sidewinder

    Sidewinder Active Member

    White is 51.5mm ID & 55.8mm OD, 3" long

    Grey is 48mm ID & 50mm OD, sticks out 8" from white.

    SAS

  13. pennywise

    pennywise Active Member

    Hey Sidewinder when do we get to see the rest?:love And are you gonna sell the ROTJ kits (cooling vanes, rings, greebles, ect.) to go with your Webley kit?(y)

  14. Sidewinder

    Sidewinder Active Member

    When i've got it done, damn your impatient eyes!!!! :lol:
    If enough people would be interested, then probably.

    SAS


  15. pennywise

    pennywise Active Member

    :lol: Yeah, I was thinking you could even sell "resin" cooling vanes to keep the cost down. I don't know, just an idea.(y)

  16. Caomhanach

    Caomhanach Member

    most of the guttering pipes (looks like them in your photo) in the US are rectangle/square (at least here - although I havent really looked hard yet) so the dia of pipe, and the pipes are usually much thicker than the uk types, so you supplying the pipes would be a great start/addition (hint, hint)...


  17. pennywise

    pennywise Active Member

    That's what I'm sayn! If you make a "complete kit" to go with the kit you already offer, I think you would probably get alot of interest.;)

  18. Sidewinder

    Sidewinder Active Member

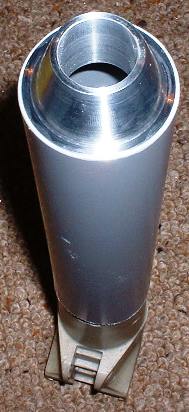

    I've done some aly blocks for the scope to sit on and am turning a biggish piece of aly for the muzzle based on pics of the real one.

    Are lathe motors supposed to smoke?? :lol:

    Regards pipes and the ROTJ, I would do the muzzle/barrel/T fins all as one piece so it could be slipped on over the webley barrel.

    Pic now added - it's almost too good to paint!

    SAS

    fett muzzle.JPG

    Last edited by a moderator: Apr 19, 2006
  19. Sidewinder

    Sidewinder Active Member

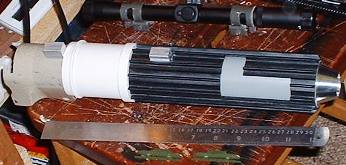

    I'm thinking of doing a casting of the whole lot as one piece, including the Webley bit seen in the pic. That way I could cast up just the finned/white bit or the whole lot depending on what people want/have already.

    There is a handy layout diagram of the rib position on the barrel that I used (Ta whoever). Except it shows the front scope block replacing a section of one rib, whereas I believe it should go between two ribs. The photos of a real prop back this up.

    Ribbed for your pleasure (Scope blocks not fixed in place.):

    fett barrel.JPG

    Last edited by a moderator: Apr 19, 2006
  20. Caomhanach

    Caomhanach Member

    Wow, that nozzle looks great... I see what you mean about not painting it, but the natural weathering (when it get's scratched) on it would look cool...

  21. Sidewinder

    Sidewinder Active Member

    Here's a pic of all the main parts together.

    fett all.JPG

  22. Boba Swede

    Boba Swede Active Member

    Too cool for my eyes...
    (oooh it burns.. the tears.. they burn)

  23. Real Scooby

    Real Scooby Active Member

    Woow, looks awesome.

    Since I recently got the Webley kit from ebay, I was wondering if you will offer casts of the barrel, the scope and the scopeclamps too.

  24. Sidewinder

    Sidewinder Active Member

    Scope rings are molded, working on the barrel etc. That scope is just a cheap 4x20

    SAS

  25. stormtrooperguy

    stormtrooperguy Sr Member

    i love the idea of offering a pre-rotj'd barrel as an option :)
