Right Gauntlet Plugs & Connectors?

KenChan

Active Hunter
Cant remember if there was already a thread on this, but has anyone found a source for the correct size jack plugs and connectors for the right Gauntlet?



Darth Voorhees

Well-Known Hunter
Preferred Vendor
they always looked like the normal small headphone size plugs/jacks to me, ( 1/8th inch i believe) but i havent tried to confirm it yet. I was thinking about doing this set up to run wires though to the switches if i was to use them for sound clips, or smoke etc.


01Hawk

Active Hunter
I think I used regular 3.5mm males in mine. I need to redo them and currently have it screwed in to keep the connectors from snapping off.


KenChan

Active Hunter
Thats kinda what my thinking was too. Gonna countersink the bodies of these into the connector for more ridgid stability


KenChan

Active Hunter

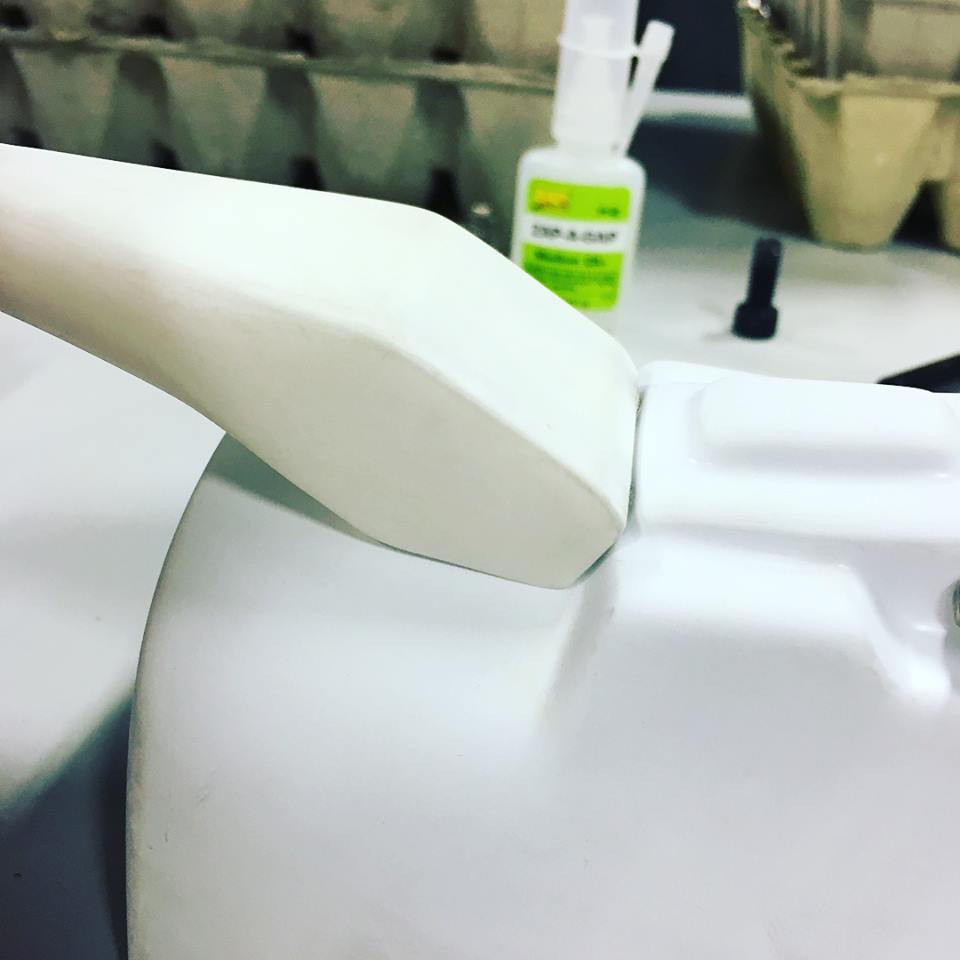

I'm still playing around with this a little bit, but this is what I came up with.
I'll probably 3D print a new housing for the jack-plug housing for a slightly cleaner fitment as there's a little binding where I didn't drill the bores in the resin housing quite straight enough











Fatbed

Jr Hunter
Wonder how one or two well hidden magnets could help support, reduce strain on plugs or the body


KenChan

Active Hunter

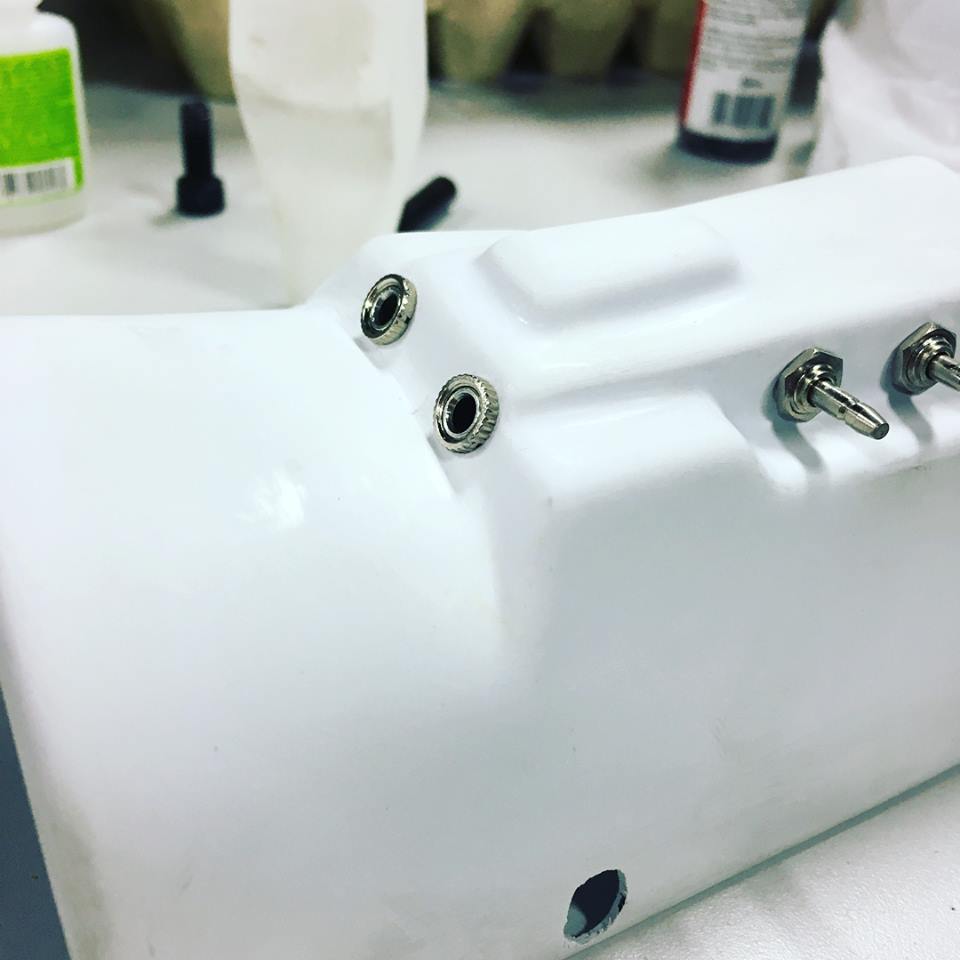

Got in the other type of female jack sockets and I gotta say I like these a lot more than the first type I tried
They’re much stronger and easy to adjust from the inside of the Gauntlet if need be, and the washer nuts are also .020” thinner, giving them a more low profile look like seen on the PP1 and ST suits above
