Rangefinder stalk length?

[aodsnyper]

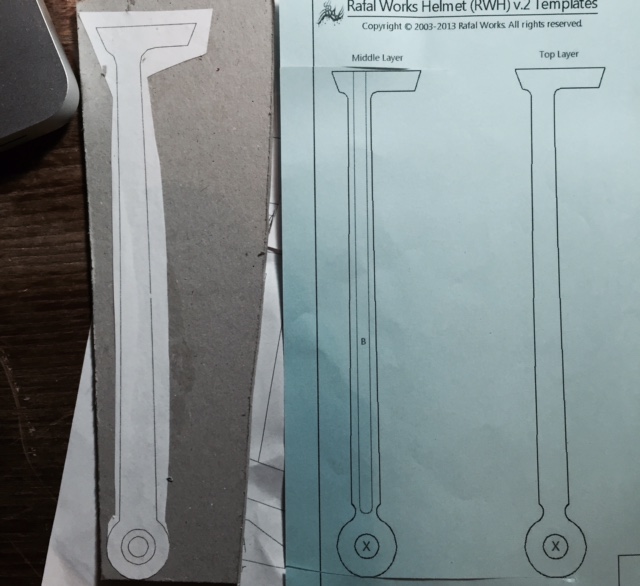

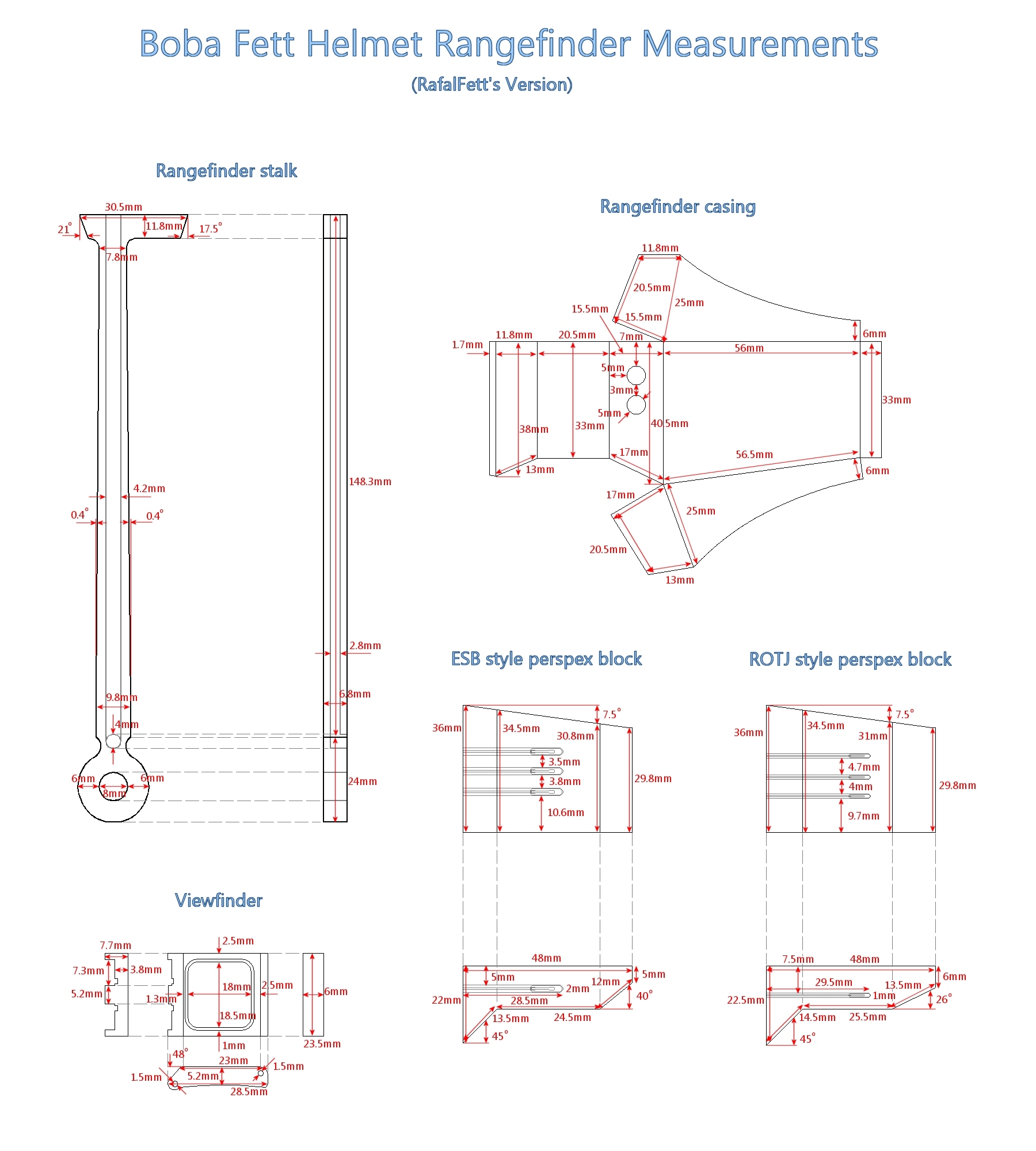

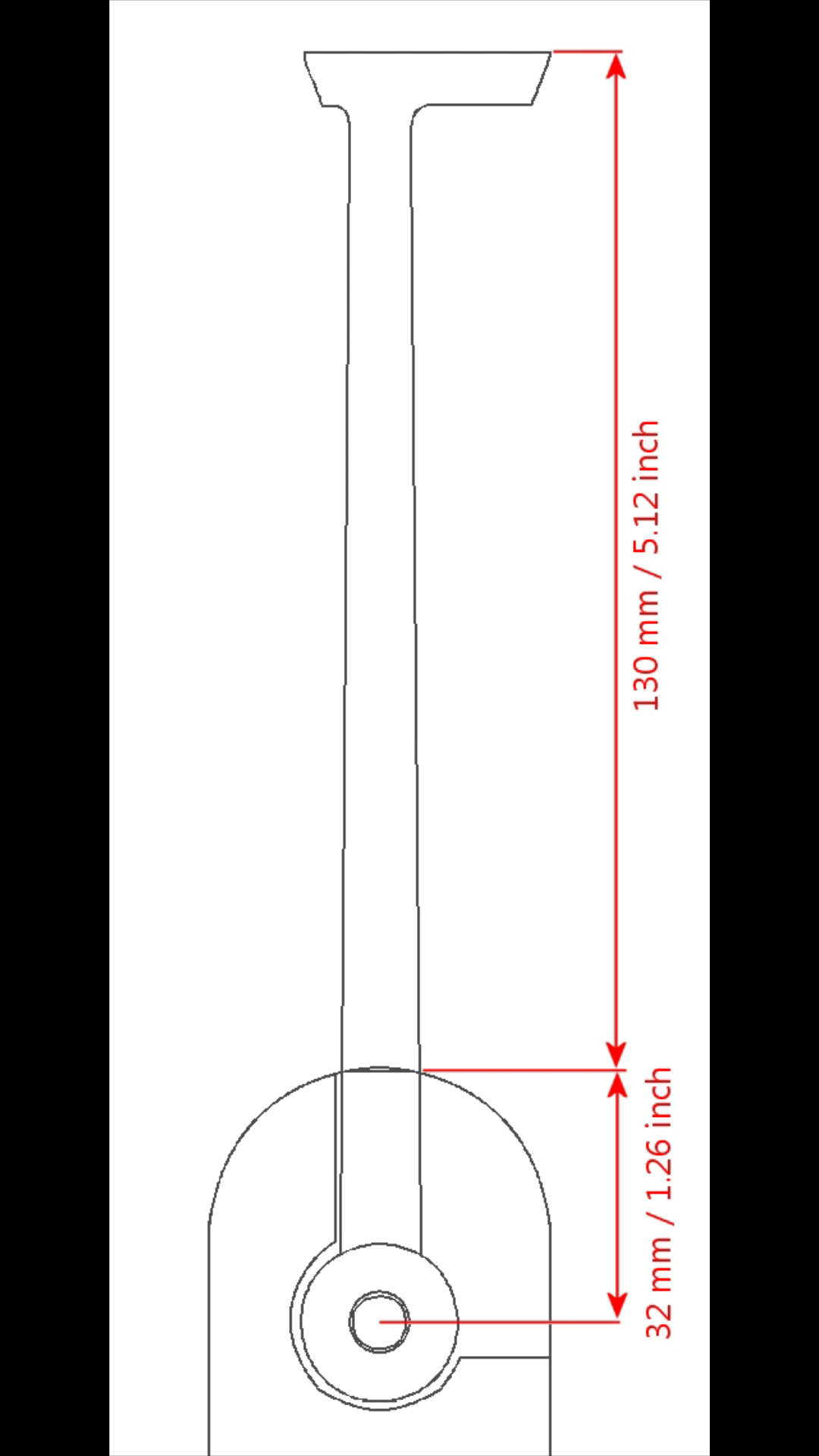

I have these two reference files for stalk length. The difference between the two is very minimal. Can anybody verify that 5.125" (second image) is a semi-accurate dimension (from the top of the ear piece to the bottom of the rangefinder)?

Your help is greatly appreciated!
Justin



[RafalFett]

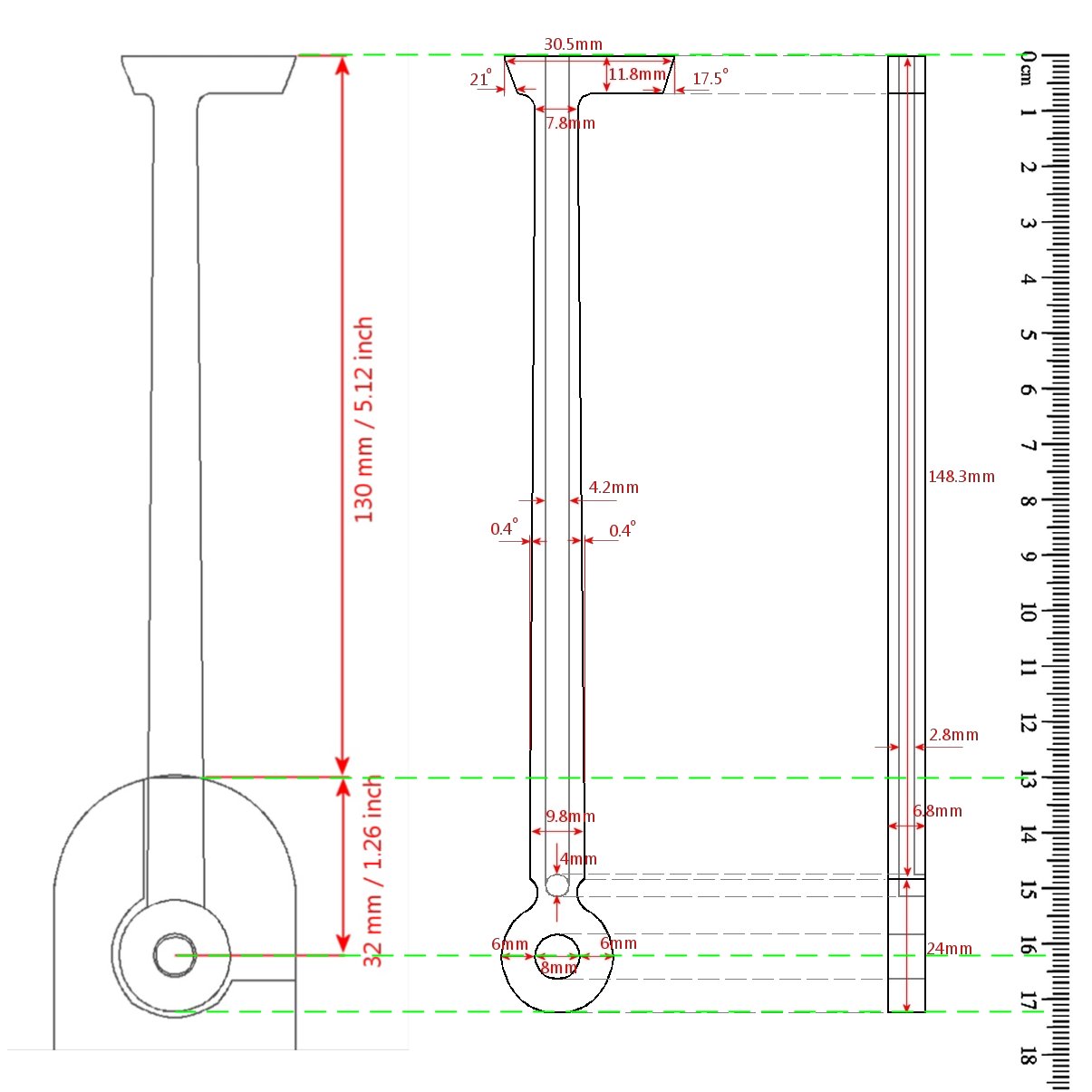

130mm or 5.125" is correct. The RF stalk is basically the same in both images, but I would use the one in the first image:



[aodsnyper]

Thanks Rafal. It just looked short when I got it put together, and I wanted to make sure it was close before I went any further.



[Tatooinetako]

Why is the WOF stalk larger?



[claroclarito666]

great info you have here
