Original stalk measures


Hi,after buying helmets since 1997 I have different stalks from different members,all of them with different measures.

I have recently adquired a copy of the screen used helmet and I would like to complete it with the most accurate accesories.

Does anyone know the measurements of the screen used stalk?.

Thanks and merry christmas.


KaanE

Well-Known Hunter
RS and Machinecraft know them, as well as Gino/eFX and a few more. Maybe some owners of the alu ears made by those could tell you.


RafalFett

Well-Known Hunter

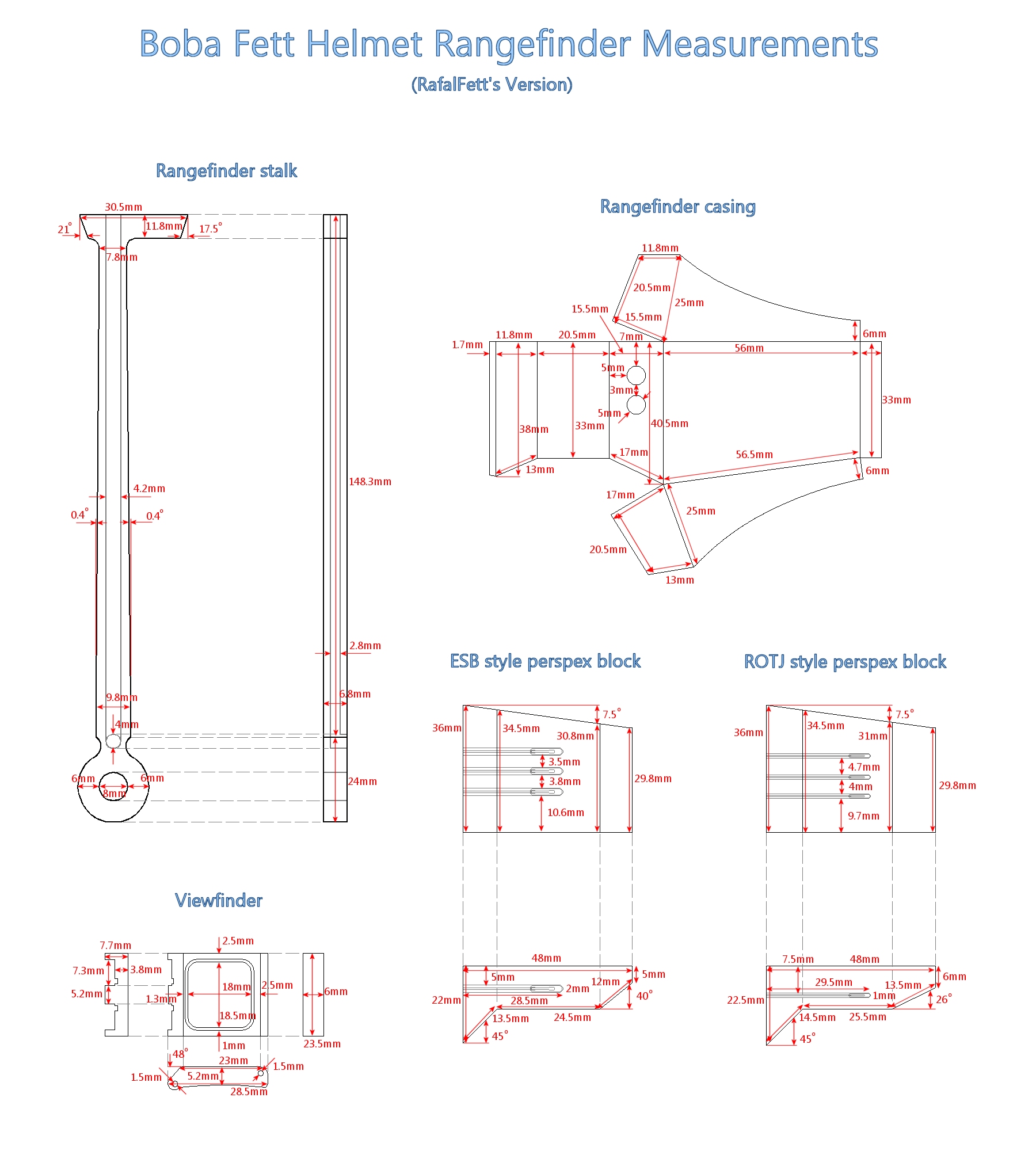

Here are some measurements, which I believe are pretty close to the screen used ones:
Boba Fett Helmet Rangefinder Measurements.jpg


Jango Fett Jr

Well-Known Hunter

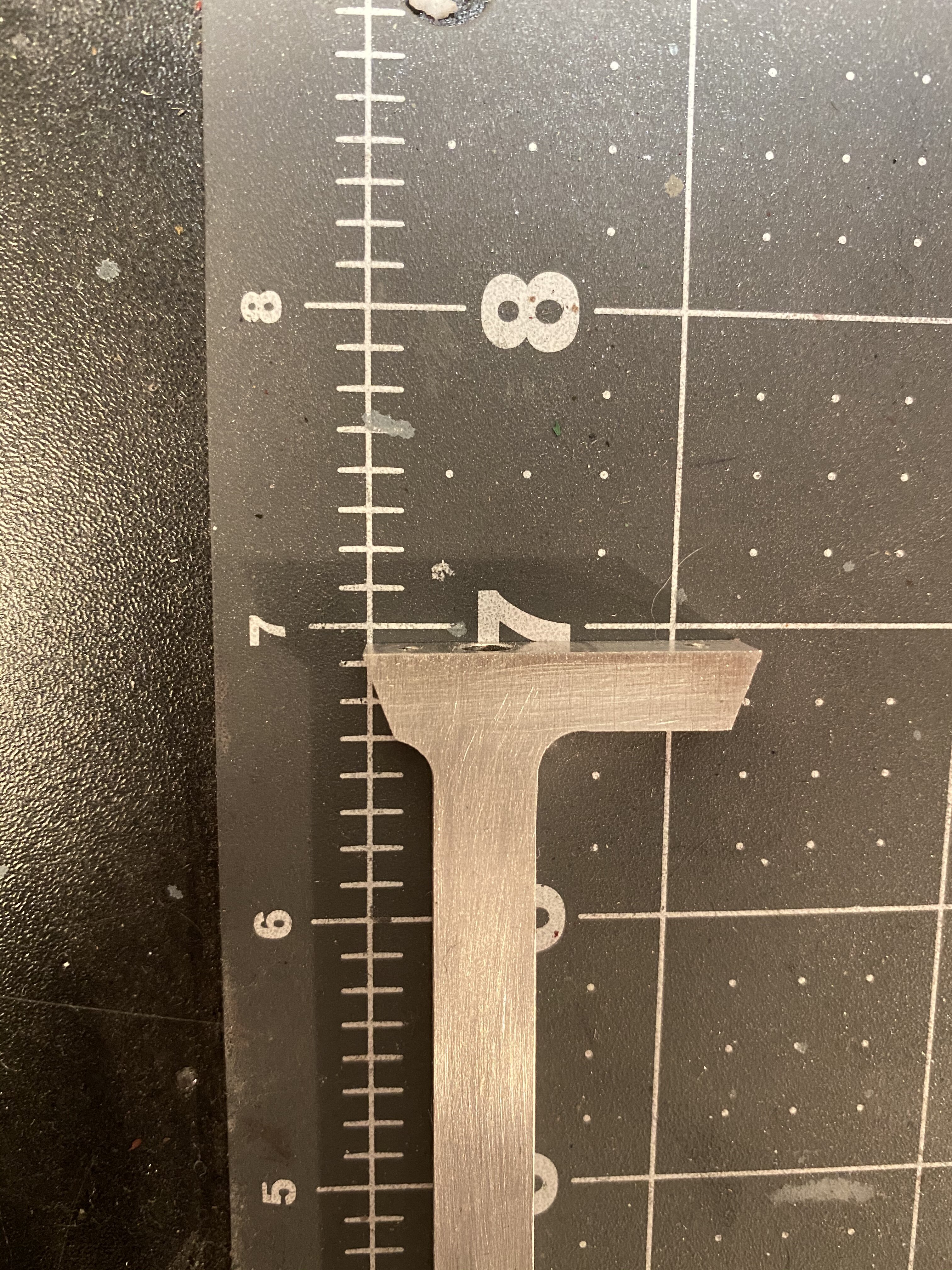

My MCR stalk is a hair over 7 7/8” 6 7/8”


Attachments

  • 09C610C4-C853-468E-9B3F-A46937F46B0B.jpeg
    2.6 MB · Views: 30
Last edited:

KaanE

Well-Known Hunter
What were they using in the UK around 70s? Imperial or metric? Maybe it's 175mm and the transformation to imperial is not exact?
