Other Bounty Hunter McQuarrie Concept Fett V2.

Discussion in 'Expanded Universe Bounty Hunters' started by AndrewGrant, Nov 17, 2016.

  1. AndrewGrant

    AndrewGrant Member

    This is my second run on the concept fett bucket. I did a try a little while back with bondo and custom paper designs but I wasn't able to get the perfect look that I was looking for. (You can check that build here: http://www.thedentedhelmet.com/f45/ralph-mcquarrie-boba-fett-concept-helmet-wip-51862/ )
    So I started it all over again but this time Im going to sculpt the whole thing. Pics coming soon so check back in a few days if you are intrested! ;)

  2. AndrewGrant

    AndrewGrant Member

    Okay as i promised here are the first pictures of the process! (I started it 2 days ago)

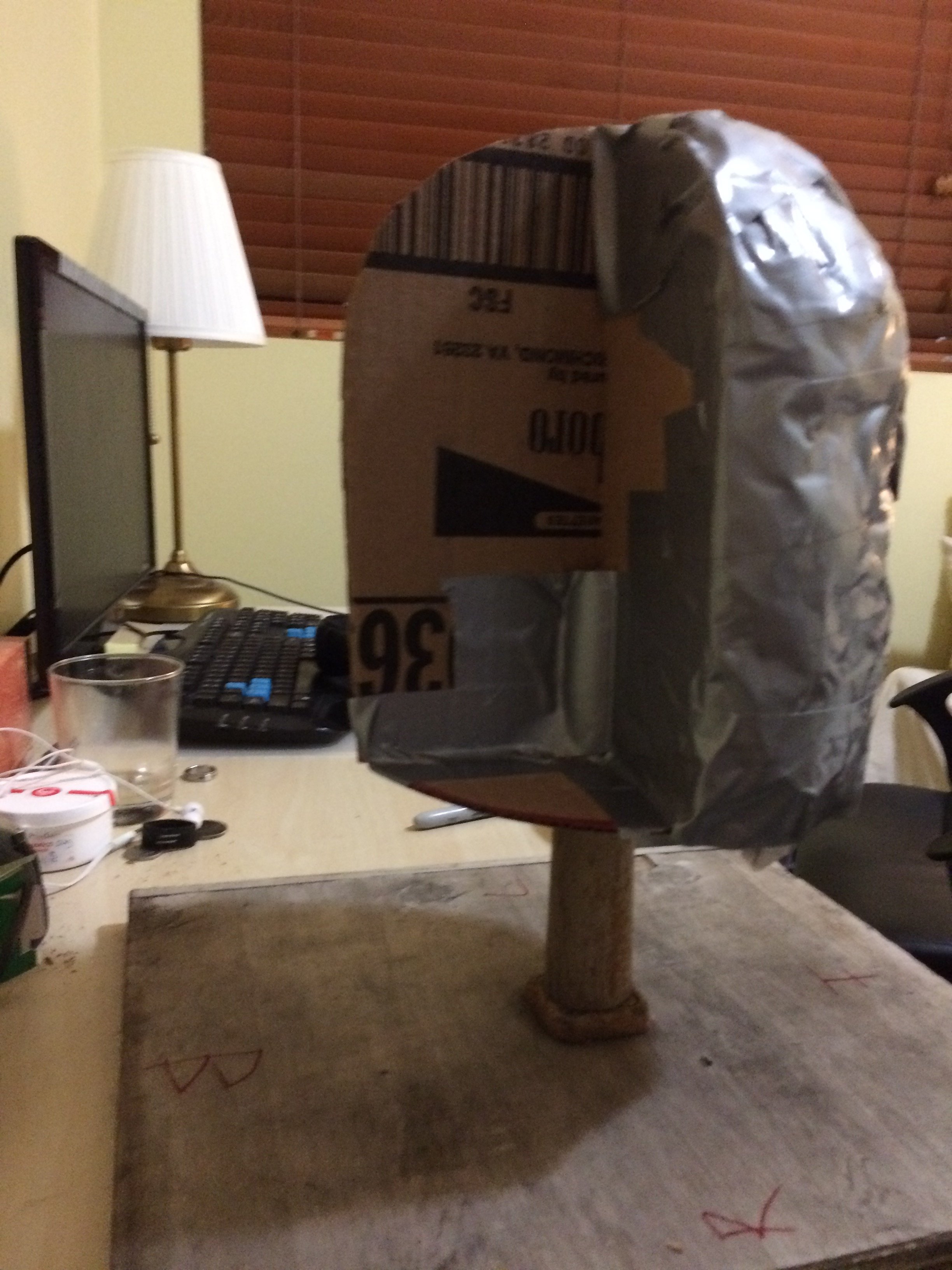

    First i built a base that i can sculpt on from cardboard, newspaper and duc ttape.
    IMG_0895.JPG IMG_0896.JPG IMG_0897.JPG

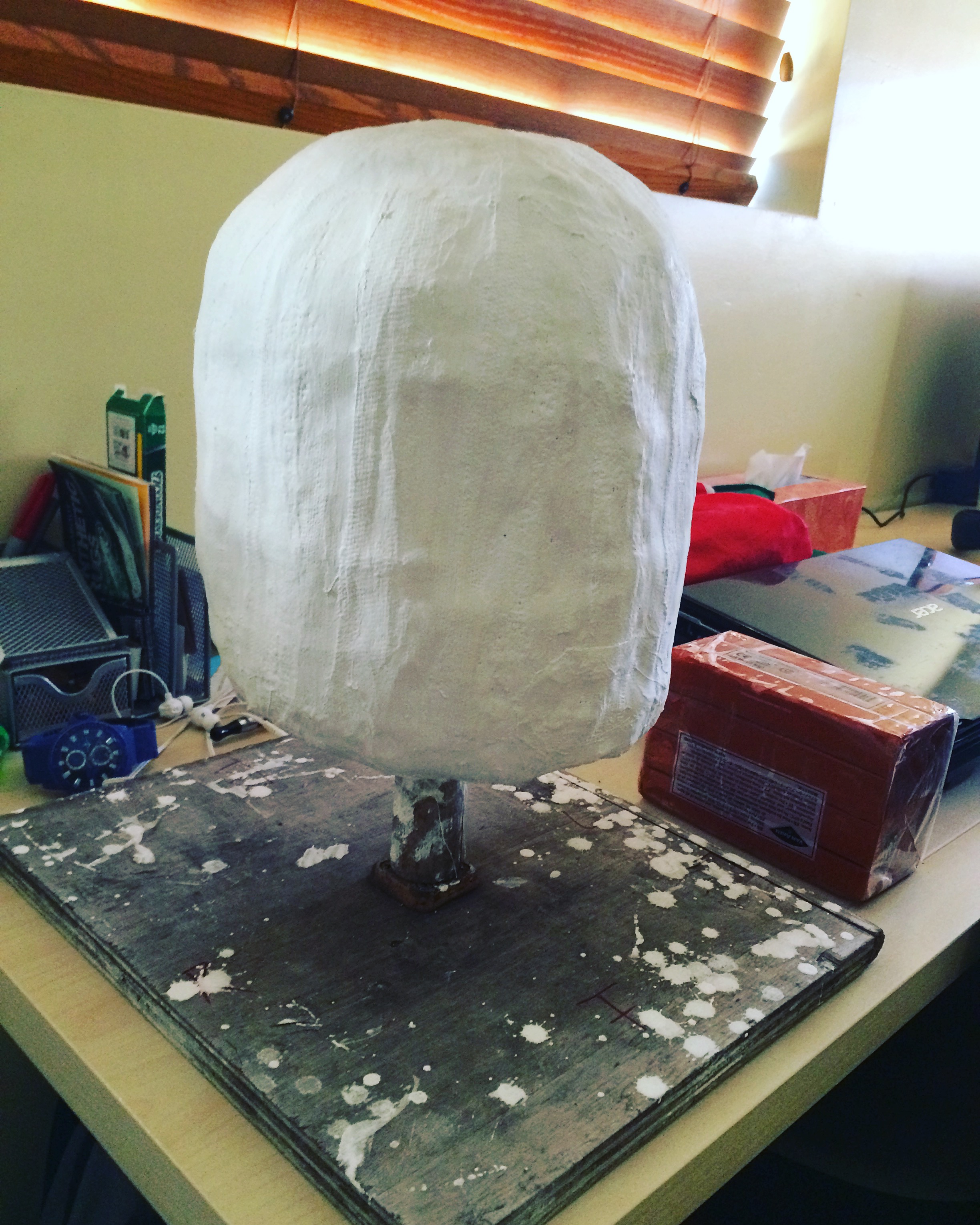

    Then I covered the whole thing with a few layers of plaster strips:

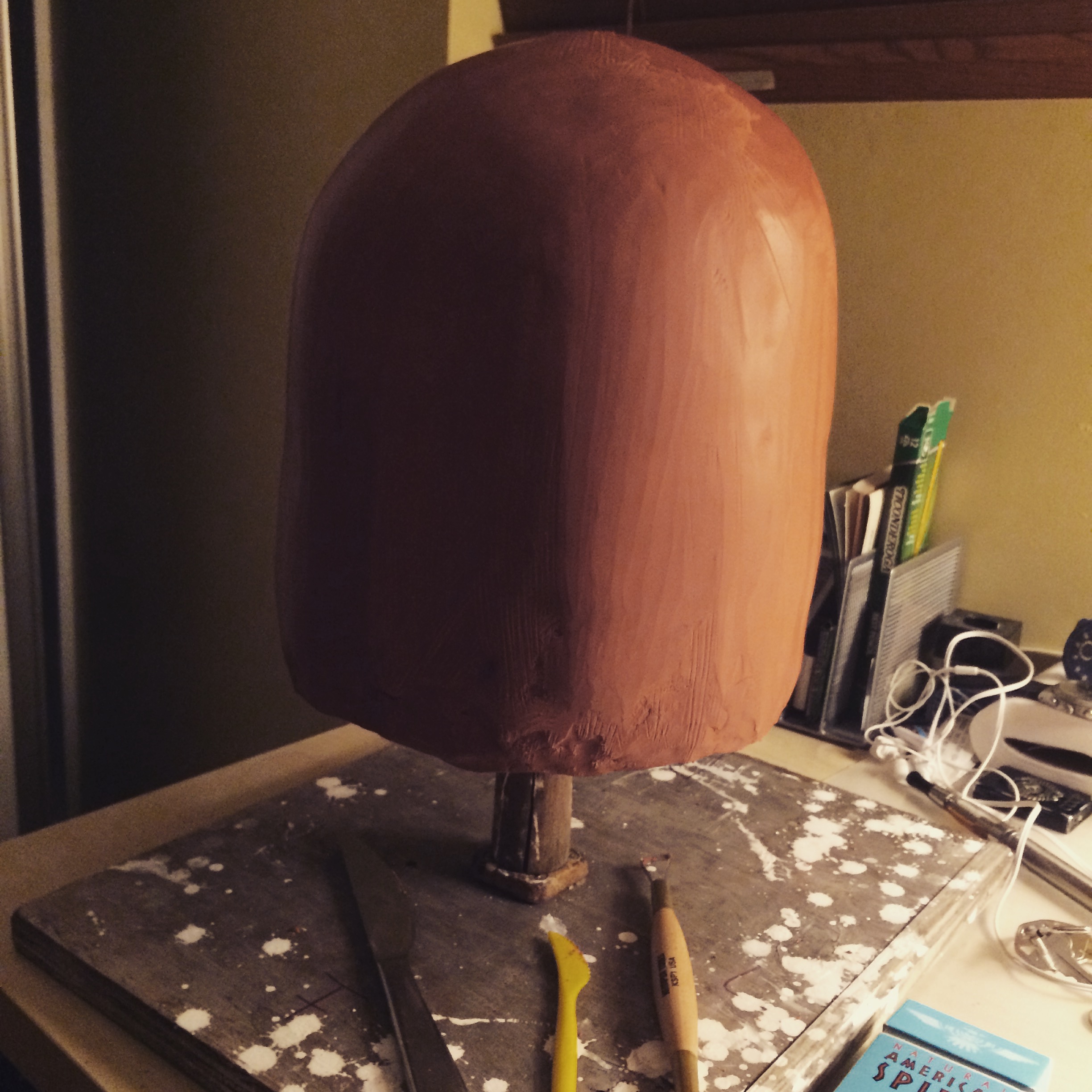

    Then I started to build up the ruff shape of the helmet with oil based clay:


    Right now it's ruffly the size that i want but Im going to make it slightly bigger
    so it would fit most of the people well. Im going to buy some more clay on the weekend
    and start to build up the visor and nose area so stay tuned!

  3. AndrewGrant

    AndrewGrant Member

    Okay i got the right size start to build up the ears, visor face etc.

    Artakha and BobasDent1138 like this.
  4. RealMatix

    RealMatix Member

    I am curious how it works with the technique. Your first implementation was already very good .... i hope you didn't destroy it:D

    AndrewGrant likes this.
  5. AndrewGrant

    AndrewGrant Member

    Well I did not destroyed it I use it as a decoration :D Well I already like this technique more its faster easier and way more accurate. I want to finsih it before the holidays because I will go back to my country for 3-4 weeks and with this sculpting method I can proceed really fast.

  6. AndrewGrant

    AndrewGrant Member

  7. 151killstripes

    151killstripes Jr Member

    Cool to see how your process is, keep up the good work.

    AndrewGrant likes this.
  8. AndrewGrant

    AndrewGrant Member

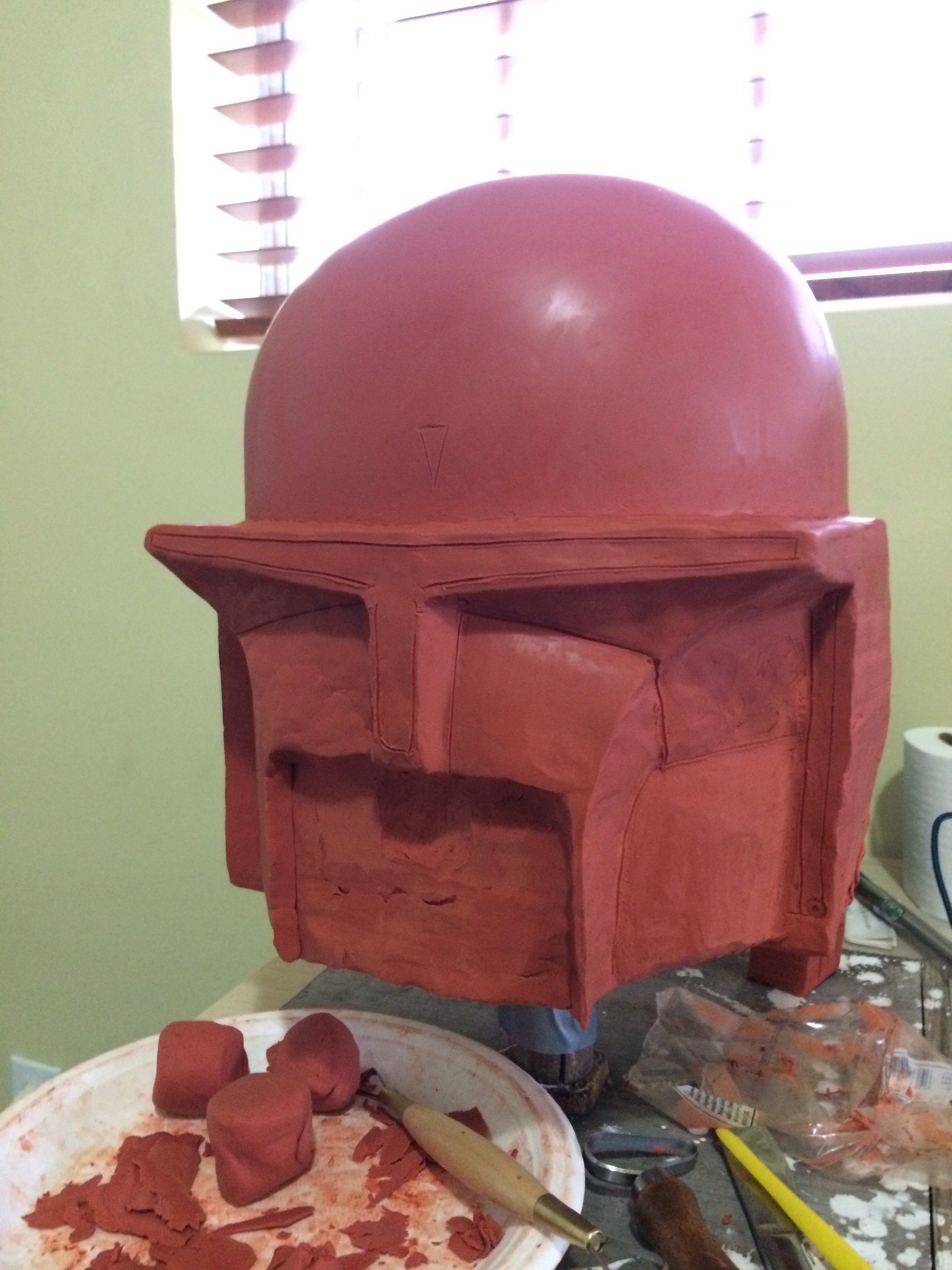

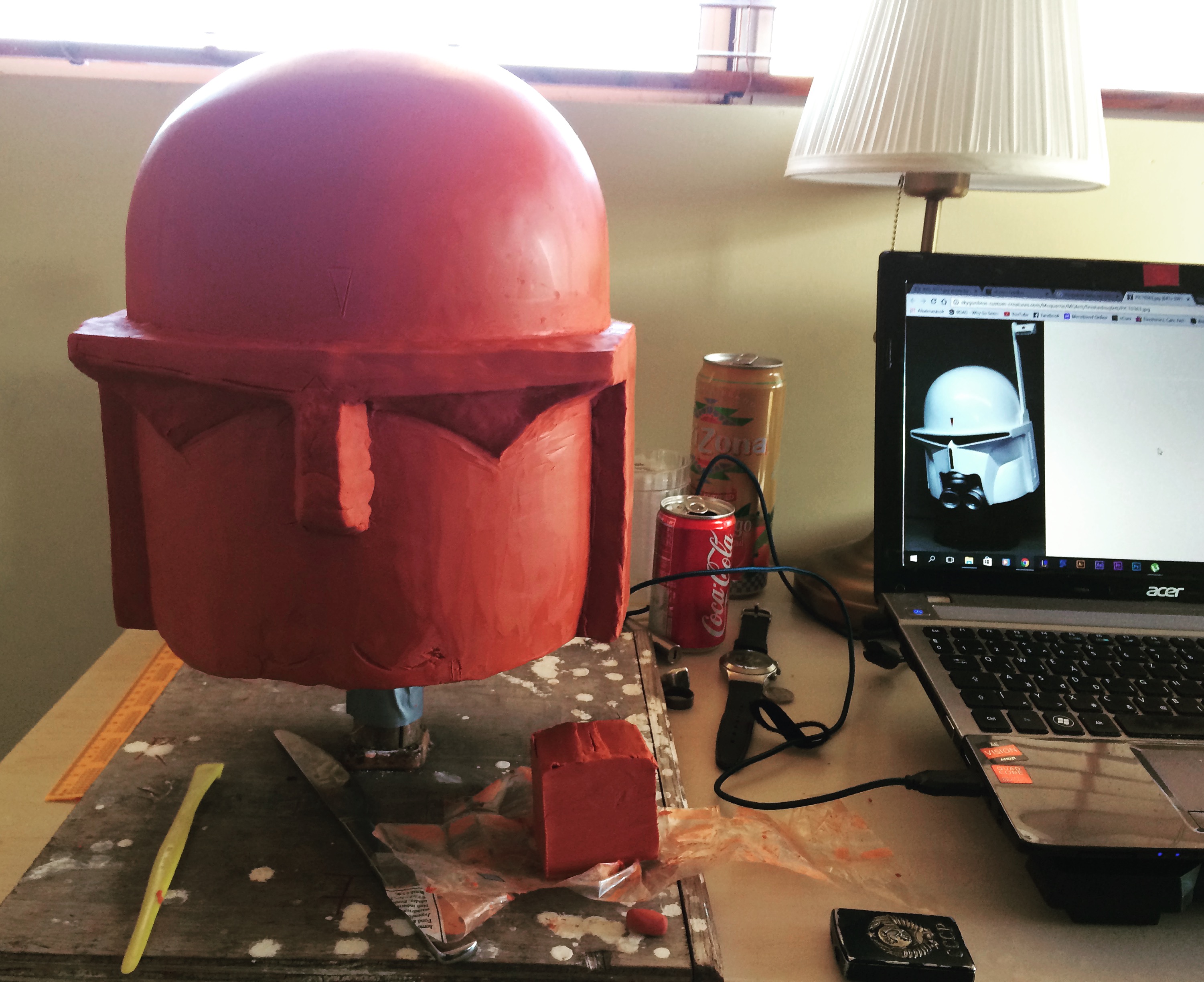

    Okay im progressing nicely:
    IMG_1026.JPG IMG_1031.JPG

    - - - Updated - - -

    Btw sry that most of the pics are sideways im uploading them from my phone :/

    LostDreams likes this.
  9. AndrewGrant

    AndrewGrant Member

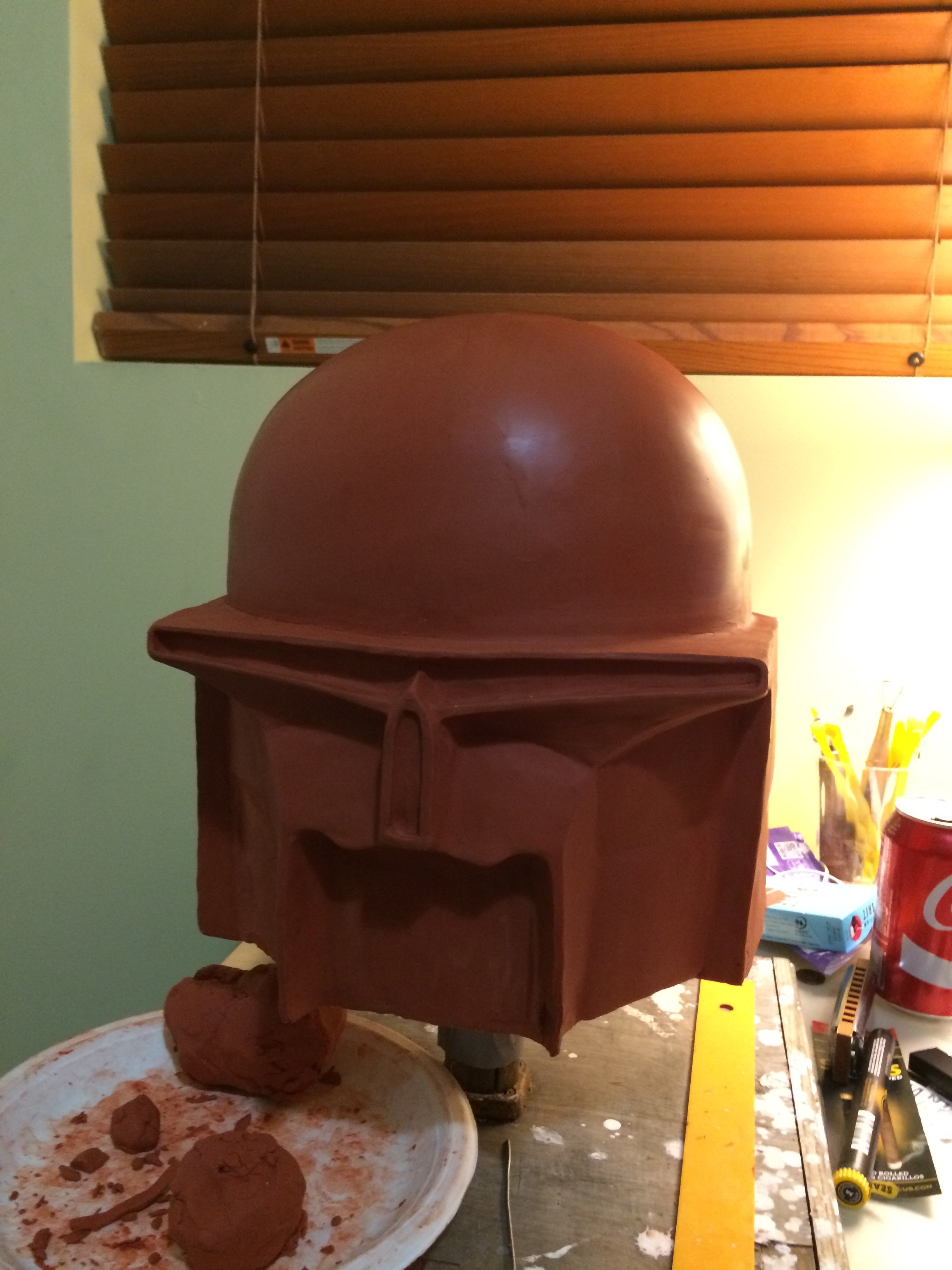

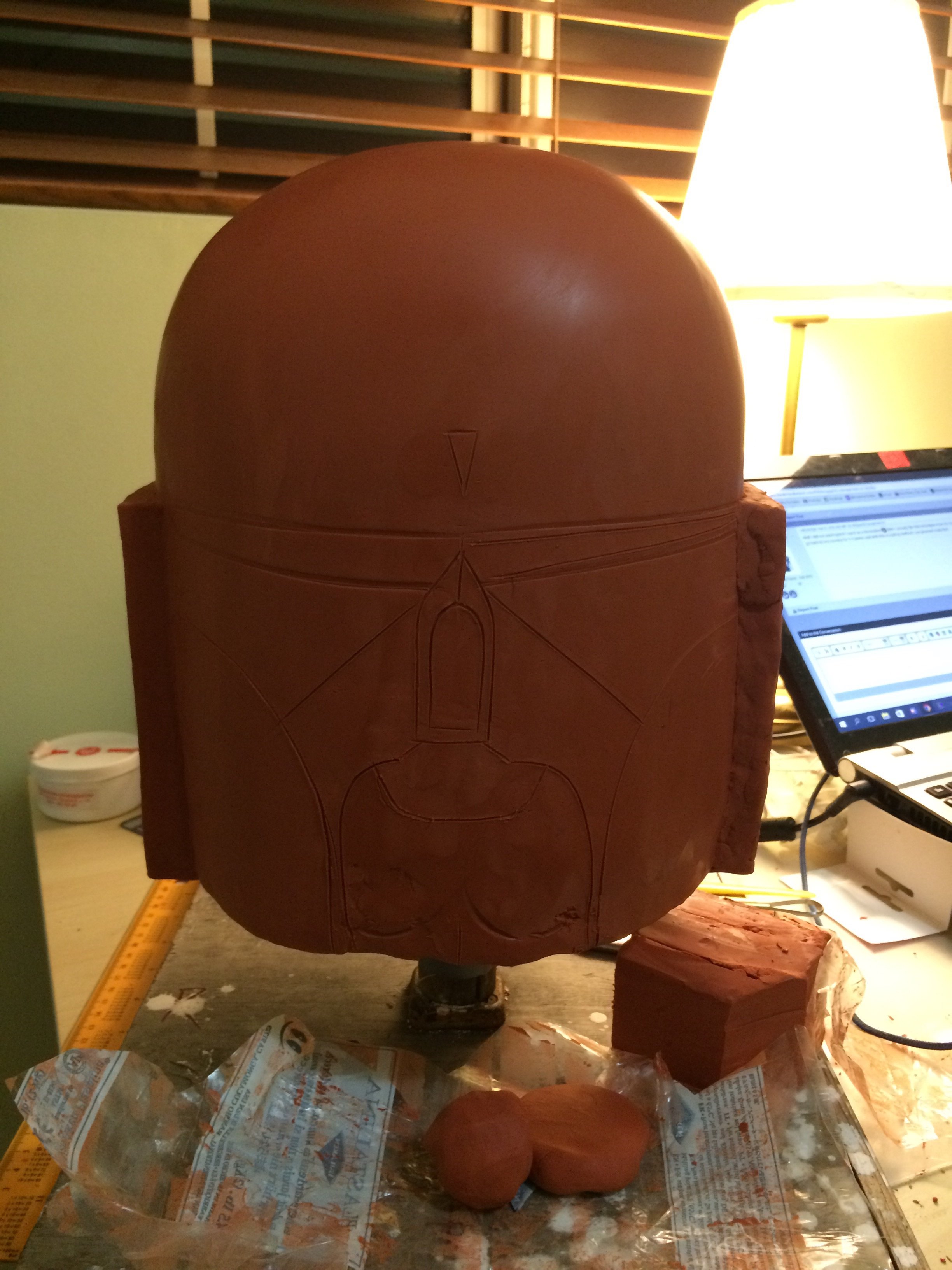

    Okay I have done quite a few things in the past week and im almost done with the sculpting. Still needs smoothing here and there and the right side of the face area needs some corrections but its going to be finished soon.

    Gregory likes this.
  10. AndrewGrant

    AndrewGrant Member

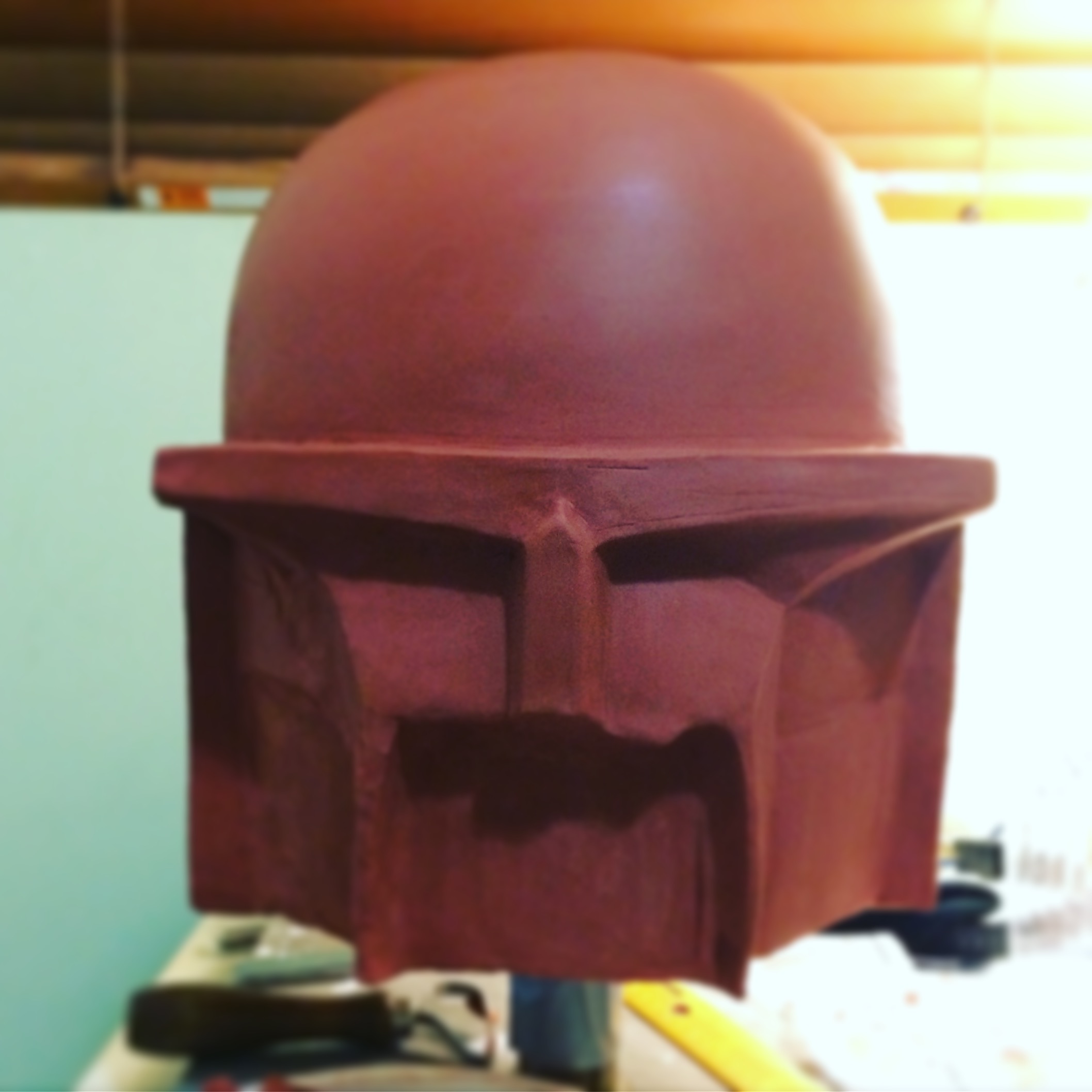

    Im just going to leave this here...



    Gregory and BobasDent1138 like this.
  11. rnbuda

    rnbuda Active Member

    Looks great! Can't wait to see your progress!

    AndrewGrant likes this.
  12. AndrewGrant

    AndrewGrant Member

    Soon I'm going to finish the sculpting (Don't have much time on my hand but I'm trying to be fast as possible) then I'll make the first cast, some patching up some sanding etc. then I'll move on to the final cast. Maybe 2 weeks from now.

    BobasDent1138 likes this.
  13. AndrewGrant

    AndrewGrant Member

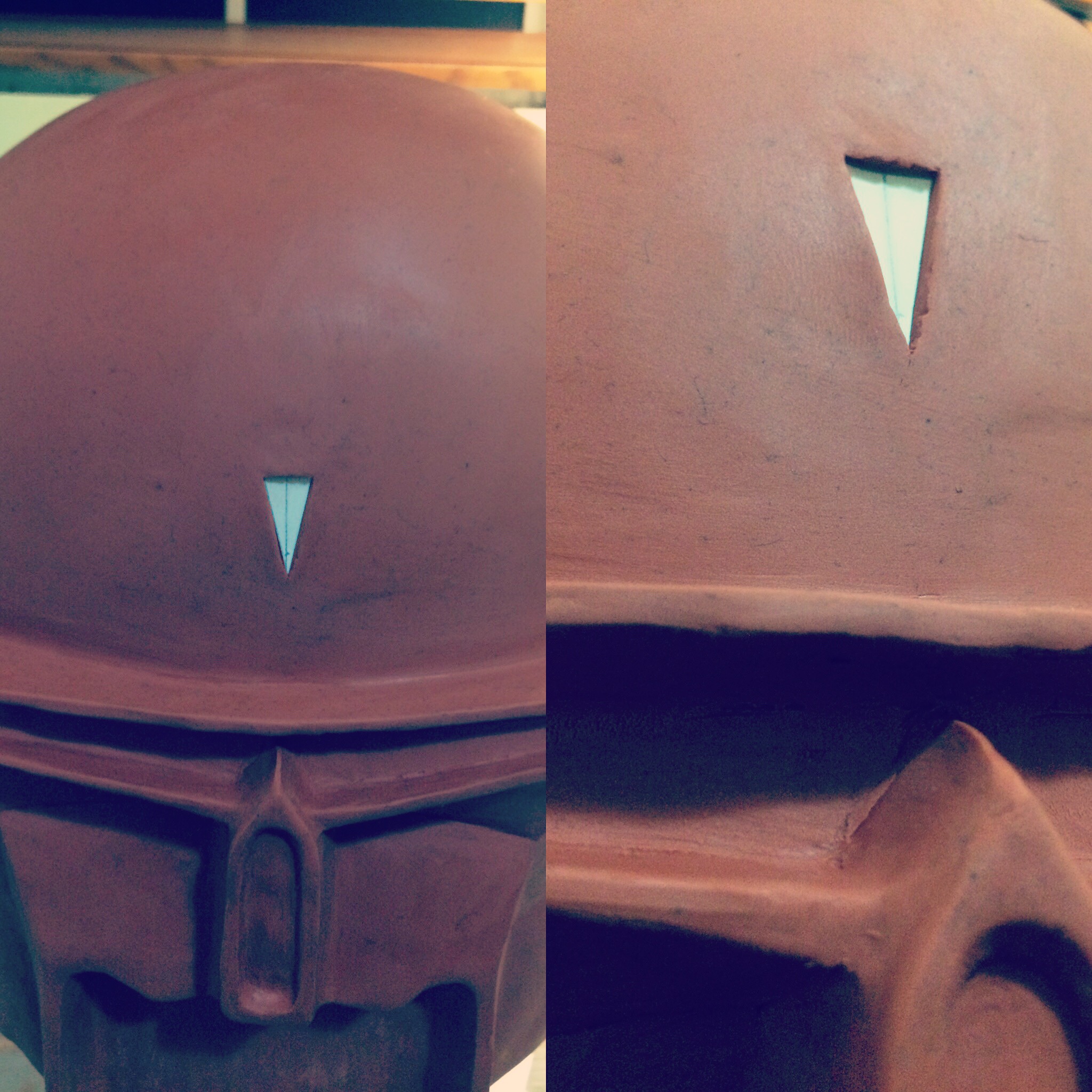

    The little triangle. I cut out the triangle (about the right size) and i used it to carve out the clay then I used the same piece and embedded it in to the sculpture so I didnt had to mess around in that teeny-tiny hole with sculpting tools.

    LostDreams and BobasDent1138 like this.
  14. AndrewGrant

    AndrewGrant Member

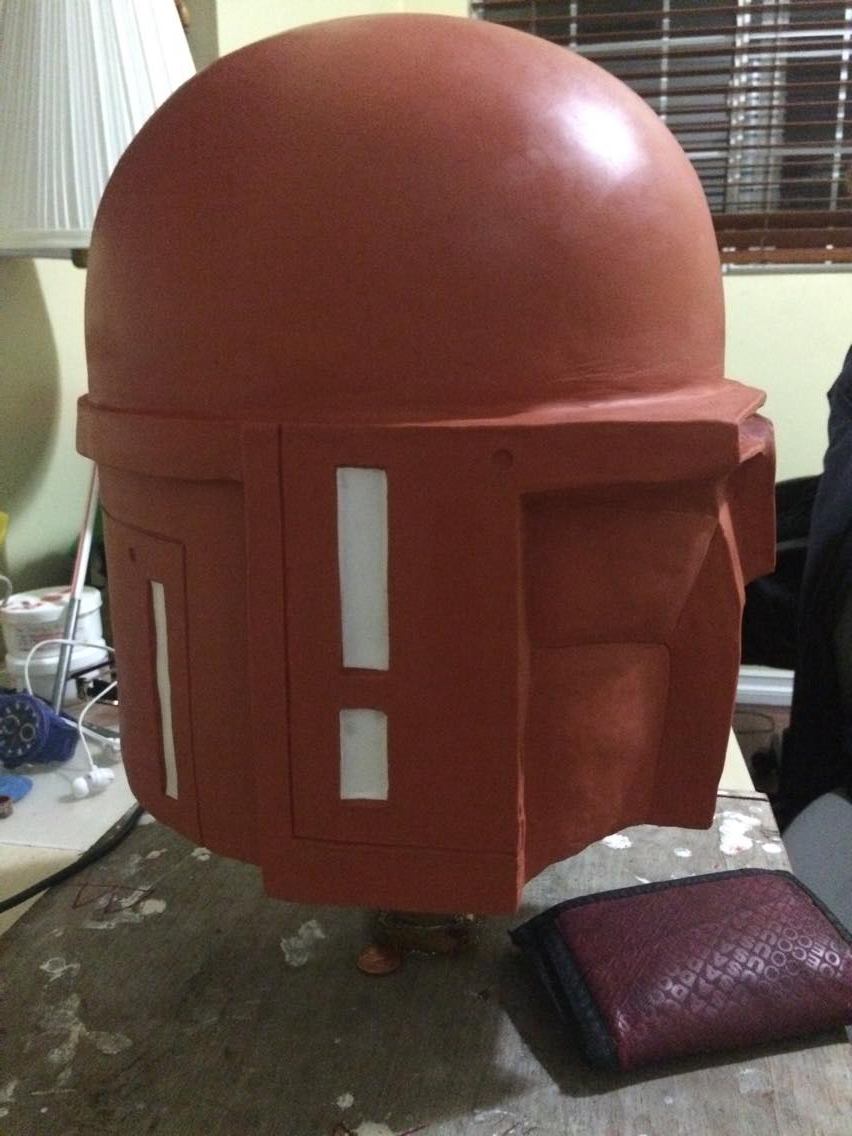

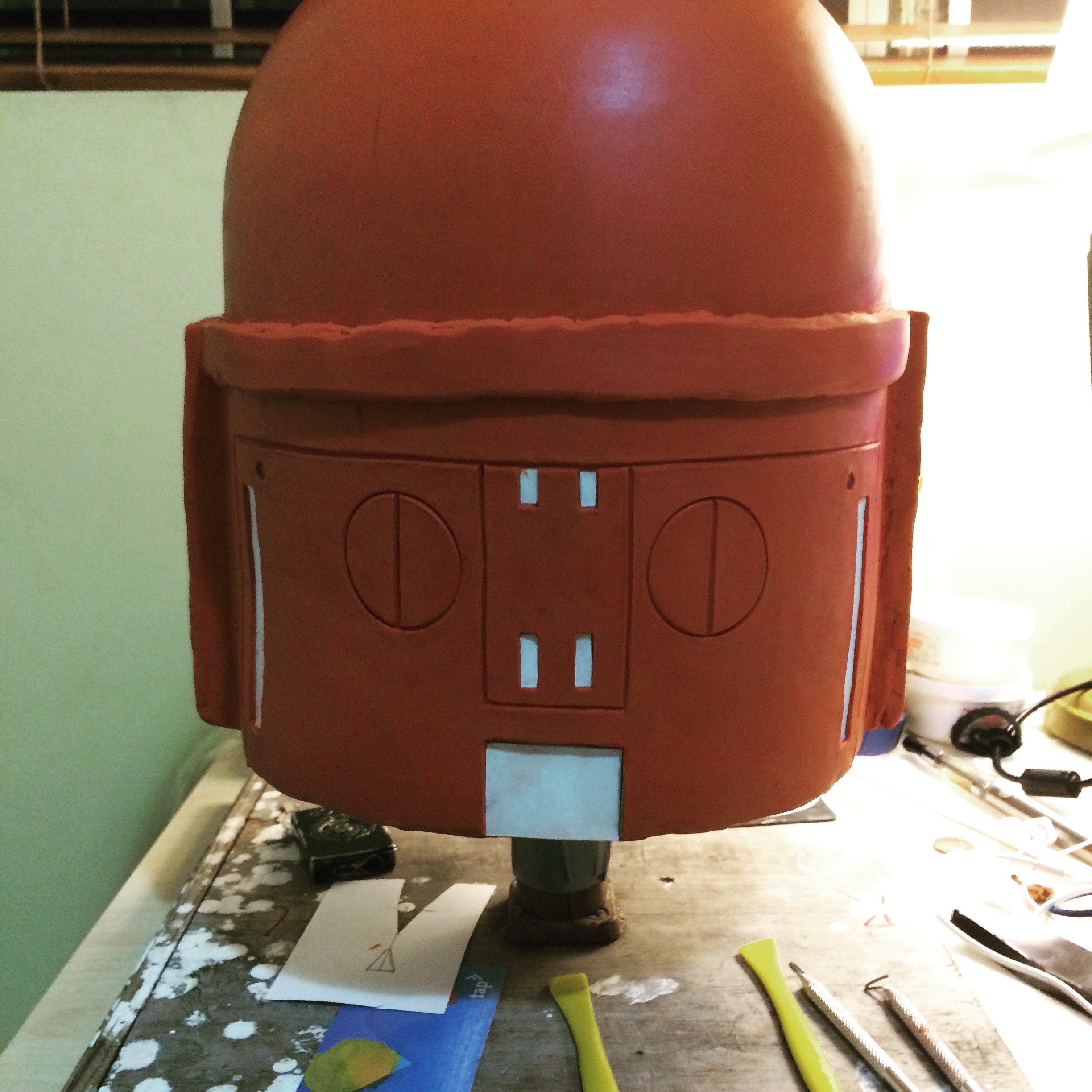

    Okay the back was tricky because of two things
    1. There is no actual reference of the back of this bucket so I just went with the other Mcquarrie concepts design.
    2. This if my first time trying to carve these little thin lines ( but I think it turned out good anyways )


    Gregory likes this.
  15. AndrewGrant

    AndrewGrant Member

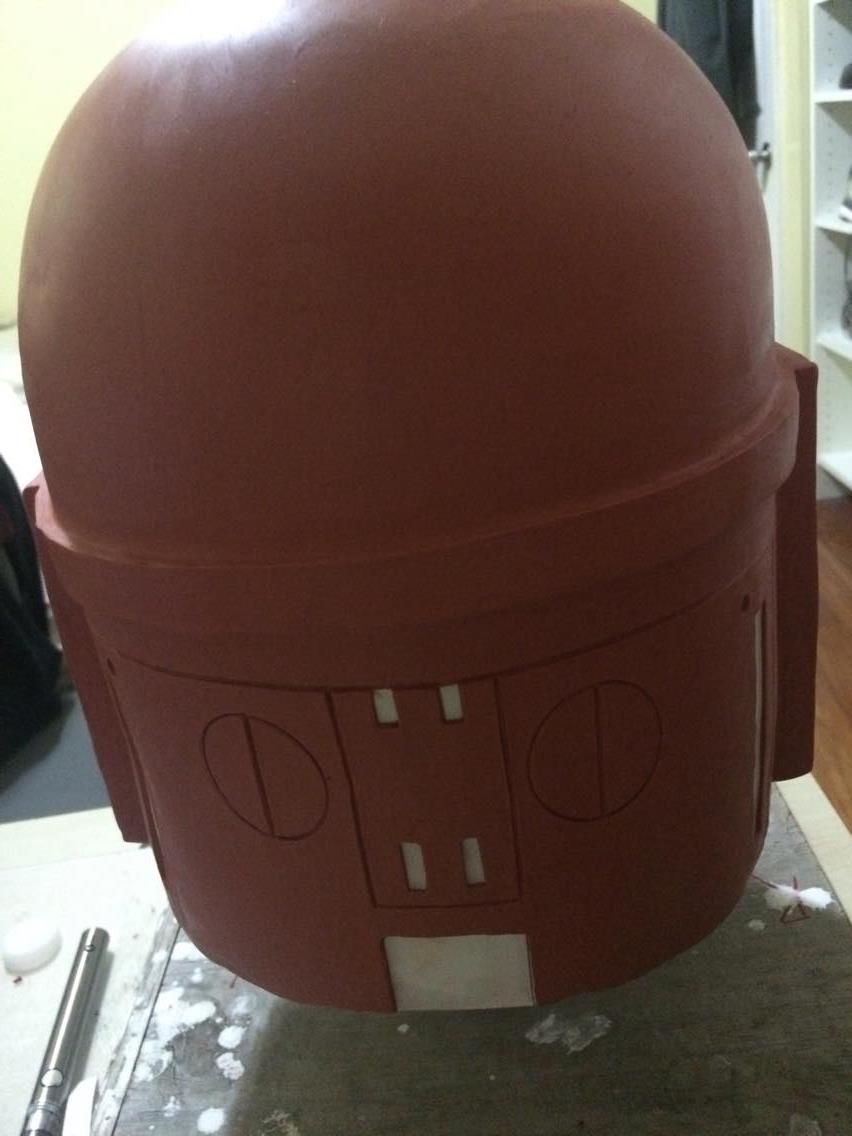

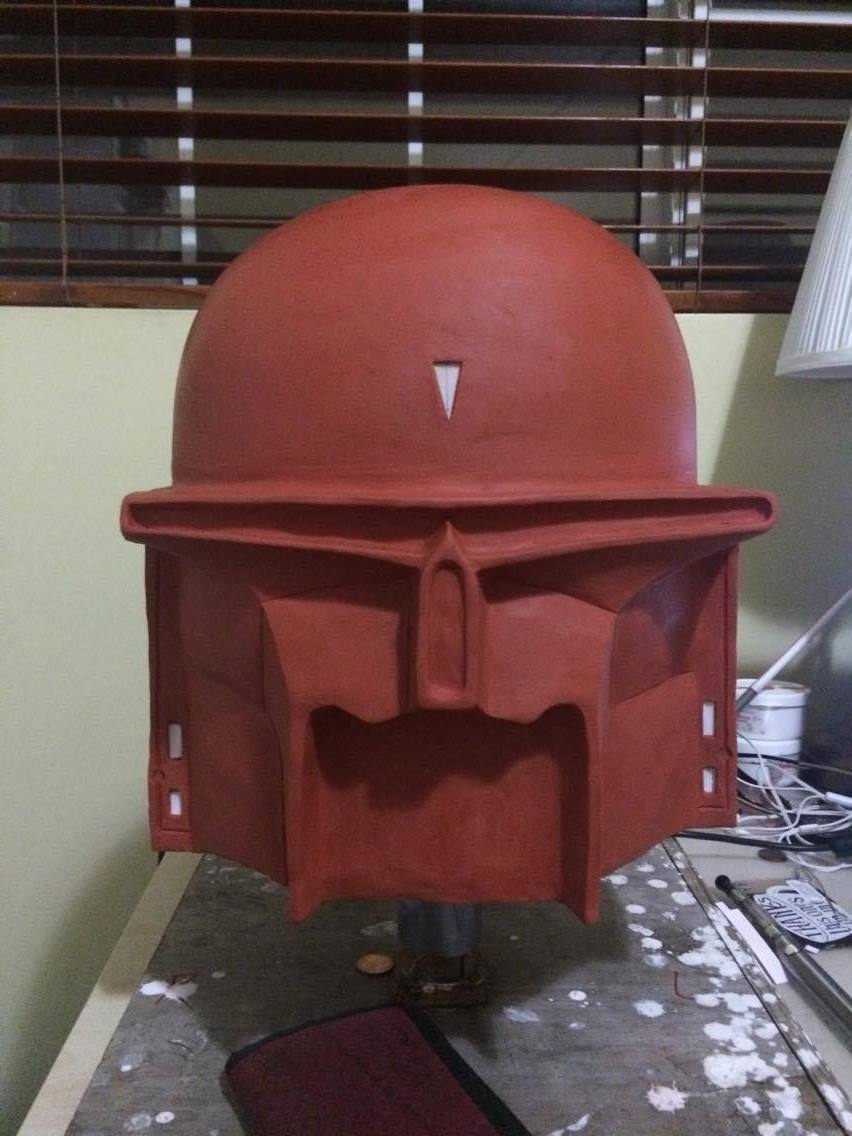

    Aaaand finally! It is (99%) done! (Some smoothing here and there but not much)
    I can't even believe it :D Im so excited to move on to making the mold, which is going to happen next weekend!

    16492462_1445681708788841_872988301_o.jpg 16522138_1445681688788843_464695573_o.jpg 16522415_1445681705455508_1755141594_o.jpg

    Last edited by a moderator: Feb 5, 2017
    BobasDent1138 likes this.
  16. AndrewGrant

    AndrewGrant Member

    Okay this weekend is going to be the time to make the mold of this thin finally. :D


    Sent from my rangefinder.

    BobasDent1138 likes this.
  17. AndrewGrant

    AndrewGrant Member

    Mold making in progress!

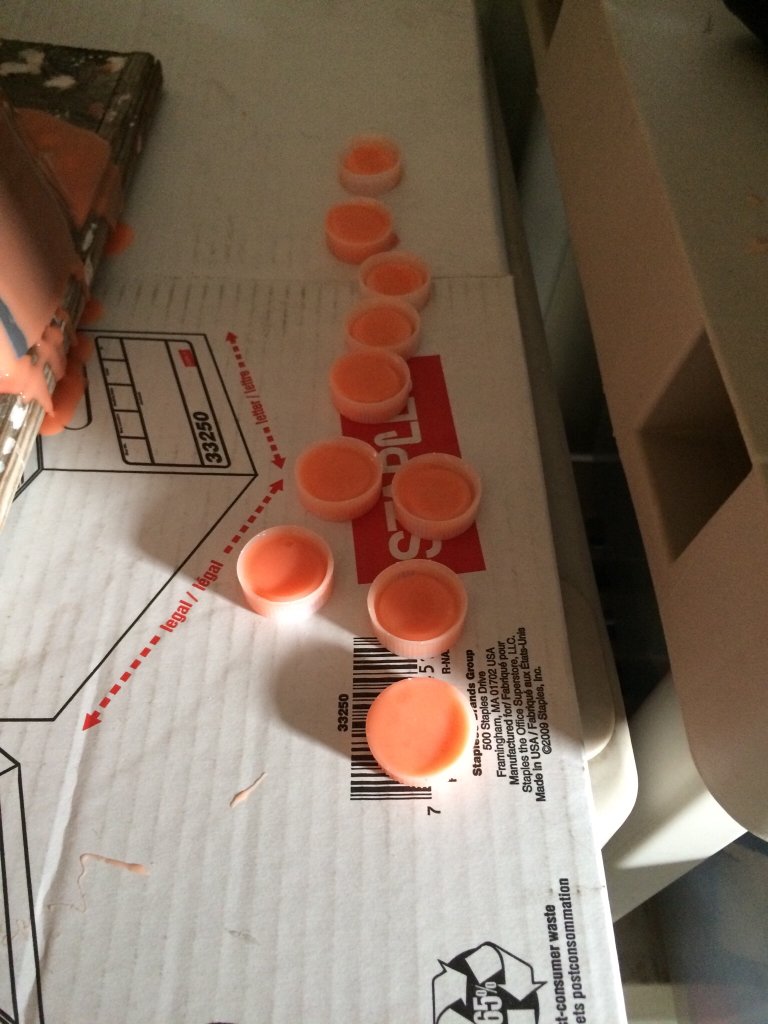

    I've used bottle caps to make the registration marks.



    Sent from a potato.

    BobasDent1138 likes this.
  18. Barn

    Barn New Member

    This is a great looking helmet. Interested to see how it goes.

  19. AndrewGrant

    AndrewGrant Member

    Check back in a few days ;D


    Sent from a potato.

  20. AndrewGrant

    AndrewGrant Member

    Btw. I forgot to post this pic on sunday



    Sent from a potato.

    Level3Fett and Artakha like this.
  21. AndrewGrant

    AndrewGrant Member

    Okay silicone is done, mohawk on, it's time for the shell!




    Sent from a potato.

    Artakha, Level3Fett and BobasDent1138 like this.
  22. Barn

    Barn New Member

    looking good!

    AndrewGrant likes this.
  23. AndrewGrant

    AndrewGrant Member

    Thanks! (Y)


    Sent from a potato.

  24. AndrewGrant

    AndrewGrant Member




    Sent from a potato.

    BobasDent1138 likes this.
  25. AndrewGrant

    AndrewGrant Member

    Little demolding video for you guys:


    Last edited by a moderator: Jul 8, 2017
