FPH2 helmet build (Target helmet size compare)

Lynn TXP 0369

Well-Known Hunter
I got my new helmet that I will use for my Mandalorian Protector today.
It is an FPH2 ESB

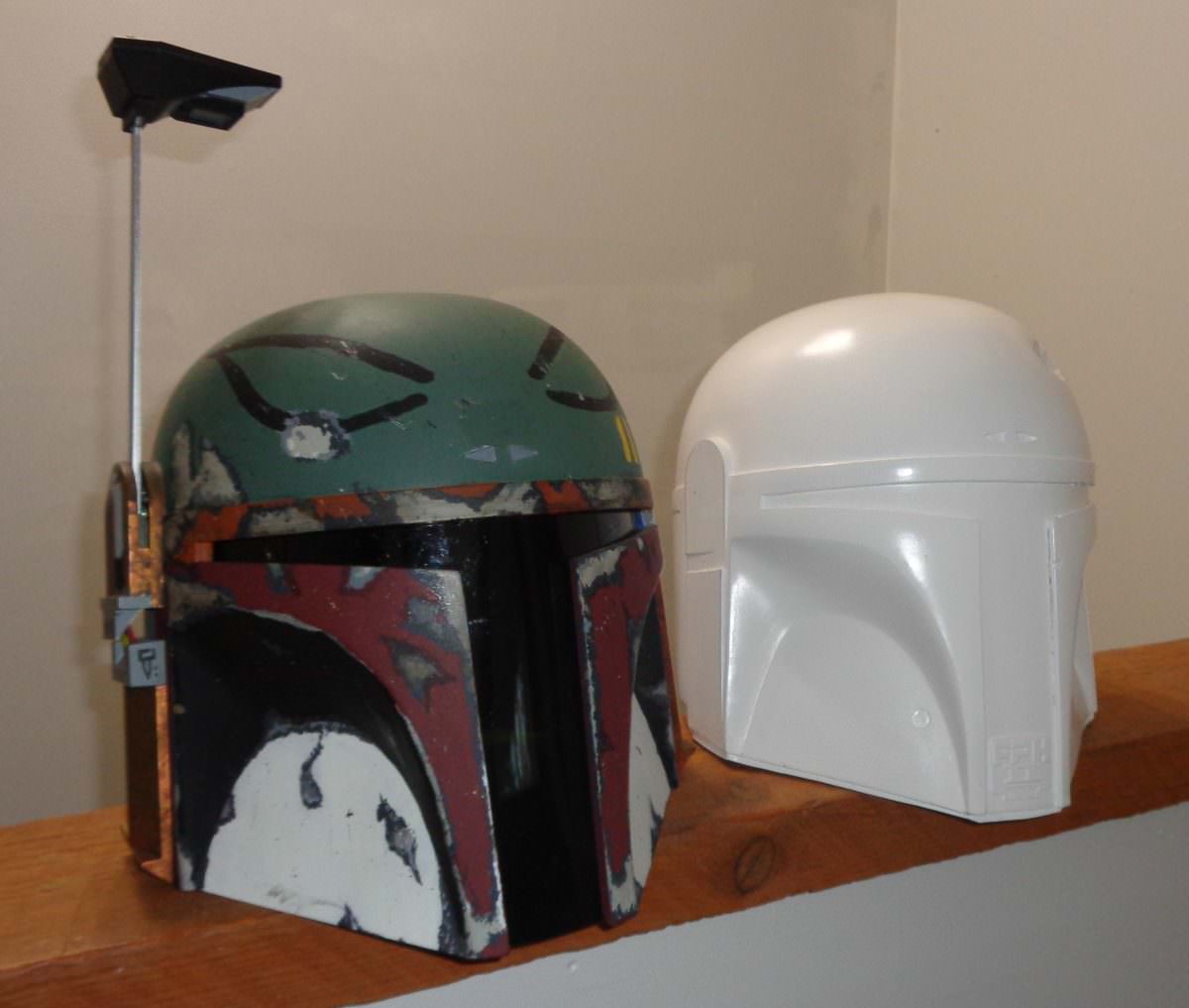

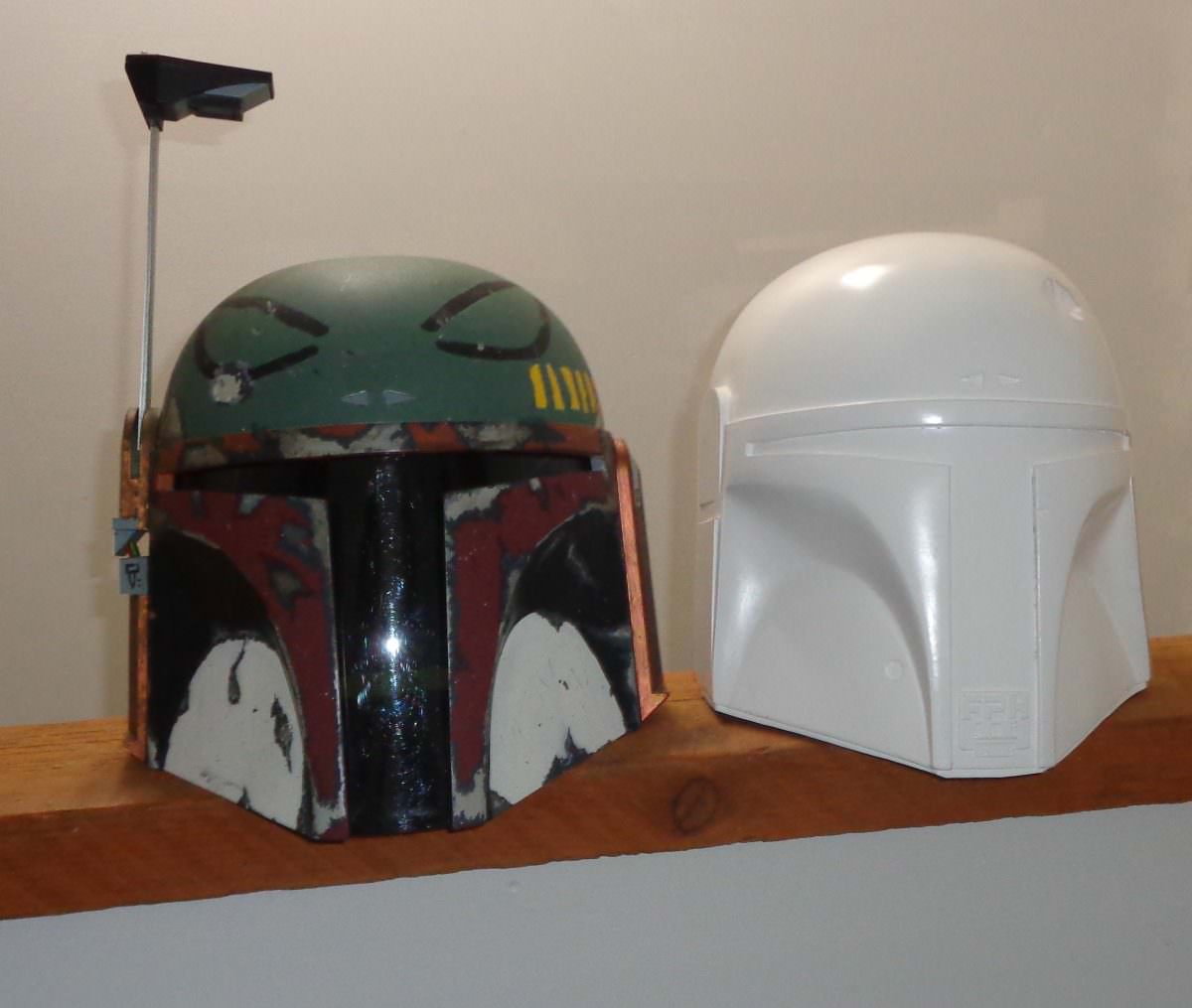

Surprisingly it is not a lot bigger then my Target helmet, It is more accurate and shaped correctly, but size wise, it is not much if at all bigger tyhen the Target helmet.







I will be starting a build thread with this thread.
It will kill me to fill that dent in, but..... I'll have a nicer shaped helmet.
Lynn


Lynn TXP 0369

Well-Known Hunter
Well, I had to jump right into this bad boy!! LOL!!

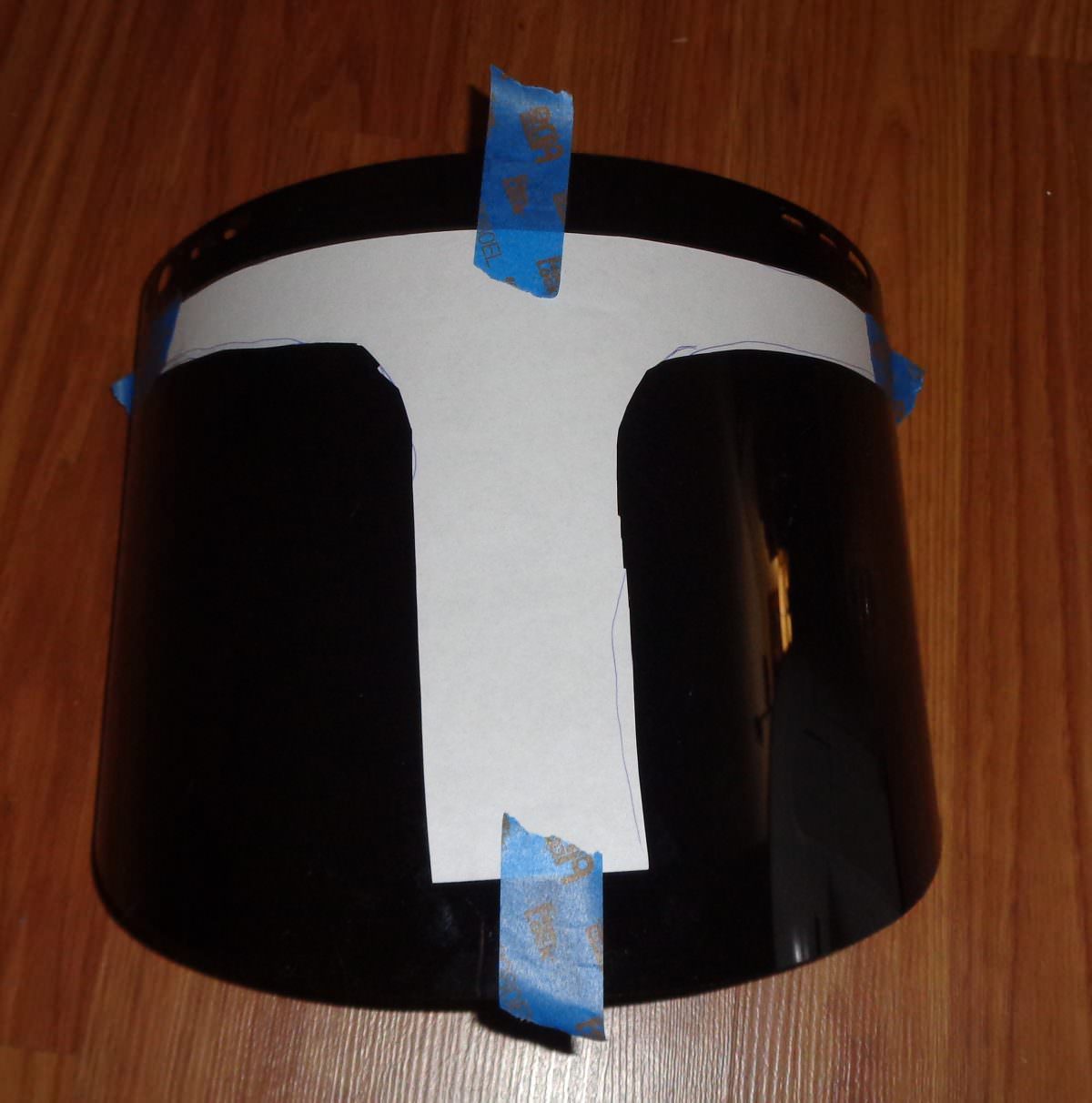

Visor cut out.

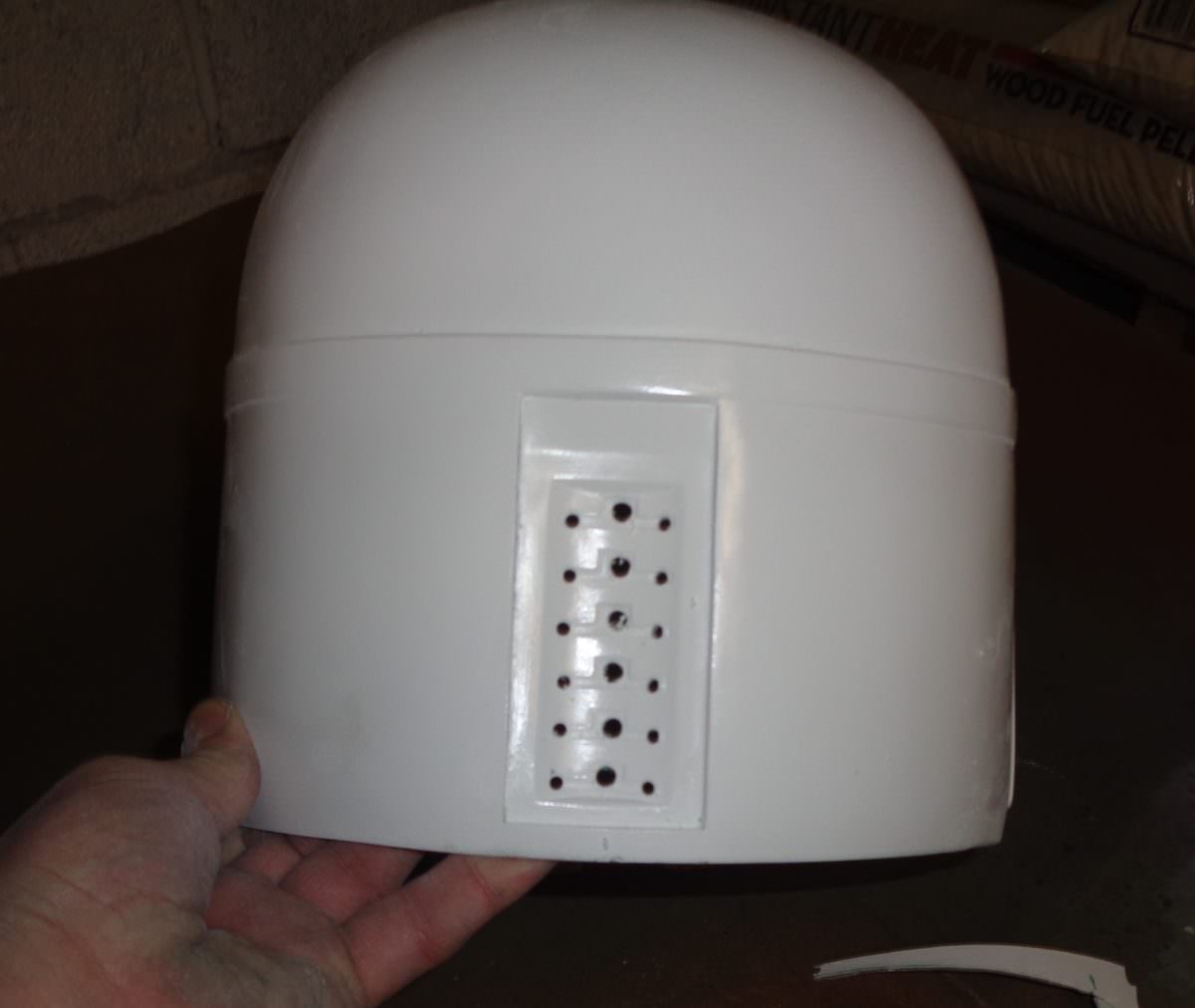

Holes drilled


Started with a square file to open them up.



Next a rectangle file to get the skinny spots.

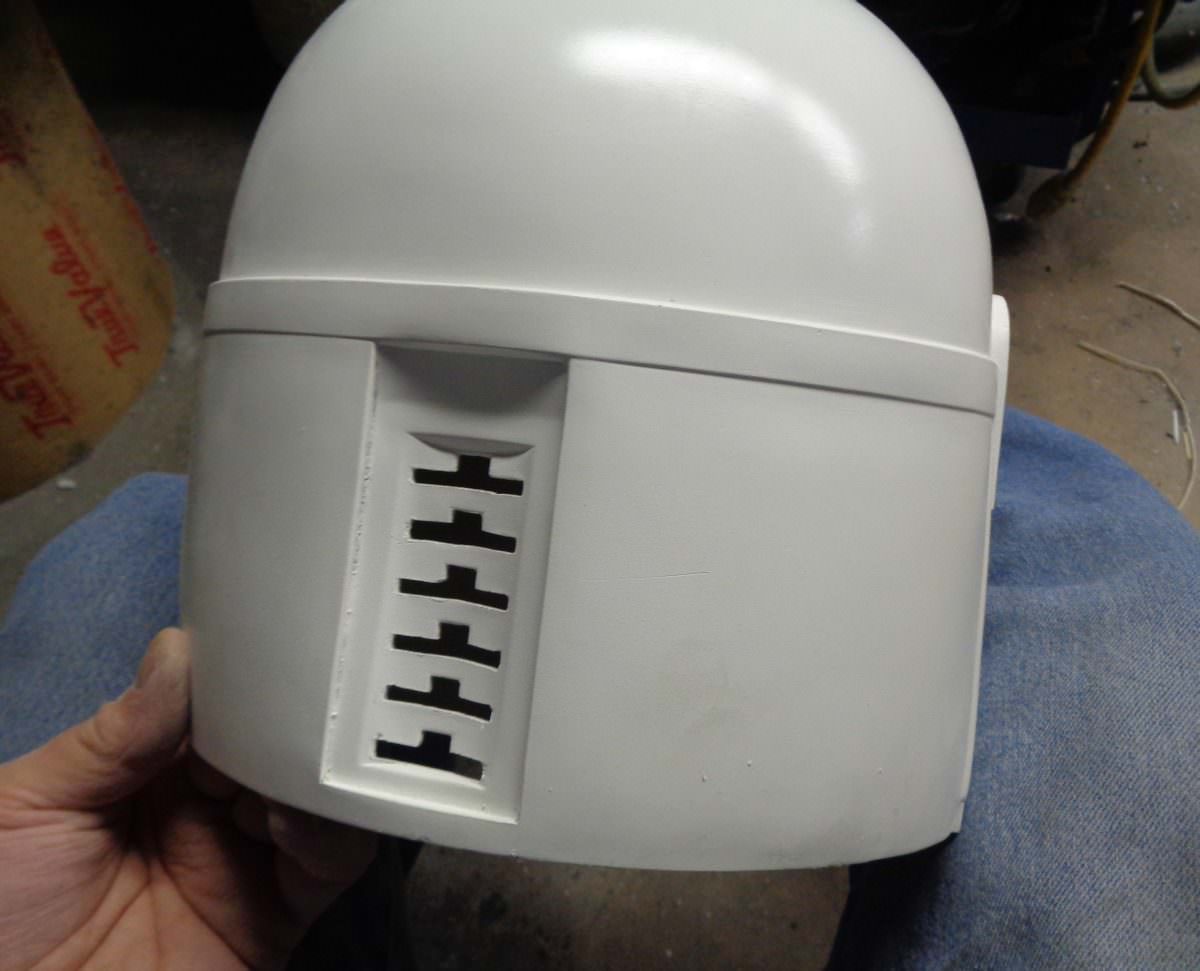

Key slots done. Not perfect as I had to take a bit more out because my pilot holes weren't perfectly lined up, but it will be OK when the PC board is installed and all painted, you won't even notice it.


Lynn


Lynn TXP 0369

Well-Known Hunter
Visor install parts.

Mirror hangers, Chicago screw screw part, brass thumb nut to fit Chicago screw.
I may have to bend and test mirror hangers to fit, but this is my tried and true method of visor installs.
Lynn

Last edited:

hvacdon

Active Hunter
The mirror hangers is a great idea. I can see how you would have to flatten the brackets out a little to work with the smaller thickness of the visor....Don


Lynn TXP 0369

Well-Known Hunter
The mirror hangers is a great idea. I can see how you would have to flatten the brackets out a little to work with the smaller thickness of the visor....Don
Thanks! I have used this method over years many times. I really like the hangers. You don't have to bend them at all or just a little bit on a couple.
Lynn


Lynn TXP 0369

Well-Known Hunter
A little more done today.

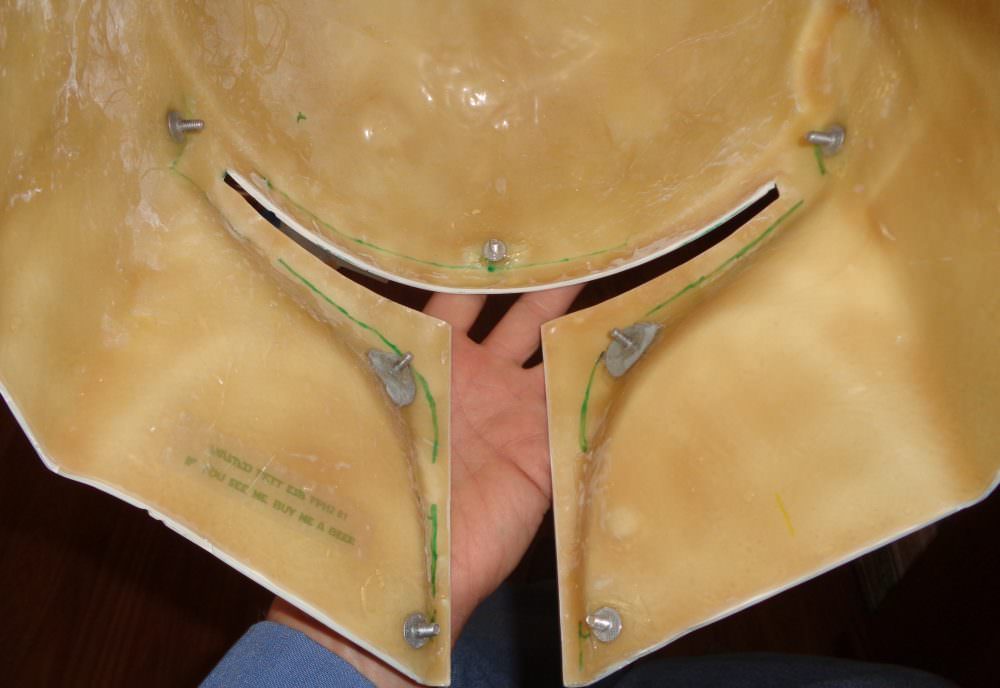

Visor Chicago screw bolts epoxied in place. I won't bolt the visor in place until I let the epoxie sit for 24 hours.

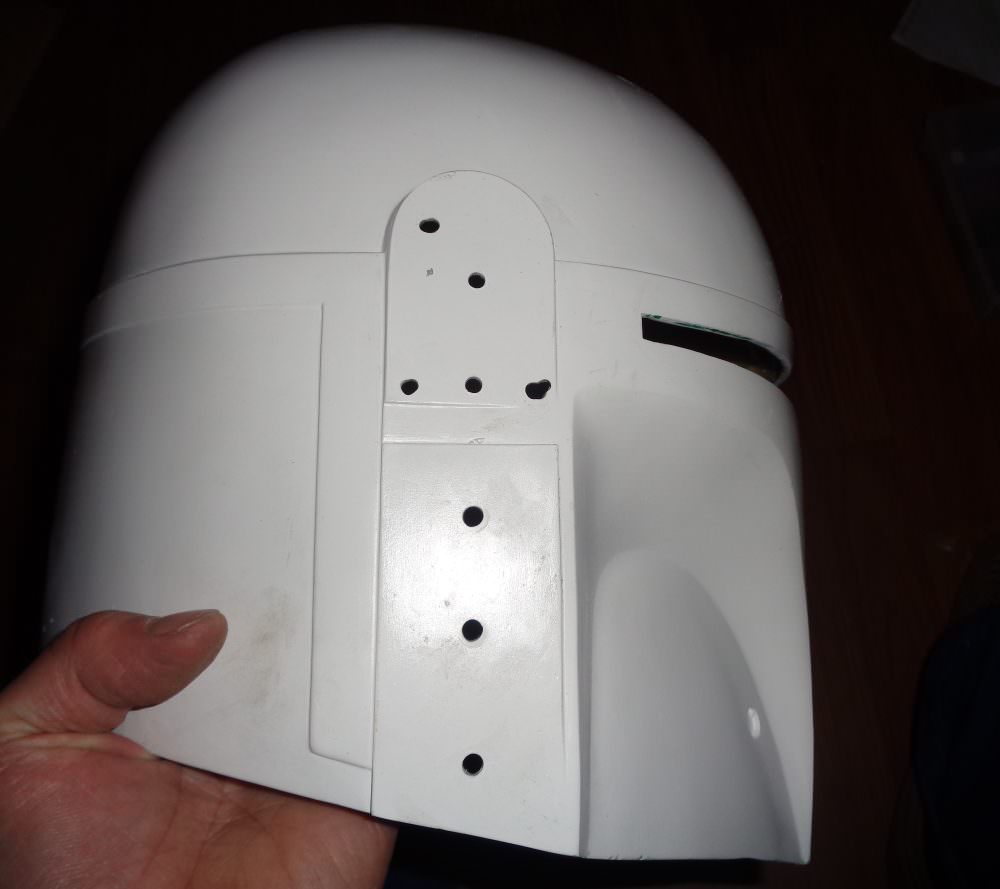

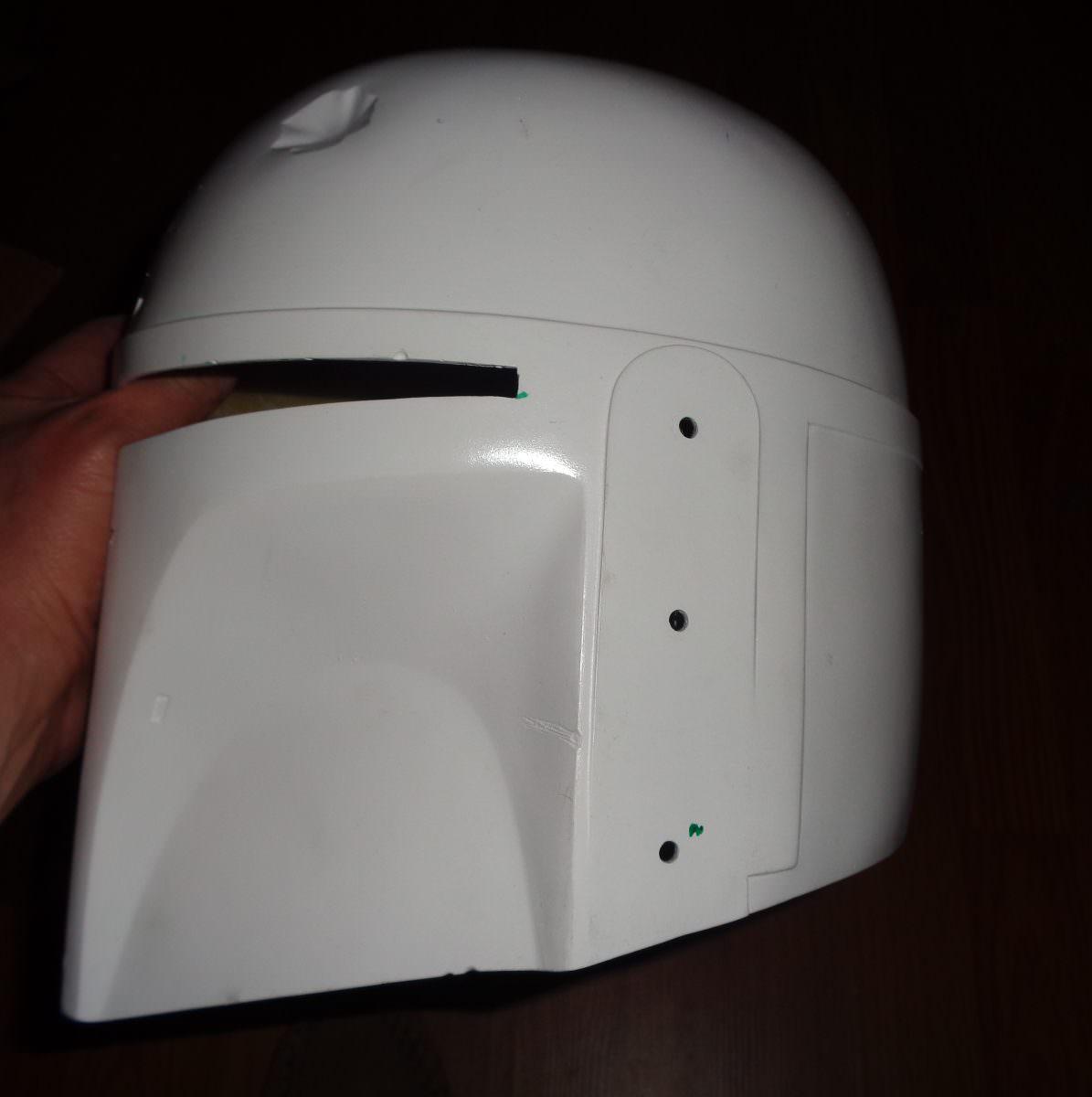

Ear holes marked and drilled.



Helmet ear holes drilled. For some reason I had a heck of a time drilling the right ear cap top locations.



Ear cap installed. I put too long a screw in the ear top and I dimpled the ear out a bit, I'll have to sand that flat.



Lynn


Lynn TXP 0369

Well-Known Hunter
More done.
Visor is in place with Chicago screws and mirror hangers.


Ears bolts are epoxied in. I put in three bolts each as they had a slight bow to them not allowing them to lay flat and I tried several times to heat them up and get them to lay flat without success so I decided this was the better way to go.


Lynn


hvacdon

Active Hunter
Looks great !! Your mirror holders pull the visor up nice and tight to the helmet......Top notch craftsmanship !!


Lynn TXP 0369

Well-Known Hunter

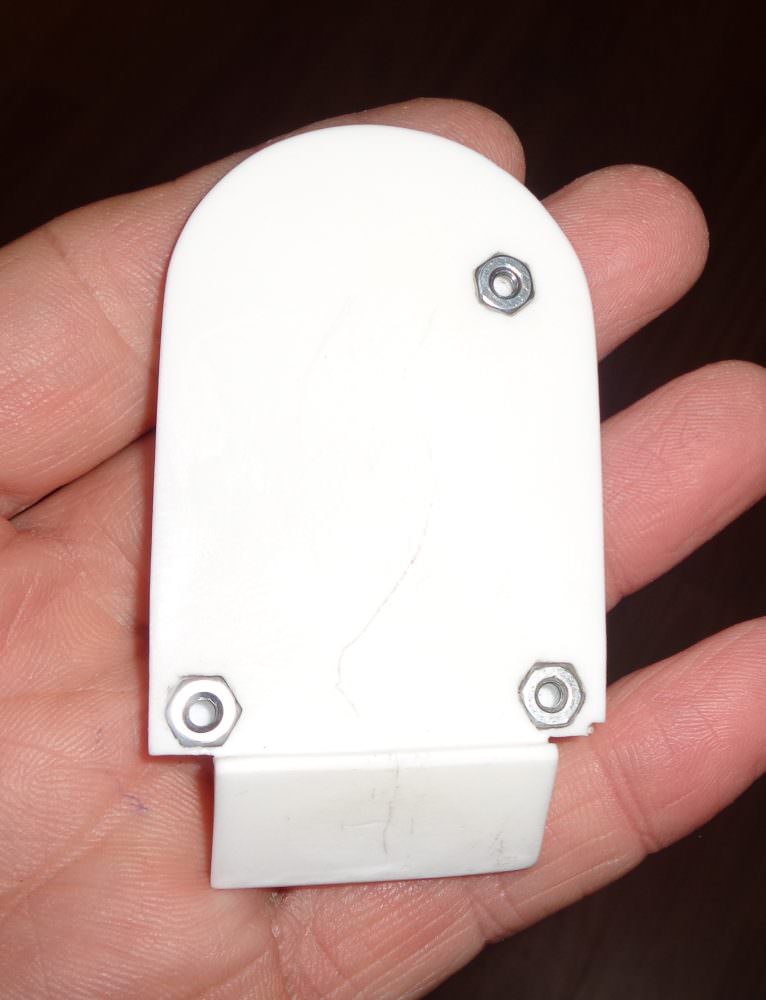

Calculator mounted to the back of helmet.

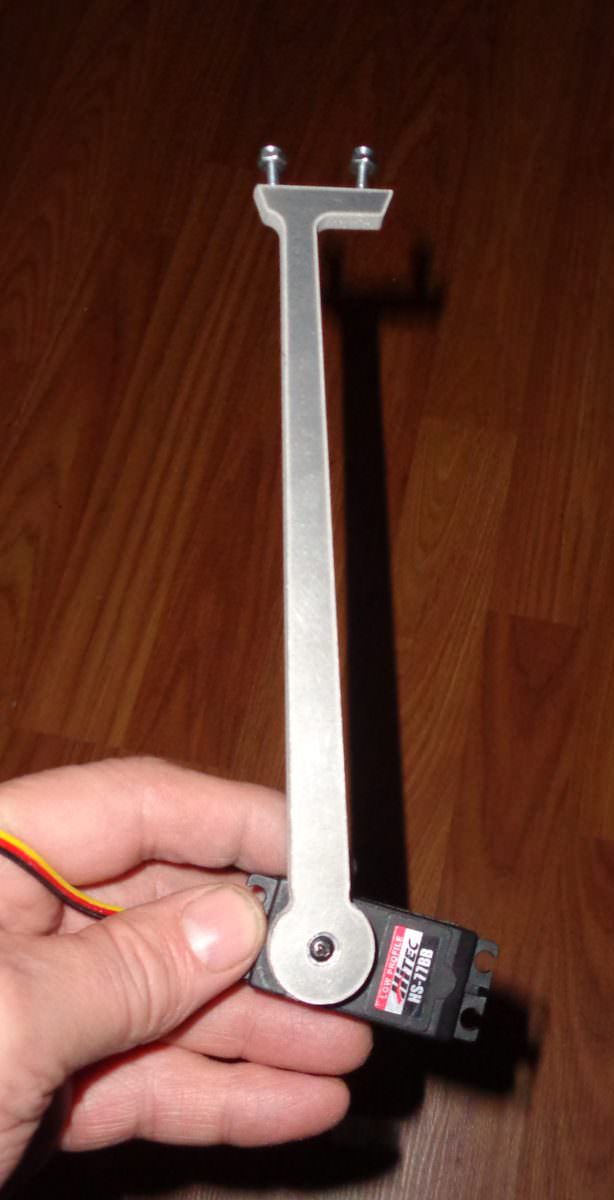

Trying to install servo, but failing, it is binding and not even mounted yet, I need to get some kind of coupler to extend it a bit.



Lynn
