Hello Hunters,

While the world seems to be going through strange times, the power of our hobby keeps us sane while we go insane over perfecting our builds. The Pre-Pro 2 Fett variant has grown to be my most favorite version of Boba, but specifically the flame thrower has been such a fascination of mine. Other than the paint colors and damage, the flame thrower and left gauntlet are the trademark features that set the suit apart.

In the making of the BHG CRL for the Pre-Production #2 suit, research spearheaded by jbdubz has led him and I to discover some parts that have been a mystery. A big thanks to Art Andrews for confirming the them.


1.) The "Flamer Tail"

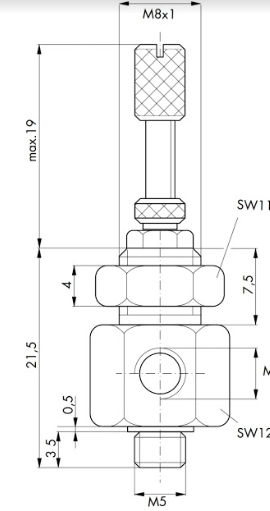

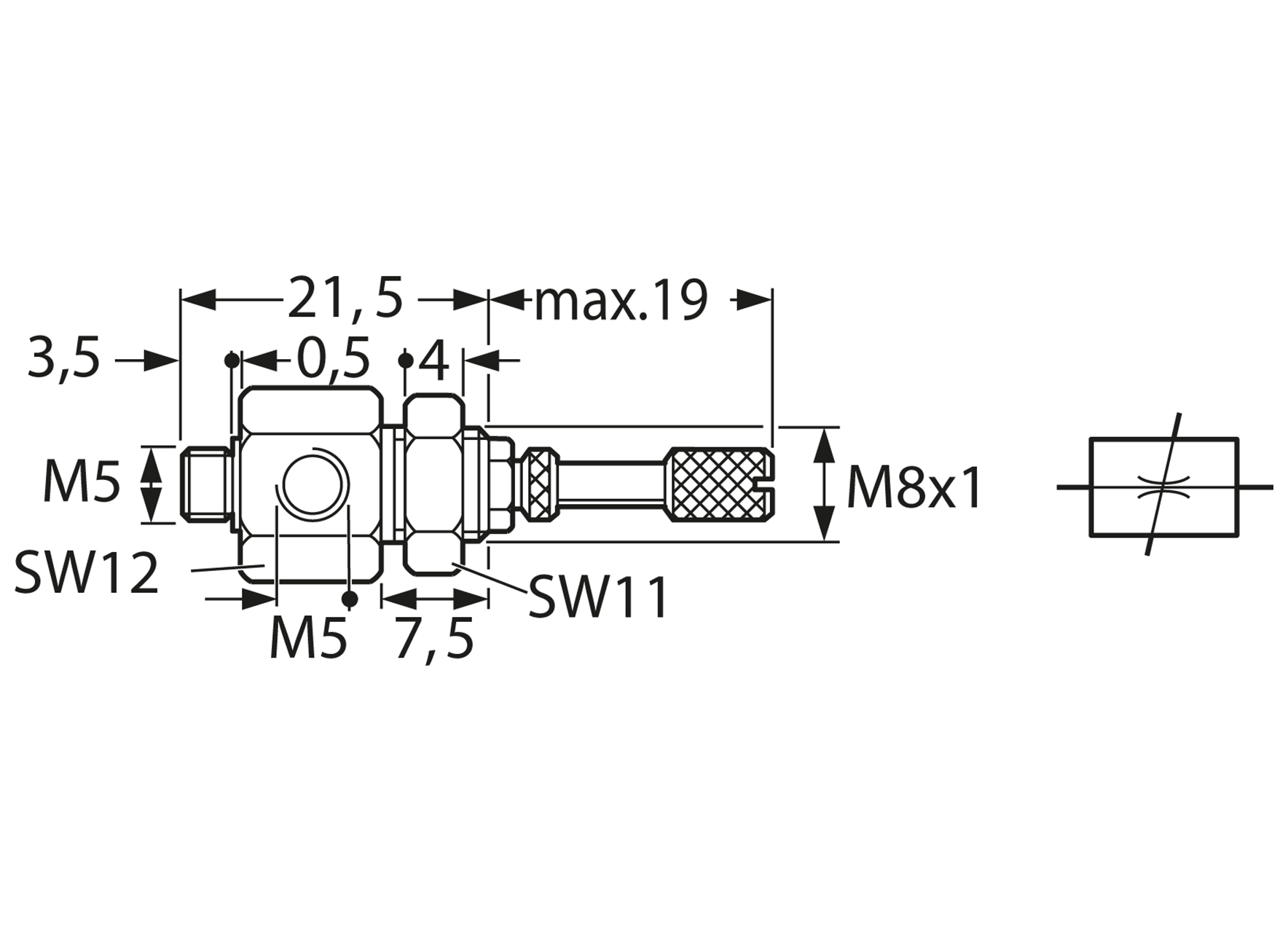

Jb found this part which kick started the rest. The "flamer tail" is the main body of the flamers rear assembly. It is a pneumatic device that has an adjustable stem to regulate flow volumes with a tamper proof nut that prevents tampering after proper adjustment is achieved. Material is brass.

It's produced Kuhnke, type 47.220



2.)"Tube eatter"

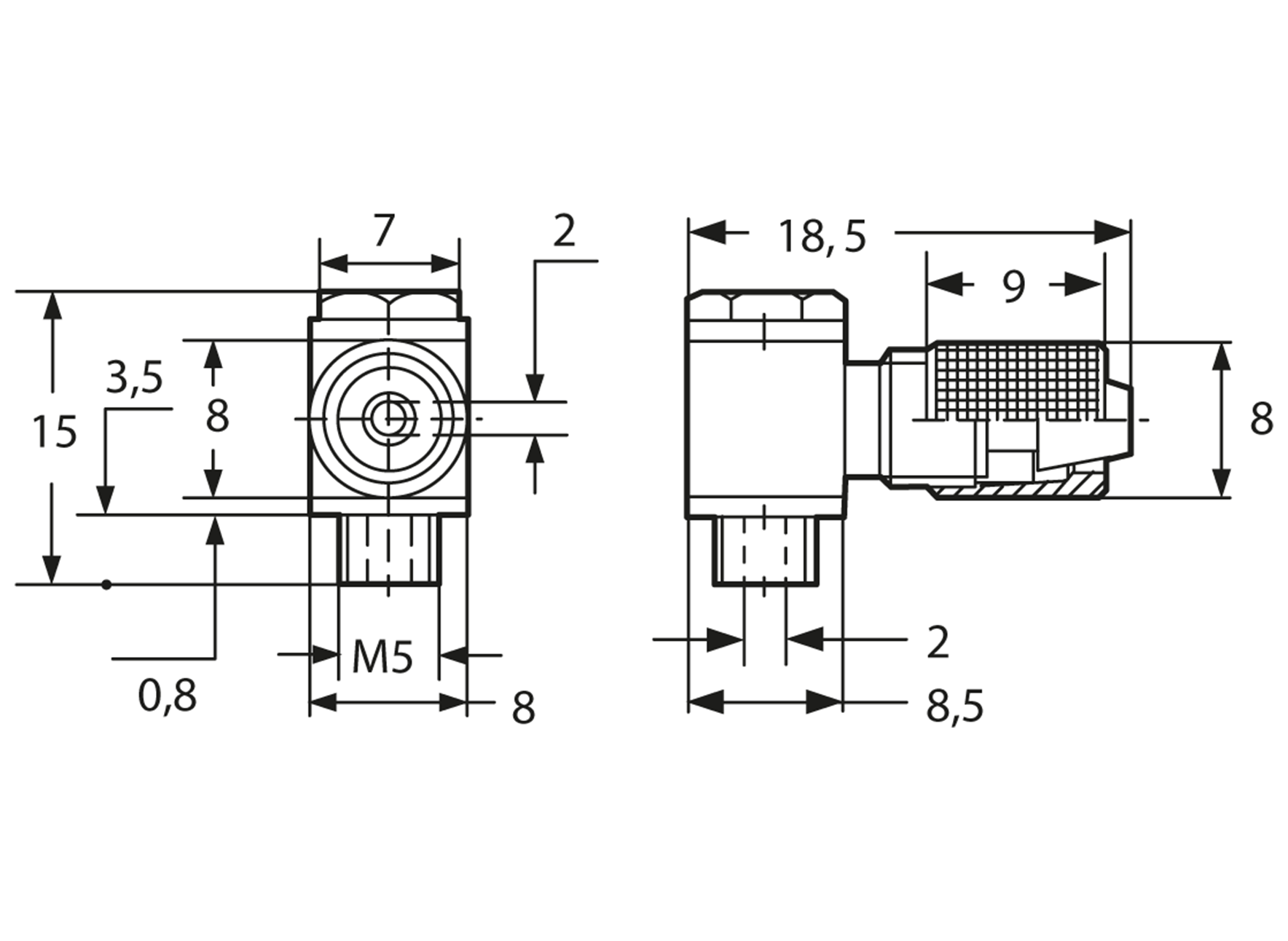

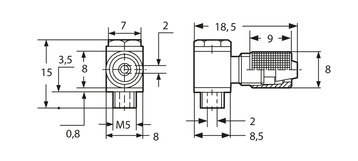

Soon after, it was obvious the other attachments were separate and it was not all one piece. I noticed a similar looking piece while browsing the manufacture's parts. The official name was "Banjo coupling", which holds a a 5 x 1 tube. The cylinder acts as a clamp to press the tubing against the male insert; while the banjo coupling itself screws into M5 hole on top of the 47.220 (flamer tail).

Kuhnke 50.130; brass, for 5 x 1 tubing

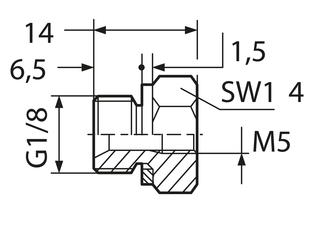

3.) Reducing Nipple Bolt (G 1/8 to M5)
Lastly, the flamer tail screws to this as the base of the flamer's tube via M5 hole.

Kuhnke 50.052


Everything together:




The Jetpack Greeblie


1.) That red thing

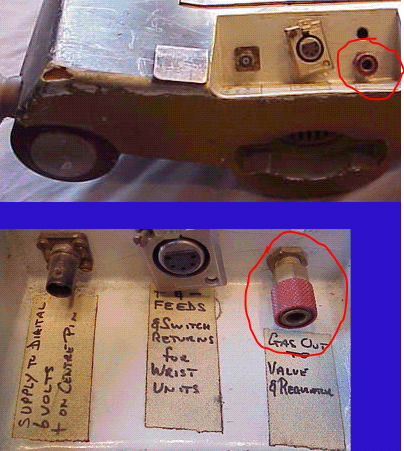

We've all seen it, but for those who don't know, most of the jetpacks have one reoccurring greeblie that everyone asks about. The other two are known.

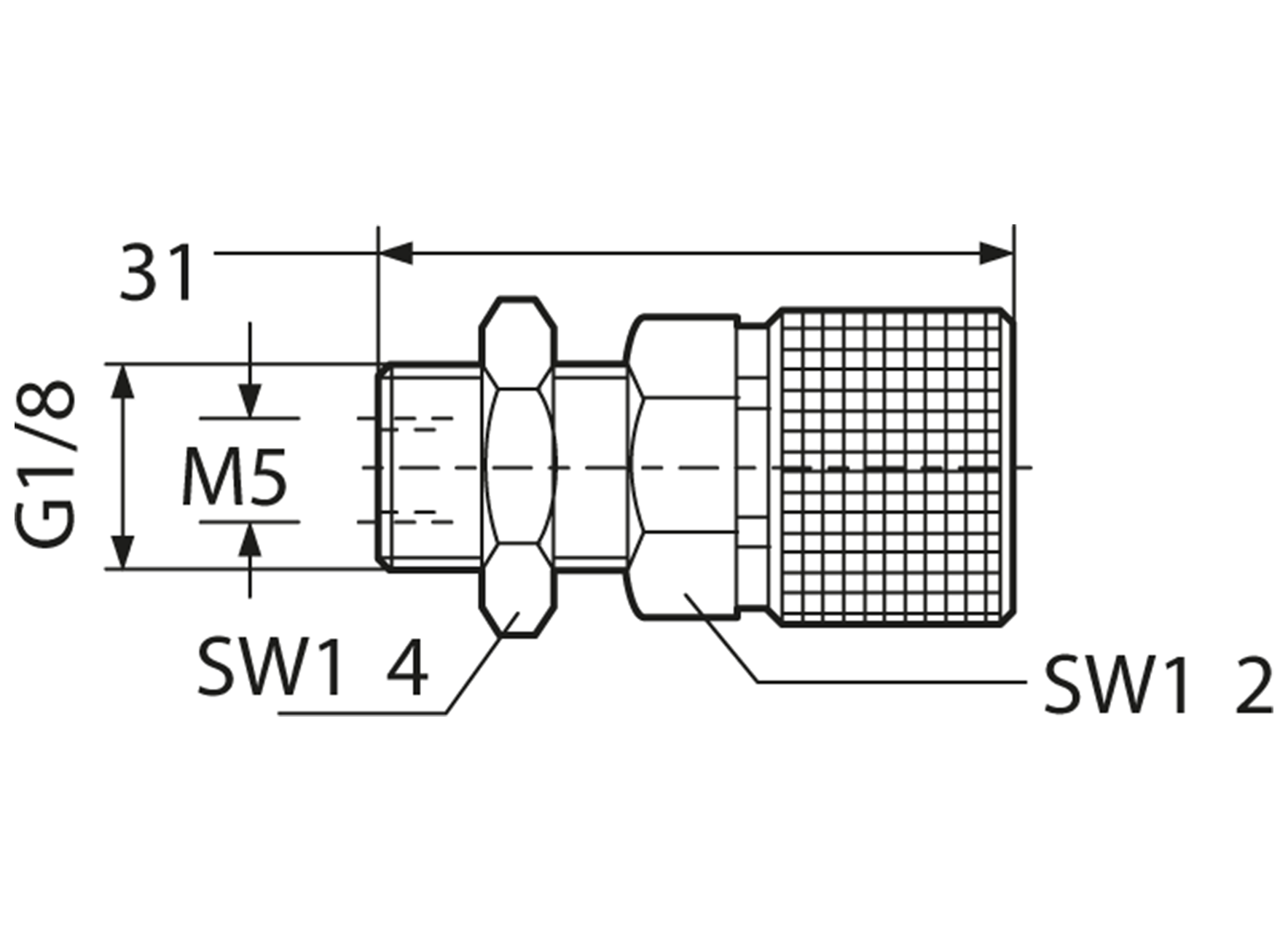

jbdubz discovered this part, which is a pneumatic quick release coupling. Which "are often referred to as quick connect or disconnect couplings; the self-sealing mechanism provides rapid connectivity for pressurised air lines without the requirement of firstly exhausting line pressure. They are ideal for applications where connection and disconnection is continuous, depressurisation of the device or potential wear and tear would otherwise be a problem, some good examples are air tools or pneumatic testing equipment."

Kuhnke 50 Series Pneumatic Quick Release Couplings - 50.061.02 (RED)


Attachments

Last edited:

sandtrooper8867

New Hunter
The more details revealed on the various Fetts, the more amazing it is that so much time was spent in details that wouldn't really show on screen. Mind blown!
As a kid I remember seeing the pictures of the pre-pro 2 with the flame attachment extended like this. Back then I assumed when Fett wasn't using it, it would retract into the gauntlet when not in use.


Brokk

Active Hunter
First post updated with pictures.
--
Awesome research! Sadly the day we will identify all the parts and pieces of the suit, that day the mystery of the character will fade...
Thank you, it would've have happend without Jb's help. & That maybe true for the hardcore enthusiast, but I feel it's left up to the wearer to preserve the mystery by emulating the likeness of how the character is.

Thanks for posting the HD blue prints

--

The more details revealed on the various Fetts, the more amazing it is that so much time was spent in details that wouldn't really show on screen. Mind blown!
As a kid I remember seeing the pictures of the pre-pro 2 with the flame attachment extended like this. Back then I assumed when Fett wasn't using it, it would retract into the gauntlet when not in use.
Ya there's something about the Pre Pro 2 flame thrower. Its minimalistic- tubing, a nozzle and thick wire... It's simply badass


Boochman

Active Hunter
I JUST posted about the quick-disconnect. So many of them out there, but none look like this - thank you so much for the information!

now who wants to split an order with me!?! Hahahaha!


boba87fett

Active Hunter
I will be placing an order for Boochman and I soon. If you are stateside and want it, let me know ASAP. We are splitting shipping and then he is paying for shipping to him from me. Right now we are at about $40 each for one shipped. Price will come down with a couple more orders to offset the $30 in shipping from the UK.
