Just noticed this on one of my ref photos whilst finishing off my sidewinder EE-3, apologies if its been brought up before
Extra ESB Greeblies???
- Thread starter HeadlessHunter
- Start date
SaxeCoburg
Active Hunter
That's the spring loaded "pipe clamp" that holds the scope "base" to the barrel
DL44 Blaster
Well-Known Hunter
ditto....................
HeadlessHunter
Well-Known Hunter
Ok next question, who else has relpicated this on their EE-3? I dont seem to remember seeing any others like this so come on guys show em if you got em
Prymer13
Well-Known Hunter
You know, this thread has me thinking and looking around and I came across an option that I had not thought of before...

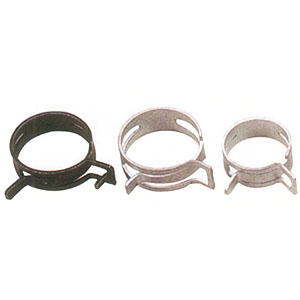

Spring-loaded hose clamps...
What do you guys think?
Maybe even this:
http://www.kshoseclamp.com/pipe_clamp_ks-106.htm
Spring-loaded hose clamps...
What do you guys think?
Maybe even this:
http://www.kshoseclamp.com/pipe_clamp_ks-106.htm
Boba Fett
Active Hunter
Ok next question, who else has relpicated this on their EE-3? I dont seem to remember seeing any others like this so come on guys show em if you got em
I can personally say that I have not.
HeadlessHunter
Well-Known Hunter
I admit Ive had similar thoughts with regards to getting a clamp to go over my flash tube, its just a matter of finding one that looks the same, in the picture it seems the clamp has two identical 'Protusions' and they certainly appear to be at a 90 degree angle to one another, this may not be the case though so has anyone got any better photos they could share? Thanks for the link Darren
Thanks for the link Darren
Prymer13
Well-Known Hunter

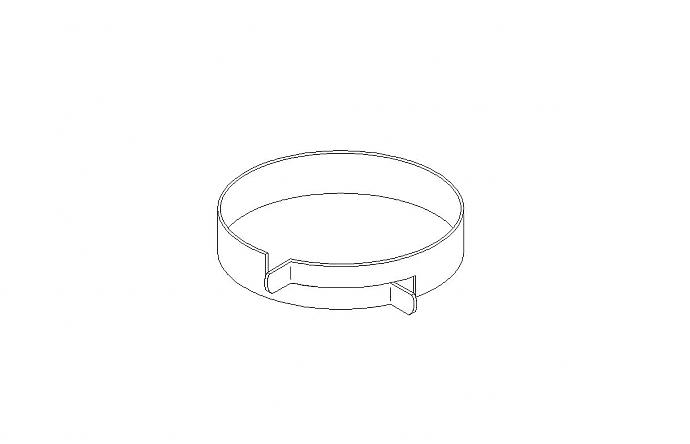

Anytime bro. This thread has me thinking along lines that I had earlier dismissed. The clamp almost appears like it would have a machine screw that would go between the two tabs to draw the clamp into a tight closed position around a pipe or tube.
I am going to break out my Grainger and MacMaster-Carr catalogs to see what I can find.
I am going to break out my Grainger and MacMaster-Carr catalogs to see what I can find.
HeadlessHunter
Well-Known Hunter

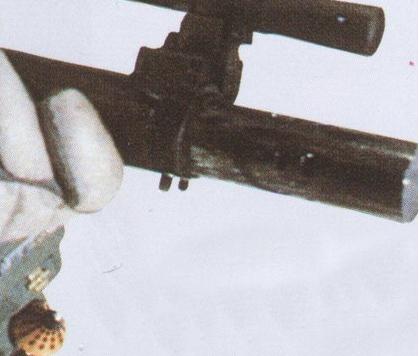

Yeah that looks good, but, Ive cut out the section of the photo and to me they look like the threads of 2 screws, also I cant make out whether theyre coming out of the bottom of the scope mount itself? :confused
Sidewinder
Active Hunter
Um, similar but not the same, the two tangs on the Fett are narrower than the band round the tube, unlike on your found item.
The bolts sticking out idea has got something about it - bolted through the flash and through the mount, holding the flash in?
SAS
The bolts sticking out idea has got something about it - bolted through the flash and through the mount, holding the flash in?
SAS
HeadlessHunter
Well-Known Hunter
And it does apprear there are nuts at the top of the 'threads'
Sidewinder
Active Hunter
I'm not sure about that, d'you mean the silver 'bands' - I think they look too narrow and not tall enough to be nuts. I was thinking maybe the mount/tube was threaded and the lighter bits are where fresh thread has been revealed by extra tightening at some point. ?
SAS
SAS
SaxeCoburg
Active Hunter
Guy’s I really don’t think these clamps have any sort of nut or screw. IMHO, they are spring loaded, if you look at the rear clamp (the one closest to the trigger), you will notice that the little numbs sticking down are closer together compared to the front. Speculating that the two clamps would be the same size, this would be correct, the numbs would be further apart, because the diameter of the flash tube would be smaller. It’s hard to explain. I wish we could ID these parts once and for all.
HeadlessHunter
Well-Known Hunter
I like it, nice work, Id dearly love to know what this part is, continue the speculating, its fun
HeadlessHunter
Well-Known Hunter
Whilst searching various plumbing supply websites I found this familiar looking item, called an 'Adjustable Band Hanger' looks spookily like a scope mount to me
Sidewinder
Active Hunter
Put two bolts through it at the bottom to secure the flash...
