Hello everyone,

It's been a long while, I use to be pretty active on here about a decade ago (how has it been that long?!). Between getting pulled from rotations because of COVID and waiting for graduation next month, our wedding getting postponed, and waiting to start residency in June, I figured with all the down time I would give a go at painting a Boba helmet. I ended up ordering the Rubies bucket off Amazon, and have been using Rust-oleum spray paints and masking method so far.

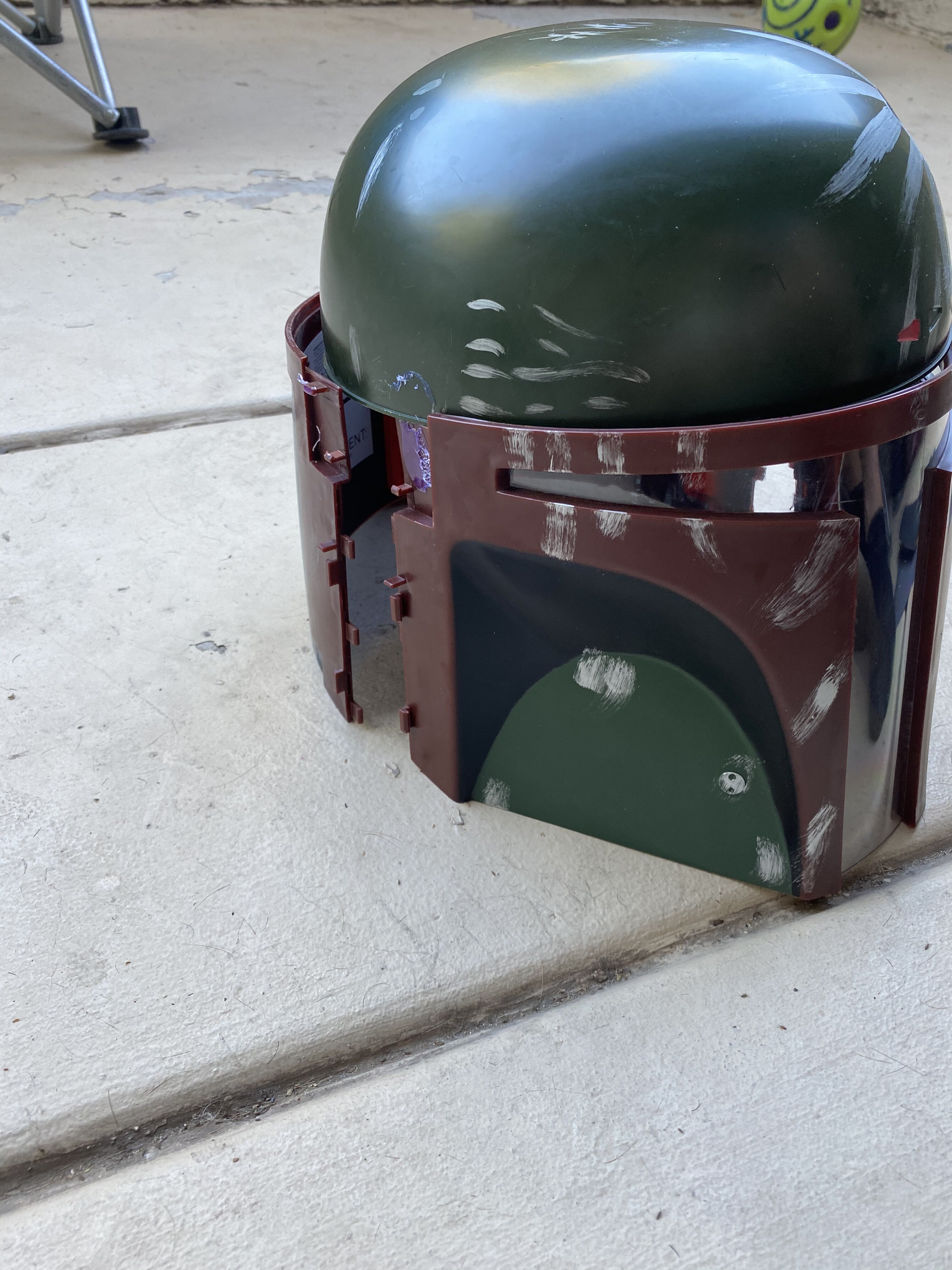

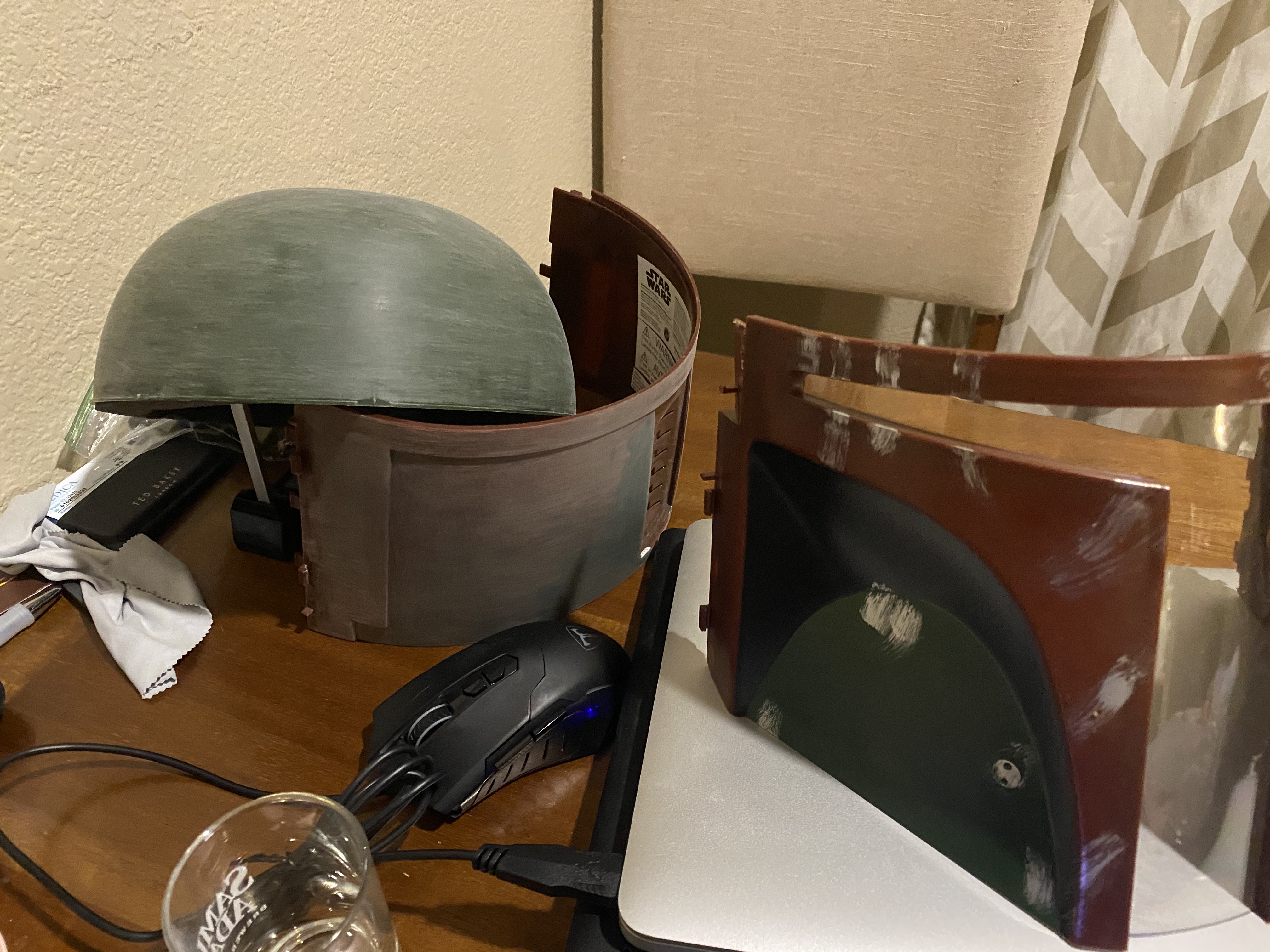

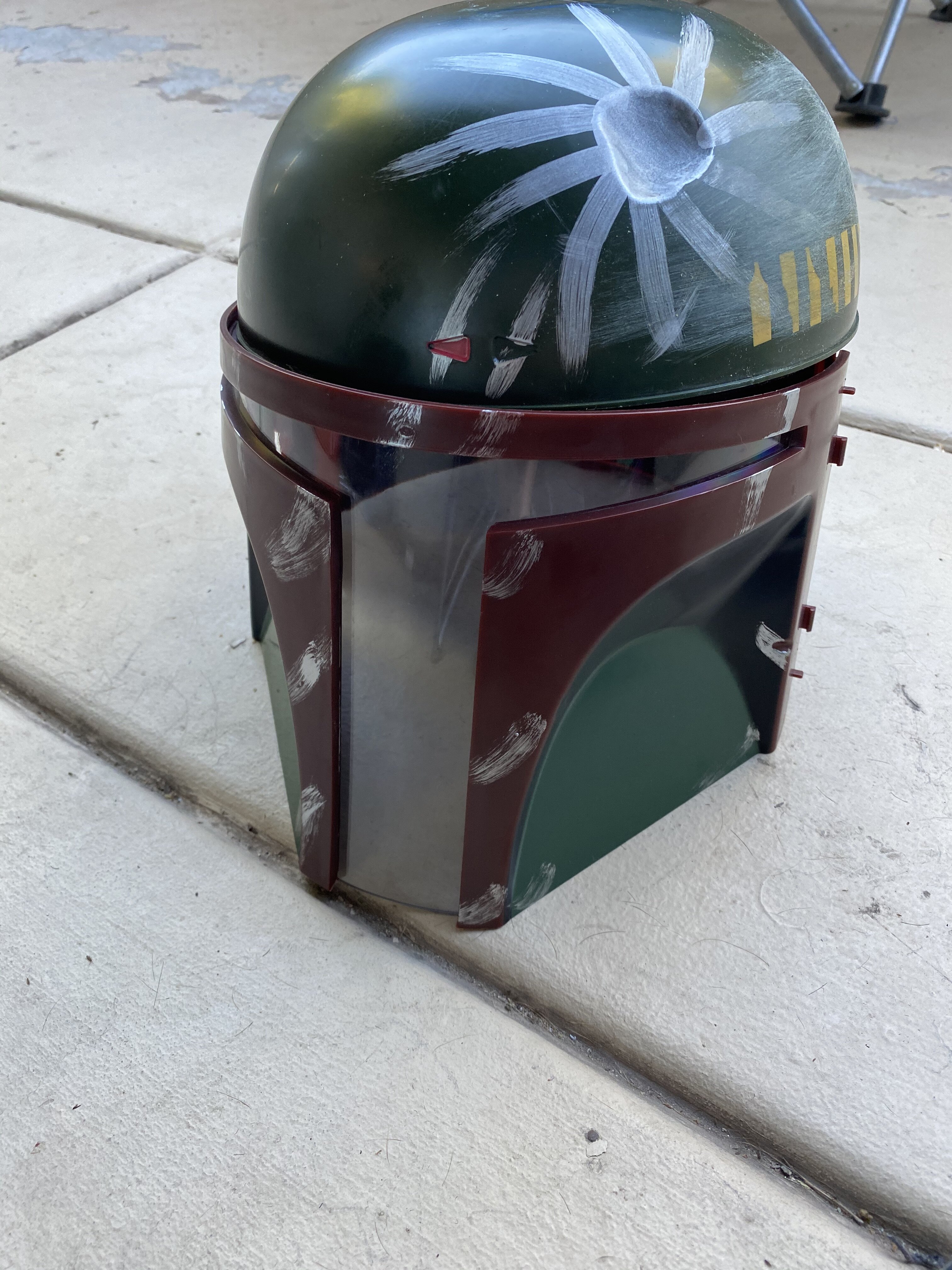

Before pictures after I took the helmet apart
IMG_1002.jpeg IMG_1004.jpeg

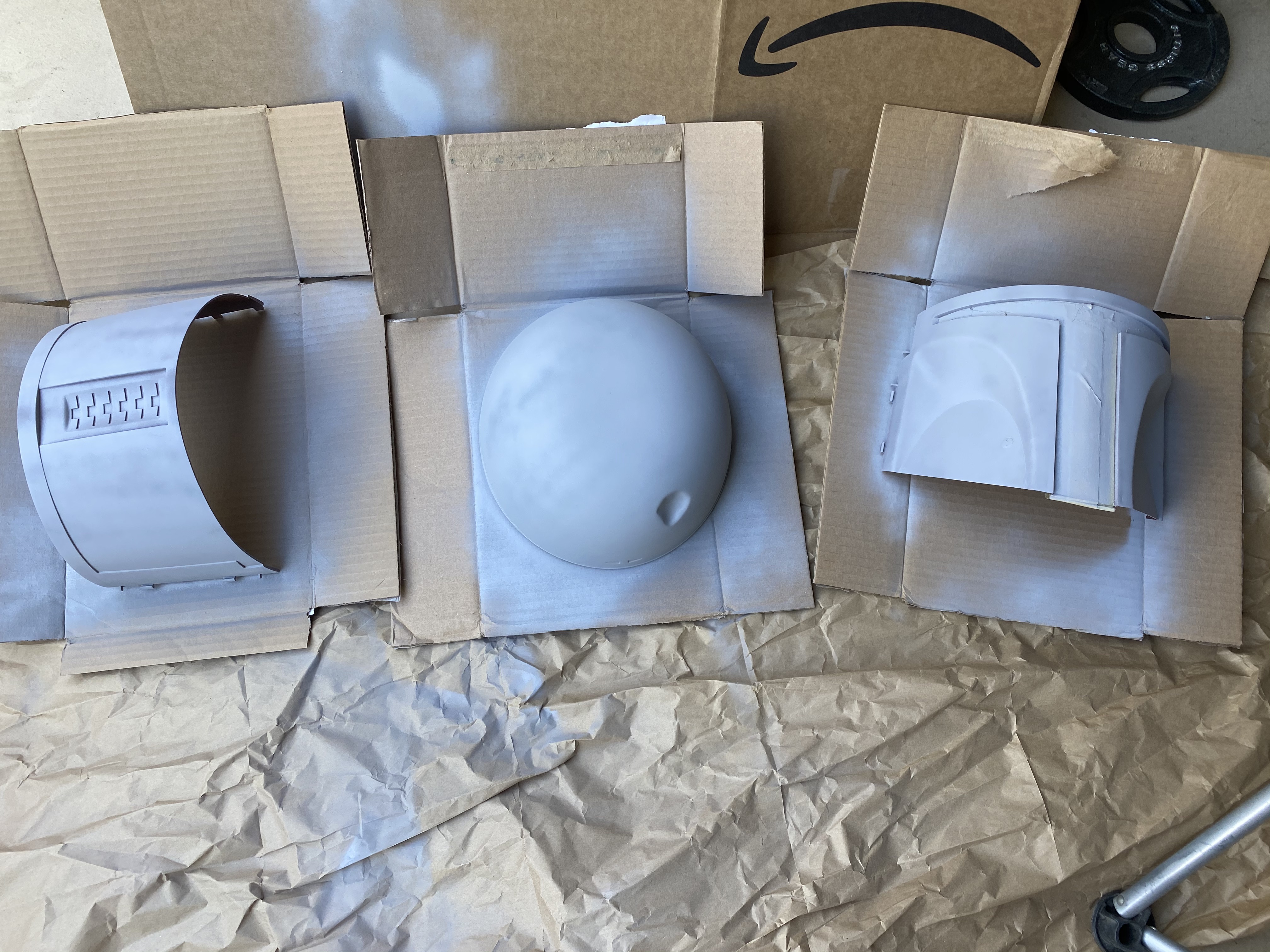

Started sanding everything down and applied a coat of primer and then reassembled it.
IMG_1005.jpeg IMG_1040.jpeg IMG_1047.jpeg IMG_1052.jpeg

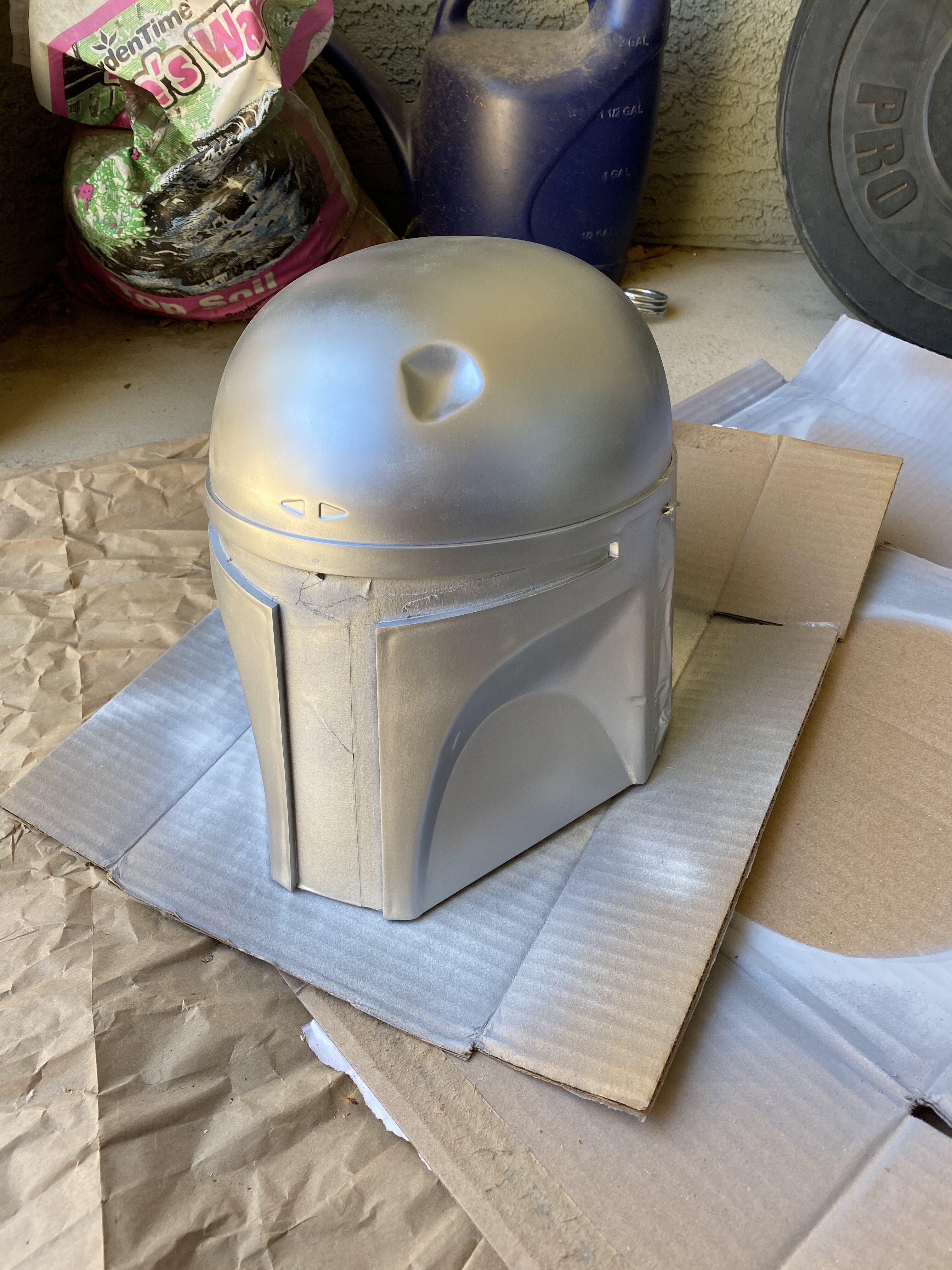

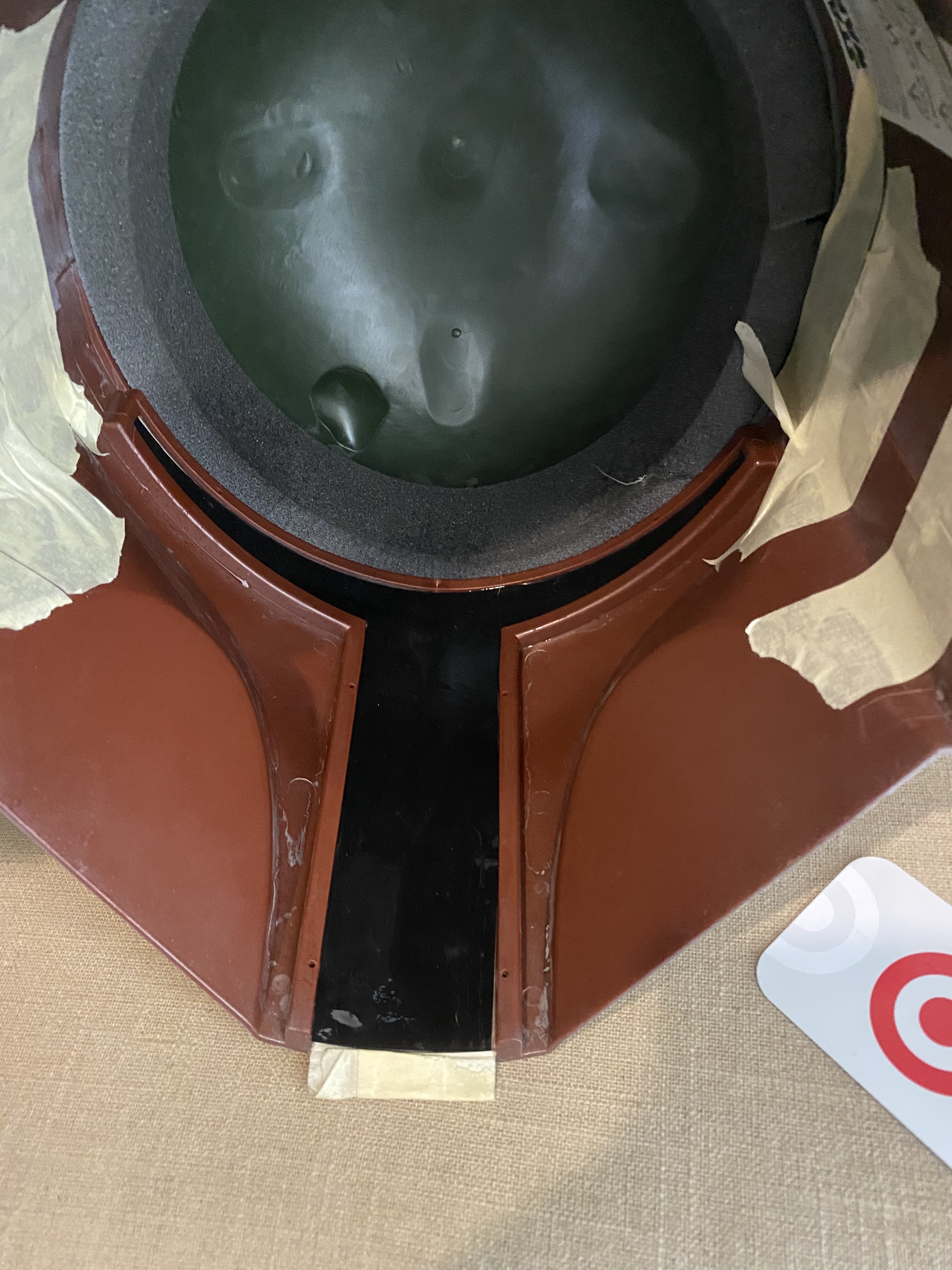

Gave it a coat of silver and installed car window tint to the visor.
IMG_1054.jpeg IMG_1072.jpeg


ACSS2

Active Hunter

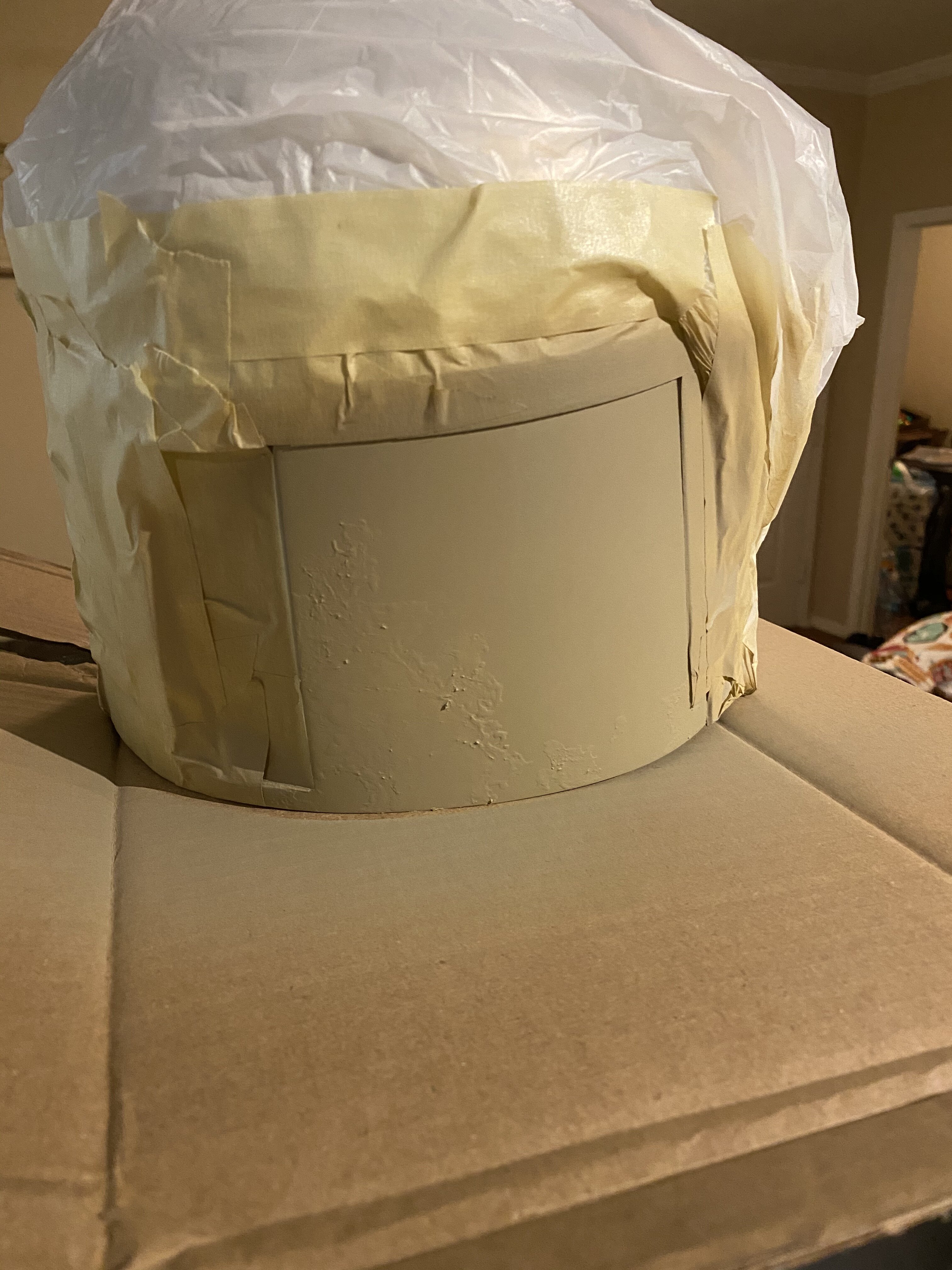

Was my first time using masking fluid, was surprised how easy it was to use. Decided to give the back panels a try first. Color is Rust-Oleum Camouflage tan
IMG_1077.jpeg IMG_1078.jpeg IMG_1083.jpeg IMG_1084.jpeg

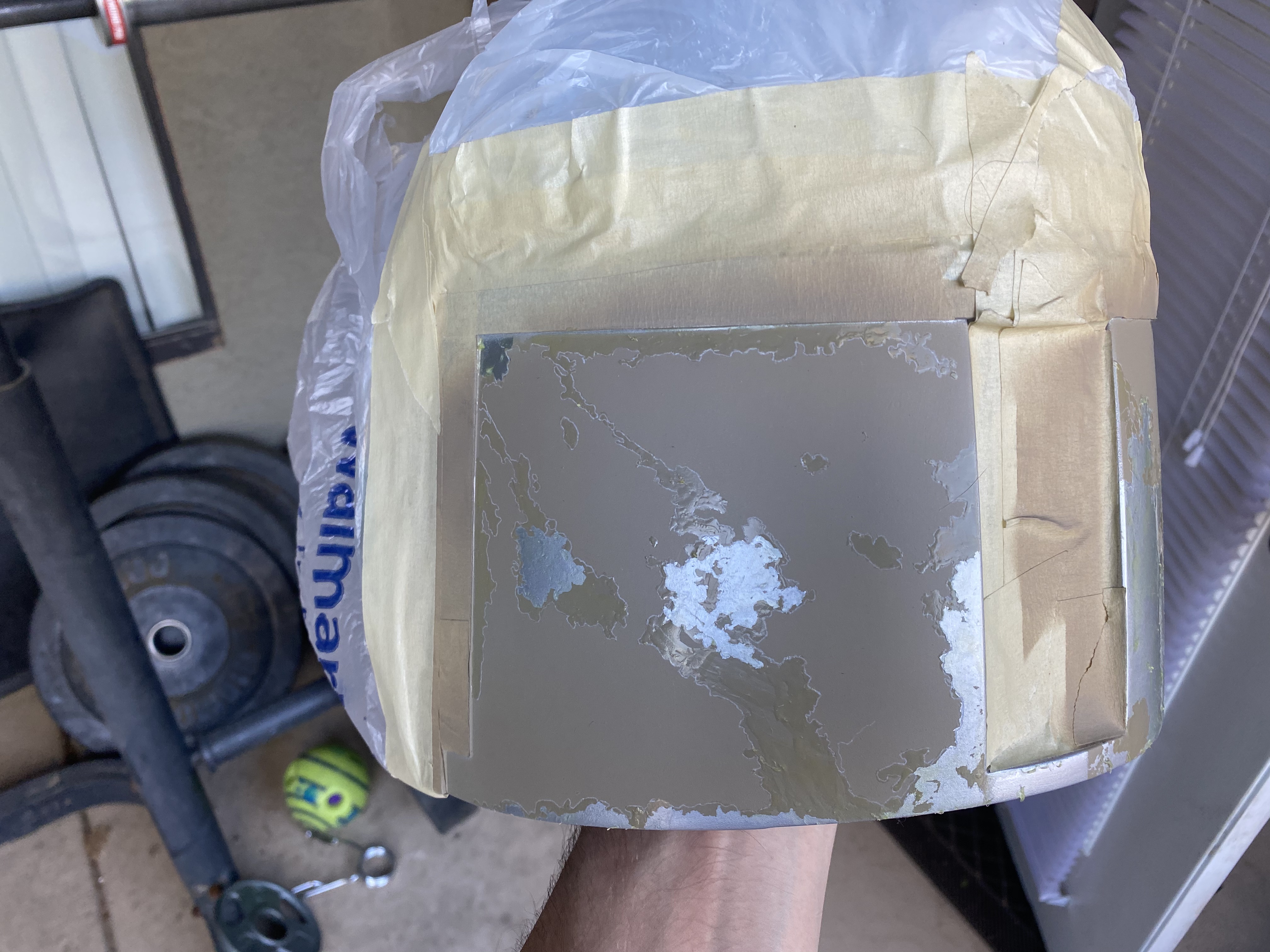

Second layer of masking on the back panels. I used Rust-Oleum 2x Paint and Primer Deep Forrest green.
IMG_1123.jpeg IMG_1124.jpeg IMG_1125.jpeg IMG_1126.jpeg


ACSS2

Active Hunter

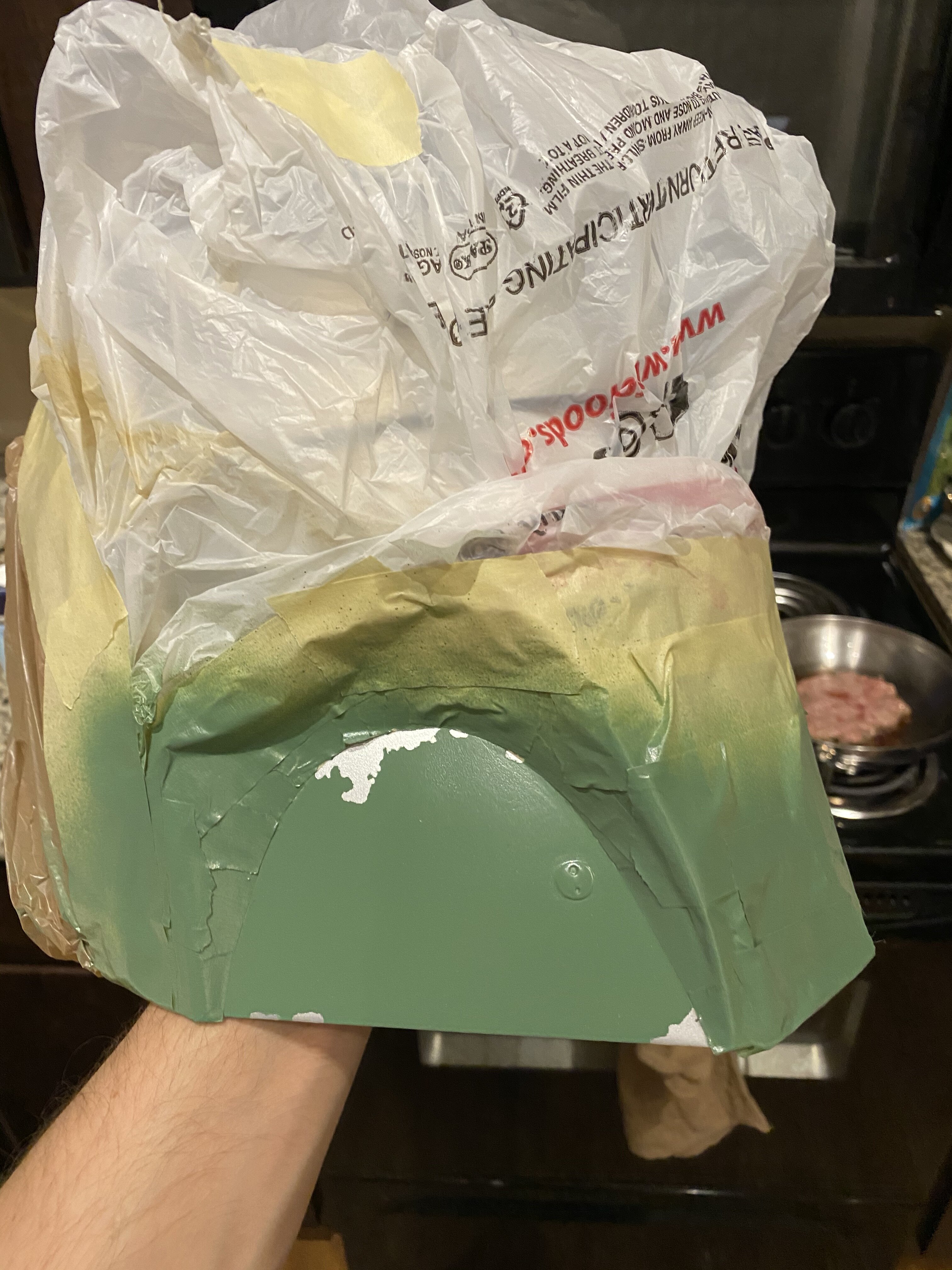

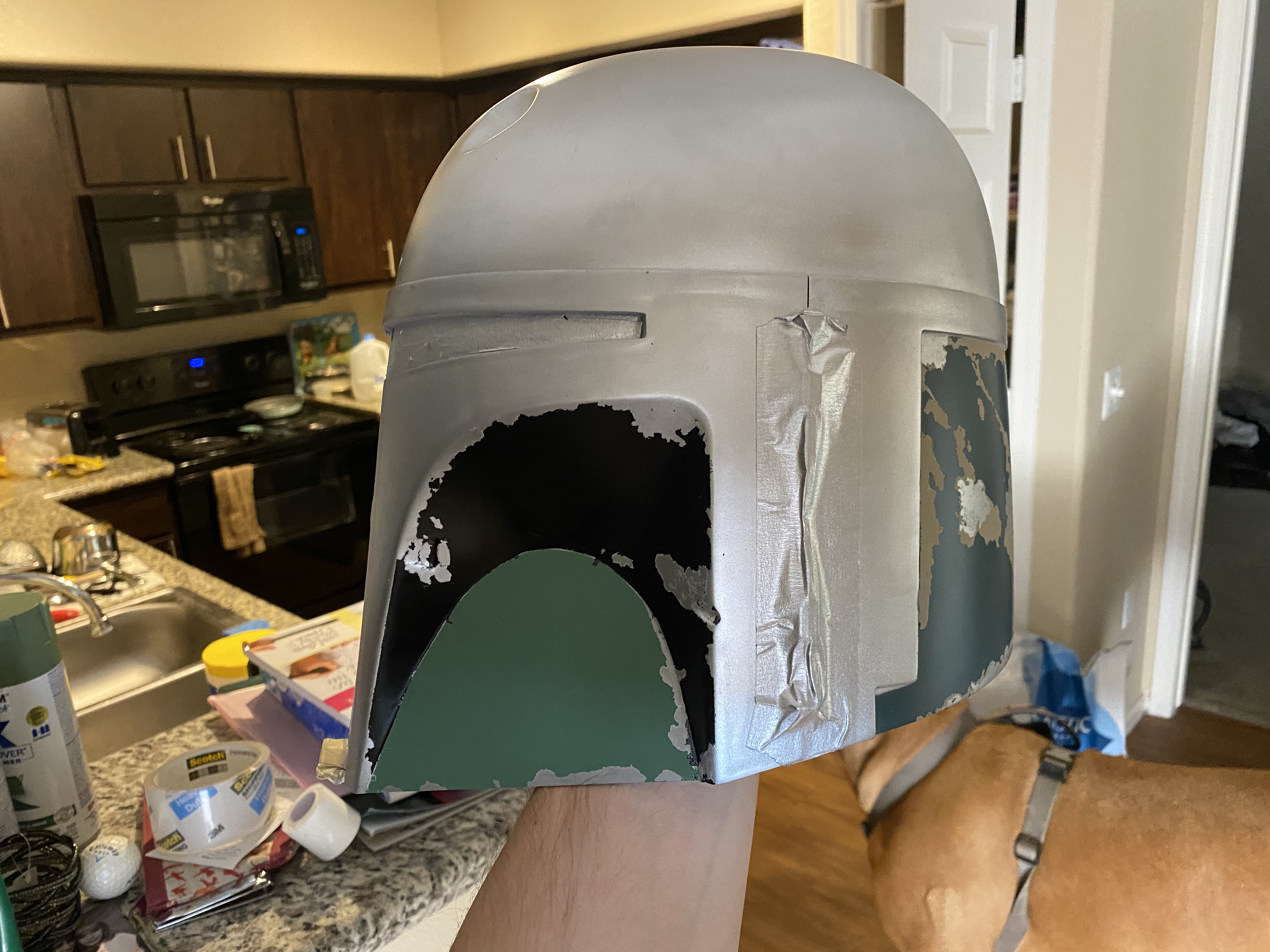

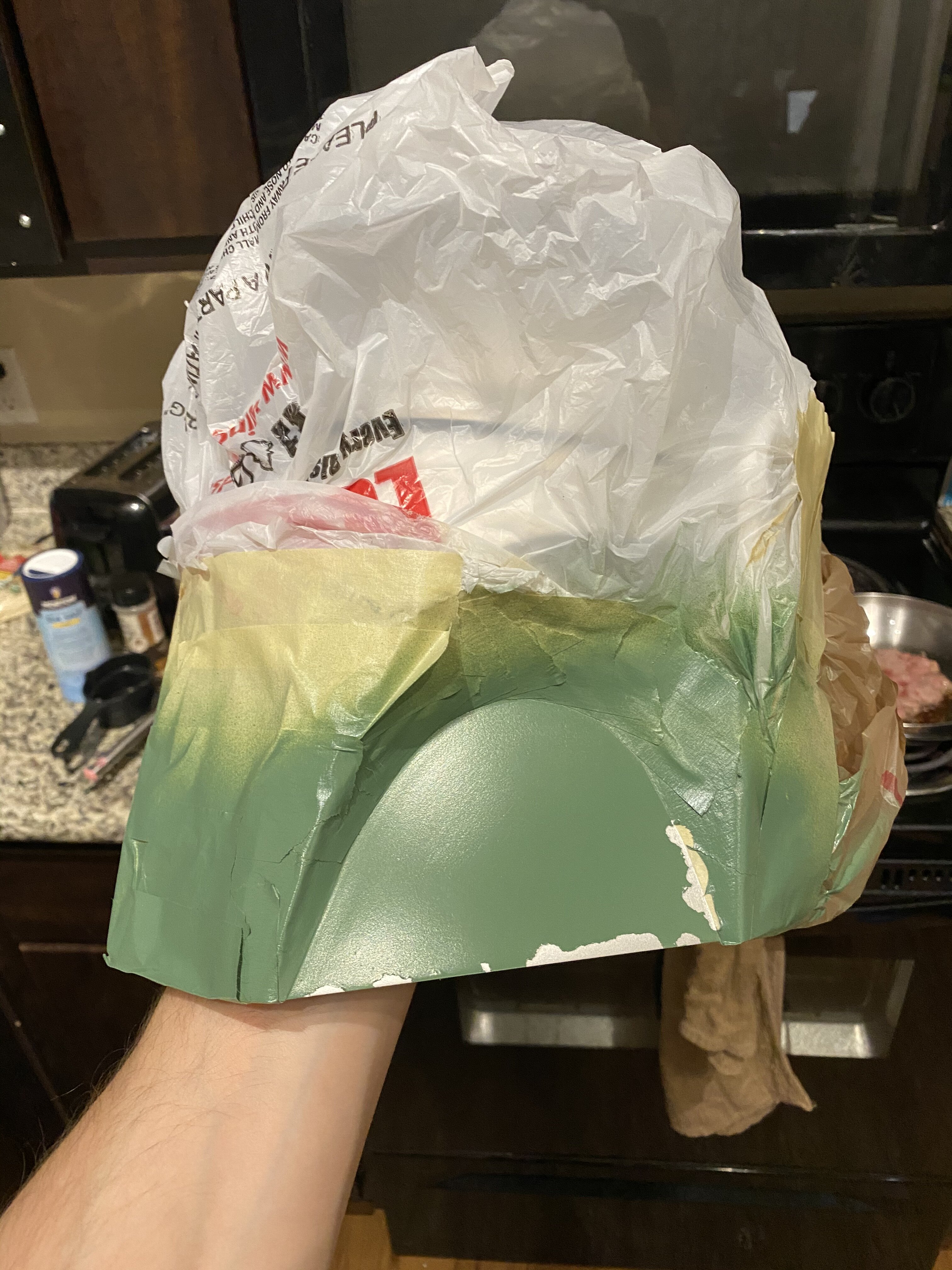

For the lower cheeks I used Rust-Oleum 2x Paint and Primer Satin Moss Green and Black for the upper cheeks.
IMG_1097.jpeg IMG_1098.jpeg IMG_1142.jpeg IMG_1144.jpeg

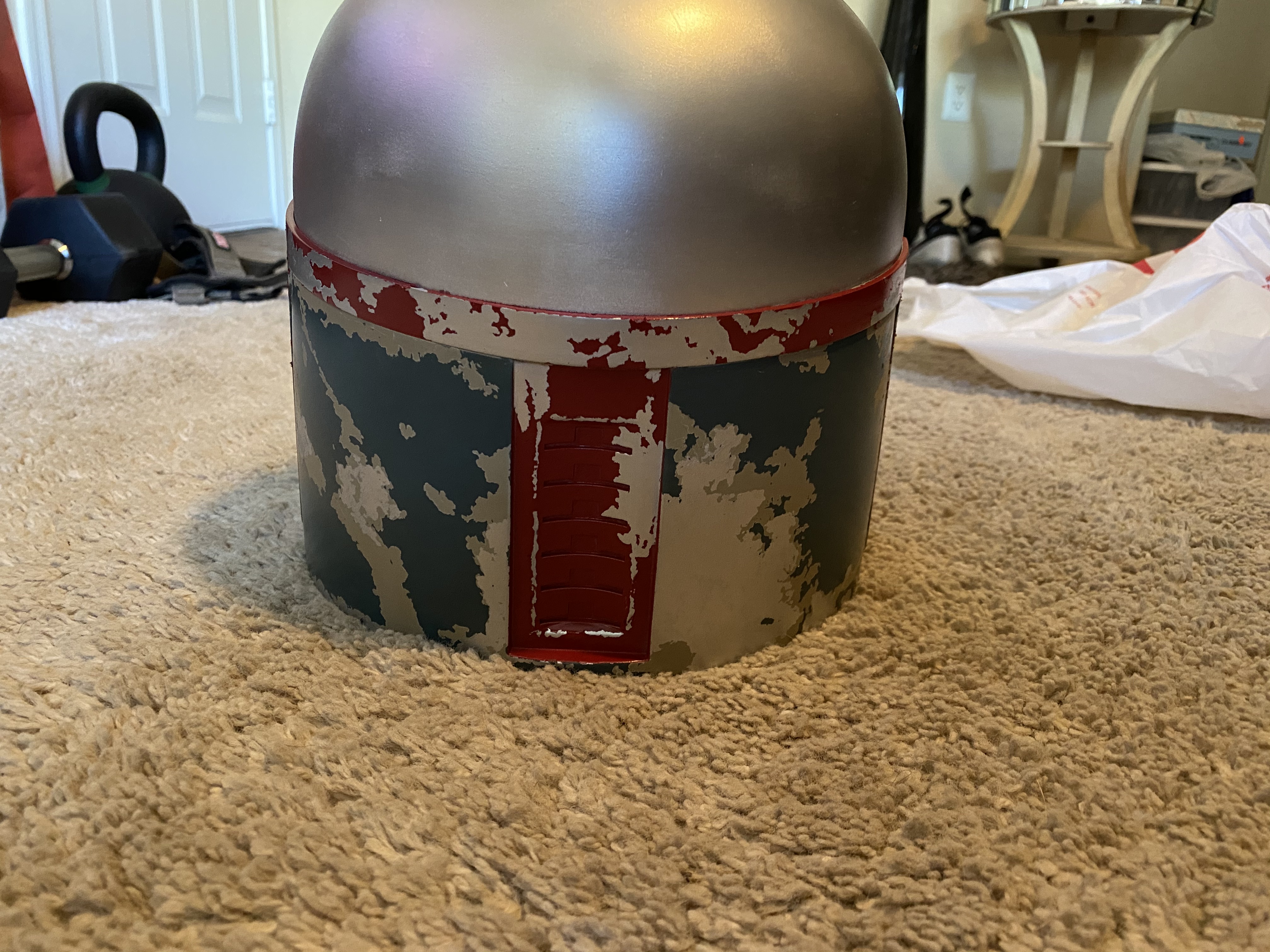

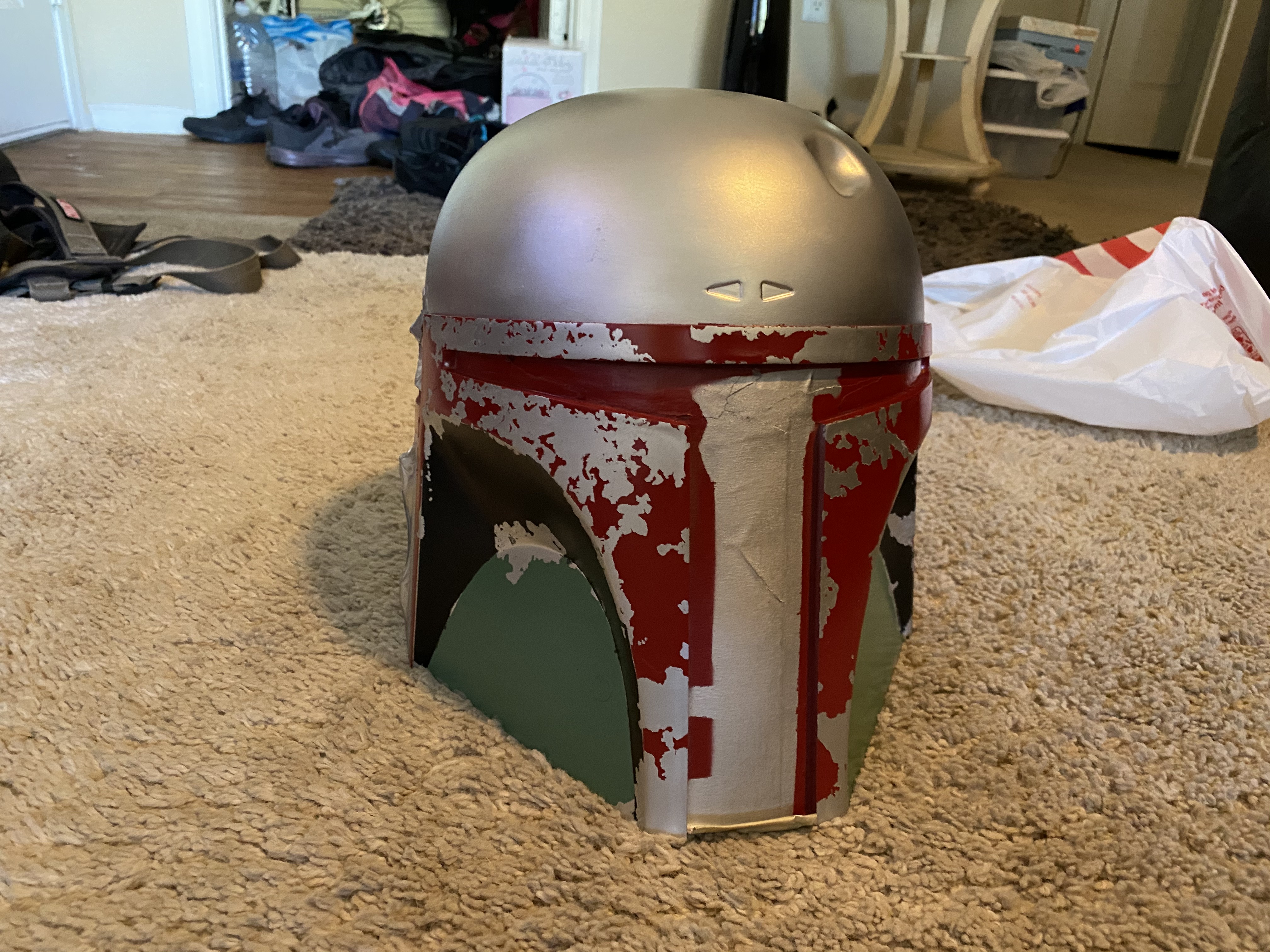

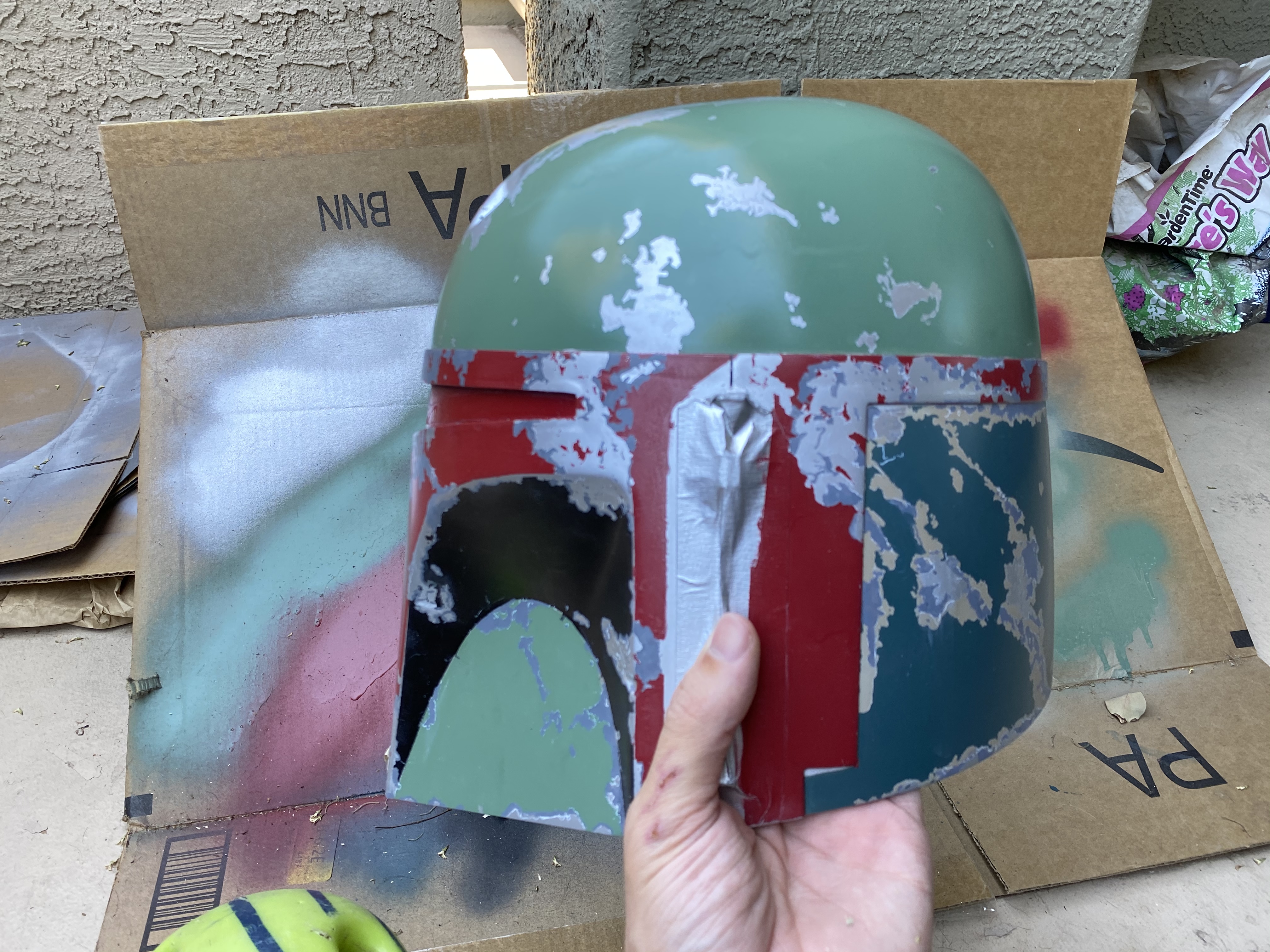

For the mandibles I used Colonial Red.
IMG_1173.jpeg IMG_1175.jpeg IMG_1177.jpeg

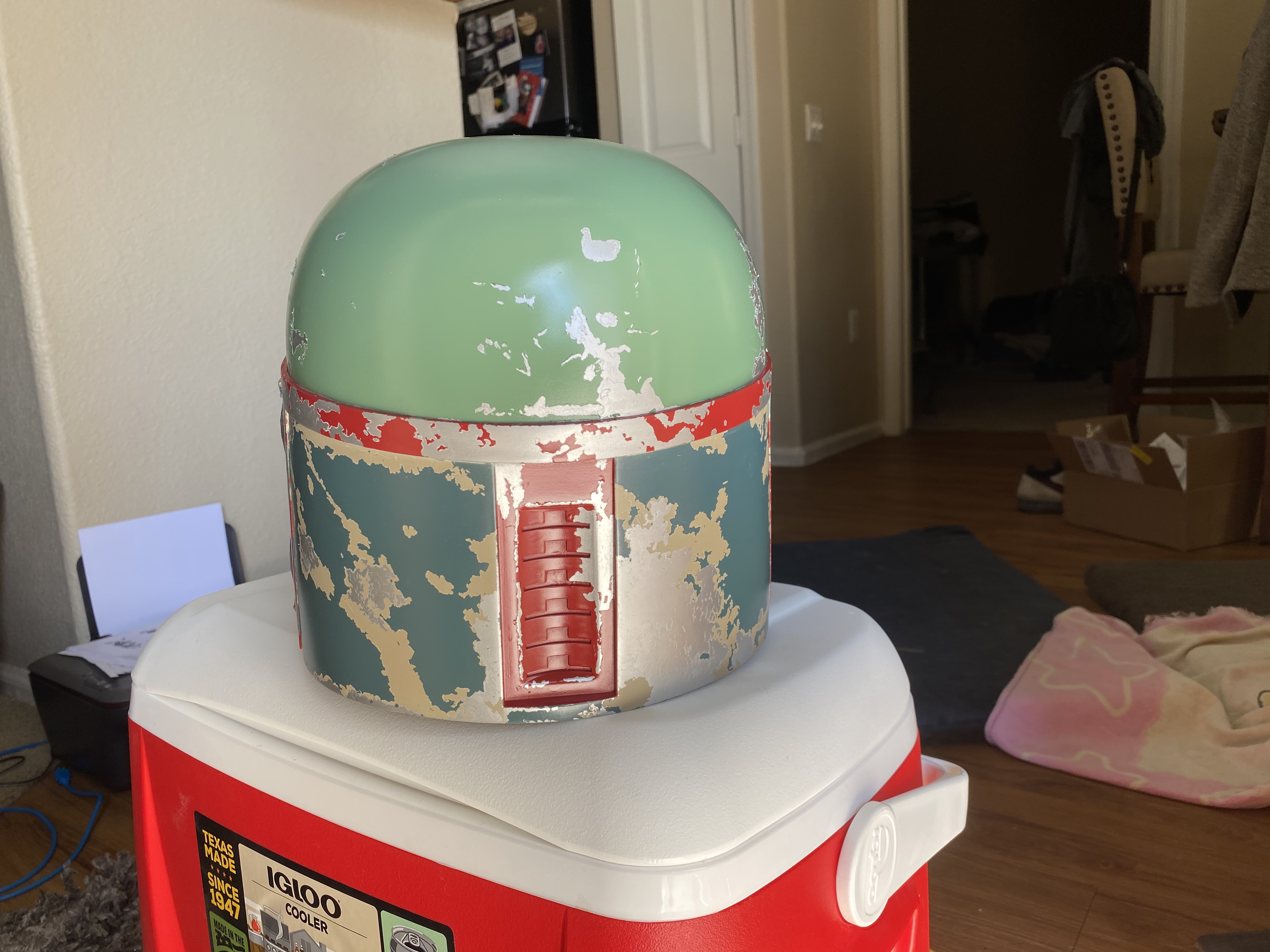

Finally put the last layer of green on.
IMG_1193.jpeg IMG_1194.jpeg IMG_1195.jpeg


droidbait

Active Hunter
For the lower cheeks I used Rust-Oleum 2x Paint and Primer Satin Moss Green and Black for the upper cheeks.
View attachment 188895 View attachment 188896 View attachment 188897 View attachment 188898

For the mandibles I used Colonial Red.
View attachment 188899 View attachment 188901 View attachment 188902

Finally put the last layer of green on.
View attachment 188903 View attachment 188904 View attachment 188905
Oh dang!!! I love seeing rattle can paintworkx. Cant wait to see more!


ACSS2

Active Hunter

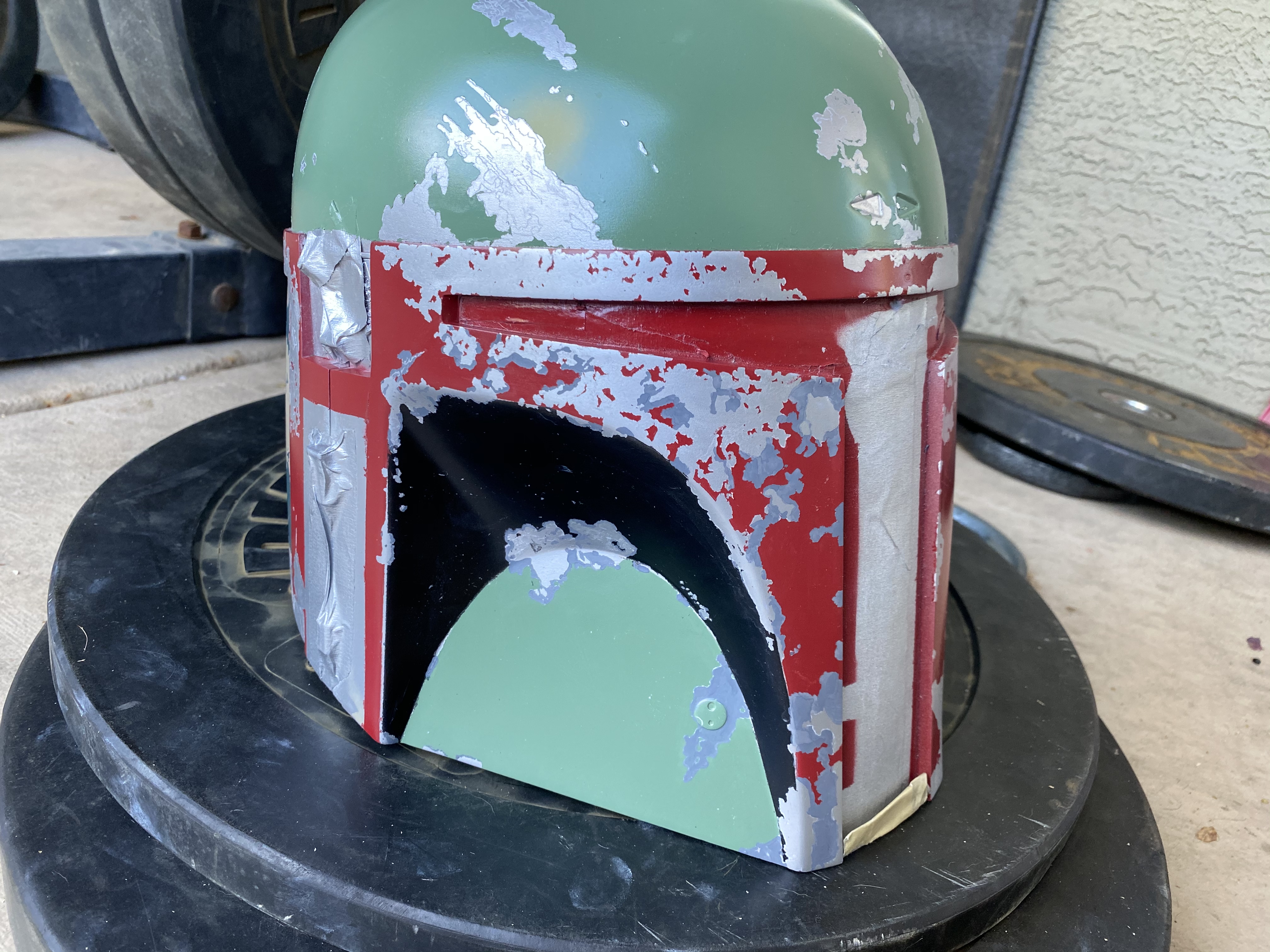

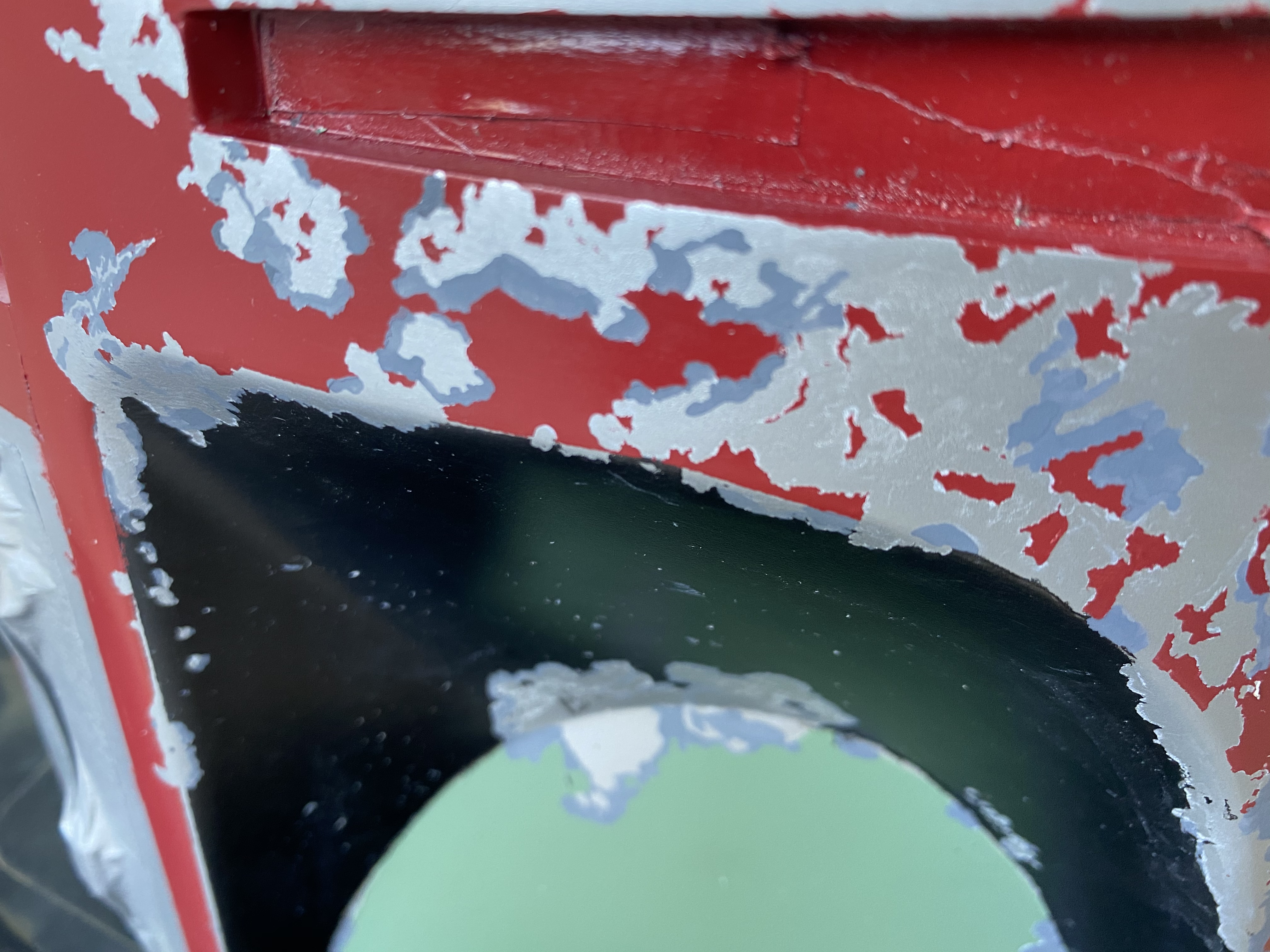

Thanks to superjedi I found some Testors paint to add the gray details. I originally tried just regular acrylic paint but was too thick and left big brush streaks so I had to get that all off and try again. Hopefully I’ll get all the gray done this week. They were out of the dark red so I’ll have to add that once I order some.
D0950511-8D86-43D6-8DA7-A299F2D133DF.jpeg A3B40861-8D93-4314-9549-ABEC74D56DB4.jpeg


ACSS2

Active Hunter

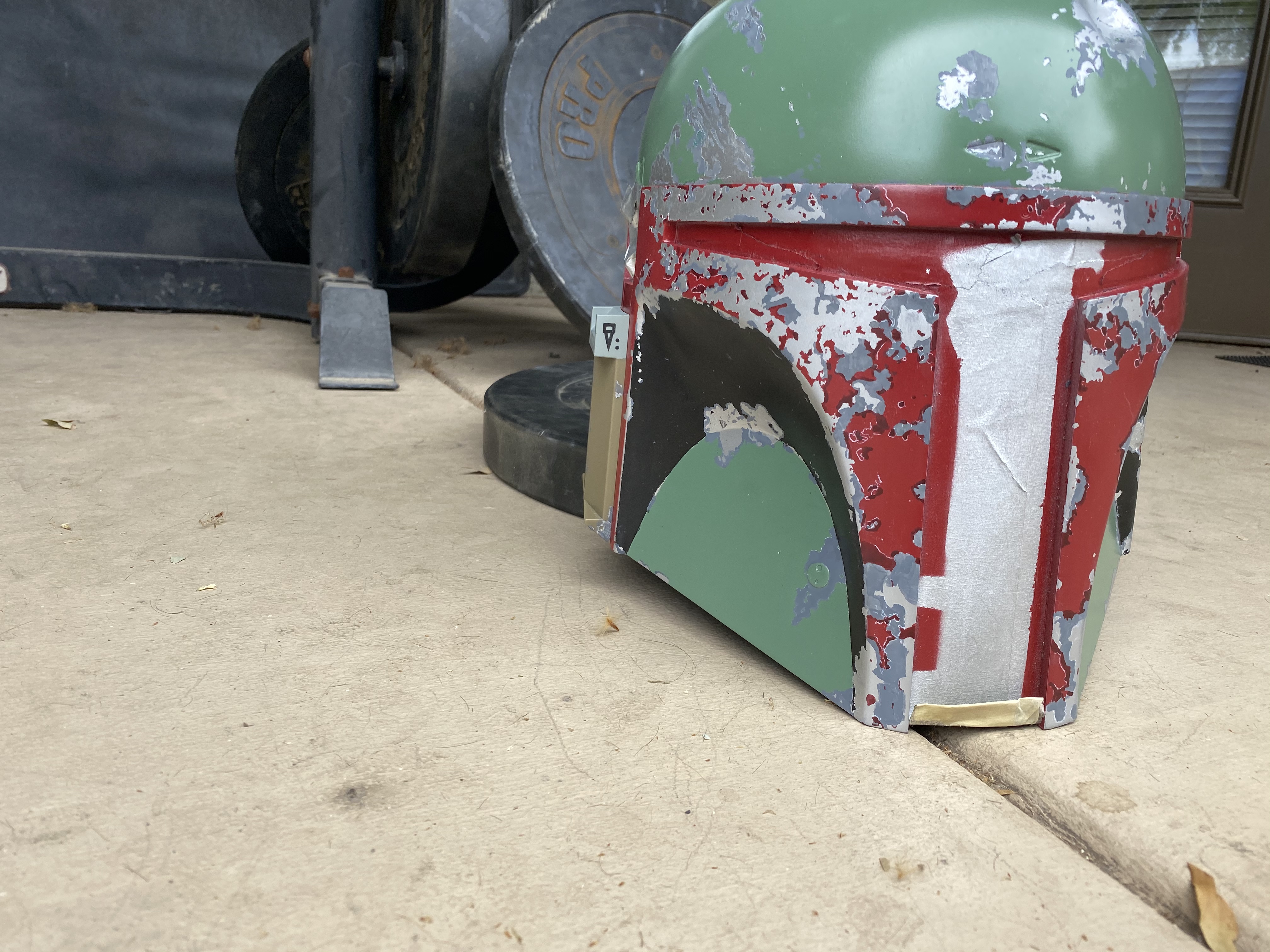

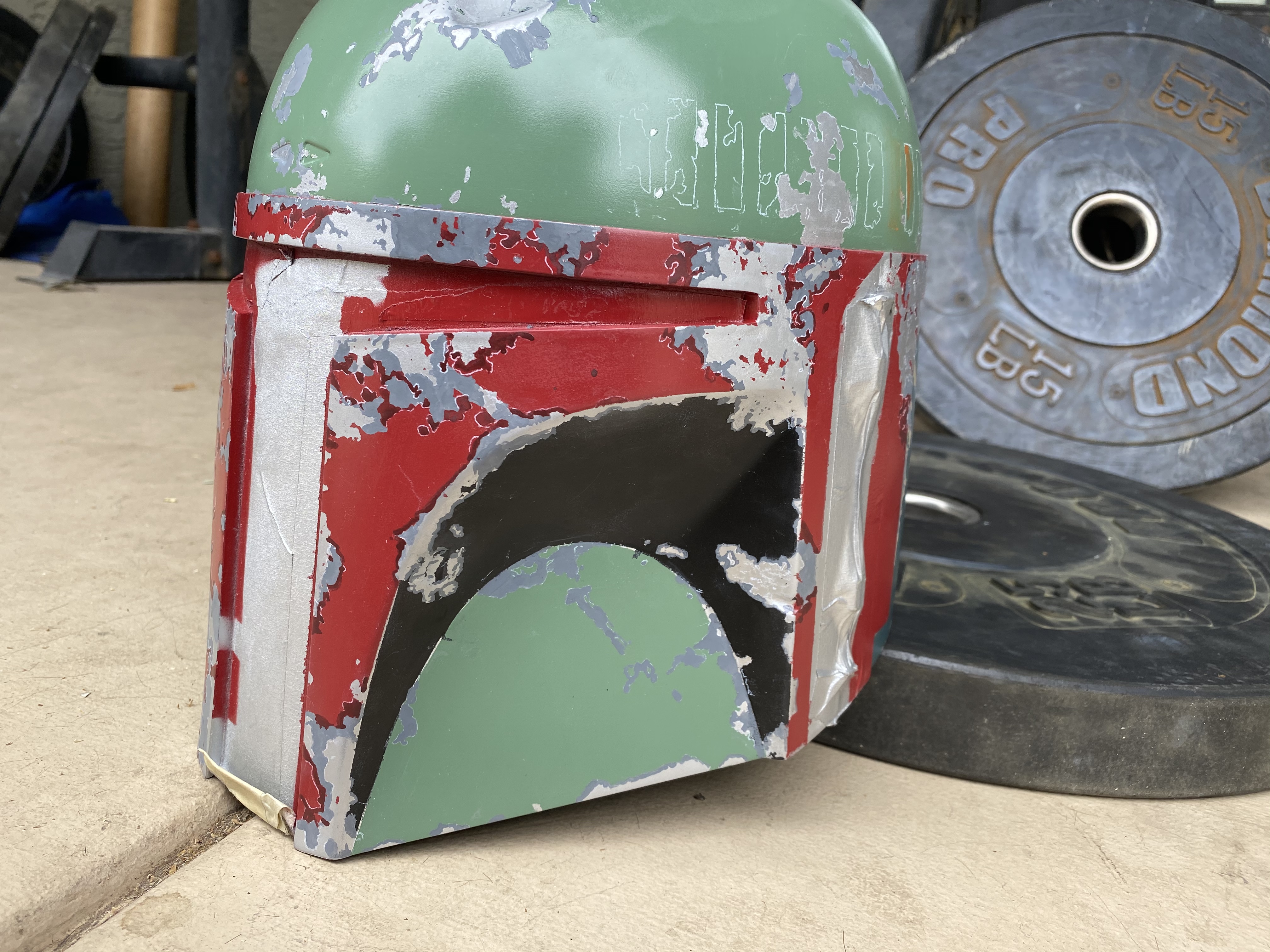

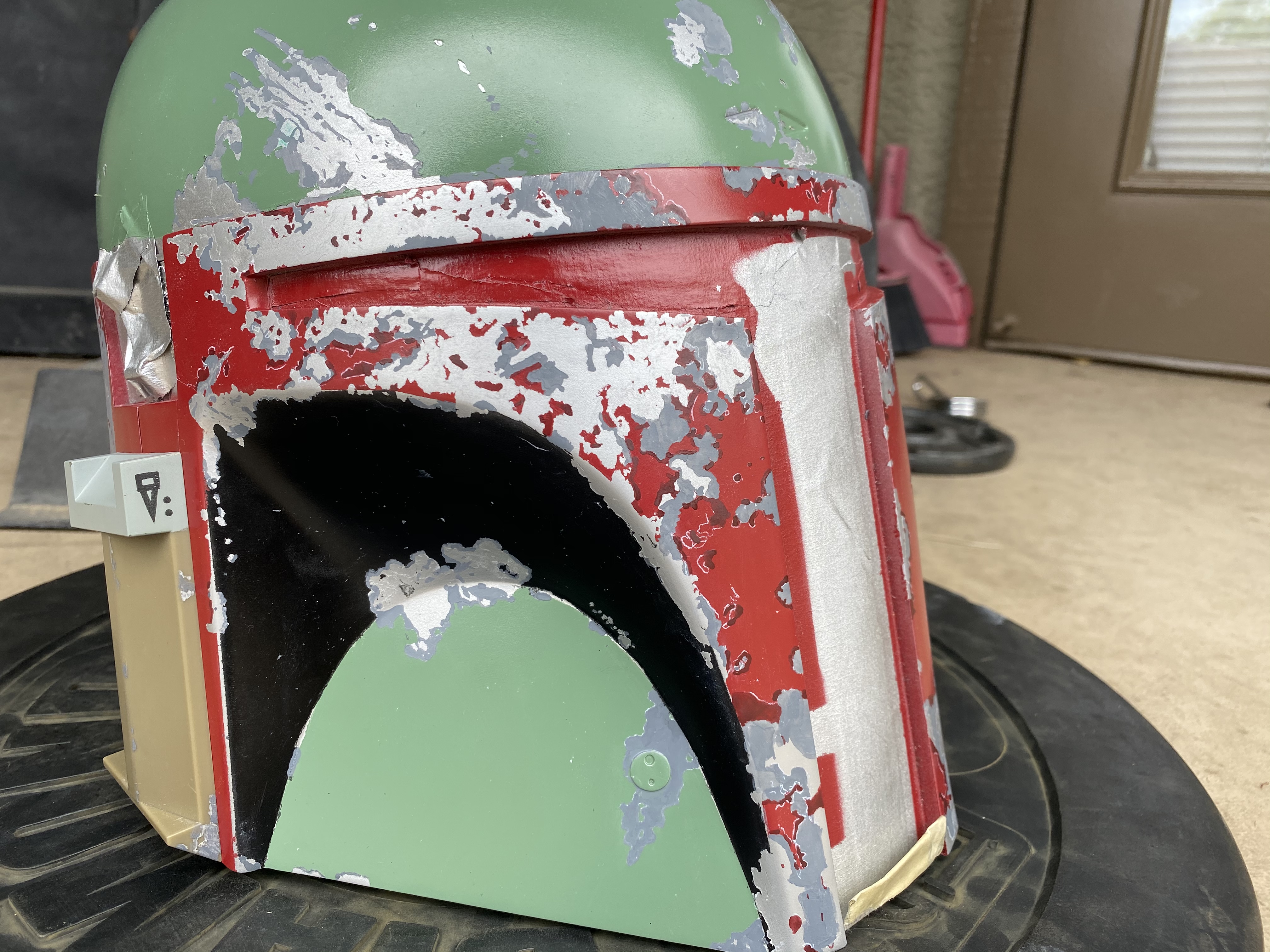

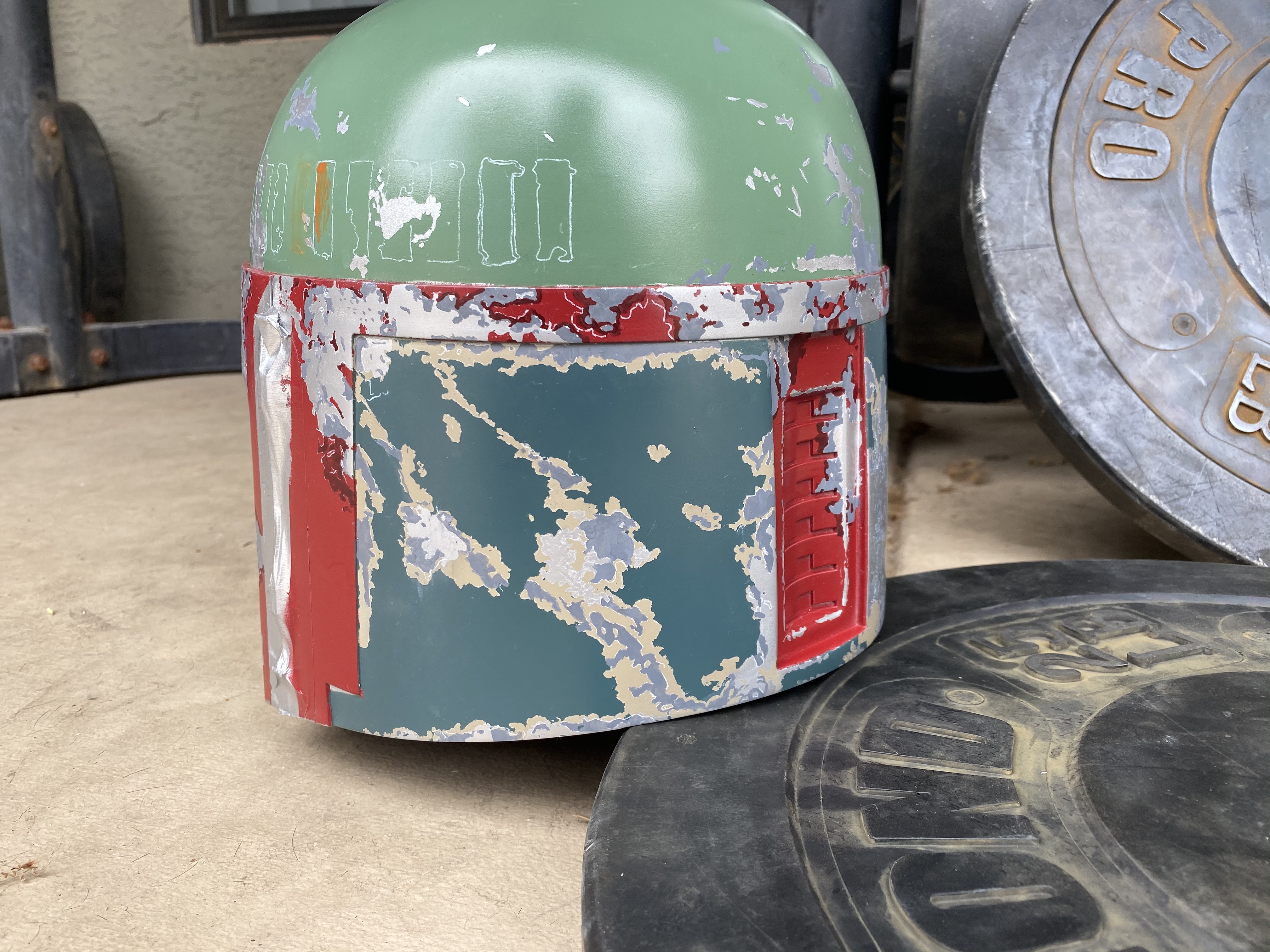

Finished most of the helmet up and masked off the kill stripes. If anyone knows where to get a rangefinder and stalk that would be greatly appreciated.
F4DE3987-F28C-4E58-8CE8-BE51028C5739.jpeg B4A9A31C-394E-43DF-BF55-C35AA65280AD.jpeg 64900B23-F94F-4F69-B8D5-DBE74D78EF1E.jpeg 09A18DA1-DFC5-49B9-B215-22DE47783164.jpeg 9829A15E-ACFF-4B34-9E20-CD0921642957.jpeg


ACSS2

Active Hunter

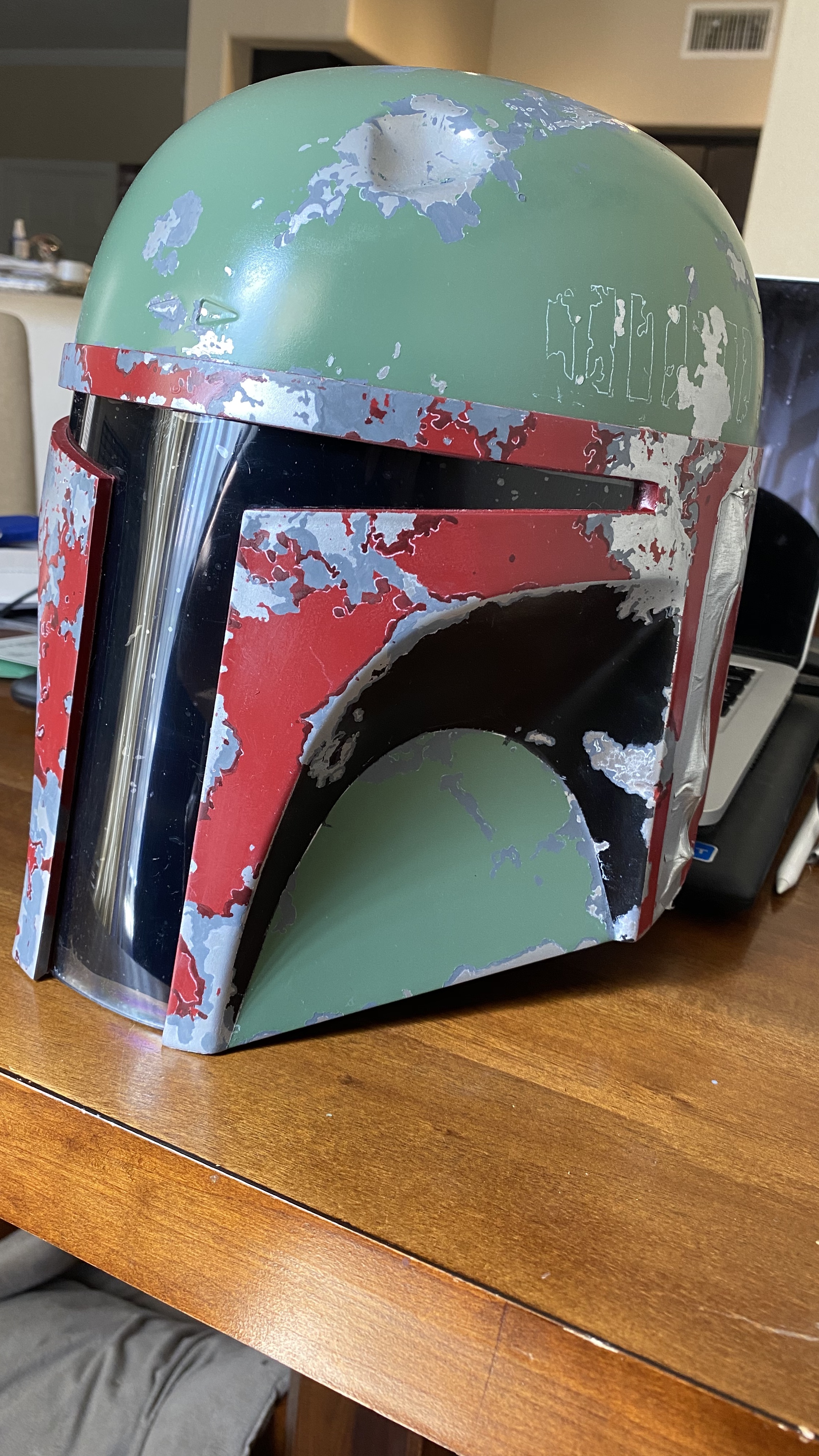

Pealed off the masking of the visor. Was my first time trying to instal window tint on the inside of the visor and got way to many bubbles in it. Will have to peel it off and try again. Still have the kill stripes to paint and to wipe off the white transfer paper lines. Figured I would also post a list of the paints I used incase anyone is looking for some since I couldn't find anything about rattle cans when I was looking.

Primer: Rust-Oleum 2 in filler and sandal primer
Silver: Rust-Oleum 2x paint and primer metallic aluminum
Tan/concrete: Rust-Oleum camouflage Khaki
Back plate green: Rust-Oleum 2x paint and primer Satin Deep Forest
Dome and lower cheek green: Rust-Oleum 2x paint and primer Satin Moss Green
Red: Rust-Oleum 2x paint and primer Satin Colonial Red
Black: Rust-Oleum paint and primer Satin Canyon Black
For the grey and dark red I just used Testor's model pain, In retrospect I would probably have just masked off a layer and used another grey spray paint.
For the left ear cap I need to start working on I have Krylon Fusion Matte Spanish Moss.




603Fett

New Hunter
Nice work- tip for the window tint- use Windex on both the film surface glue side and the visor. This will help to squeegee out the bubbles easier. Also have a lint free cloth ready to soak up what you force out.


ACSS2

Active Hunter
Nice work- tip for the window tint- use Windex on both the film surface glue side and the visor. This will help to squeegee out the bubbles easier. Also have a lint free cloth ready to soak up what you force out.
Awesome! Thanks for the tip, I will definitely give that a shot!


ACSS2

Active Hunter
Been a little busy during the last couple weeks. Our original wedding plans got all kinds of screwed up so we just ended up just eloping. We were able to keep our original date though, Star Wars day!


Plus we had graduation


And she got me a few presents that were i figured people here would appreciate.

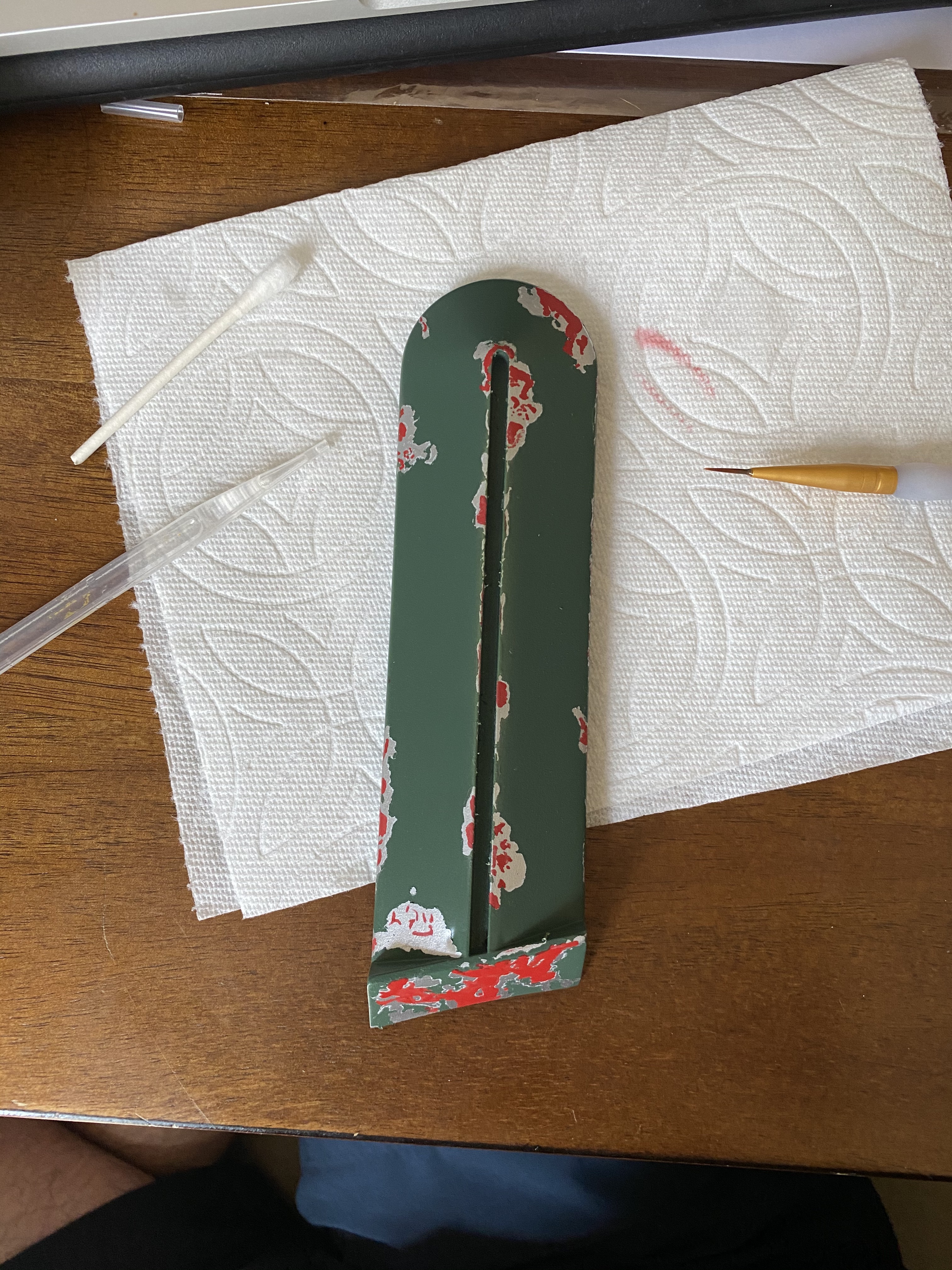

Did manage to finish up the last ear piece.



And I put the original range finder back on for moving purposes until we get across the country and I get my new one. Here's a picture with my other present from her.
