Hello everyone!

I’m fairly new to the forum, but have found it to be a wealth of knowledge!

I’m building an ESB Boba Fett helmet. I’ve decided to go down the scratch building method, as I like a challenge. Only after I started and spent some time on here, I realised how many little details and features make the relativity simple looking helmet what it is.

Here is my progress so far:

175617


175618


Initial cardboard model to get a rough size and shape.

175619


175620

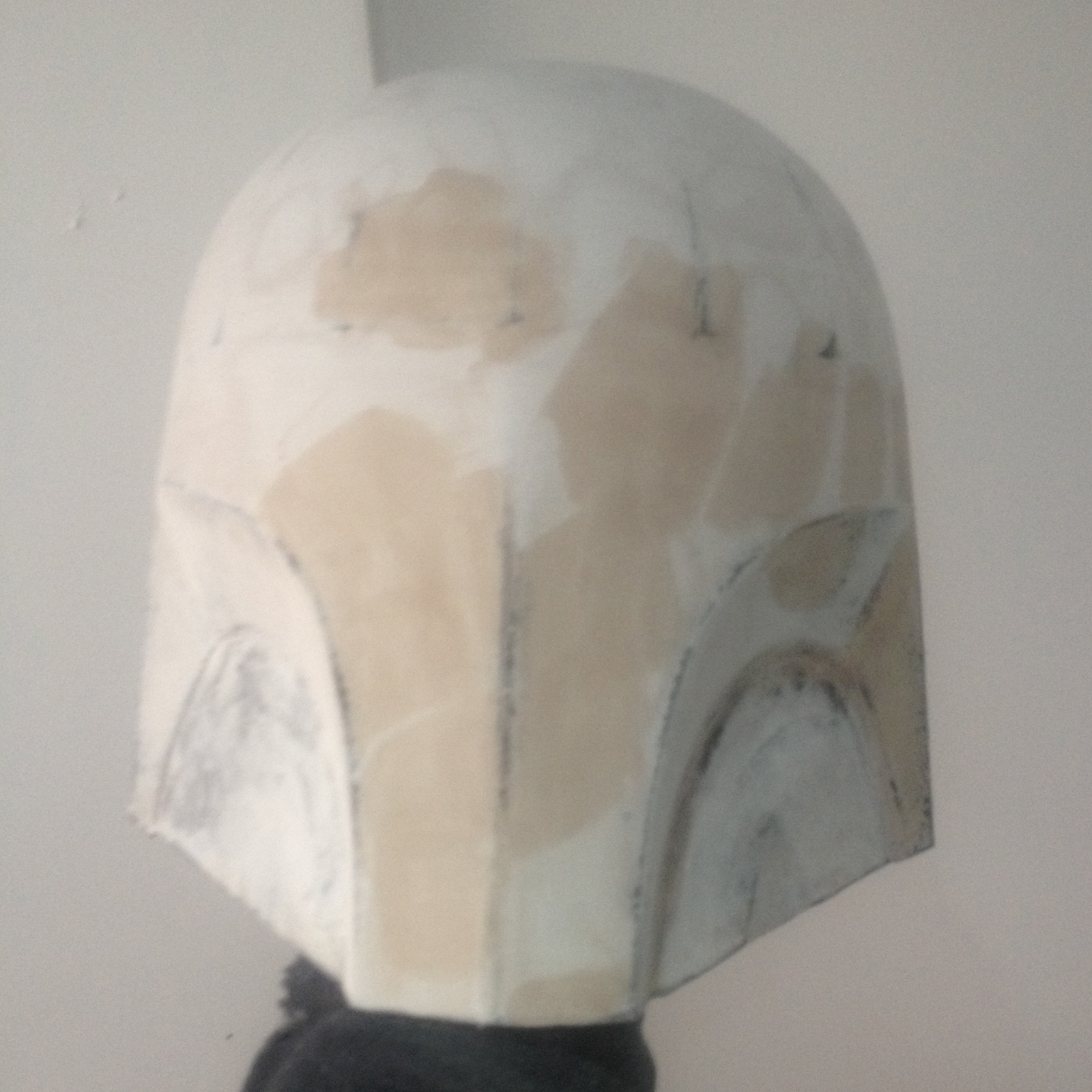

A coat of resin, a few scrapes of body filler and a standard "look what I'm making" photo.

175621


175622

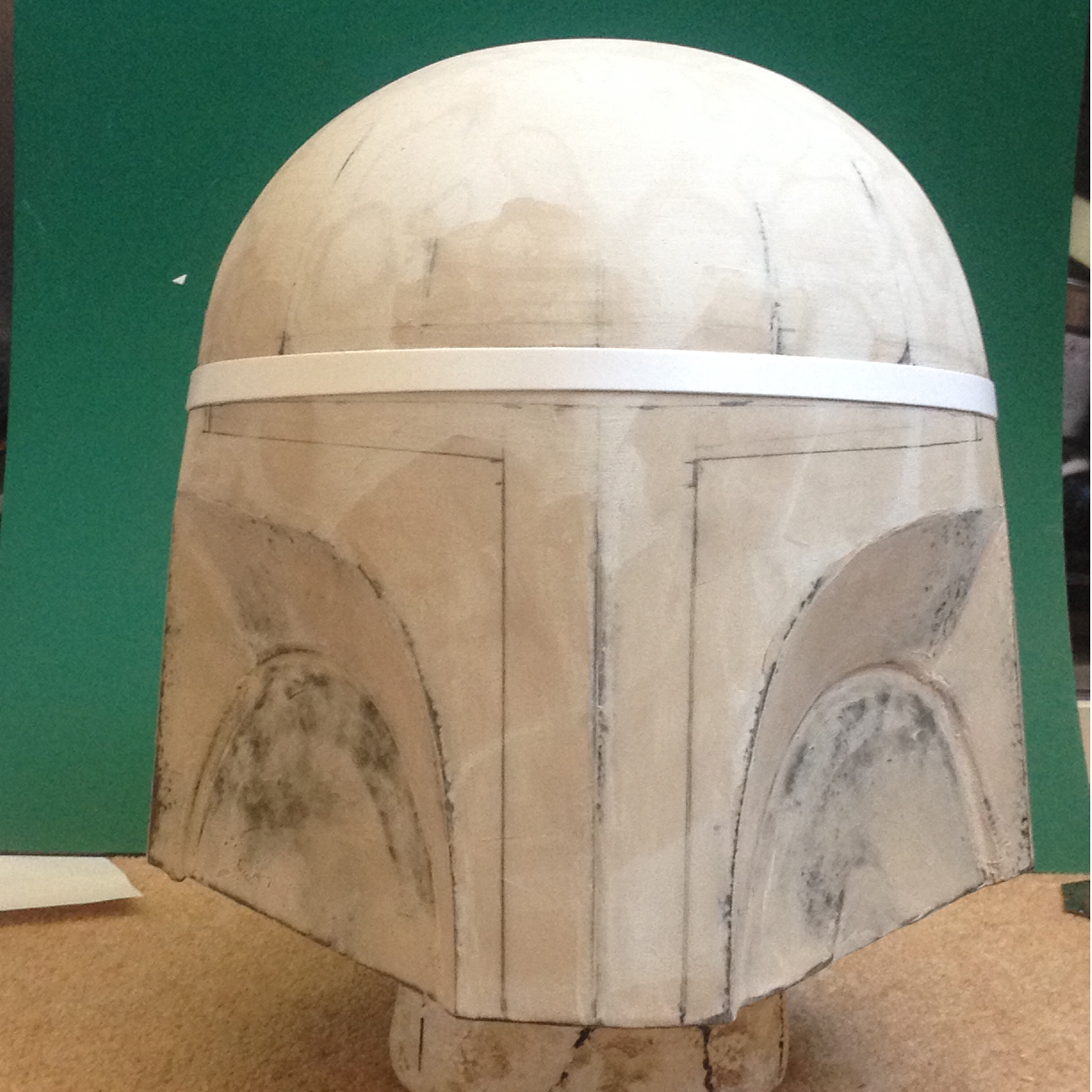

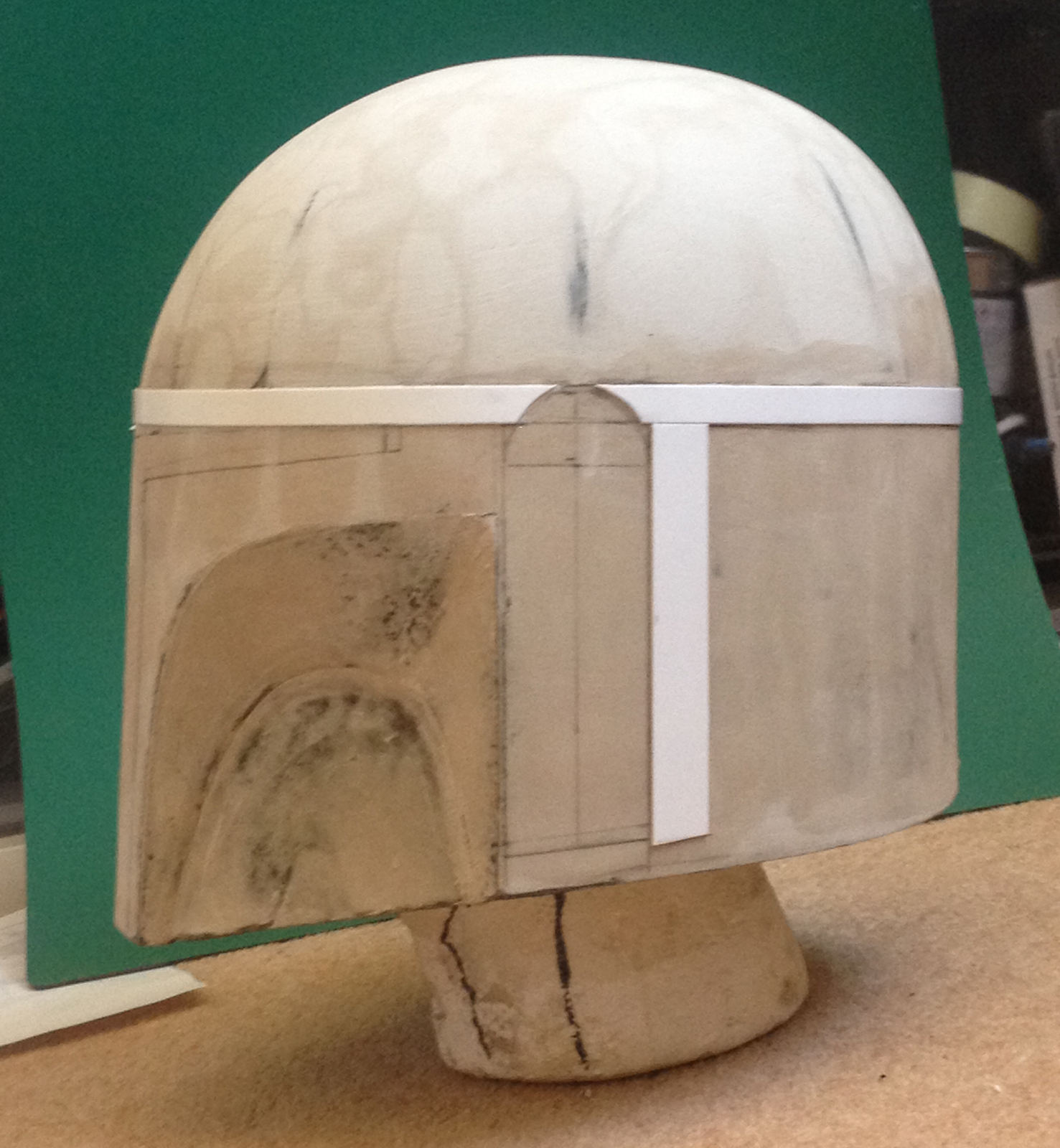

Refining a few details with some 1mm foamex.

175623


I drew up the ear details and 3D printed them.

175624


175625


175626


175627

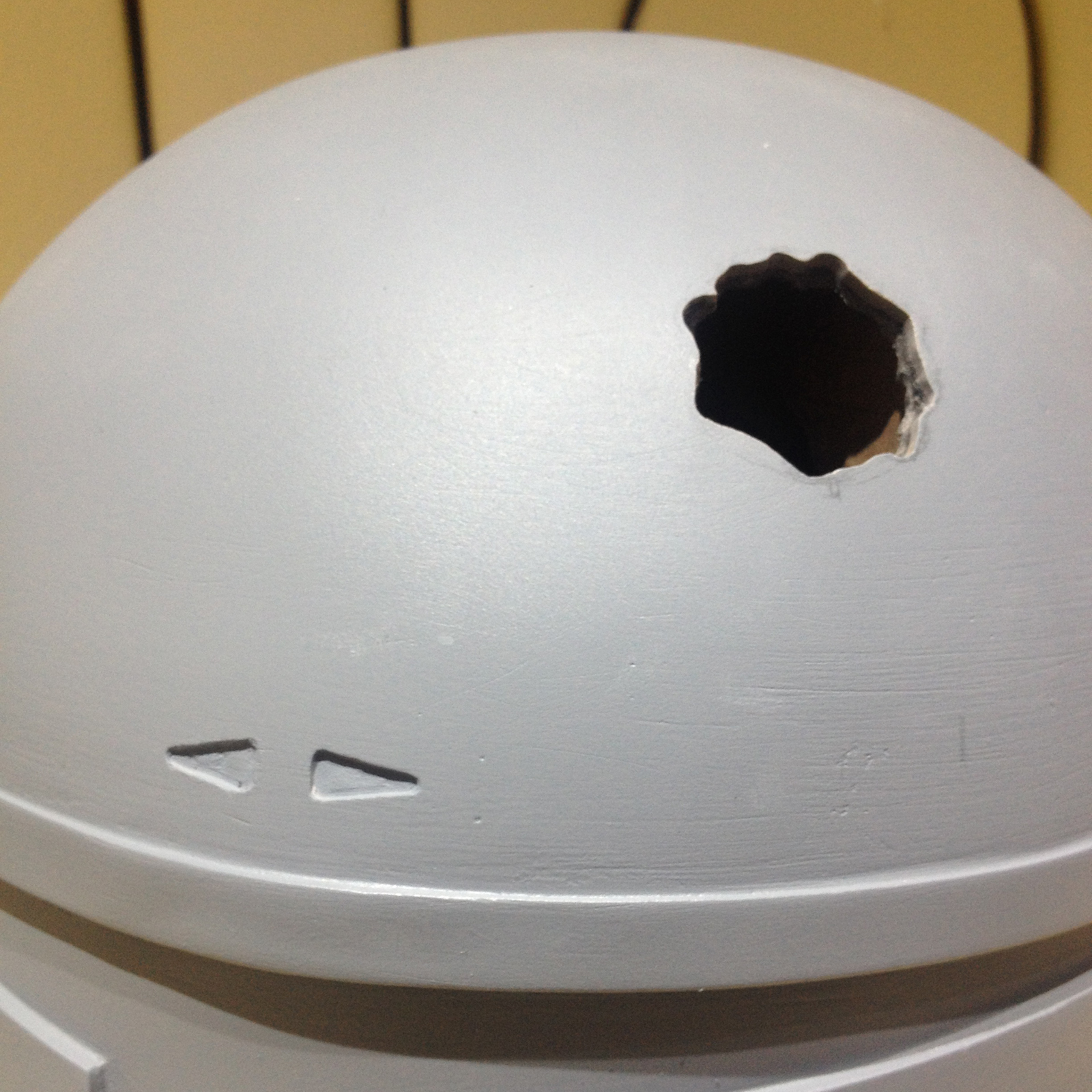

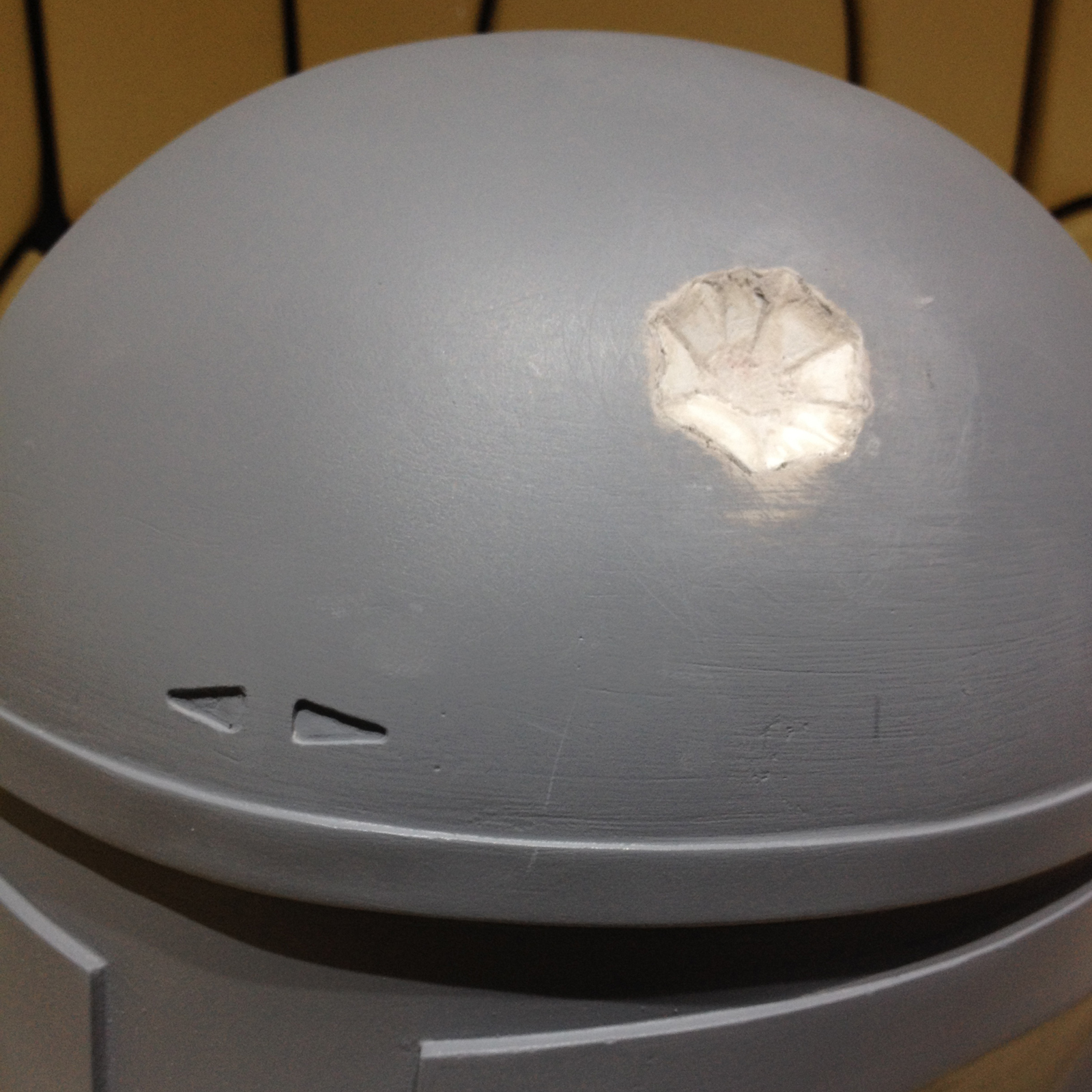

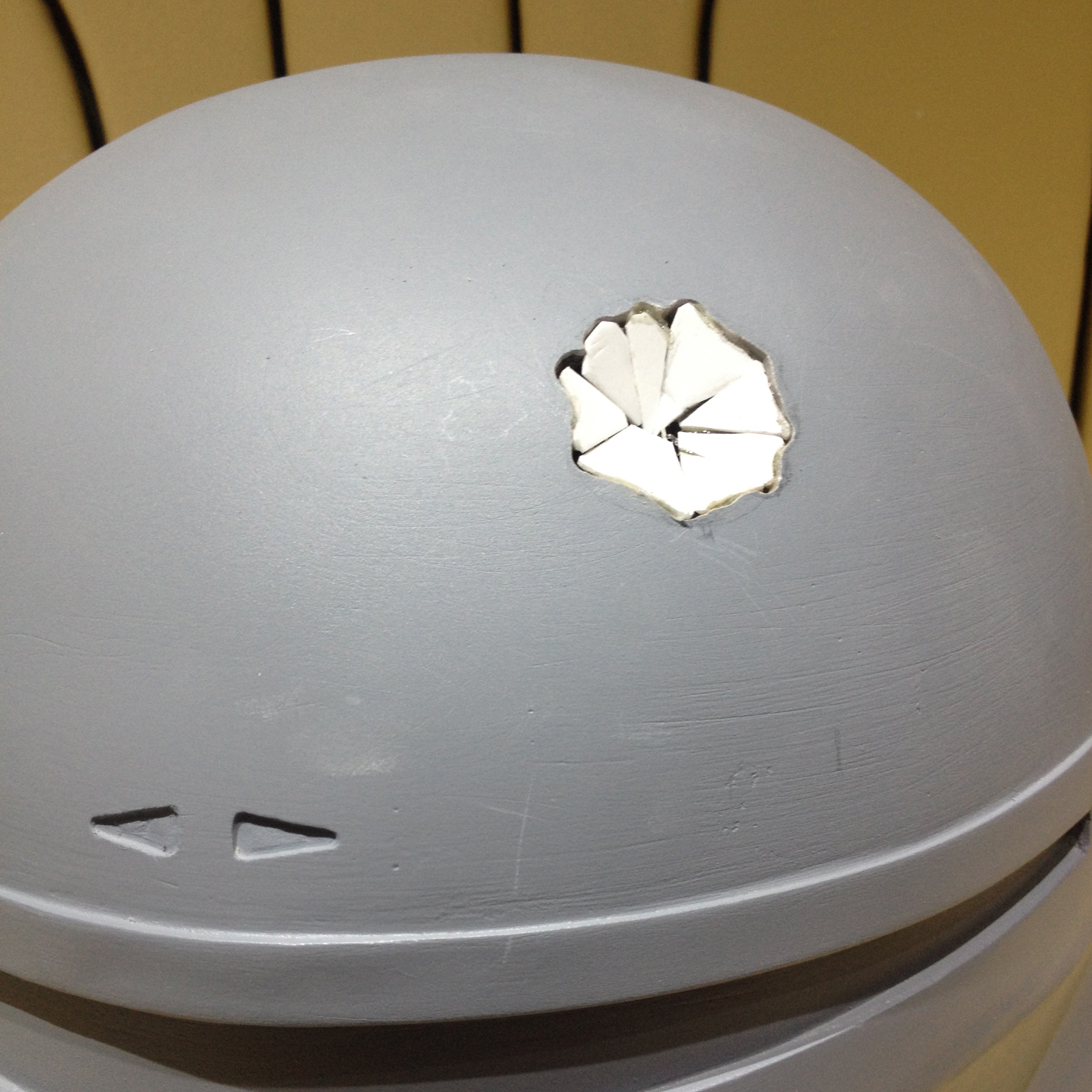

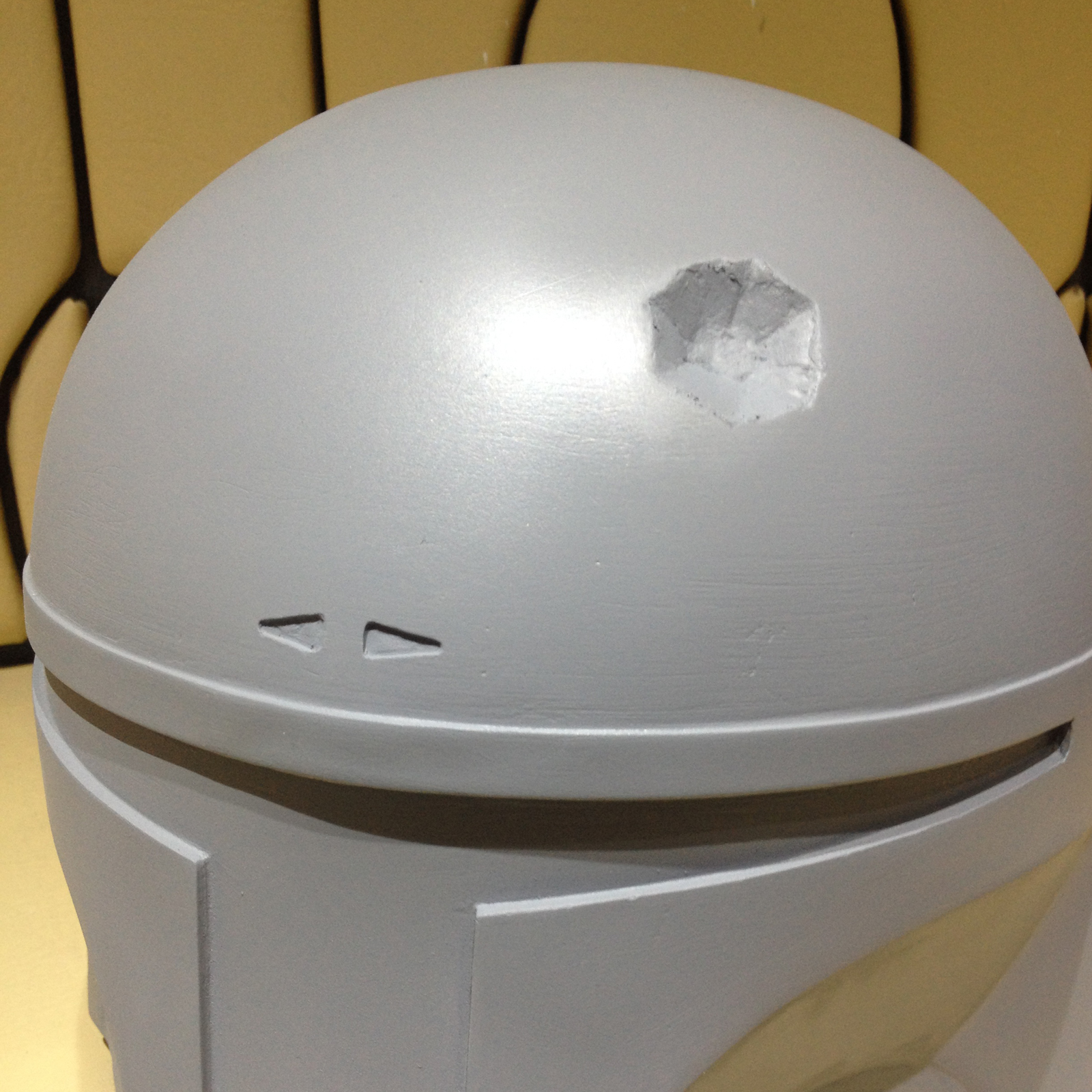

A few coats of primer and I started on the dent. I cut the dent shape out with a drill and dremel, then build it back in with slices of 1mm foamex. The forehead arrows were engraved in with a dremel.

175628

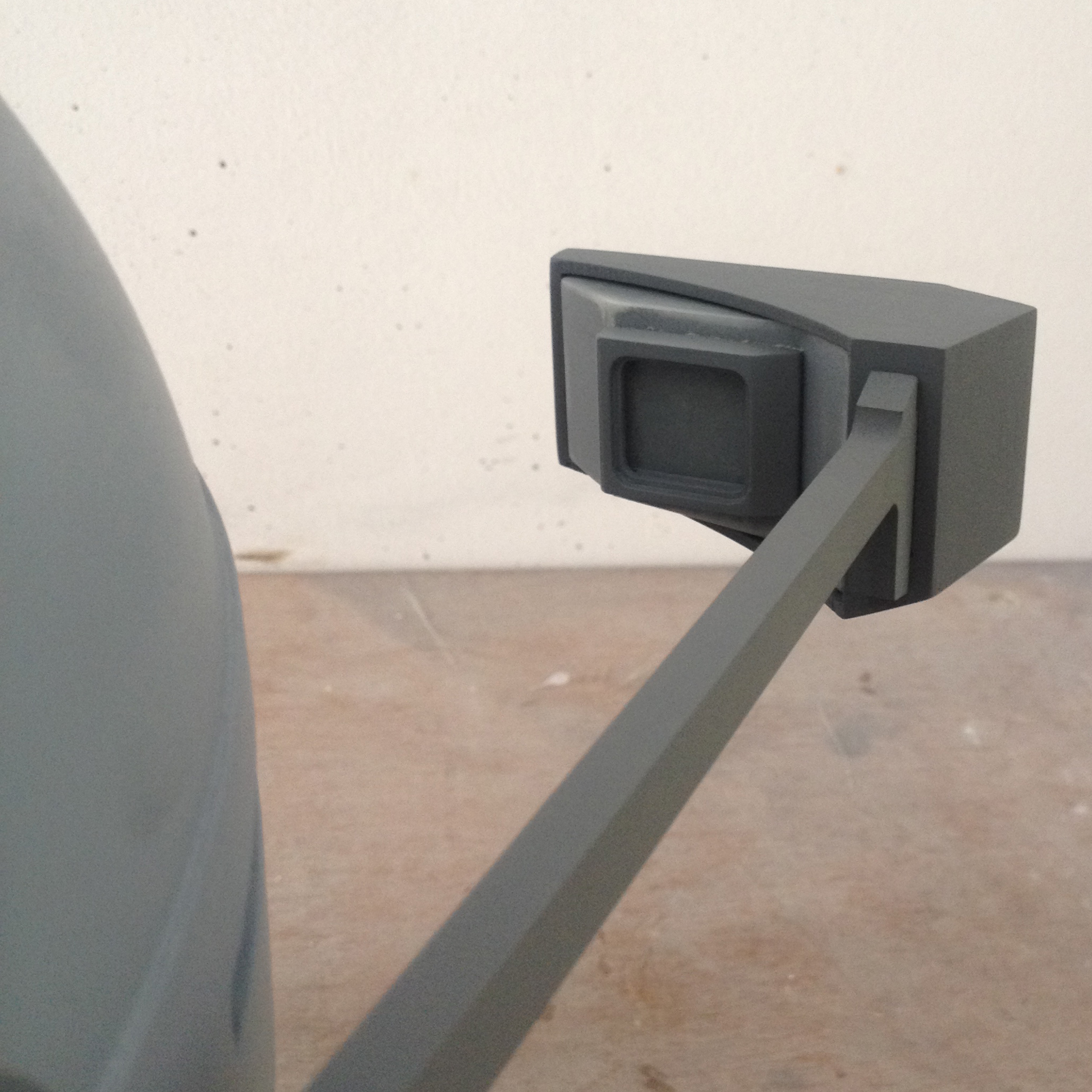

The rangefinder top was drawn up and 3D printed like the ears. The stalk was cut on a CNC router at my work. The top of the RF is in 3 parts to allow me to cast the 'perspex block' in clear resin.

175629


Though not installed yet, I turned the borden connector on a lathe ready for moulding and casting

175630


175631


175632


175633


175634

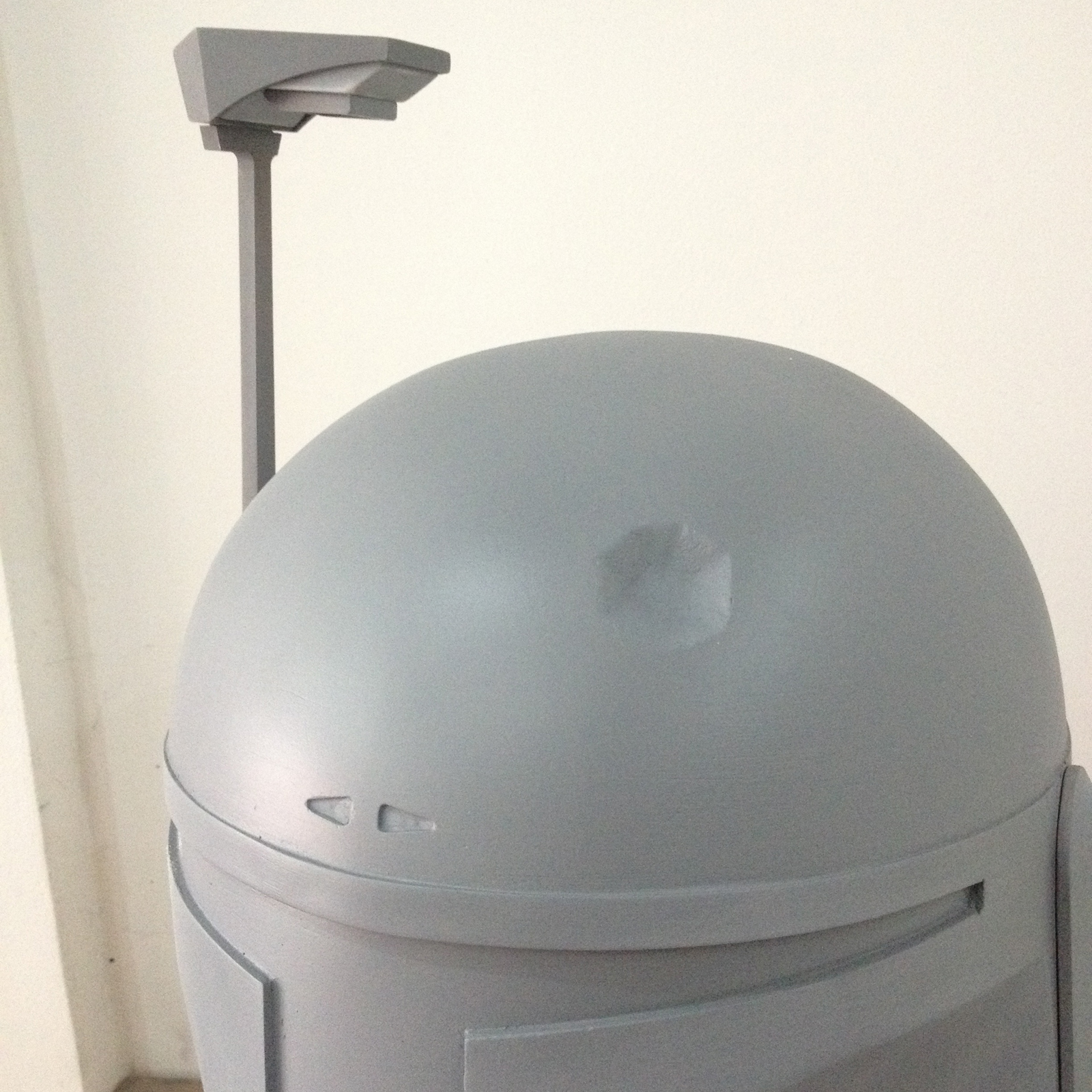

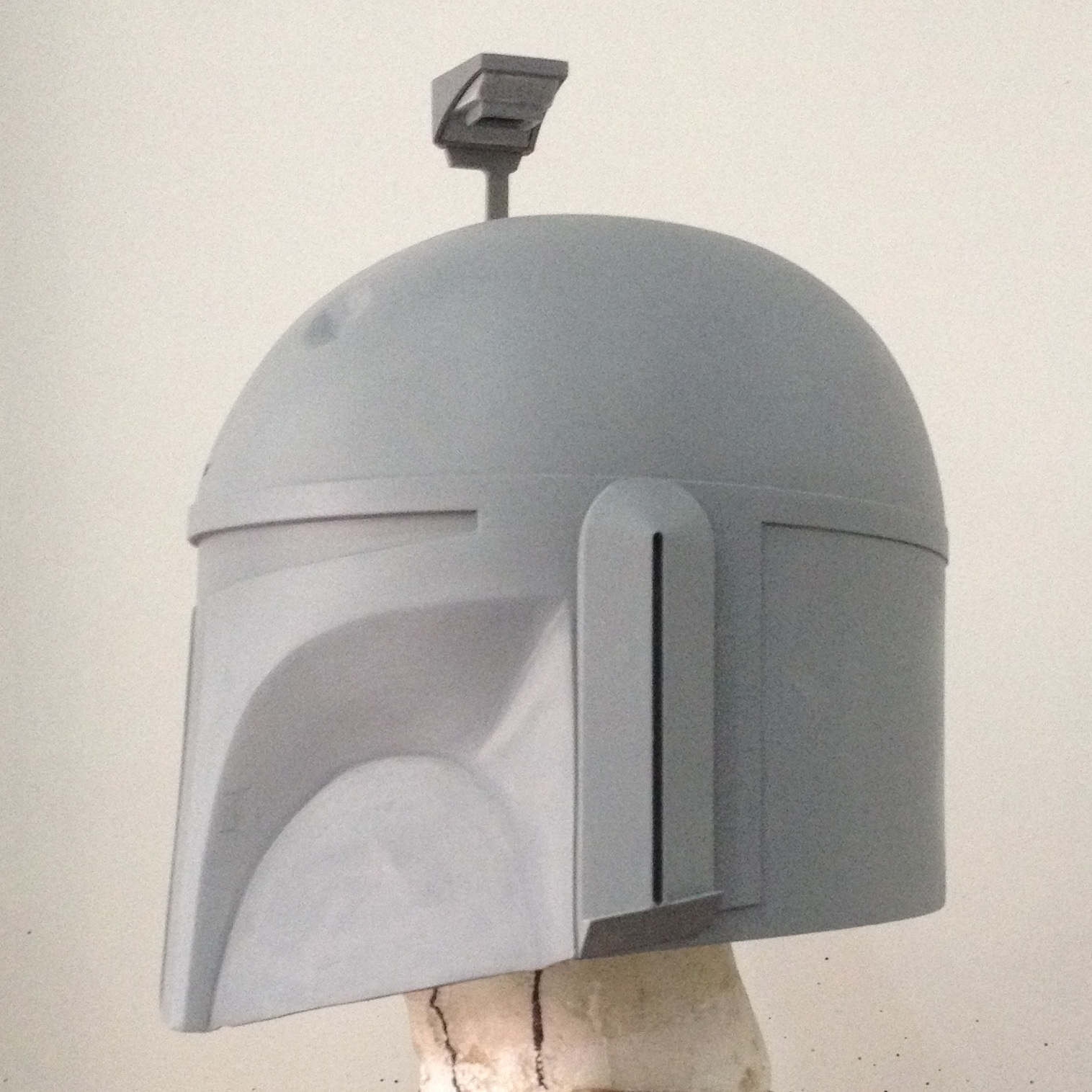

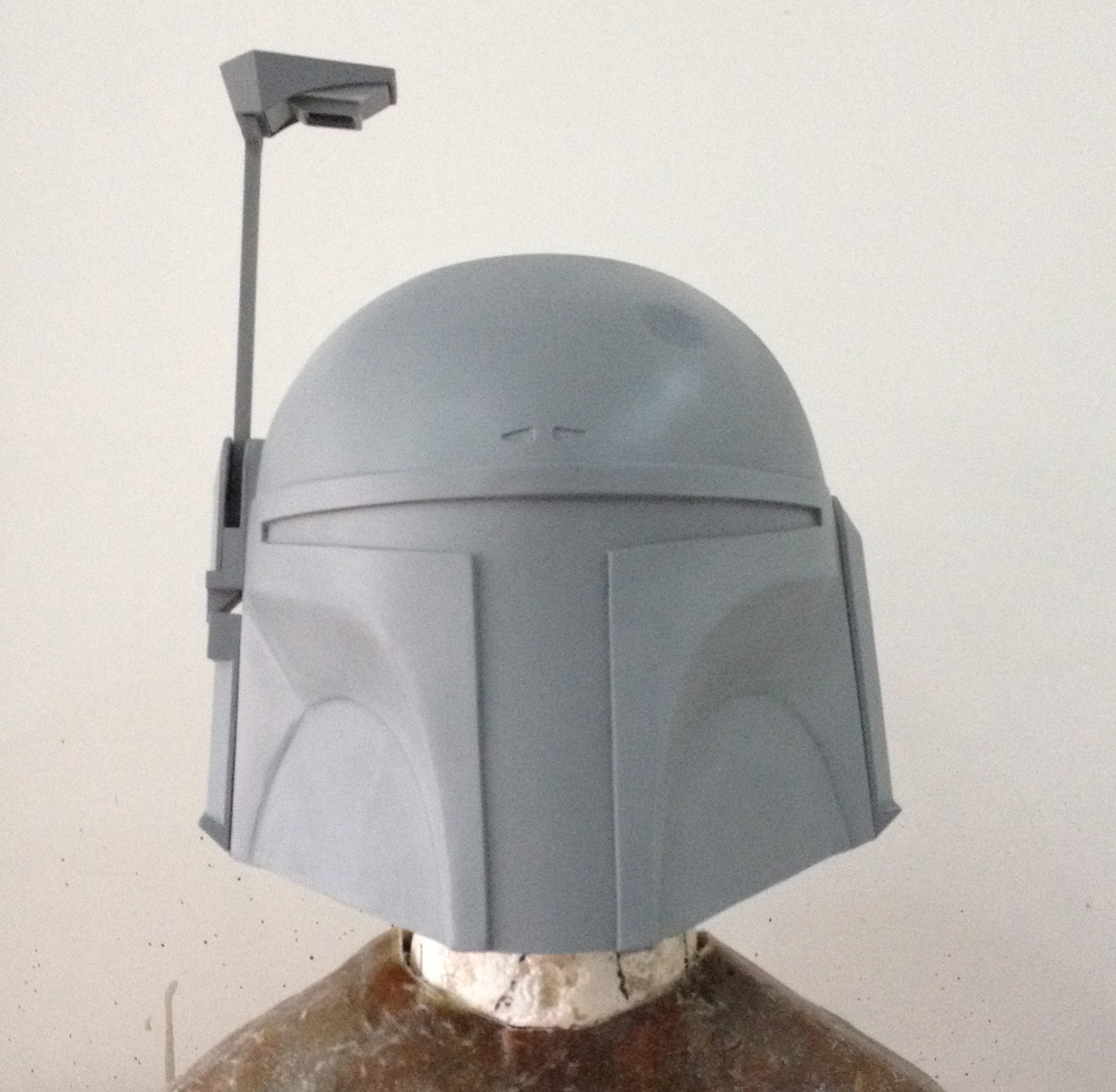

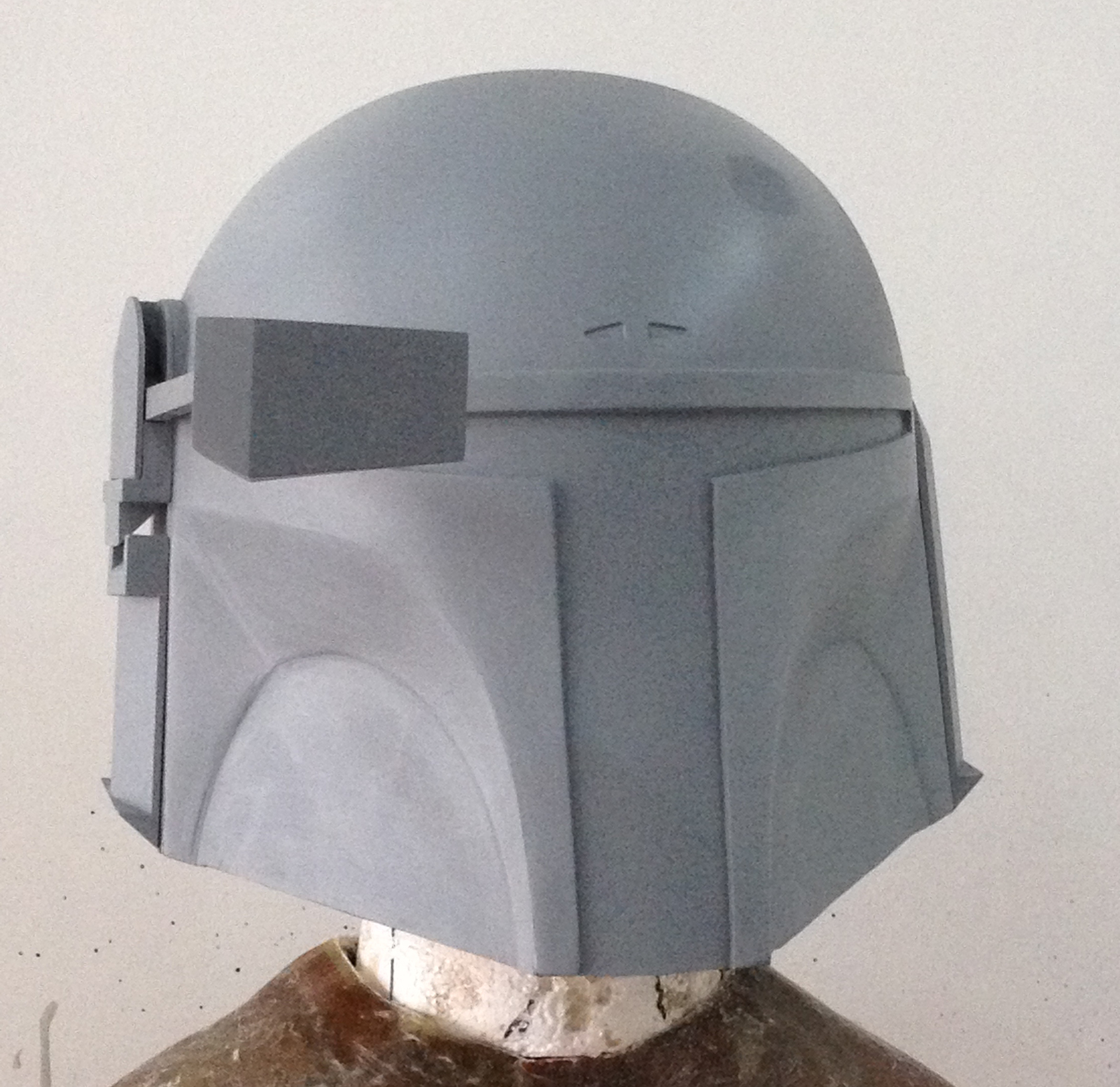

This is the helmet as it stands at the moment (sorry for low res phone pics). I still need to add the little cheek rectangle and sharpen up a few parts, but thought it would be good to get some constructive criticism before going any further.

Please be gentle!
