Boba Fett ESB Helmet Ultimate Stencils

[RafalFett]

The time have come to post my updated stencils. These were modified and updated to fit the 2nd gen helmets, but will work with gen 3, 4 and/or 5. The files are now fully vectorized, but sadly are not perfect, because I don't have the time and patience to redraw the stencils. Most of the major parts are at the correct size and approximated position, but will not be a 100% match. For the color separation I opted for a full color body versus the cut out colors:


The color separation files are located at the end of the 1st post

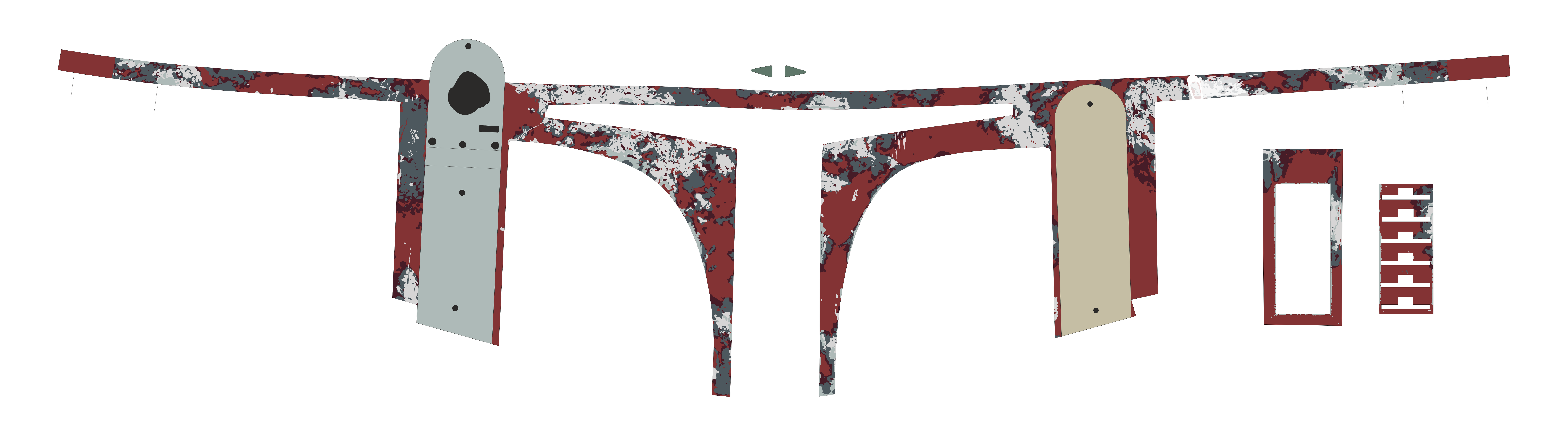

Red Face and Rear Keyhole:

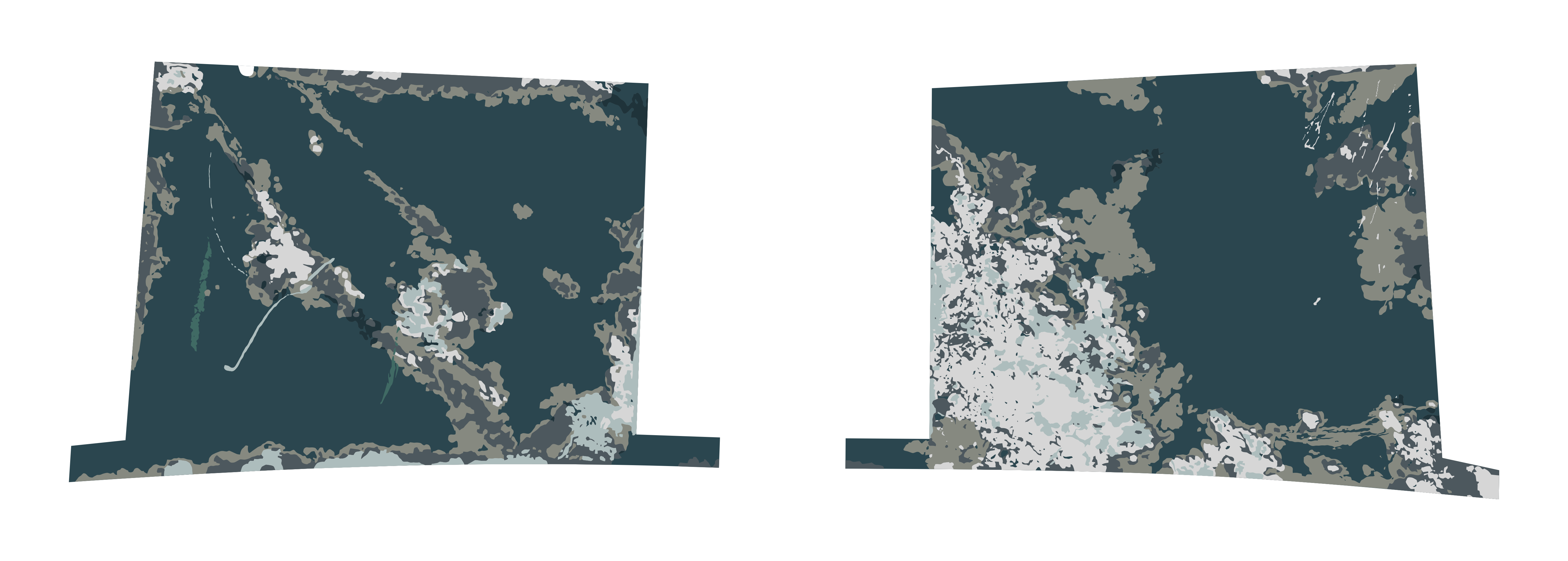

Back Panels:

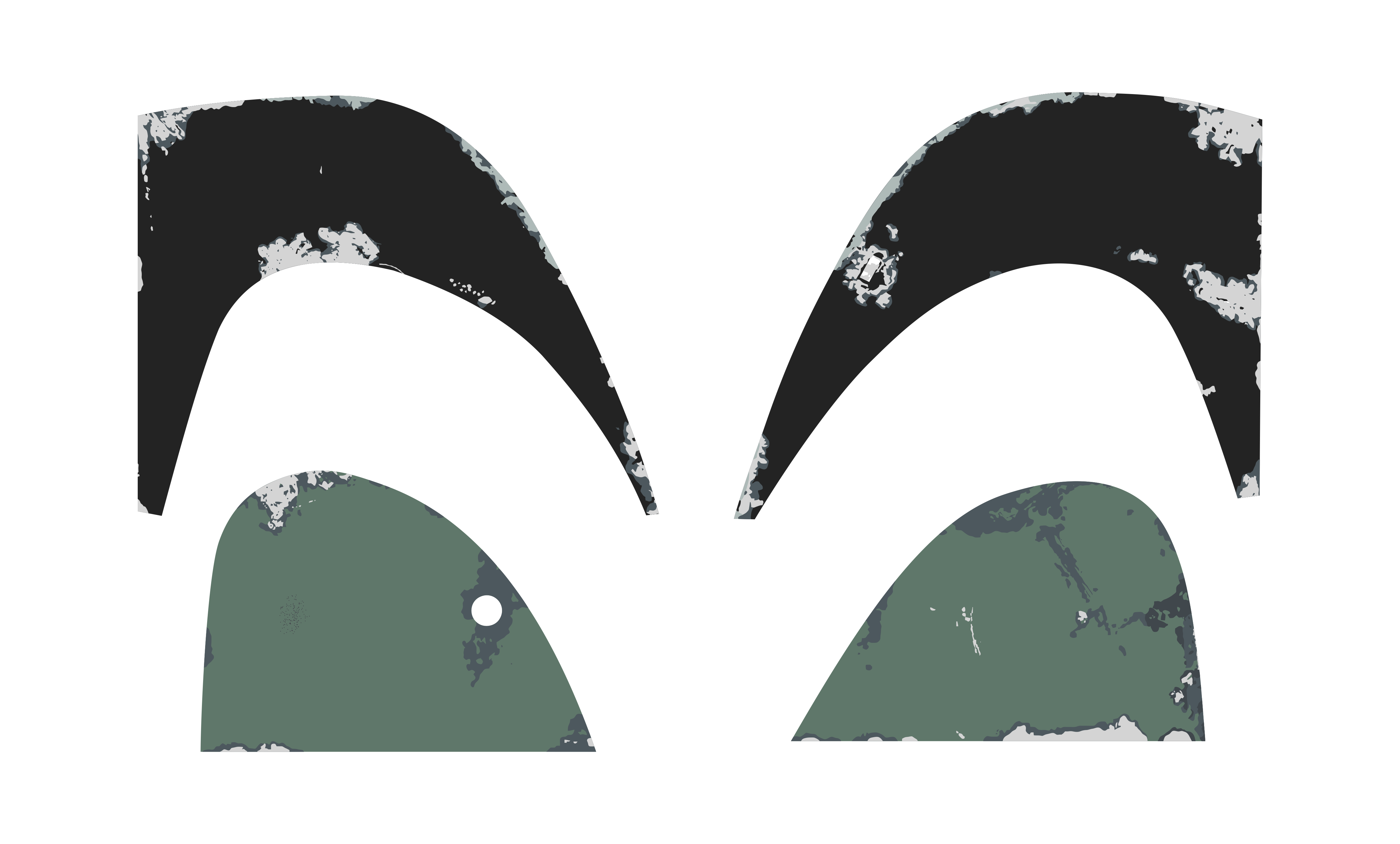

Upper and Lower Cheeks:


Dome:

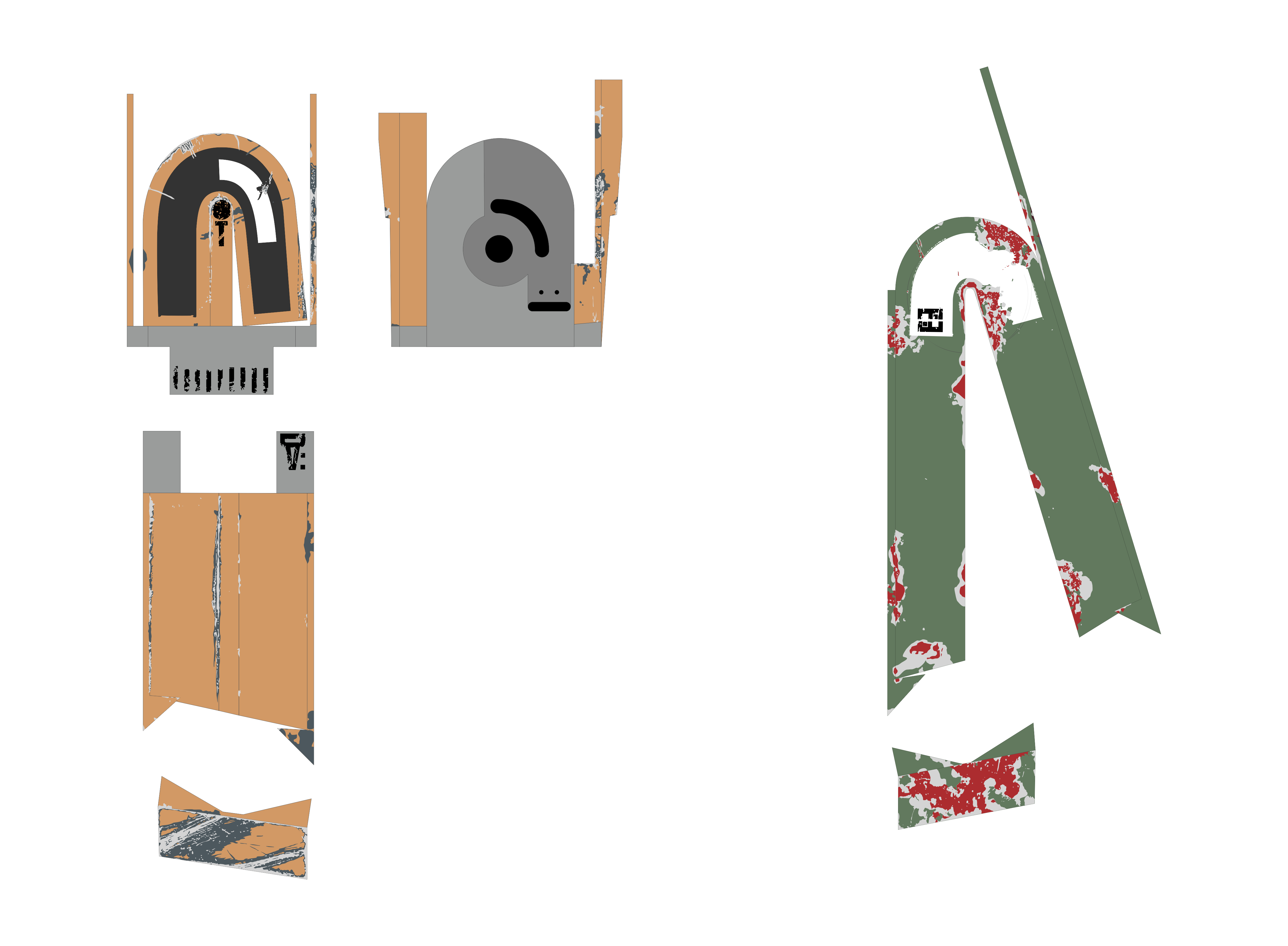

Ears:

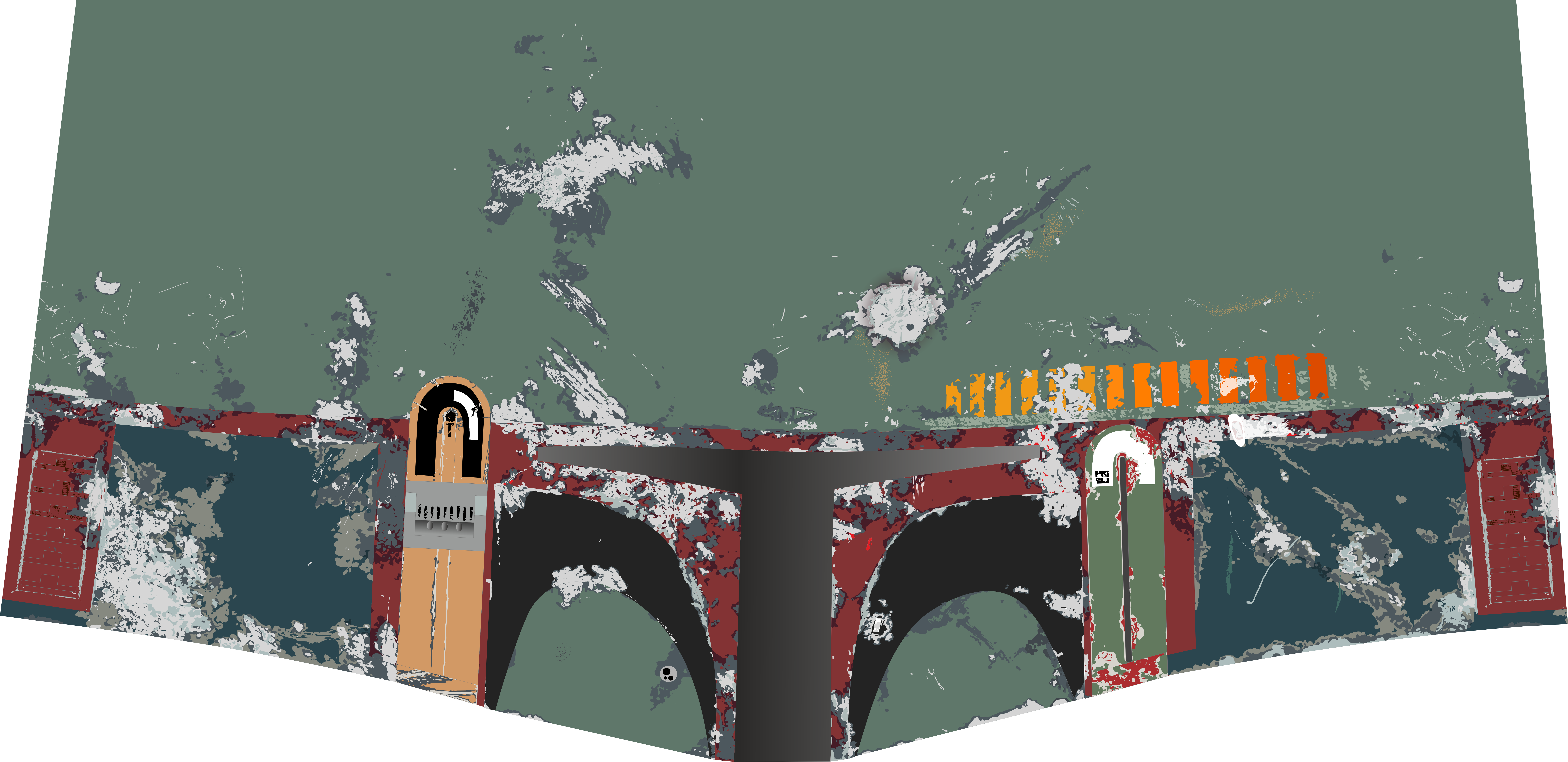

Helmet general view:


Update 22.12.2021
------------------------
Thanks to the keen eyes of Fett 4 Real, who noticed me that the killstripes were not updated (it was still the old drawing tweaked to the new size), the killstripe area of the dome was corrected with a more accurate drawing and the corresponding files were updated and uploaded. Please download the dome file again.
------------------------

Update 28.12.2021
------------------------
Added the separation files for the ear.
------------------------

Update 10.01.2022
------------------------
The right upper cheek was updated with a slightly corrected one.
------------------------


Have fun!



[trmee001]

Oh boy, just amazing! Thank you very very much!



[BudaFett]

This is awesome! Thanks RafalFett!



[RafalFett]

Thanks to Fett 4 Real's keen eyes I corrected the dome that now have the correct killstripe drawings. The 1st post was updated.



[Fett 4 Real]

They're spot on now folks! He was holding out on us!



[superjedi]

Cool! Such amazing patience and attention to detail! Thanks for sharing all your excellent hard work, Levi.



[BudaFett]

Cool! Such amazing patience and attention to detail! Thanks for sharing all your excellent hard work, Levi.

Do I need to send my helmet back for a repaint?



[DennisFett1142]

...and here I am getting ready to paint-up two of Minutefett's lineage ESB helmets. Timing is everything! So pumped to work with these. I also love the reference point of the curvature of the dome to keep everything well aligned. Thanks you, Rafalfett!



[RafalFett]

Cool! Such amazing patience and attention to detail! Thanks for sharing all your excellent hard work, Levi.

Thanks for the kind words, Eric!

Do I need to send my helmet back for a repaint?

I'm sure Eric already tweaked/modified the old stencils to fit the lineage helmets.

...and here I am getting ready to paint-up two of Minutefett's lineage ESB helmets. Timing is everything! So pumped to work with these. I also love the reference point of the curvature of the dome to keep everything well aligned. Thanks you, Rafalfett!

You're welcome!



[DennisFett1142]

...and here I am getting ready to paint-up two of Minutefett's lineage ESB helmets. Timing is everything! So pumped to work with these. I also love the reference point of the curvature of the dome to keep everything well aligned. Thanks you, Rafalfett!

I had some early morning alone time as everyone slept in on Christmas morning and printed some of the stencils to test fit my lineage helmet. The fit was nearly perfect and the new approach to aligning the dome stencils with the curvature of the helmet will make stenciling things like the kill stripes and cat scratch much easier and more accurate. I also can't say enough about how the stencils now layer, making it much easier as well. I'm going to try to do as accurate a paint-up as possible, starting with the base grey and working my way up through the colors. My previous ESB paint-ups I started with the silver base, layered and then brushed in the base grey later. These new stencils have inspired me to shoot for the closest to screen used as possible.



[RafalFett]

It really helps to have a physical helmet, especially a lineage one. There are some features of the stencils that are not present as color separation: the white thumb print and smudges, the killstripe over mist, the misting around the dent and so on. I chose not to add them as I saw in the past some who paint them as they were interpreted graphically in the files and not how the original is.

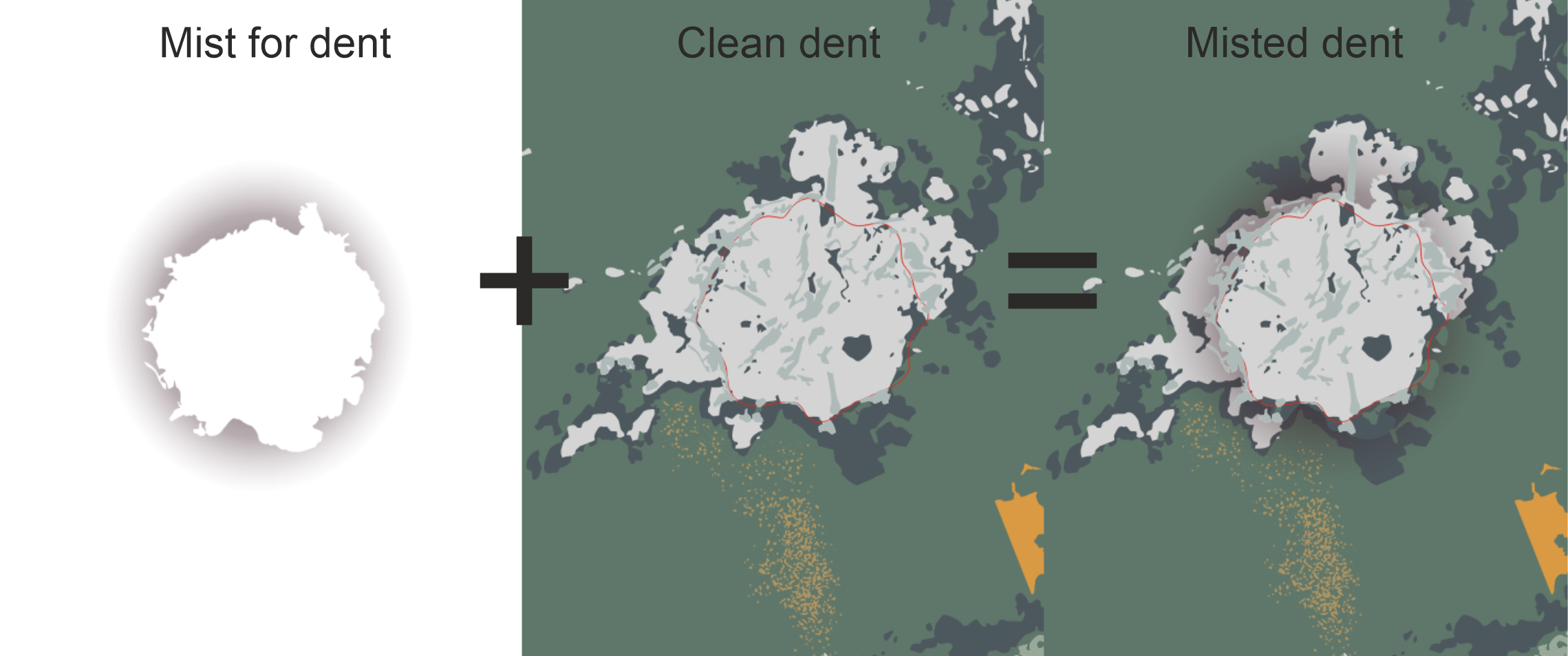

The 2 tone dark grey and silver around the dent is actually some misting applied after the area was most likely partially masked (the drawing shows how I achieved this specific look on my stencils):



[Jurassic_Fett]

Amazing. Glad to see this much needed update! Thank you!



[RafalFett]

The 1st post was updated with the ears separation files.

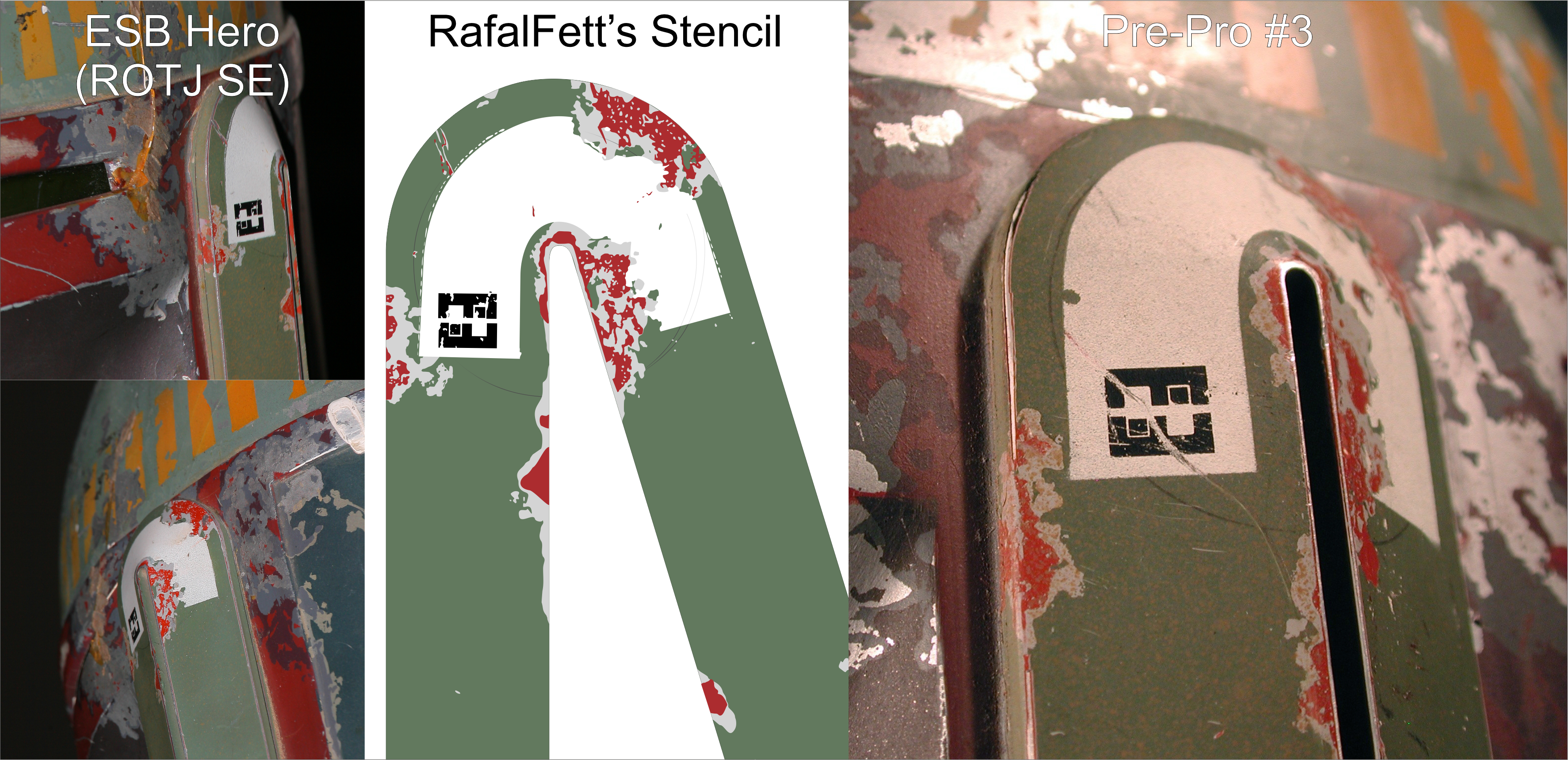

One interesting thing on the left ear is that they drawn a circle to paint the white arch. This feature is present on the Pre-Pro #3 helmet too, so I'm 100% sure it was on the ESB helmet from 1978:



[ConvergenceProp]

The 1st post was updated with the ears separation files.

One interesting thing on the left ear is that they drawn a circle to paint the white arch. This feature is present on the Pre-Pro #3 helmet too, so I'm 100% sure it was on the ESB helmet from 1978:
View attachment 218438

Great eye! Looks to me like they stuck a small compass down in the top of the slot and used that as their center-point to draw the circle. Does it look like the usual graphite or do ya think it might be black pen ink? Id lean towards graphite but that honestly looks surprisingly dark on the PP3



[superjedi]

There is a faint circle on the left ear of the ESB lid.



[BudaFett]

These small details man...crazy.



[RafalFett]

Great eye! Looks to me like they stuck a small compass down in the top of the slot and used that as their center-point to draw the circle. Does it look like the usual graphite or do ya think it might be black pen ink? Id lean towards graphite but that honestly looks surprisingly dark on the PP3

Yeah, definitely drawn at around 3mm from the top end of the slot:

It looks to be drawn with graphite, because in some images you can see segments of the circle shine when hit by light:



[Fett 4 Real]

There is a faint circle on the left ear of the ESB lid.

The 1st post was updated with the ears separation files.

One interesting thing on the left ear is that they drawn a circle to paint the white arch. This feature is present on the Pre-Pro #3 helmet too, so I'm 100% sure it was on the ESB helmet from 1978:
View attachment 218438

now that you say that and i look at some references I have here from the EFX project.... there is a circle! I hadnt noticed it with all the weathering and the lighting its very faint. Theres a diagonal line running from that circle down along that red and grey damage on the ESB as well you can see it in that top left pic there in your collage



[BudaFett]

now that you say that and i look at some references I have here from the EFX project.... there is a circle! I hadnt noticed it with all the weathering and the lighting its very faint. Theres a diagonal line running from that circle down along that red and grey damage on the ESB as well you can see it in that top left pic there in your collage

Can't wait to see it on my helmet! ;-)



[jedisushi]

Which scene has the “three scratches and two scratches/dots” above the turn signals?

The BHG flagged this damage as inaccurate on my ESB paint job, but I could’ve sworn I’d seen it before. :-/
