Any tutorial for the electronics ?

Flykiller

Jr Hunter
Hi !
I wonder if someone knows where I may find a tutorial about the electronic in the ESB Boba Fett helmet.
Thanks in advance.

Jérôme


Lazerjock

Active Hunter
What electronics are you referring to?
Usually there are fans.
Some guys like myself use a mic. It can be wired or wireless.
Other options are flashing range finder LED's and/or a servo to raise and lower it.

That is all I can think of at the moment.


Flykiller

Jr Hunter

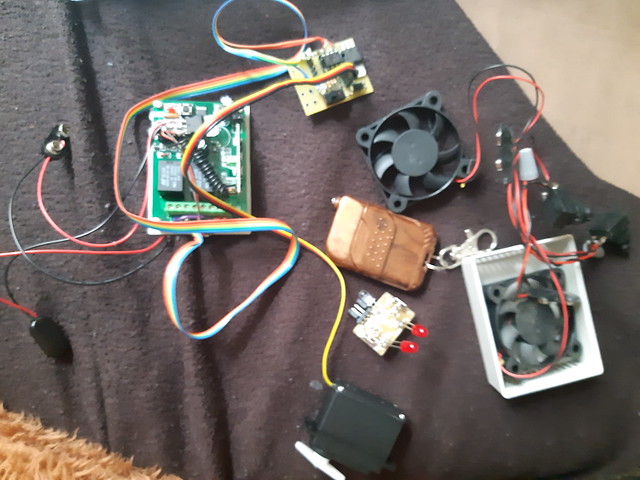

This is what I got :

I still haven't find a step by step tutorial ; and I don't undestand how to include the two red led. They are 4 or 5 centimeters long and can't fit in the rangefinder...
I feel like I have missed something.


Jc27

Well-Known Hunter
Preferred Vendor
That servo kit looks a lot like a kit from salamander king, he hasn't offered those in a while. I also think you could have a hard time finding a RF topper that will fit the light kit you have, it looks pretty big.


Flykiller

Jr Hunter
That servo kit looks a lot like a kit from salamander king, he hasn't offered those in a while. I also think you could have a hard time finding a RF topper that will fit the light kit you have, it looks pretty big.
Yes, it is a very old kit !
And you're still right, the light kit is very large ; I don't know how will fit...


Flykiller

Jr Hunter
Hi !
9 months later, I'm still stuck with "how to install the servo kit'
I can't manage to have the rangefinder going up and down.
The screw turns but does not drive the rangefinder. If I tighten too much, it doesn't twist, if I don't, only the screw moves.
Could someone show me, at ear level, on the outside of the helmet, how he fixed the system?
Thanks in advance.
