50% finished ESB Blaster

Ronin677

Well-Known Hunter
Hi ppl

Quick up date on the blaster progess.

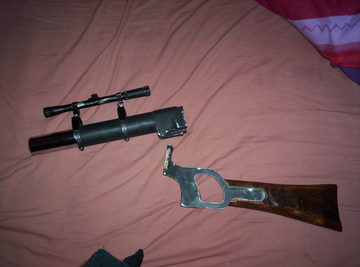

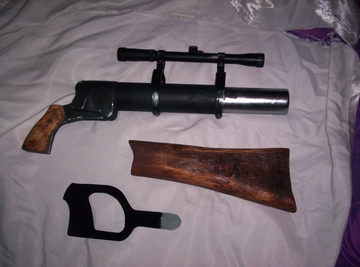

As can be seen the main body of the Webley is constructed from wood. I basically layered sections together and sanded to shape.

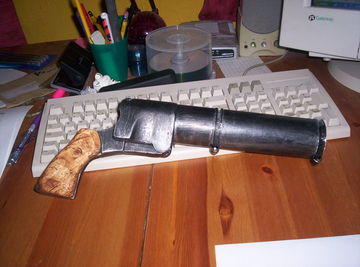

The barrel was made from 50mm telecom ducting and a chrome exhaust pipe from the local auto centre.

The scope was purchase from Ebay (the oly part of the blaster which has not been scratch built), it is similar to a Tasco 4x20. The mounts were made from 18mm wide sections of the 50mm pipe. These were cut and heated to make flat pieces which i then folded to shape, i added screws to the centres for support.

The stock connector was made from a 4mm thick road sign (see pic) and attached to the scratch built stock (just a piece of old timber i had in the shed).

Well thats just about it until i add the trigger and greeblies. enjoy.
















Last edited by a moderator:

Ronin677

Well-Known Hunter
Opps i dropped it :angry

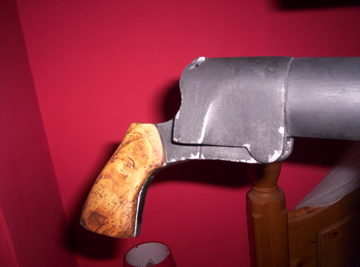

I have since repaired it though :lol: using two dowels and some two-part resin binder. it is solid now (will post pics tonight).



Ronin677

Well-Known Hunter
I could be. Wait till i finished my ESB and see if you still like it, then we can come to some agreement:) Thankd for the compliment:)
Dentedarmor said:
ooo ouch :( ! Good to see that its repaired (y);) .....say you interested in doing a ROTJ?

DA


Ronin677

Well-Known Hunter
Well i have changed the mussel (car exhaust) for a more screen accurate vacuum cleaner pipe :lol:

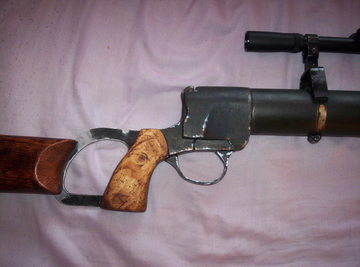

oh and added stock greeblies.

thought i would forget about adding the trigger, as when i take this thing trooping it will be obvious that it can't fire.
