    Apr 9, 2014, 2:02 PM - Jetpack belt Buckle / U.S. DIVERS Buckle. #1

    Some Jetpack /U.S. DIVERS information for you. Factual corrections are welcome, as always.

    I was looking for a real U.S. DIVERS buckle; the search was taking years and was somewhat on the back burner. I was also giving consideration to the jetpack harness and reasoned, not unlike many before me, that this could well be part of some kind of Scuba Harness. The logic being that the buckle and the harness were an original marriage. In my quest to further that idea I started looking into all sorts of old scuba stuff. A lot of the images I was finding featured backplates for tanks and air cylinders and I was wondering if the jetpack frame might somehow be part of one of those backplates and maybe a structure concealed inside the plastic (it isn’t so far as I can tell before you get excited). So I bought myself one of these old backplates to see if it concealed such a frame. Here is what I bought:



    and it came with this buckle:





    The buckle, I suspect is not original but it did make a penny drop: I'd always been searching for a 'U.S. Divers Weight belt' and I had seen a few in my time. The trouble was that they generally came with the weights attached and sellers often weren't willing to send the heavy item to me (or just selll me the belt and buckle without the weights somewhat strangely). I realised I wasn't looking for a weight belt at all but simply anything with a U.S. Divers buckle attached. Since researching this I have learned that at least some of this information was contained within the old Wiki but as it is no longer there cannot see if any images were provided (KAM “EZ” PAK – see below).


    Here’s some background information for you…
    We all know of the U.S. DIVERS buckle I am sure; it sounds suspiciously American to me but no: French. Most will be aware that the origins of Modern Scuba equipment lie in the hands of the famous Jacques Costeau and the slightly less famous engineer Emile Gagnan. Together they sold their mid - late forties invention under a company name of ‘Air Liquide’ and that subsequently made a sub division called ‘La Spirotechnique’ (stop me when this starts to sound familiar). La Spirotechnique then coined the term ‘Aqua Lung’ to market to English speakers and this phrase and term was subsequently re-branded as ‘U.S. DIVERS’. All five of the original North American Scuba equipment companies U.S. DIVERS (AQUA LUNG), DACOR, HEATHWAYS, SWIMASTER and VOIT are inextricably linked to one another (Technisub = La Spirotechnique = Aqua lung = U.S. Divers…. = “Air Liquide”). My explanation oversimplifies some of the issues but it would otherwise be too easy to get weighed down in details and licenses; best to accept that the U.S. Diving equipment we are looking for is French in origin or made by French owned and run companies despite the name of the firm or place of manufacture.


    What I’m posting here are effectively the positive hits and not the negatives as they would be too numerous to go into but rest assured that there are a healthy number of backplates and tank harnesses in my house. Remember although I've always wanted the U.S. DIVERS buckle I was actually investigating the harness; I took a punt on one thing and got a result on the other - 'swings and roundabouts' as we say in Britain. Credit for the original 'U.S. DIVERS CO' find goes to C17LM way back in 2002.

    Please excuse the old sheet; some of these items are filthy.


    Here are the results:

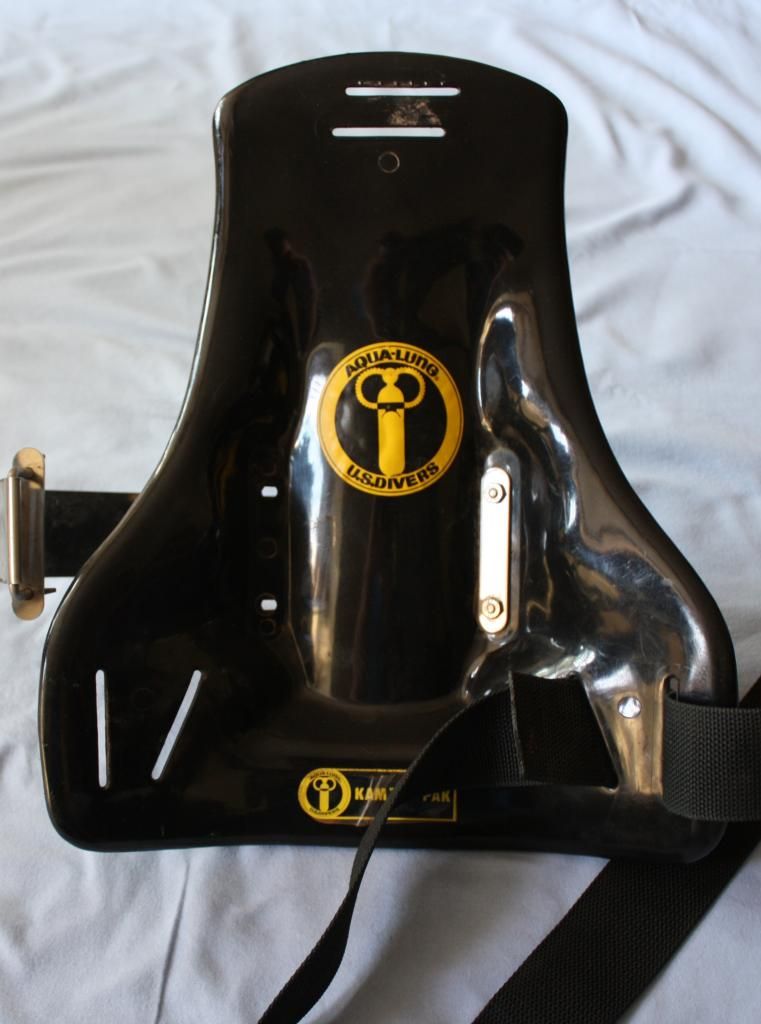

    1). ‘Aqua-Lung-Pac’ (U.S. DIVERS).

    This is the ‘KAM “EZ” PAK’. Made in USA Patent No 3033431. Patent design filed 8th August 1960 and apparently granted 8th May 1962. In use Early 60s/early 70s.





    This is a back plate set up for a single tank and it featured the following buckle:








    2) ‘AQUA-LUNG, U.S. DIVERS’.

    Another ‘KAM “EZ” PAK’. . Made in USA Patent No 3033431. Patent design filed 8th August 1960 and apparently granted 8th May 1962. In use Early 60s/early 70s.






    Again this is set up for single tank. The nature of the wording on the brand and the prominence of the Aqualung over US Divers makes me suspect that this is a slightly earlier iteration of the brand markings but I have no proof of this; a hunch.


    (I just couldn't get a good focus on this logo)

    Compared with this logo on the first example where US Divers has equal prominence.





    The item is pretty much the same as number 1 (above). This featured the following buckle (different):











    This buckle does not feature the top groove ont the back and there are also some differences in the typeface and words 'U.S. Divers CO':

    The letters are spaced further apart than the first example and the engraving is deeper. The letters also appear slightly narrower and taller. This is easiest to see in the 'O' of 'CO'. On the first example it is 'O' and on the second it is more like '0': O0.

    Here is the patent for this model of backplate:
    Patent US3033431.pdf





    I suspect the next two back plates are even older than the previous two but cannot fully substantiate this. I have based my opinion on the apparent crudity of the design and by comparing it to an earlier patent. Unfortunately neither of the next two bear a patent mark but they did seem to have more features in common with an earlier patent than the one above. The earlier patent (filed January 27th 1958 and granted 5th July 1960) is here for your info:

    Patent US2864361.pdf

    I've looked at quite a few old patent documents in this trail and there are others out there but the two provided illustrate the argument the best. The trouble with patent documents is that every document usually cites at least two other patents and before you know it you're miles off course.

    These examples were also in a far worse state than the other two and are truly filthy although that is less conclusive of their age than the patent docs. I do believe these are all original with one slight exception.

    3). Unbranded black back plate for twin tanks.




    The lower black fastener is almost certainly not original. The entire bolt and lower attachment look to be a replacement.



    The twin tankplate featured two buckles. They are unbranded but they are almost identical to the buckle of the second pack (2 – above) save that they have shinier finish. These buckles were in a hell of a state when I first got them and needed hours of clean up to get to this respectable state. I think they came up fairly well. These buckles were sewn into the harness and had to be cut out (both).

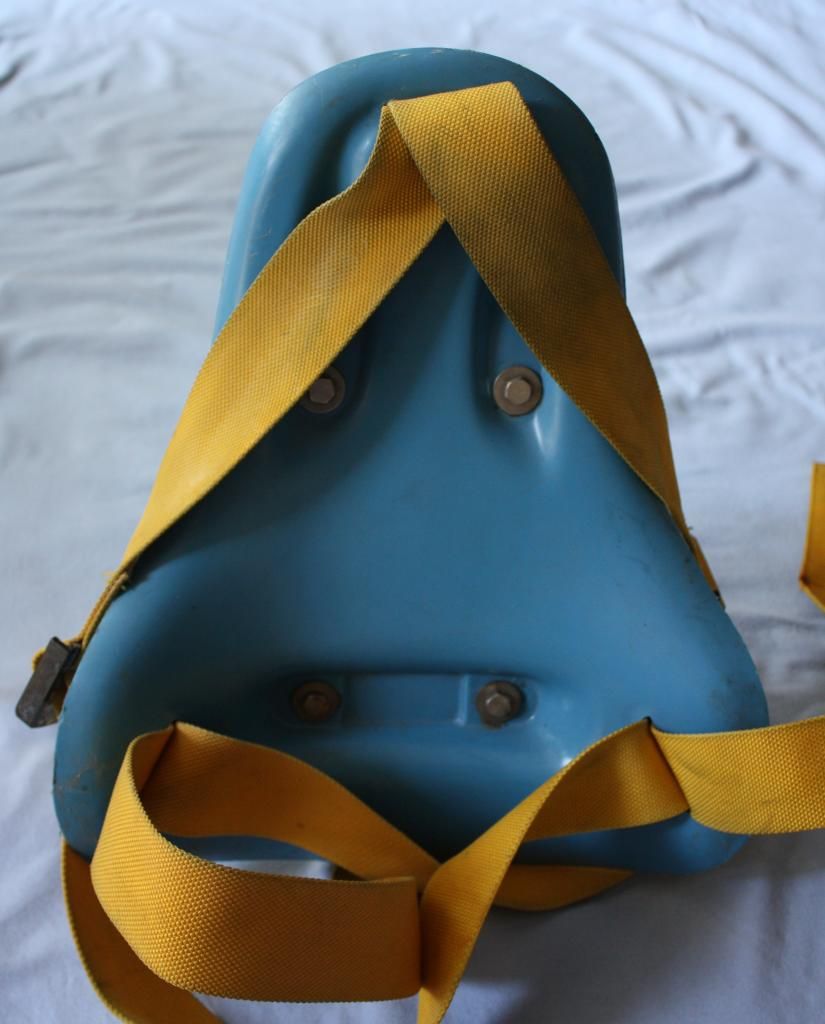

    4). Unbranded blue back plate for single tank.

    Despite being largley similar to the twin tank set up this plate appears to have a few refinements and improvements and is probably a slightly later design.





    Came with the same type of buckle as the first EZ plate (1 – above). Again this buckle had some serious clean up done.








    Here's a good old fashioned comparison between the two U.S. DIVERS variants alongisde the unbranded model and the Full Metal Fett replica which is, so far as I can tell, the best replica offering presently out there.

    Each buckle maintains it's relevant postion from left to right in every shot:

    Unbranded------>US DIVERS Pack 2------>US DIVERS Pack 1 with rear groove------>FMF Replica.









    and lastly as well as the two U.S. DIVERS CO variants and the unbranded older model there is at least one other know match for this part out there and that is the DACOR buckle; this one being the property of Deathproof and the photo's are reproduced with his kind permission - Cheers Aaron!











    Obviously the name is different but there are also some design features. The lift up flap has teeth to assist with grip and the underside has a groove similar (but differen)t to one of the U.S. DIVERS versions. These features would assist with grip considerably so this would appear a better design for intended purpose. The overall outward appearance appears to be pretty much identical to the other versions featured here so it really makes no odds which one you end up with; given that the buckle can barely been seen most of the time the version (or replica) you use will do the job nicely...

    Live the dream

    Andy
    Last edited by intwenothor; Apr 12, 2014 at 2:47 PM.
  2. DanzoFett's Avatar
    Member Since
    Sep 2009
    Posts
    526
    Apr 9, 2014, 2:14 PM - Re: Jetpack belt Buckle / U.S. DIVERS Buckle. #2

    Good work buddy :-)
  3. intwenothor's Avatar
    Member Since
    Oct 2009
    Posts
    671
    Apr 9, 2014, 2:27 PM - Re: Jetpack belt Buckle / U.S. DIVERS Buckle. #3

    Thanks Danzo, Some or maybe all of this info might have alreasy been put out but so many old threads have lost their images.
  4. Apr 9, 2014, 3:30 PM - #4

    Awesome thread. Will go through all the pics when I have my laptop,the phone just don't cut it.

    Did you ever come across any examples of the Supertrooper/PP1 version of the buckle in all your research? As far as I know no one has tracked one down yet.
    Quote Quote Posted from Android app
  5. thebeans's Avatar
    Member Since
    May 2012
    Posts
    459
    Apr 9, 2014, 3:49 PM - Re: Jetpack belt Buckle / U.S. DIVERS Buckle. #5

    Fascinating thread , excellent research and info
  6. RafalFett's Avatar
    Member Since
    Oct 2010
    Posts
    2,687
    Apr 10, 2014, 1:23 AM - Re: Jetpack belt Buckle / U.S. DIVERS Buckle. #6

    As always, you provide great info with amazing images! Thanks!
  7. intwenothor's Avatar
    Member Since
    Oct 2009
    Posts
    671
    Apr 10, 2014, 10:09 AM - Re: Jetpack belt Buckle / U.S. DIVERS Buckle. #7

    Thanks guys, I didn't find a PP buckle in my search but I wasn't looking and would have easily glanced over it even if seen.
  8. TheCaptain's Avatar
    Member Since
    Sep 2013
    Posts
    45
    Apr 22, 2014, 1:21 PM - Re: Jetpack belt Buckle / U.S. DIVERS Buckle. #8

    I recently bought an Aqua-Lung US Divers single tank harness.
    I don't have a model number or any info on it.
    What's interesting is that it had 2 US Divers buckles.
    Click image for larger version.

Name:	buckle harness.jpg
Views:	87
Size:	613.6 KB
ID:	76353

    I removed the web belts and one was sewn into a "V" on the top of the harness where it feeds through. (the other is just a straight belt)
    Click image for larger version.

Name:	belt.jpg
Views:	50
Size:	817.4 KB
ID:	76354

    The straight belt is 62 inches long, and the one with the "V" is 53 inches of usable belt (if cut at the "V")
    I know the belt texture isn't what was used on the Fett costume itself, but it's more than long enough to be used instead of the seatbelt style

    Here's the 2 buckles that came off of it
    Click image for larger version.

Name:	buckle1.jpg
Views:	27
Size:	548.5 KB
ID:	76363
    Click image for larger version.

Name:	buckle2.jpg
Views:	28
Size:	414.1 KB
ID:	76362


    and the buckle backs
    Click image for larger version.

Name:	buckleback.jpg
Views:	80
Size:	378.4 KB
ID:	76364
  9. intwenothor's Avatar
    Member Since
    Oct 2009
    Posts
    671
    Apr 24, 2014, 4:18 PM - Re: Jetpack belt Buckle / U.S. DIVERS Buckle. #9

    Excellent, these appear to share more in common with Aaron's DACOR buckle than either of the two marked U.S. DIVERS CO types that I found (apart from The writing of course).

    Andy
  10. TheCaptain's Avatar
    Member Since
    Sep 2013
    Posts
    45
    Apr 26, 2014, 5:35 PM - Re: Jetpack belt Buckle / U.S. DIVERS Buckle. #10

    I took some pictures of the 5 buckles that I have.
    Click image for larger version.

Name:	DSCF0544.JPG
Views:	66
Size:	2.57 MB
ID:	76465Click image for larger version.

Name:	DSCF0550.JPG
Views:	56
Size:	2.86 MB
ID:	76468Click image for larger version.

Name:	DSCF0547.JPG
Views:	48
Size:	2.86 MB
ID:	76469
    The first 4 are real US Divers and the fifth one is a BooBooFett replica.
    I say the first 4 are real because I bought 3 of them on scuba equipment. One of them was a forum purchase and I'm not sure that it is real.
    The one in question is the first one and it has a different font.
    Click image for larger version.

Name:	DSCF0553.JPG
Views:	36
Size:	2.82 MB
ID:	76467

    I find it interesting that all of theses buckle have slight variations, with only 2 matching each other. Those 2 were the ones I just purchased (seen in my previous post)
  11. intwenothor's Avatar
    Member Since
    Oct 2009
    Posts
    671
    Apr 26, 2014, 7:19 PM - Re: Jetpack belt Buckle / U.S. DIVERS Buckle. #11

    Awesome Cap. Do you mind if I add these images into the original post?

    Andy
  12. TheCaptain's Avatar
    Member Since
    Sep 2013
    Posts
    45
    Apr 26, 2014, 8:06 PM - Re: Jetpack belt Buckle / U.S. DIVERS Buckle. #12

    Go ahead, I don't mind


    Sent from my iPhone using Tapatalk
